Finished this guy up yesterday

Signed-In Members Don't See This Ad
See more from spindlecraft

spindlecraft

Member
Joined
Apr 6, 2014
Messages
30
Location
Philipsburg, PA

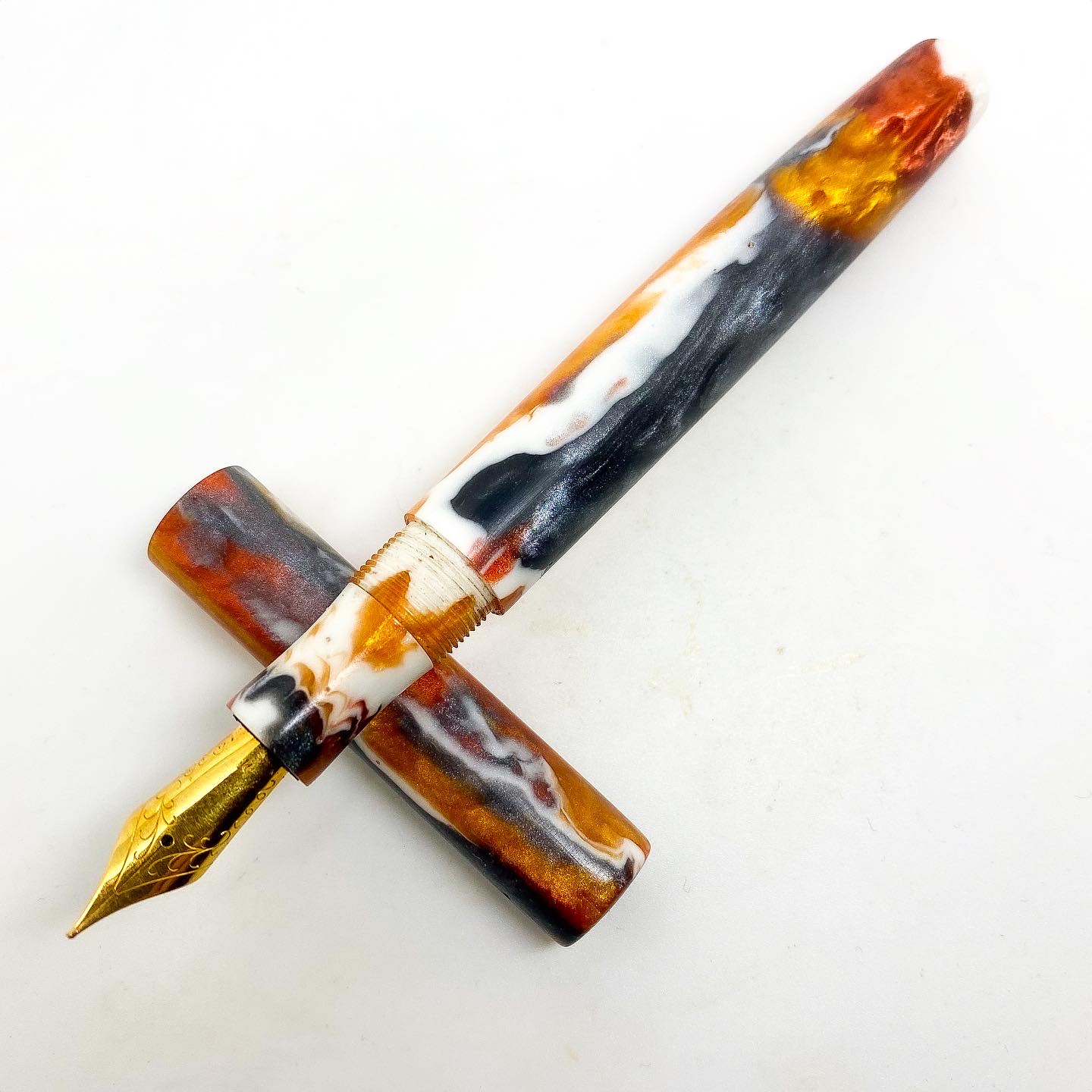

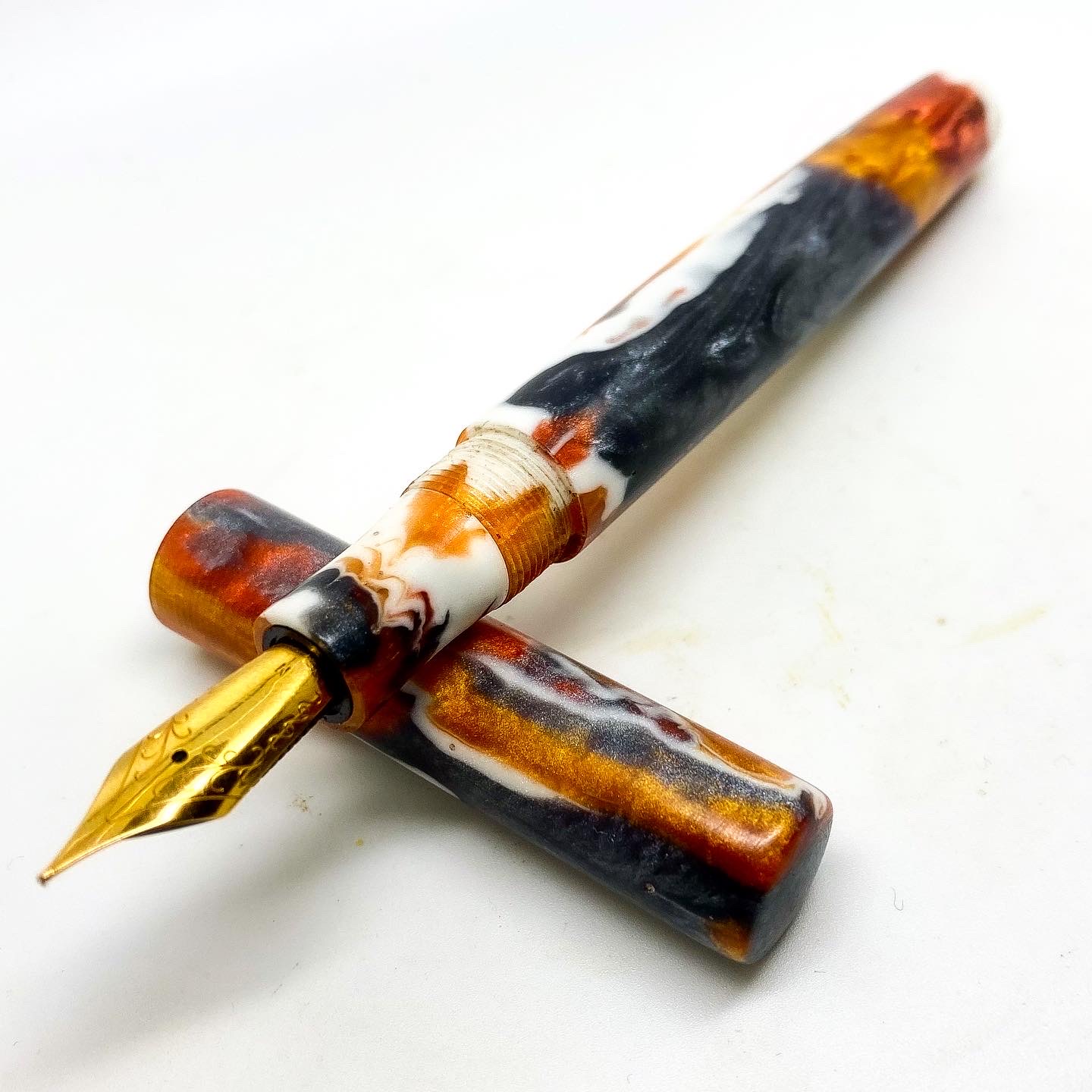

Kindly ignore the dirty threads. I still need to wipe it down. But this was a pen that I started and finished yesterday afternoon.

This one marks my second completed kitless pen, and while still not perfect, proved to be yet another learning experience.

I accidentally snapped the threads of the section on my first go, and miraculously was able to save it, by turning another tenon, threading it, and keeping all of the inner drillings in-tact.

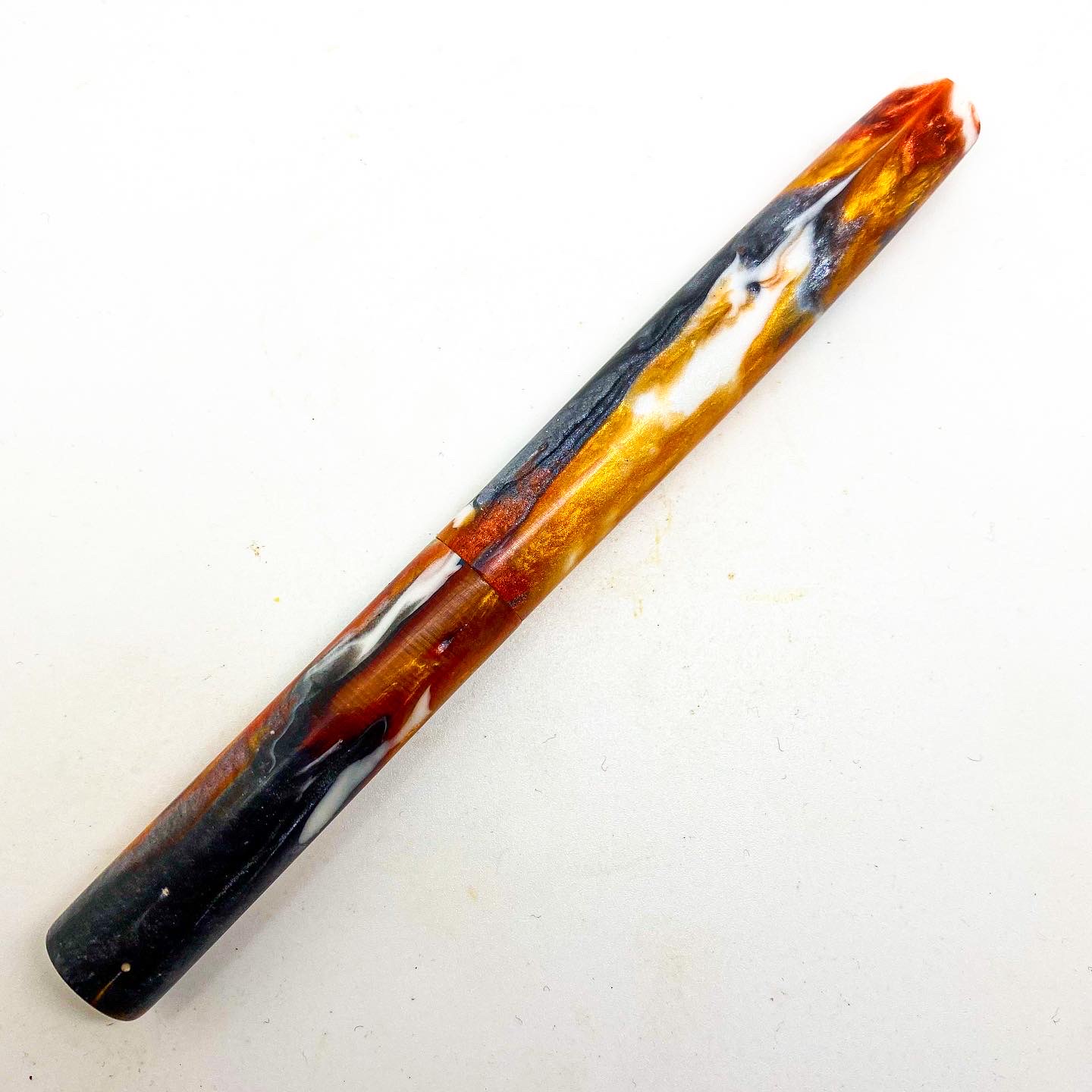

Another win with this one is getting the diameter of the cap & body of the pen the same (despite the patterns not matching up).

So - all-in-all, while I still have a long way to go, the process is getting easier for me now, and I am learning little nuances with each new attempt.

Signed-In Members Don't See This Ad

CjG78

Member
Joined
Feb 2, 2020
Messages
162
Location
Australia
Kindly ignore the dirty threads. I still need to wipe it down. But this was a pen that I started and finished yesterday afternoon.

This one marks my second completed kitless pen, and while still not perfect, proved to be yet another learning experience.

I accidentally snapped the threads of the section on my first go, and miraculously was able to save it, by turning another tenon, threading it, and keeping all of the inner drillings in-tact.

Another win with this one is getting the diameter of the cap & body of the pen the same (despite the patterns not matching up).

So - all-in-all, while I still have a long way to go, the process is getting easier for me now, and I am learning little nuances with each new attempt.
View attachment 247691View attachment 247692View attachment 247693
Very nicely done!

Joined
Mar 11, 2012
Messages
518
Location
Fuquay Varina, NC
Good save on the section! Matching the cap to body is trickier than it sounds since most people machine the threads into the body. The part that would match with the cap ends up inside the cap....
