Art Nouveau kitless fountain pen

Signed-In Members Don't See This Ad

Tiaan Burger

Member
Joined
Sep 27, 2015
Messages
15
Location
Pretoria

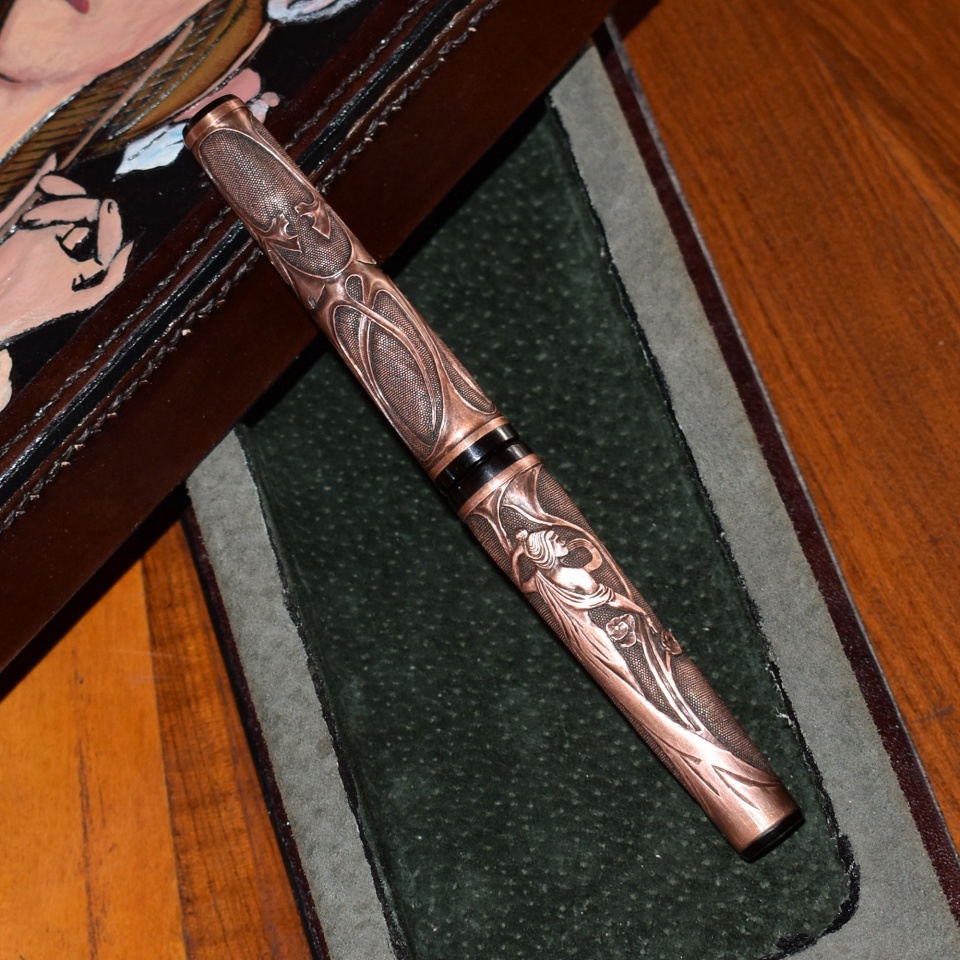

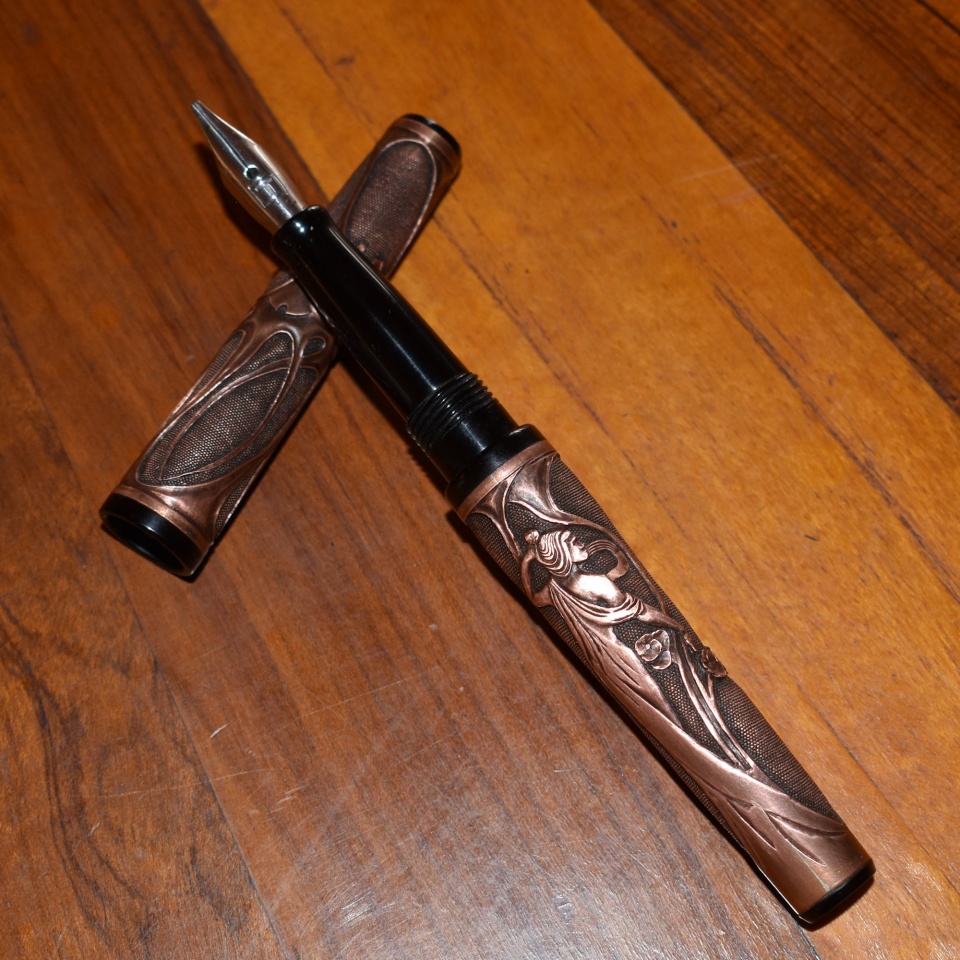

My latest attempt has an art nouveau theme, featuring a hand carved copper barrel and cap, with ebonite section. The pen took about two weeks to make and was finished about a week ago, then I spend two days on the box.

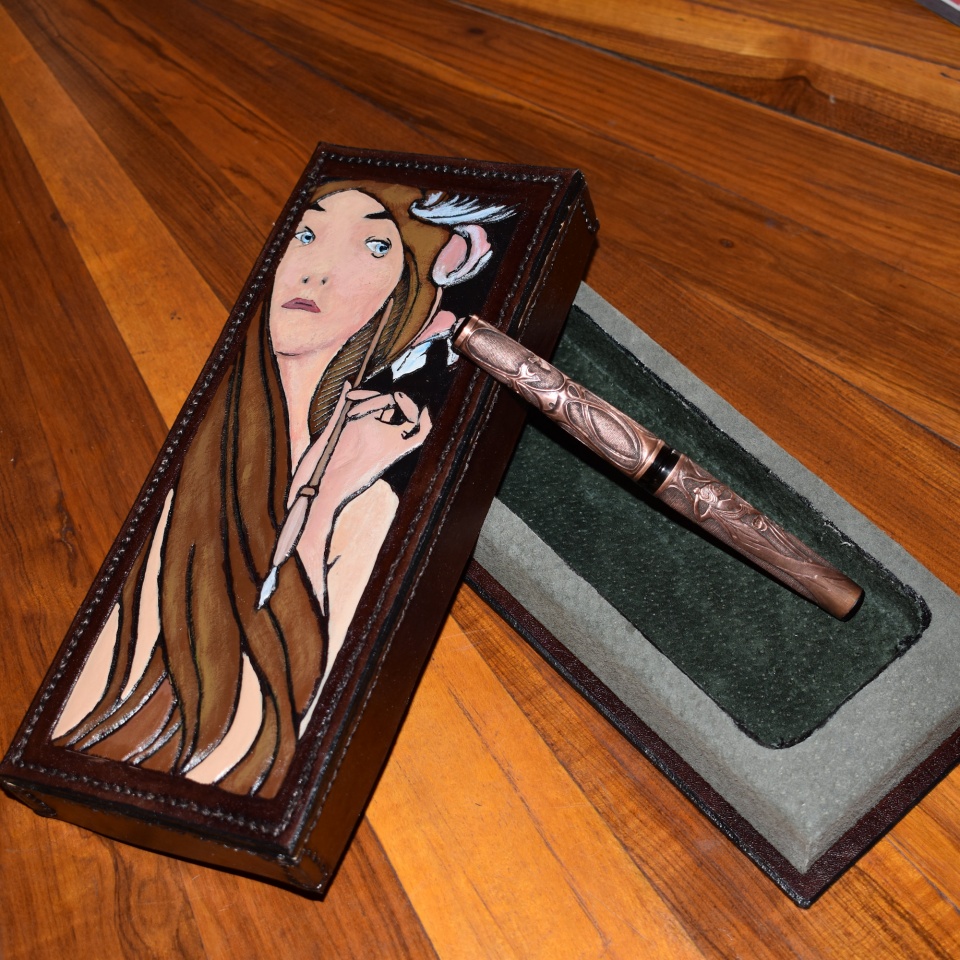

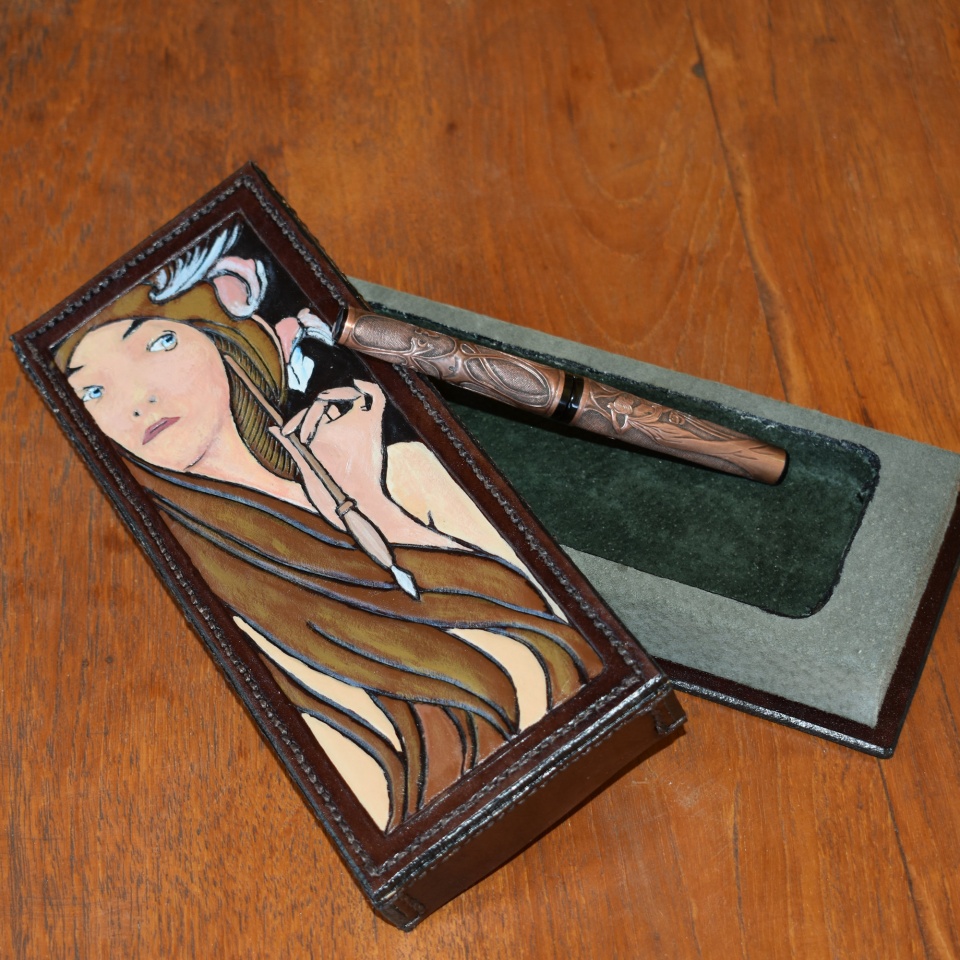

The leather box has a carved and painted top to match the theme of the pen.


Q&C welcome





Signed-In Members Don't See This Ad

More4dan

Member
Joined
Mar 17, 2016
Messages
1,385
Location
Katy, TX
That is AMAZING!!! What do you use to carve the copper? And what nib are you using? Copper electroplated Stainless steel would look cool after patina with this pen.

The box is a work of art in itself. Thanks for sharing.

Danny

Sent from my iPhone using Penturners.org mobile app

Last edited:

Tiaan Burger

Member
Joined
Sep 27, 2015
Messages
15
Location
Pretoria
That is AMAZING!!! What do you use to carve the copper? And what nib are you using? Copper electroplated Stainless steel would look cool after patina with this pen.

The box is a work of art in itself. Thanks for sharing.

Danny

Sent from my iPhone using Penturners.org mobile app
Thank you Danny. I use traditional hammer and chisel techniques to carve metal. I use stainless steel nibs and ebonite feeds which I make myself.


mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
7,968
Location
Medina, Ohio
A stunning piece of work Tiaan. Seeing what you have to work with is also especially telling of your skills and artistry. I wish you the best to keep up this work - very nice to see.


Tiaan Burger

Member
Joined
Sep 27, 2015
Messages
15
Location
Pretoria
I stand among the choir and sing in harmony.
Beautiful work. I'm in awe.
Do you make these for yourself or do you sell to discerning buyers?
Thank you Pete. I already own several of my pens, but am using only one, giving the nib a good run to see if I can wear it out. So all my pens are made to be sold.


Lucky2

Member
Joined
Mar 2, 2012
Messages
813
Location
New Brunswick/ Canada
My word, what an absolute beauty, and over the top skills on display here. You have some amazing pen-making and carving abilities, thank-you ever so much for sharing your talents with usall

Len


jfr

Member
Joined
Apr 14, 2014
Messages
24
Location
fairfield ia

Chief TomaToe

Member
Joined
Oct 6, 2017
Messages
182
Location
Bloomington, Indiana
I am DYING to know how you make your own nibs and feeds. Those look like professional level nibs and I would like to see that pen in action. I can certainly understand if that is propietary information though. All parts of this pen show the signs of a master craftsman!


Tiaan Burger

Member
Joined
Sep 27, 2015
Messages
15
Location
Pretoria
I am DYING to know how you make your own nibs and feeds. Those look like professional level nibs and I would like to see that pen in action. I can certainly understand if that is propietary information though. All parts of this pen show the signs of a master craftsman!
Thank you. None of it is proprietary information, I gleaned it all from various websites including this one.

Here is a link to an album on my FaceBook page where I show the steps most of my work goes through:
https://www.facebook.com/pg/tsquaredfp/photos/?tab=album&album_id=2196137163767239

I found a video about an old bloke in India who makes nibs by hand, so I just copied his processes.
https://youtu.be/3xkOETcaVSk

I can't use gold though as work with gold in South Africa requires a very expensive permit, so I use a high nickel stainless steel, the nickel in the alloy reduces wear by huge amount.
I tried titanium at first, it makes a fine nib but wears out within days of heavy use. My own pen, fitted with one of my stainless nibs, is still writing smoothly after five months of daily use.

Cutting threads was a pain, and I did not want to wait for imported taps and dies, so I copied the Japanese way of cutting threads, using a hand held cutter and a foot powered spindle to turn and move the work forwards against the cutter by the right distance. I had to make my own cutters and spindles though.

Here is a link to a playlist on YouTube with some of the videos I learned from:
https://www.youtube.com/playlist?list=PLiIZr8XyIsO51jZKNuhwIyzvjtT-XPhha

Hope this helps. I'll try to document the making of my pens a bit better, the videos will be posted on this channel if you want to subscribe:
https://www.youtube.com/channel/UC8dXqPfLpTa7p1P3tRgR5WQ
