Wanted Boring Bar holder

Signed-In Members Don't See This Ad

Dalecamino

Member
Joined
Jan 2, 2008
Messages
13,935
Location
Indianapolis, In.
Looking for a boring bar holder for 7x mini metal lathe, with a 3/8ths shank that will fit into the channel of this type of tool holder.

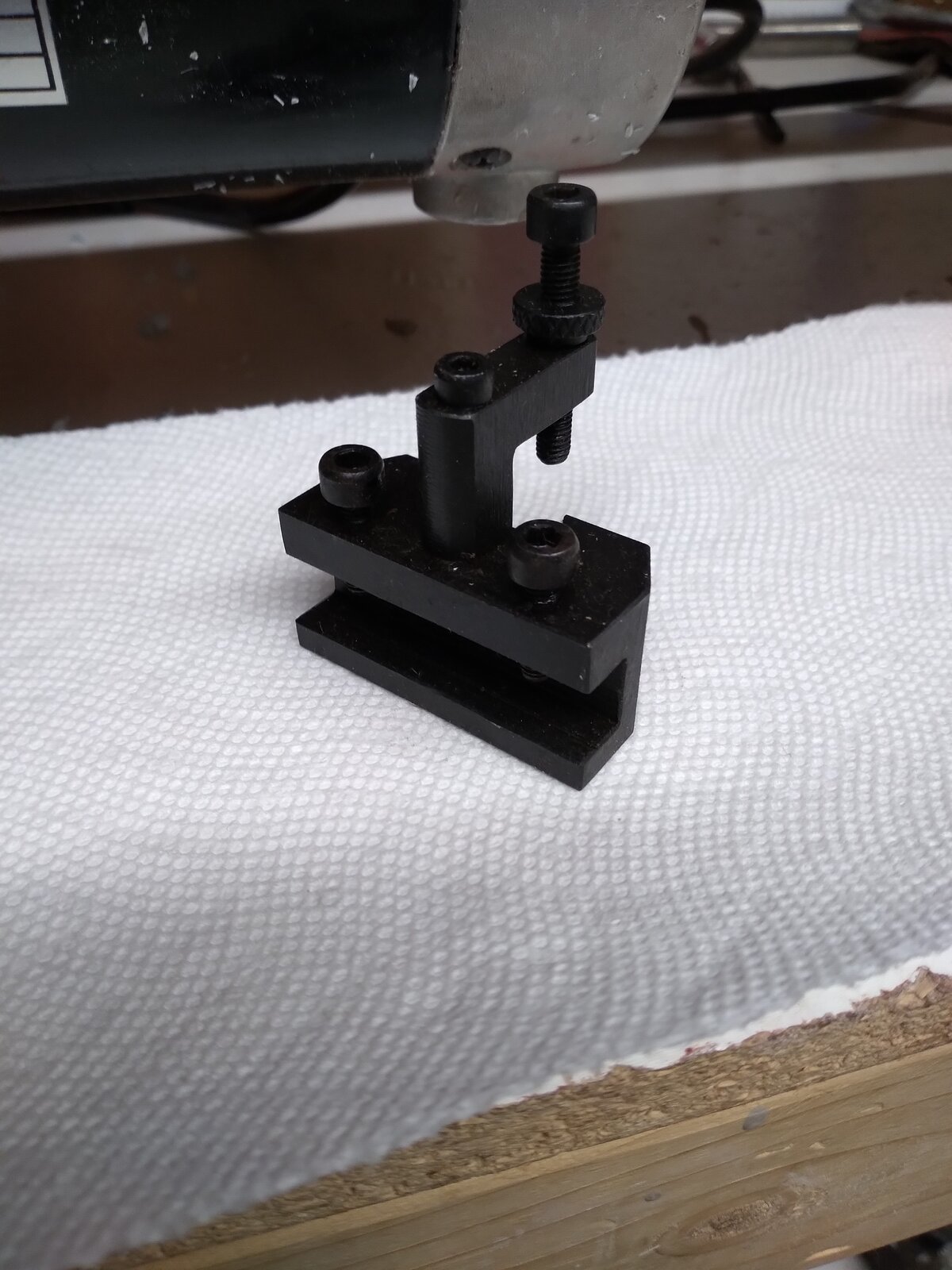

tool holder1.jpg

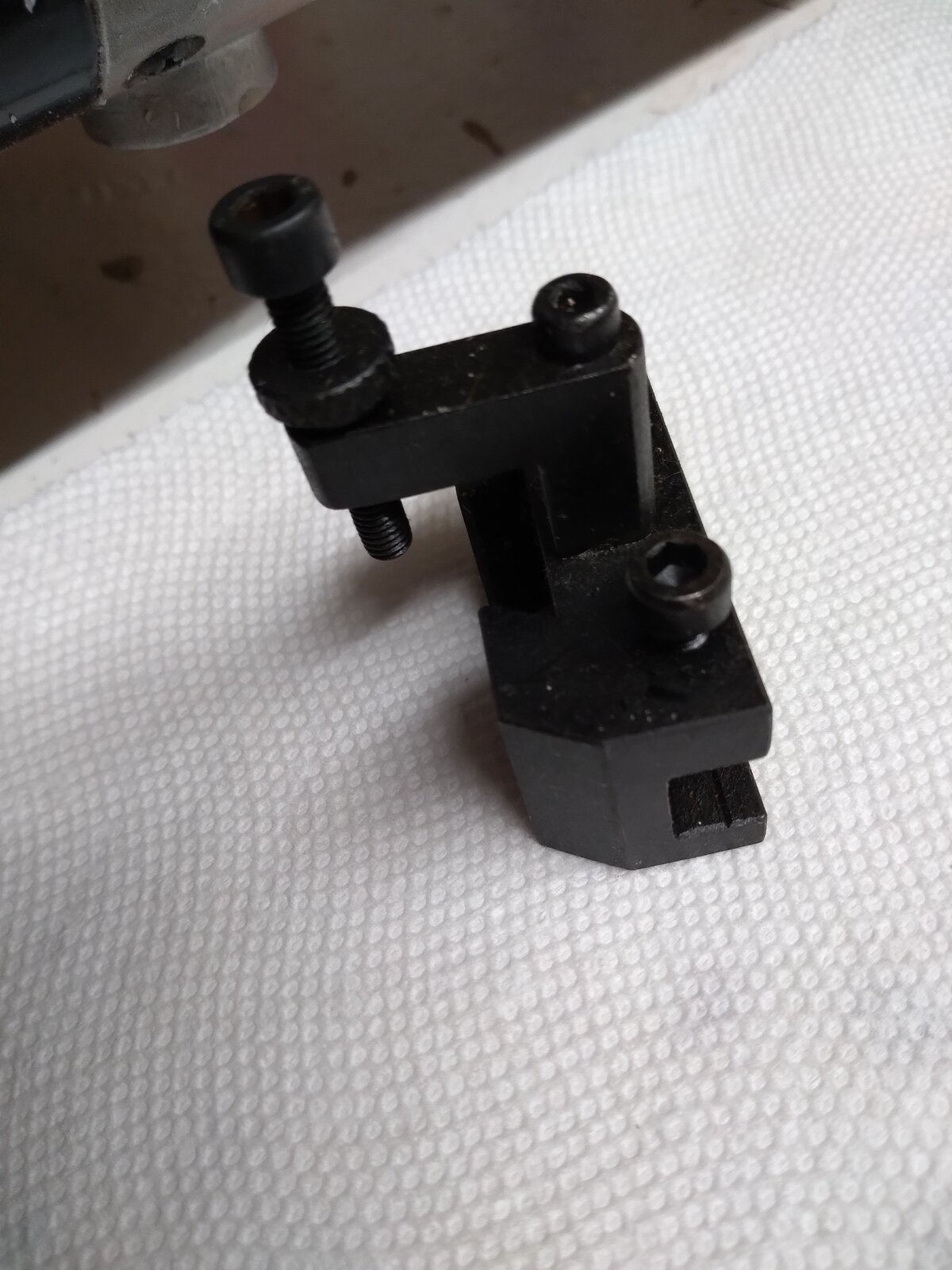

tool holder2.jpg

Signed-In Members Don't See This Ad

Dalecamino

Member
Joined
Jan 2, 2008
Messages
13,935
Location
Indianapolis, In.
Chuck,
If that toolholder fits a standard OXA QCTP why not just buy an OXA boring bar holder like this?

Bill
Thanks Bill. I called them today. They have the tool holder like mine, but no boring bar holder. I'm thinking the guy would have told me the one you show would work if in fact it would. I think because the V slot is different.


gimpy

Member
Joined
Mar 10, 2012
Messages
2,207
Location
Danville, Pa


1shootist

Member
Joined
Dec 2, 2018
Messages
819
Location
Frisco,Tx

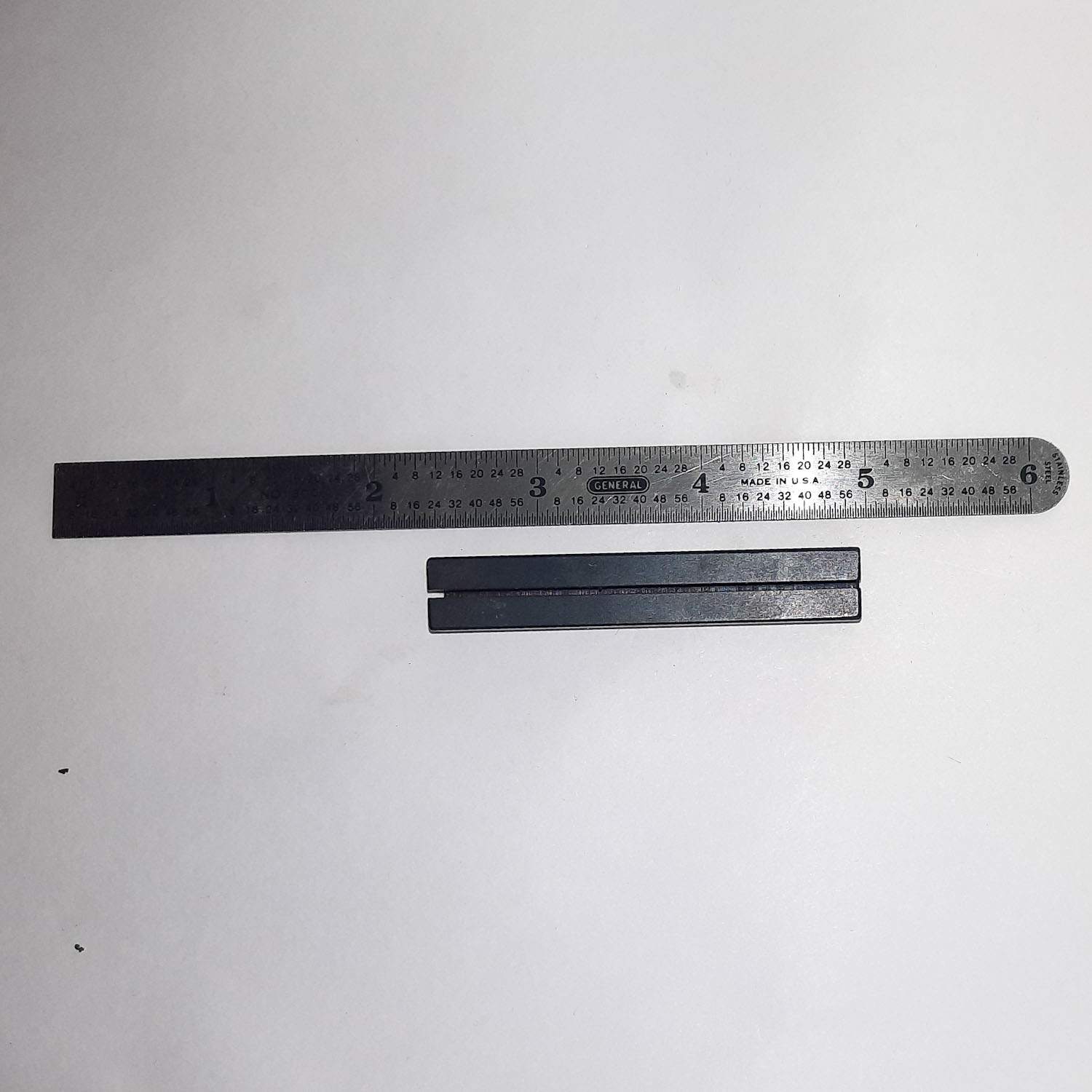

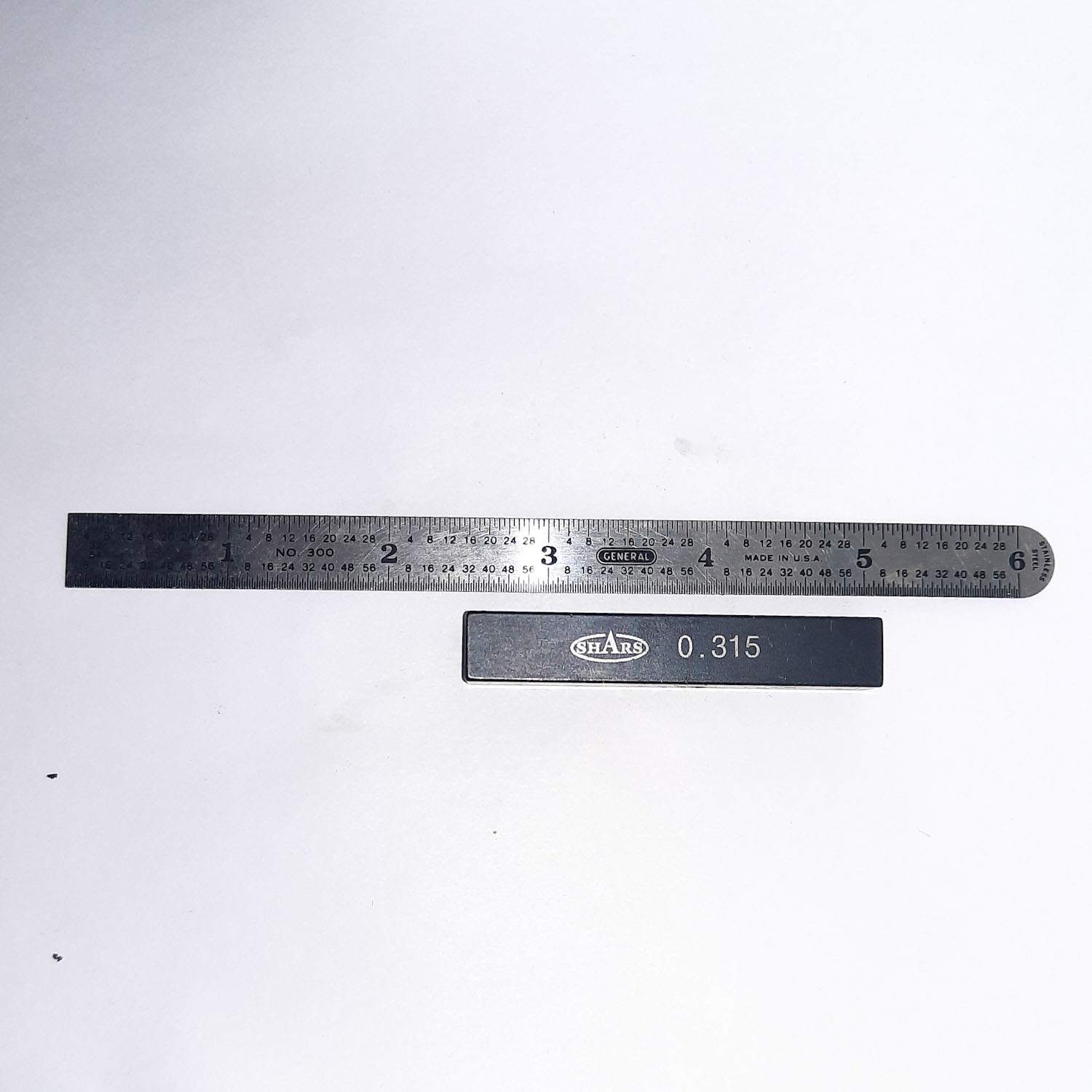

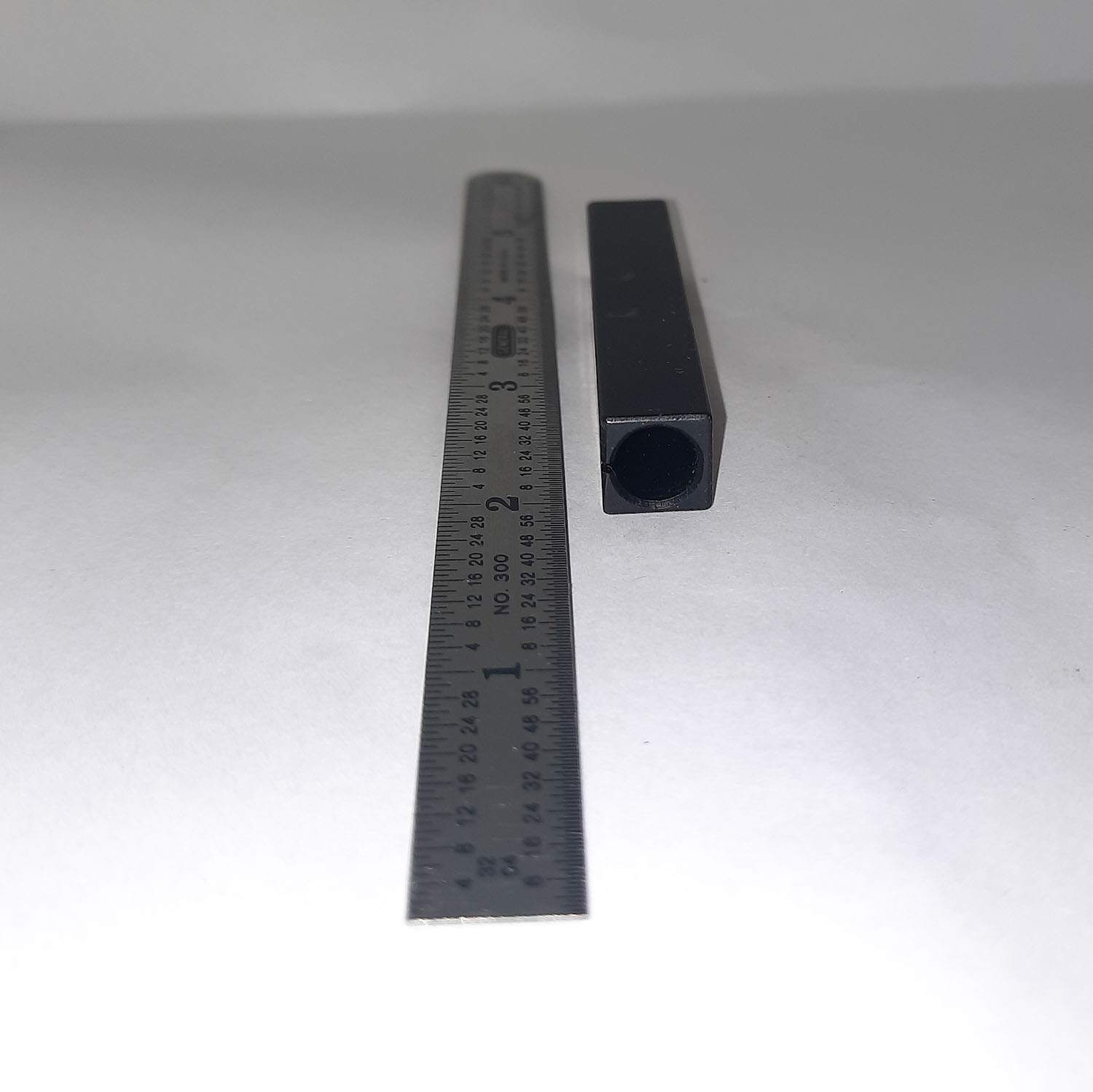

Chuck...something like this ? This is a boring bar holder from shars i got from them sometime back and never used it, it was in one of their cutting kits... If this will work for you send me a DM with your address and i'll ship it to you.


howsitwork

Member
Joined
Jul 9, 2016
Messages
1,410
Location
Thirsk
The one Russel shows above is the one I would go with.

You could make your own but , as he’s being so generous why bother, and it may be hardened too ?


Dalecamino

Member
Joined
Jan 2, 2008
Messages
13,935
Location
Indianapolis, In.
Thanks Terry. Rick made a special tool for me. But he says he hasn't seen a holder like mine.


Dalecamino

Member
Joined
Jan 2, 2008
Messages
13,935
Location
Indianapolis, In.
Thanks for your offer Russel. Thanks to Ian for comments. Not finding even any tool holders like mine anywhere on the net, I broke down and ordered a new set of OXA tool post and holder. That hurt but at least I'll be back in business in my shop.
Thanks to all for replies!


darrin1200

Member
Joined
Mar 17, 2010
Messages
1,435
Location
Lyn, Ontario, Canada
@Dalecamino I don’t think the type of holder you have is relevant. It’s the opening in the side that is critical to what will fit. It’s also possible, that the holder you have will take a boring bar on its own.
When I got the tool holders for my lathe, I bought two types. One is a “turning/facing tool holder” and the other is a “Boring/turning/facing toolholder”. The only difference, is that there is a V groove in the second one, which keeps the round boring bar in place. Looking at your picture, I think yours has the same V groove.


Dalecamino

Member
Joined
Jan 2, 2008
Messages
13,935
Location
Indianapolis, In.
@Dalecamino I don’t think the type of holder you have is relevant. It’s the opening in the side that is critical to what will fit. It’s also possible, that the holder you have will take a boring bar on its own.
When I got the tool holders for my lathe, I bought two types. One is a “turning/facing tool holder” and the other is a “Boring/turning/facing toolholder”. The only difference, is that there is a V groove in the second one, which keeps the round boring bar in place. Looking at your picture, I think yours has the same V groove.
Thanks Darrin. My round bar is 1/2" diameter. The opening in these tool holders is 7/16" I could have it milled, but don't think it's worth the trouble.


duncsuss

Member
Joined
Jun 29, 2012
Messages
1,694
Location
Wilmington, MA
AA, MSC, QCTP? Lots of acronyms here. How about some definition for all the dumb A$$'$ like me! Sorry Chuck, this might be an inside joke that is way over my head.
QCTP = quick change tool post (they tell me it's a metal lathe thing)
MSC = MSC Industrial Supplies, one of the big tool vendors (along with Grainger and MacMaster-Carr)
AA = no idea! ;)


howsitwork

Member
Joined
Jul 9, 2016
Messages
1,410
Location
Thirsk
Absolutely you count. I never needed a bar. Just a working refrigerator. 😊
Give me a large coffee and a bar of cadbury mile chocolate to assist in my musings anytime. Bit concerned that Cadbury has started to change receipe recently .
