Pluma pen assembly

Signed-In Members Don't See This Ad

qquake

Member
Joined
Feb 8, 2004
Messages
1,946
Location
Northern California
I was looking at the instructions for the Pluma pen, and I'm confused. It says, "Press the Clip Assembly Coupler (E) flush, tapered end first into the open end of the Blank/Tube (C) assembly. Next slide Clip (F) onto Transmission Coupler (H) followed by the Trim Ring (G) and press the assembly into the open end of the Blank/Tube Assembly (C)." So are you supposed to press H in on top of E, pushing E farther into the tube? It doesn't make sense to me.



Signed-In Members Don't See This Ad

Timber Ripper

Member
Joined
Dec 28, 2017
Messages
369
Location
Burlington, NJ
This is right off the Woodcraft site under Customer Care. I would give them a call.
TALK TO AN EXPERT
Get advice on the latest products and help with your projects. 1-800-535-4486


eharri446

Member
Joined
Mar 17, 2016
Messages
857
Location
Marietta, GA
I have a couple of these kits and determined after talk with the manager at my local Woodcraft store, that the little center band and two blanks could be replaced with a shortened Sierra sized blank. The reason that I have not turned the kits that I had were the double blanks being so short.

However, after learning that I could use a 27/64 blank of a similar size to the Sierra family I will be turning them.

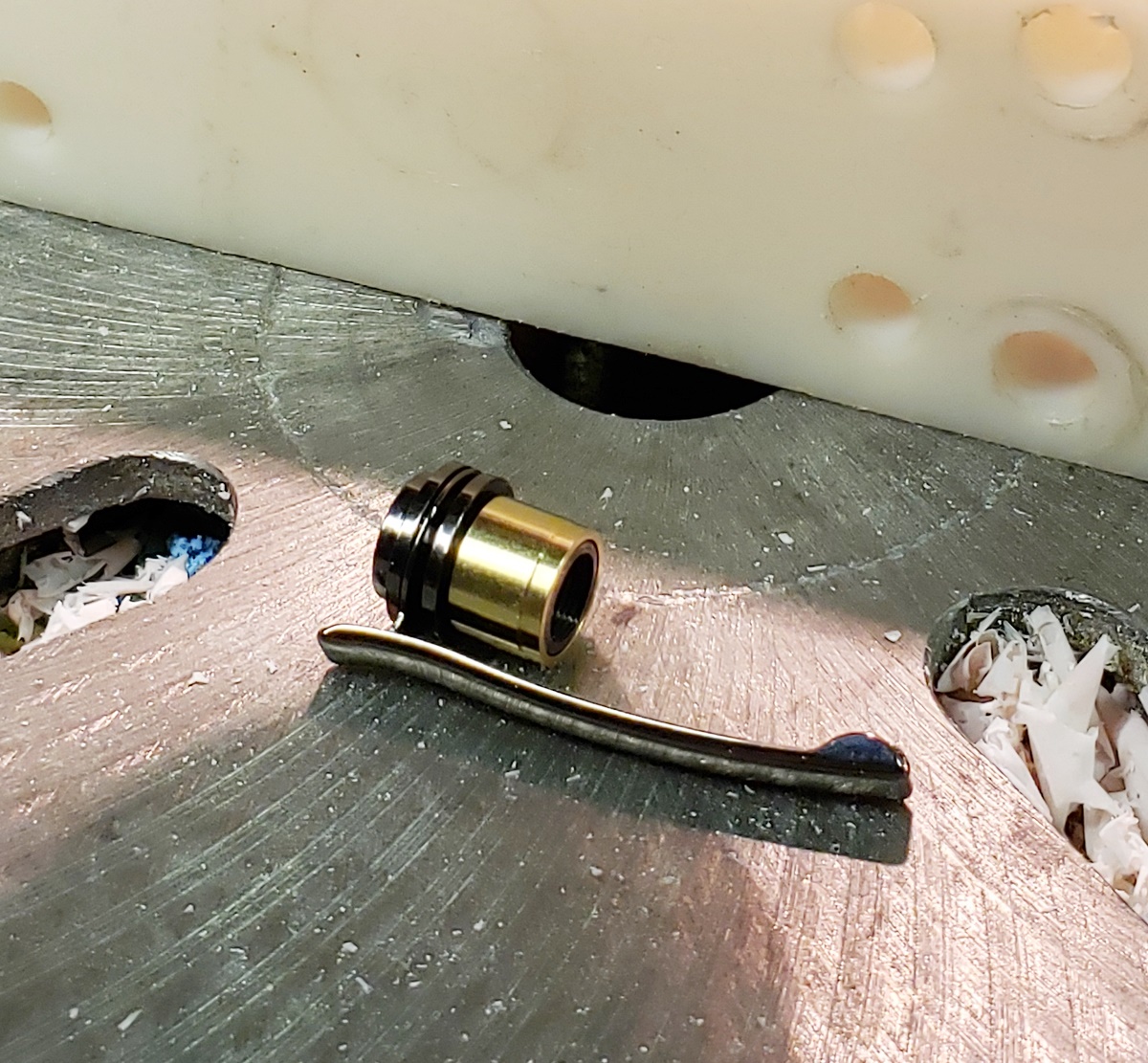

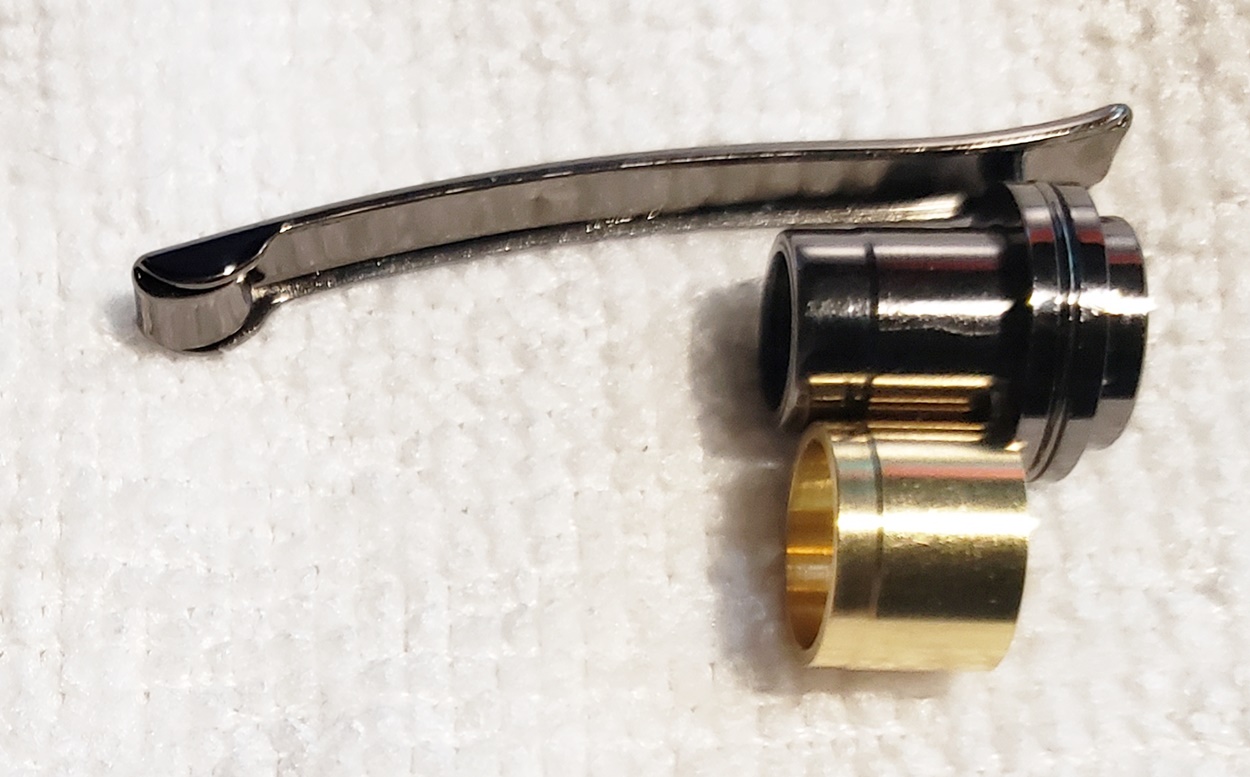

I know that this does not answer the question. However, what I saw when I looked at the instructions is that parts E, G, F, and H can be assembled as one unit and then pressed into the tube. The end cap presses onto the transmission which screws into the E,G,F,H assembly.

On these kits where the nib can be unscrewed to replace the refill, I use a drop of super glue to hold the transmission threads tight. This prevents the transmission from unscrewing if the customer turns the end cap to far when retracting the refill into the pen body.


Edgar

New Member Advocate
Joined
Feb 6, 2013
Messages
5,768
Location
Alvin, TX 77511

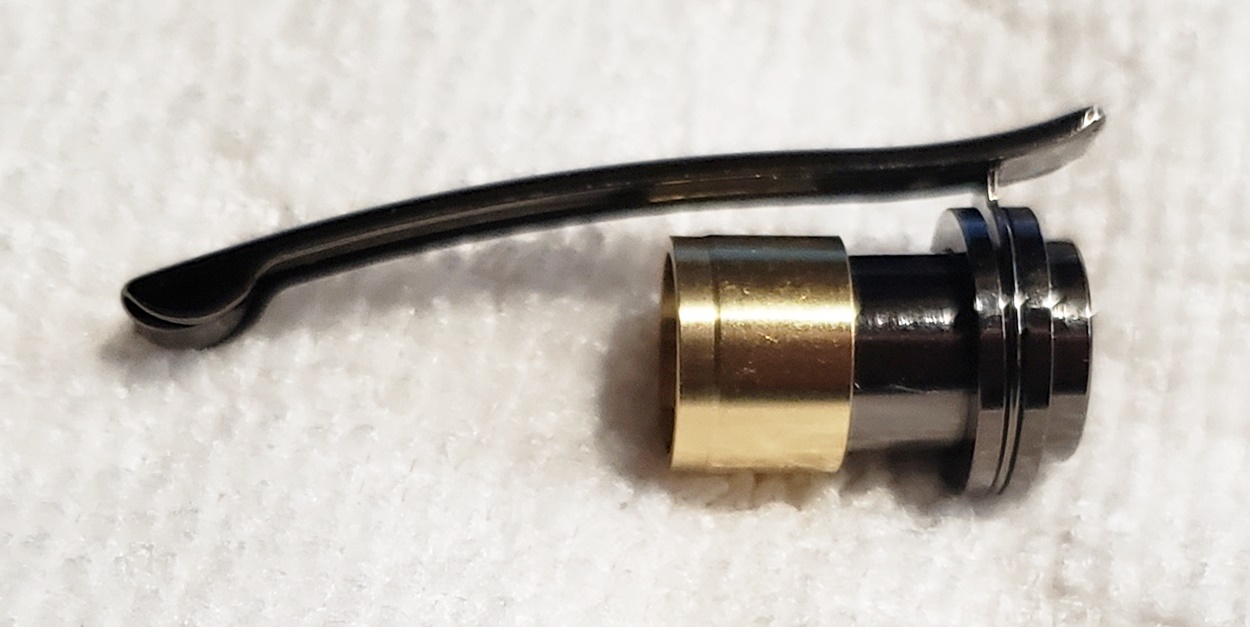

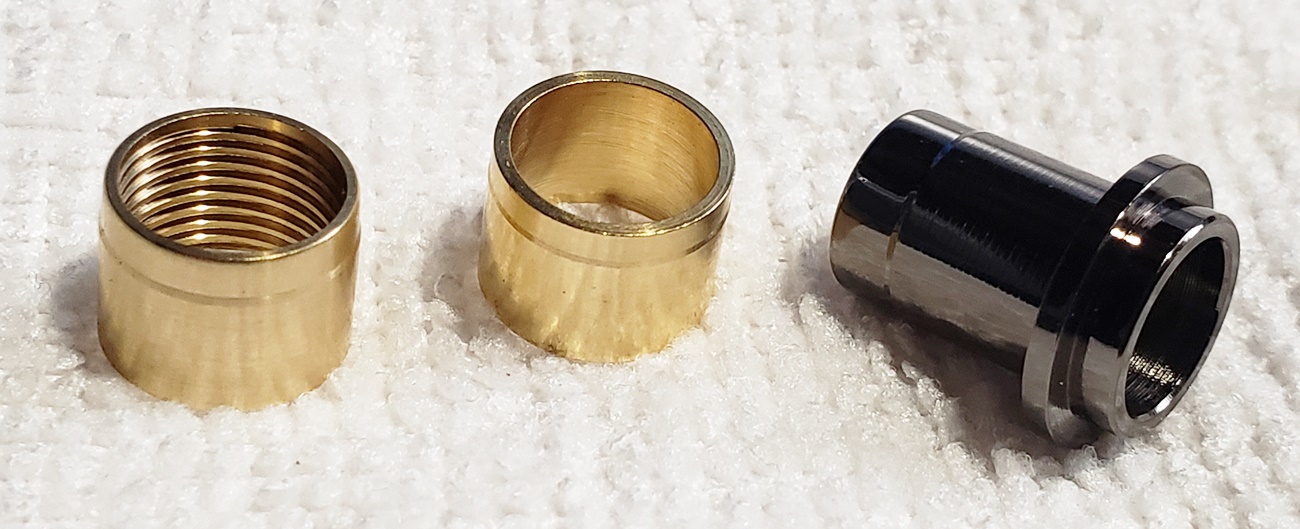

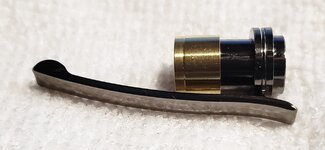

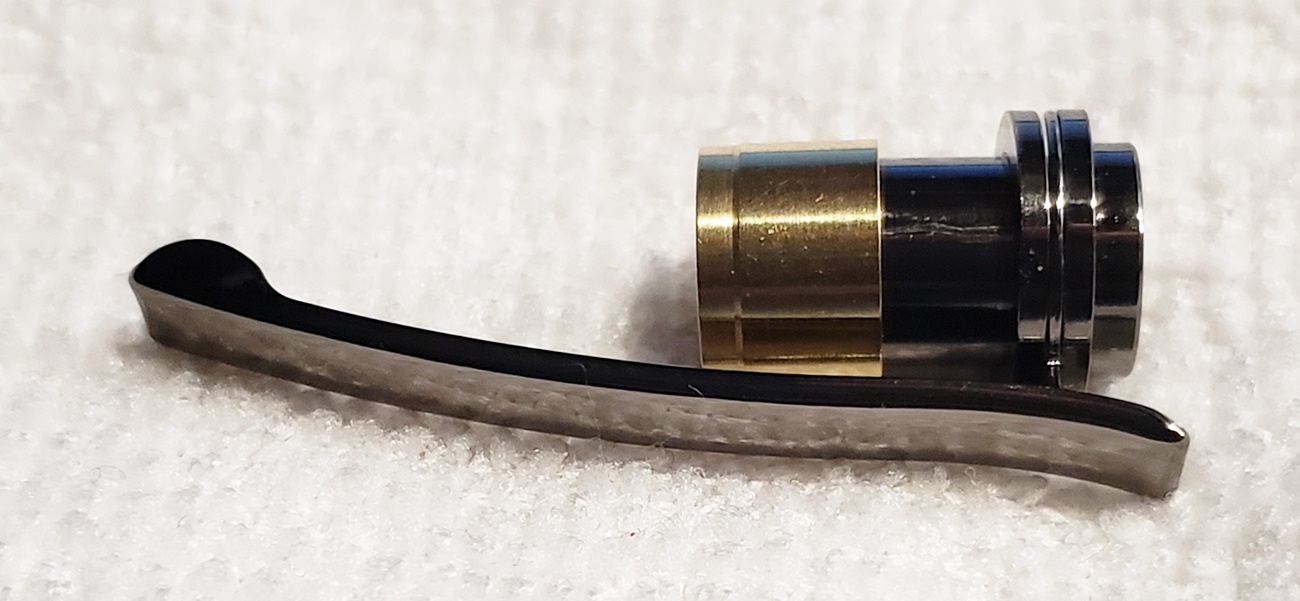

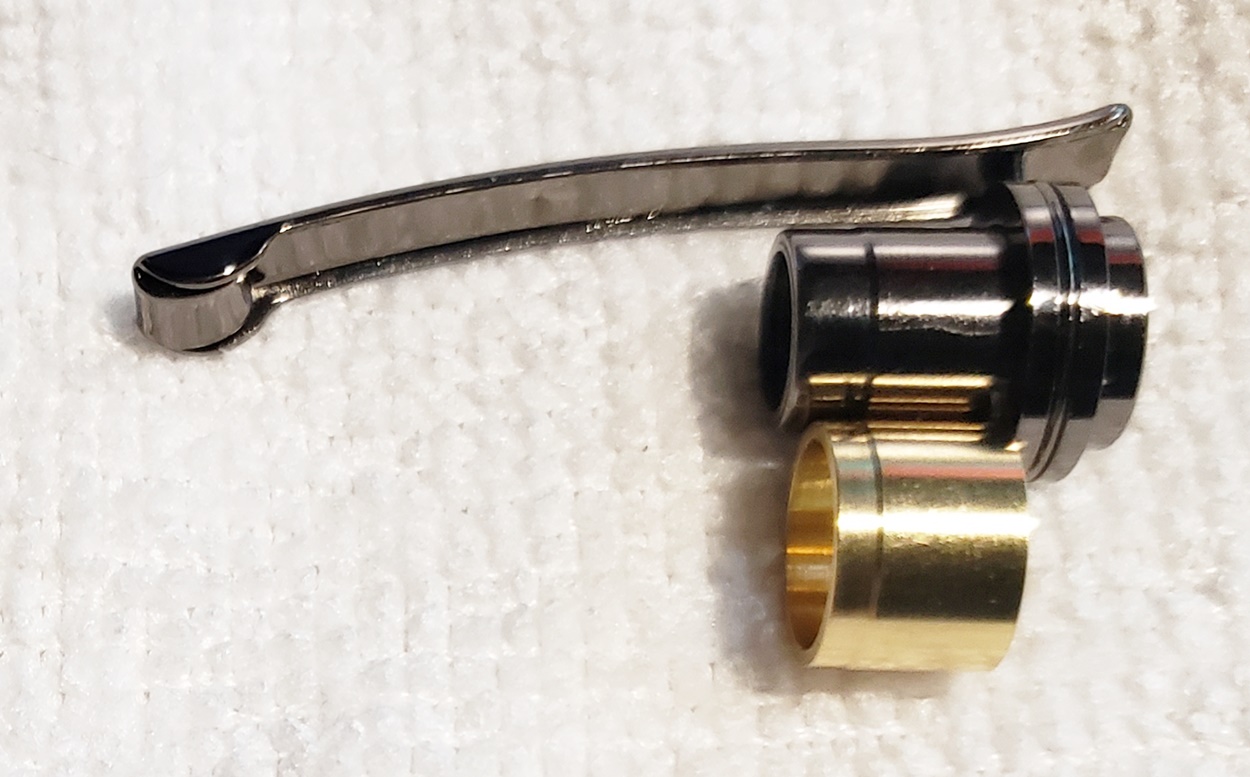

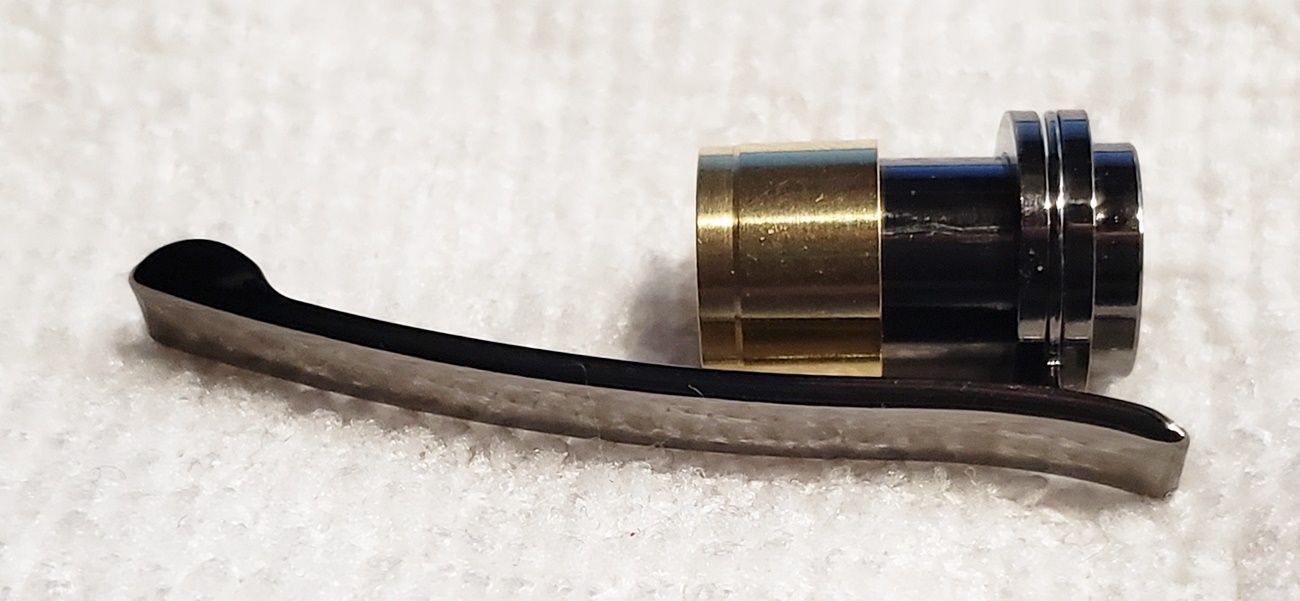

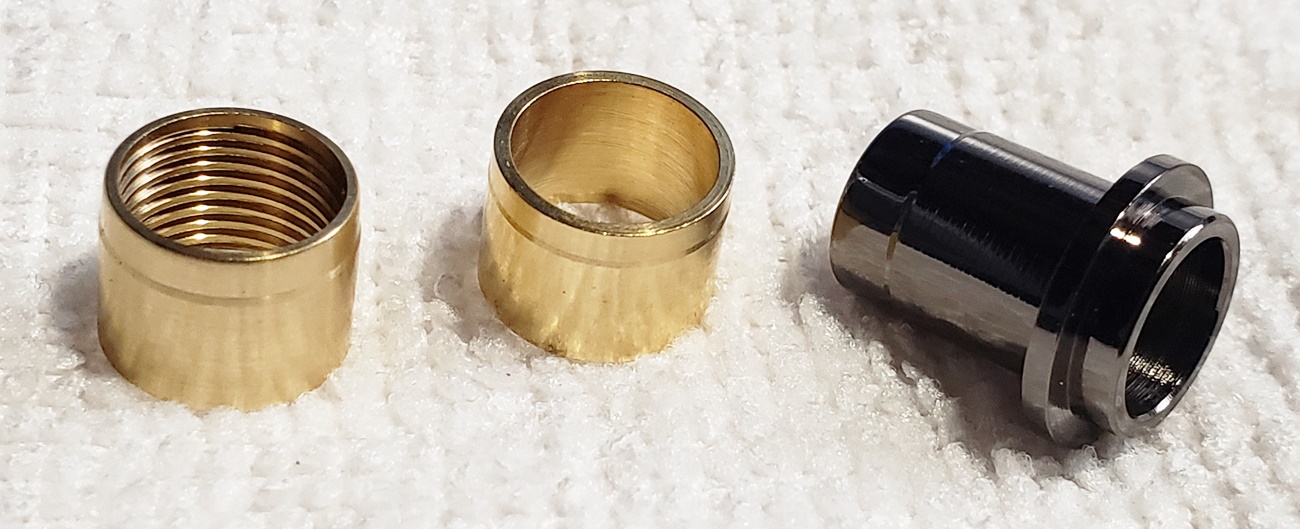

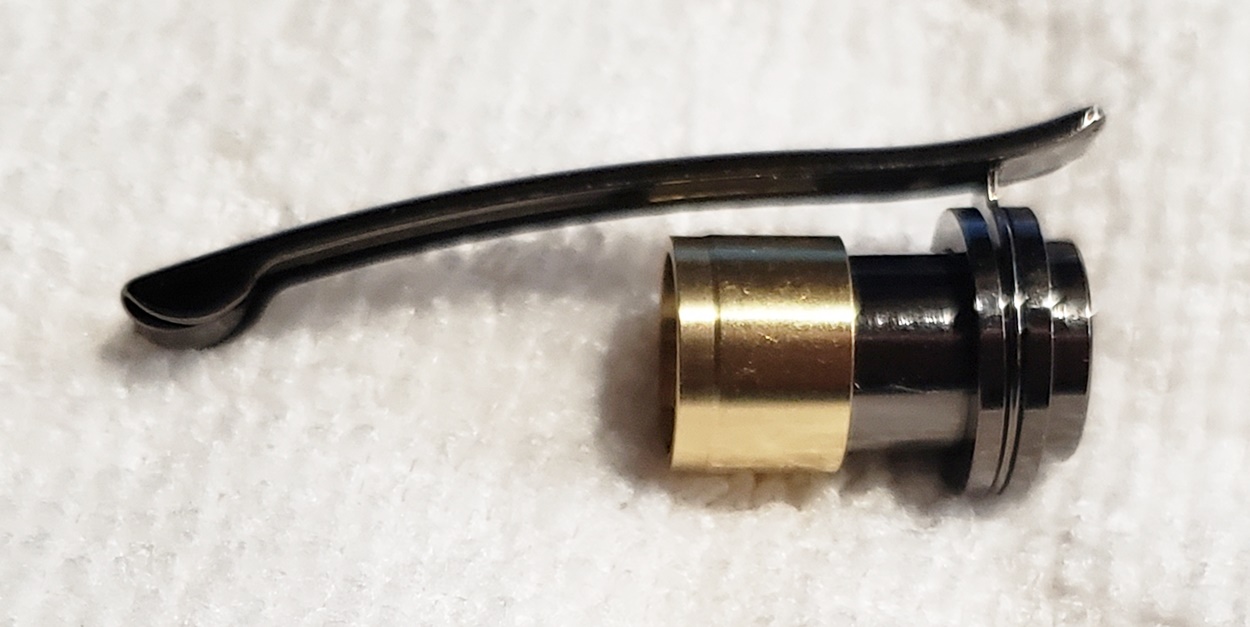

E isn't threaded. H fits into E, but is a friction fit. I'm thinking I should press H into E, then press the entire clip assembly into the pen body.
That’s basically what the Berea instructions for the Pensar say to do. Either approach should work, but I would probably go with the Pensar instructions also.


qquake

Member
Joined
Feb 8, 2004
Messages
1,946
Location
Northern California
Actually, they say to press the non-threaded adapter into the pen, then press the clip assembly into it. But I'm afraid if I do it that way, it might push the adapter deeper into the tube and not go into the adapter deep enough. I know that sounds confusing, but I know what I'm trying to say. 😜


Edgar

New Member Advocate
Joined
Feb 6, 2013
Messages
5,768
Location
Alvin, TX 77511
Actually, they say to press the non-threaded adapter into the pen, then press the clip assembly into it. But I'm afraid if I do it that way, it might push the adapter deeper into the tube and not go into the adapter deep enough. I know that sounds confusing, but I know what I'm trying to say. 😜

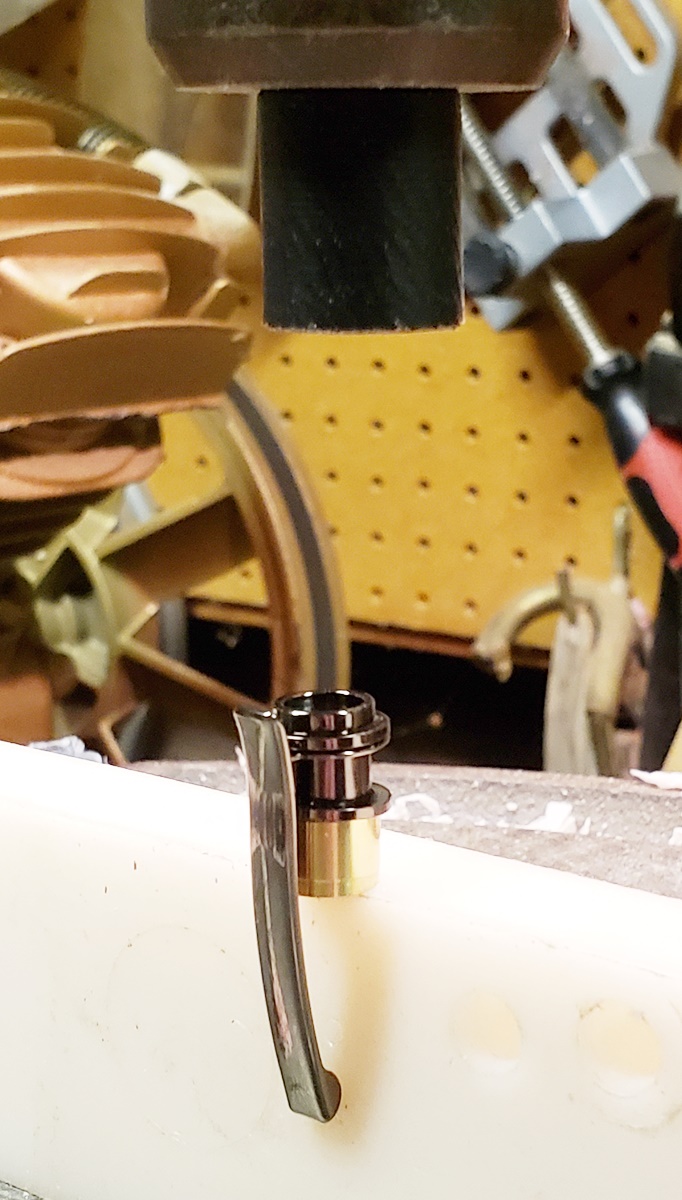

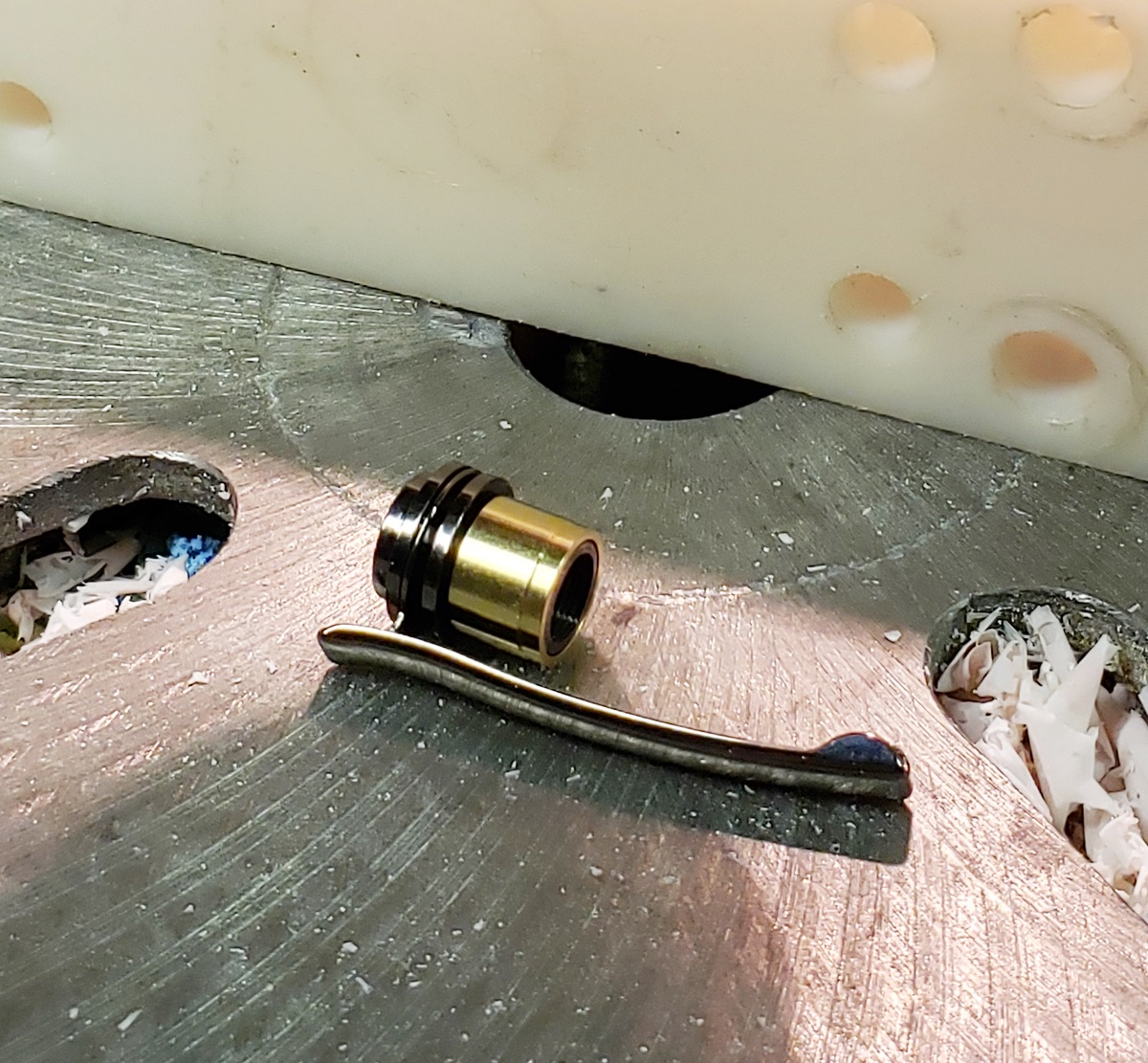

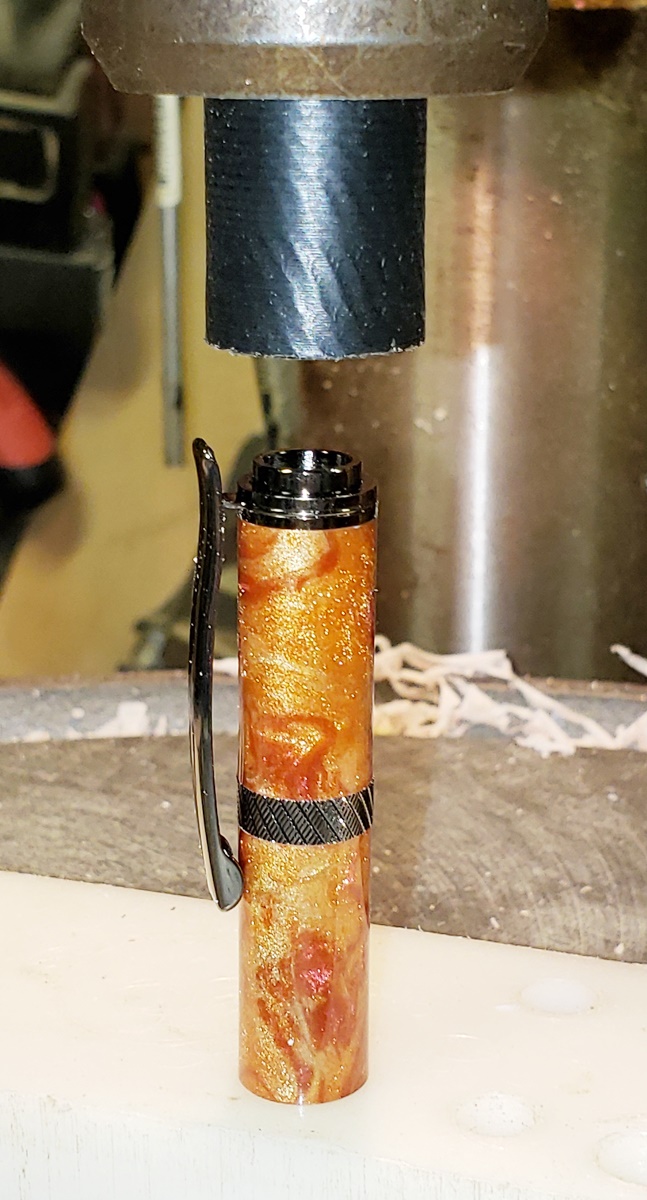

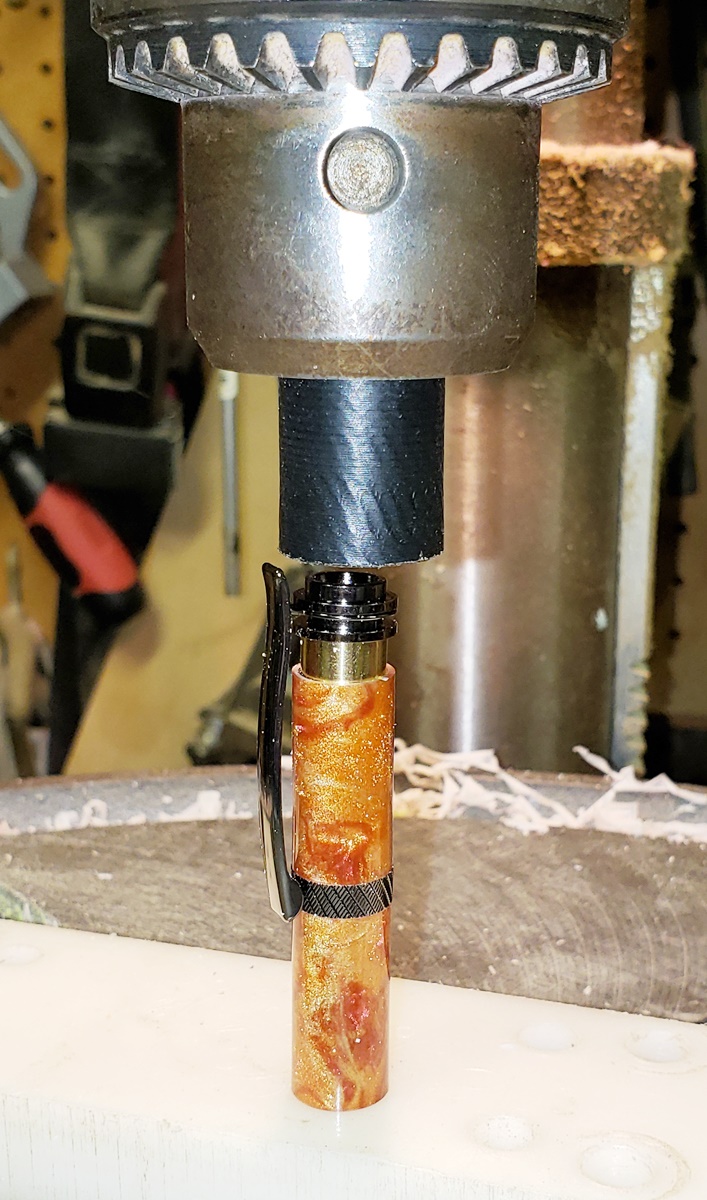

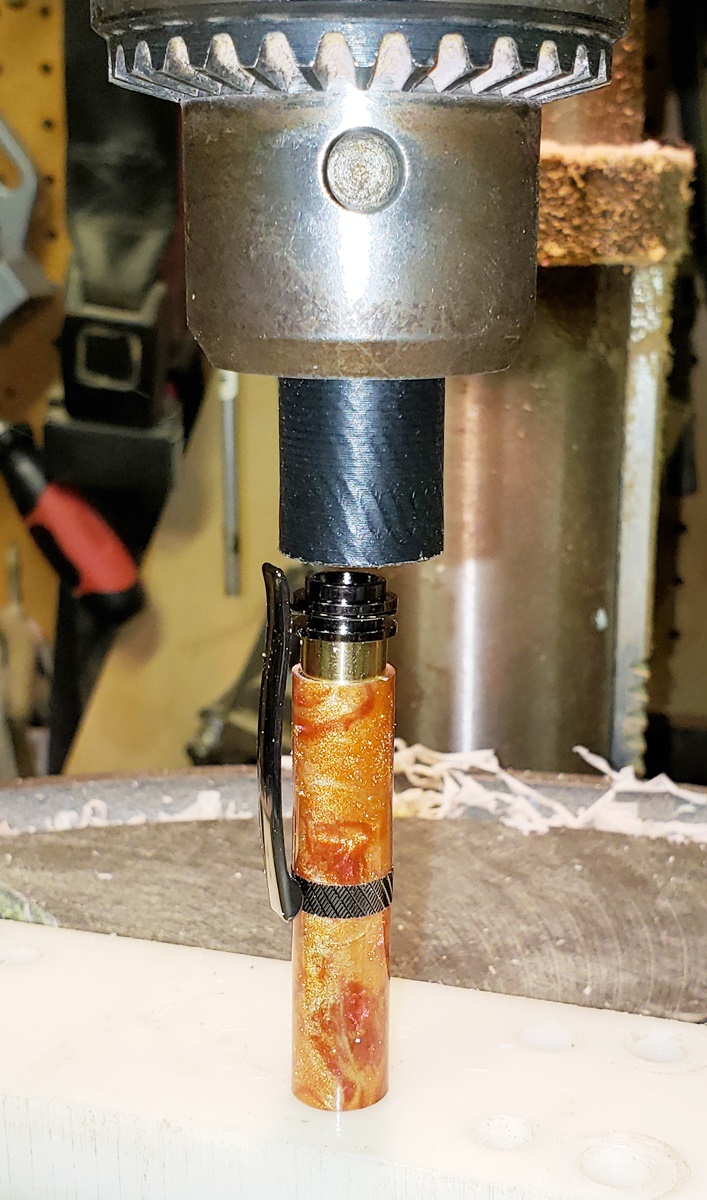

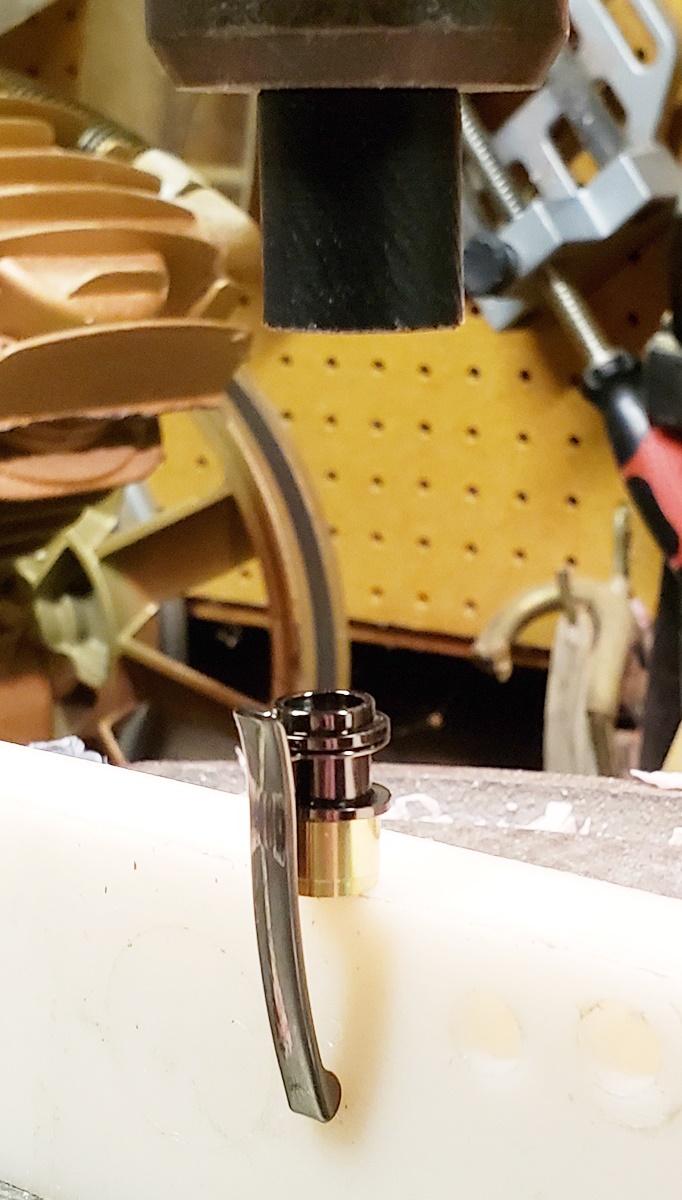

As I read steps 5 & 6 of the Berra instructions, I interpret it to say to first press the adapter onto the clip assembly then press that whole assembly into the tube. I believe that’s the approach you are wanting to use, so I’m confident you’ll be fine doing that.


qquake

Member
Joined
Feb 8, 2004
Messages
1,946
Location
Northern California
I believe it's the Berea Pensar.
