Bushing cross reference?

Signed-In Members Don't See This Ad

ramaroodle

Member
Joined
Feb 15, 2018
Messages
228
Location
Seattle
I have the app and lists but I am wondering if there is a published cross-reference of which kits use the same bushings (if that makes sense). In other words, now that I have amassed over 20 bushing sets I am wondering if there is a list of pen kits that all take the same size bushing. If I have a Sierra set, what other pens can I make with that set?

Signed-In Members Don't See This Ad

StanBrown

Member
Joined
Jul 24, 2018
Messages
86
Location
Waller,Texas
Good question. I am wondering the same thing myself. I just discovered, for example, that the Euro/Summit bushings also work with the Summit Letter Opener. What else is out there?


I have the app and lists but I am wondering if there is a published cross-reference of which kits use the same bushings (if that makes sense). In other words, now that I have amassed over 20 bushing sets I am wondering if there is a list of pen kits that all take the same size bushing. If I have a Sierra set, what other pens can I make with that set?


Kenny Durrant

Member
Joined
Sep 11, 2012
Messages
1,003
Location
Sachse Tx. 75048
I'm still learning as well. You mentioned the Sierra. I use the same bushings for the Sierra, Gatsby and Wallstreet 2. I use the same bushings for the Triton, Jr.Gent 2 and the Kojent. I've noticed that a lot of the cigar kits will use the same bushings. The way I found these out was that I would buy bushings for the kit I was buying and then check to see if they were the same when I had them in hand at home. Now keep in mind that just because the bushings are the same the tube length may not be. The Kojent and Jr.Gent 2 have the same tubes and although the Triton uses the same diameter tubes and the cap is the same length but the pen tube is shorter. The Wallstreet 2 click and twist are the same except the click has a longer tube. So as stated before always check all measurements before swapping tools and parts.

Joined
Aug 13, 2016
Messages
1,296
Location
Surprise, Arizona
I’ve wondered this myself. BTW says what pen kits a set of bushings works with, so I just write that on the baggie. Seeing as how I have a set of Triton bushings right next to me, I know they also work with the Atrax. I know a lot of the Jr kits use the same bushings as well. A compiled list would definitely be nice, although I’ve pretty much narrowed myself down to a handful or so of kits that I stick to for the most part.


magpens

Member
Joined
Feb 2, 2011
Messages
10,013
Location
Coquitlam, BC, Canada
I have been making pens for nearly 10 years and I know of no such list for bushings.

I have quite a sizeable collection of bushings and found it challenging to keep them organized and accessible.

Fairly recently I moved away from using bushings. . I measure the pen components with a digital caliper and then frequently check the size of my turning with the caliper. . When I am close to final size (but still oversize) I stop turning and sand down to the required size, taking into account the finish that I will be applying. . For a CA finish, I sand about 0.002" below the required size.


JimB

Member
Joined
Mar 18, 2008
Messages
4,500
Location
West Henrietta, NY, USA.
If you have the app there is a way but it isn’t perfect. If you enter all the bushing diameters that are listed for a pen in the search function it will return a list of all the pens with those numbers listed. When entering the numbers in the search separate them by a space not a comma. It isn’t a perfect system but it does work.


KLJ

Member
Joined
Oct 2, 2018
Messages
200
Location
Flat Rock North Carolina
I do not know of a list like that either. As to keeping them organized and accessible I keep mine in the clear plastic fishing tackle boxes with the removable dividers. I write on top of the lid with a permanent marker what kit it fits, it is divided in 2x2 in squares, works great i just hope i never drop that box !!


gtriever

Member
Joined
Apr 23, 2017
Messages
1,116
Location
Paducah, Kentucky

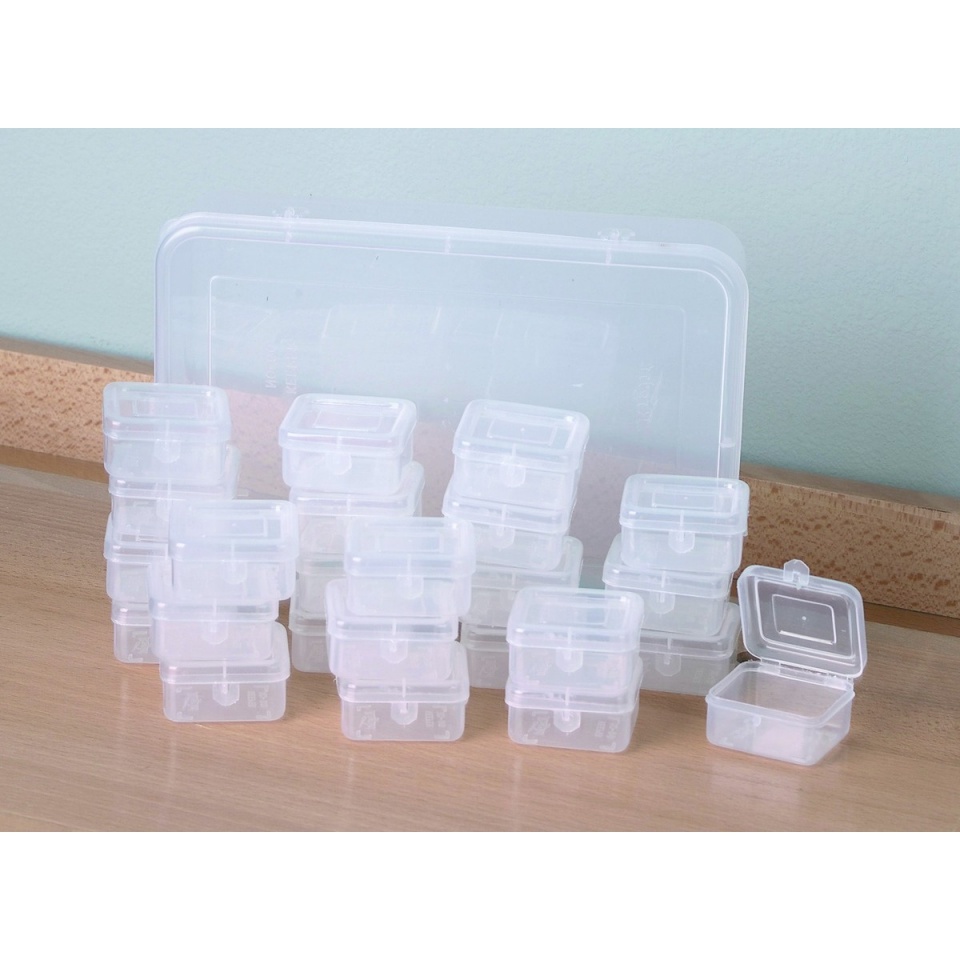

Nope, no list known here either. For storage I use the little storage cases from Harbor Freight, p/n 90243 - 24 small boxes inside a larger box. Each individual box is labeled with the bushings number and which kit, and the cases are labeled by the main Pen Supplier - PSI, Berea, or Misc / Project Bushings.



KLJ

Member
Joined
Oct 2, 2018
Messages
200
Location
Flat Rock North Carolina
Thanks for the tip on your Harbor Freight box, that would help in case or when my box gets spilled, I have made it three years but often look at it and think if i ever drop that I have no chance of figuring out what went where.


TonyL

Member
Joined
Mar 9, 2014
Messages
6,301
Location
Alpharetta, GA 30004
I use a Dremel engraver to write the measurements and sometimes the kit that they are compatible with on the bushings. I keep the in very small plastic bags and hung from a shelf. Having said that, I still have a dozen or so strays, but at least they have the measurements and kit names on them. FWIW. I know this doesn't help with the cross referencing request. Sorry.


magpens

Member
Joined
Feb 2, 2011
Messages
10,013
Location
Coquitlam, BC, Canada
I really like this idea !! . Thanks for sharing !! . Did not know such a set of boxes existed.

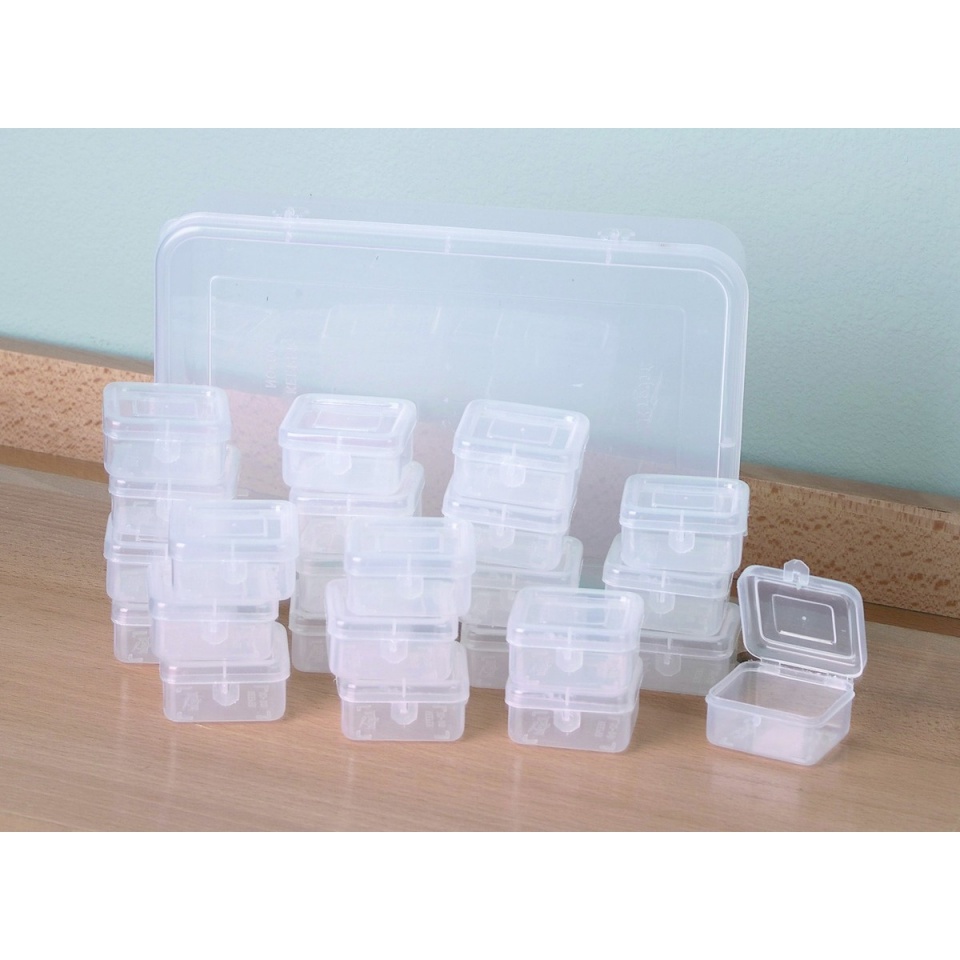

Nope, no list known here either. For storage I use the little storage cases from Harbor Freight, p/n 90243 - 24 small boxes inside a larger box. Each individual box is labeled with the bushings number and which kit, and the cases are labeled by the main Pen Supplier - PSI, Berea, or Misc / Project Bushings.

View attachment 181061


gtriever

Member
Joined
Apr 23, 2017
Messages
1,116
Location
Paducah, Kentucky
I really like this idea !! . Thanks for sharing !! . Did not know such a set of boxes existed.
You're welcome! I originally came across these for my wife's bead picture projects. Now I try to keep 4 or 5 on hand, because with HF you never know when they'll quit carrying them. At $4.99 each, it's cheap enough to stock up.

Joined
Dec 22, 2017
Messages
668
Location
Wolf Creek Montana
I'm a bit late on this post but a while back I found a PDF from Penn State that show's all the different bushings they carry. It's a very long file but has, in my opinion, some great info. It's called "Penn State Industries Bushing Book". I got it off their website and it costs nothing. They even update it on occasion. It does have a list of each busing and the pens that they fit. It is by their kit numbers only but should be pretty easy to cross reference over to other kits. Hope this helps some.

I think what you're looking for starts on page 206 of the guide.

Last edited:

Xel

Member
Joined
Aug 16, 2018
Messages
31
Location
Longmont, Colorado

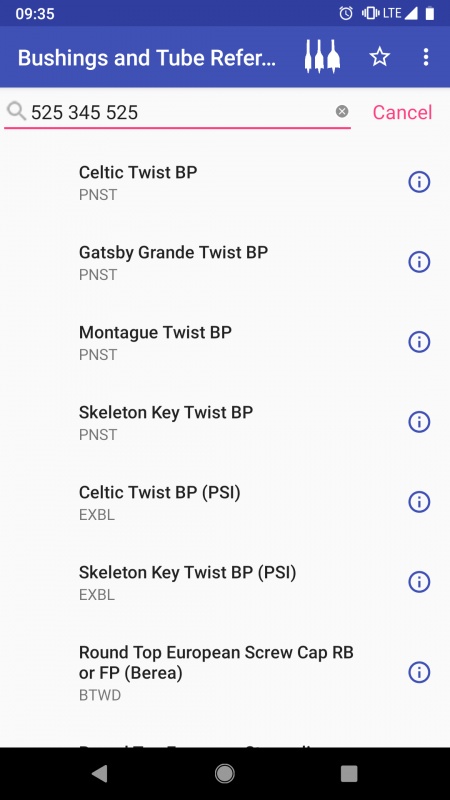

If you have the app there is a way but it isn’t perfect. If you enter all the bushing diameters that are listed for a pen in the search function it will return a list of all the pens with those numbers listed.

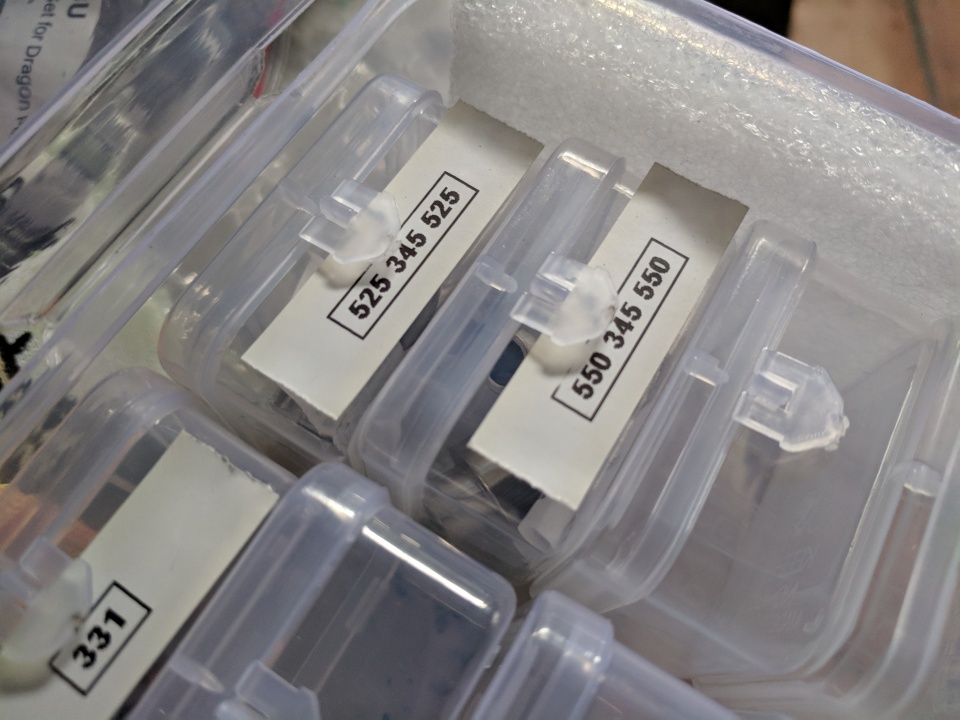

Because of this awesome property of the app JimB pointed out, I organize my bushings based on diameter (in the tiny Harbor Freight boxes). This way I can input the numbers and see exactly which kits take those bushings; no multiple names to keep track of. Additionally, since I measure my diameters with calipers at the end anyway, I can easily use bushings that are "close enough" without having to buy a new set sometimes. I TBC so bushings are mainly for supporting the pen tube and visual approximations. This way helps me a great deal with the cross-referencing problem. :)


Attachments

ramaroodle

Member
Joined
Feb 15, 2018
Messages
228
Location
Seattle
Thanks for all of the great suggestions!

1. Going to get a few of those HF containers TODAY!
2. Sorting by bushing size in the app a la JimB sounds like a plan.
3. My label maker can do up to 3 lines so I have room for size and kit names
4. PSI Bushings Book; https://www.pennstateind.com/library/bushing_book.pdf

Two more publications that you may or may not know of are the Rockler and PSI bushing and tube references that list kit names, part numbers, bushing, tube and drill bit sizes
PSI - http://content.penturners.org/library/general_reference/psi_bush_tube.pdf
Rockler - http://content.penturners.org/library/general_reference/rk_bush_tube.pdf

Last edited:
Joined
Dec 22, 2017
Messages
668
Location
Wolf Creek Montana
Thanks for all of the great suggestions!

1. Going to get a few of those HF containers TODAY!
2. Sorting by bushing size in the app a la JimB sounds like a plan.
3. My label maker can do up to 3 lines so I have room for size and kit names
4. PSI Bushings Book; https://www.pennstateind.com/library/bushing_book.pdf

Two more publications that you may or may not know of are the Rockler and PSI bushing and tube references that list kit names, part numbers, bushing, tube and drill bit sizes
PSI - http://content.penturners.org/library/general_reference/psi_bush_tube.pdf
Rockler - http://content.penturners.org/library/general_reference/rk_bush_tube.pdf
Thanks for the info. All good stuff here!


ramaroodle

Member
Joined
Feb 15, 2018
Messages
228
Location
Seattle
I’ve wondered this myself. BTW says what pen kits a set of bushings works with, so I just write that on the baggie. Seeing as how I have a set of Triton bushings right next to me, I know they also work with the Atrax. I know a lot of the Jr kits use the same bushings as well. A compiled list would definitely be nice, although I’ve pretty much narrowed myself down to a handful or so of kits that I stick to for the most part.
That was my plan in theory but people always seem to want pens I don't have bushings for and I'm too lazy to go through them all to check. Need a better system hence the inquiry about a bushing reference.

Last edited:

DB in VT

Member
Joined
Oct 13, 2016
Messages
116
Location
Vermont
organizing bushings

I keep mine in recycled pill bottles. As I find a different kit that works with a bushing set, I add that kit onto the label on the bottle. I also list the correct drill bit sizes needed for those kits and put that on the label, too.
The pill bottles set along a shelf that is just above my eye level. The ones I use most often are nearer to me. The labels are facing me so I can grab the correct bushings very easily and know what drill bits I'll need at the same time.
There are currently about 25 to 30 of the bottles. That covers close to 75 different kits from different manufacturers.


Edgar

New Member Advocate
Joined
Feb 6, 2013
Messages
5,399
Location
Alvin, TX 77511
If you have the app there is a way but it isn’t perfect. If you enter all the bushing diameters that are listed for a pen in the search function it will return a list of all the pens with those numbers listed. When entering the numbers in the search separate them by a space not a comma. It isn’t a perfect system but it does work.
Simpler yet, just tap on the bushing header text (“Upper/Cap Bushing” or “Lowe/Body Bushing”)

The app will automatically flip you back to the search screen with those bushing diameters in the search field and a list of all kits that use that bushing.
