Yet Another Pen Sled

Signed-In Members Don't See This Ad

DaveTas

Member
Joined
Feb 1, 2020
Messages
25
Location
Tasmania, Australia
G'day Folks,

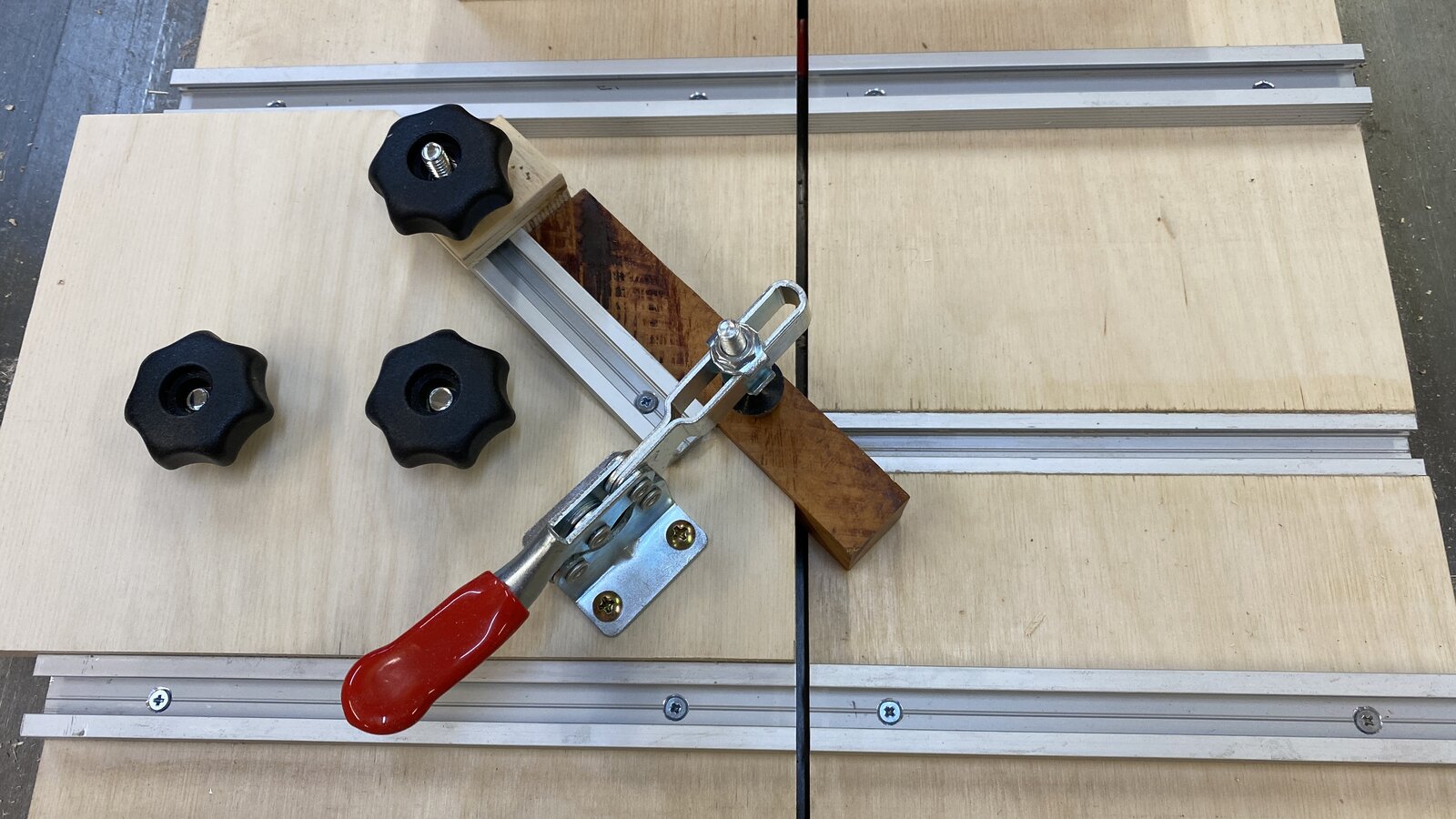

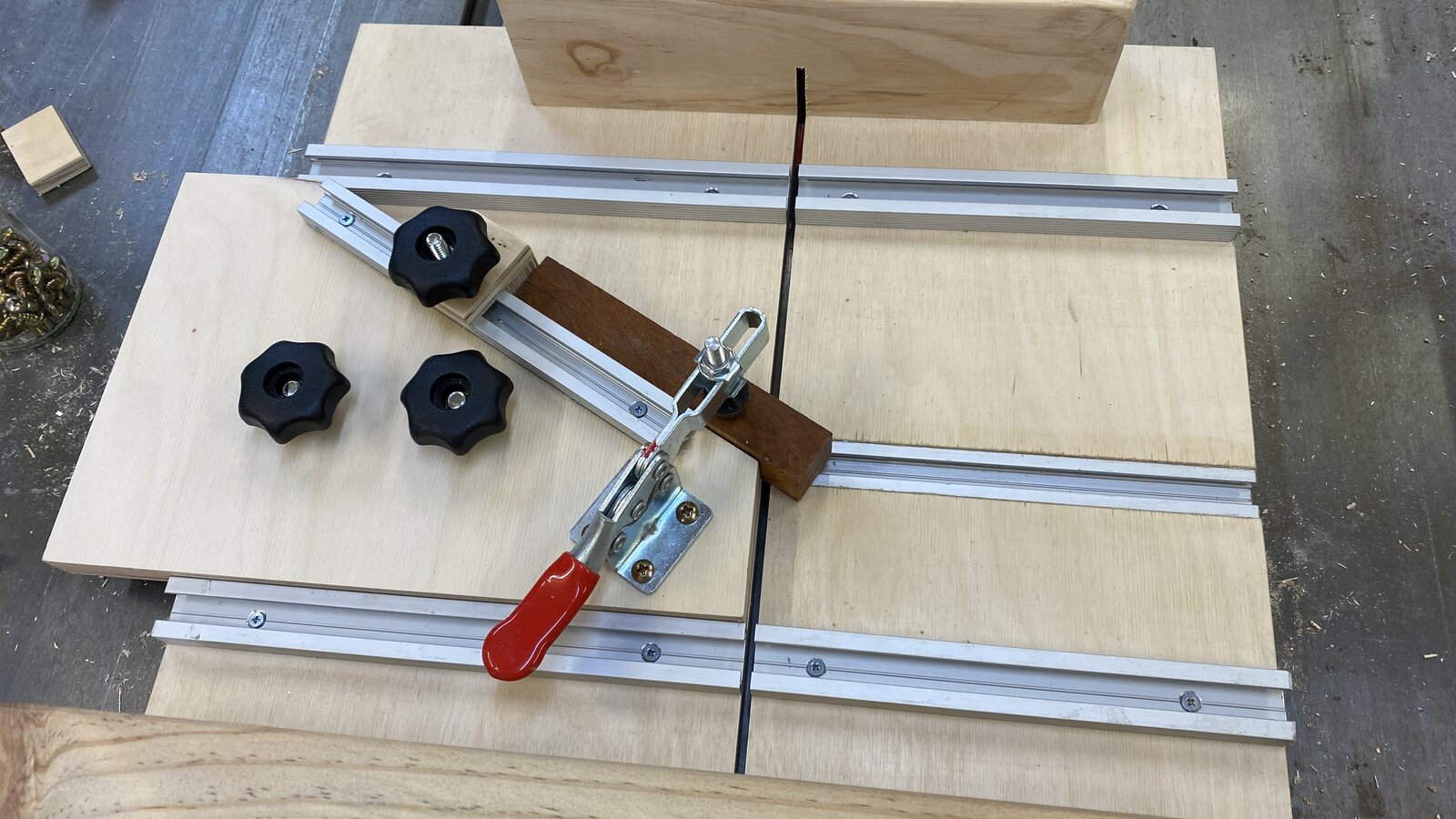

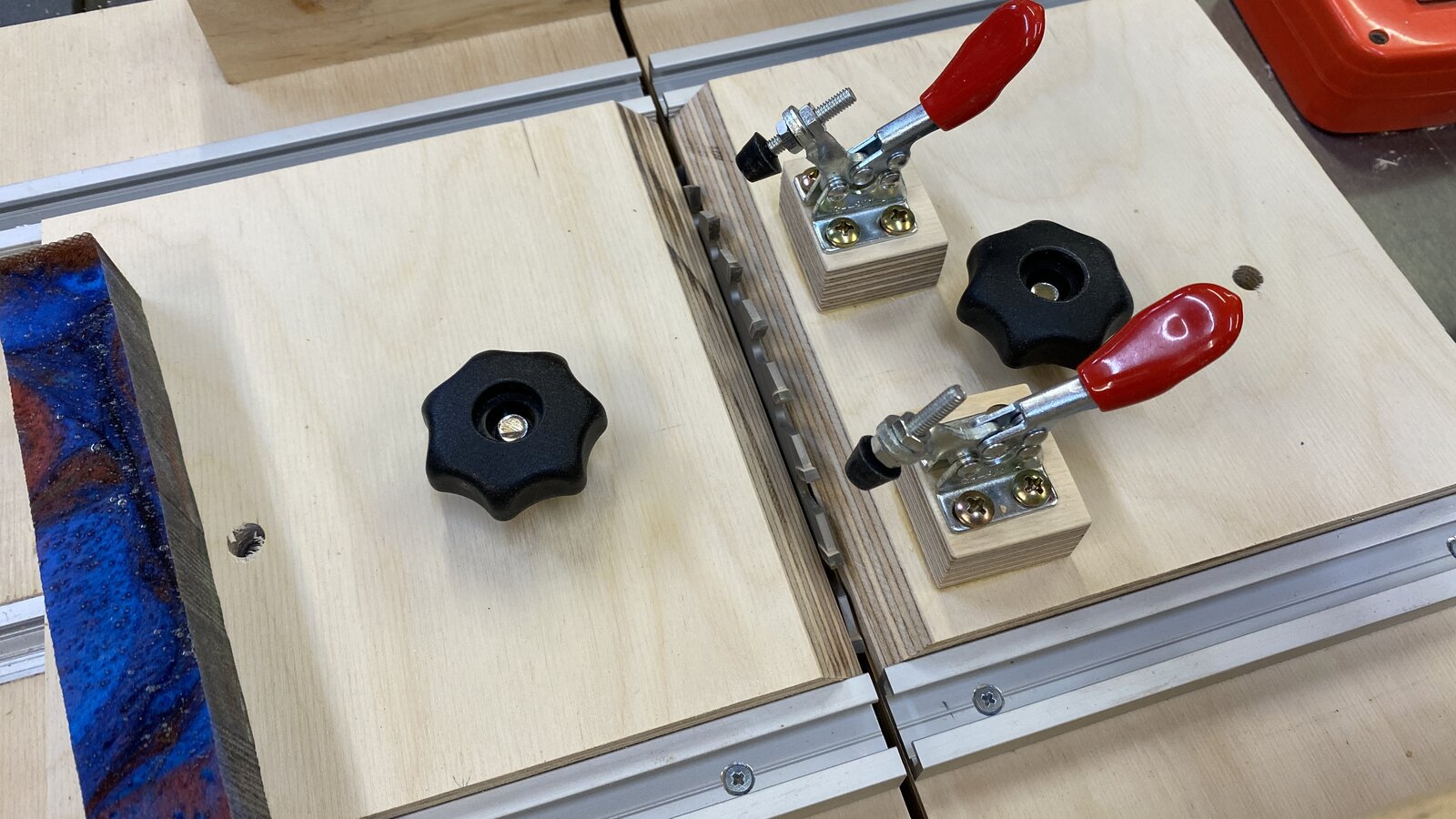

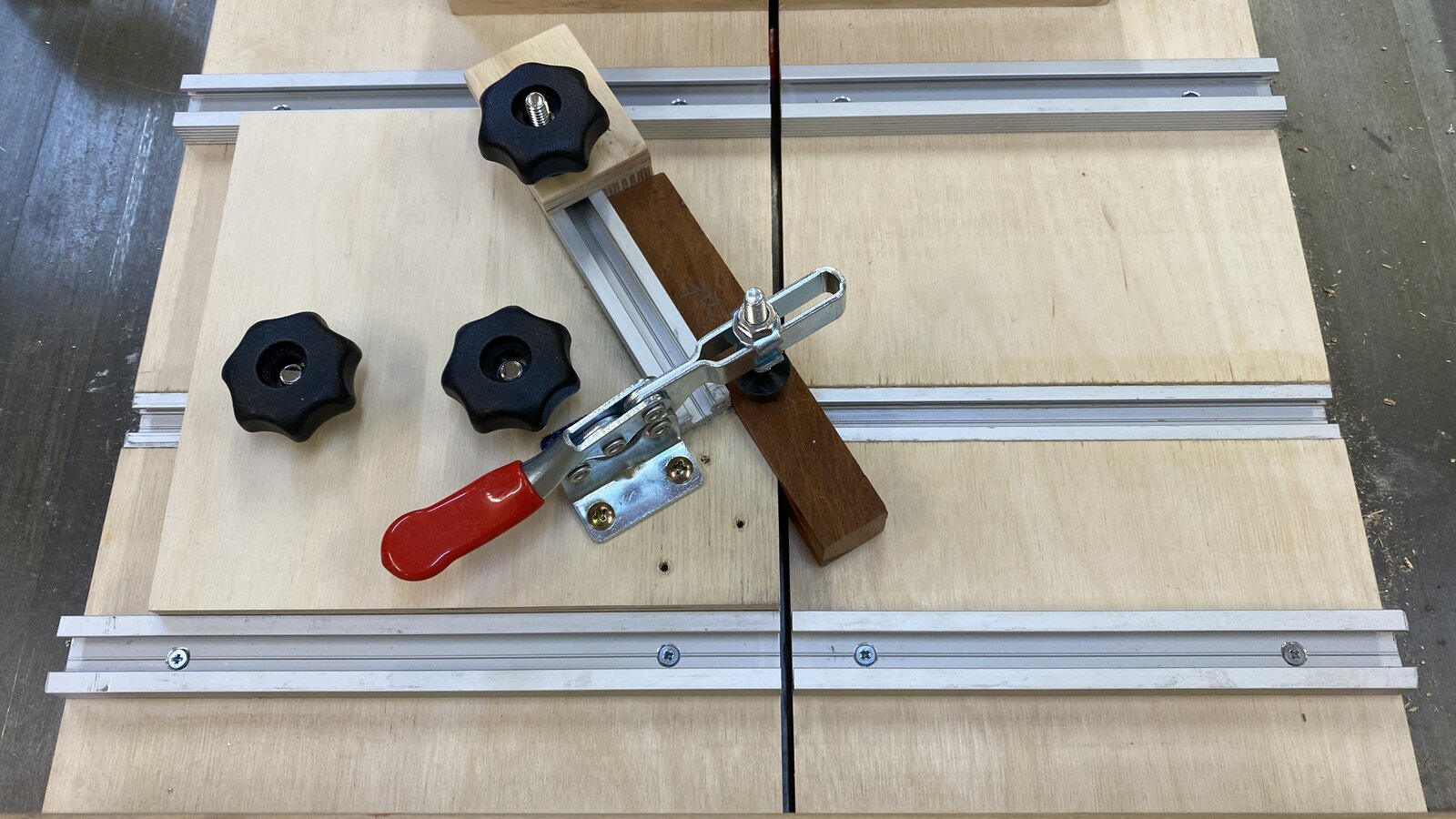

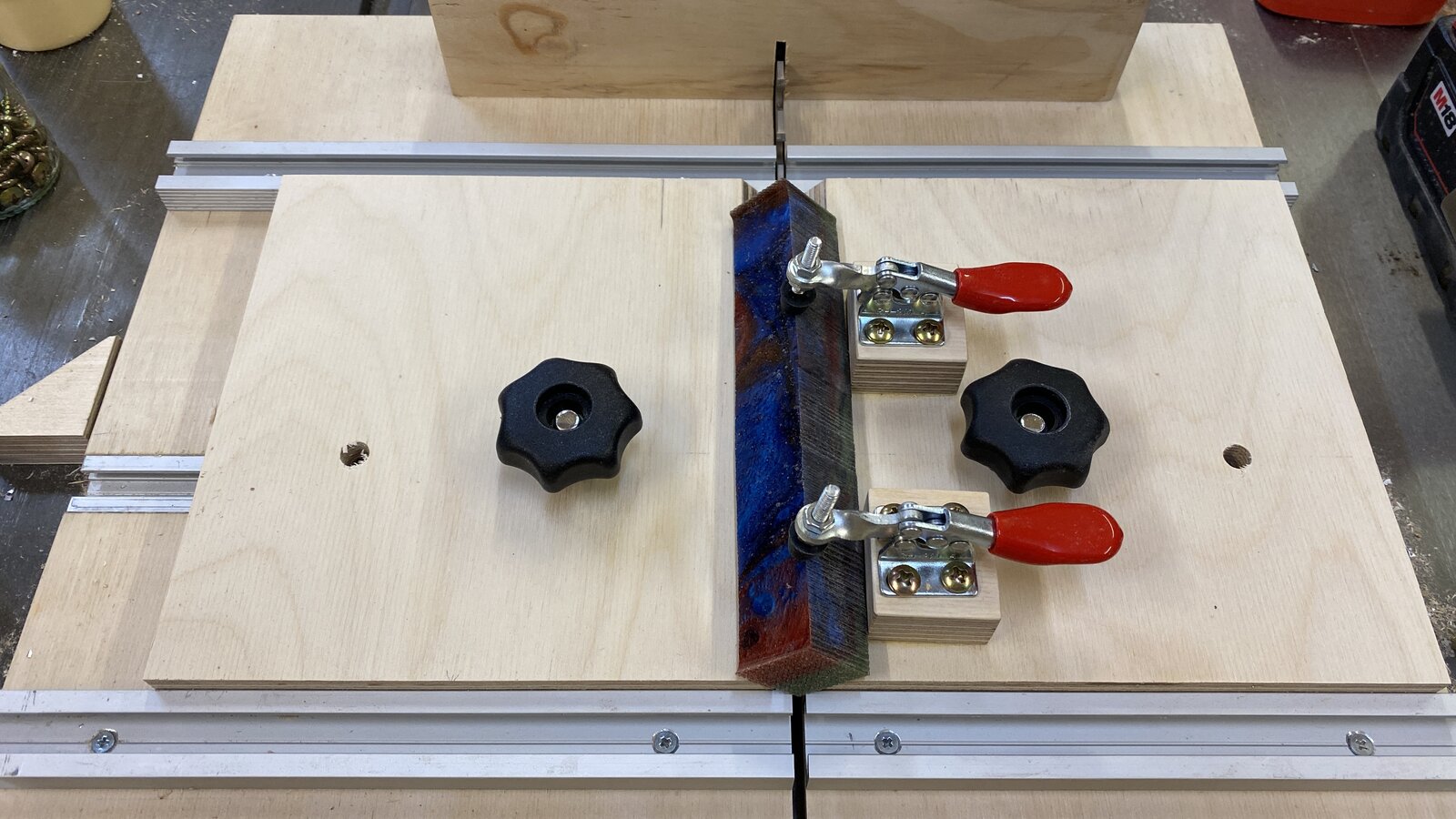

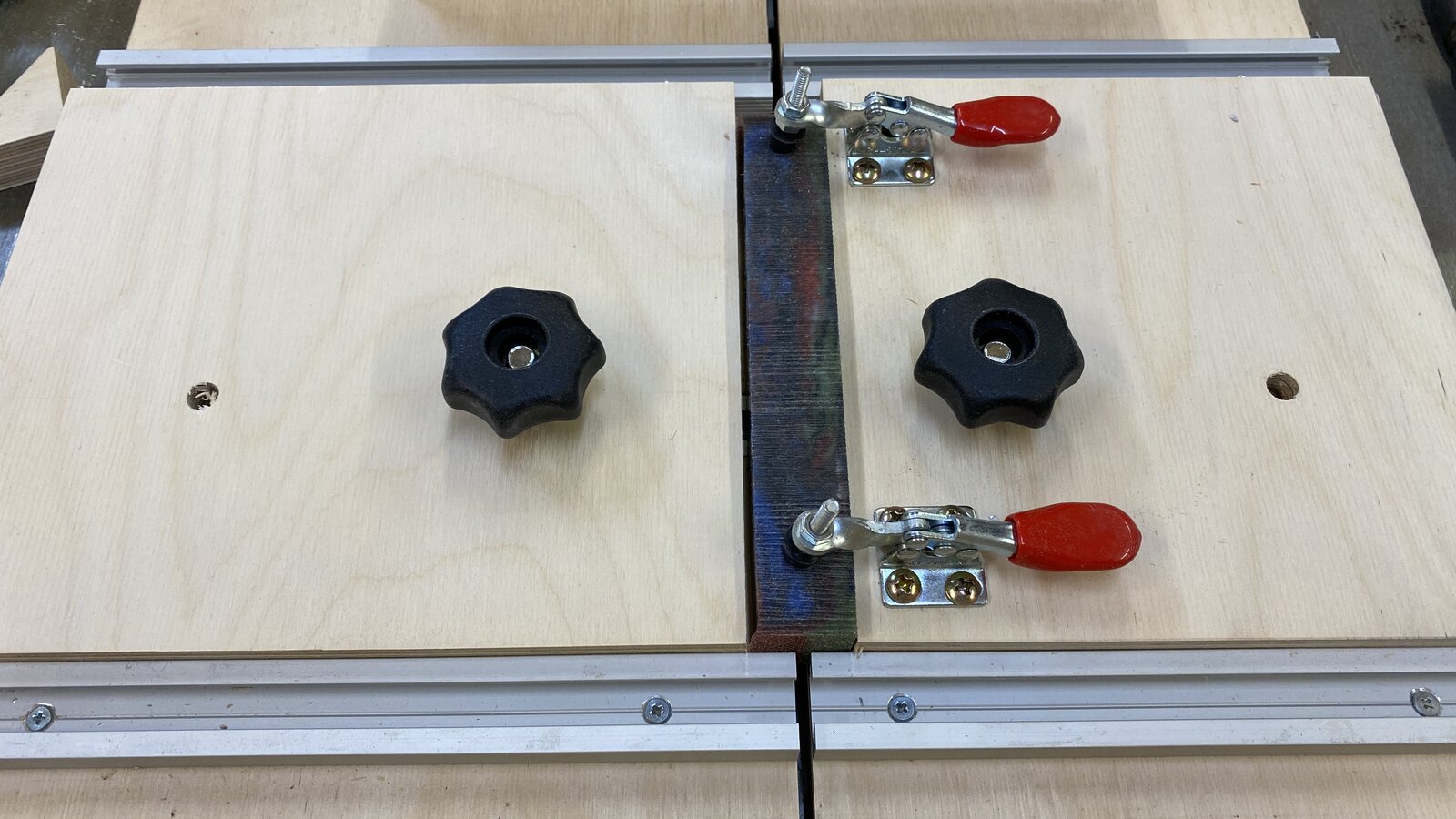

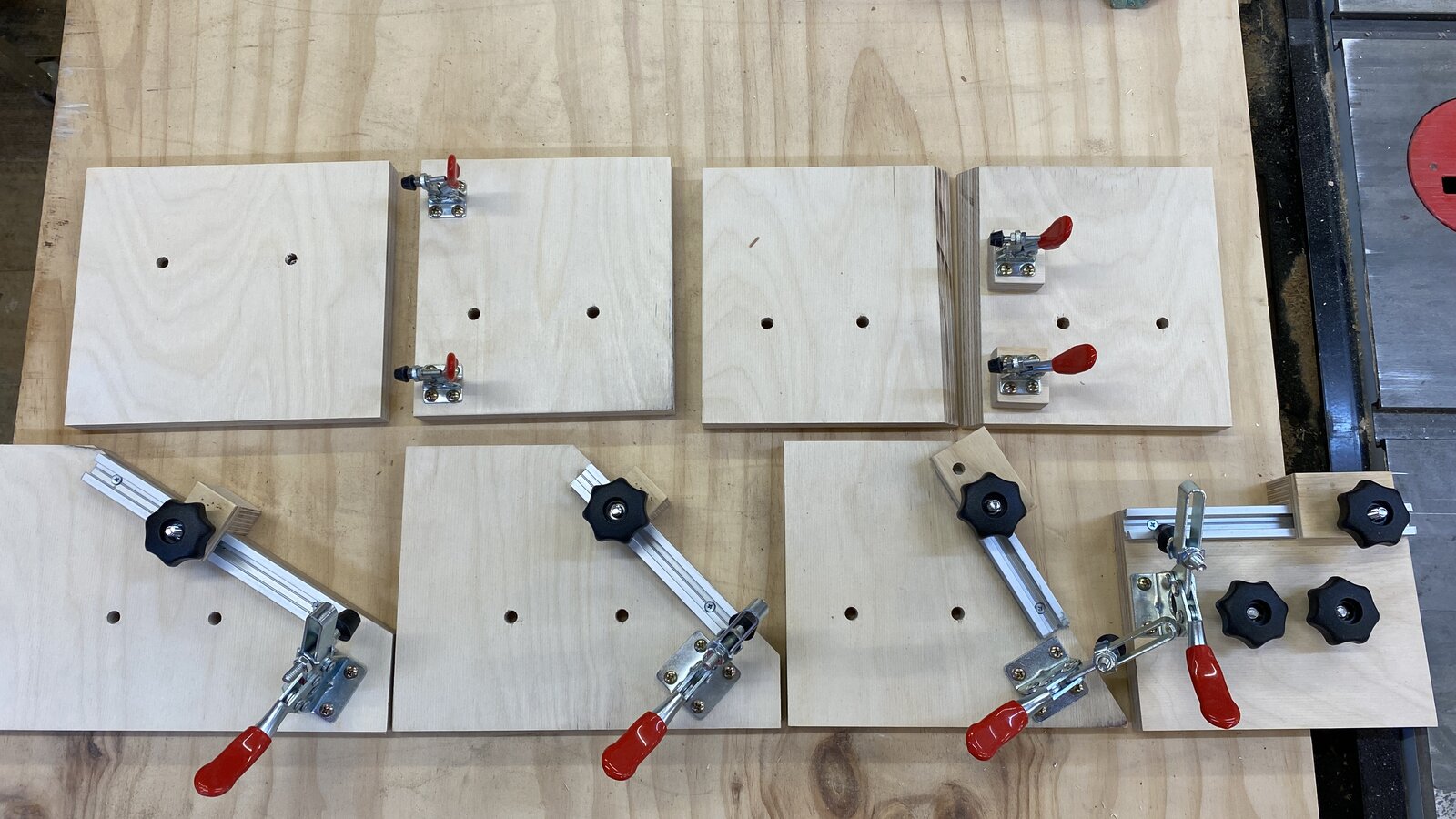

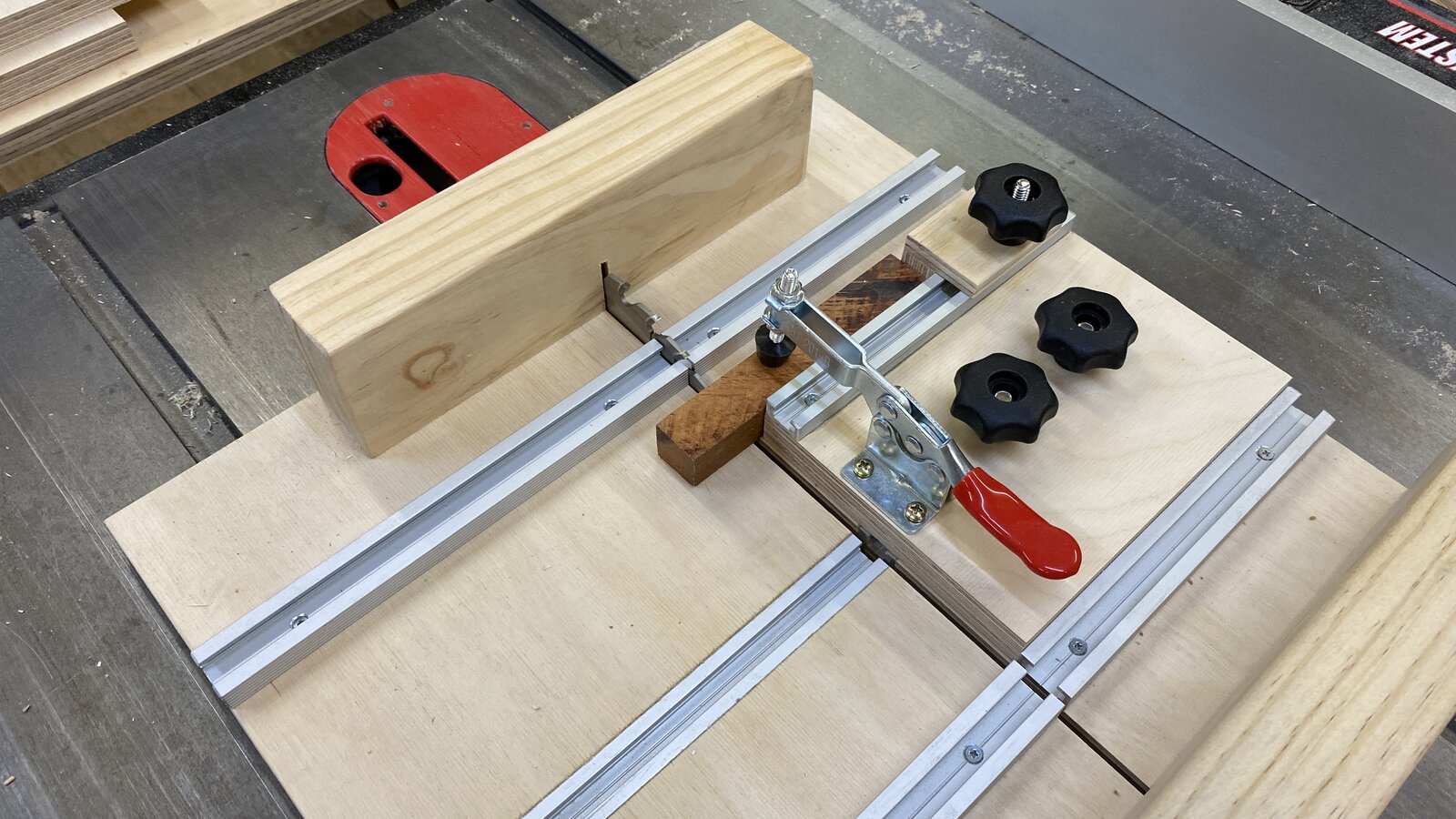

I thought I would share my efforts at yet another pen sled. I combined ideas I found from various members & posts on this site, and tried to combine as many as I could, combined with the parts I actually had on hand.. The inserts sit tight between those two tracks and the two hold down bolts are plenty to give good clamping pressure on the red handled clamps. Any comments welcome.


Attachments

  • 7FB5C85A-CA72-443E-A98A-8A64F66FB30F_1_201_a.jpeg
    238.8 KB · Views: 148
  • 5C2261DB-DA49-4EB7-8B1D-4A54B607CFDC_1_201_a.jpeg
    256.7 KB · Views: 145
  • E900B607-3EB1-4EE7-8067-1C3649867324_1_201_a.jpeg
    224.2 KB · Views: 137
  • 92824A97-5DCD-46A2-865B-40DFAC2C01FF_1_201_a.jpeg
    247.1 KB · Views: 133
  • 529239E9-E673-44E8-A1F2-338B61C9818D_1_201_a.jpeg
    273.9 KB · Views: 140
  • 743E74DC-5756-4391-8BBB-B2D13DB9D486_1_201_a.jpeg
    258.5 KB · Views: 133
  • 00EF5399-C832-4B51-8ADA-43D4BDA3D100_1_201_a.jpeg
    258.6 KB · Views: 131
  • 688DF736-424F-466F-BE2D-E86D63F17791_1_201_a.jpeg
    253.2 KB · Views: 150
Signed-In Members Don't See This Ad

jttheclockman

Member
Joined
Feb 22, 2005
Messages
16,654
Location
NJ, USA.
Very nicely done. I think a moderator should move this thread to the New Jigs, Fixtures and shop aids where it will have value to others if looking for jigs to help in pen making. Thanks for showing.


KenB259

Member
Joined
Dec 24, 2017
Messages
2,540
Location
Michigan
My only suggestion is for this setup, I think you'd be happier if instead of round holes you cut slots so you can easily adjust the center point. Blanks will vary in size.



howsitwork

Member
Joined
Jul 9, 2016
Messages
1,864
Location
Thirsk
Really nice work and quite inspirational. That’s what’s great about this site !

Thanks Dave


KenB259

Member
Joined
Dec 24, 2017
Messages
2,540
Location
Michigan

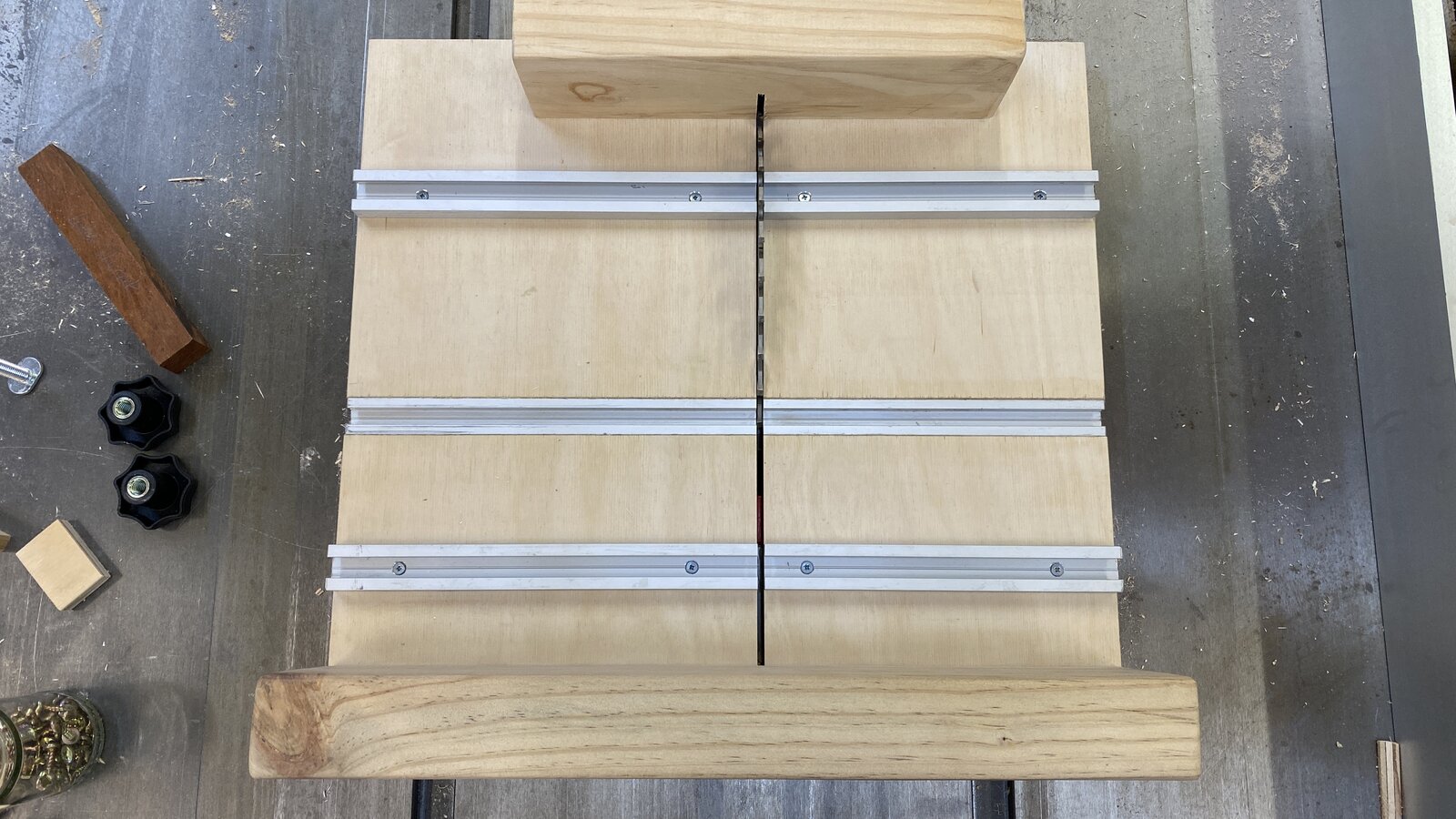

Underneath is an embedded T-Track, so I can slide either of these side to side to do centre slots for inlay, or move to the right side to do blank sizing cuts
That will work fine then. Looking forward to your designs.
