Worthless Blanks w/ Polyester Resin

Signed-In Members Don't See This Ad

Kdoc87

Member
Joined
Jul 27, 2015
Messages
42
Location
Pa
I tried my first casting today. I had a feeling it wouldn't work from what I read. I have turned a good bit of alumilite worthless blanks but never seen any cast in polyester that I know of. Anyhow, I tried casting some olivewood burl with colored polyester resin and both blanks blew apart at the seams. I'm guessing the resin shrunk while curing and separated from the wood. As I was turning I could see that the two materials weren't joined nicely together at the seams. Also, it felt a little bit 'gummy' in a couple spots on the inside(after picking it up from the floor). Maybe I needed more mekp? I did let it cure for almost 2 days.

Is it worth while to try again with this type of resin or should I look into buying a pressure pot and alumilite? I really want to make these blanks. Thank you all!

Signed-In Members Don't See This Ad

Cwalker935

Member
Joined
May 18, 2014
Messages
3,430
Location
Richmond, Va
I have used pr to do worthless wood. Well dried buckeye burl. Let cure well and soak with thin ca occasionally when turning.


Joined
May 14, 2012
Messages
667
Location
Rapid City,SD
PR has a shrinkage rate of aprx 3% Alumilite is aprx .6% if I remember correct. That might cause some issues. I would go with Alumilite if it were me. If you need resin check with Curtis from Turntex Woodworks (Mesquiteman on IAP). I was at his class in Sept at Arrowmont, if you have questions on casting he probably can be of great help.


Sabaharr

Member
Joined
Mar 7, 2009
Messages
598
Location
Slidell, LA
After you pour set your molds in a toaster oven at about 100° for an hour. then let your blanks cure for at least a week. 5 to 6 drops of MEKP should be plenty but no more than 8 (top limit of brittleness and too much in my opinion) per ounce of resin. It has been my experience that cool and slow cure makes an easier to work with blank (although I have never done worthless wood I have cast objects in the blanks). You have to experiment to see what works for you at your level of humidity, altitude, average temperature, all minor factors that could add up. It is a journey, not a destination, to get the perfect blank. Do .... Learn .... Do what you learned ..... Do something else .... continue the process.


Kdoc87

Member
Joined
Jul 27, 2015
Messages
42
Location
Pa
Thank you all for the responses...Will have another go and try the toaster oven out as well.


CrimsonKeel

Member
Joined
Mar 1, 2013
Messages
495
Location
Royal oak, MI
I have cast a few worthless wood blanks with PR. I usually soak all seams with thin ca every once in a while. It does work a lot better with a pressure pot and softer woods than hard woods. It just seems to push in a bit and grab hold as opposed to sitting on the top.


Sabaharr

Member
Joined
Mar 7, 2009
Messages
598
Location
Slidell, LA
Skie M is correct. Hit the Goodwill and get your own toaster oven. Should be $15 or less. DO NOT USE THE ONE IN THE KITCHEN. If you ever want to stabilize you will need one anyway.


robutacion

Member
Joined
Aug 6, 2009
Messages
6,514
Location
Australia - SA Adelaide Hills
I tried my first casting today. I had a feeling it wouldn't work from what I read. I have turned a good bit of alumilite worthless blanks but never seen any cast in polyester that I know of. Anyhow, I tried casting some olivewood burl with colored polyester resin and both blanks blew apart at the seams. I'm guessing the resin shrunk while curing and separated from the wood. As I was turning I could see that the two materials weren't joined nicely together at the seams. Also, it felt a little bit 'gummy' in a couple spots on the inside(after picking it up from the floor). Maybe I needed more mekp? I did let it cure for almost 2 days.

Is it worth while to try again with this type of resin or should I look into buying a pressure pot and alumilite? I really want to make these blanks. Thank you all!

Well, I've done enough blanks with Polyester (PR) to know a little bit about it and in this case, you have a few things to consider...!

Lets start with Olive wood of any kind, the wood contain lots of natural oils that bleed to the surface with heat. The "gummy" surface you see when you separate the resin from the wood, after cast, is no lack of MEKP at all, if the resin is set/hard to be worked with, you have sufficient hardener in the mix, if too much or not, it all depends of how brittle the resin cuts.

I have cast blanks with PR with many raw and stabilized species of woods and I can tell you that, some woods bond well to the PR and others don't.

I have used PR for a number of years and only recently I changed to Epoxy resin because, the PR didn't have the necessary requirements to machining in CNC machines and after I tested this Epoxy resin with many of the difficult woods to bond, was no hesitation and start using it on everything, almost 3 times more expensive that is the only negative side of it, no smell, no toxins so, a better choice also for my health...!

Now, coming back to "separation" with PR casting and some woods (oily, etc...!), coating the surface of the wood that will be in contact with the resin, never produced good results for me however, using the super thin CA to soak every joint of the blank after cast, has resolved 90% of separations.

The 10% failure was caused by blanks that did had absolutely no gap in the joints after cast, not allowing the thin CA to penetrate in the joint, even though, many of these gaps, you couldn't see them with the naked eye.

The super thin CA is your best friend when using PR resin to cast with woods, the thin viscosity of this CA is capable to penetrate the smallest of spaces, and this is the reason why my PR blanks did hold, I would prefer to see a tinny airline gap between resin and wood, the CA would go in and bond the 2 materials with great strength.

As mentioned previously, that "gummy" surface under the PR when the separation occur with oily woods, is due to the heat created by the PR when curing, bringing the wood natural oils to the surface, there is, between the wood and the resin and that is what makes the join to fail...!

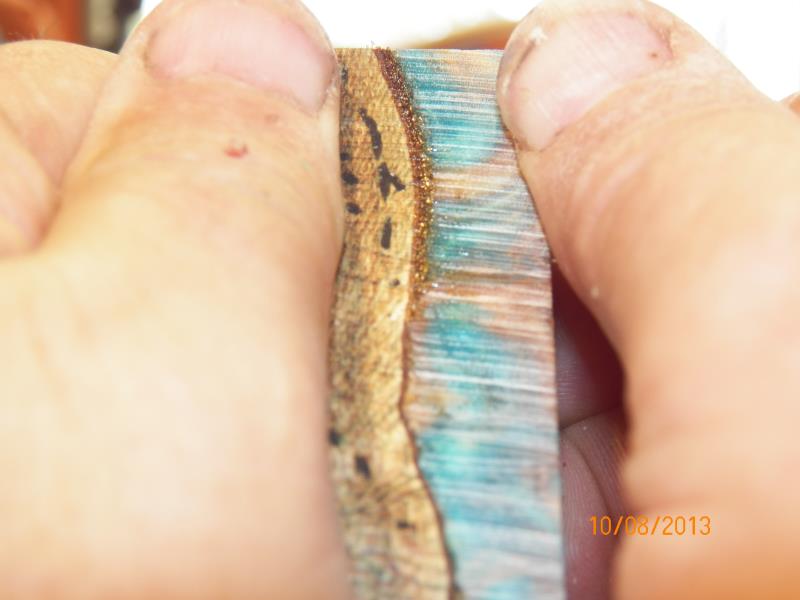

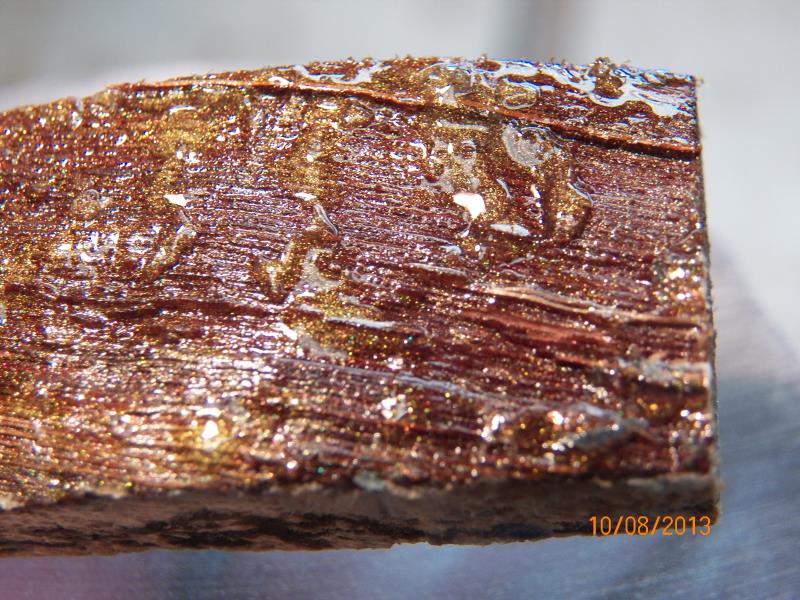

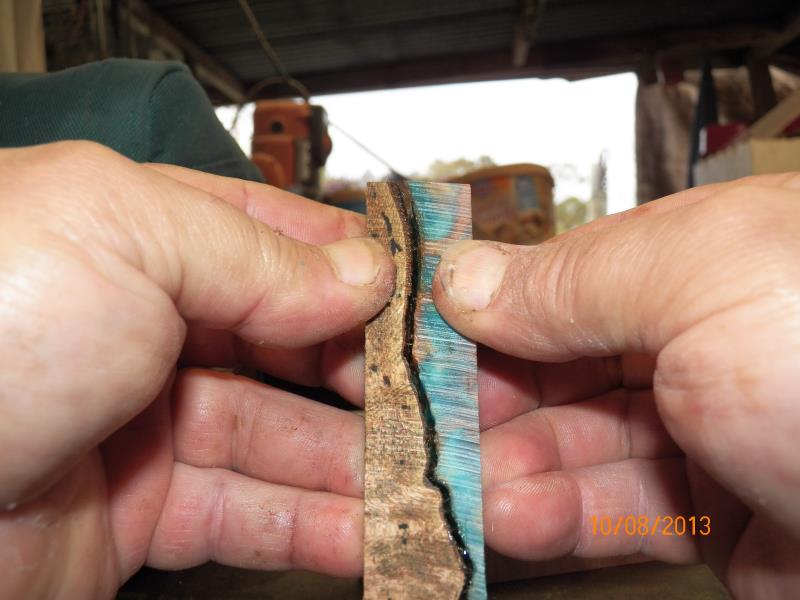

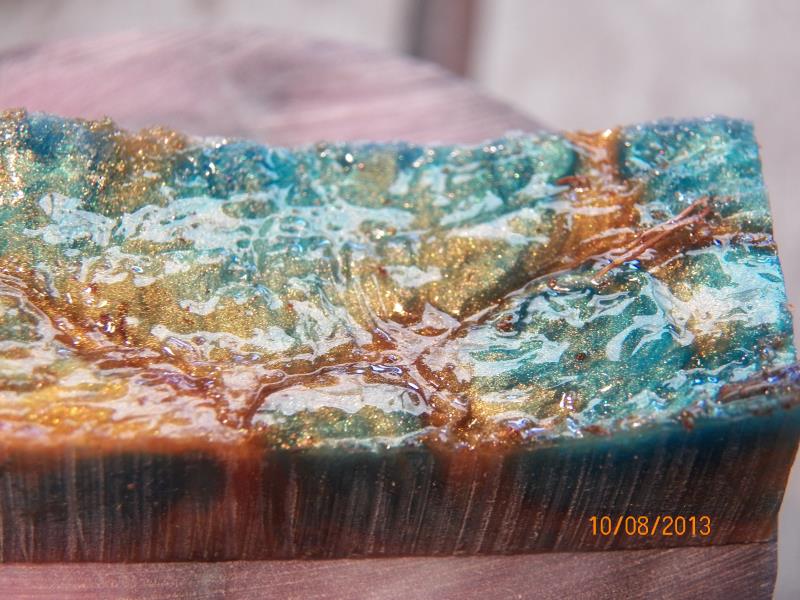

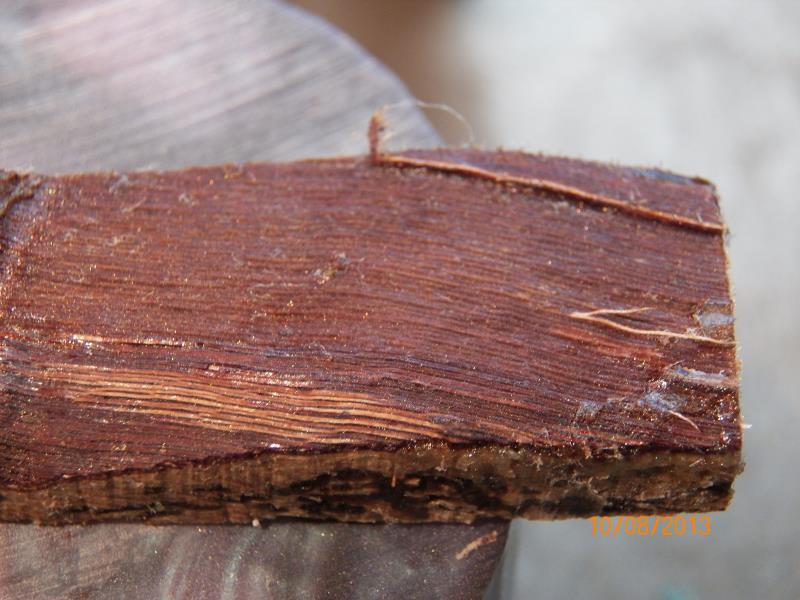

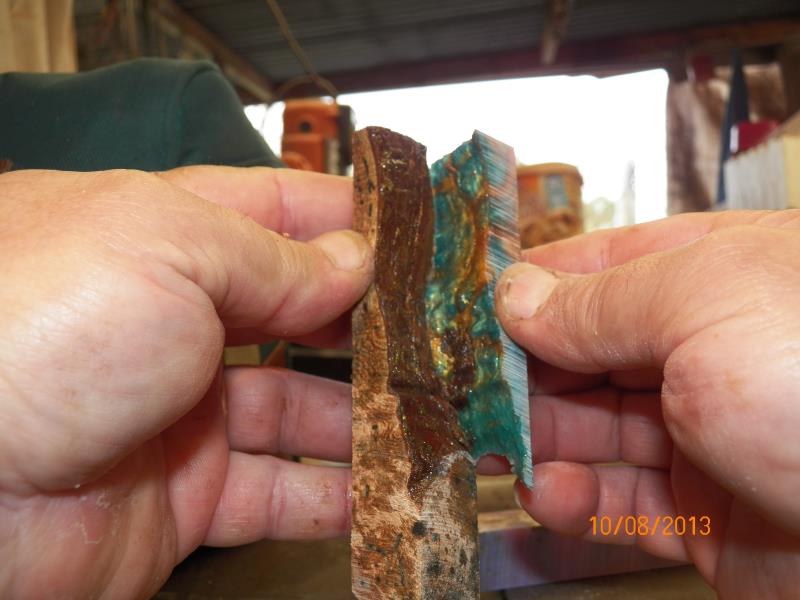

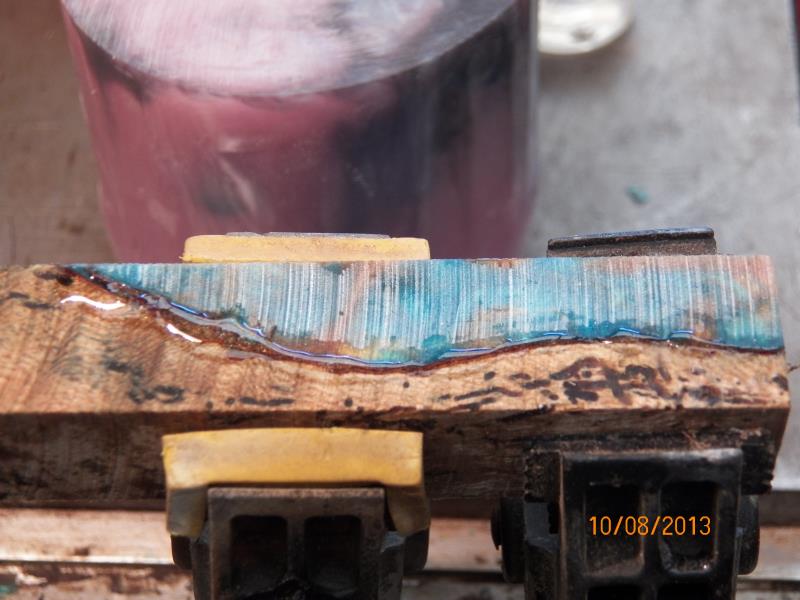

I have attached some pics showing exactly that, and the process of cleaning that "gummy" surface and re-joint the resin in its place, there will be absolutely no signs that, CA was used after finished...!

Cheers
George


Attachments

  • 003.JPG
    44.7 KB · Views: 259
  • 006.JPG
    59.6 KB · Views: 295
  • 007.JPG
    60 KB · Views: 227
  • 008.JPG
    121.8 KB · Views: 253
  • 009.JPG
    96 KB · Views: 266
  • 010.JPG
    76.8 KB · Views: 421
  • 011.JPG
    66.8 KB · Views: 318

TonyW

Member
Joined
Jun 3, 2012
Messages
91
Location
Leeds, UK
Sorry if this a dumb question but what is alumilite please? This thread is only the second time that I have seen the word, with the first time also in a thread here.

TIA

TonyW


79spitfire

Member
Joined
Sep 19, 2010
Messages
366
Location
Nevada
Alumilite is a brand name for a urethane resin that mixes at a 1:1 ratio. It has some different properties that make it more practical for certain types of casting, such as relatively quick set times, good adhesion and a substantially lower shrinkage rate than polyester resins.


79spitfire

Member
Joined
Sep 19, 2010
Messages
366
Location
Nevada
I have done worthless wood in Polyester resin with very mixed results. I've tried Manzanita, Willow sticks, and old colored pencils. The Manzanita separated, no matter how long the blank set. The Willow did work, but most of the sticks were fully surrounded by PR. The adhesion of the PR to the pencils was fine, the pencils kept breaking apart. I now use Alumilite for worthless wood in a pressure pot, and get consistent results (now I have to try the pencils again!)

I find PR better for embedded materials, carbon fiber, shell chips, stickers, stamps, bottle caps, where the item is fully encased.

Your mileage may vary...
