Wood Badge Beads
Part 2 of 2

Wood Badge beads are used in Scouting to recognize adults' accomplishments in key leadership training courses.
In Part 1 I shared a process to make them from 3/8" dowels.
Here are a few ways they can be further customized.

Custom Dowels
Making a pen and a set of beads from the same wood has been a fun project.

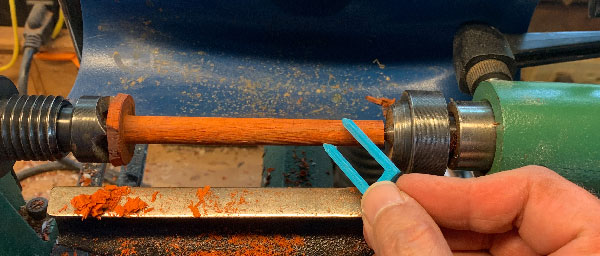

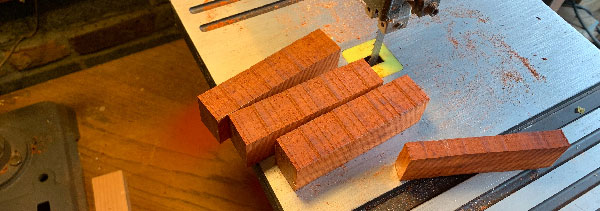

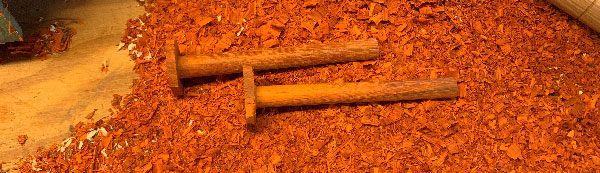

Starting with a nice piece of padauk, I cut a 4" length of board into smaller pieces and turn into 3/8" dowels.

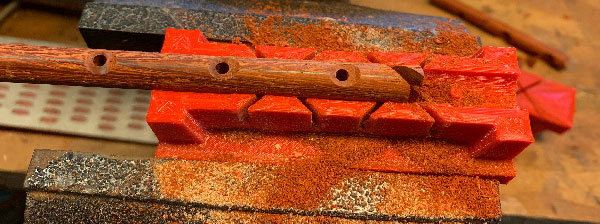

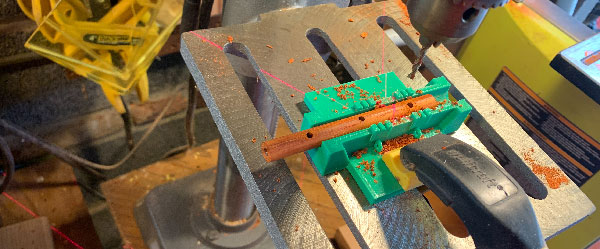

Similar to what I wrote about in Part 1, I drill holes...

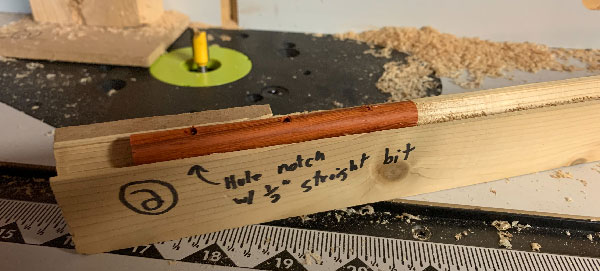

Shape the top and bottom on a router table...

Cut apart...

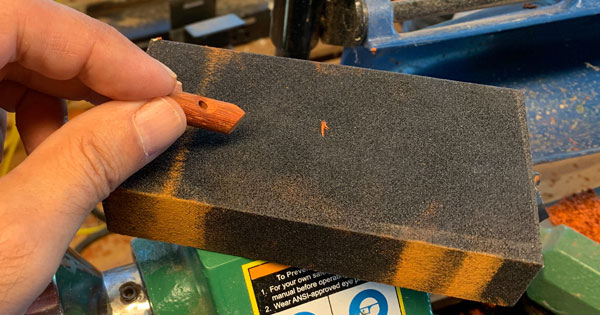

and sand the sharp edges away.

Engraving

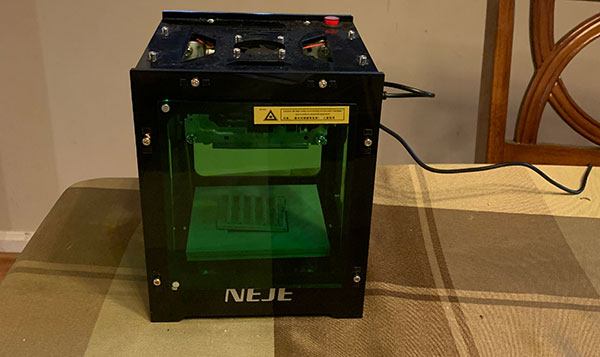

An inexpensive NEJE laser engraver is great for small customization tasks.

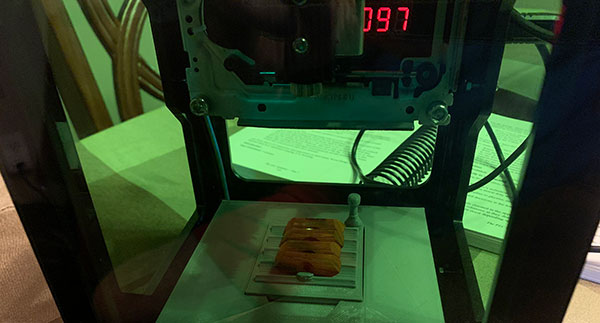

I designed a 3d-printed bed for the beads (file attached in case it's helpful to others).

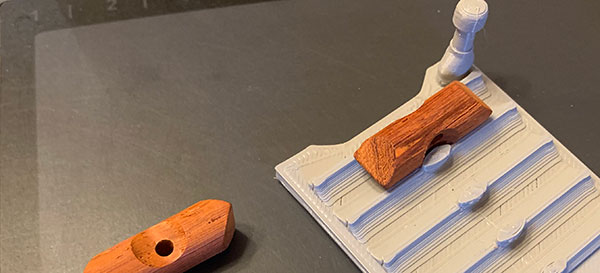

The beads snap, more or less, into place

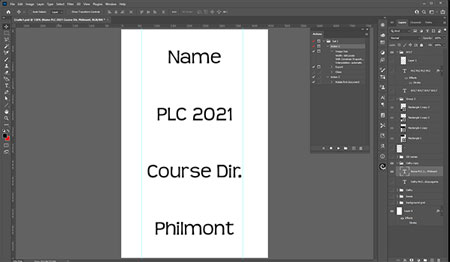

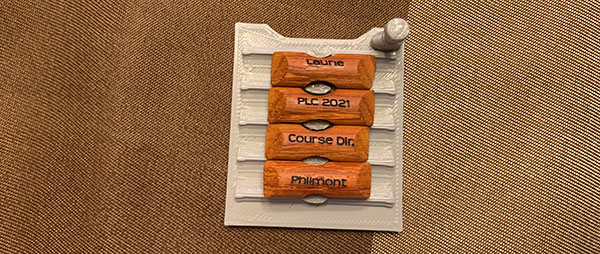

and I customize the text on a pre-measured Photoshop file (also attached).

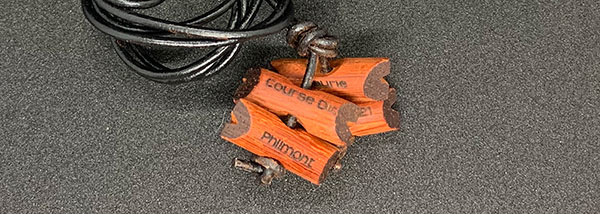

Summary
The first Wood Badge course was held north of London in 1919.

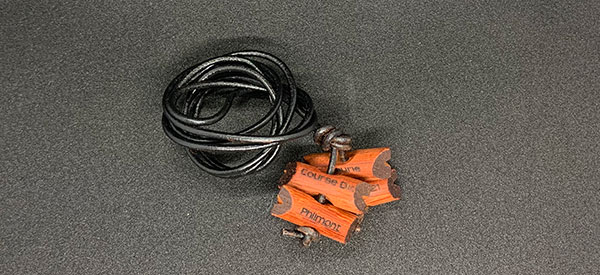

These beads are a modern interpretation of the original beads Lord Robert Baden-Powell, founder of the Scouting movement, gave to those first participants.

Attached Files
The file "WBbeadJigs.zip" contains two files: an obj file for 3d printing and a psd (Photoshop) file with four lines of brief text.
