Starting to do a few rings

Signed-In Members Don't See This Ad
See more from mmayo

mmayo

Member
Joined
Jan 12, 2013
Messages
2,031
Location
Tehachapi, CA
It has taken a while to get all of the tools and techniques set for ring making, but the signs are go now. Ring cores, the boring bar, ring polishing cylinders and blanks have finally reached my shop. The boring tool that fits in the tailstock is a must for me. Such a difference it makes in getting a tight straight hole for the core. I’ll get better.

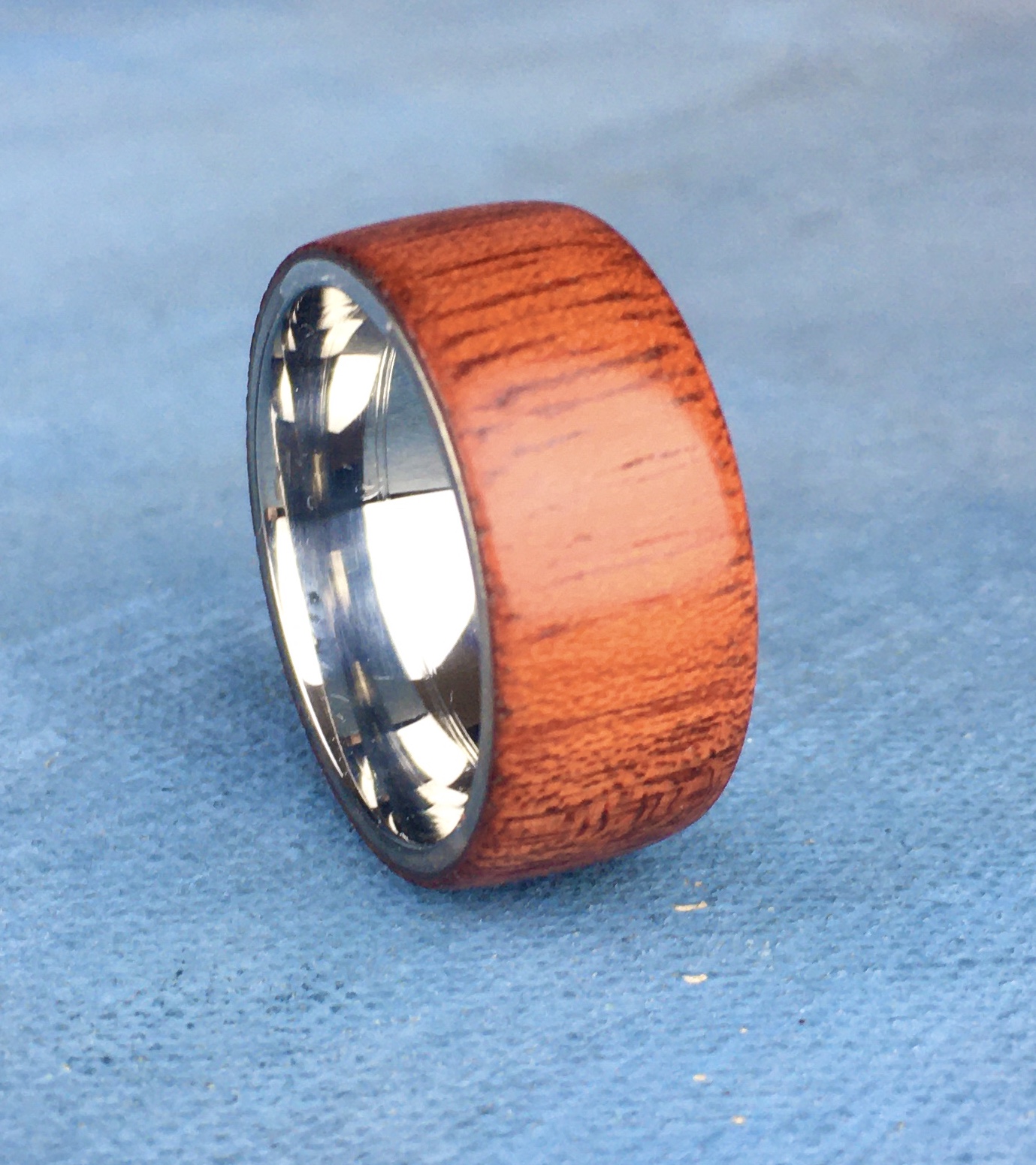

This one is Bloodwood with six coats of thin CA as the finish.


Attachments

  • 1324FE59-B175-4DDA-8C7E-66C5A5B400F6.jpeg
    519.4 KB · Views: 68
Signed-In Members Don't See This Ad
Joined
Dec 22, 2019
Messages
92
Location
Alabama
Looks like a good start to me.

Rings are definitely on my short list of things to try in 2021. Dare I run full-speed into another deep, dark, rabbit hole?


mmayo

Member
Joined
Jan 12, 2013
Messages
2,031
Location
Tehachapi, CA
Be sure you buy the correct boring tool. A set with the correct mt1 or mt2 that includes the cutters is best. Try eBay but scroll to find the same item cheaper.
Good luck


DagS

Member
Joined
Feb 28, 2020
Messages
6
Location
Montgomery, TX
I too have recently begun trying my had at ring turning. Agree that the boring tool is a must have. I have made 5 rings thus far that turned out kinda sorta ok and 3 that have been total disasters. For me anyway, it is not as easy as the multitude of videos I have watched. Good luck OP in your endeavor. As for me, well I am trying to stay positive and hopefully I will get it one day.


mmayo

Member
Joined
Jan 12, 2013
Messages
2,031
Location
Tehachapi, CA

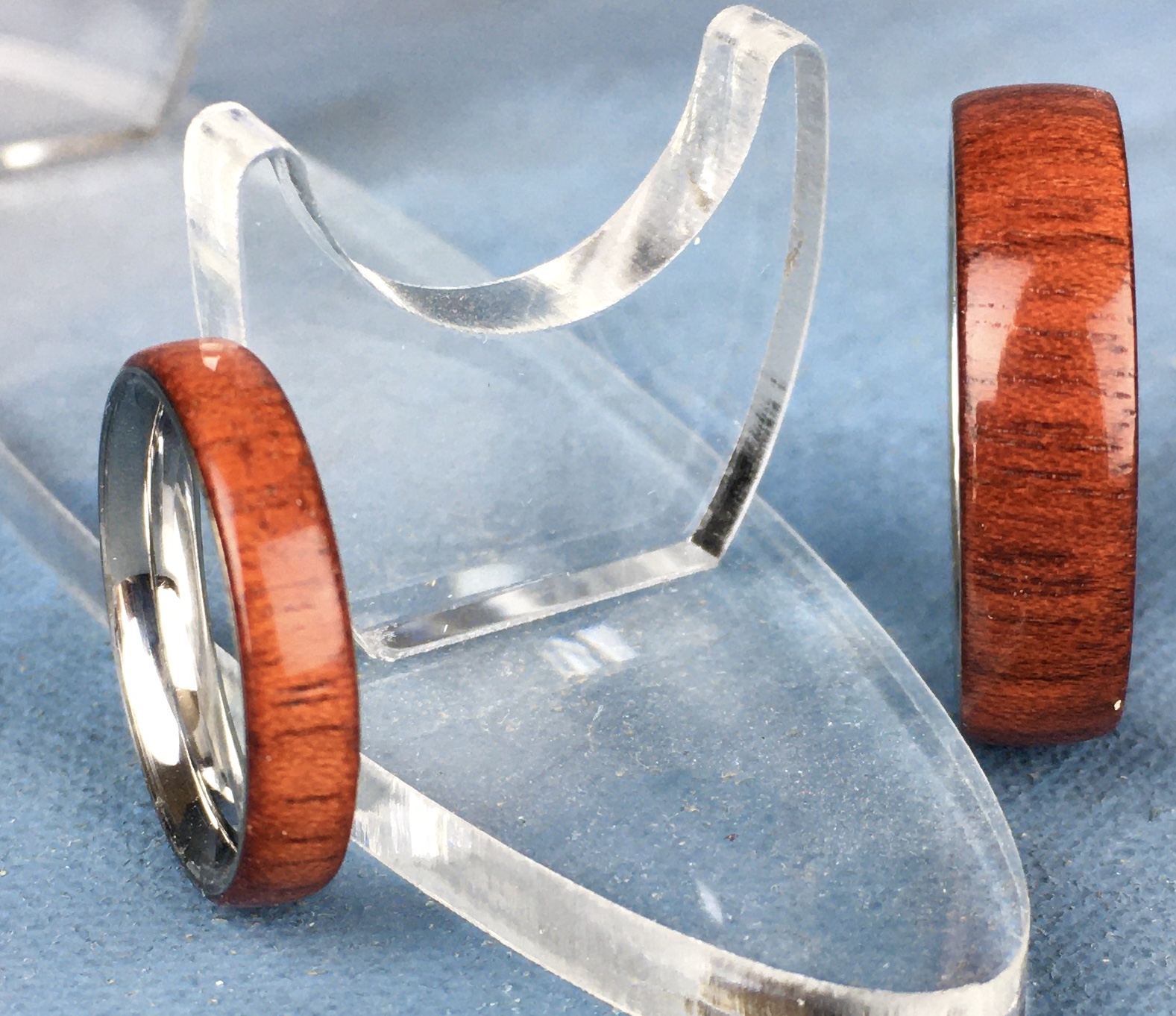

Now that the majority of tools have arrived and been made in shop, rings are reaching the finish line. These two are a size 12-6 mm wide and a size 6-4 mm stainless steel rings cores wrapped with bloodwood.

I’d you are making a few with different internal diameters, start with the smallest and don’t reset the boring tool. Be careful with the heavier cut and just enlarge a bit for the next larger size. If you make several of the same size just back off the boring tool a tiny bit and bore the next one. Slightly increase the cut to final size.


Attachments

  • 46B01740-1579-40B7-81F2-1BADEF85D108.jpeg
    596.9 KB · Views: 44

Joebobber

Member
Joined
Sep 24, 2018
Messages
408
Location
Erie, North Dakota
I prefer the look and feel of the 2 piece cores, as well as the inlay channel type. They are so much easier to make and you don't need any special tools.


mmayo

Member
Joined
Jan 12, 2013
Messages
2,031
Location
Tehachapi, CA
I prefer the look and feel of the 2 piece cores, as well as the inlay channel type. They are so much easier to make and you don't need any special tools.
Enjoy your choice.

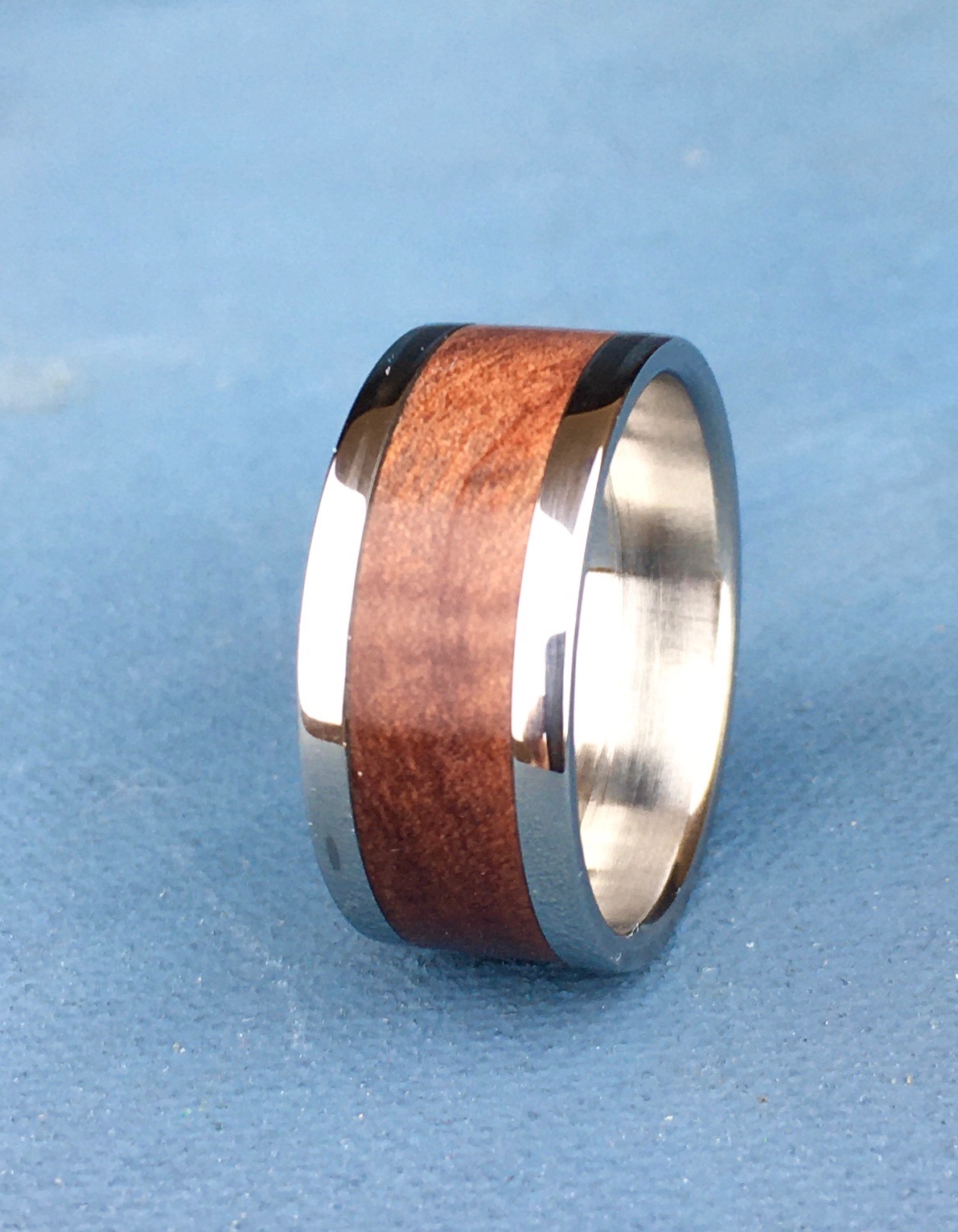

When I made a two piece core ring I could have really used the boring tool to get the hole precise. It was very fussy too getting the width right too. Mine came out fine as you can see, but these single core rings are easier: drill, widen hole, glue, turn, finish and buff.


Attachments

  • A271BD6B-FC1D-4721-9E1F-4ED435171DCE.jpeg
    335.3 KB · Views: 40
Last edited:

Joebobber

Member
Joined
Sep 24, 2018
Messages
408
Location
Erie, North Dakota
I just got a new phone n my old pictures got out on a usb stick so I can't show pictures of my 2 piece core rings. I made my mom and wife one using golden amboyna burl, aluminum, and african blackwood. I made 1 for myself with pyinma burl, aluminum, black plastic, and red amboyna burl. I don't know if I could've made them on a 1 piece.


mmayo

Member
Joined
Jan 12, 2013
Messages
2,031
Location
Tehachapi, CA

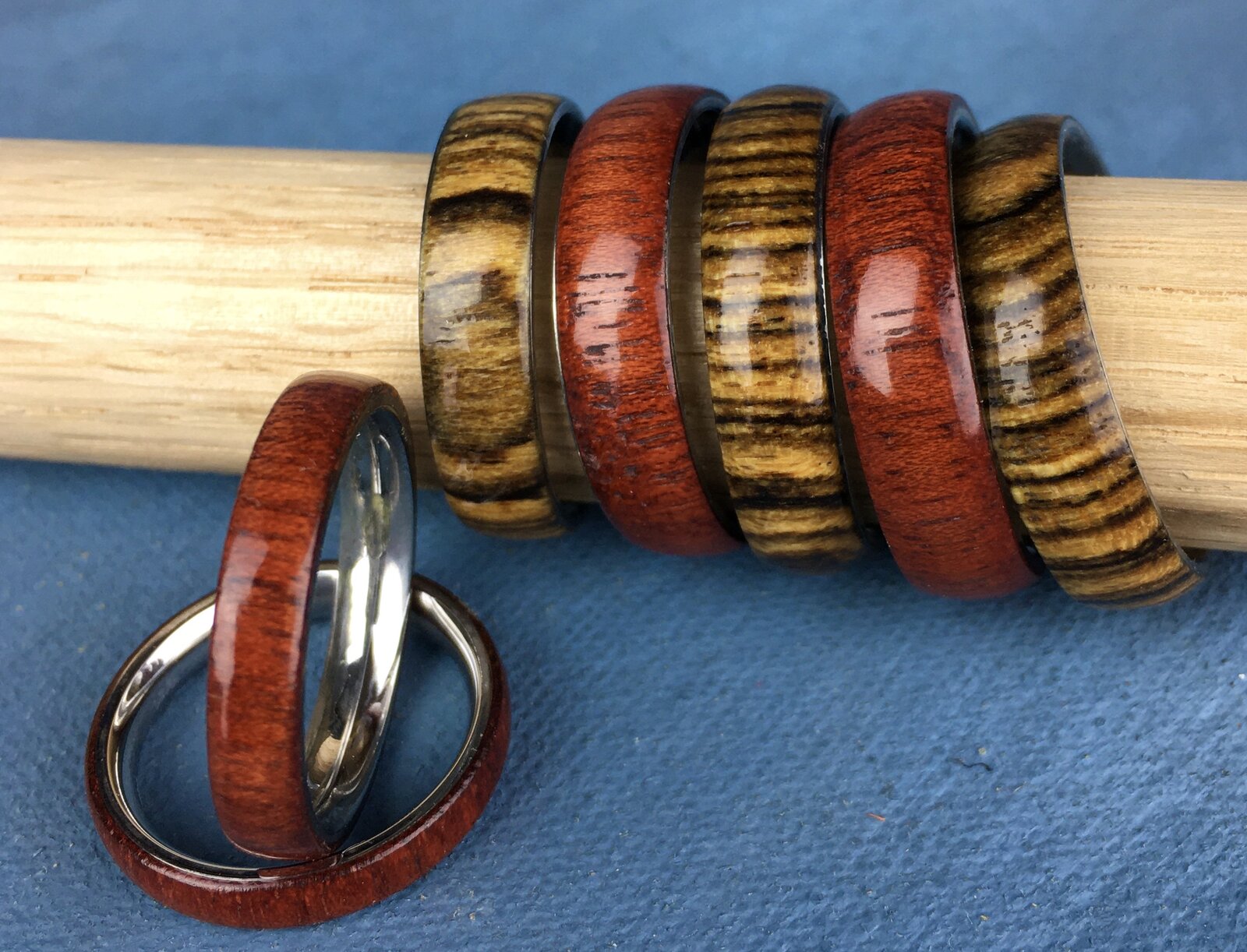

Snowing today but I managed these anyway. I plan to make a set of many sizes of bloodwood and bocote. After that it’s in the some acrylics.


Attachments

  • E3B070F5-2205-4D67-A494-F7E6D6B156A9.jpeg
    336.3 KB · Views: 45

aalmond

Member
Joined
Mar 16, 2021
Messages
6
Location
York, Pa, USA
The rings you all have posted are amazing! Definitely something I want to try over the coming weeks. I am glad to see the positive remarks about the boring tool, seemed like a good invested but nice to see others agree.


mmayo

Member
Joined
Jan 12, 2013
Messages
2,031
Location
Tehachapi, CA
The rings you all have posted are amazing! Definitely something I want to try over the coming weeks. I am glad to see the positive remarks about the boring tool, seemed like a good invested but nice to see others agree.

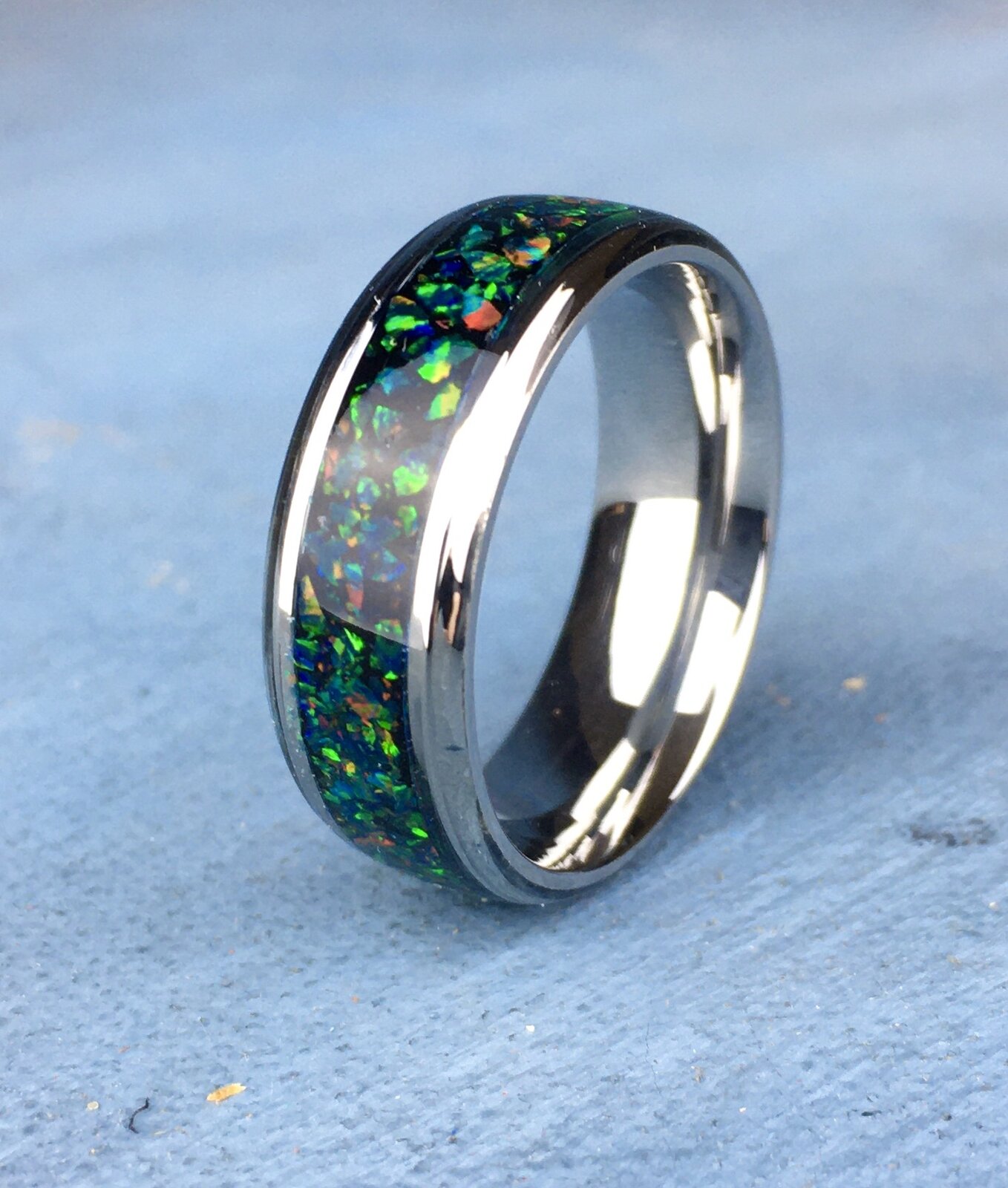

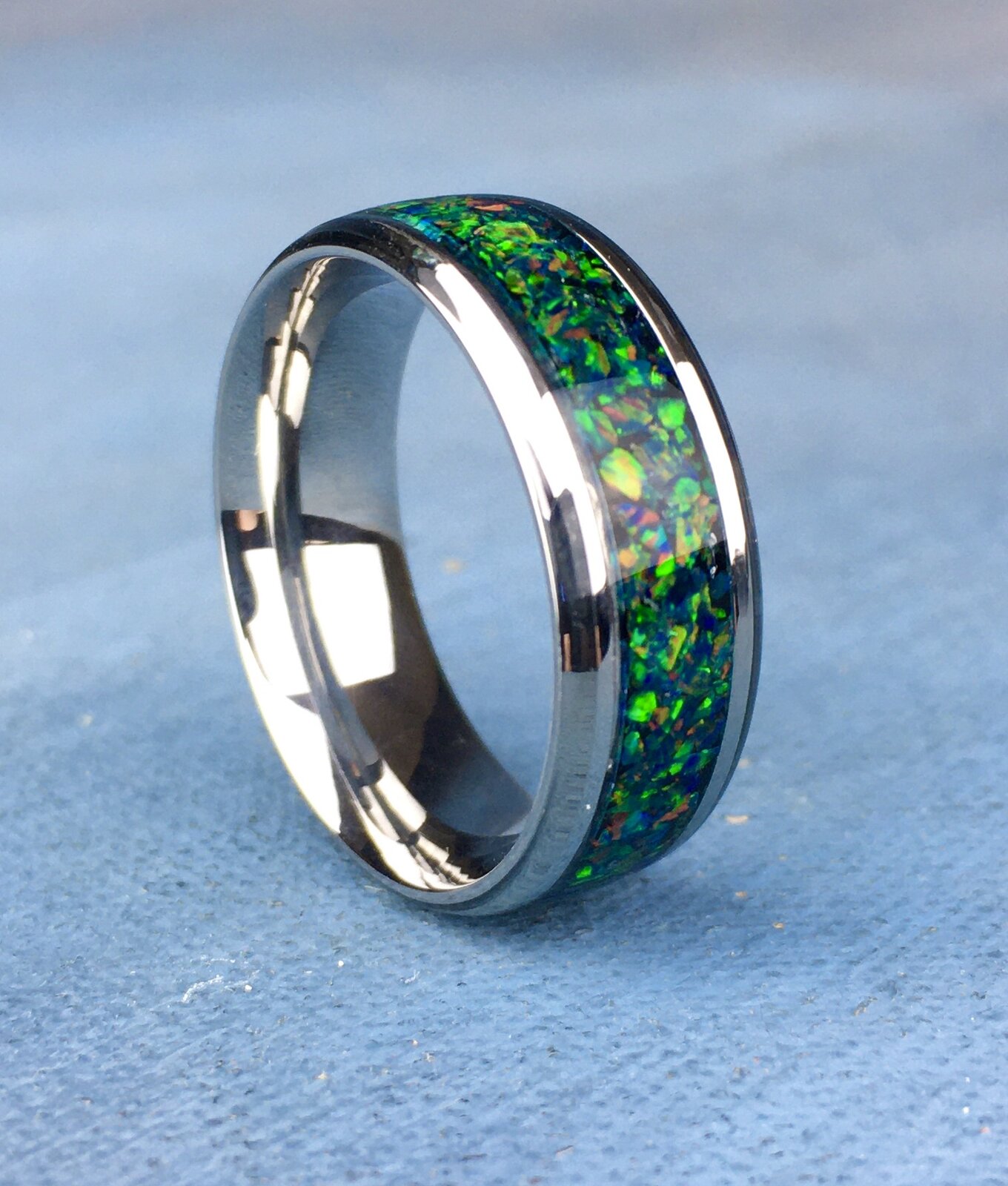

Another one


Attachments

  • 3D00285A-C5B5-48CF-B1D6-B632A3663264.jpeg
    257.9 KB · Views: 39
  • BCEA10BB-9D7A-4FE5-88F5-70EF989B12C7.jpeg
    270.5 KB · Views: 34

mmayo

Member
Joined
Jan 12, 2013
Messages
2,031
Location
Tehachapi, CA

Best ring mandrel I’ve seen and I now own several I like less. I’ll buy soon.

You will need a collet chuck to fit your headstock.

Last edited:

mmayo

Member
Joined
Jan 12, 2013
Messages
2,031
Location
Tehachapi, CA

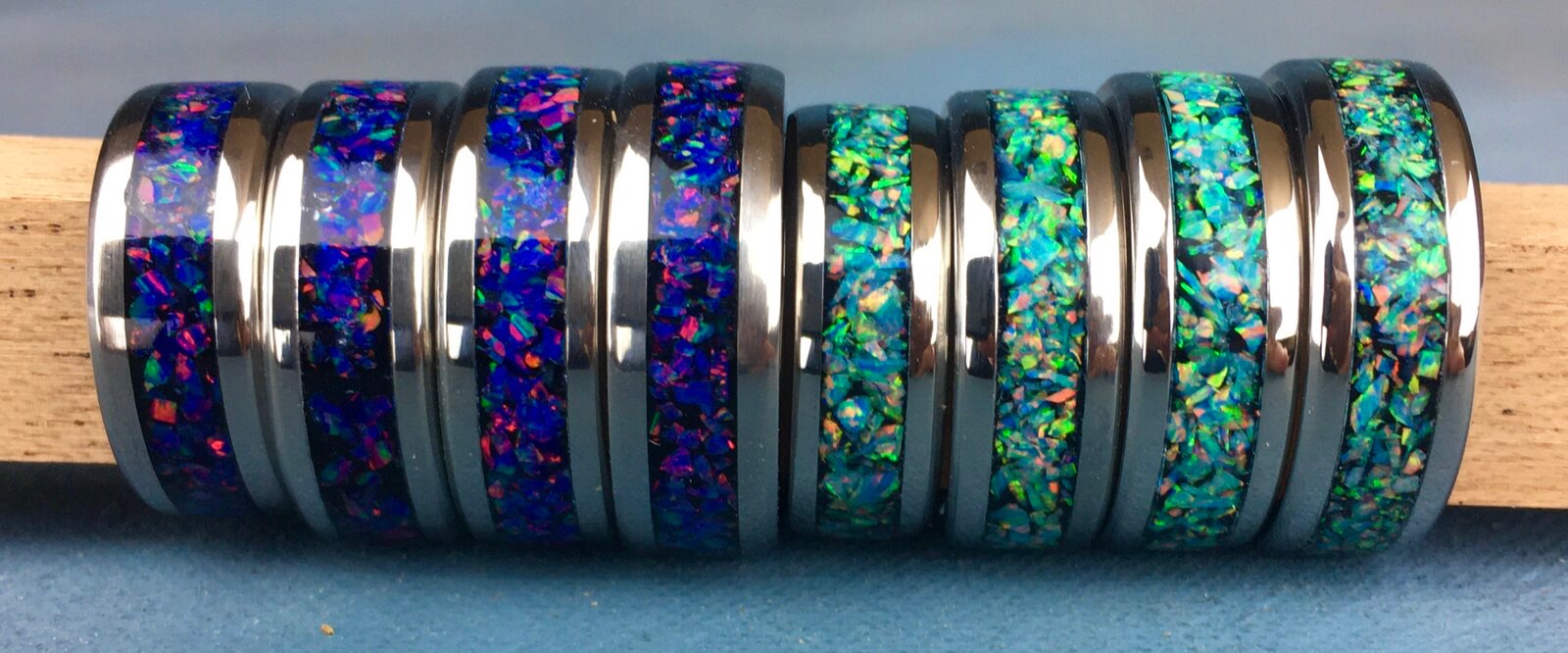

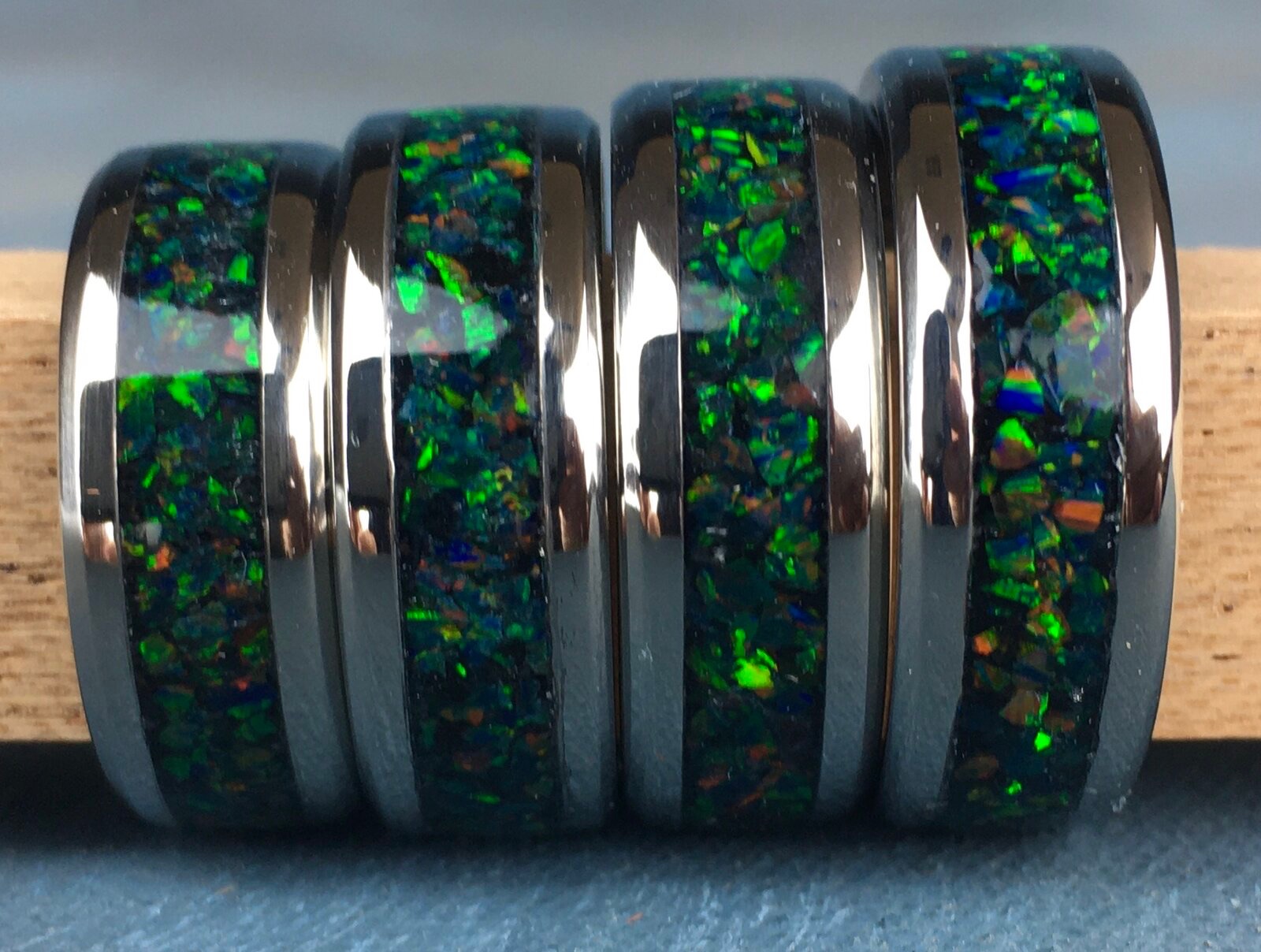

More ring, this time titanium Inlay with opalescent crystals.


Attachments

  • D5864C3D-6F73-43EB-BC56-FDBBC967B56E.jpeg
    363.3 KB · Views: 30
  • C1377B4A-1351-4F13-BF04-C9E209E27487.jpeg
    273.9 KB · Views: 29
