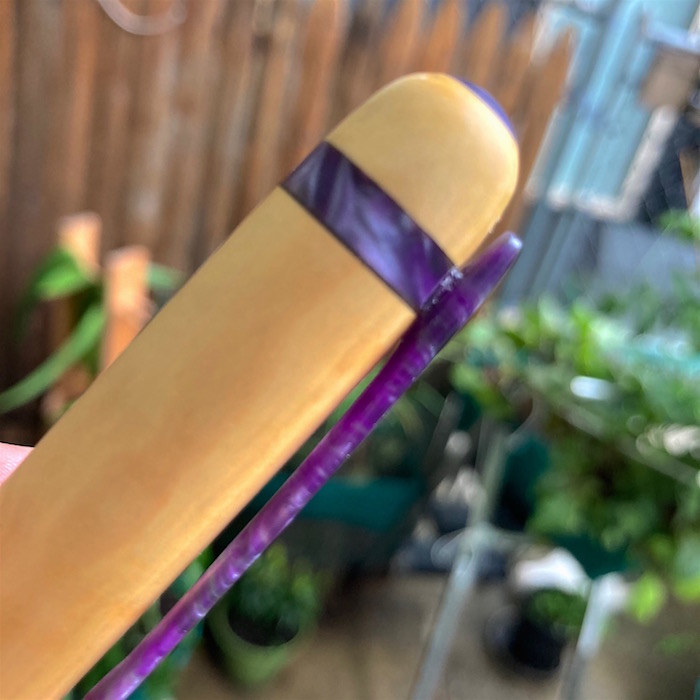

Some have asked so here are some more detailed pictures of the clip. Just to mention, there are a handful of things I might consider doing differently next time, including some thin metal band (brass or aluminum, can't decide) at the wood/resin junctions. Threading flexigran works but the treads are not as crisp as I would like, so for the next one I will probably use some alumilite blank or ebonite for the body threads. But for once I stuck with the original plan design.

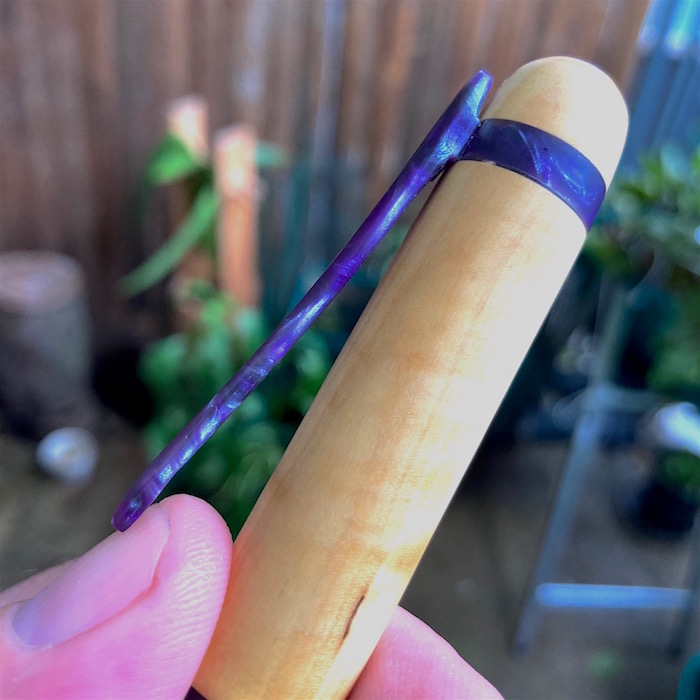

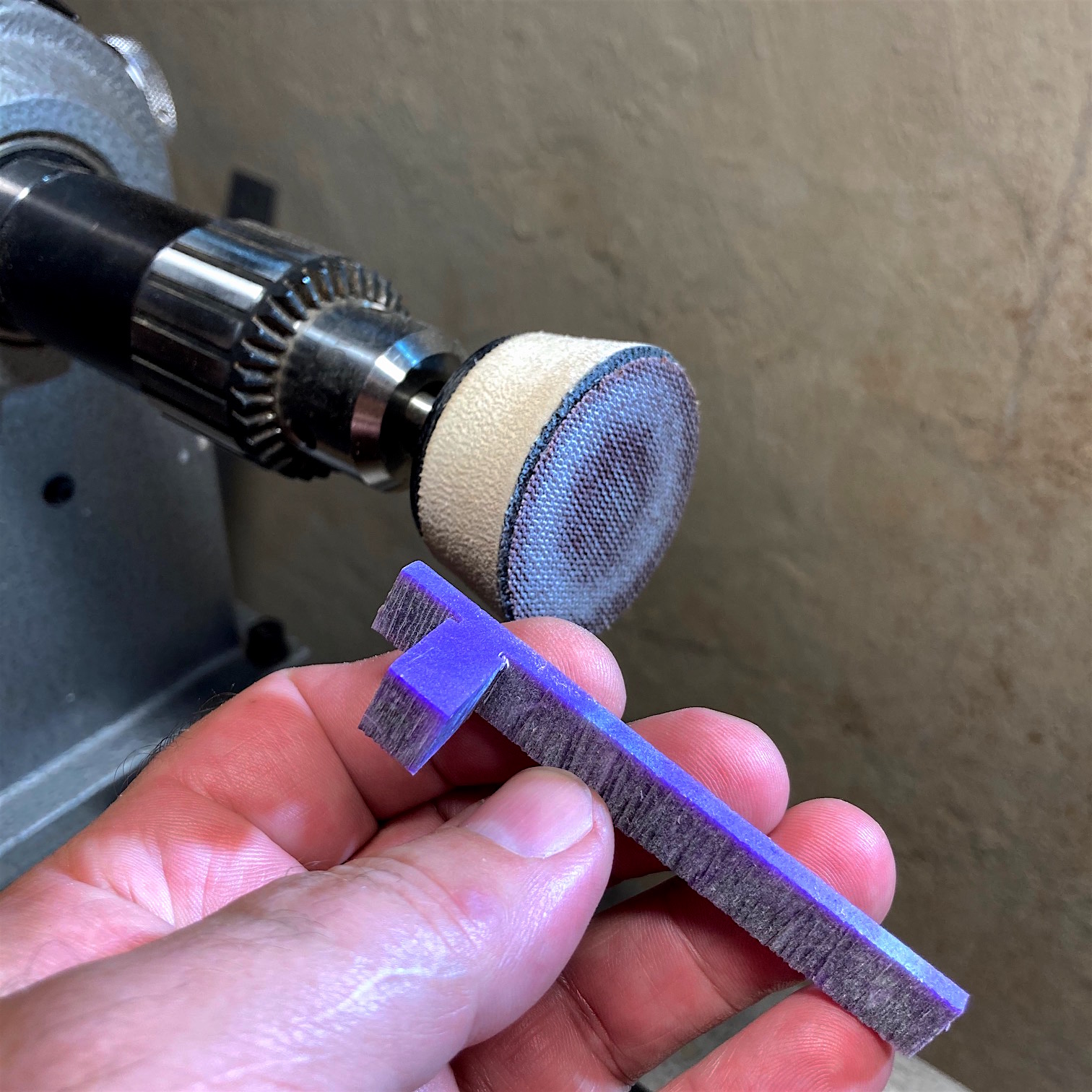

The clip started as a rough shape I cut from the flexigran blank, brought to final shape using handtools (rasp and carving knife) and power tools (on the lathe with sandpaper as shown in the first picture and Dremel), polished using the same tools, finished with Rennaissance wax. On the bottom face of the clip, I shaped a tenon (that was also used to hold the clip during shaping and finishing) to fit in a mortise in the cap flexigran band. I think it took an hour or so from start to finish. The clip was glued with epoxy as the final assembly stage.




I realized the clip was somewhat flexible as I was making it, wasn't too sure how it would hold. Started cautiously testing it, then realized it was holding just fine :)

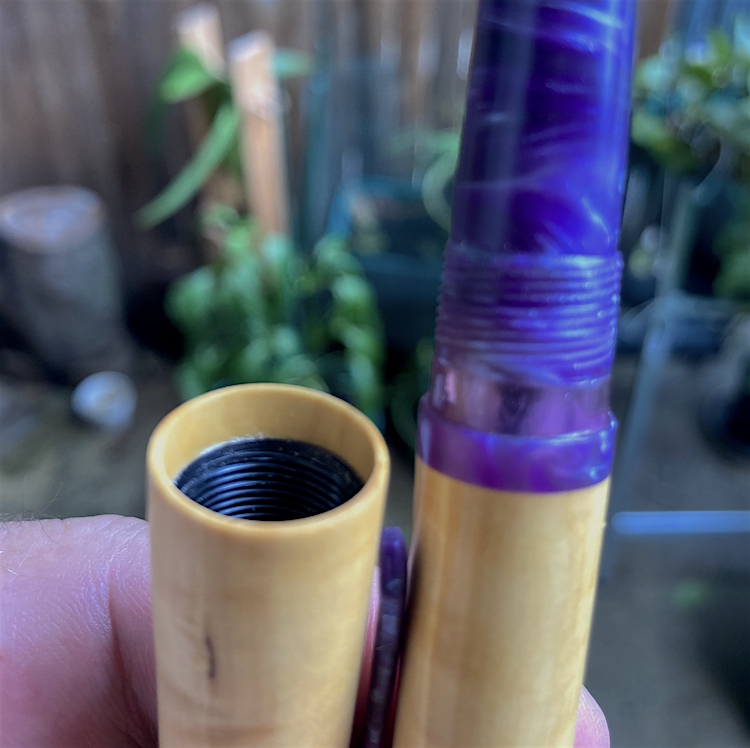

Cap threads were made from Delrin. The ink window is made from pinkish/purplish homemade Liquid Diamonds resin blank.
image0 (1).jpeg


I tried my best with pictures using my cellphone, I don't have my usual camera at hand.

C&C welcome.
Fred


Attachments

  • image0.jpeg
    475.5 KB · Views: 38
  • image0.jpeg
    121.7 KB · Views: 417
  • image1.jpeg
    94.7 KB · Views: 49
Signed-In Members Don't See This Ad

darrin1200

Member
Joined
Mar 17, 2010
Messages
1,213
Location
Lyn, Ontario, Canada
Fantastic information Fred. While metal clips look clean, these add a very elegant and symmetrical feel.
I am definitely going to give these a try. I don't have any Flexigran, but will give it a shot with some Alumilite Clear Slow.


CjG78

Member
Joined
Feb 2, 2020
Messages
162
Location
Australia
Some have asked so here are some more detailed pictures of the clip. Just to mention, there are a handful of things I might consider doing differently next time, including some thin metal band (brass or aluminum, can't decide) at the wood/resin junctions. Threading flexigran works but the treads are not as crisp as I would like, so for the next one I will probably use some alumilite blank or ebonite for the body threads. But for once I stuck with the original plan design.

The clip started as a rough shape I cut from the flexigran blank, brought to final shape using handtools (rasp and carving knife) and power tools (on the lathe with sandpaper as shown in the first picture and Dremel), polished using the same tools, finished with Rennaissance wax. On the bottom face of the clip, I shaped a tenon (that was also used to hold the clip during shaping and finishing) to fit in a mortise in the cap flexigran band. I think it took an hour or so from start to finish. The clip was glued with epoxy as the final assembly stage.




I realized the clip was somewhat flexible as I was making it, wasn't too sure how it would hold. Started cautiously testing it, then realized it was holding just fine :)

View attachment 245588

Cap threads were made from Delrin. The ink window is made from pinkish/purplish homemade Liquid Diamonds resin blank.
View attachment 245589

I tried my best with pictures using my cellphone, I don't have my usual camera at hand.

C&C welcome.
Fred
This is next level craftsmanship mate, bravo


Fred Bruche

Member
Joined
Feb 11, 2018
Messages
507
Location
Philadelphia 19146
Fantastic information Fred. While metal clips look clean, these add a very elegant and symmetrical feel.
I am definitely going to give these a try. I don't have any Flexigran, but will give it a shot with some Alumilite Clear Slow.

Thanks Darrin! I made only this one so far, Flexigran is fairly easy to work with, but I think it should be doable with other "plastics" or even some woods.
