G'Day Charlie,

I've done some very simple boxes and bowls, so a newbie.

What tools are you using for the outside and inside. And are you using different tools for the closed segmented vs the open segments? Just a few thoughts for the future.

Cheers, Mark


Dieseldoc

Member
Joined
Oct 28, 2017
Messages
476
Location
Livermore, Ca 94550
All time not spent on pen these are some of my other turning.Open and closed segmented .
Left to right

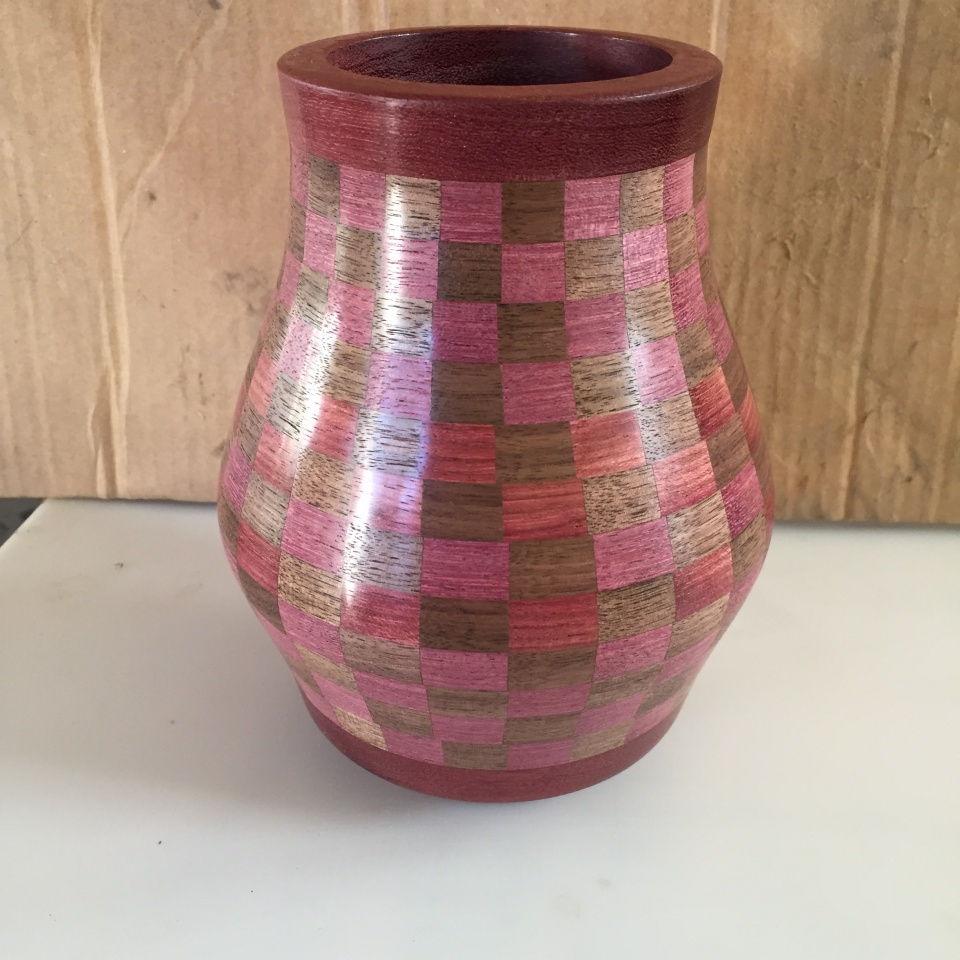

Walnut-Purple heart

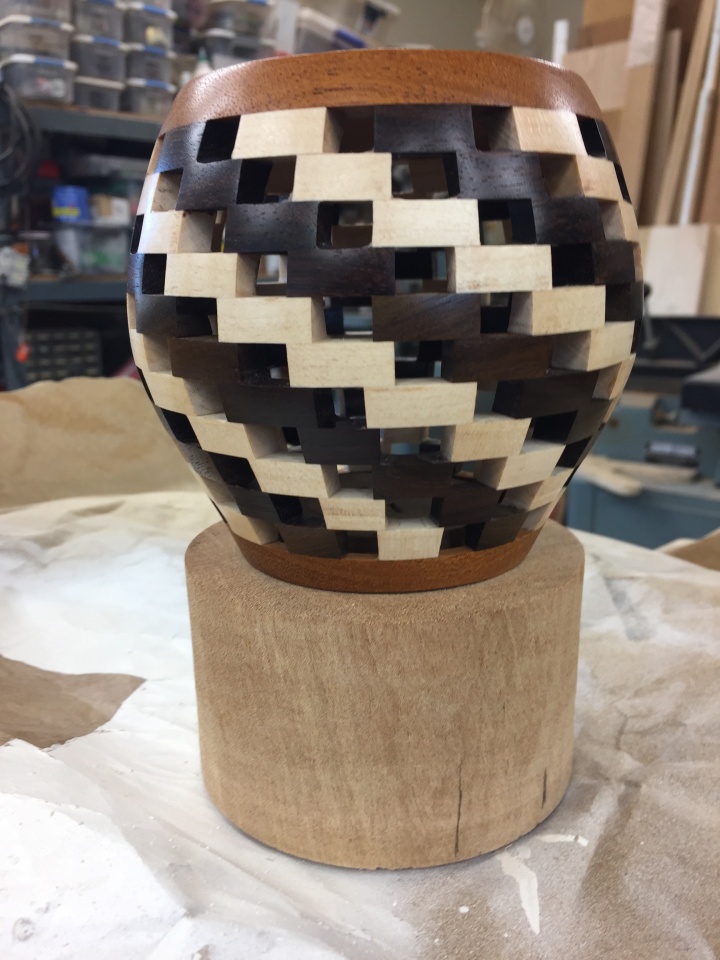

Walnut-Maple with Cherry rim,base.
Walnut-Paduak

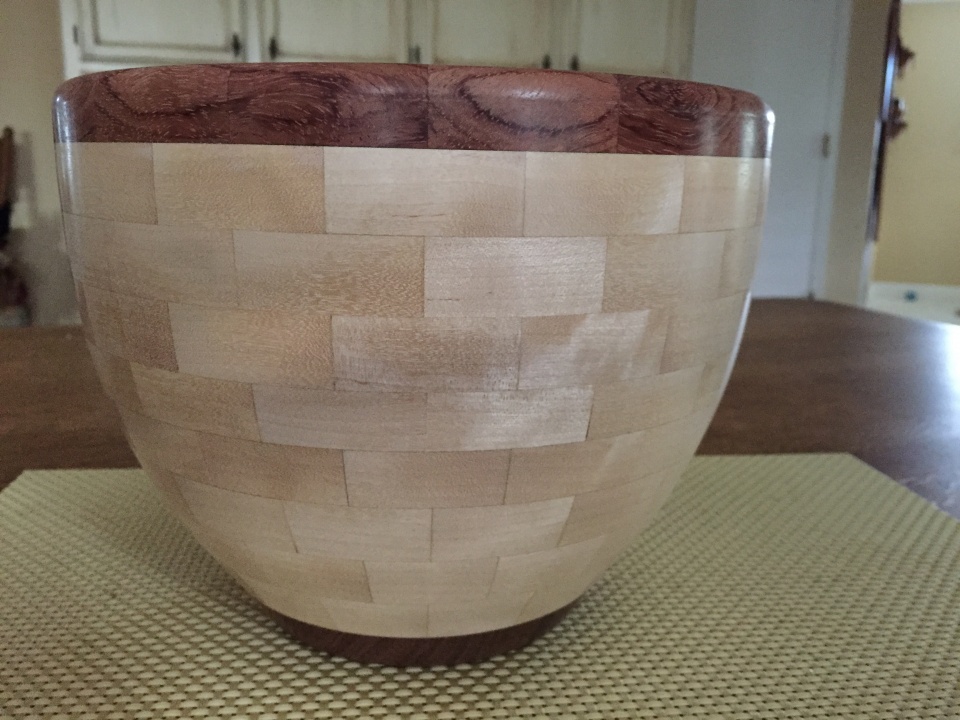

Silver Maple- Walnut.

I really like the silver Maple from Oregon, kind hard to find but sure turned nice.


Dieseldoc

Member
Joined
Oct 28, 2017
Messages
476
Location
Livermore, Ca 94550
G'Day Charlie,

I've done some very simple boxes and bowls, so a newbie.

What tools are you using for the outside and inside. And are you using different tools for the closed segmented vs the open segments? Just a few thoughts for the future.

Cheers, Mark
Mark:

For Closed stuff, just bowl gouges and shear scraping. Turn to 1/4 or less on the walls. The Silver Maple bowl is 1/8 on the walls.

Open Segments are a different story.

What I do on the lathe when building it out is to turn the inside and out side per my drawing with gouge and sheer scraping as I go. Got to be very careful not to catch, I have found by using large gouge rubbing the bevel I can keep the tool supported. For the rim on the inside I use a small disc cutter carbide. Again I try for 1/4 or less wall thickness.

I use lot of jigs for cutting, sanding and jig for putting the segments rings together. Major problem is keeping the vessel in axis alignment.

So far I have found trying to make segmented pen due to the small parts is much hard to do.
Keeping the too;s very sharp.

But if it were easy everyone would make them.

Cheers

Charlie

Last edited:

leehljp

Member Liaison
Joined
Feb 6, 2005
Messages
6,684
Location
Tunica, MS,
For Closed stuff, just bowl gouges and shear scraping. Turn to 1/4 or less on the walls. The Silver Maple bowl is 1/8 on the walls.
Open Segments are a different story.


What I do on the lathe when building it out is to turn the inside and out side per my drawing with gouge and sheer scraping as I go. Got to be very careful not to catch, I have found by using large gouge rubbing the bevel I can keep the tool supported. For the rim on the inside I use a small disc cutter carbide. Again I try for 1/4 or less wall thickness.

I use lot of jigs for cutting, sanding and jig for putting the segments rings together. Major problem is keeping the vessel in axis alignment.

So far I have found trying to make segmented pen due to the small parts is much hard to do.
Keeping the too;s very sharp.

But if it were easy everyone would make them.

Charlie
Charlie,

1. How well does silver maple turn and work?

My daughter had to have a silver maple (20 inch diameter at base) cut down a couple of months ago. I got several pieces 24"- 28" long and sealed the ends. I'm looking forward to using them for bowls and some for other needs.

2. I appreciate the info you gave me on turning. I noticed you mentioned the wall thickness at 1/4" or less on your bowls (without segments); This is making me re-adjust my thinking on bowls as it is easy to focus on shape and design only.
Thanks!

Last edited:

Dieseldoc

Member
Joined
Oct 28, 2017
Messages
476
Location
Livermore, Ca 94550
For Closed stuff, just bowl gouges and shear scraping. Turn to 1/4 or less on the walls. The Silver Maple bowl is 1/8 on the walls.
Open Segments are a different story.


What I do on the lathe when building it out is to turn the inside and out side per my drawing with gouge and sheer scraping as I go. Got to be very careful not to catch, I have found by using large gouge rubbing the bevel I can keep the tool supported. For the rim on the inside I use a small disc cutter carbide. Again I try for 1/4 or less wall thickness.

I use lot of jigs for cutting, sanding and jig for putting the segments rings together. Major problem is keeping the vessel in axis alignment.

So far I have found trying to make segmented pen due to the small parts is much hard to do.
Keeping the too;s very sharp.

But if it were easy everyone would make them.

Charlie
Charlie,

1. How well does silver maple turn and work?

My daughter had to have a silver maple (20 inch diameter at base) cut down a couple of months ago. I got several pieces 24"- 28" long and sealed the ends. I'm looking forward to using them for bowls and some for other needs.

2. I appreciate the info you gave me on turning. I noticed you mentioned the wall thickness at 1/4" or less on your bowls (without segments); This is making me re-adjust my thinking on bowls as it is easy to focus on shape and design only.
Thanks!
Hank:

Silver Maple is great wood for tuning,easy to turn and takes a finish very well.

I use Tung oil on all of my bowls.

Cheers

Charlie
