Scalloped blank first attempt

Signed-In Members Don't See This Ad
See more from Angela S

Angela S

Member
Joined
Jun 26, 2019
Messages
176
Location
Seattle

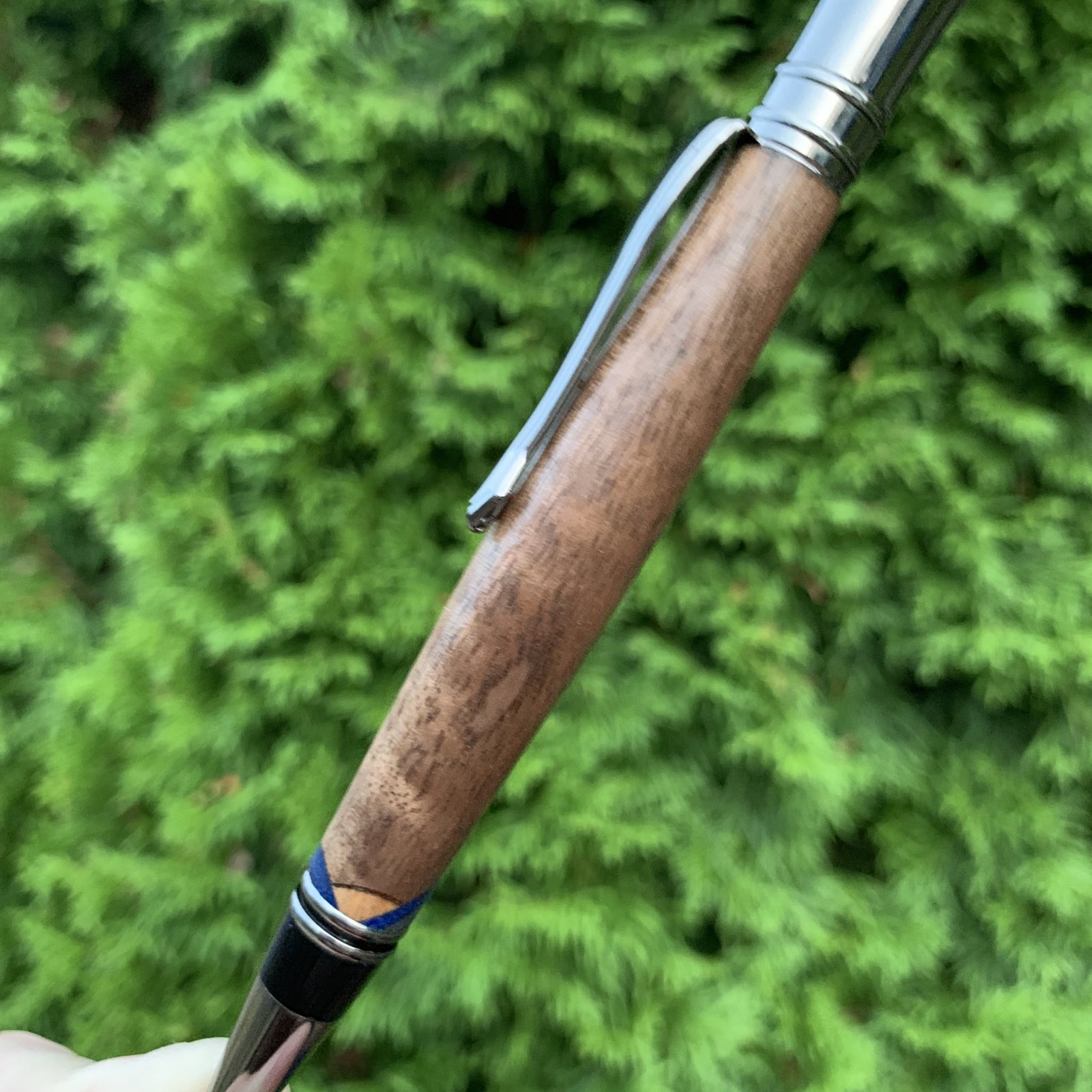

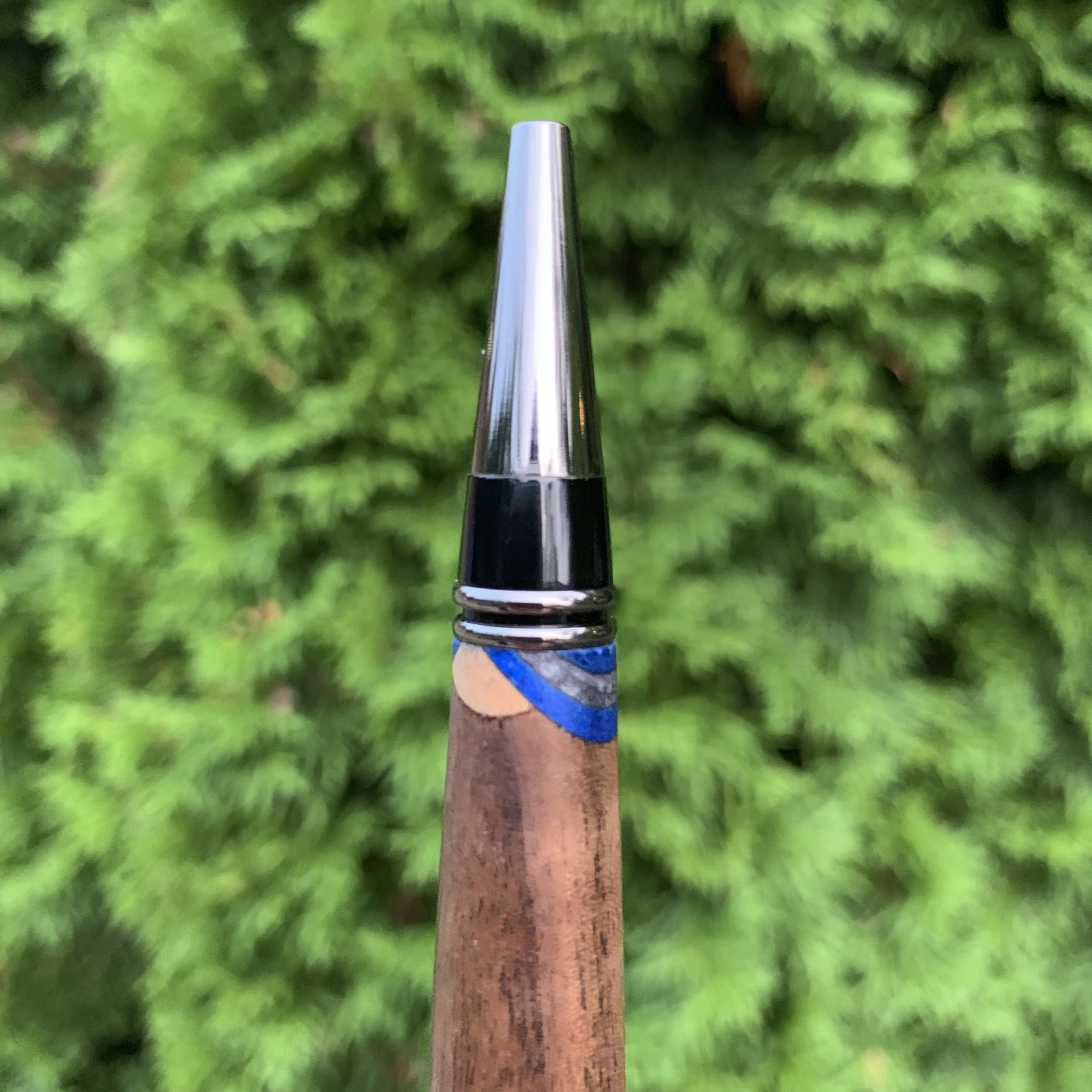

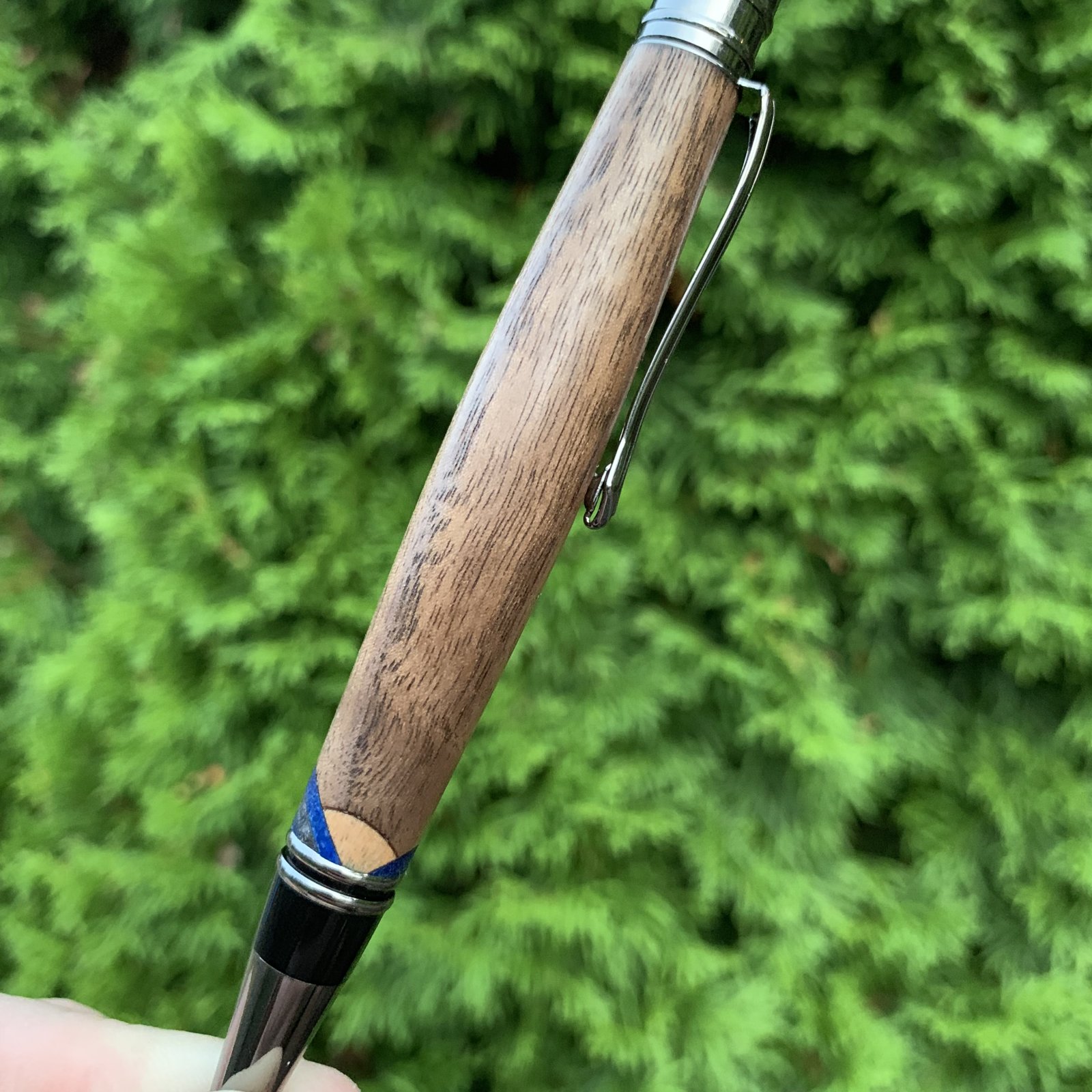

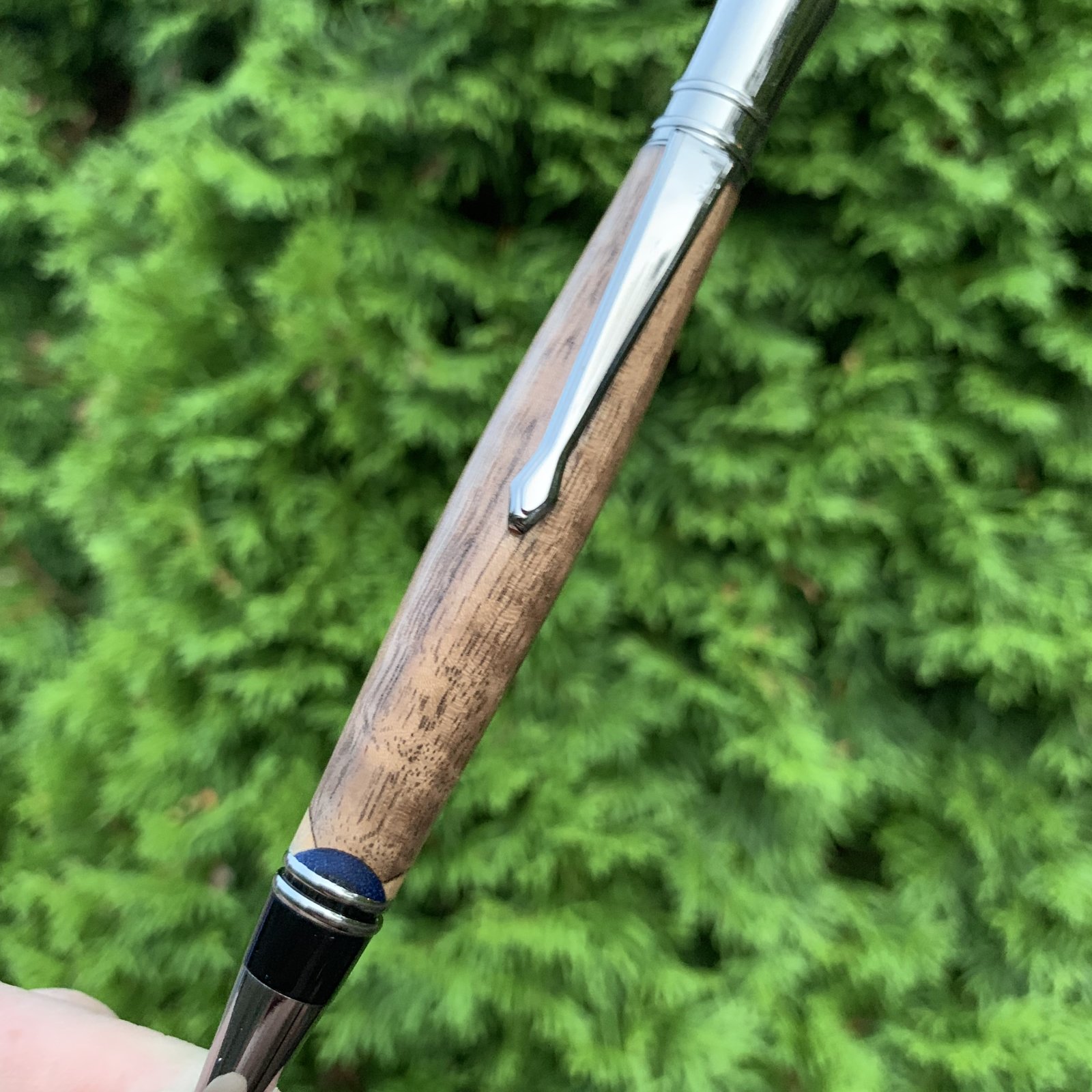

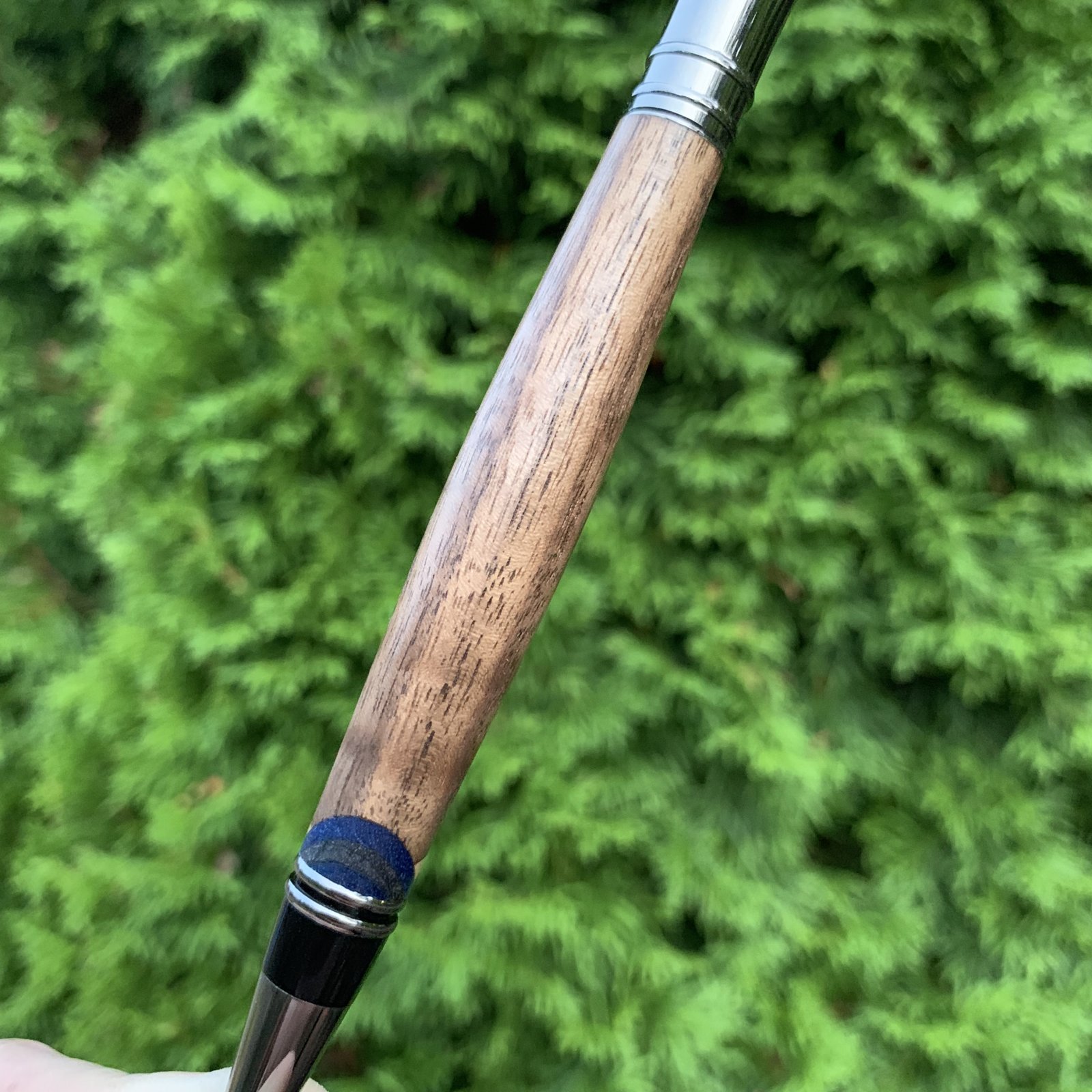

This is my first attempt at a scalloped blank. I need to find a way to make more precise cuts.


Signed-In Members Don't See This Ad

jttheclockman

Member
Joined
Feb 22, 2005
Messages
15,724
Location
NJ, USA.
What are you using to make cuts?? Maybe show us your setup and we can tweak it for you.

Will say this to be successful especially for a beginner you need to start with a square blank and work off that. This will help many ways.


Angela S

Member
Joined
Jun 26, 2019
Messages
176
Location
Seattle
What are you using to make cuts?? Maybe show us your setup and we can tweak it for you.

I am currently just using my table saw and crosscut sled that I made as one of my first projects. It has some play in the runners which was fine when the cuts I was making did have to be so precise. I just need to make a dedicated sled for pen blanks.


jttheclockman

Member
Joined
Feb 22, 2005
Messages
15,724
Location
NJ, USA.
Many different style of sleds. Solid one angle sled or an adjustable angle sled. Need to decide how you want to go. For those scallops you would want some with a steeper angle that what those are. Tablesaw is a good choice.


skiprat

Member
Joined
Oct 19, 2006
Messages
7,810
Location
In a Skip in Wales
Just to add to what JT has said..
You will also need ensure you can drill bang on in the middle.
I actually prefer to do scallops on round stock and indexed in my lathe. Then a jig to guide a router to cut the angles. The beauty of this method is every cut and even the hole is done about the centre point only.


jttheclockman

Member
Joined
Feb 22, 2005
Messages
15,724
Location
NJ, USA.
Just to add to what JT has said..
You will also need ensure you can drill bang on in the middle.
I actually prefer to do scallops on round stock and indexed in my lathe. Then a jig to guide a router to cut the angles. The beauty of this method is every cut and even the hole is done about the centre point only.
That there is above a beginners level but you are right when it comes to drilling for the tube.


skiprat

Member
Joined
Oct 19, 2006
Messages
7,810
Location
In a Skip in Wales
Yep, perhaps a tad advanced, but something to aim for maybe.
Here's a link to what i mean. I show my method a few posts down the thread.


jttheclockman

Member
Joined
Feb 22, 2005
Messages
15,724
Location
NJ, USA.

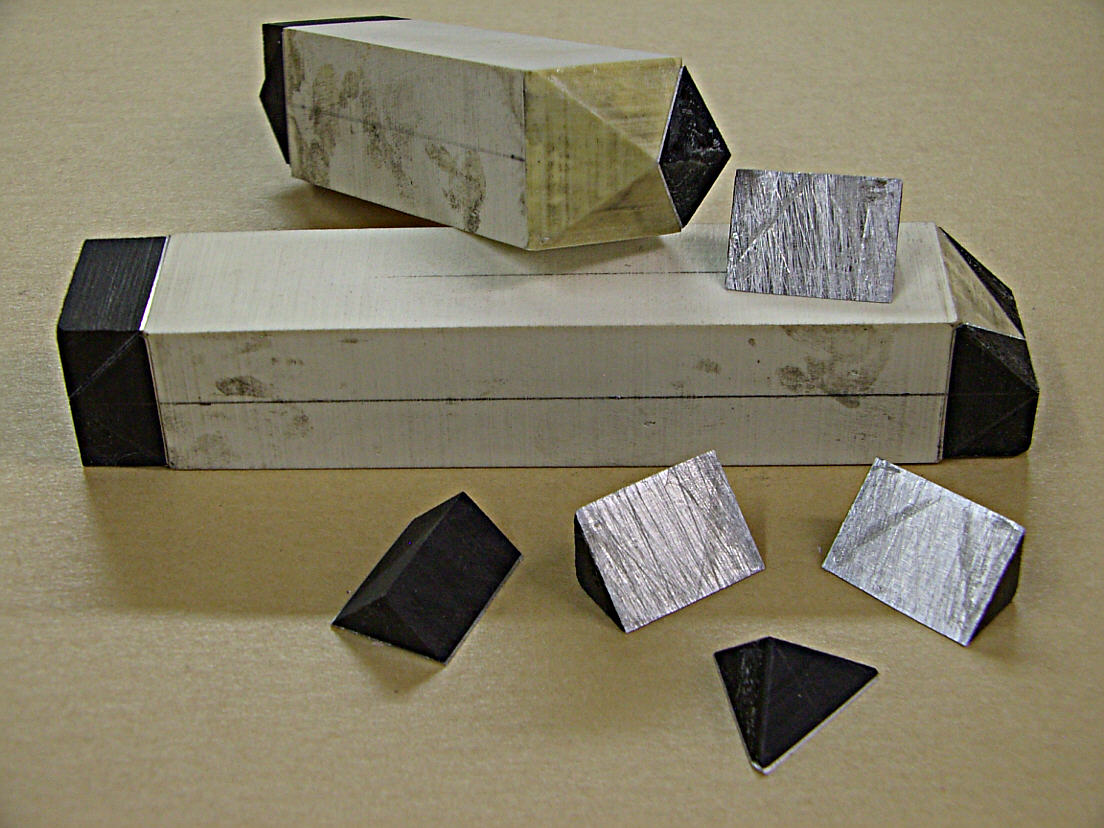

Here is one that was going to be pretty when done but I made the drastic mistake of using CA. I may revisit this one at some later date. Even you would have liked this one Skip. Done on a tablesaw. Would have more design also but never got it far enough.


Attachments

  • IMGP1034.JPG
    158.2 KB · Views: 105

skiprat

Member
Joined
Oct 19, 2006
Messages
7,810
Location
In a Skip in Wales
Ah, dont be so modest buddy, you know i'm a massive fan of everything you make, do and sayšŸ˜Š

Just another point that some folks miss when using a saw sled....not only do the 4 sides need to be square, but also the blank end that you reference your stop block to, too. If that is rough cut at an angle it will throw off your accuracy. šŸ˜‰


mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
11,210
Location
Medina, Ohio
Keep at it Angela - You have made great strides in a short period. Take careful notes for the areas to tweak and have fun making the jigs that assist you for what you have.

Very nice.


John Eldeen

Member
Joined
Apr 3, 2019
Messages
419
Location
Sacramento, CA
Angela your work is looking good you do have a ways to go but you will get there. There is some good advice already posted here. I will just throw this out there a good sled for your table saw will go farther to improving your segmenting than you can imagine. I have an adjustable angle fence on my sled and could not live without it now that I have it.
