sanding the ends square

Signed-In Members Don't See This Ad

howsitwork

Member
Joined
Jul 9, 2016
Messages
1,410
Location
Thirsk

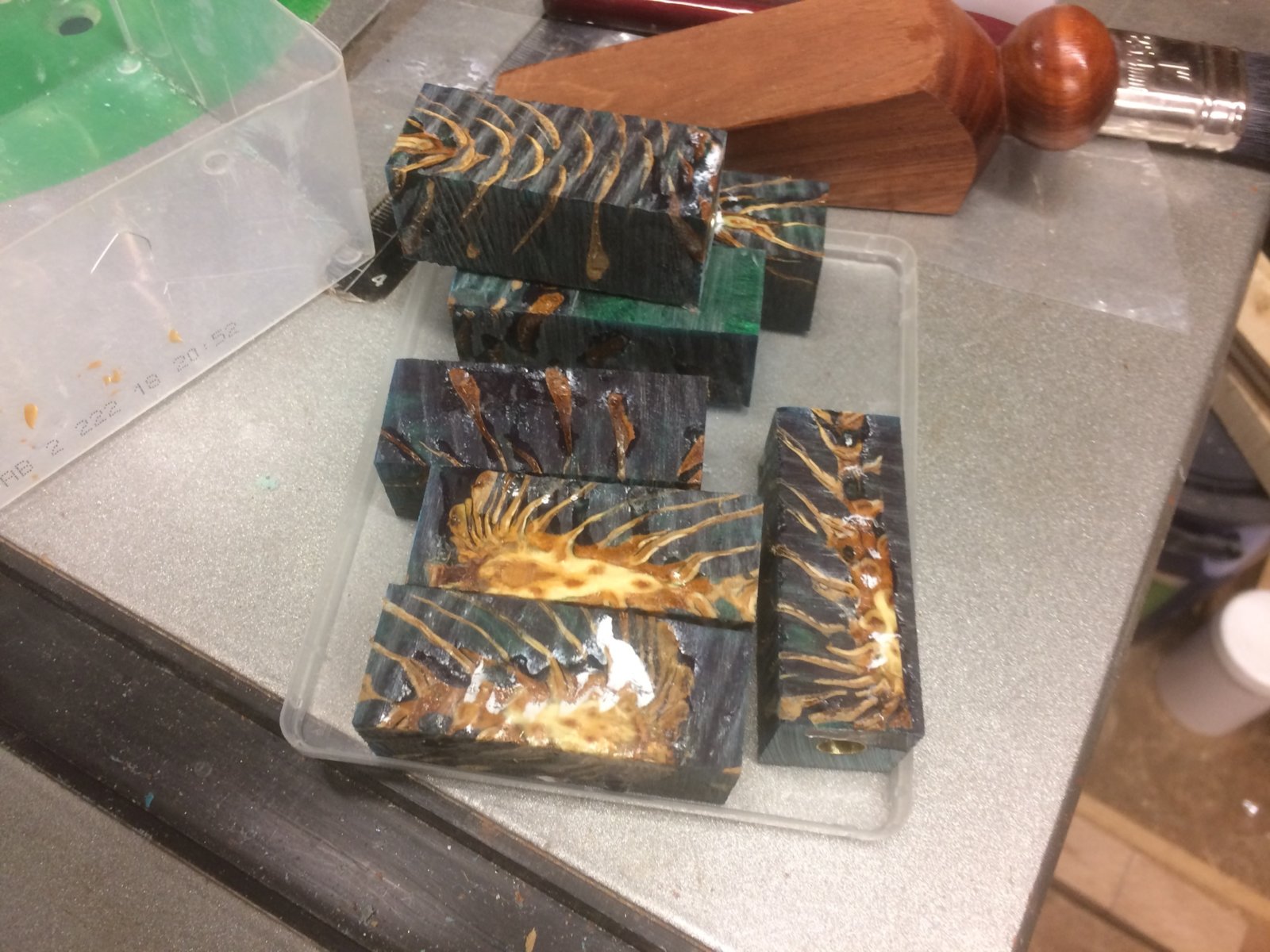

Well hav8ng finally made and cut up some aluminite and pine cone blanks I needed to square the ends. Normally I use a razor sharp,counterbore but the contrast in density between the hard resin and soft cone material was a bit too much so , after applying CA/to the chipped out aare I decided t9 follow advice on here and sand the tube ends.

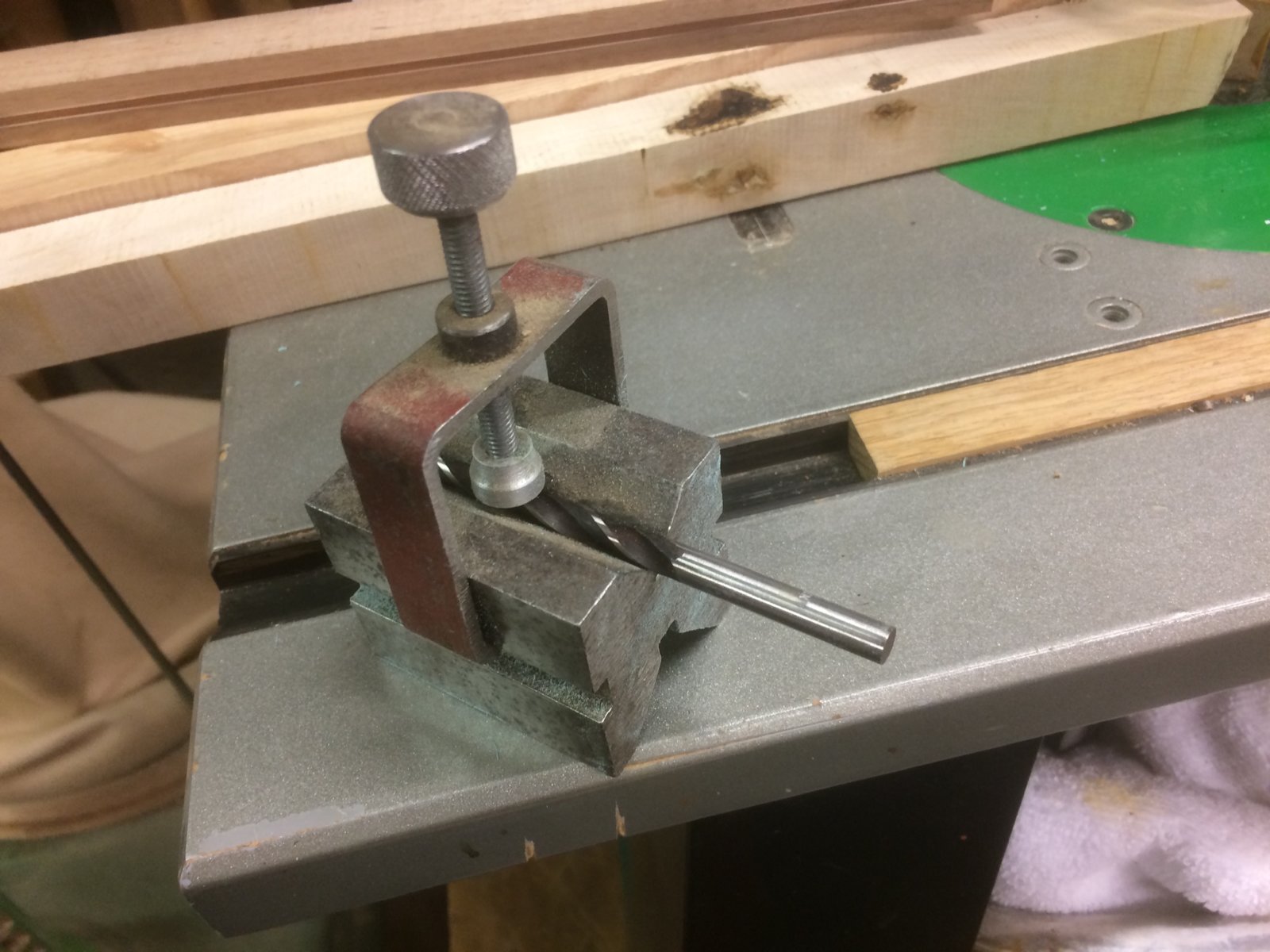

Using a V block and clamp to hold the rod works

5AB1DFCE-B142-40F1-9F4A-8DACC2519D24.jpeg688854F8-3B3A-452A-9916-D4A4F7410619.jpeg9E19EEB1-0F6E-44C7-9C04-4F3E7C0A88C5.jpeg

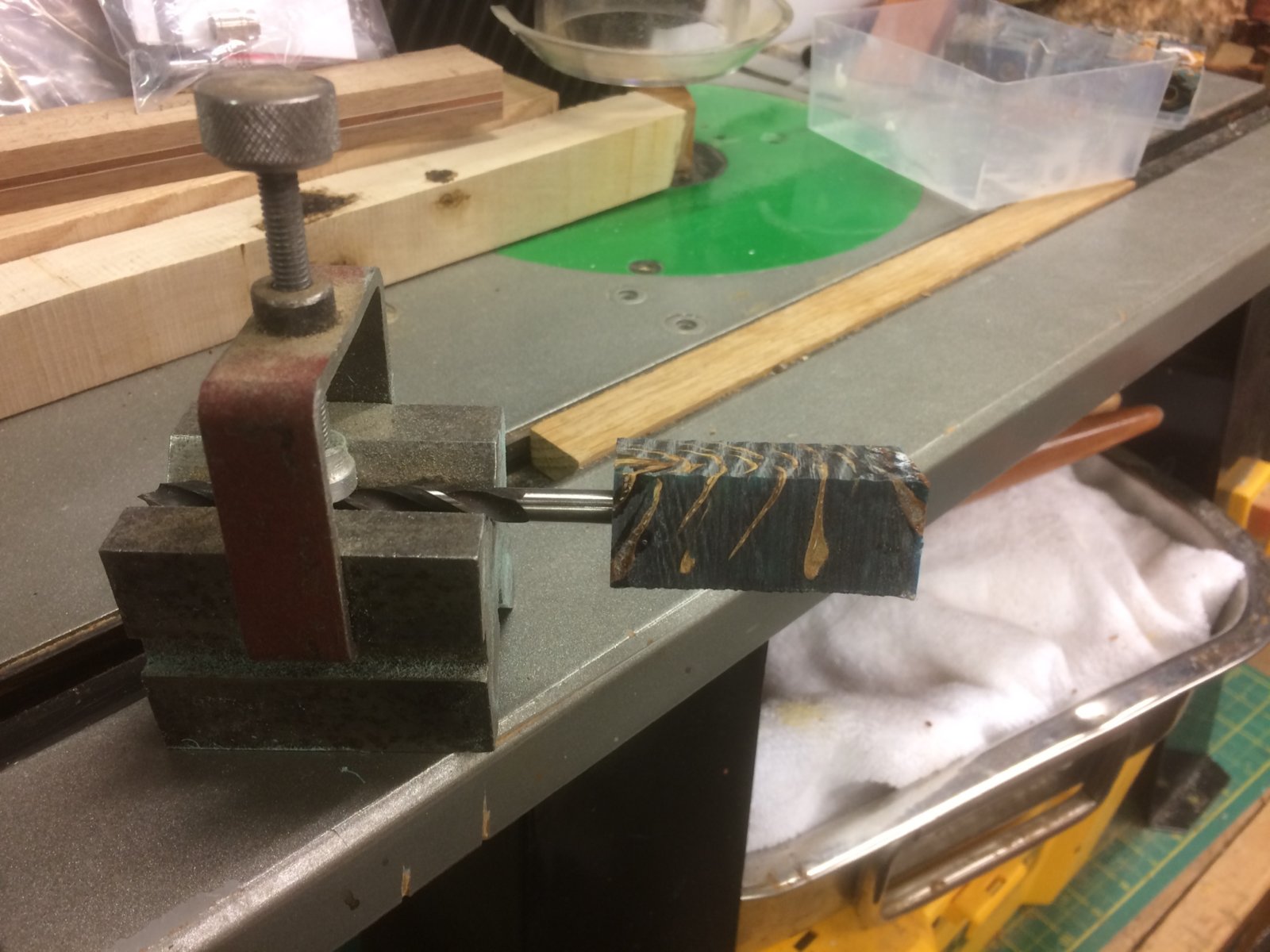

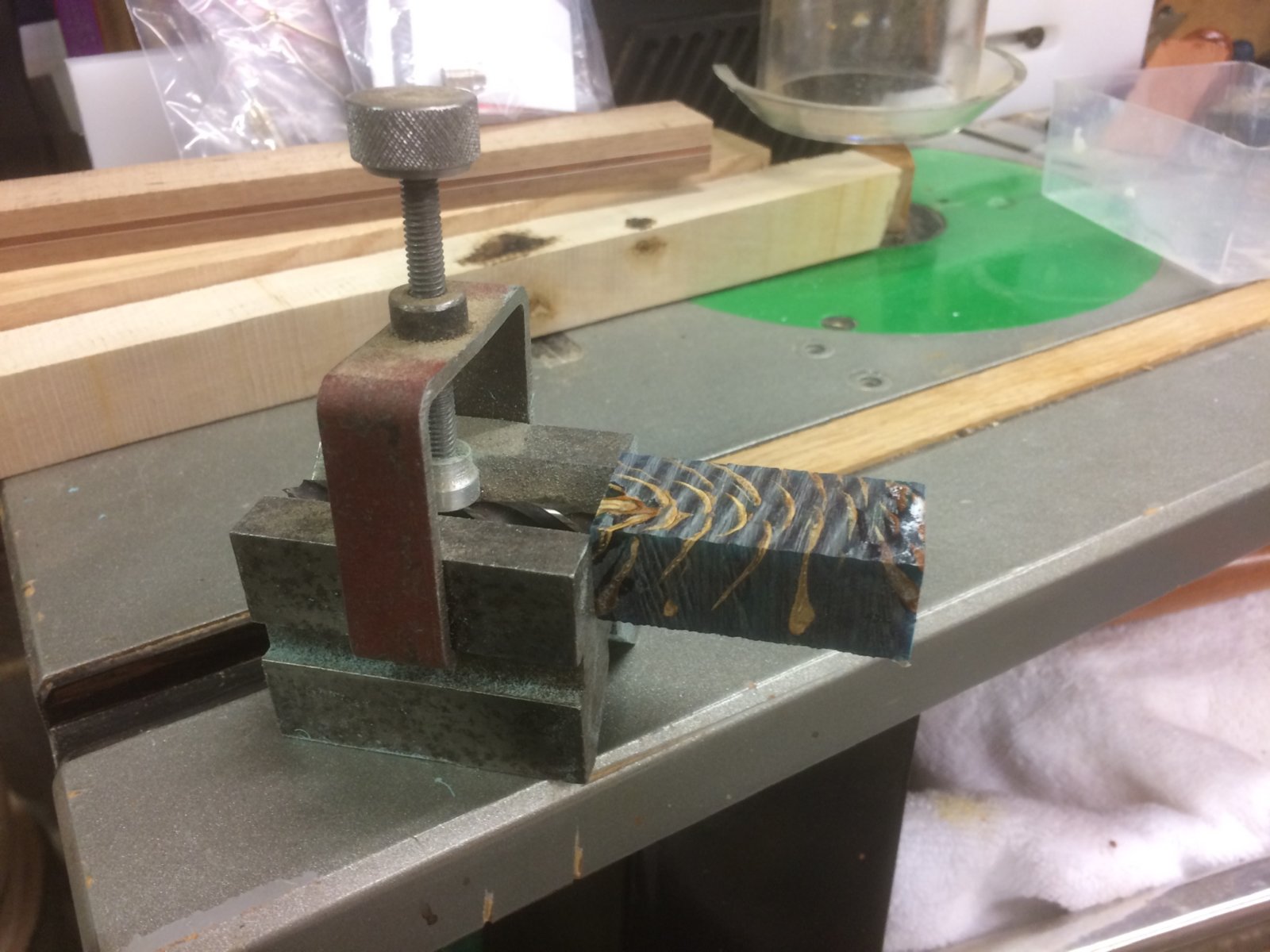

Note I posed this photo afterwards using a drill instead of the precision rods I used for the actual job. I could then , after checking out them on my 12” disc sander and sand them square to the tube.

thanks for the ideas, now just got to resharpen everything and turn em.

Signed-In Members Don't See This Ad

howsitwork

Member
Joined
Jul 9, 2016
Messages
1,410
Location
Thirsk
Pete

yes I used the mitre gauge on the sander having checked with a few scrap bits of wood to ensure it ended up square to the disc.

I might make a dedicated holder that fits in the mitre gauge slot for future use. Just wanted to say thanks to the people on here for the concept. If using a V block to hold the barrel,rods has been featured before then apologies . Was just pleased it worked so well.

The photo was taken on top of my small router table, The disc sander has a large t slotted cast table which has to be set up to 90 each time. It also has dedicated dust extraction ( and needs it !)


Morse

Member
Joined
Oct 30, 2017
Messages
11
Location
Cheshire, UK
Pete

yes I used the mitre gauge on the sander having checked with a few scrap bits of wood to ensure it ended up square to the disc.

I might make a dedicated holder that fits in the mitre gauge slot for future use. Just wanted to say thanks to the people on here for the concept. If using a V block to hold the barrel,rods has been featured before then apologies . Was just pleased it worked so well.

The photo was taken on top of my small router table, The disc sander has a large t slotted cast table which has to be set up to 90 each time. It also has dedicated dust extraction ( and needs it !)
Hi.

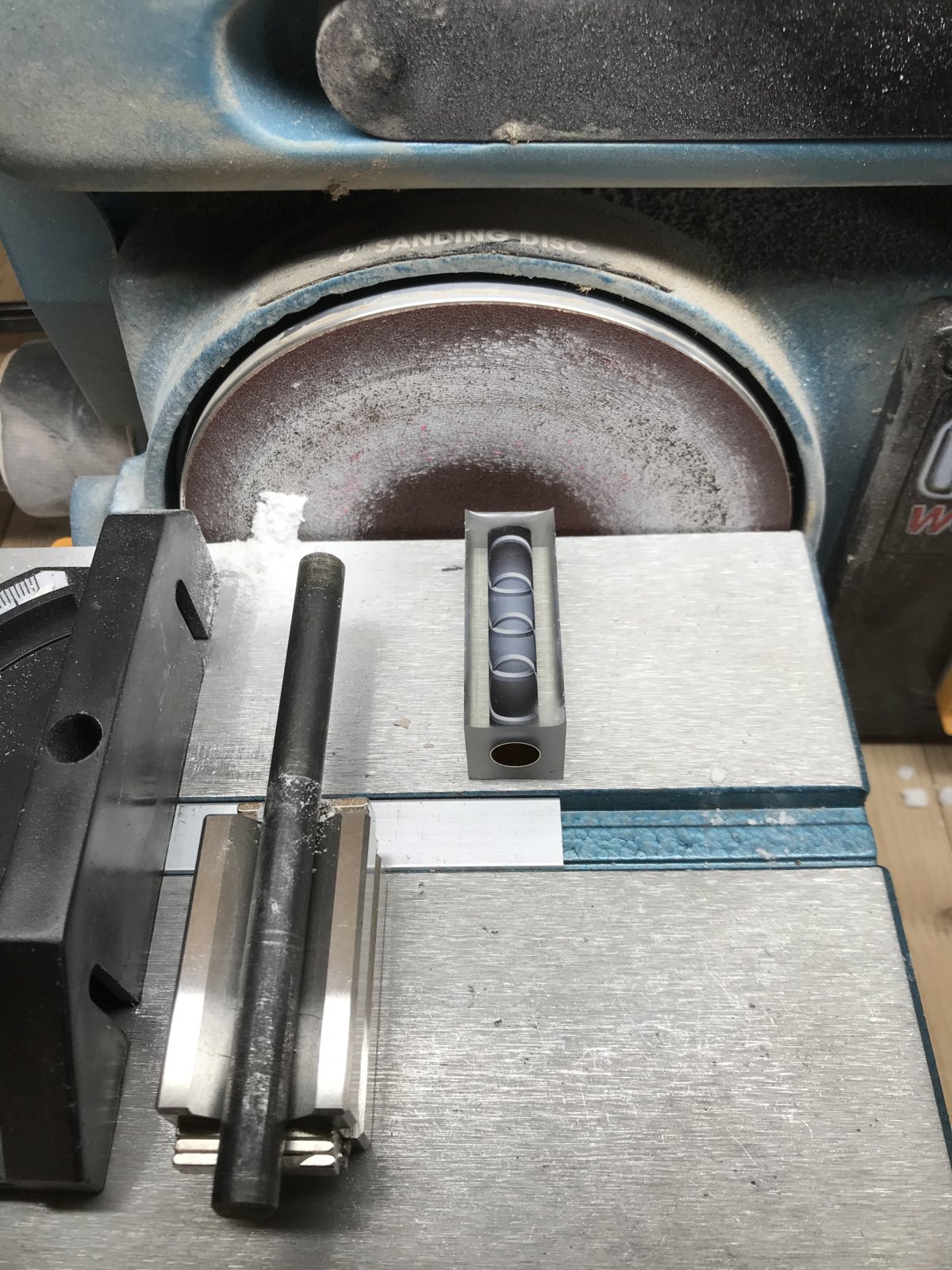

instead of using the clamp on the “V” block, I bought a couple of those super powerful magnets, either end of the block. That way I was able to use the sander guide inhindered and also checkedit was at right angles to the sanding surface.


howsitwork

Member
Joined
Jul 9, 2016
Messages
1,410
Location
Thirsk
Dave

thats a brilliant idea and I have lots of those magnets! I used a spacer alongside the clamp to get it true but that’s even easier !

Can I suggest you add a sacrificial fence to your mitre gauge though as support right upto the disc is very handy. Ply works well for this , although I have used some oak I had at the time


Morse

Member
Joined
Oct 30, 2017
Messages
11
Location
Cheshire, UK
Dave

thats a brilliant idea and I have lots of those magnets! I used a spacer alongside the clamp to get it true but that’s even easier !

Can I suggest you add a sacrificial fence to your mitre gauge though as support right upto the disc is very handy. Ply works well for this , although I have used some oak I had at the time
Ian
Nice idea. We evolve our ideas together.
Thanks
