Plunger Filler in Diamond Cast

Signed-In Members Don't See This Ad
See more from Penultimate

Penultimate

Member
Joined
Aug 22, 2010
Messages
1,034
Location
Bartlett, IL 60103
Greetings

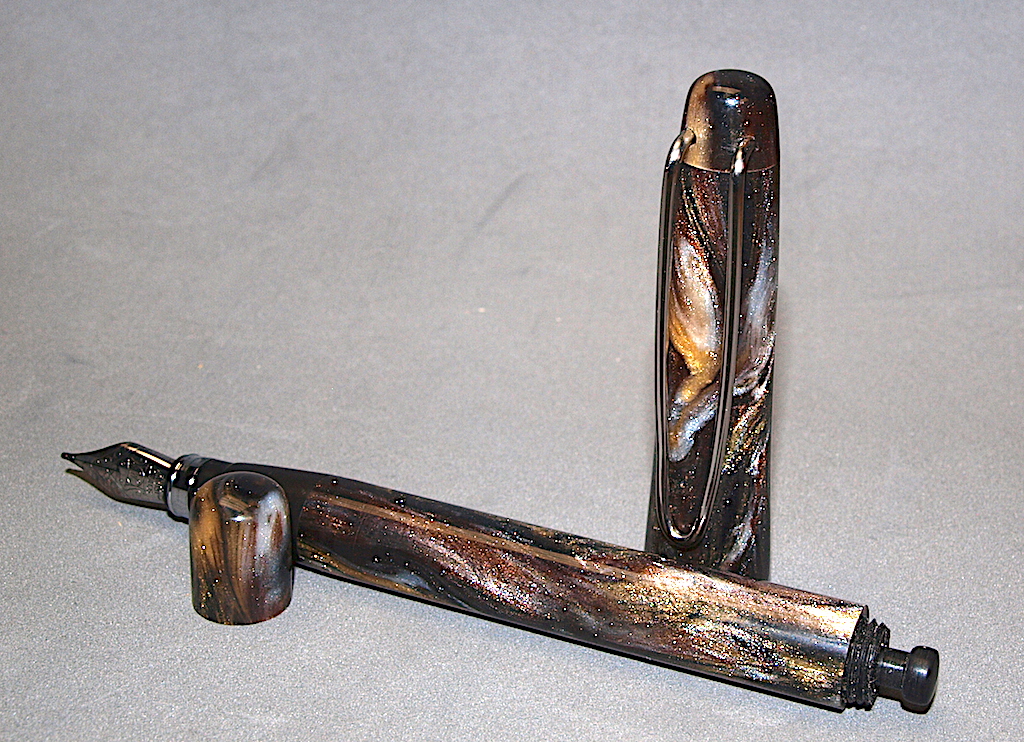

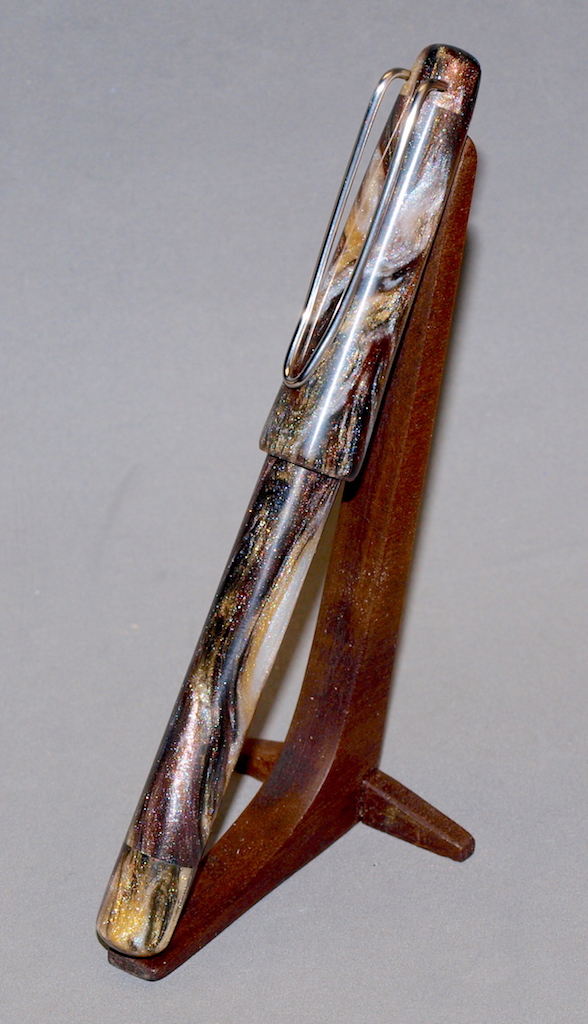

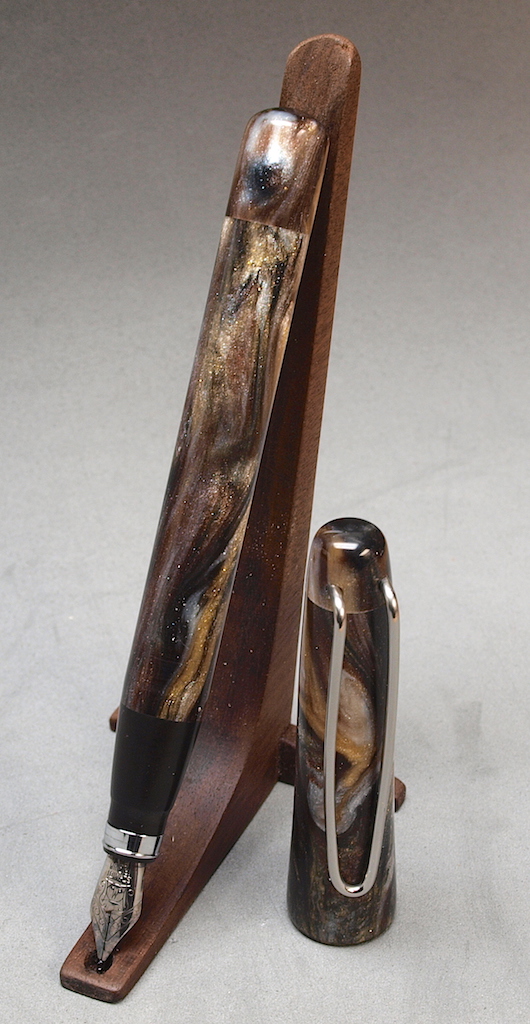

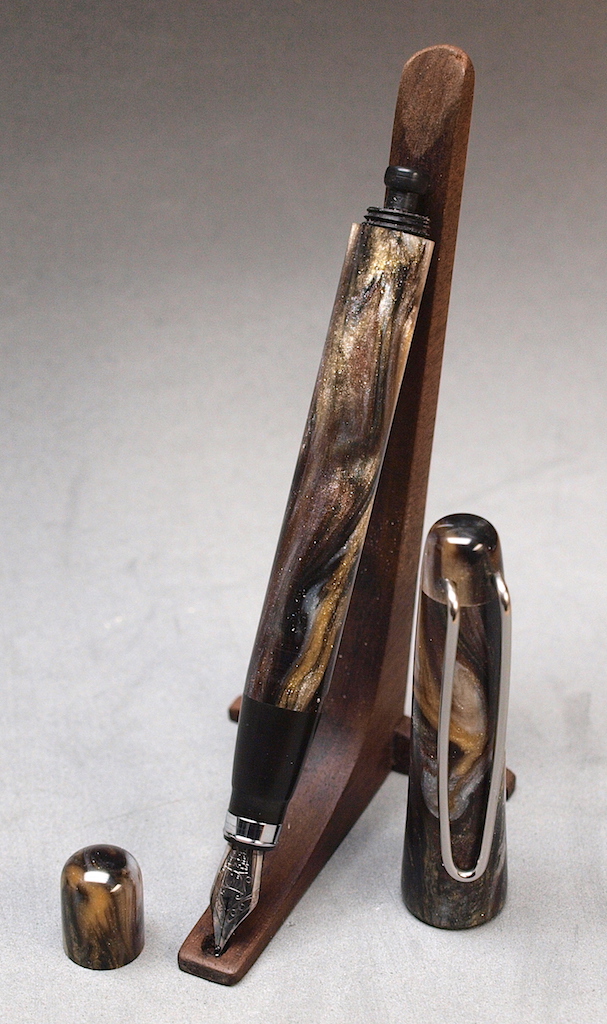

Here is my second plunger-filler. I designed the plunger system and made everything but the nib assembly. The nib is a #5 Schmidt fine with a snap cap. The snap cap gives a smooth transition from the body to the section. The body and cap are Diamond Cast Metalurgy with an acetal section (messed up the Diamond Cast section:() The clip is 0.071" diameter stainless steel wire. The pen feels good in hand and the Schmidt nib writes well and is quite wet.
Overall length: 5.58"
Length uncapped: 4.73"
Cap Length: 2.56"
Body dia: 0.46"
Max cap dia: 0.61"

Things I have to work on are; wire bending, make a smaller diameter body and refining the shape of the section.
Thanks for lookin', C&C always appreciated.

Signed-In Members Don't See This Ad

Penultimate

Member
Joined
Aug 22, 2010
Messages
1,034
Location
Bartlett, IL 60103
NIce! I'd love some detail on how you do the snap cap.
Hi Byran

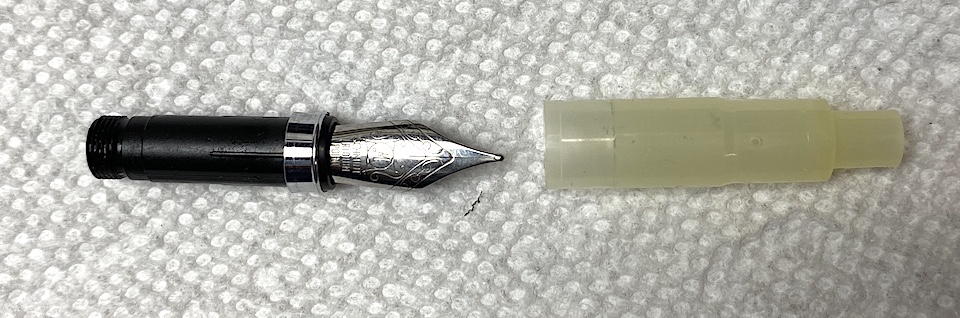

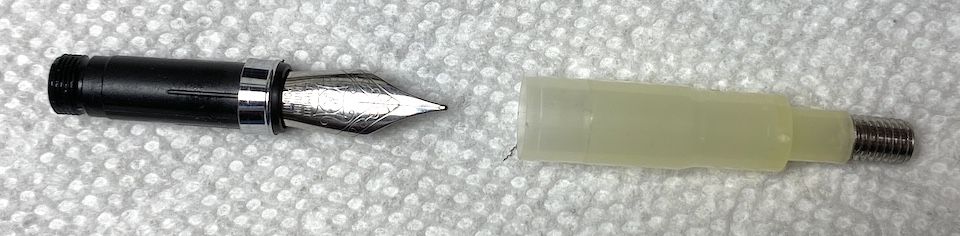

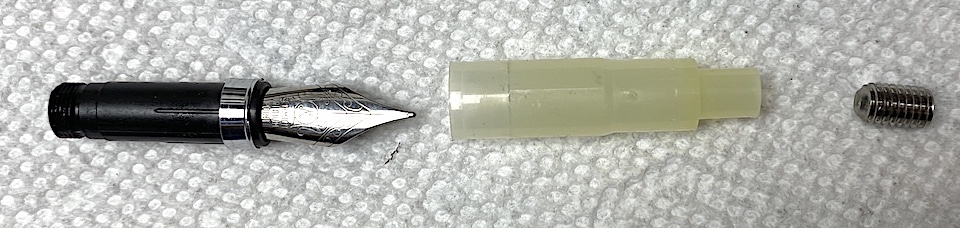

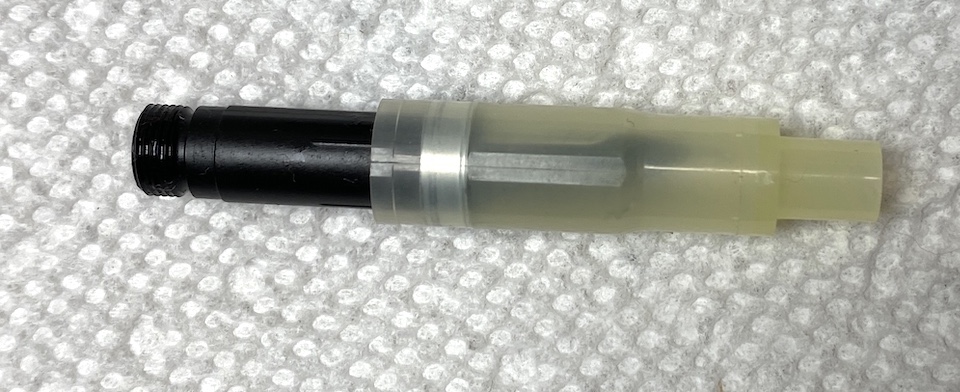

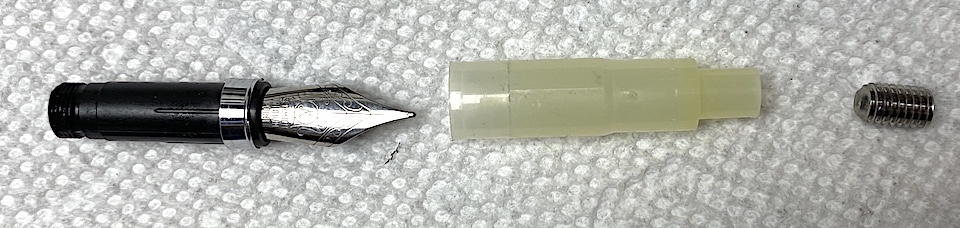

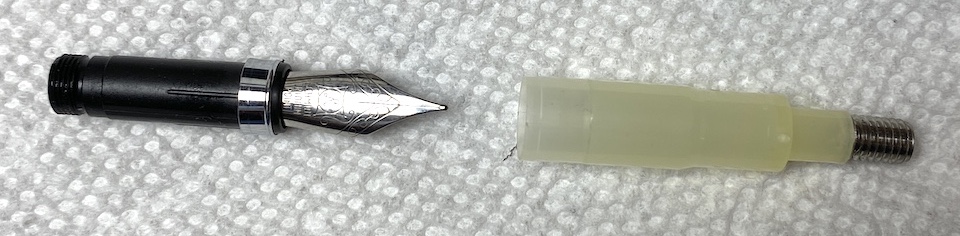

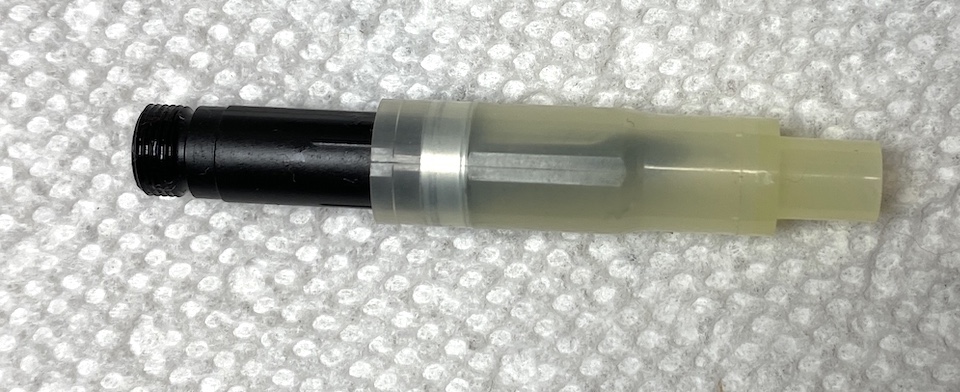

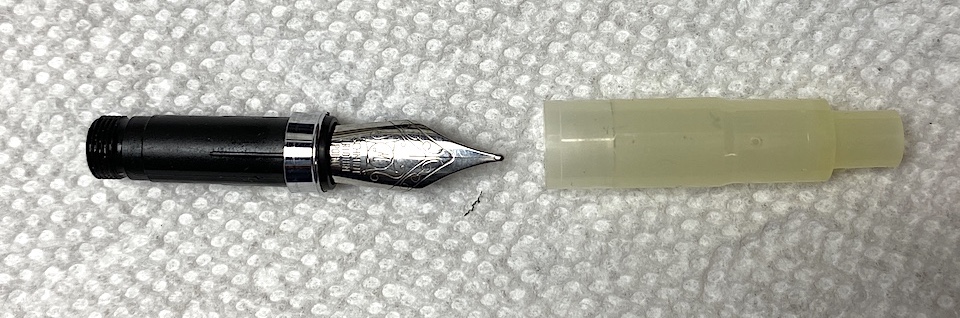

I purchased my Schmidt nibs from Milan's Pens. It comes with the nib assembly and the snap housing. The nib has a lip that snaps into a groove in the housing. At the tip of the snap housing there is an collar with a ID that accommodates a 10-32 tap, a metric tap might work also. I make my cap an finial bored and tapped 10-32. I screw a 10-32 set screw into the end of the snap cap then thread that into the cap. You can use a flat bladed screw driver to adjust the depth of the snap cap but I have a pen cap adjustment tool that works better, IMHO. The set screw should be long enough to protrude out the cap to fasten the finial. I made a finial because I wasn't sure my clip was going to work otherwise the cap and finial would be one piece.



Bryguy

Member
Joined
Jun 9, 2013
Messages
872
Location
New Hampshire
Hi Byran
I purchased my Schmidt nibs from Milan's Pens. It comes with the nib assembly and the snap housing. The nib has a lip that snaps into a groove in the housing. At the tip of the snap housing there is an collar with a ID that accommodates a 10-32 tap, a metric tap might work also. I make my cap an finial bored and tapped 10-32. I screw a 10-32 set screw into the end of the snap cap then thread that into the cap. You can use a flat bladed screw driver to adjust the depth of the snap cap but I have a pen cap adjustment tool that works better, IMHO. The set screw should be long enough to protrude out the cap to fasten the finial. I made a finial because I wasn't sure my clip was going to work otherwise the cap and finial would be one piece.
View attachment 341480View attachment 341481View attachment 341482View attachment 341483
View attachment 341486
Thanks for the information. I have some Schmidt roller ball nibs that look like that. I thought the plastic cover was just to protect the nib in shipping. Now I know. Thanks!


Dannv

Member
Joined
Aug 1, 2022
Messages
39
Location
Sparks
I like the clip, too. I've been trying to figure out a way to make clips that works with my limited vision.


Penchant 4

Member
Joined
Jun 23, 2018
Messages
278
Location
Great Lakes Area
Hi Byran
I purchased my Schmidt nibs from Milan's Pens. It comes with the nib assembly and the snap housing. The nib has a lip that snaps into a groove in the housing. At the tip of the snap housing there is an collar with a ID that accommodates a 10-32 tap, a metric tap might work also. I make my cap an finial bored and tapped 10-32. I screw a 10-32 set screw into the end of the snap cap then thread that into the cap. You can use a flat bladed screw driver to adjust the depth of the snap cap but I have a pen cap adjustment tool that works better, IMHO. The set screw should be long enough to protrude out the cap to fasten the finial. I made a finial because I wasn't sure my clip was going to work otherwise the cap and finial would be one piece.
View attachment 341480View attachment 341481View attachment 341482View attachment 341483
View attachment 341486
Great looking work! Where did you source the tool?


Penultimate

Member
Joined
Aug 22, 2010
Messages
1,034
Location
Bartlett, IL 60103
Great looking work! Where did you source the tool?
Hi Bill

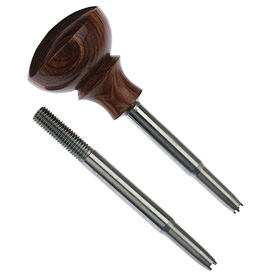

I bought it so long ago I don’t remember. It may have been Rockler. Here is another link
