This was something of a milestone for me.

I recently replaced my ShopFox 1704 'starter lathe' with a more substantial 12" Turncrafter Commander, and wanted to do something to prove to myself that I had acquired enough skills with the mini-lathe to justify moving up to the larger machine. I had a factory-second oak cutting board that I picked up at a wood supplier a few months ago, and decided to make the largest plate that I could make using that board - which is nearly the largest piece that I can spin on my new lathe.

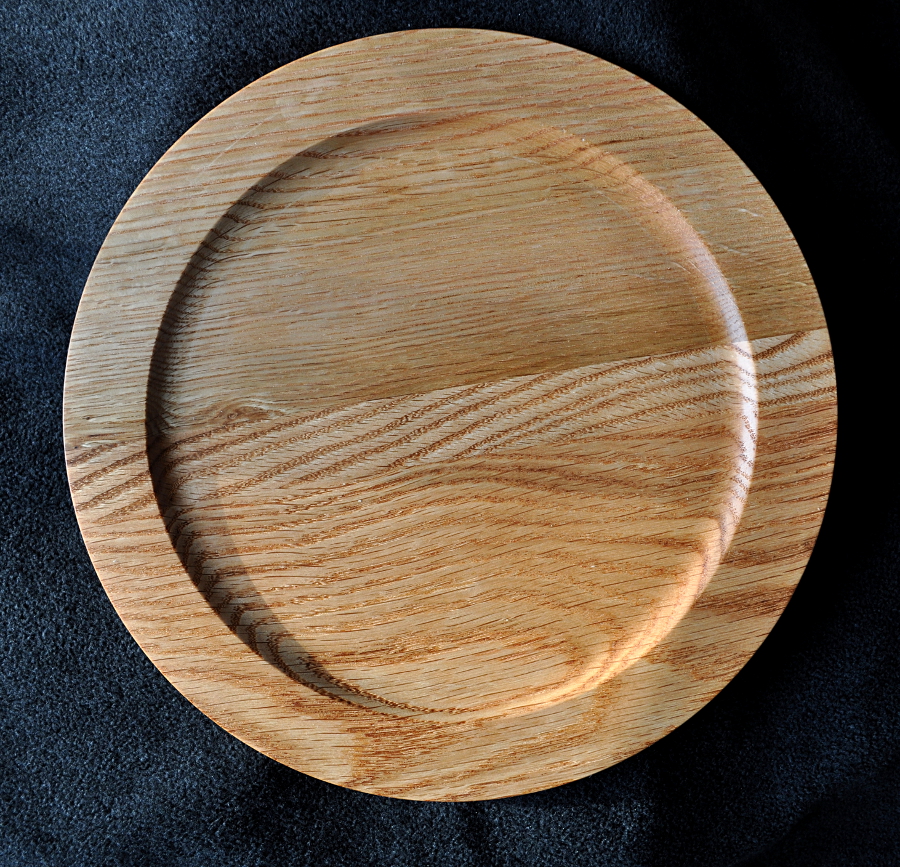

The final product is 11" in diameter, and about 1/4" thick.

I started with a glue-block on what would be the top of the finished piece. I opted to turn a tenon on the bottom that would have to be removed later, but I anticipated that my Cole jaws wouldn't open wide enough to grip the finished piece. So while the blank was still on the glue block, I turned away the center of the tenon, and left a centering dimple. Then, when the time came to finish the bottom, I used the tailstock cone center to press the plate against a circular block of MDF mounted on a faceplate while I removed the outside of the tenon, leaving only a 'button' in the middle of the bottom as decoration.

Finished with pure tung oil.


Attachments

  • Oak plate-s.JPG
    Oak plate-s.JPG
    879.2 KB · Views: 196
Signed-In Members Don't See This Ad

Teeball

Member
Joined
Aug 2, 2013
Messages
240
Location
Clayton, N.C.
The piece came out very nice. Now you must feel justified in moving up to a bigger lathe. You proved it. :good:
