New prototype Kitless Copper Clicker

[More4dan]

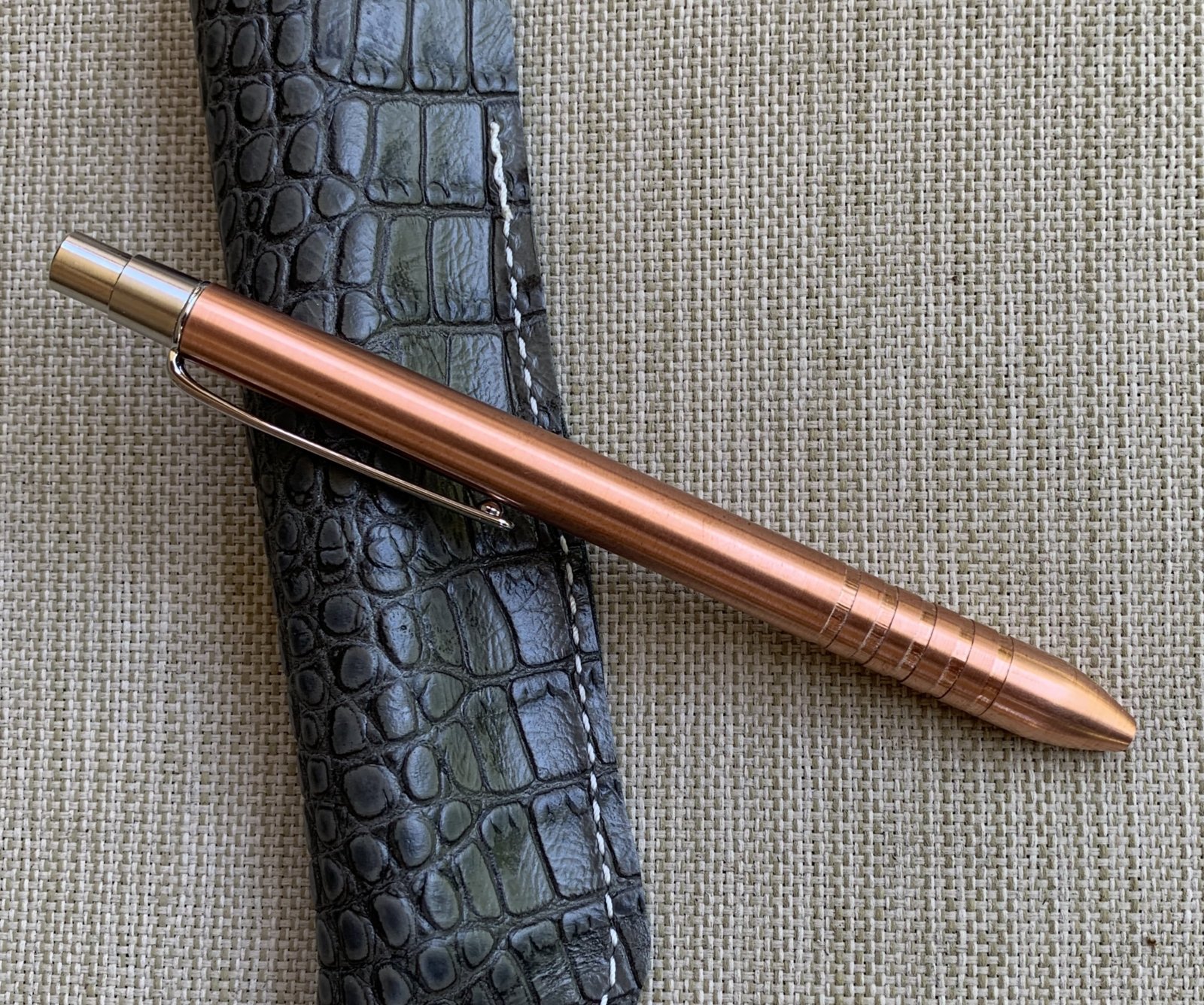

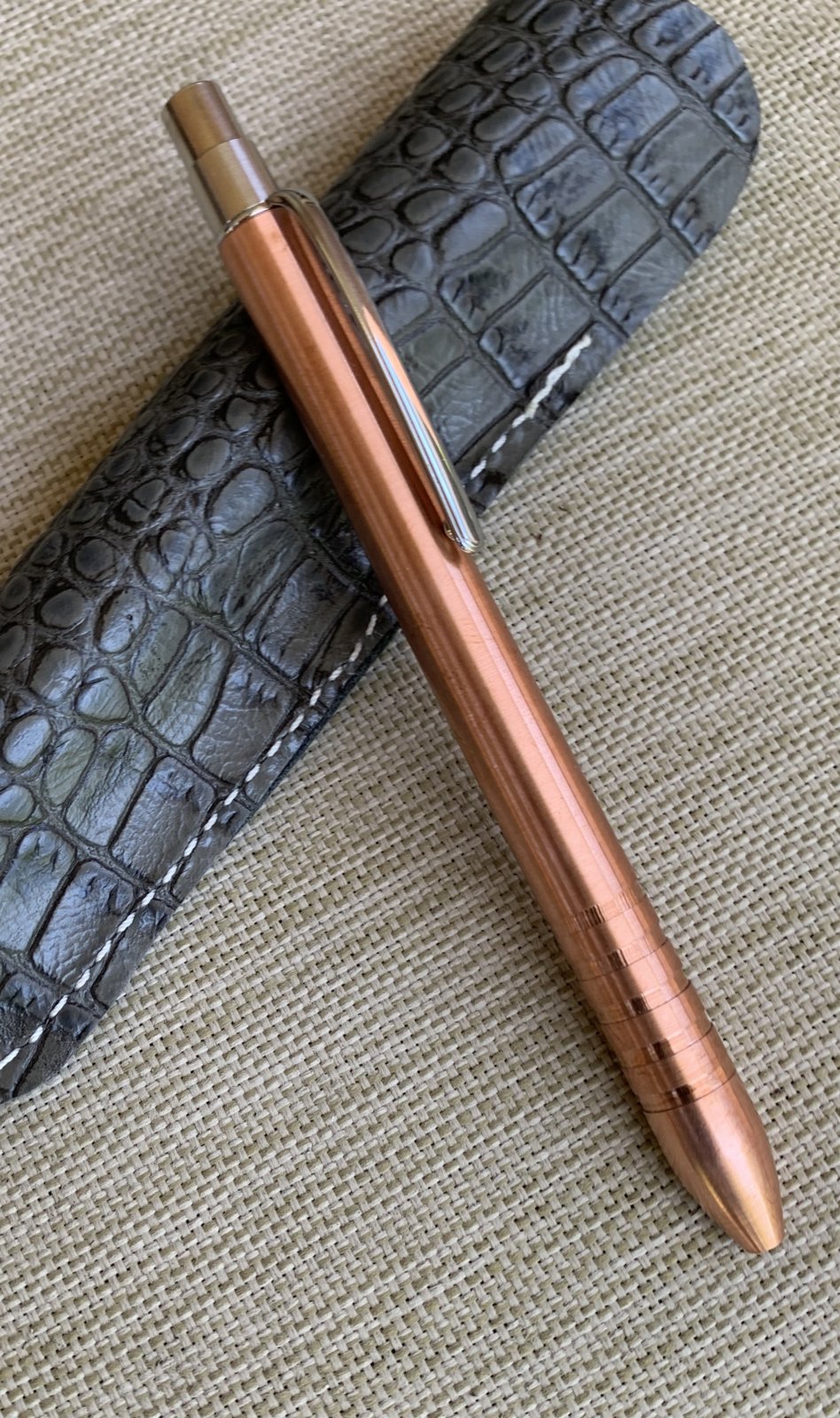

My first test of a new pen I'm working out in the shop this week. The body is C145 Tellurium Copper, a fancy way of saying free turning copper. It's not as "sticky" As normal C110 copper rod. In making a threaded cone designed to use a Pilot G2 ink cartridge, it ended up being Too large and front end heavy. The body tapers from the clicker to the nib, smaller on the clickerend. The next one will be more traditional in shape tapering to both ends. This will make it lighter and more symmetrical. It will require that the nose cone be fixed and soldered In place. The mechanism is a Schmidt SKM88. My plan is to do a detailed write up with the next design, assuming it works. I also plan to electroplate the clip and SKM88 with copper. Hope you like it.

(Corrected the Id of the copper as Tellurium Copper not Beryllium.)

Danny



[Curly]

Lots of potential Danny. Looks pretty good.

I don't know if you are aware or not but Beryllium alloys are dangerous to work with. Here is a little about it. You can do more research if you want to know more.

Beryllium - Health Effects

What health effects are associated with beryllium? According to NIOSH (the National Institute for Occupational Safety and Health, 2011), "workers exposed to particles, fumes, mists and solutions from beryllium-containing materials may develop beryllium sensitization or chronic beryllium disease...

www.ccohs.ca



[magpens]

Very Nice, Danny !!!

You say it tapers ? .... "smaller on the clickerend" ... ? ... But it looks pretty well straight-sided to me, until you get to the nosecone.

Will be anxiously awaiting the new version with copper plated SKM-88.

Hope you can show us the disassembly and reassembly of the SKM-88, plus the tool you make to do that "tricky" operation. ... Good Luck !!!



[More4dan]

Lots of potential Danny. Looks pretty good.

I don't know if you are aware or not but Beryllium alloys are dangerous to work with. Here is a little about it. You can do more research if you want to know more.

Beryllium - Health Effects

What health effects are associated with beryllium? According to NIOSH (the National Institute for Occupational Safety and Health, 2011), "workers exposed to particles, fumes, mists and solutions from beryllium-containing materials may develop beryllium sensitization or chronic beryllium disease...

www.ccohs.ca

I added the Copper type from memory, it is actually alloyed with Tellurium not Beryllium. Thanks for the safety note.

Danny


Sent from my iPad using Penturners.org mobile app



[skiprat]

Now that is VERY slick. Another winner for sure.



[Displaced Canadian]

I like it. I have mixed emotions about the clicker. It's a good mechanism, I just don't like how big it is.



[Ironwood]

Nice work Dan. I really like the look of this, I think I like the contrast of the different colour clip and clicker, but will reserve my opinion until I see your next version.
How do you access the refill to change it ?



[mark james]

Very nice, I do like the color, not as common as others and I find it appealing. The groves towards the nib are a nice touch.



[Dalecamino]

I like it!



[More4dan]

Very nice, I do like the color, not as common as others and I find it appealing. The groves towards the nib are a nice touch.

Mark I used the first groove to hide the nib to barrel line too.


Sent from my iPad using Penturners.org mobile app



[More4dan]

Nice work Dan. I really like the look of this, I think I like the contrast of the different colour clip and clicker, but will reserve my opinion until I see your next version.
How do you access the refill to change it ?

I like the contrast too but there is occasionally a method to my madness. I'm making a pen for a friends wife who is working as an ICU nurse. Copper is about the best material at reducing the life of germs, bacteria, and viruses. Every little bit helps I guess.

Danny


Sent from my iPad using Penturners.org mobile app



[More4dan]

Nice work Dan. I really like the look of this, I think I like the contrast of the different colour clip and clicker, but will reserve my opinion until I see your next version.
How do you access the refill to change it ?

The clicker unthreads from the top and on this one the nose cone is also threaded.

Danny


Sent from my iPad using Penturners.org mobile app



[wolf creek knives]

Nice Danny!!! I like it a lot and am jealous of your work, I can't even come close...at all. Beautiful work.



[Brotherdale]

Looks good Danny. I really like the copper. I think the clip and clicker in copper might be too much. But I am a visual person so I would have to see it to know if I liked it or not.
I wonder how it would look with the clip and click in a "patina" copper, the emerald greenish.
what size threads did you use on the nib?



[magpens]

Another alternative ... the SKM-88 can be bought in black ... dunno about the clip in that case.



[Ironwood]

I like the contrast too but there is occasionally a method to my madness. I'm making a pen for a friends wife who is working as an ICU nurse. Copper is about the best material at reducing the life of germs, bacteria, and viruses. Every little bit helps I guess.

Danny


Sent from my iPad using Penturners.org mobile app

Ahh, I see. Well this potentially overrides the visual aesthetics, so keep going on your way there.

Your pen reminds me of a batch of pens a guy made for his family, and posted about them on one of the Aussie forums, his were made of titanium. I will have a dig around tonight and find the thread.



[mrtille]

Simply superb lines and craftsmanship Danny. Definitely a keeper!



[More4dan]

Looks good Danny. I really like the copper. I think the clip and clicker in copper might be too much. But I am a visual person so I would have to see it to know if I liked it or not.
I wonder how it would look with the clip and click in a "patina" copper, the emerald greenish.
what size threads did you use on the nib?

The threads for the nib are M9 x 0.75. I like the idea of going darker on the clip to give some contrast. Now to find my sulfur of liver to patina the copper, it's somewhere in the garage.

Danny


Sent from my iPhone using Penturners.org mobile app



[stuckinohio]

Danny,

I know this is an old thread, but I'm curious to see if the C145 has developed any patina, and if so, could you post a pic? hoping the patination has started after a couple years. I remembered seeing it when you posted originally so had to search for it today.

I'll be using C145 for a project soon and hoping it develops a nice patina!
