NEJE LASER... just PICTURES

[wood-of-1kind]

OK, it's been established that the very 'affordable' NEJE Chinese laser is very popular here. For those that have purchased and have started to use this rather versatile machine let's post PICTURES of some of your creations that have benefitted with laser engraving. Please focus and provide pictures only and keep your text to a minimum. A picture says a thousand words. I will start and hope that others will jump in.

Thanks for your input.



[Akula]

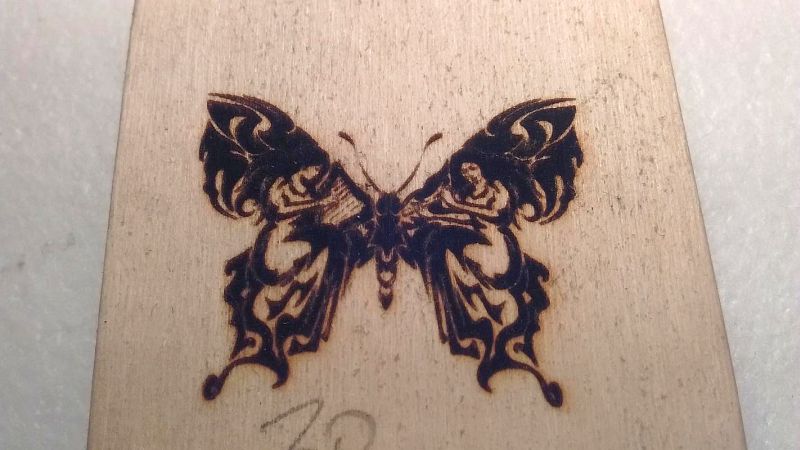

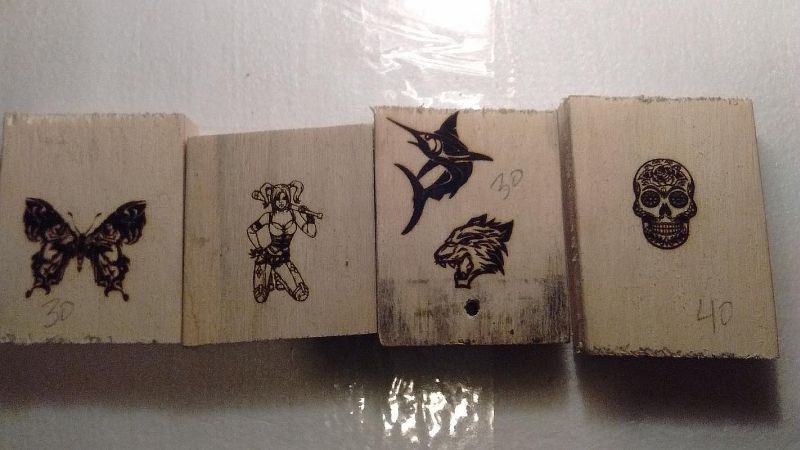

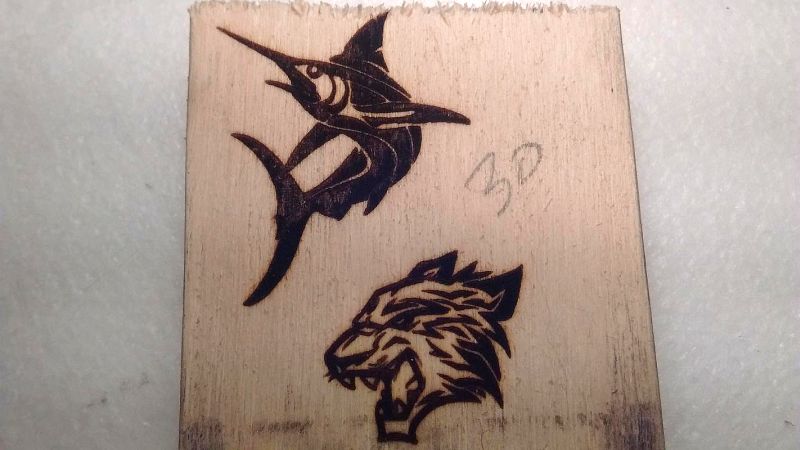

just tests



[Akula]

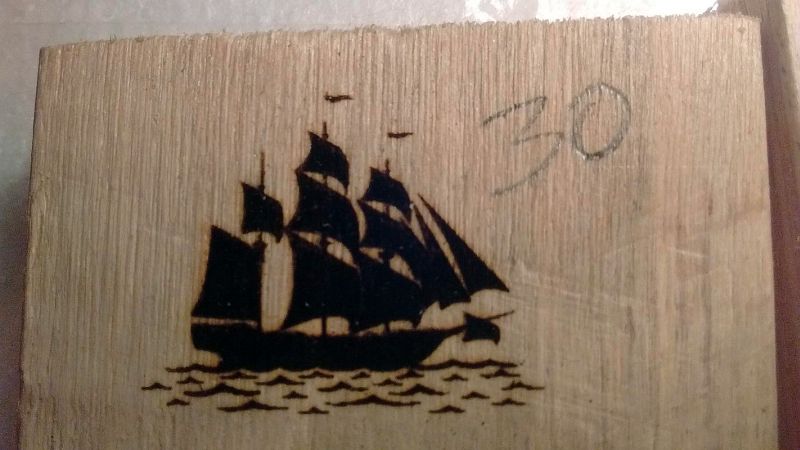

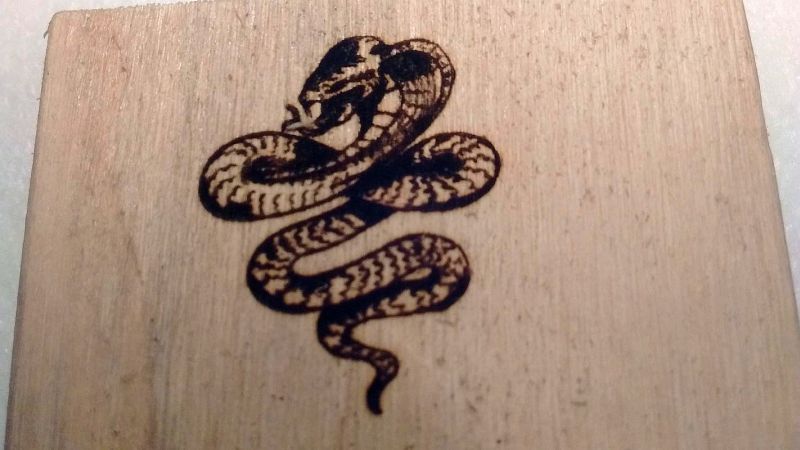

couple more laying here



[pianomanpj]

Perhaps the minimal text should include burn times and any other settings. With several postings, this thread will build a good reference in no time!



[Akula]

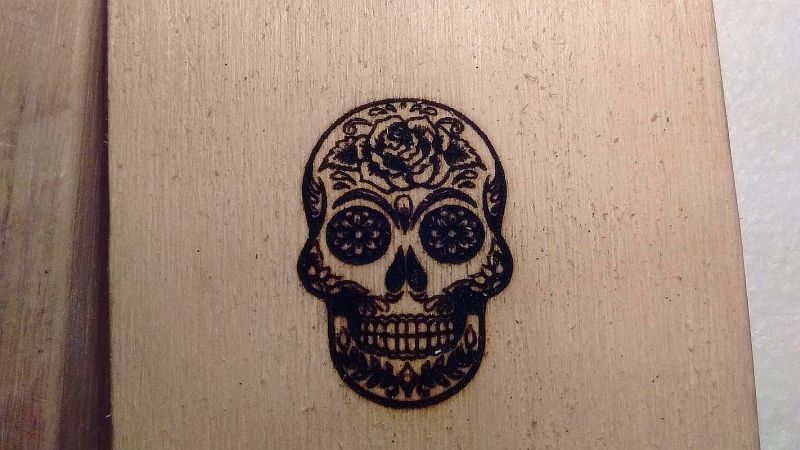

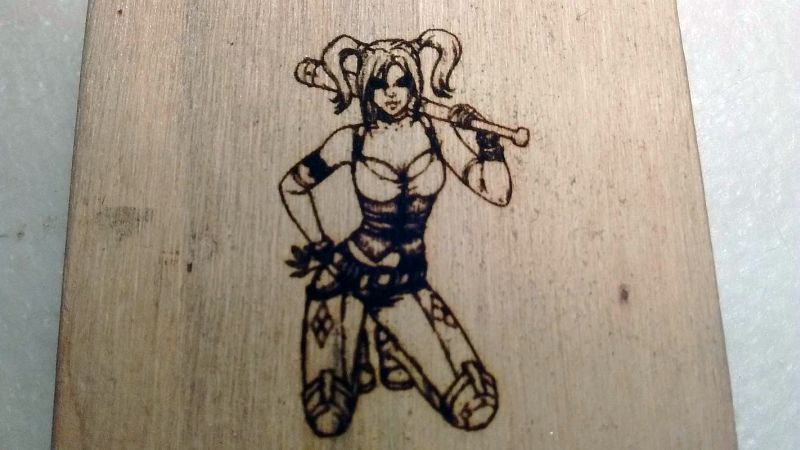

most of mine on that wood is a 30, I write on them if different..sugar skull was a 40...did a 75 and it was horrible



[Bill in Buena Park]

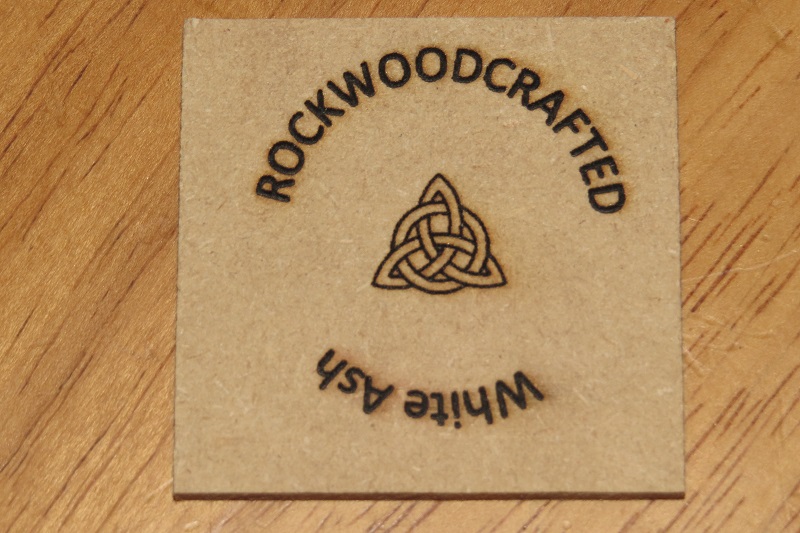

Concept for bowl medallion. MS Word using WordArt. Burn time 70. Full 500x500 pixels for 1-3/8 inch diameter.



[wood-of-1kind]

Burn (intensity) = 55 on scale
Actual burn time = 19 minutes 21 seconds
Image lasered on = Silver Maple Burl

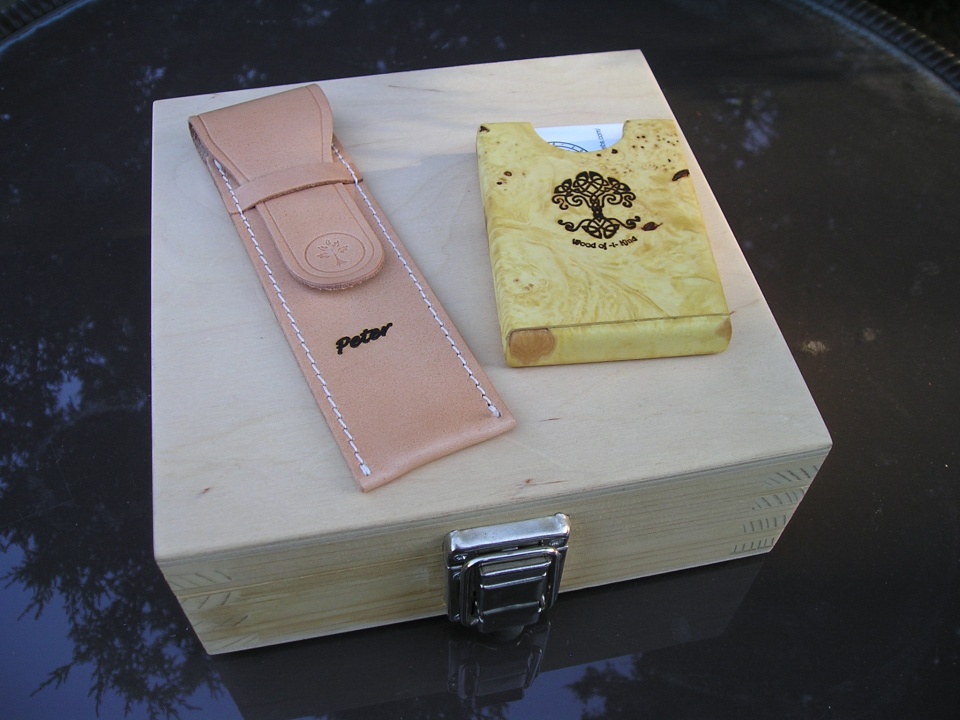

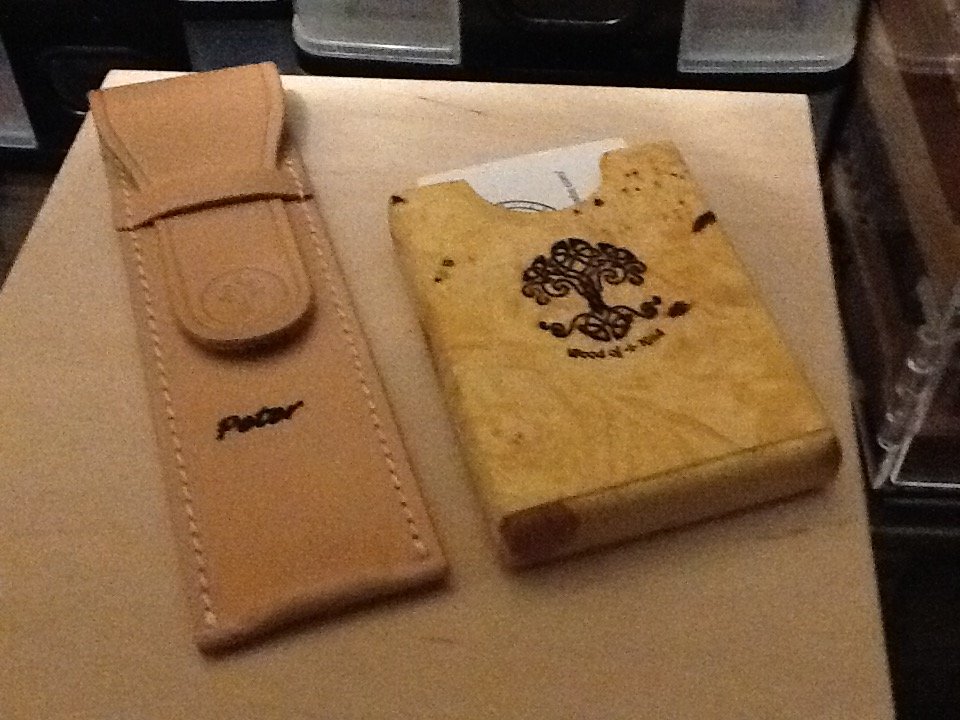

[wood-of-1kind]

Burn intensity scale = 62
Actual burn time = 8 minutes
Material = Leather (pen holder) on left



[Cwalker935]

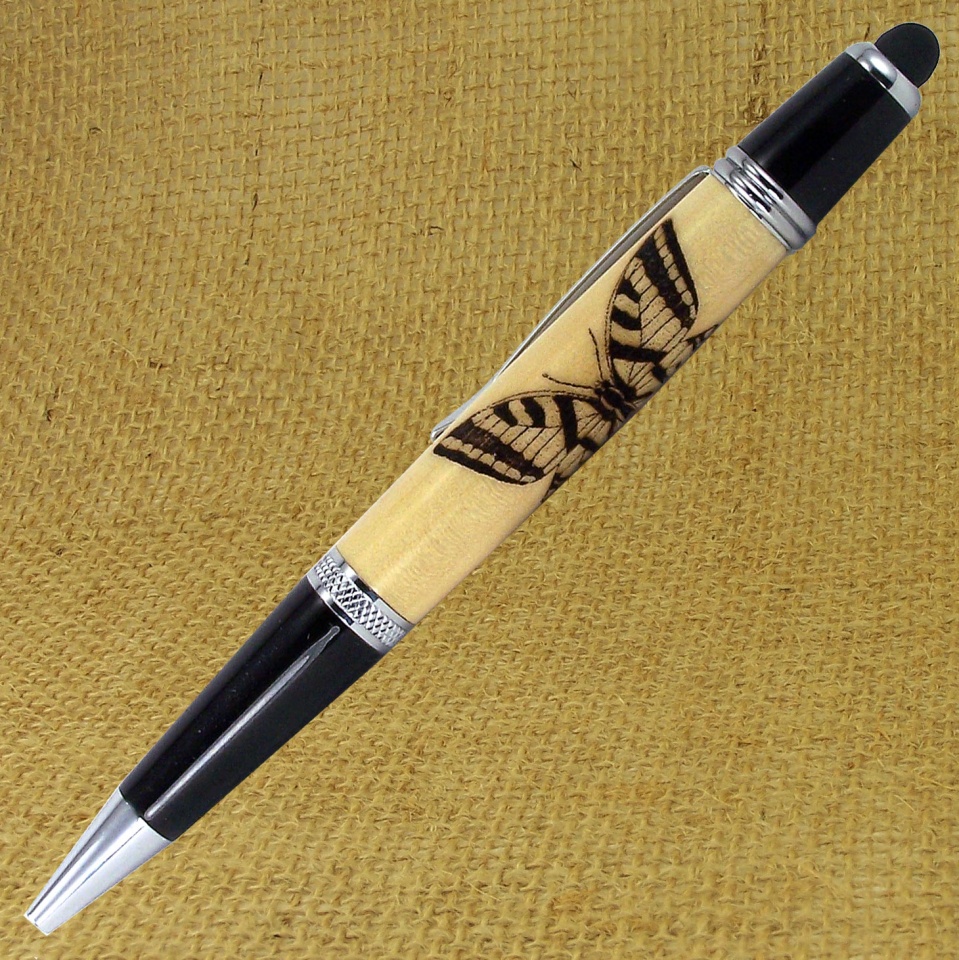

From Bruce's demo to the Richmond (BRobbins629) penturners



[wood-of-1kind]

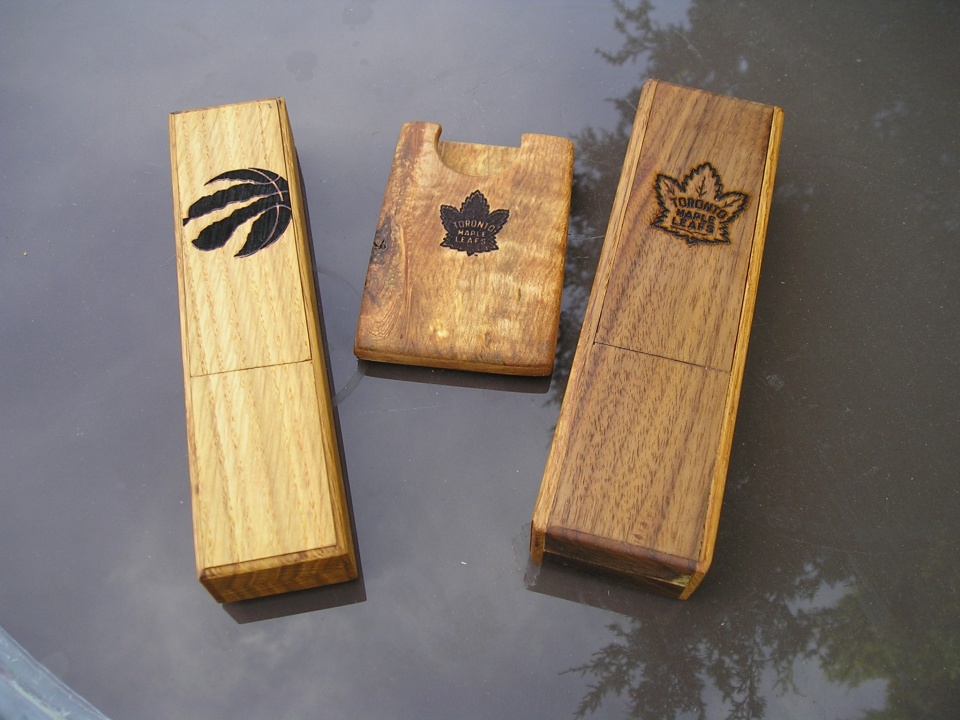

NEJE laser work

Good results so far.

1 (left) RAPTORS logo on wood pen case. Burn intensity = 190 Actual burn time = 90 minutes
2 (middle) MAPLE LEAFS logo on business card holder. Burn intensity = 45 Actual burn time = 43 min 53 seconds
3 (right) MAPLE LEAFS vintage logo on pen case. Burn intensity = 45 Actual burn time = 25 minutes



[TonyL]

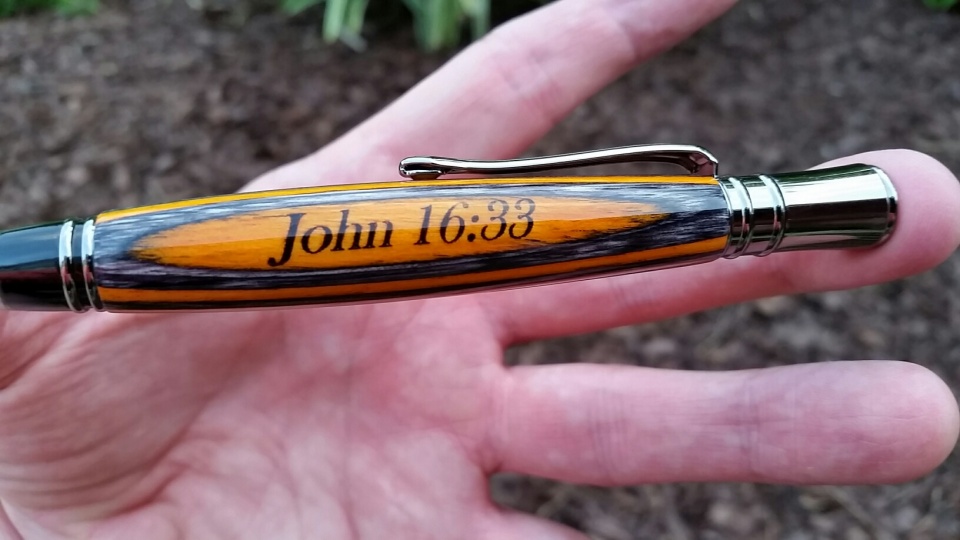

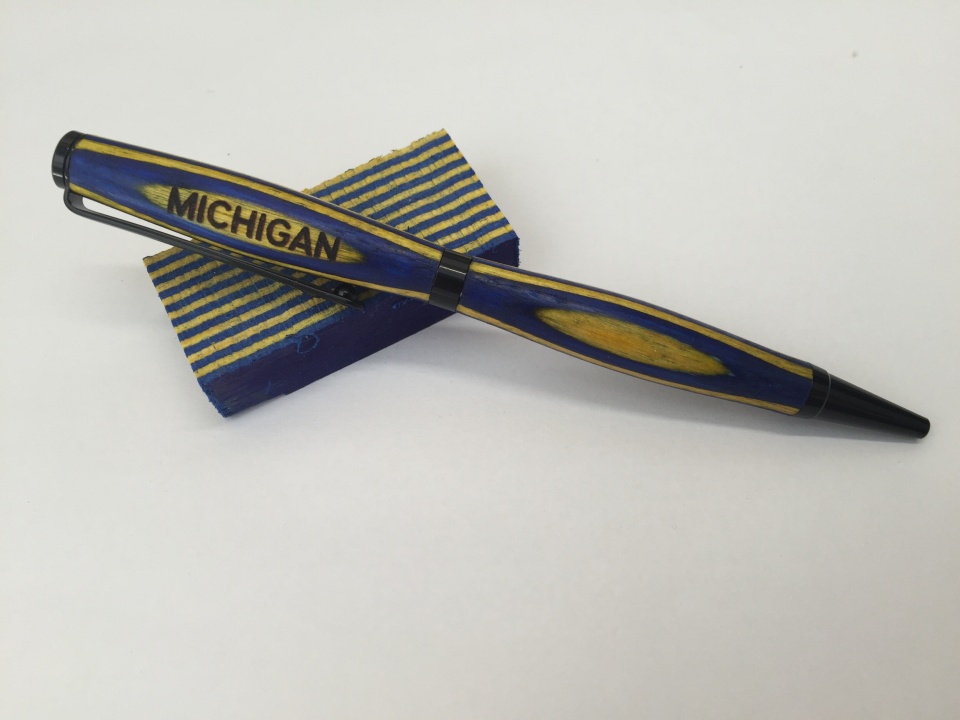

I posted this in the spectraply thread, but it also has engraving



[wood-of-1kind]

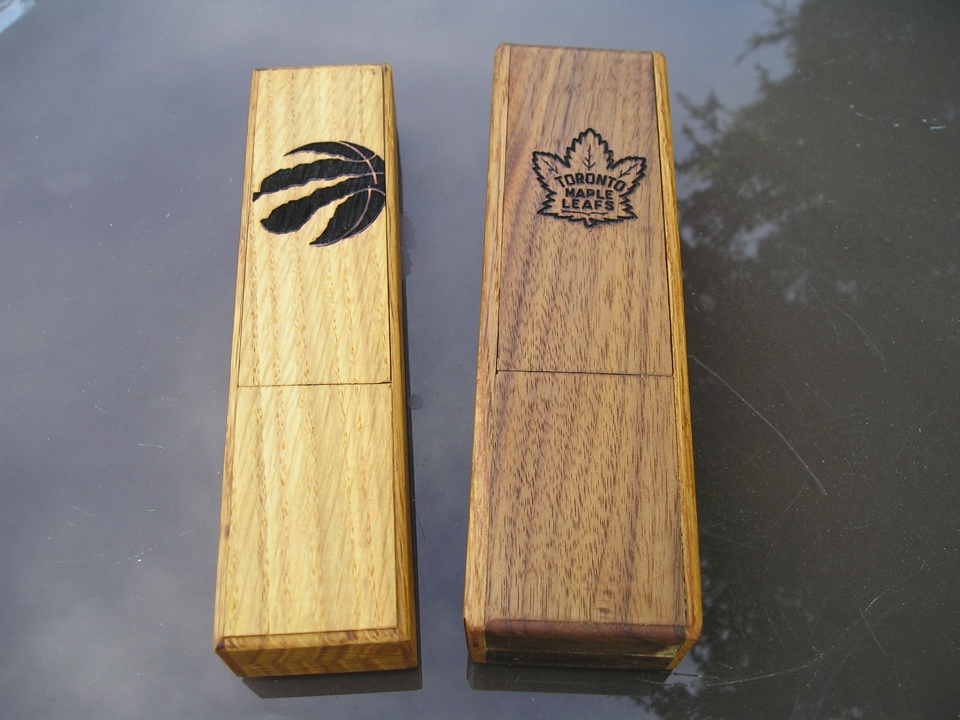

CLOSE UP

A picture with greater detail.



[wood-of-1kind]

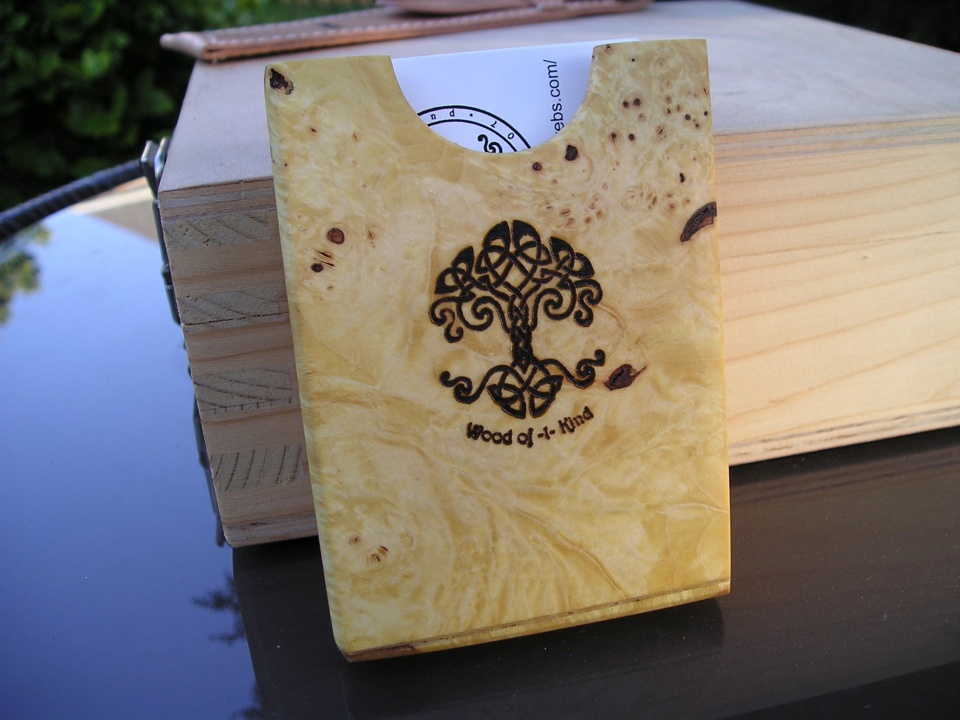

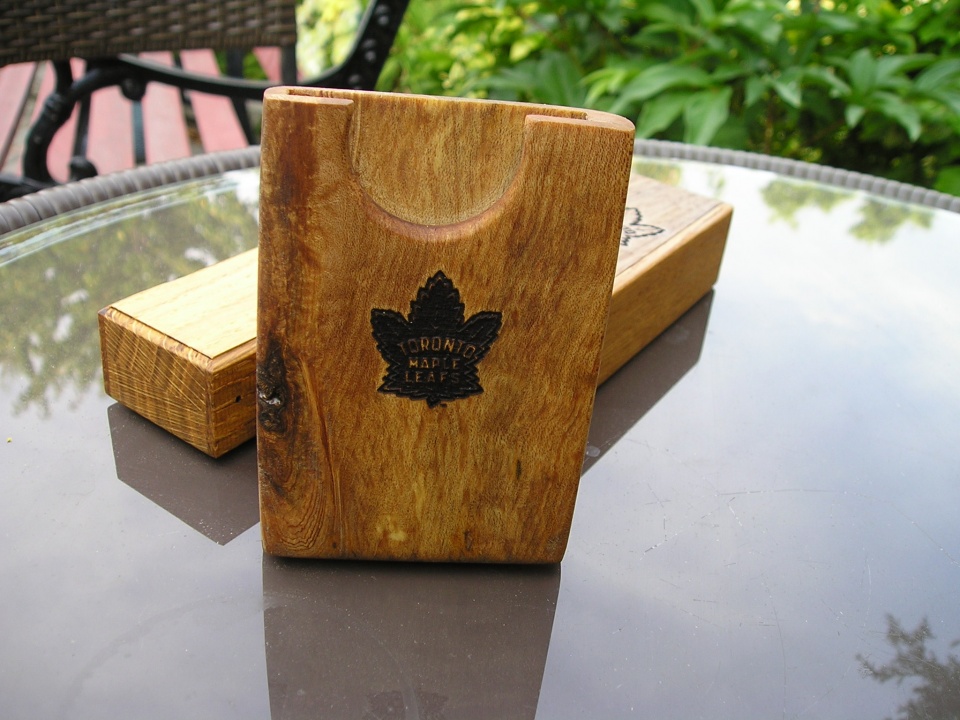

BC holder

Close up of business card holder.



[wood-of-1kind]

Better picture than the one posted on original post.

To replace poor pic from Posting#1



[wood-of-1kind]

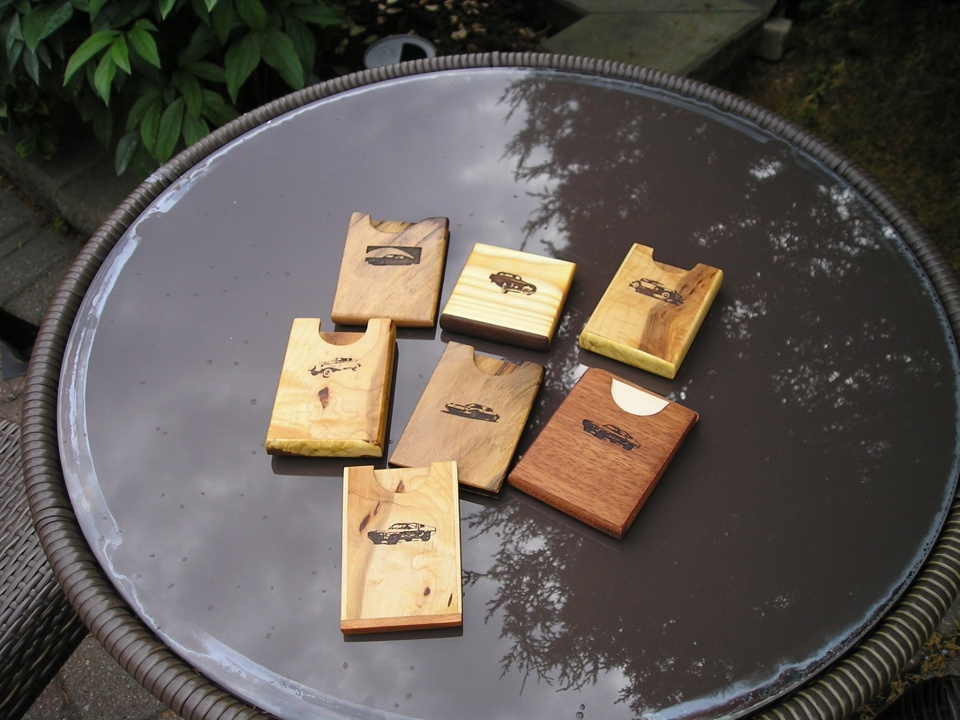

CARS, CARS, CARS

Automobiles on BC holder.



[wood-of-1kind]

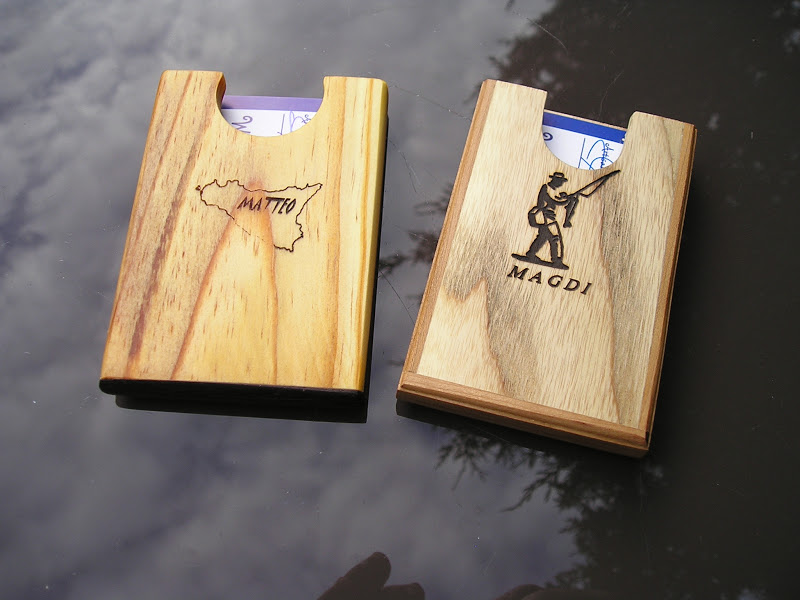

a couple for friends

Material: Douglas Fir (L) and Ash (R)
Burn intensity= 45
Burn time: approx. 23 minutes



[mecompco]

Material: Douglas Fir (L) and Ash (R)
Burn intensity= 45
Burn time: approx. 23 minutes

Interesting--I'd have guessed the Fir would have been much darker at the same intensity.



[wood-of-1kind]

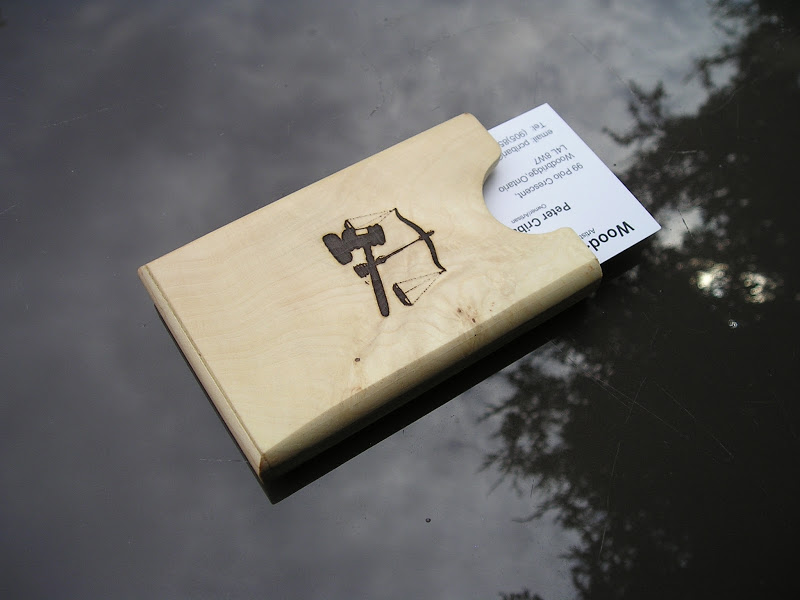

And justice for all

Material: Silver Maple
Burn intensity = 45
Burn time = approx. 22 minutes



[mmayo]

What does this item cost and where does one buy it?

Sorry, I searched and found locations and prices. It says, not acrylic so no plastic pens?



[mecompco]

What does this item cost and where does one buy it?

Sorry, I searched and found locations and prices. It says, not acrylic so no plastic pens?

Most of us have this one: NEJE DK-8-KZ 1000mW Laser Engraver Printer-96.72 and Free Shipping| GearBest.com

I believe you pretty much have to move up to the 40 watt job to do acrylics and so forth. This little one is for wood, leather, etc. Much more info in this thread: http://www.penturners.org/forum/f30/chinese-laser-engraver-140404/

Info on the big 40 watt laser here: http://www.penturners.org/forum/f30/40w-lasers-discussion-140913/

Regards,
Michael



[mmayo]

If I burn Tehachapi on a few pens, trivets and magnets they should sell quickly.

Thanks for your help.



[TonyL]

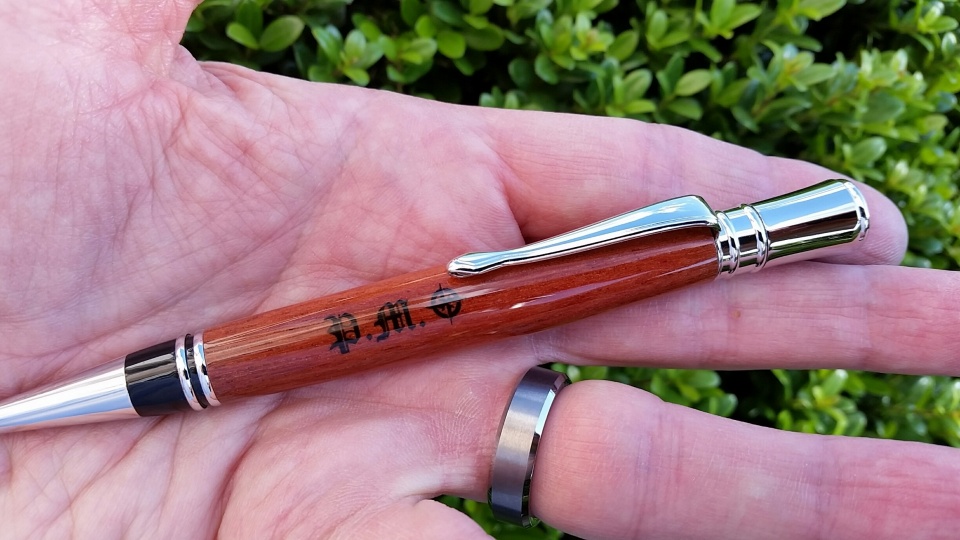

Initials and a Compass

I misjudged the length of the clip, but my friend had no preference. He wanted his initials and an image of a compass. He is into maps.

CA over walnut.



[keithncsu]

Just remembered this thread existed. Here are my first two attempts!



[larryc]

Here's one I just finished using the jig devised by Benson (Bob) Pace. Amazing what you can do with a rubber band!
This was done on Maple with six coats of CA at burn 75.



[hunterdave99]

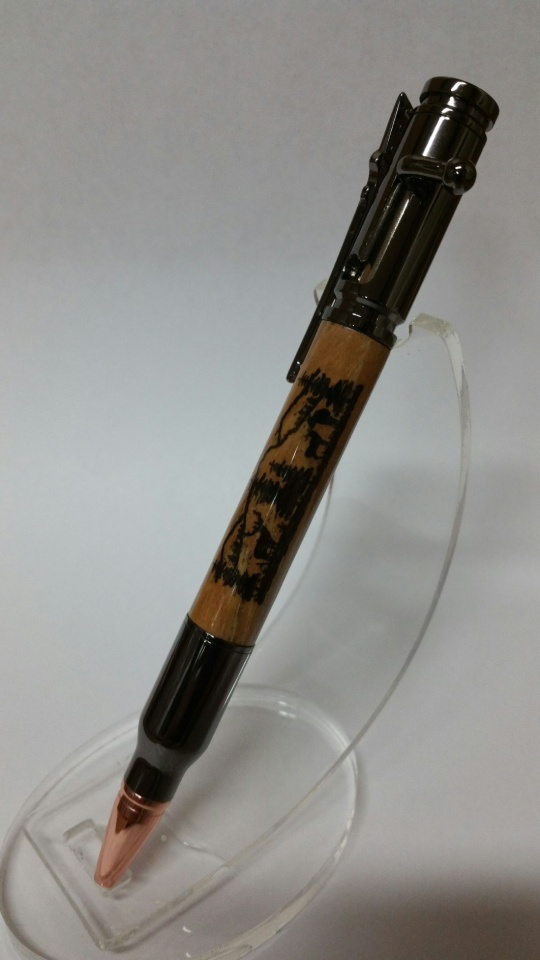

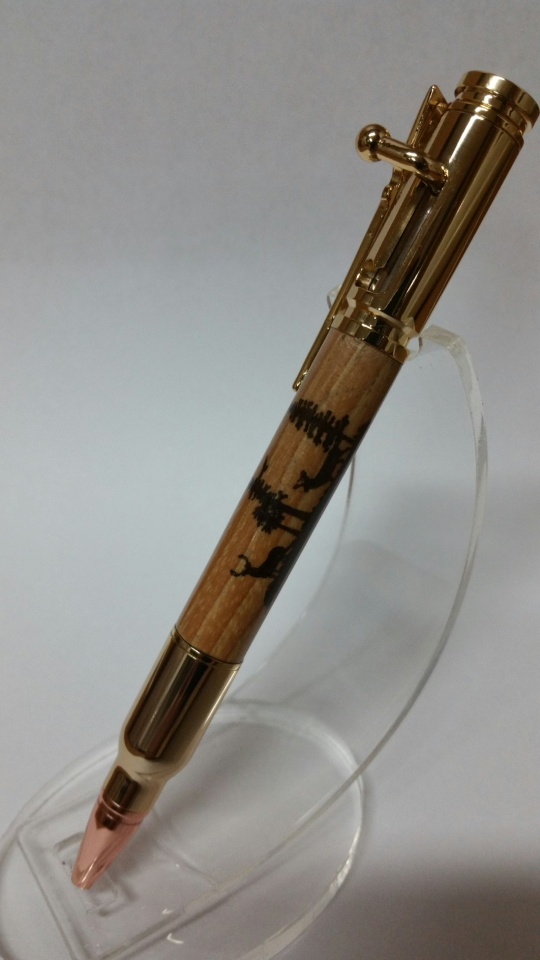

Deer landscapes on Hickory hardwood flooring with a burn of 20.
First 2 attempts with the rotary jig.
Hickory burns very easily.



[Bellsy]

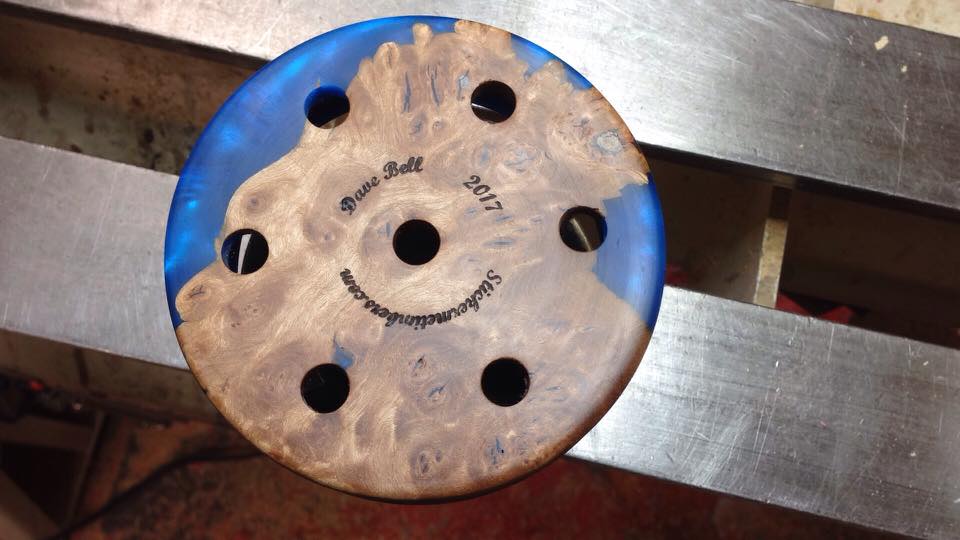

I purchased the 1500 Mw NEJE a while back due to a long waiting time for getting pens engraved. Now it has proven to be a welcomed asset for my turkey calls.

Bellsy



[Pens By Scott]

Here's one I just finished using the jig devised by Benson (Bob) Pace. Amazing what you can do with a rubber band!
This was done on Maple with six coats of CA at burn 75.

Looks great! You mentioned a jig devices by Bob, I can't seem to find it in the library? Is there a tutorial on the jig?



[Pens By Scott]

Here's one I just finished using the jig devised by Benson (Bob) Pace. Amazing what you can do with a rubber band!
This was done on Maple with six coats of CA at burn 75.

Looks great! You mentioned a jig devices by Bob, I can't seem to find it in the library? Is there a tutorial on the jig?

Found it on YouTube here: https://www.youtube.com/watch?v=-AJpfxNPLgI



[Bellsy]

Here's one I just finished using the jig devised by Benson (Bob) Pace. Amazing what you can do with a rubber band!
This was done on Maple with six coats of CA at burn 75.

Looks great! You mentioned a jig devices by Bob, I can't seem to find it in the library? Is there a tutorial on the jig?

Found it on YouTube here: https://www.youtube.com/watch?v=-AJpfxNPLgI

Brilliant.........

Thanks for posting.



[PMBROTH.NY]

So what software are you using to create. The text into an image? I have photoshop and word. I have used word, for the text just wanted to see if anyone had another alternative


Sent from my iPhone using Penturners.org mobile app



[PatrickR]

So what software are you using to create. The text into an image? I have photoshop and word. I have used word, for the text just wanted to see if anyone had another alternative


Sent from my iPhone using Penturners.org mobile app

Photoshop will do what you want. Set the type then save as a jpeg.



[Rick_G]

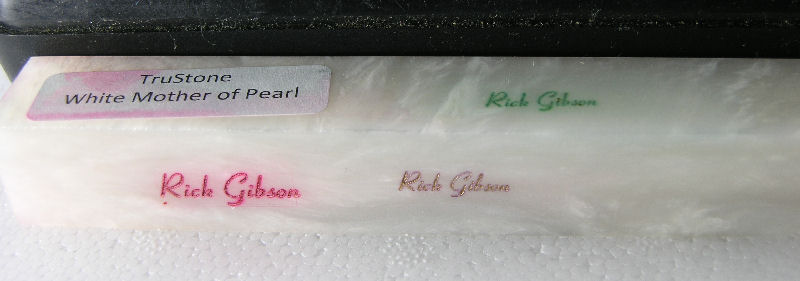

Played around with some acrylics and truestone. Found it will work on truestone and some acrylics. I'll say acrylics as I am not sure what they all were. With some of the acrylic it worked with yellow marker over the burn area but not with other colors. ???



[Magicbob]

1500 mWatt laser with the Shortness rotary jig



[Rick_G]

for straight text alone I just use the sofware that came with the neje, for text added to an image I use Paint Shop Pro 9 that I bought several years ago. Not that hard to figure out and still works well on windows 7 so have had no need to upgrade.

So what software are you using to create. The text into an image? I have photoshop and word. I have used word, for the text just wanted to see if anyone had another alternative


Sent from my iPhone using Penturners.org mobile app

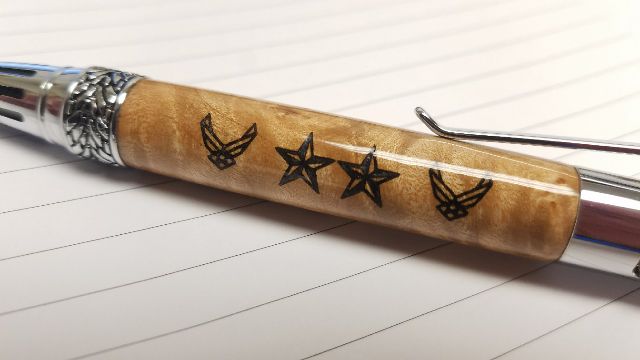

[OklaTurner]

1W NEJE
Maple burl
Burn value: 60
Custom design in Photoshop Express and imported to NEJE software



[wood-of-1kind]

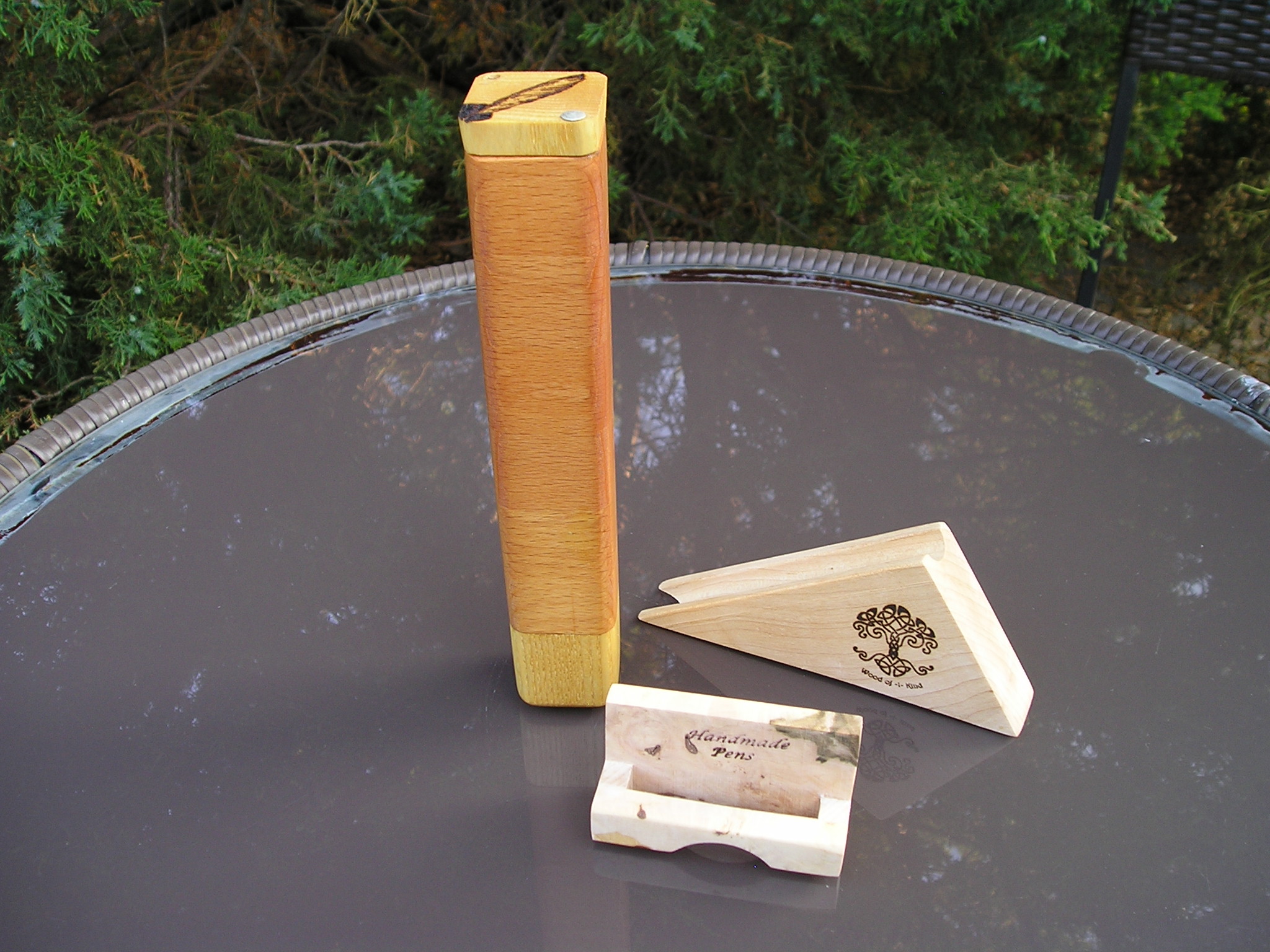

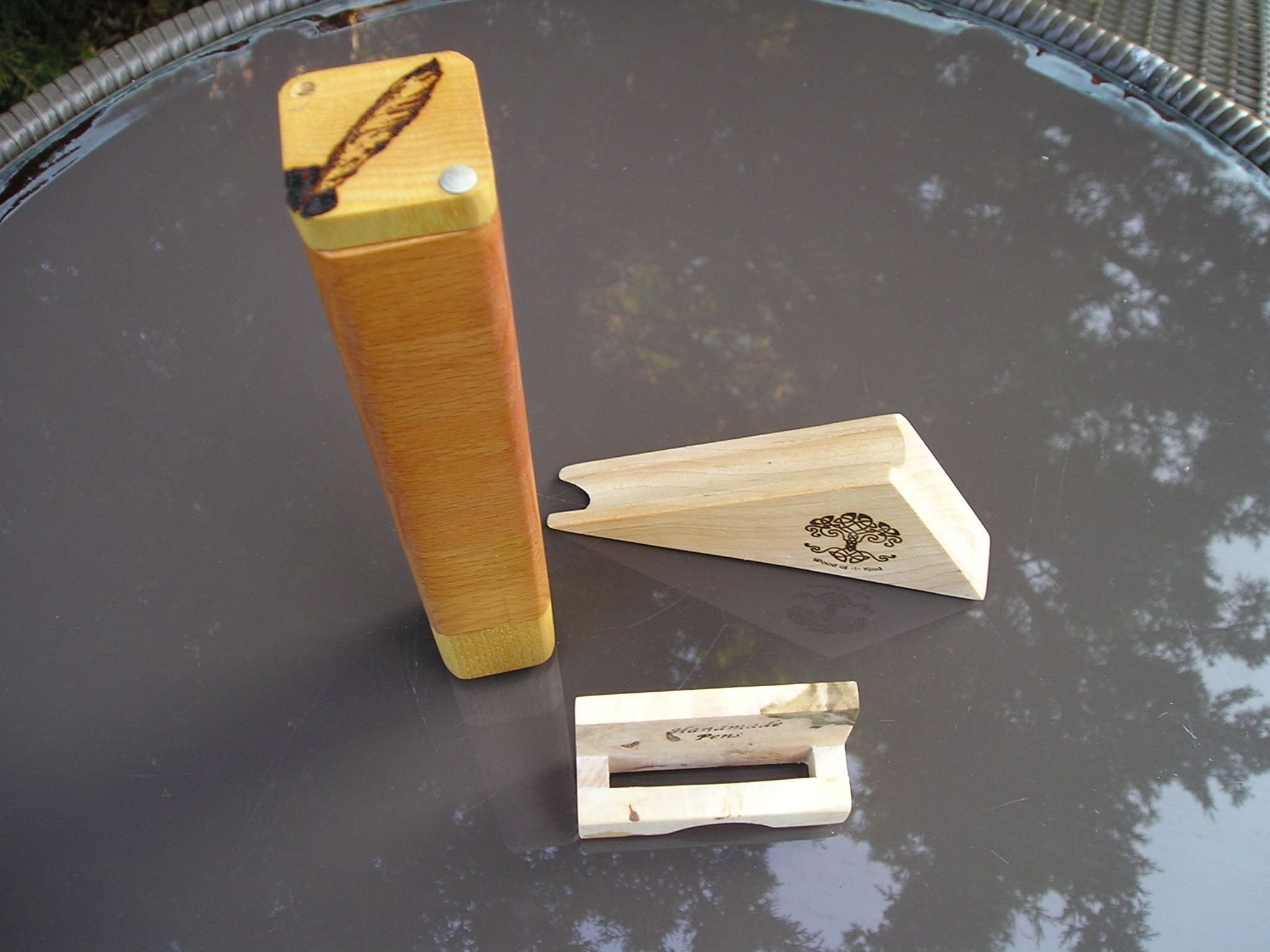

More small lasered projects.


View in Gallery


View in Gallery


View in Gallery





Material = Maple
Burn time = 30



[jcm71]

So what software are you using to create. The text into an image? I have photoshop and word. I have used word, for the text just wanted to see if anyone had another alternative


Sent from my iPhone using Penturners.org mobile app

The software comes with the NEJE. You can download the Android App from trusfer.com. Keep in mind it does not work well at all with Apple products. Best results with Android or Windows 64 bit architecture. Incompatible with 32 bit.



[budnder]

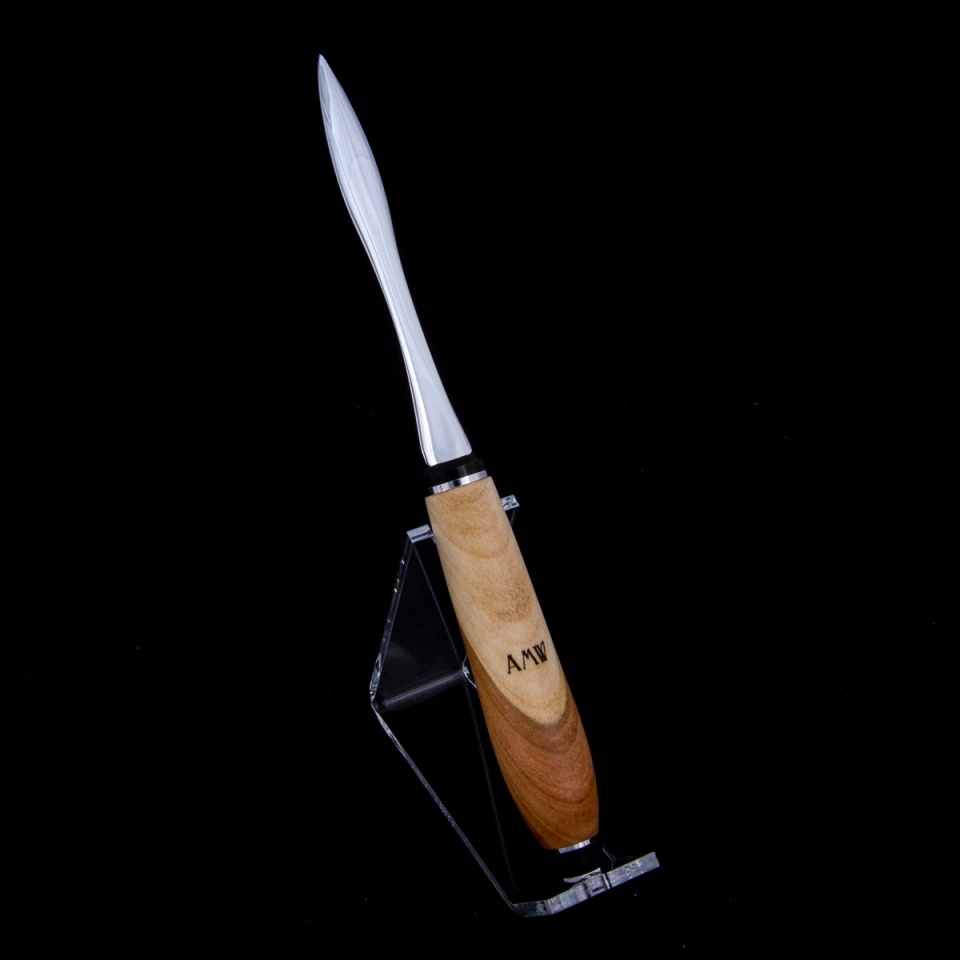

Letter Opener

1500mw Mertek Laser
Burn Setting: 70
Just taped 'er down to the platform - no rotary jig
More commentary in Other Things We Make Post



[wfsteadman]

What model is most used out there? I am thinking of investing in one of these. Pretty slick.



[mikespenturningz]

Set of pens

I did a set of pens for a lady in VA I met at the DC show This laser works great very happy with the purchase.
