NEJE WORK CONTINUES

[imgz='http://www.penturners.org/photos/images/1363/1_TODAY_008.JPG']http://www.penturners.org/photos/images/1363/medium/1_TODAY_008.JPG[/imgz]
View in gallery

[imgz='http://www.penturners.org/photos/images/1363/1_TODAY_004.JPG']http://www.penturners.org/photos/images/1363/medium/1_TODAY_004.JPG[/imgz]
View in gallery

BURNING TIME: APPROX. 20 MINUTES
BURNING INTENSITY: 105[imgz='http://www.penturners.org/photos/images/1363/1_TODAY_015.JPG']http://www.penturners.org/photos/images/1363/medium/1_TODAY_015.JPG[/imgz]
View in gallery


Darley

Well-Known Member
Joined
Sep 3, 2004
Messages
2,131
Location
Melbourne, Victoria, Australia.
Here's one I just finished using the jig devised by Benson (Bob) Pace. Amazing what you can do with a rubber band!
This was done on Maple with six coats of CA at burn 75.

Benson ( Bob ) Pearce is a friend of mine and created the rubber band laser engraver jig , he was with me last Saturday when I did the first demonstration of casting here Downunder
Is video on YouTube is nice and his new jig can do bottle stopper, ring, pen and more depending your imagination

In our demonstration last Saturday


Attachments

wood-of-1kind

Well-Known Member
Joined
Jul 10, 2005
Messages
4,073
Location
Toronto, ON, Canada

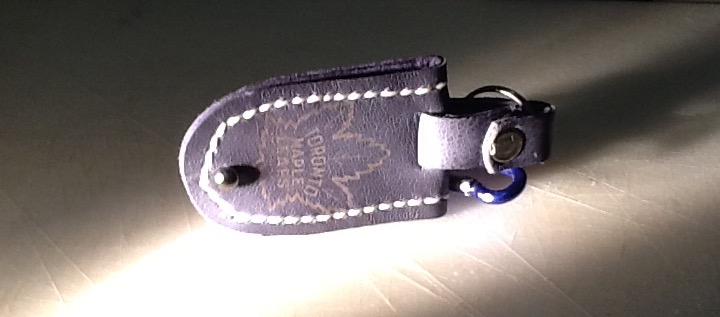

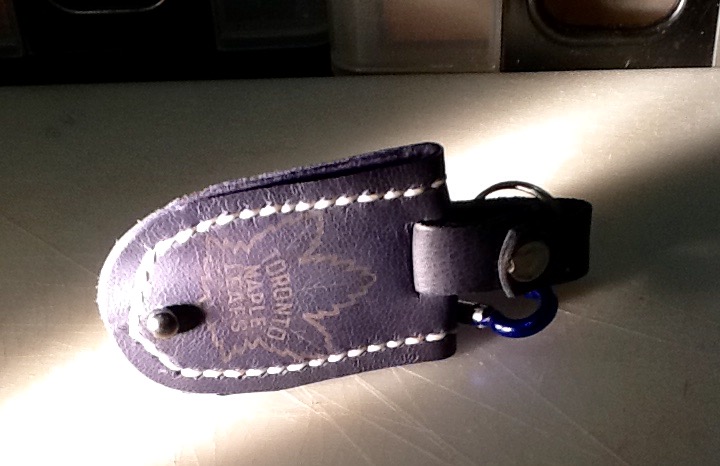

Leather keychain laserwork

[imgz=http://www.penturners.org/photos/images/1363/24_image.jpeg]http://www.penturners.org/photos/images/1363/large/24_image.jpeg[/imgz]
View in gallery

Burn time = 12 minutes
Burn intensity = 30[imgz='http://www.penturners.org/photos/images/1363/25_image.jpeg']http://www.penturners.org/photos/images/1363/medium/25_image.jpeg[/imgz]
View in gallery


wood-of-1kind

Well-Known Member
Joined
Jul 10, 2005
Messages
4,073
Location
Toronto, ON, Canada

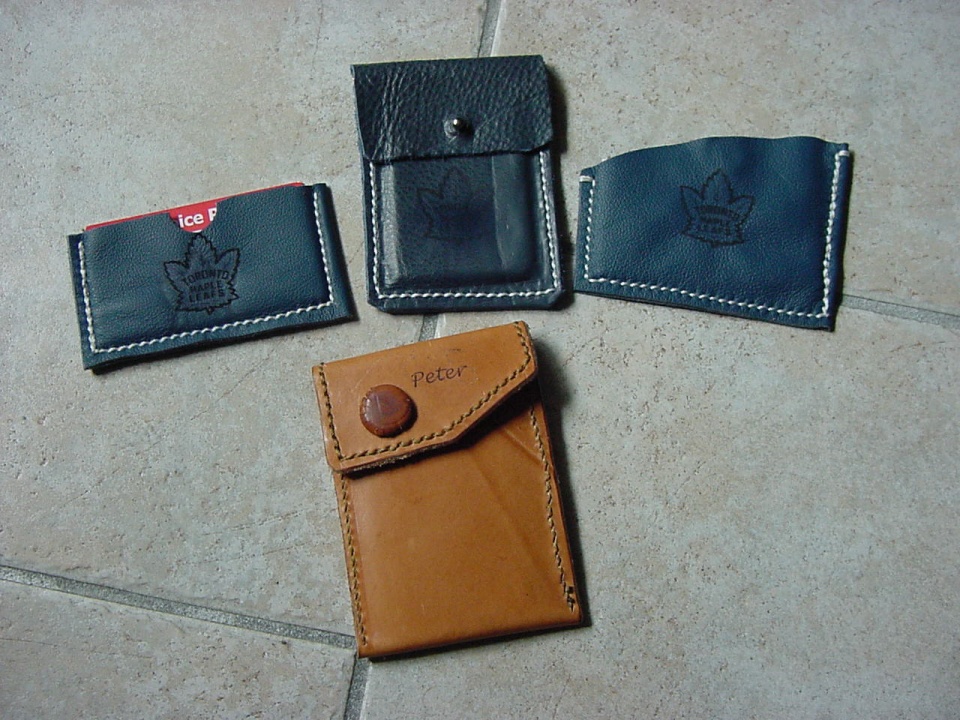

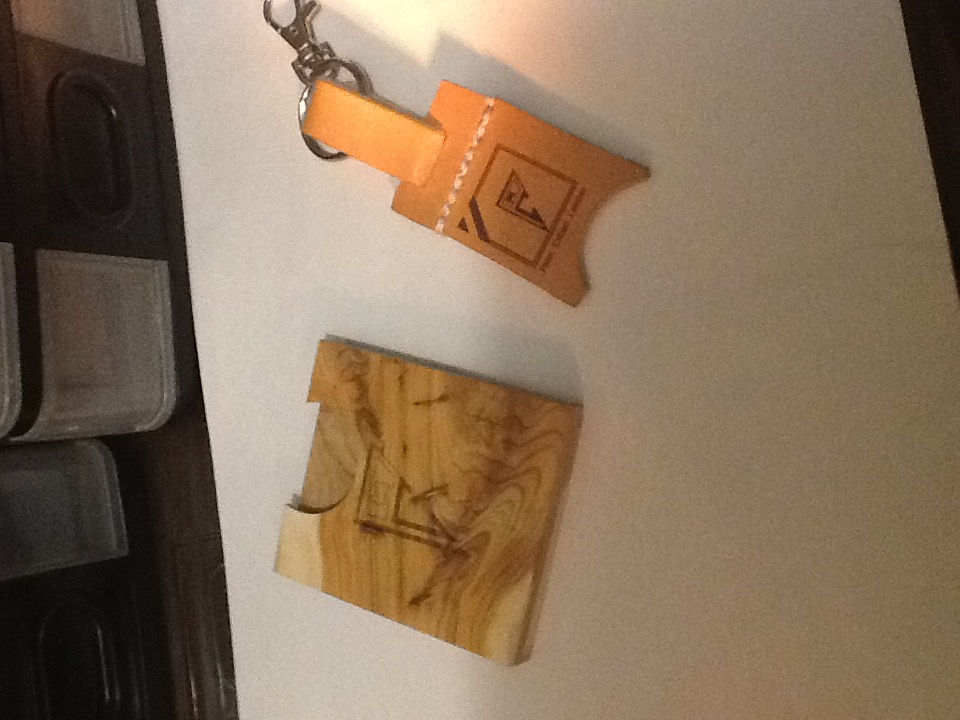

Leather and wood

[imgz=http://www.penturners.org/photos/images/1363/26_image.jpeg]http://www.penturners.org/photos/images/1363/large/26_image.jpeg[/imgz]
View in gallery

Burn intensity = 30
Burn time = 9 minutes 47 seconds on the juniper wood card case

Burn intensity = 30
Burn time. = 28 minutes on the leather keychain ring. It is a two part image with the frame outline and the logo within the frame. Takes a long time but you can combine multiple images to get a nice effect. Remember this laser is not meant to be a production work-horse but it is well suited to perform one-offs.


sbwertz

Well-Known Member
Joined
May 11, 2010
Messages
2,770
Location
Phoenix, AZ

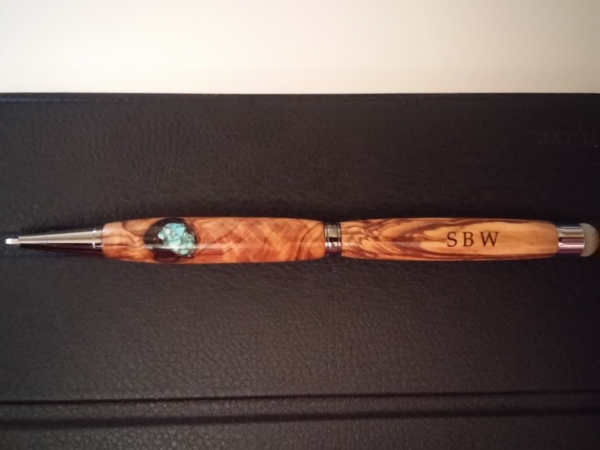

Slimline in olive with turquoise inlay.




Just a tip. Different woods need different burn times depending on the hardness. If I know I am going to engrave a finished pen, I do a trial burn on the blank that I am going to turn the pen from before turning it. That way I can try a couple of different fonts, burn times, etc. and when the pen is done I know exactly what settings to use. Also pay attention to fonts. Some fonts, for example have a very narrow upper case "J" that doesn't burn very well. If I have a "John" to burn, I change to a font with a better formed upper case J.

Last edited:

Rick_G

Well-Known Member
Joined
Nov 30, 2007
Messages
1,978
Location
Bothwell, Ontario, Canada.
One for one of my wife's cousins, retired Air Force. Pen is in bloodwood. Posted this in show off your pens but not here where it may be of more interest.

What did you fill the burn with to make it yellow?

I used yellow acrylic paint and gold pearl ex powder, I had 2 coats of thin ca on it before burning so just rubbed the paint in and wiped it off, it stayed in the burn.


bsshog40

Active Member
Joined
Oct 2, 2018
Messages
642
Location
Midland, Tx
Slimline in olive with turquoise inlay.




Just a tip. Different woods need different burn times depending on the hardness. If I know I am going to engrave a finished pen, I do a trial burn on the blank that I am going to turn the pen from before turning it. That way I can try a couple of different fonts, burn times, etc. and when the pen is done I know exactly what settings to use. Also pay attention to fonts. Some fonts, for example have a very narrow upper case "J" that doesn't burn very well. If I have a "John" to burn, I change to a font with a better formed upper case J.
So just a couple questions, does the burn time not change from the blank to a finished pen?
And does it burn as deep whether finished or unfinished? Thanks


sbwertz

Well-Known Member
Joined
May 11, 2010
Messages
2,770
Location
Phoenix, AZ
The finish doesn't seem to affect the burn time appreciably. The type and hardness of the wood seems to be more of a factor. Just be very careful to refocus to the turned diameter.


x31korps

Member
Joined
Jan 8, 2019
Messages
4
Location
Virginia
Slimline in olive with turquoise inlay.




Just a tip. Different woods need different burn times depending on the hardness. If I know I am going to engrave a finished pen, I do a trial burn on the blank that I am going to turn the pen from before turning it. That way I can try a couple of different fonts, burn times, etc. and when the pen is done I know exactly what settings to use. Also pay attention to fonts. Some fonts, for example have a very narrow upper case "J" that doesn't burn very well. If I have a "John" to burn, I change to a font with a better formed upper case J.
Appreciate the tips!


gtriever

Well-Known Member
Joined
Apr 23, 2017
Messages
1,112
Location
Paducah, Kentucky

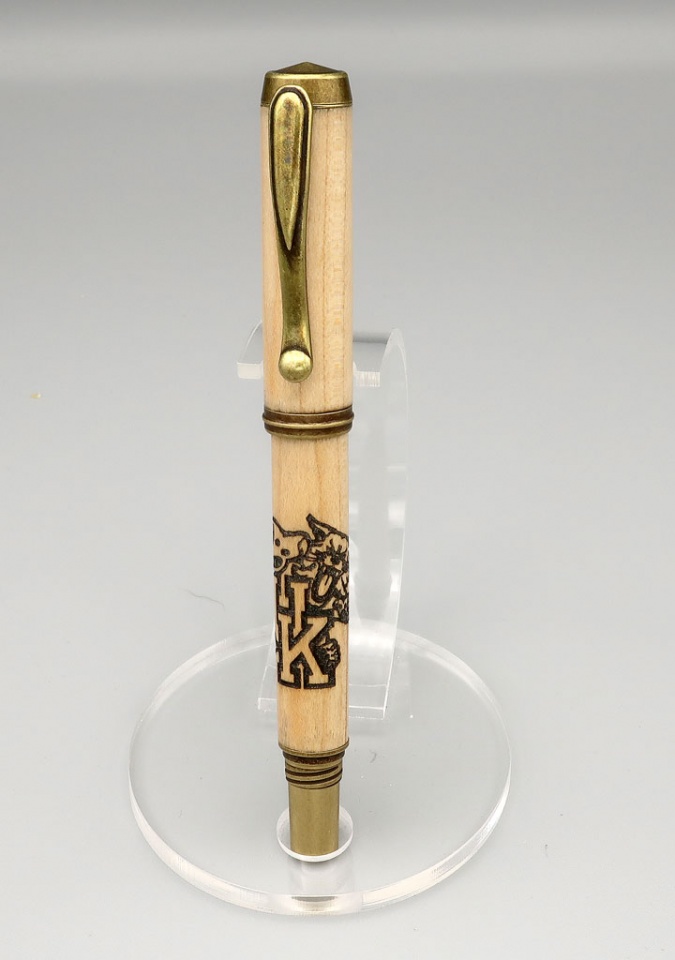

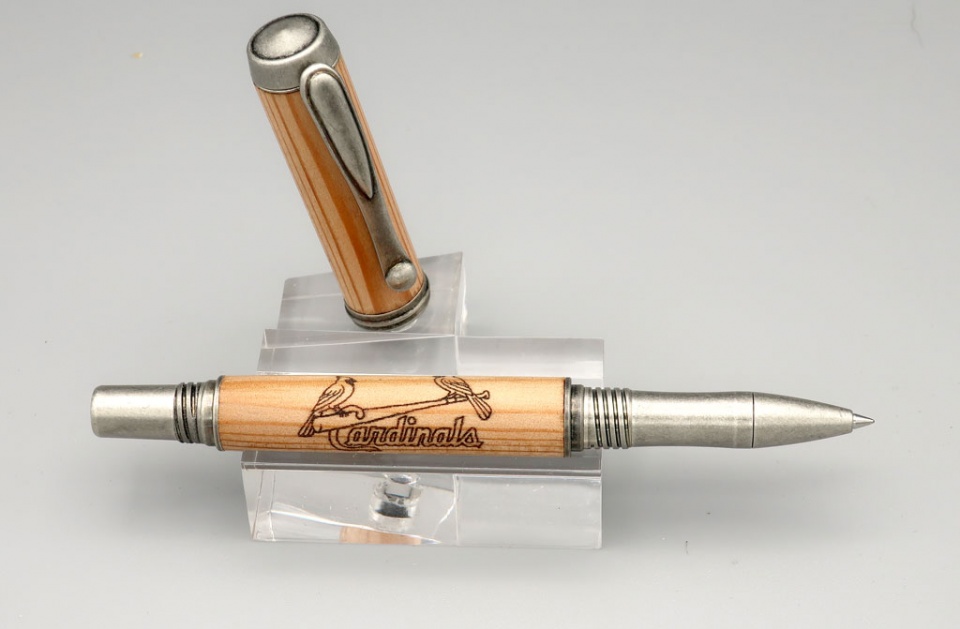

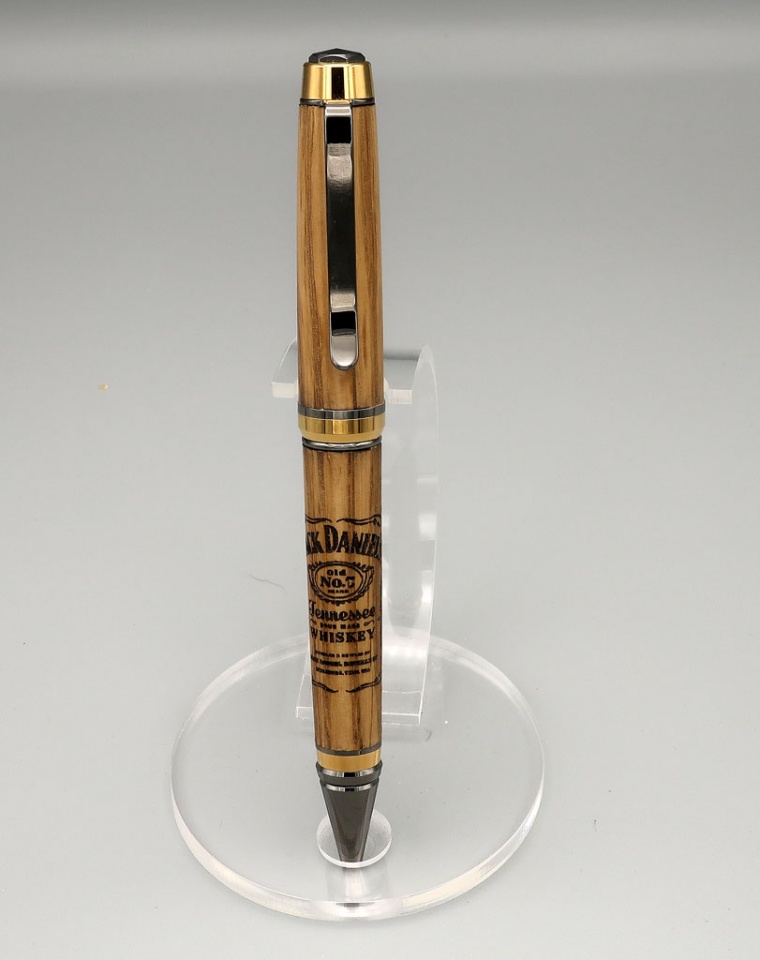

Woods with Stories - (1) Cigar with Jack Daniels whiskey barrel blank, (2) Jr George with Rupp Arena blank, and (3) Jr George with Busch Memorial Stadium [Busch II] blank.

Burn intensity = 60-65


CigarHybrid_JackDaniels_web.jpg JrGeorge_UK2_web.jpg Jr-George_StLouis-3_web.jpg


wood-of-1kind

Well-Known Member
Joined
Jul 10, 2005
Messages
4,073
Location
Toronto, ON, Canada

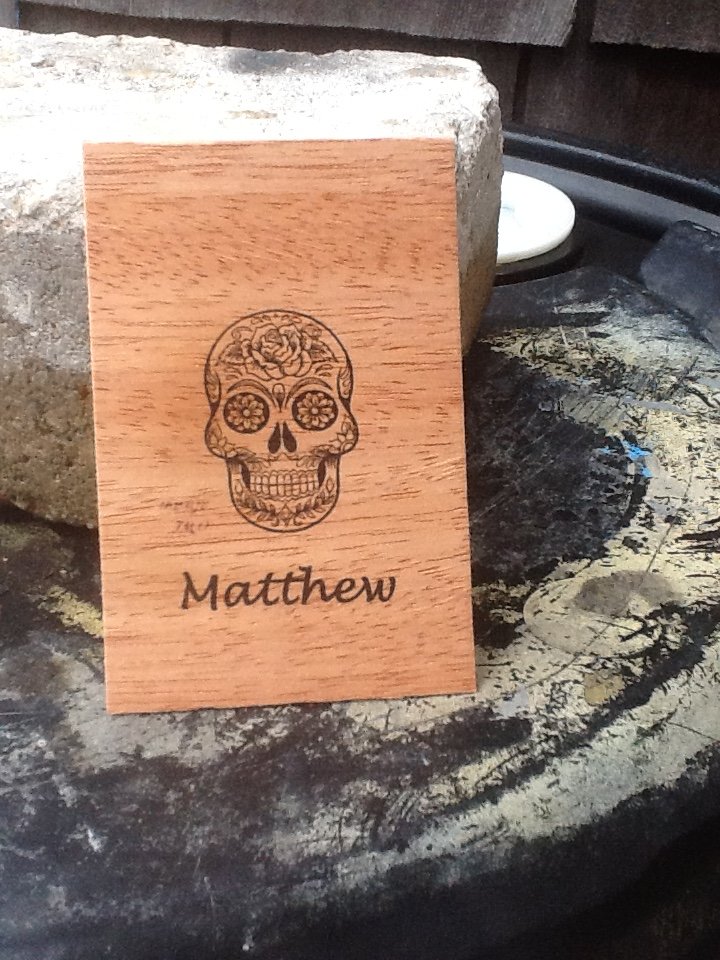

Sugar skull for a tequila shot glass box

Burn intensity = 30
Burn time = 15 minutes (skull)
Burn time = 4 minutes (Matthew)
Material = mahogany veneer(thick) slice
