My Wife wanted pens for her advisory board. She always gives them Indiana themed items as they come from other states.

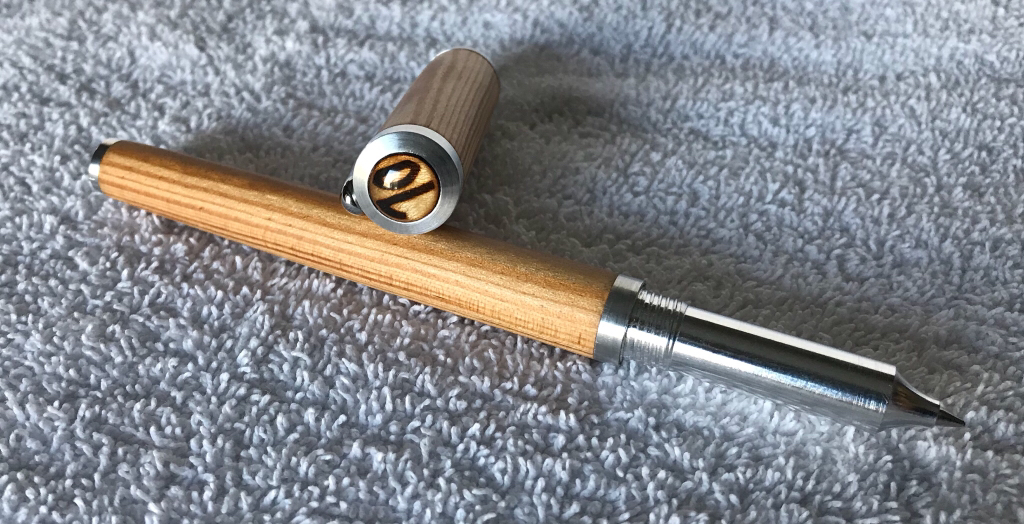

5 modified aluminum RAW kits with southern yellow pine barn wood. The blanks were stabilized and finished with CA, sanded to 400 for a matte finish. Monogrammed finials. Comments, criticism and questions welcome.



Last edited:
Signed-In Members Don't See This Ad

DJBPenmaker

Member
Joined
Nov 10, 2016
Messages
539
Location
Cheshire, UK
Love the pens, personalisation and the photo descriptive inserts. Polished job indeed!

Sent from my SM-G955F using Tapatalk


More4dan

Member
Joined
Mar 17, 2016
Messages
2,099
Location
Katy, TX
Great Pens and I really like the box lid idea and execution. When you say modified you weren't kidding. Did you make the entire cap or heavily modify the existing one? Which clip did you use? What were the thread size for the cap? Very impressive work!

Danny


Jeremymc98

Member
Joined
Dec 4, 2017
Messages
107
Location
Lexington, KY
awesome pens!! I have made 2 of the brass raw pens and i am very curious how you modified the cap and also how and what clip you added.

great job and execution!


PatrickR

Member
Joined
Apr 8, 2017
Messages
949
Location
Rural America
Thanks for compliments!

On the cap - I’ve only used the threaded portion. I turn it down as thin as possible and cut if off. Then epoxy it into the cap.
The clip is a “J” from Beaufort held in by a screw in finial. There is no tube in the cap.

If anyone wants to see pics of the parts I can take some tomorrow.


Bikerdad

Member
Joined
Apr 4, 2009
Messages
237
Location
Utah Valley
Modified RAW kits? Sorry, but there are WAY too many acronyms surging across the Interwebz for that to make sense.

What is a "RAW kit"?


OZturner

Member
Joined
Aug 5, 2013
Messages
6,664
Location
Sydney. NSW. Australia
Excellent Pens Patrick,
Terrific, Modifications.
Great Profiles and Proportions,
Superb Concept and Execution.
Beautiful Recycled Barn Yellow Pine Blanks.
Outstanding Presentation together with Personalising of the Finial.
Congratulations,
Brian.


magpens

Member
Joined
Feb 2, 2011
Messages
15,107
Location
Coquitlam, BC, Canada
I would love to see pics of the parts, please .

What thickness would the wood be in the cap ?


Thanks for compliments!

On the cap - I’ve only used the threaded portion. I turn it down as thin as possible and cut if off. Then epoxy it into the cap.
The clip is a “J” from Beaufort held in by a screw in finial. There is no tube in the cap.

If anyone wants to see pics of the parts I can take some tomorrow.


mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
11,202
Location
Medina, Ohio
Hi Patrick.

As a temporary resident of Franklin, In and Bloomington, In for 4 yrs (1983-1987) - HI!

I love the appearance of the finished pens. The rustic finish and the general straight-grain blanks are very nice to me. They look like what I would have wanted.

The modified cap - sweet!!! VERY NICE!

I am not a fan of the opened nib end of this kit. This is truly a personal opinion, and in no way reflects on your craftsmanship.

Closed, I love the overall appearance. Clean, neat, elegant. Well done.

Thank you for sharing.


james80

Member
Joined
Jan 23, 2018
Messages
7
Location
Trinidad
I really like how each pen is not unique in a small way but quite different even though it’s the same wood. I like the grip part of the pen and you made it so much better with the modified cap.


PatrickR

Member
Joined
Apr 8, 2017
Messages
949
Location
Rural America
Thank you all for the comments.
Mark - I agree, the nib and connector are a little crude. Someone (?) posted a couple of closed end versions not long ago with contoured nibs, so there is enough meat there for refinement.


PatrickR

Member
Joined
Apr 8, 2017
Messages
949
Location
Rural America
Mal, Here are the pics. I don’t work from detail drawings but I was concerned about thickness enough to do one on the cap (w/o dims). That’s when I added the ring to support the thinnest section of the cap. The sketch was used for drilling reference. The 5/16 aluminum tube was used in place of the stock brass to make the shape better and allow for threading.
