Mason jar lid design

Signed-In Members Don't See This Ad

RKB

Member
Joined
Mar 17, 2014
Messages
486
Location
Apollo, PA

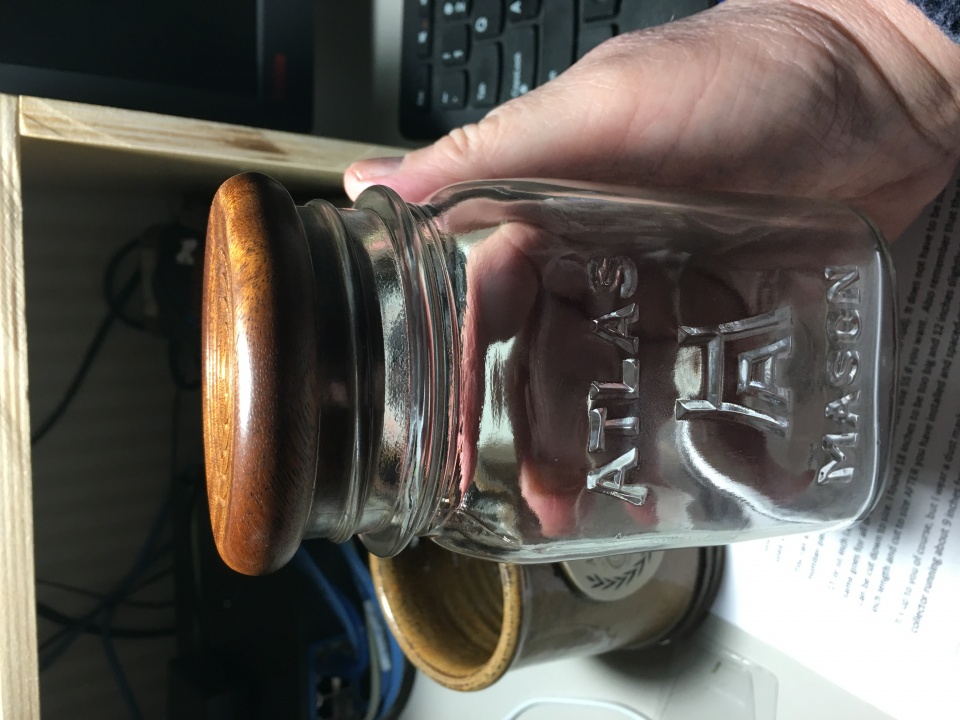

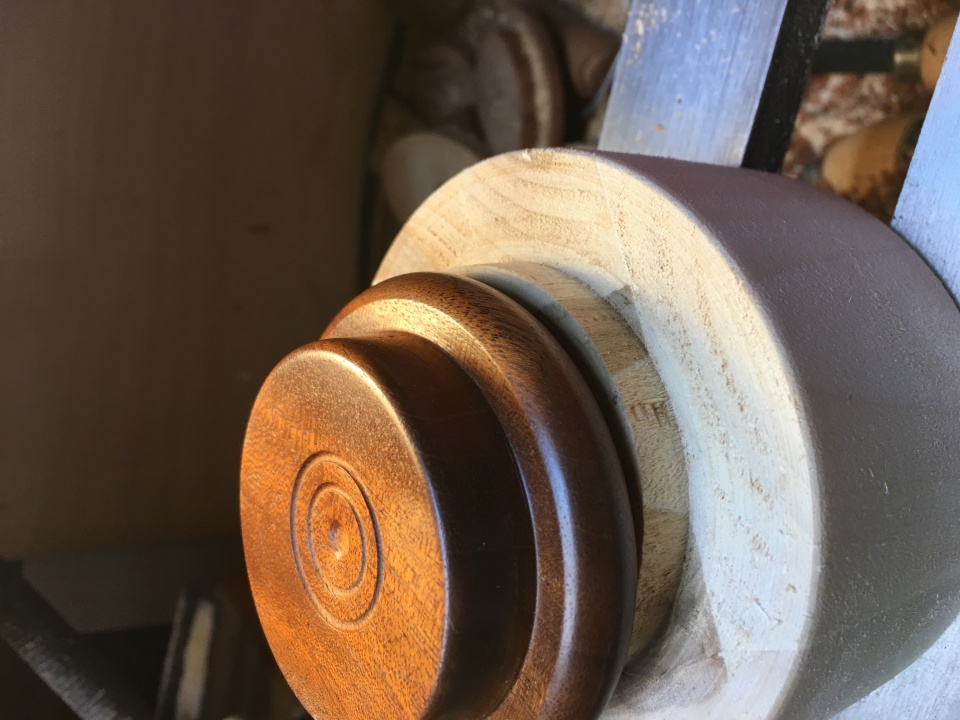

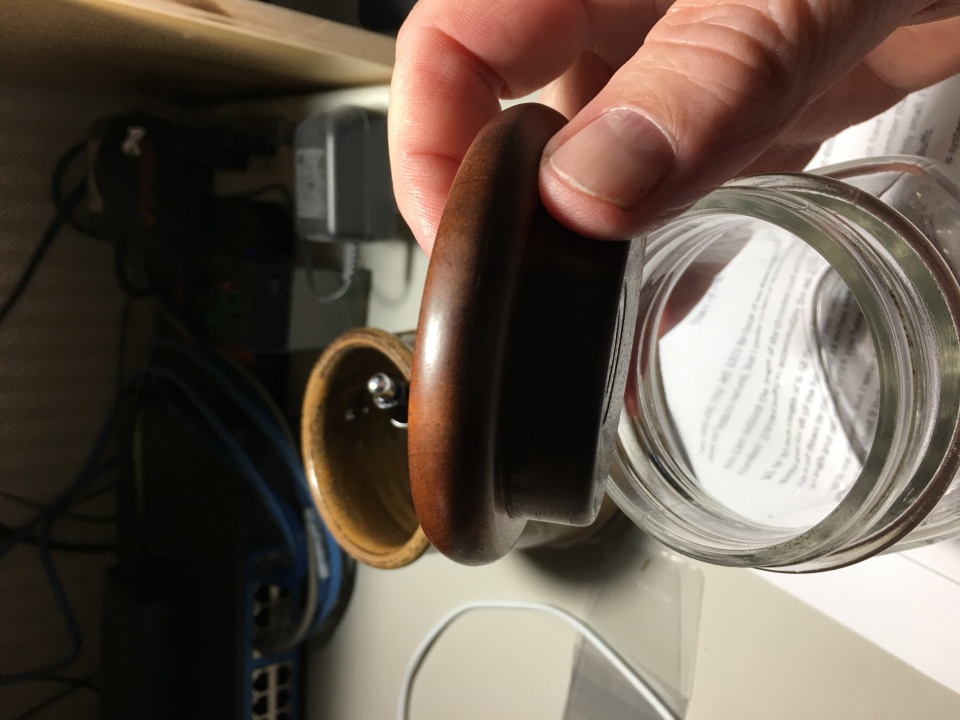

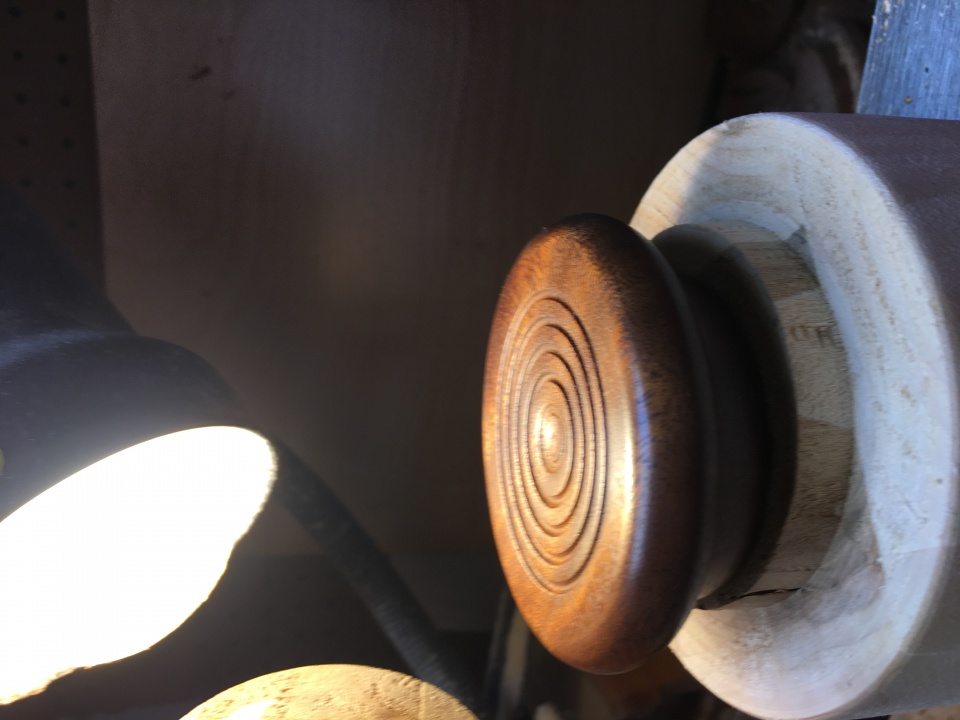

I saw something like this online and attempted to make a prototype
I need to come up with an o ring so I can make them smaller so that they will fit more sizes of jars, and still be snug. Mahogany wax finish

Sorry for the poor photos, tried using phone.

Thanks for looking, comments are welcomed.

Rod


Attachments

Signed-In Members Don't See This Ad

monophoto

Member
Joined
Mar 13, 2010
Messages
1,471
Location
Saratoga Springs, NY
What do you mean by "I need to come up with an o ring so I can make them smaller so that they will fit more sizes of jars, and still be snug."


I've made many of these - in each instance, the turning is customized to a specific jar lid - and after completion, is glued to that lid. There are many possible jar lids - everything from the small single-service glass jars used for preserves and jellys in restaurants, to the various standard sizes of 'ball' or 'mason' jars. But if the turning is glued onto the original cap so that the cap provides the seal, there's no need for an o-ring.

  • Like
Reactions: RKB
Joined
Sep 24, 2006
Messages
7,248
Location
Tellico Plains, Tennessee, USA.
What do you mean by "I need to come up with an o ring so I can make them smaller so that they will fit more sizes of jars, and still be snug."


I've made many of these - in each instance, the turning is customized to a specific jar lid - and after completion, is glued to that lid. There are many possible jar lids - everything from the small single-service glass jars used for preserves and jellys in restaurants, to the various standard sizes of 'ball' or 'mason' jars. But if the turning is glued onto the original cap so that the cap provides the seal, there's no need for an o-ring.

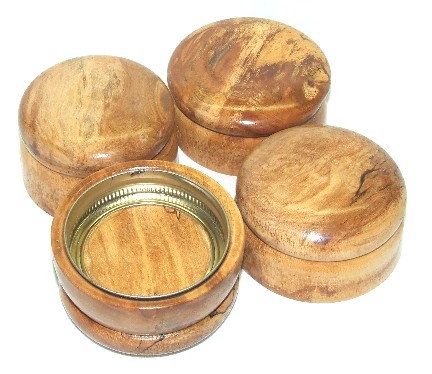

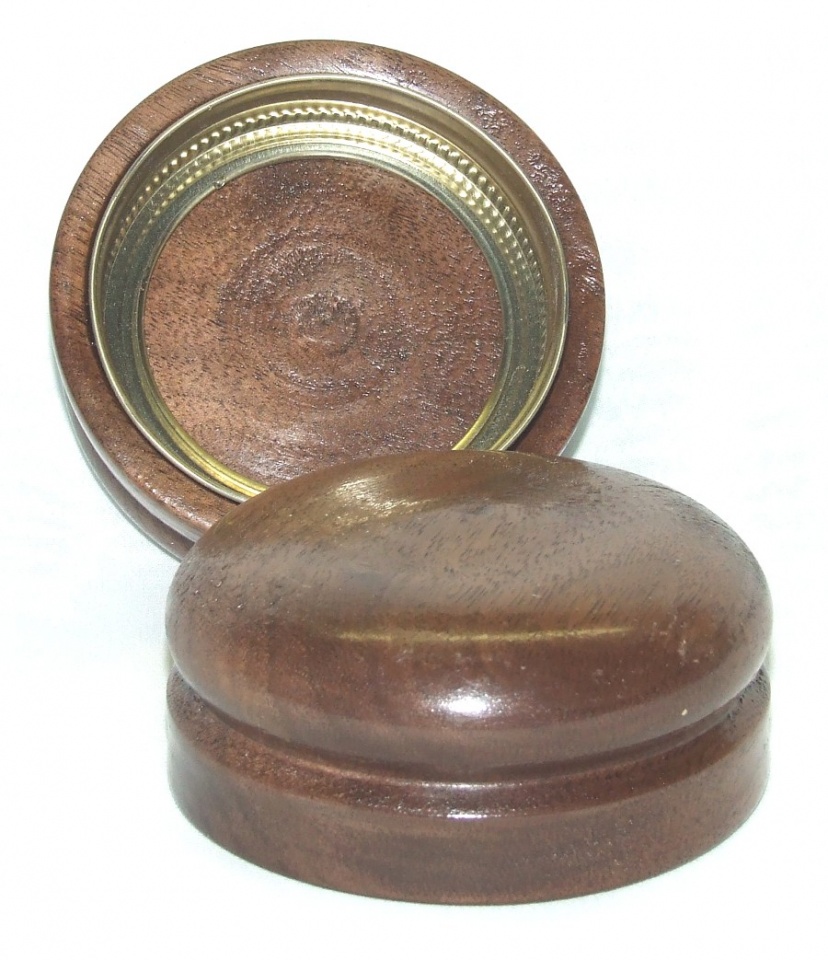

You beat me to the post.... that's exactly what I do... I use the ball jar lid rings inserted into my turning so the wood fits down over the mouth of the jar... saw a fellow turner at the Foothills Art Guild show in Knoxville several years back... he had a table full of them and they were selling like hotcakes... I tried a few that LOML appropriated for her antique mason jars and haven't made many since...


Attachments

  • Like
Reactions: RKB

dogcatcher

Member
Joined
Jul 4, 2007
Messages
1,824
Location
TX, NM or on the road
I think the OP made the lids a press fit but slightly smaller in diameter and added a groove with an O ring to seal the jars. That is the way I made them.

For the O ring, I bought a roll of the O ring rubber and made my own. I found the material at an oilfield bearing supply place. It was sold by either the roll or the foot. I found this place Online that sells it. https://www.theoringstore.com/index.php?main_page=index&cPath=117_537

  • Like
Reactions: RKB

dogcatcher

Member
Joined
Jul 4, 2007
Messages
1,824
Location
TX, NM or on the road
Since it O rings you want, I would make up all of the sizes of lids you make, then take a day trip to on of the larger towns and shop for O rings. They make them in these sizes, and a good dealer will have them or be able to get them.

  • Like
Reactions: RKB

RKB

Member
Joined
Mar 17, 2014
Messages
486
Location
Apollo, PA
You could also look for a roll of cork tape that would fit around each lid.. you can cut the tape to length...
Cork tape sounds like a good solution. I'm wondering if the tape adhesive would be strong enough? I guess I could use some contact adhesive to make sure. Good IDEA.
THANKS.

Rod


dogcatcher

Member
Joined
Jul 4, 2007
Messages
1,824
Location
TX, NM or on the road
Cork tape sounds like a good solution. I'm wondering if the tape adhesive would be strong enough? I guess I could use some contact adhesive to make sure. Good IDEA.
THANKS.

Rod
Look for instructions on how to recork a clarinet. I used to do the cork trick on turned boxes with lids. You can get cork in various thicknesses which covers mistakes of too big or too small of a lid box fit.
