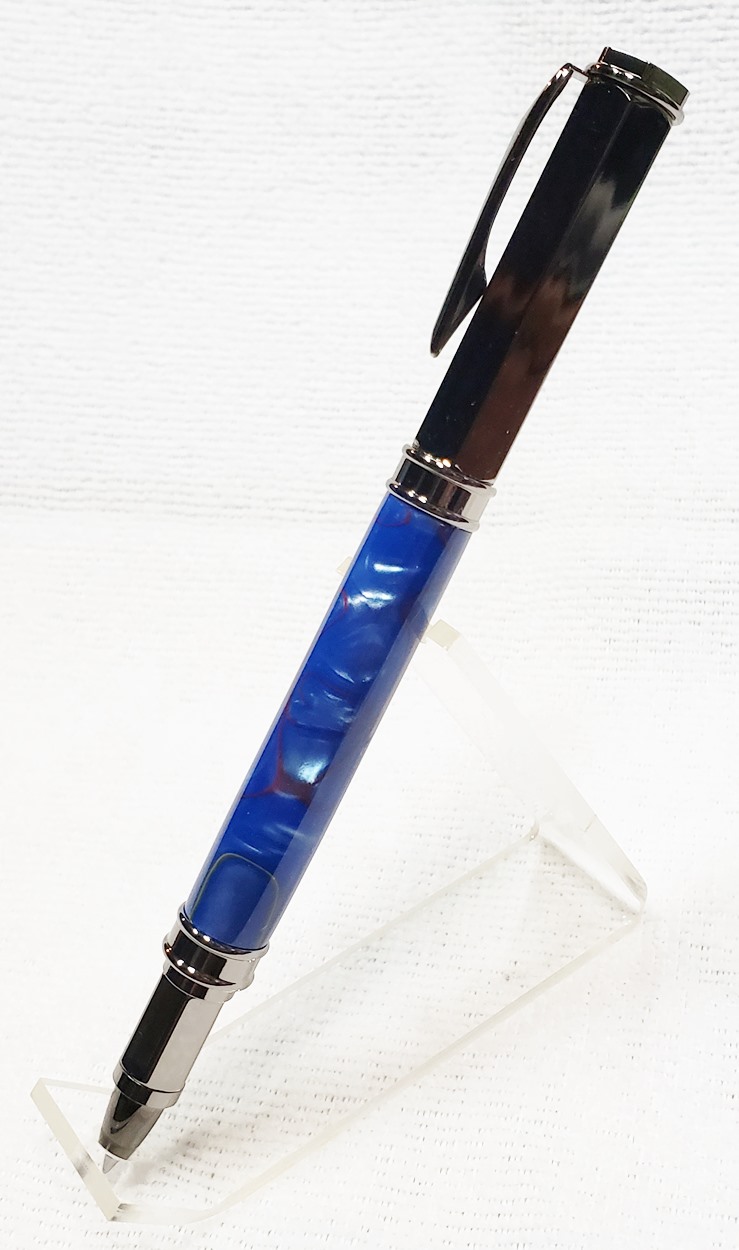

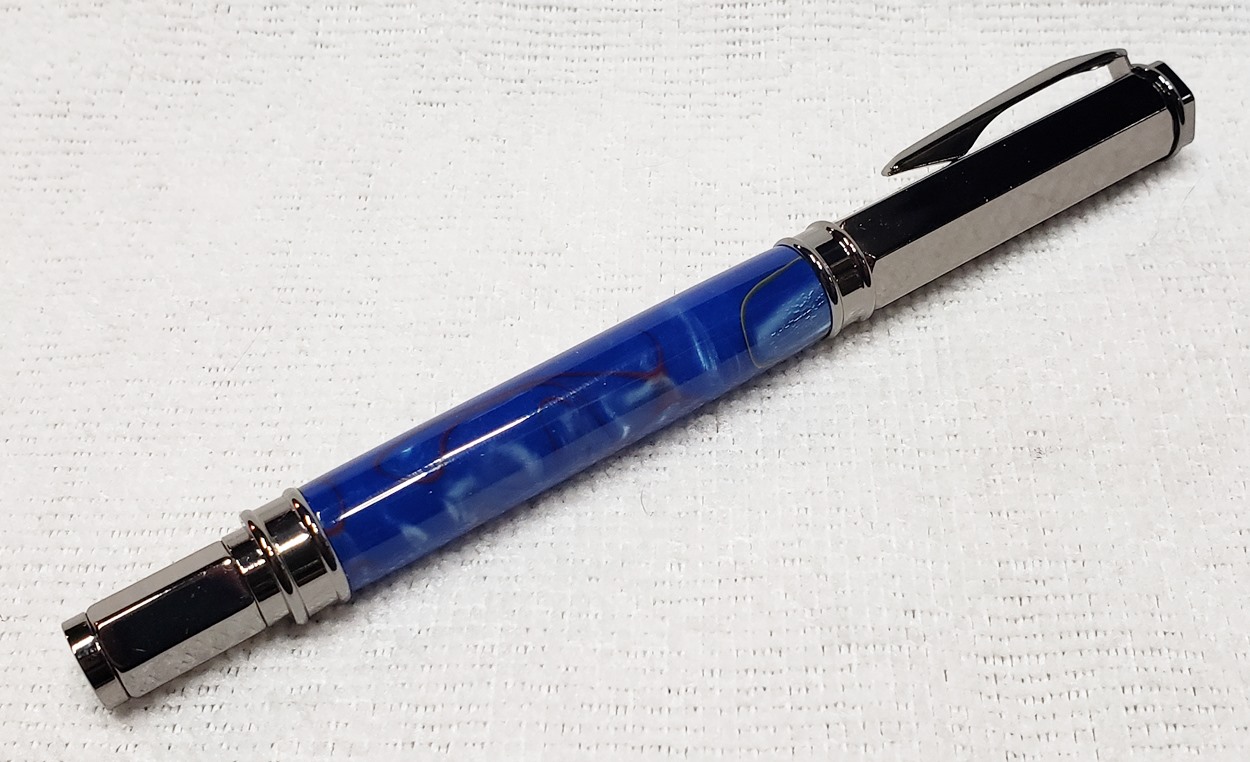

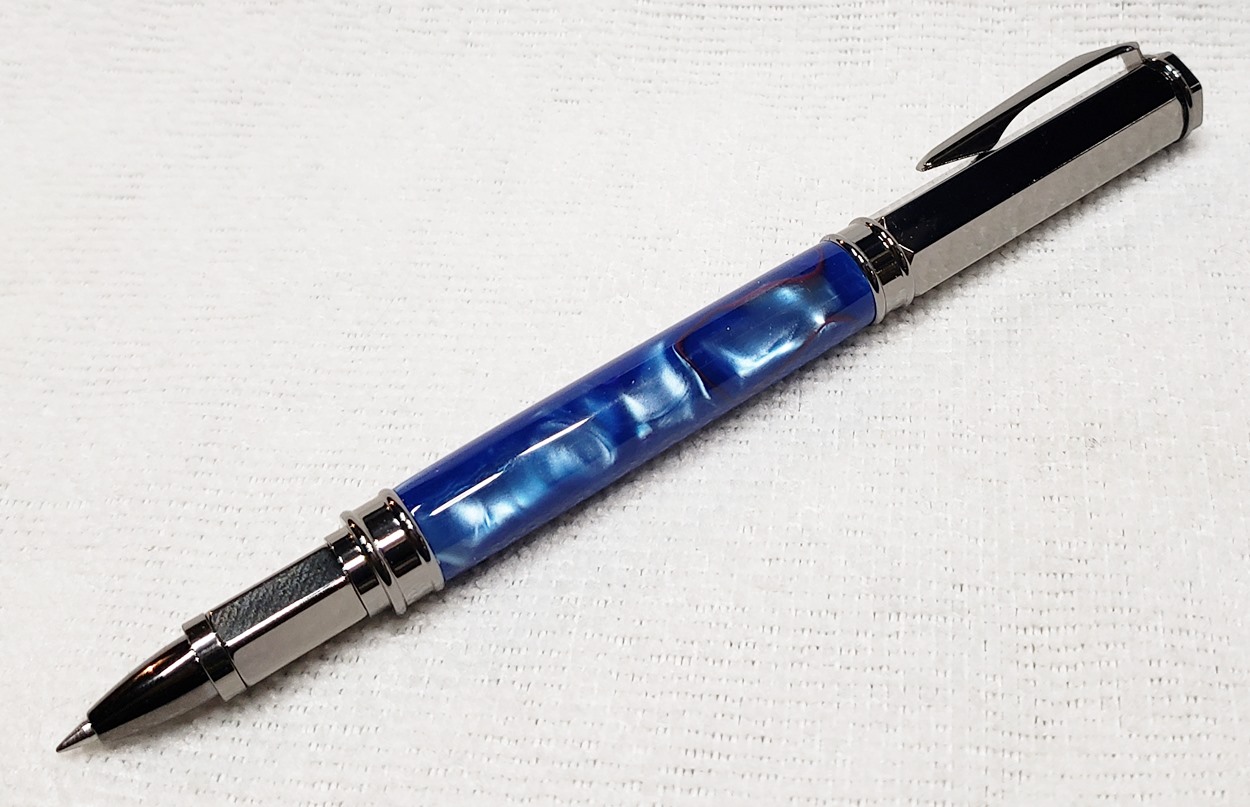

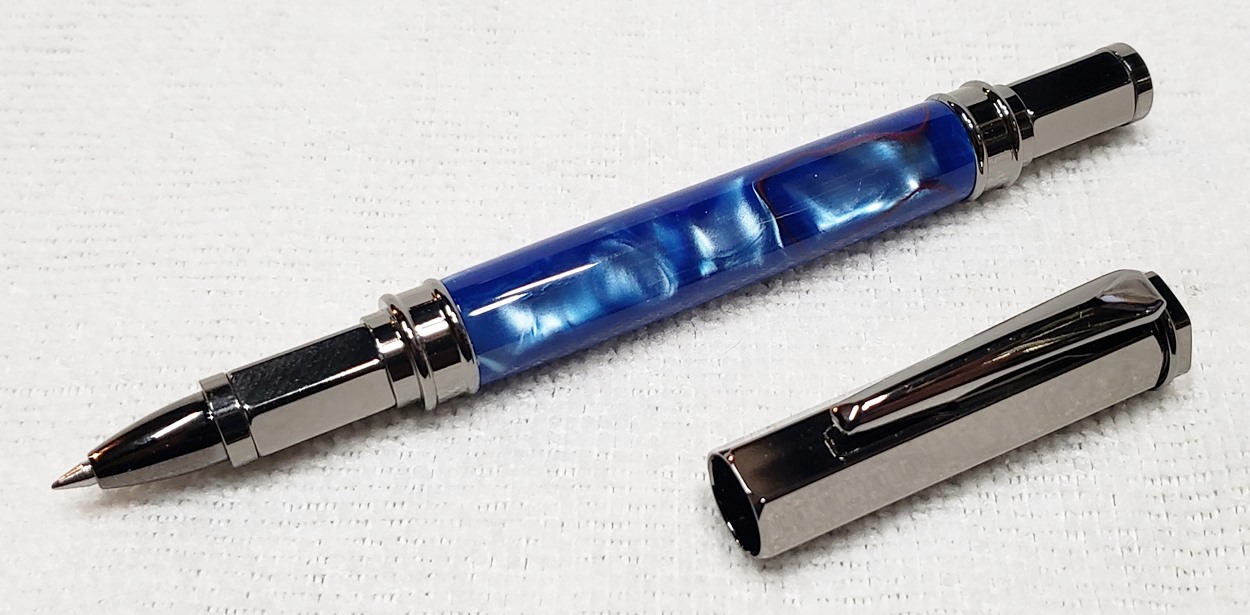

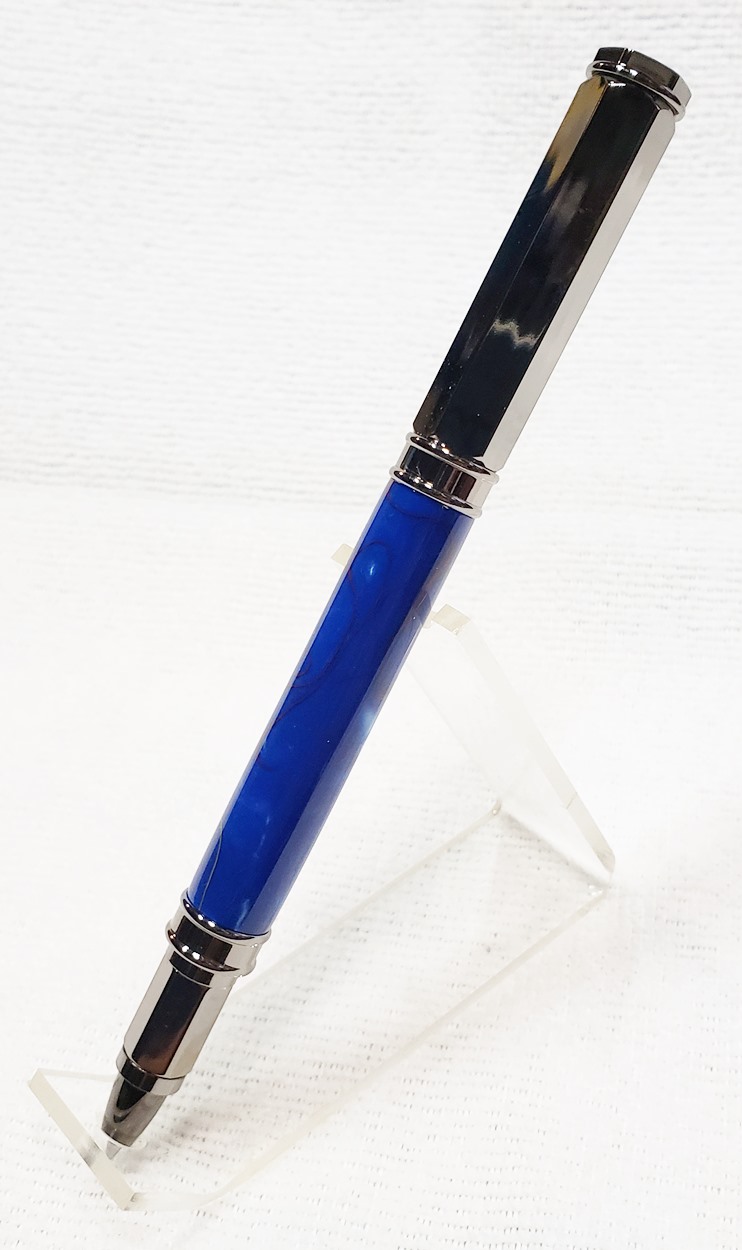

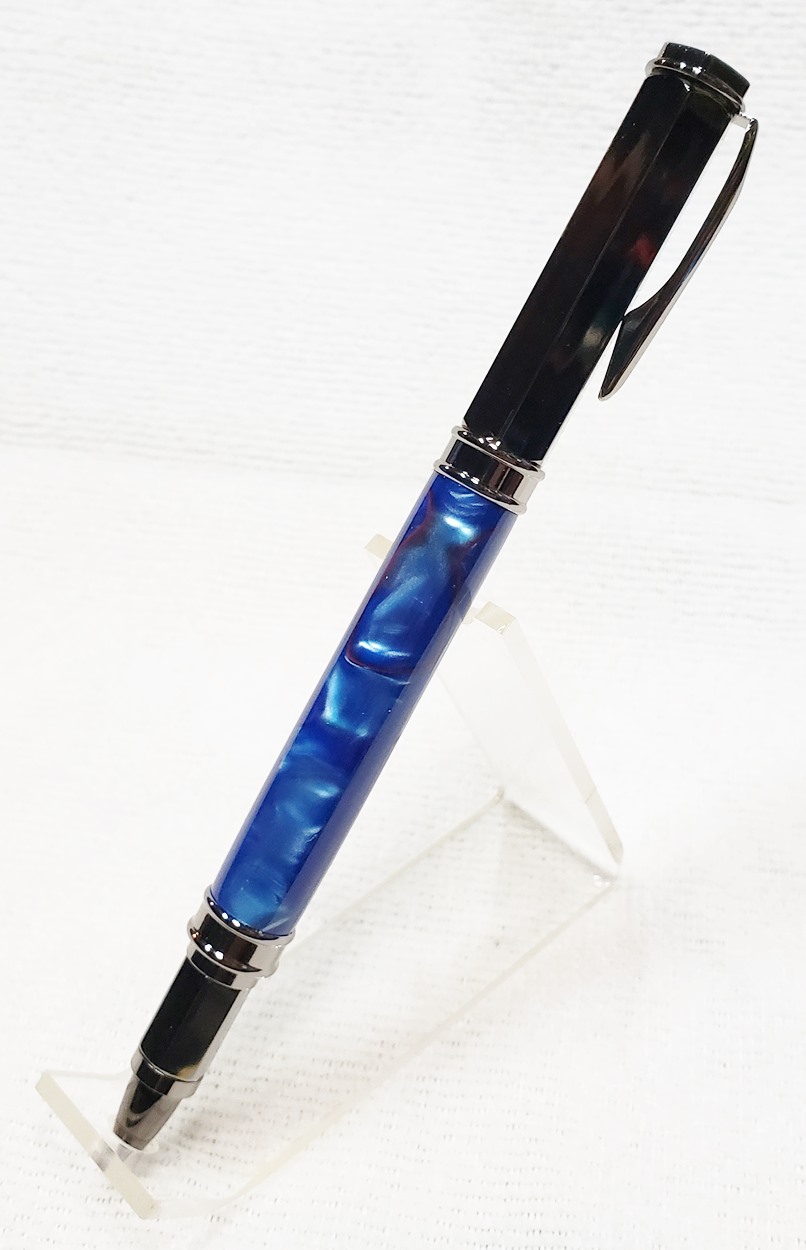

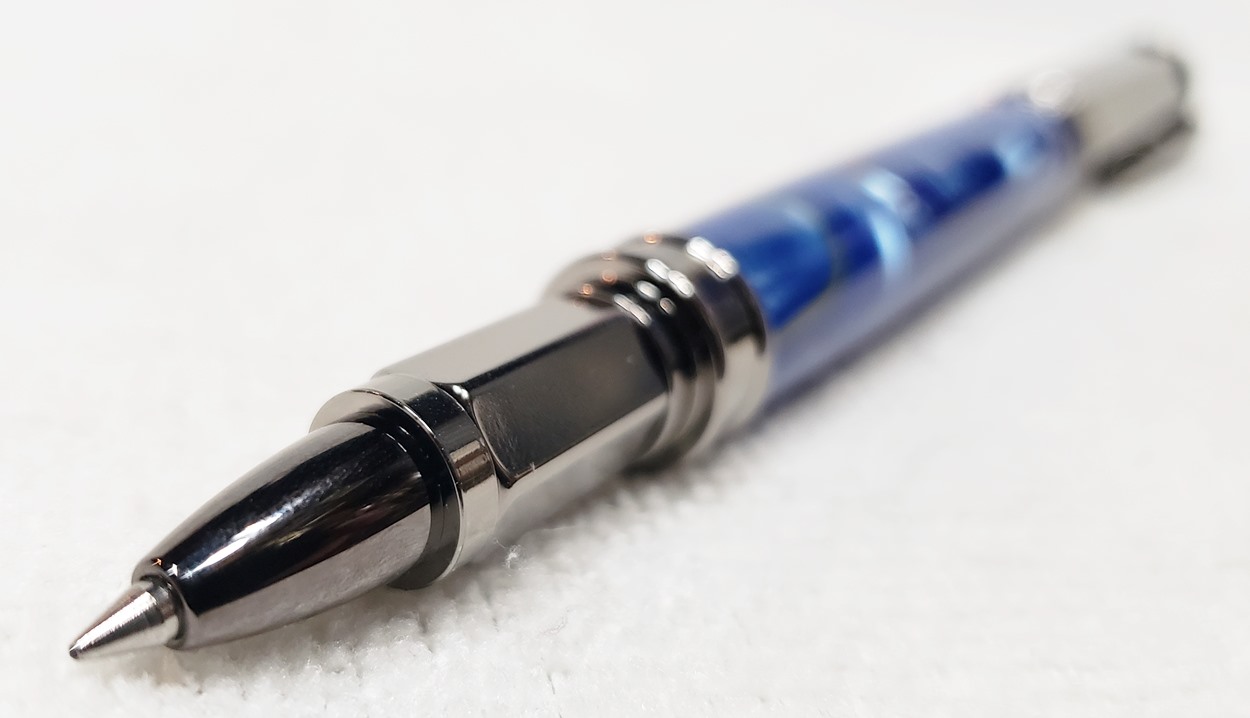

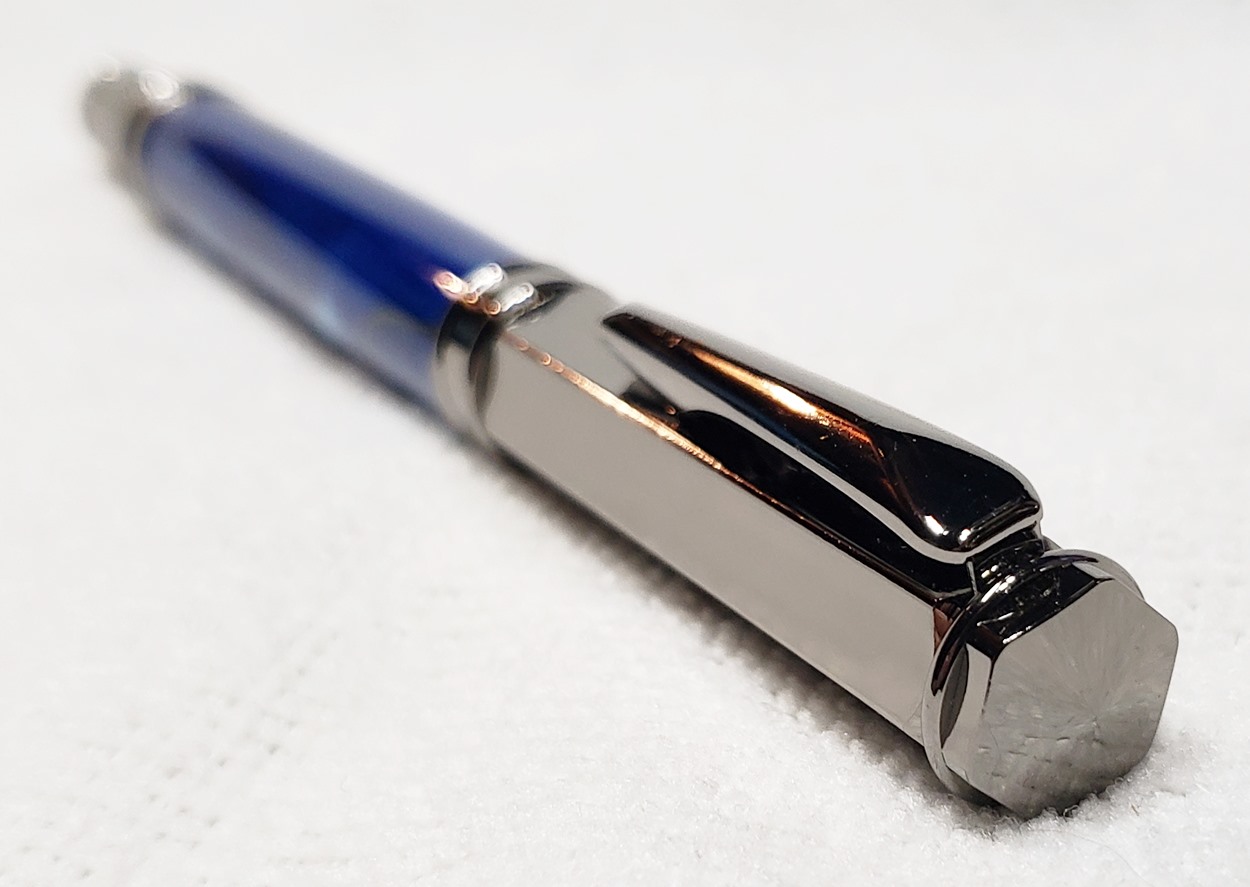

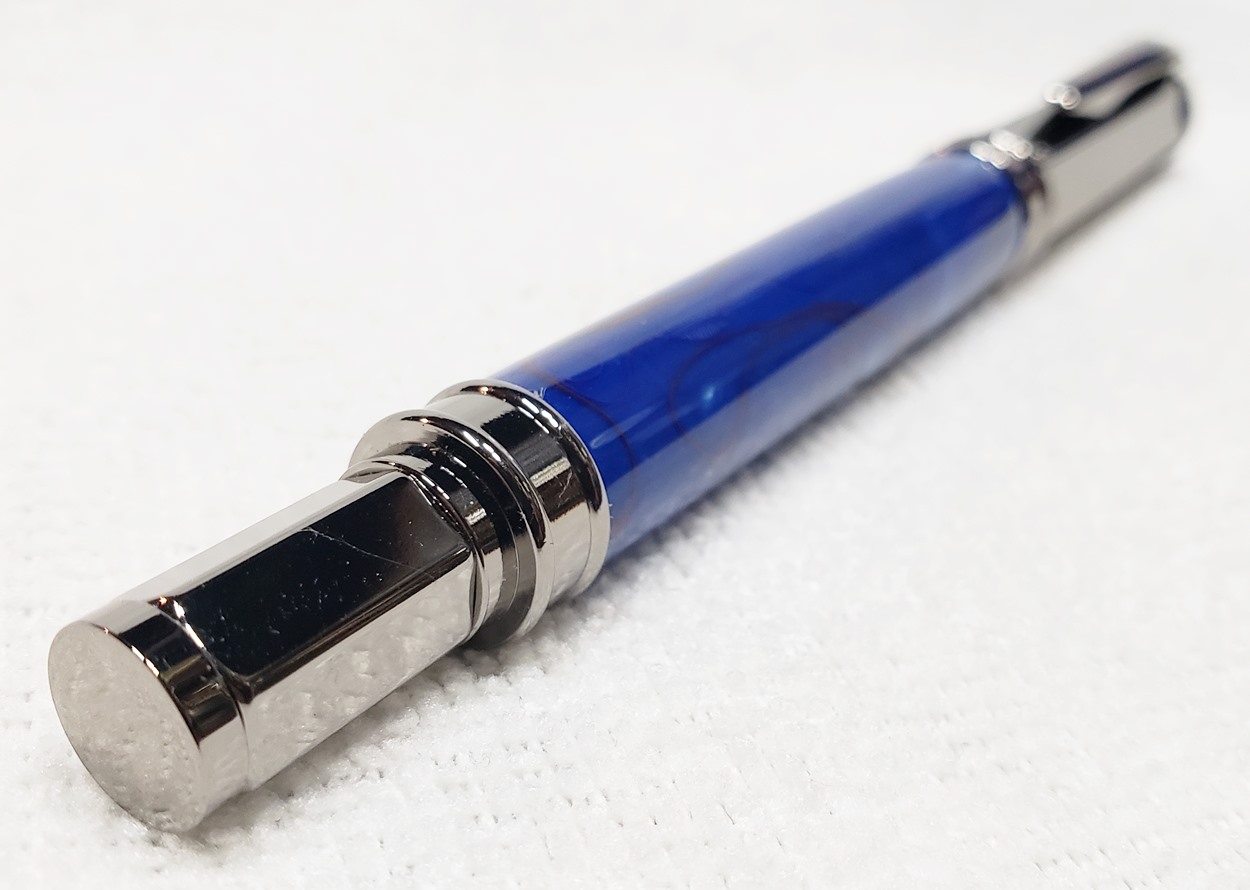

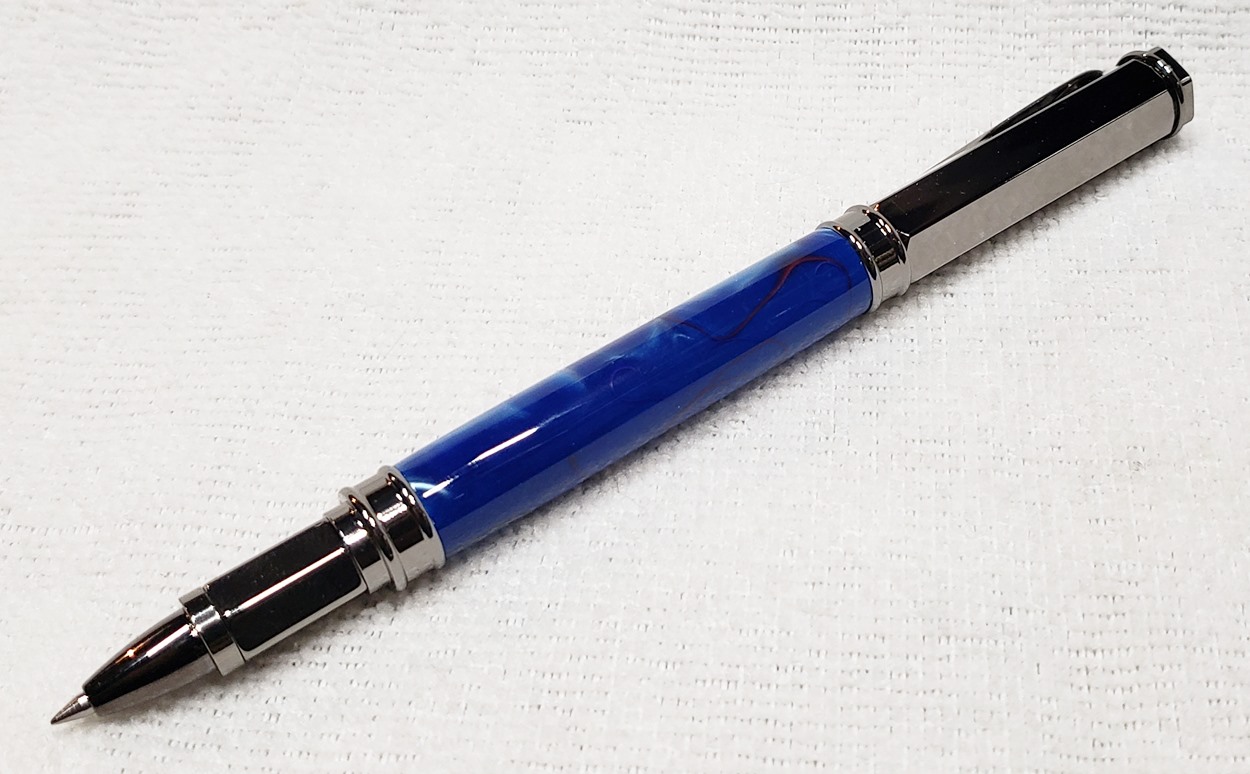

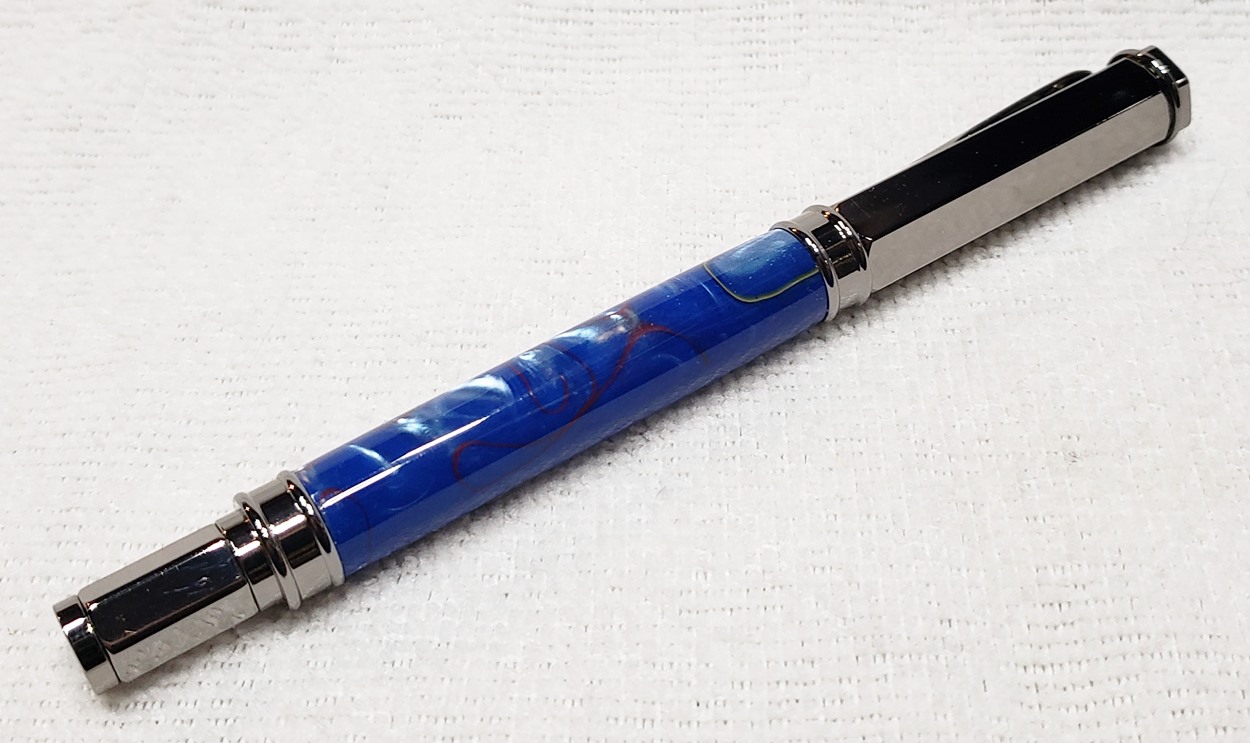

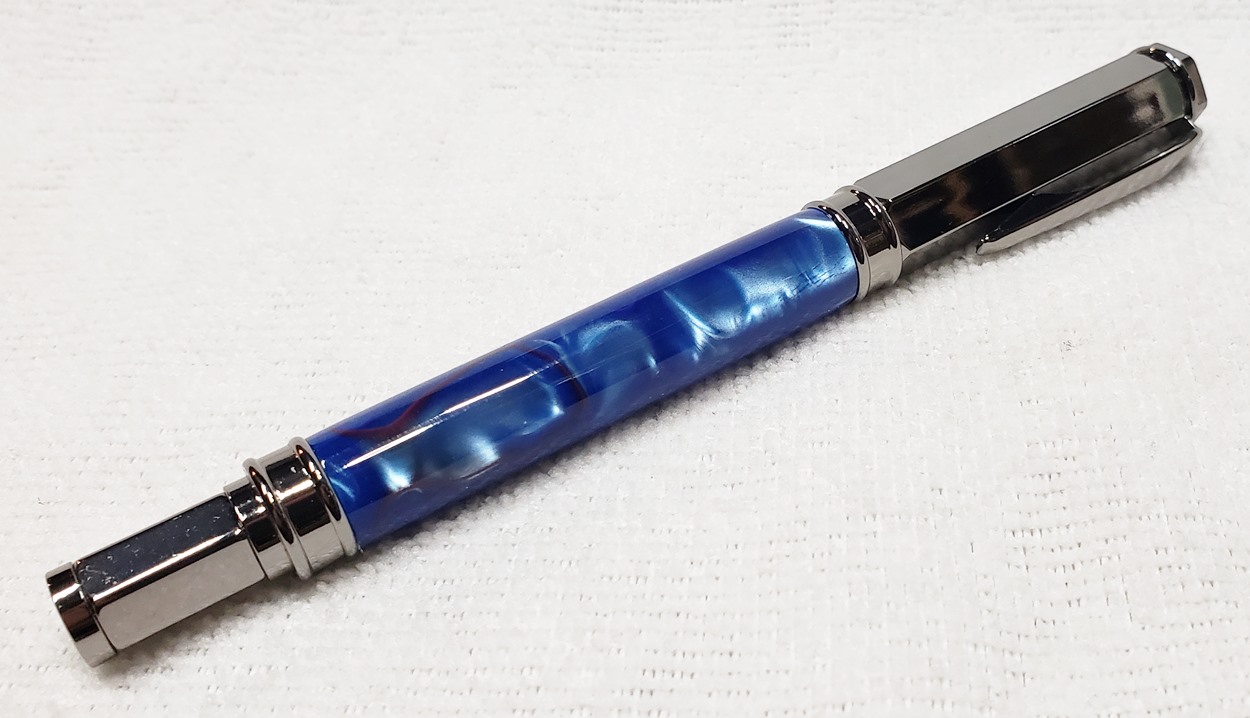

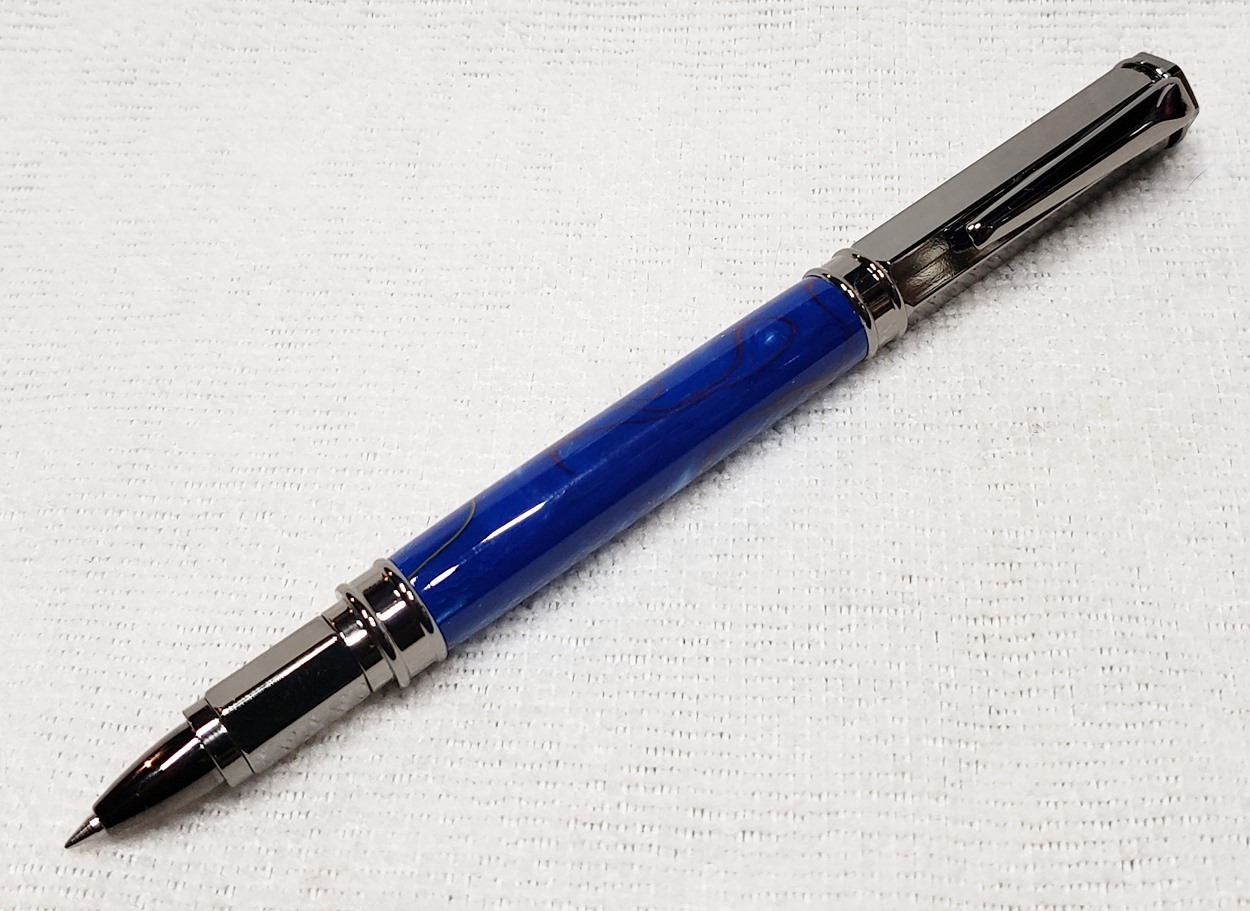

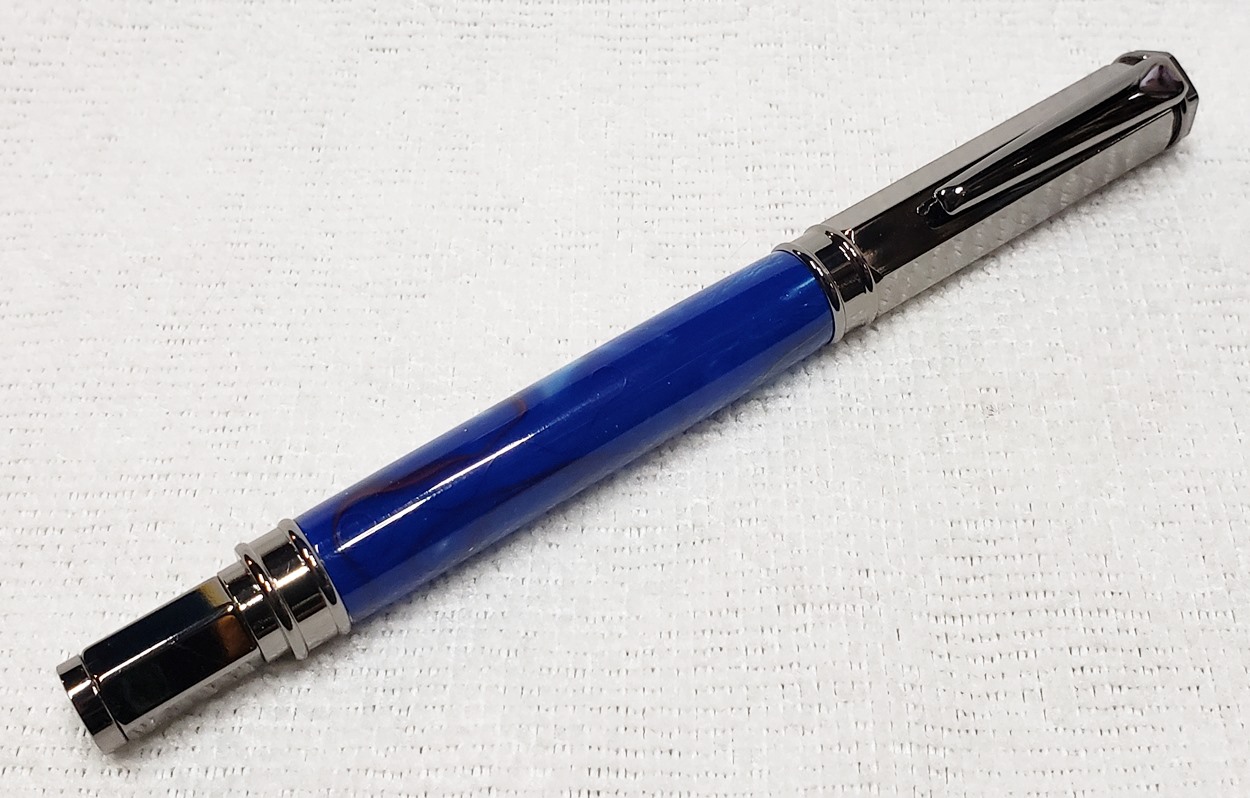

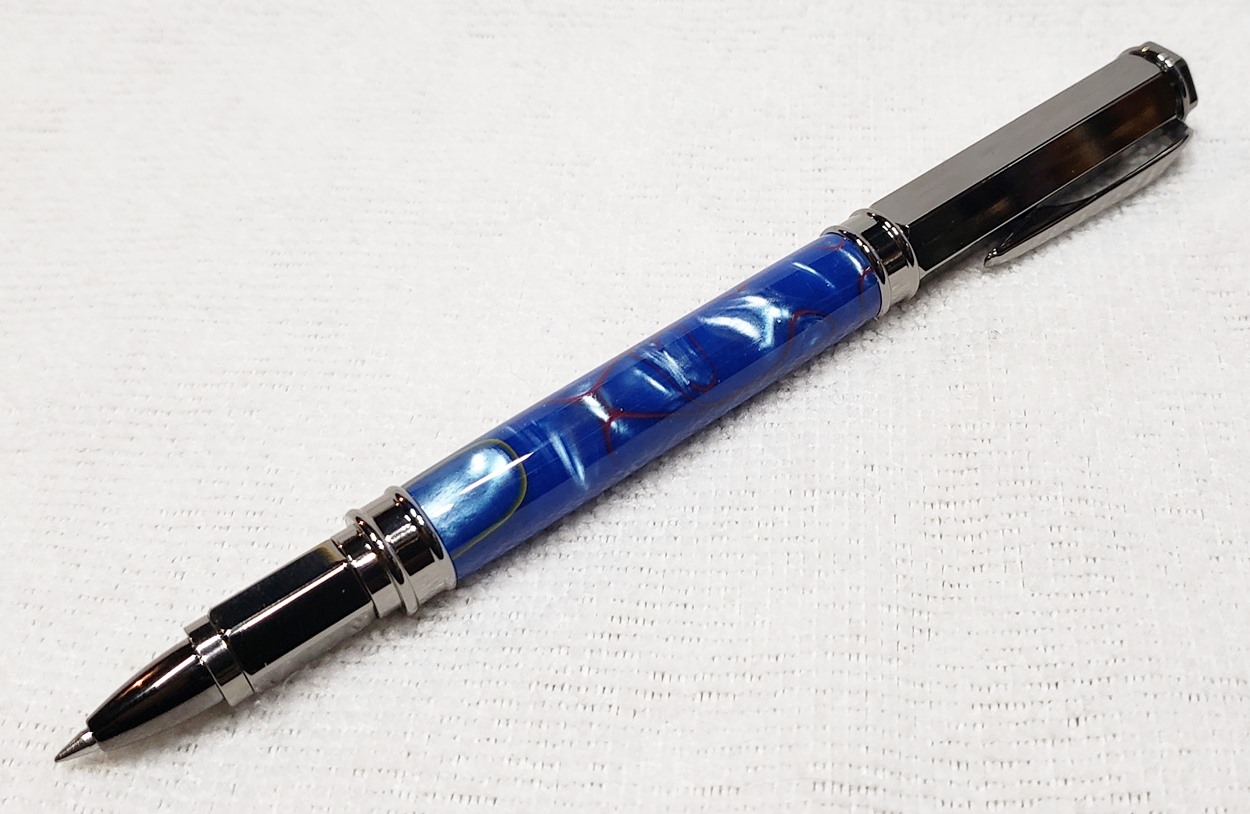

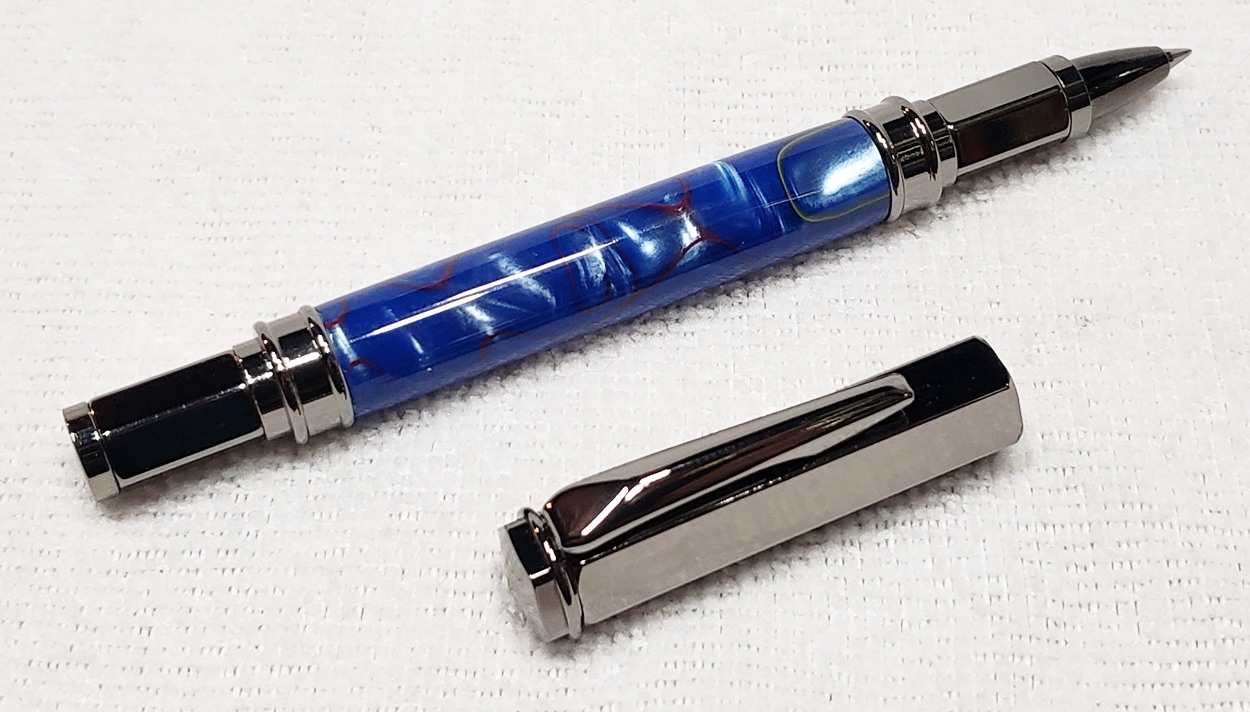

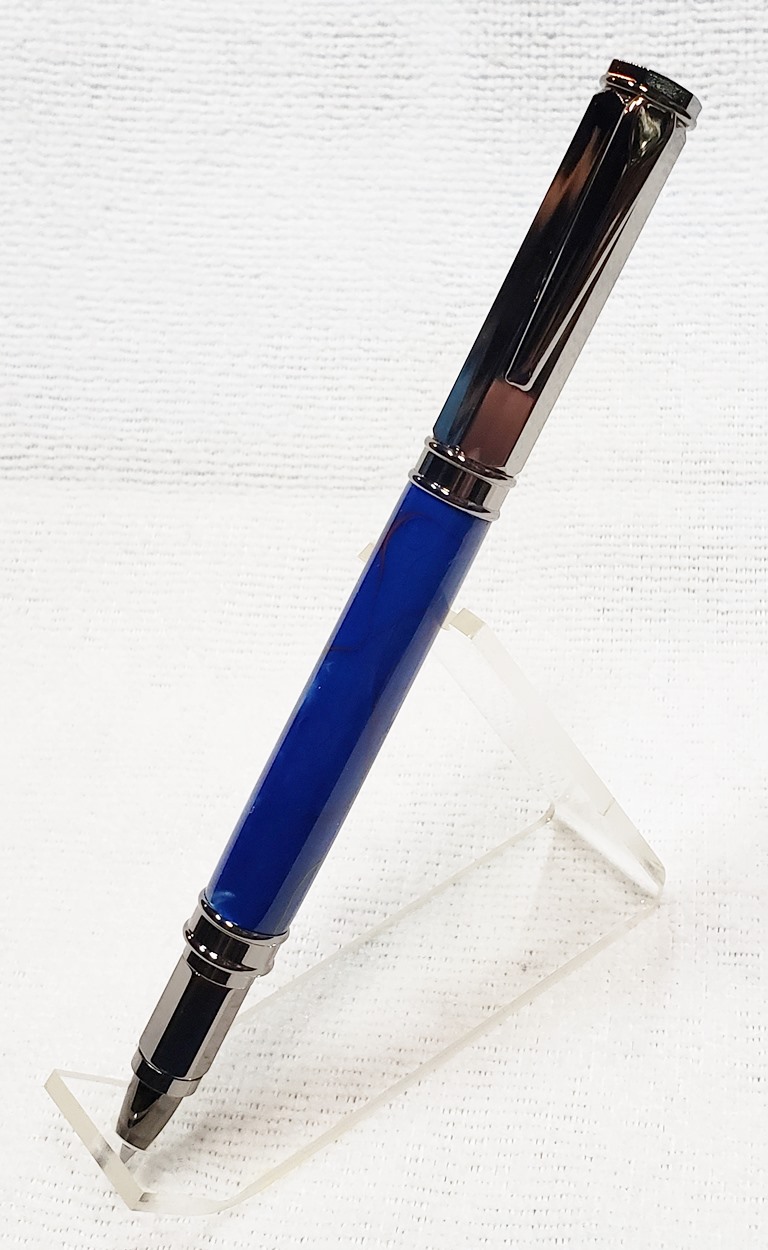

This is a PSI Magnetic Vertex rollerball pen, in gunmetal. I purchased it at Rockler. The blank is an Aquabright called Swirl Blue, from PSI. I believe Aquabright blanks are acrylic acetate, as they turn easily and polish nicely. I used my normal polishing routine: 220-600 grit sandpaper wet; 3M Tri-M-Ite polishing paper, all six grades, also wet; followed by Mequiar's 105 and 205 polishes.


Attachments

  • 060.jpg
    211.9 KB · Views: 33
  • 061.jpg
    206.4 KB · Views: 35
  • 062.jpg
    169.2 KB · Views: 40
  • 063.jpg
    149.4 KB · Views: 35
  • 064.jpg
    116 KB · Views: 32
  • 065.jpg
    119.1 KB · Views: 30
  • 066.jpg
    240.2 KB · Views: 26
  • 067.jpg
    193.8 KB · Views: 25
  • 068.jpg
    183 KB · Views: 24
  • 069.jpg
    181.2 KB · Views: 22
  • 070.jpg
    77.3 KB · Views: 23
  • 071.jpg
    163 KB · Views: 23
  • 072.jpg
    189.5 KB · Views: 19
  • 073.jpg
    168.3 KB · Views: 20
  • 074.jpg
    125.4 KB · Views: 18
  • 075.jpg
    109.6 KB · Views: 18
  • 076.jpg
    107.6 KB · Views: 30
Signed-In Members Don't See This Ad

qquake

Member
Joined
Feb 8, 2004
Messages
3,457
Location
Northern California

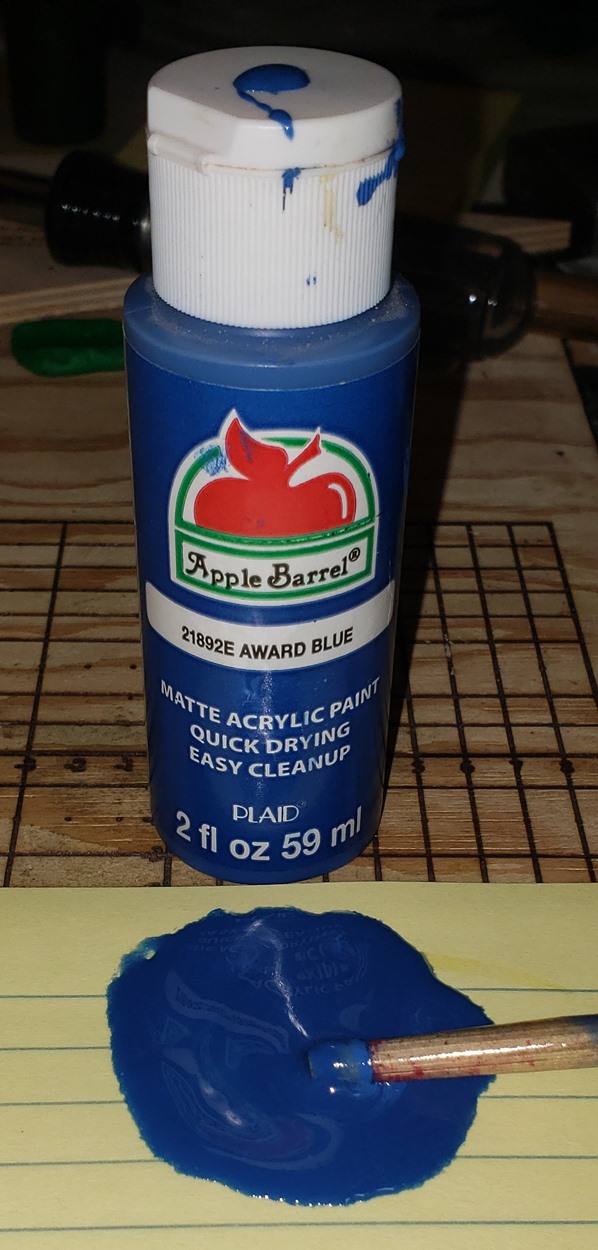

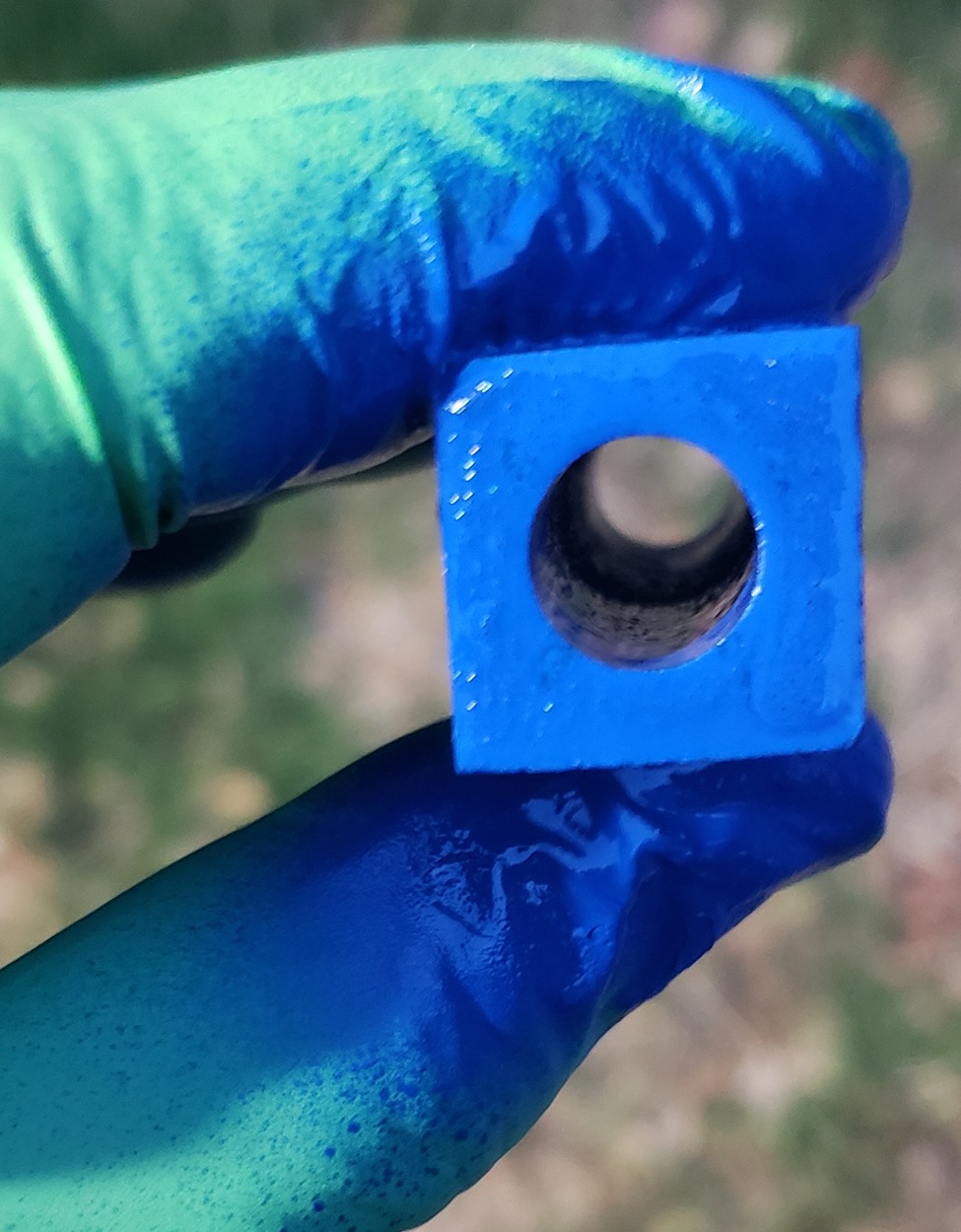

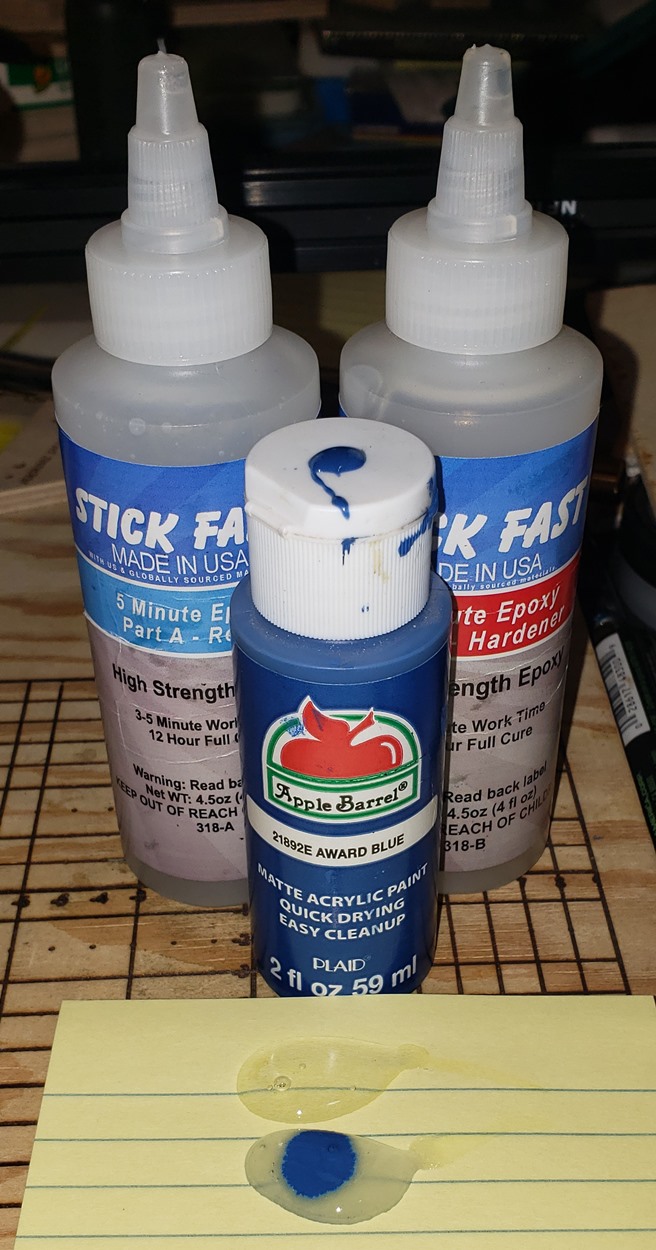

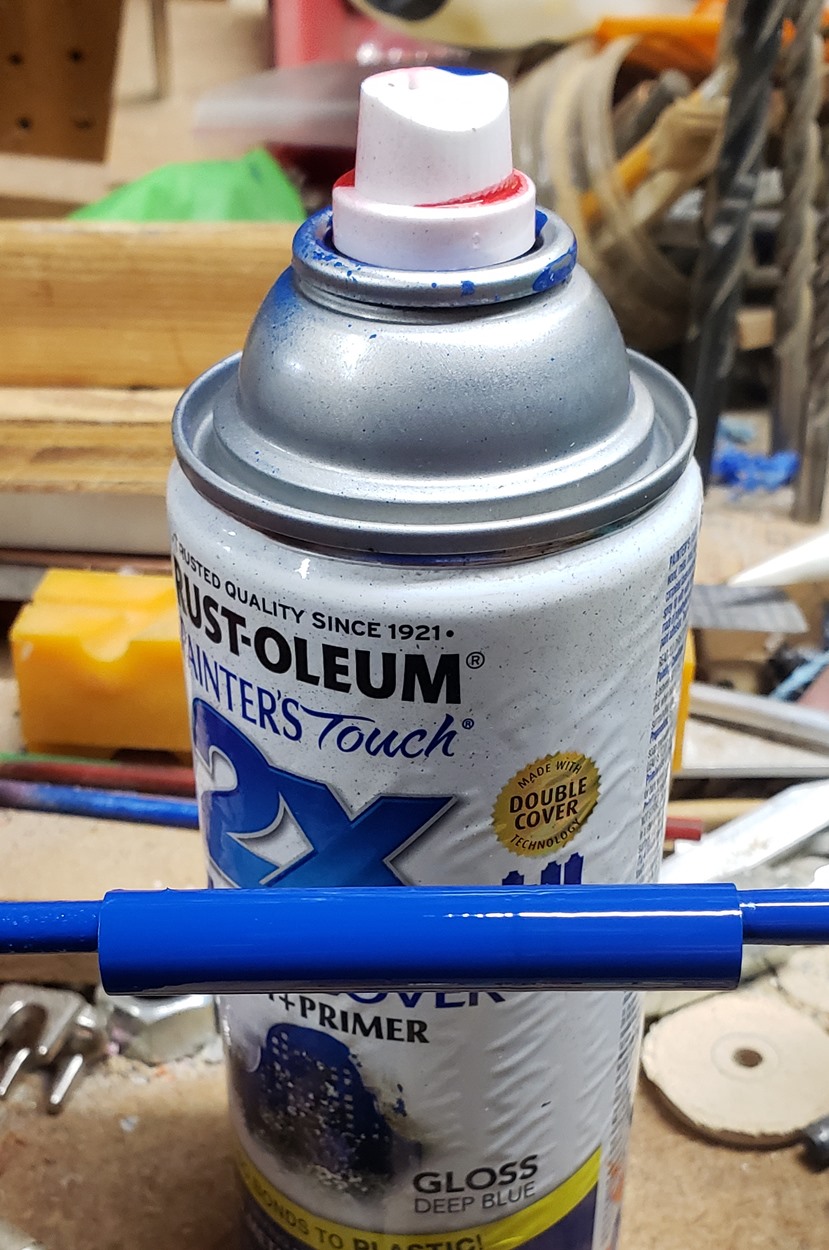

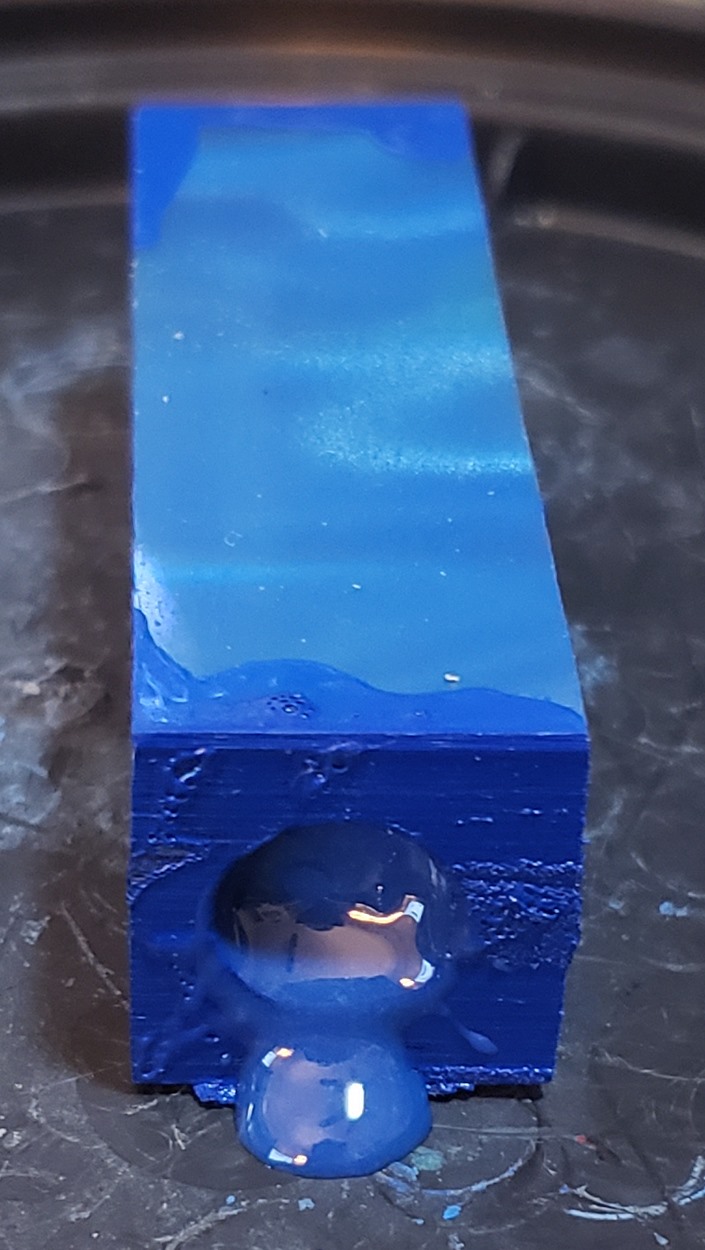

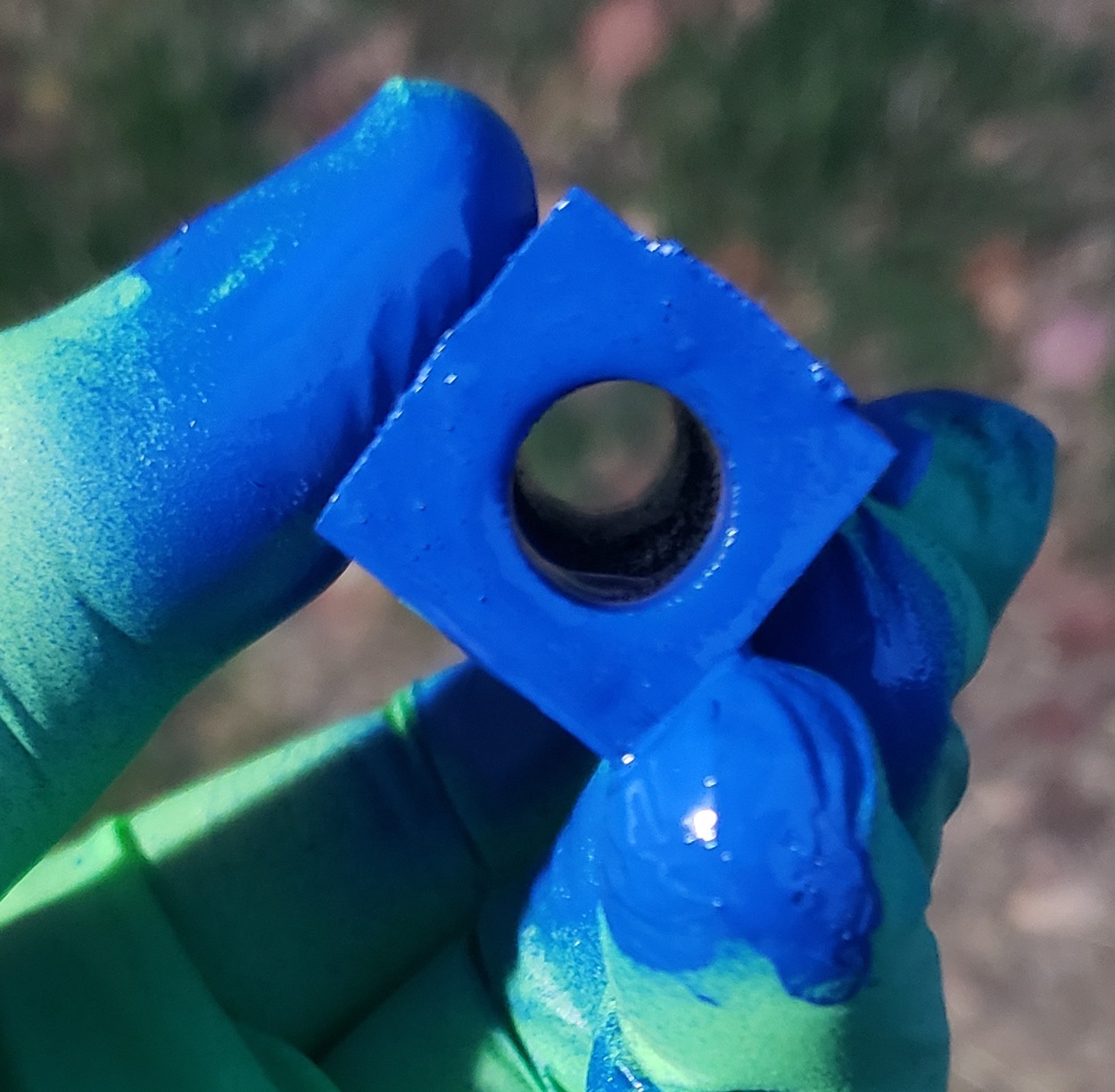

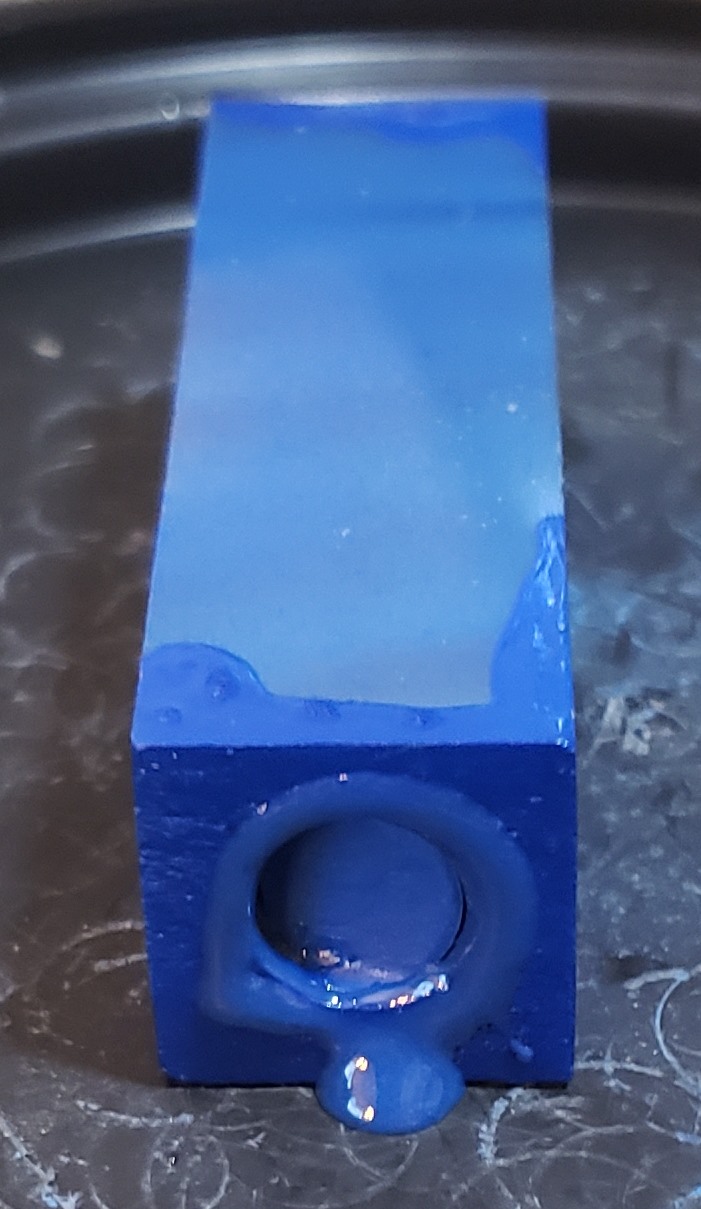

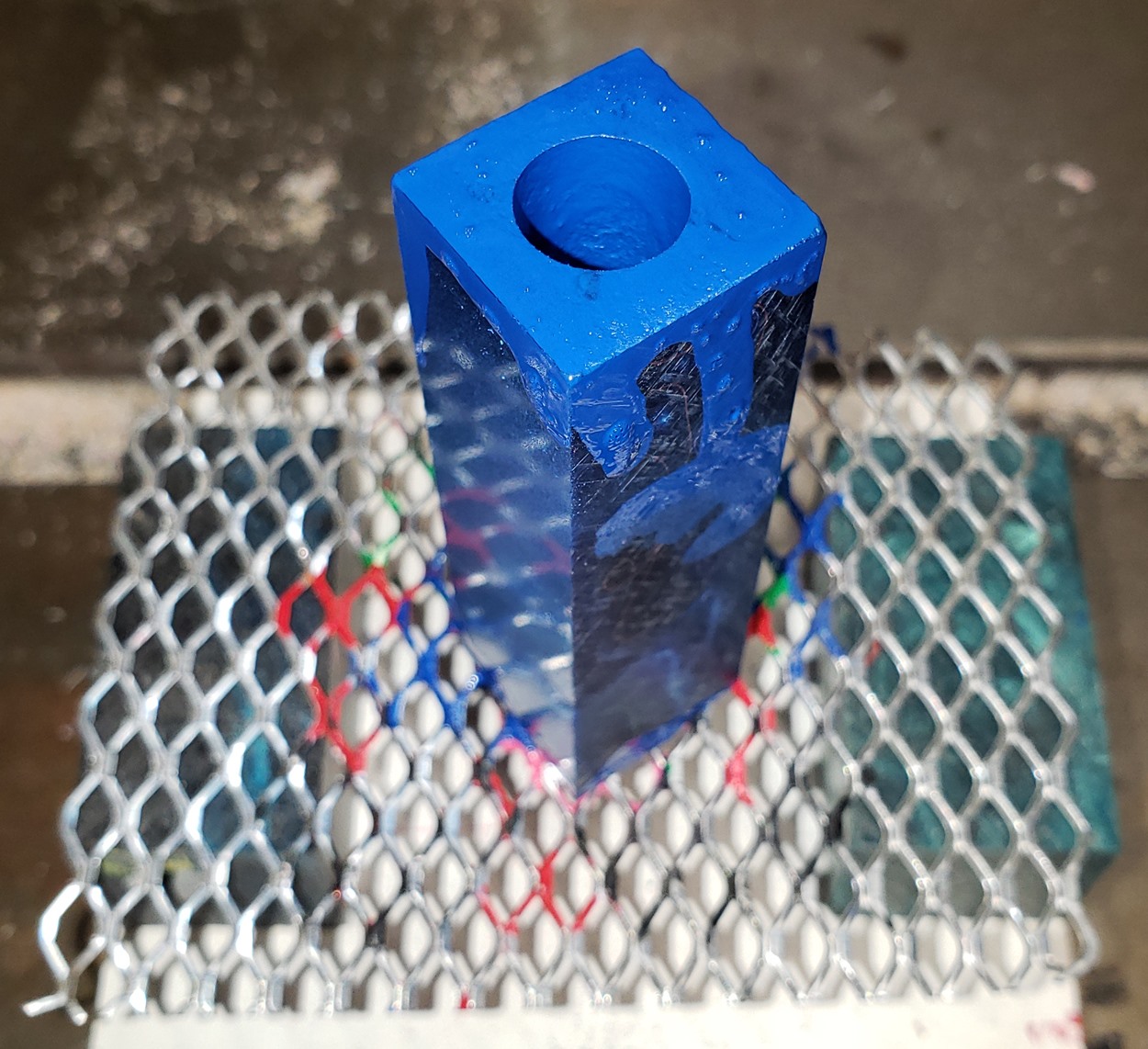

The blank looked opaque, but I didn't take any chances. I painted the blank and tube, and colored the epoxy.


Attachments

  • 002.jpg
    98.1 KB · Views: 10
  • 016.jpg
    211.6 KB · Views: 8
  • 017.jpg
    253.3 KB · Views: 9
  • 018.jpg
    245.7 KB · Views: 9
  • 019.jpg
    312.9 KB · Views: 9
  • 021.jpg
    191 KB · Views: 10
  • 022.jpg
    155.3 KB · Views: 10
  • 023.jpg
    144.7 KB · Views: 11
  • 024.jpg
    162.4 KB · Views: 9

mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
10,936
Location
Medina, Ohio

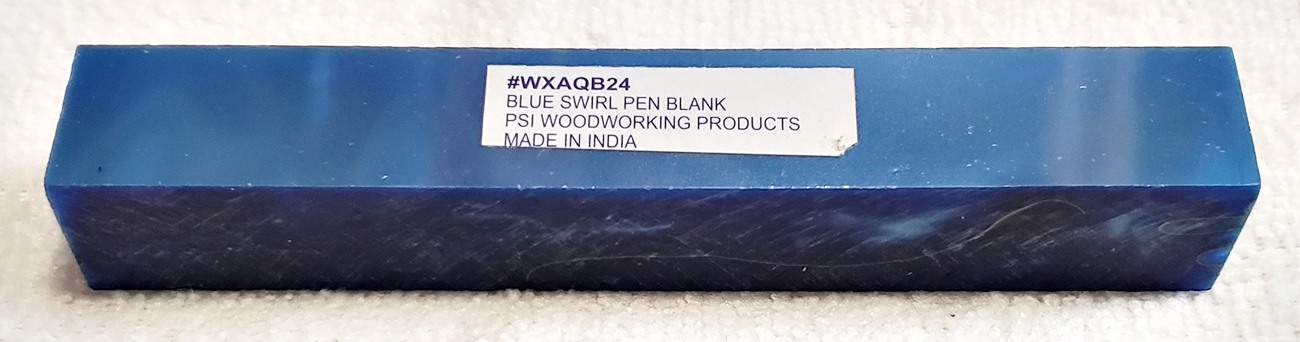

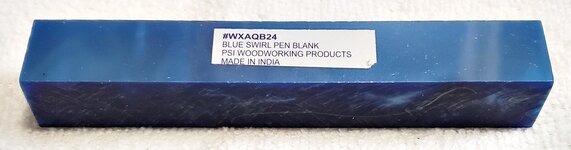

Very nice Jim. Looking at the label I noticed it was sourced from India. I had not seen that before.


howsitwork

Member
Joined
Jul 9, 2016
Messages
1,478
Location
Thirsk
Jim

I like that pen . Just catches the eye nicely.

Ive not tried painting blank or tube before but recently have had two “learning experiences “ due to this. So it’s on the try it if in doubt technique.

The white blank learning experience just looks awful with the tube showing so that ones on the “ live and learn “ shelf. The other one I can see but everyone says looks good so 🤷‍♂️ and my colleague chose that one as a gift so who am I to question .


penicillin

Member
Joined
Feb 27, 2019
Messages
571
First and foremost: That's a beautiful pen. I like the blank you chose to go with it.

Related:
-> I like the idea and function of the Magnetic Vertex pen kit design, but don't like that faceted look. Can anyone a similar magnetic pen kit with a softer, rounder look?


qquake

Member
Joined
Feb 8, 2004
Messages
3,457
Location
Northern California
First and foremost: That's a beautiful pen. I like the blank you chose to go with it.

Related:
-> I like the idea and function of the Magnetic Vertex pen kit design, but don't like that faceted look. Can anyone a similar magnetic pen kit with a softer, rounder look?

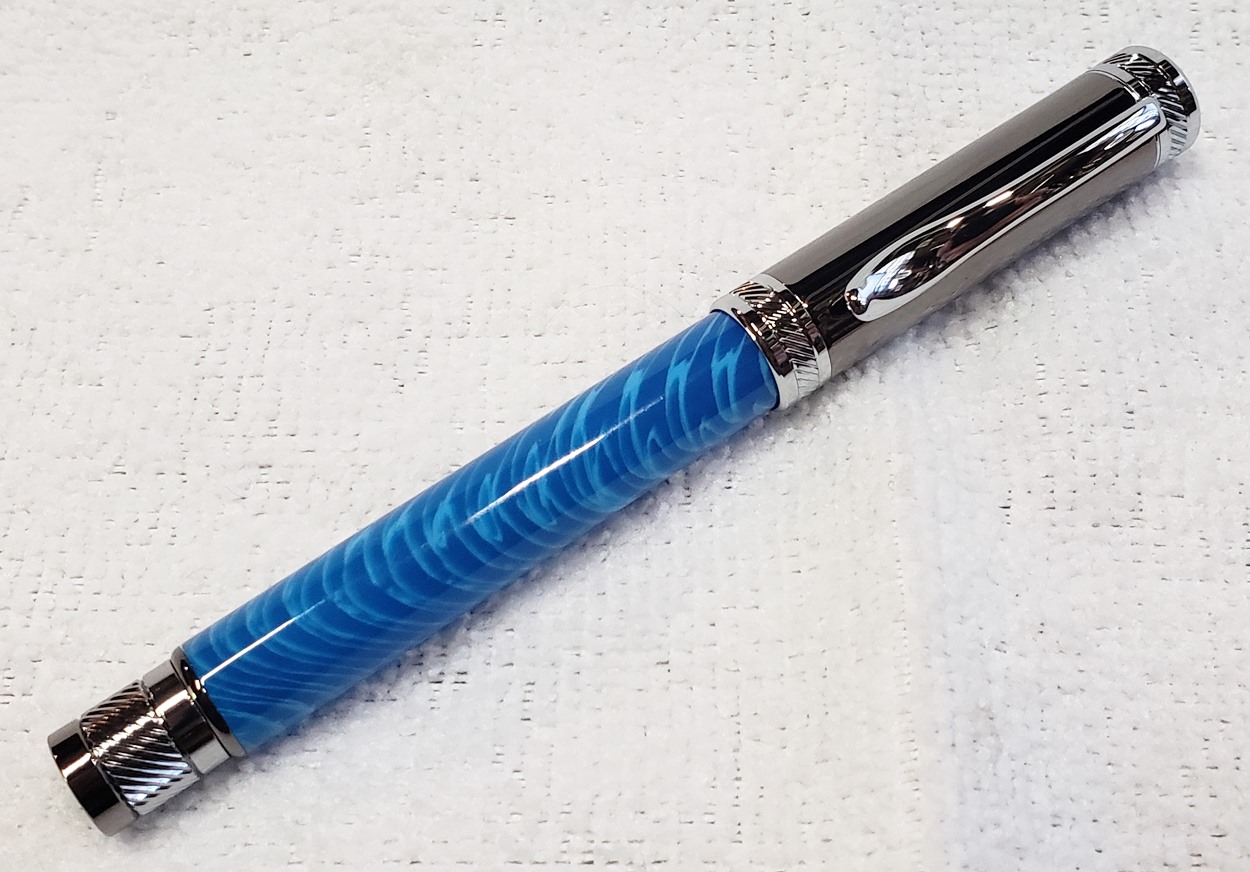

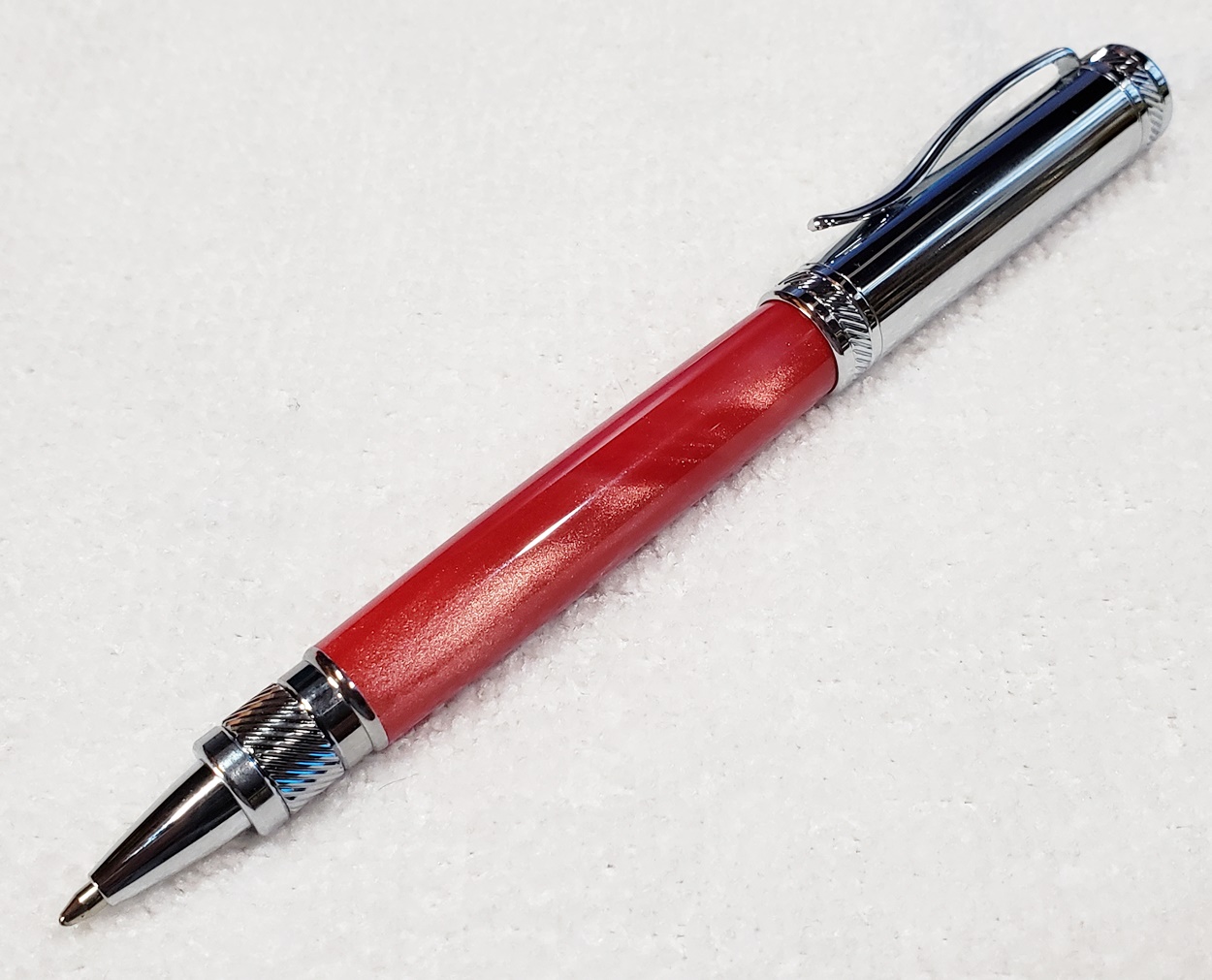

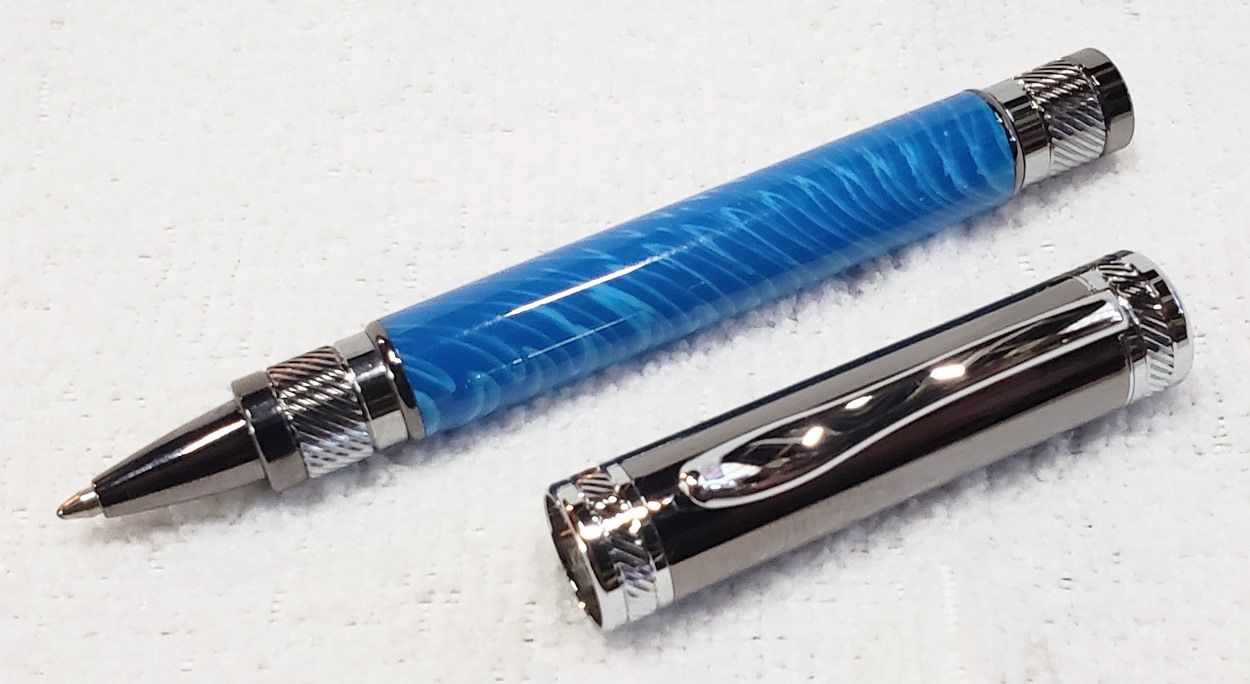

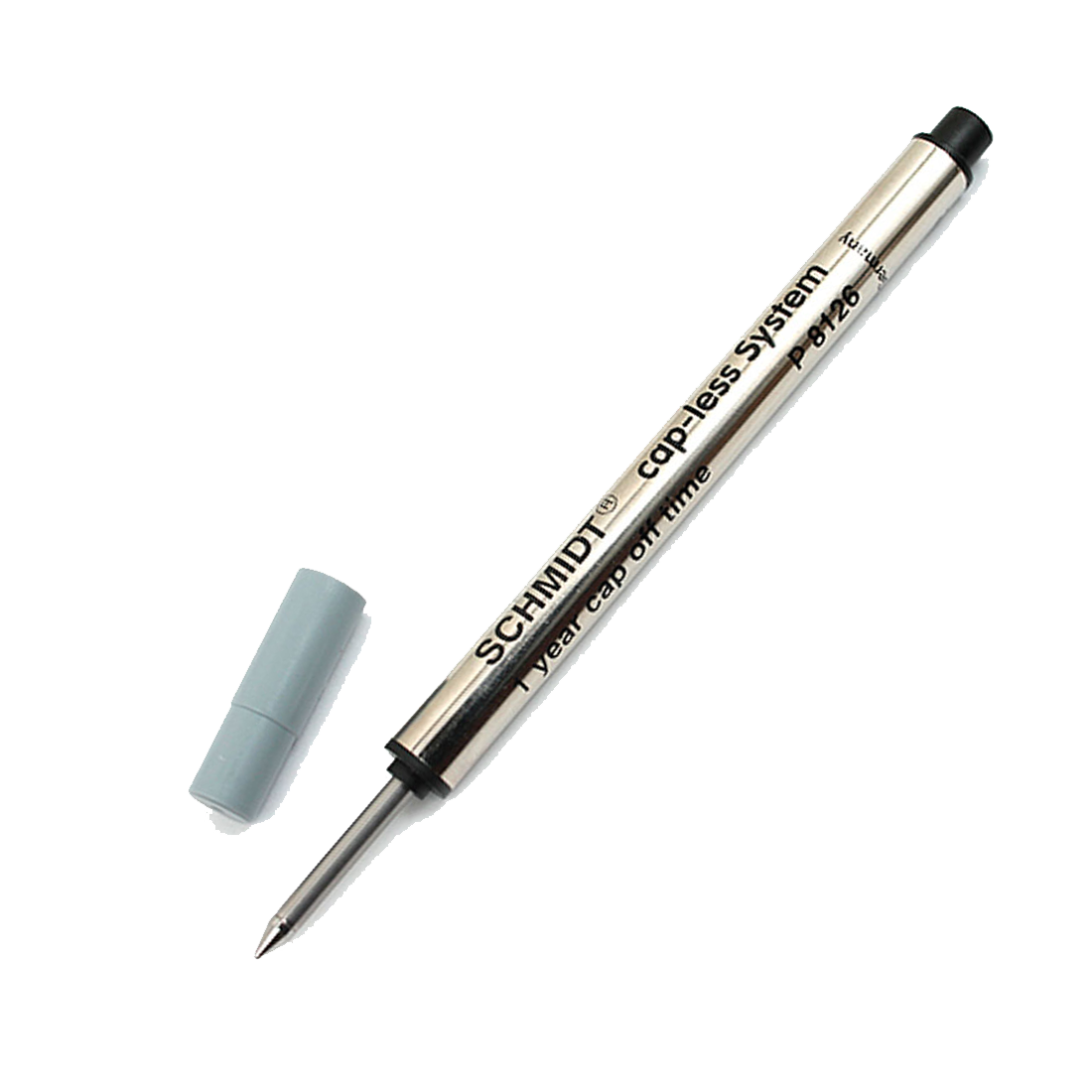

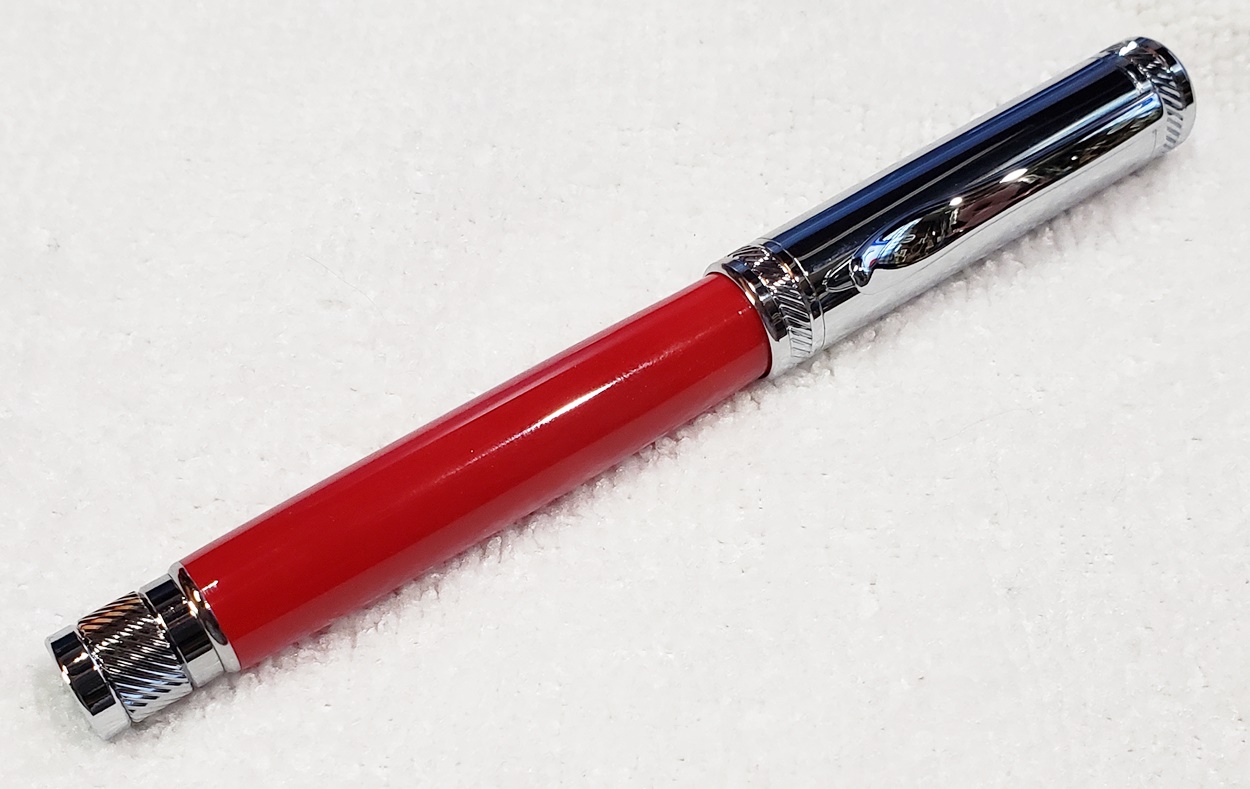

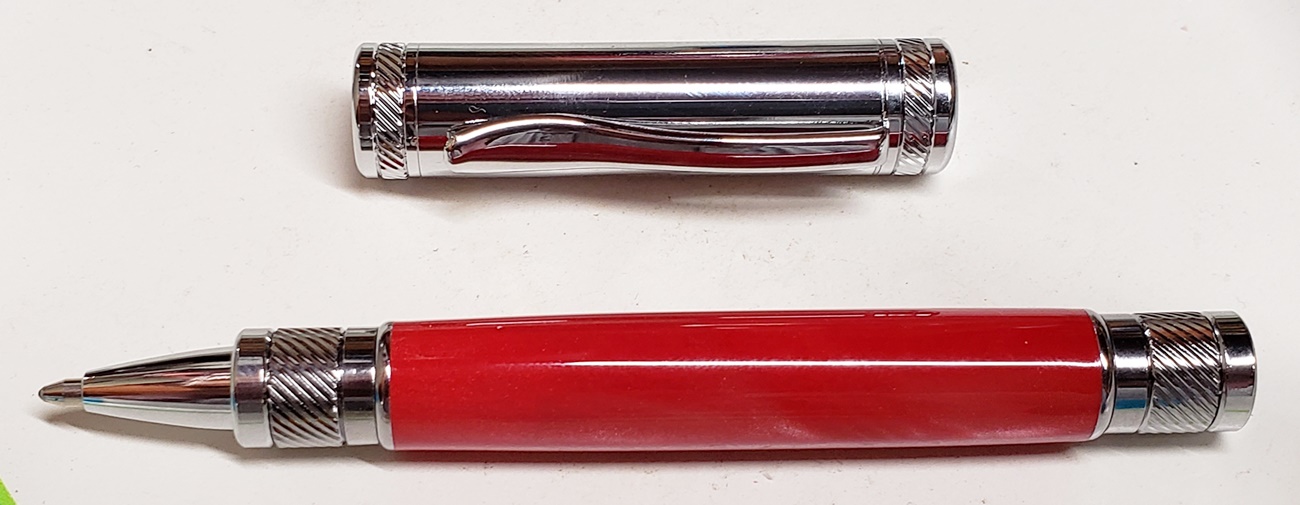

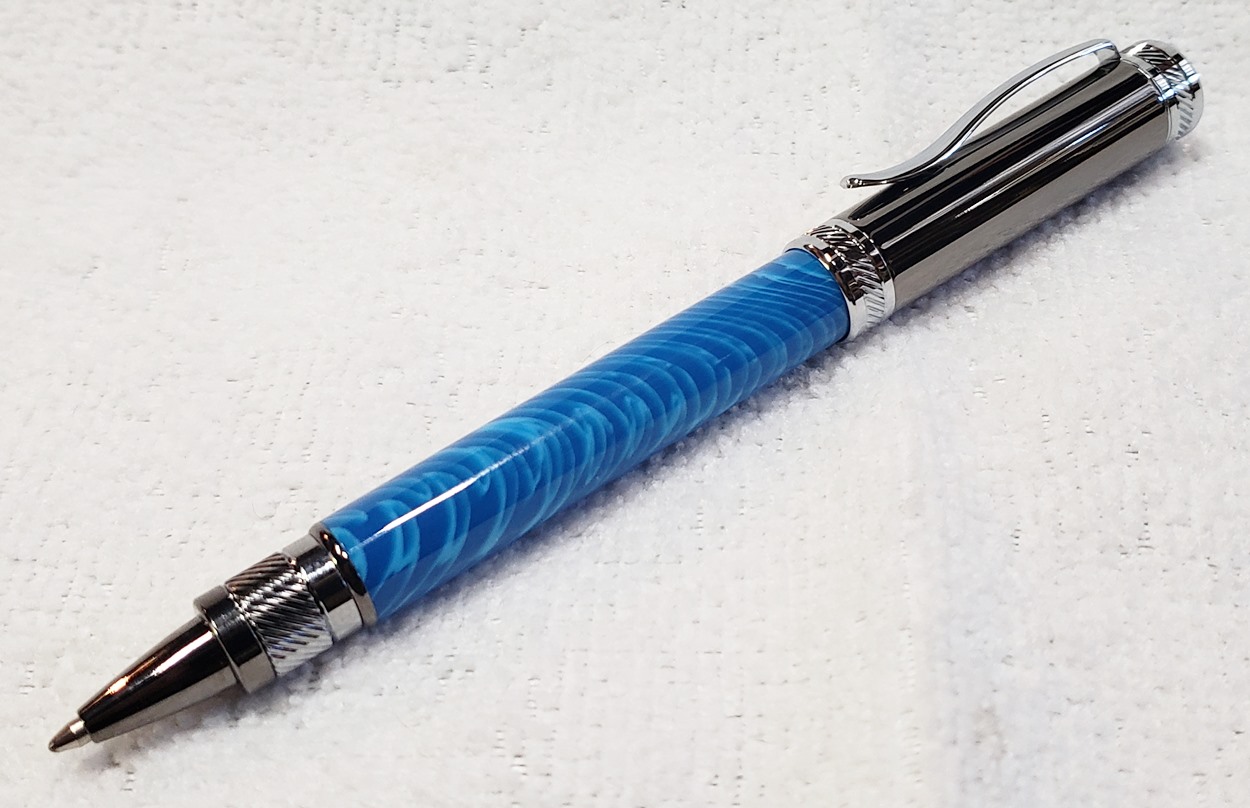

There is the Magnetic Ballpoint from Berea. There are shorter rollerball refills that will fit it. They also sell them at Woodcraft.






Attachments

  • done01.jpg
    167.6 KB · Views: 7
  • done02.jpg
    215.5 KB · Views: 7
  • done06.jpg
    279 KB · Views: 8
  • 078.jpg
    222.7 KB · Views: 9
  • 084.jpg
    176.1 KB · Views: 7
  • 087.jpg
    153.3 KB · Views: 9
