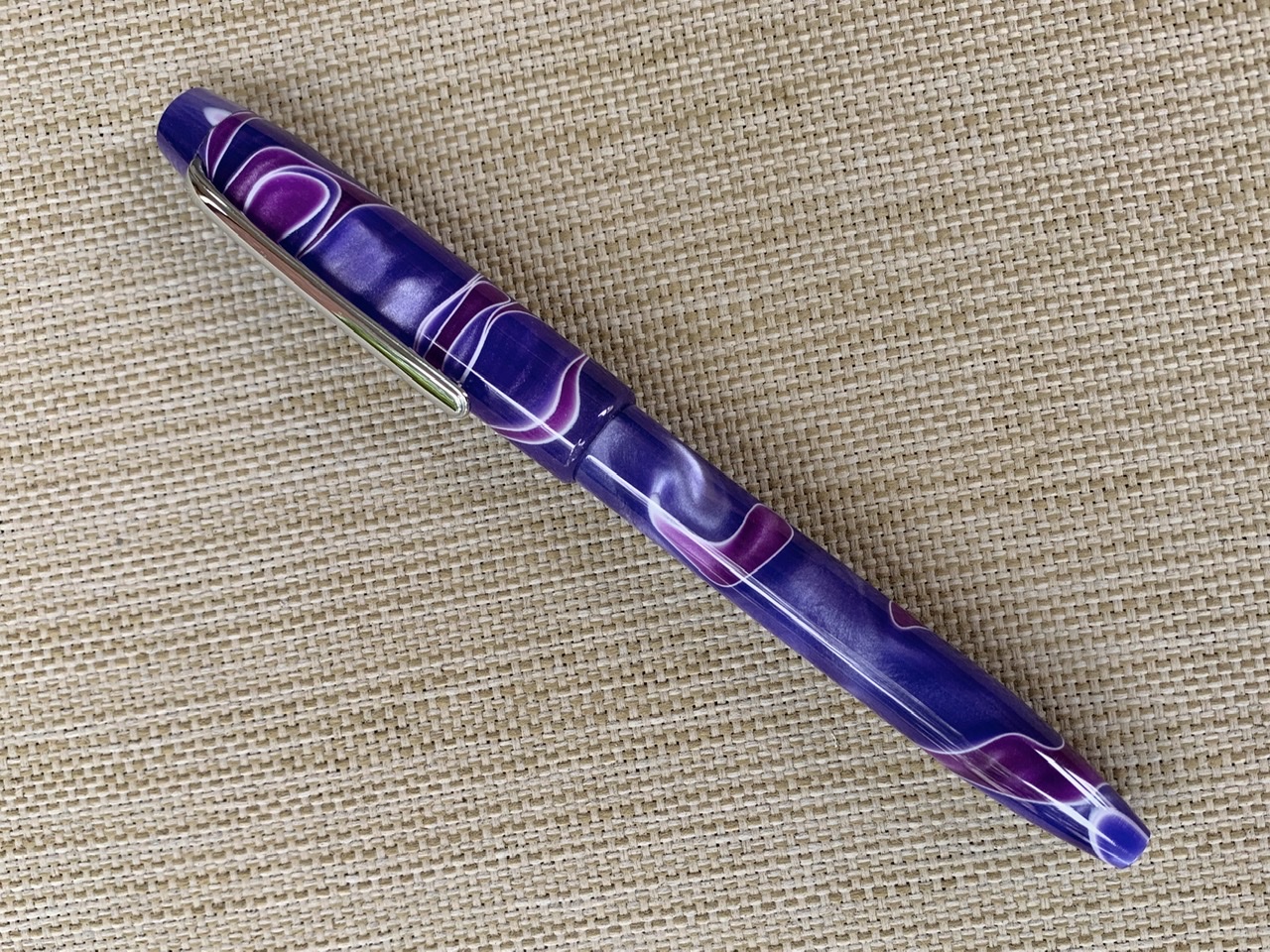

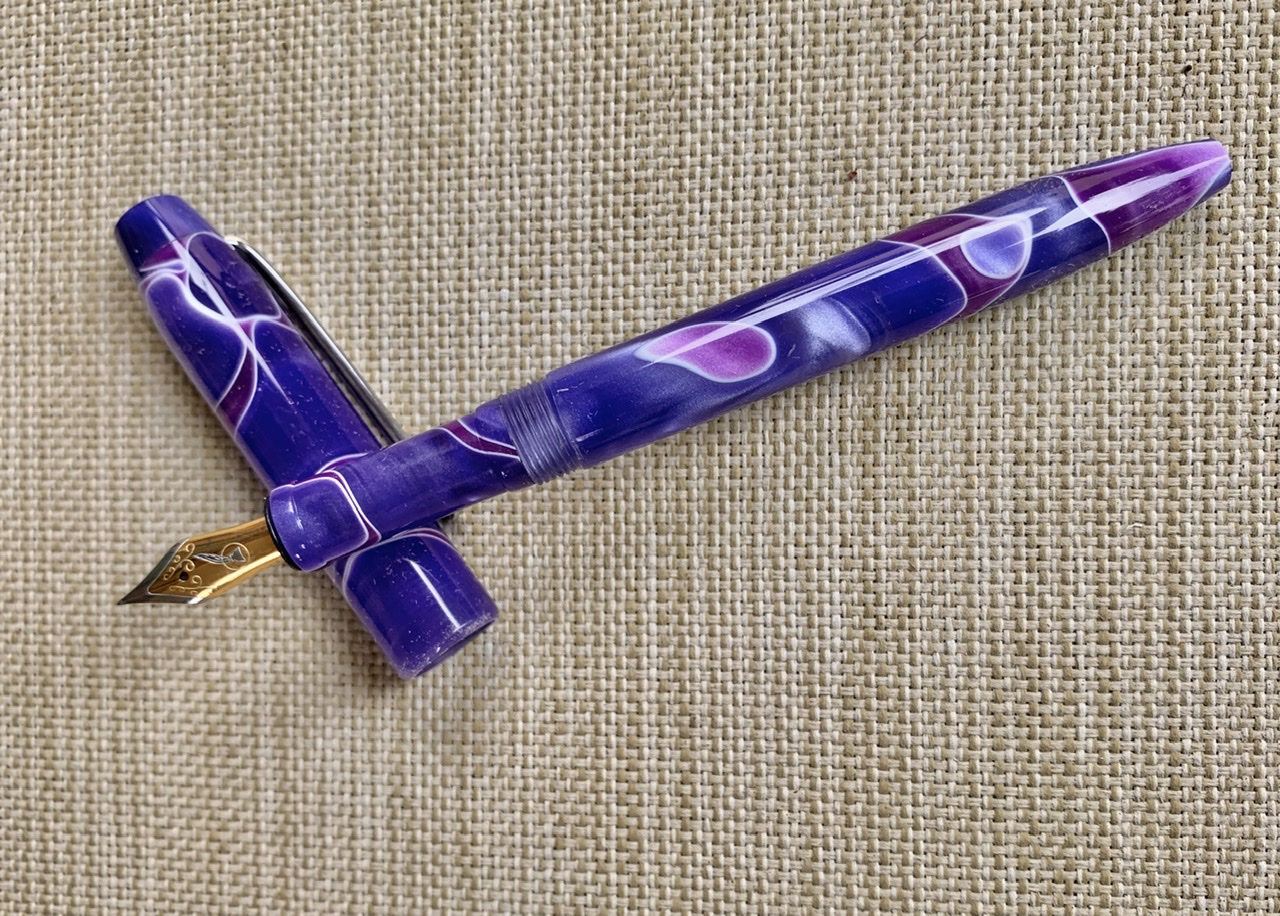

2 full days in a row in my shop! I can’t remember the last time I could say that. This one took a full 8 hours without a break for lunch. I made this after the same pattern as the aluminum one I posted yesterday. However the ODs are a bit larger and the tapers not as aggressive to preserve wall thickness in the acrylic material. Really light weight at 16 grams capped and 11 grams without.


Danny

Signed-In Members Don't See This Ad
Joined
Dec 22, 2017
Messages
1,963
Location
Wolf Creek Montana
Good God almighty Danny, that's a beautiful pen. I gotta say you're doing some beautiful work. You ever think about retiring? I was going to ask what your employer was doing with the virus out break;).


More4dan

Member
Joined
Mar 17, 2016
Messages
1,987
Location
Katy, TX
Thanks Tom! Chevron has us working from home, at least until the fall when the axe will drop for some. Double whammy of oil price war and the Covid 19 world shut down at the same time. It has been nice to get back on the lathe though. I may get bored enough to start grinding knifes again.

Danny


Sent from my iPad using Penturners.org mobile app

Joined
Dec 22, 2017
Messages
1,963
Location
Wolf Creek Montana
Thanks Tom! Chevron has us working from home, at least until the fall when the axe will drop for some. Double whammy of oil price war and the Covid 19 world shut down at the same time. It has been nice to get back on the lathe though. I may get bored enough to start grinding knifes again.

Danny


Sent from my iPad using Penturners.org mobile app
First off I hope your job stays intact. I'd love to see you make some more knives. Your knives are as impressive as your pens.
Enjoy your time at home and stay safe and healthy.


anthonyd

Member
Joined
Oct 9, 2011
Messages
308
Location
Ancaster ON Canada
Hi Dan,
Shawn Newton posted a recent set of pictures and a short description on his instagram account (newtonpens) on how he designs his pens to post. Look for the picture with the digital caliper.

Tony


More4dan

Member
Joined
Mar 17, 2016
Messages
1,987
Location
Katy, TX
Hi Dan,
Shawn Newton posted a recent set of pictures and a short description on his instagram account (newtonpens) on how he designs his pens to post. Look for the picture with the digital caliper.

Tony
Tony, found it on Instagram, seems simple enough. Thanks! Shawn Newton makes some amazing pens! #newtonpens


Sent from my iPad using Penturners.org mobile app


More4dan

Member
Joined
Mar 17, 2016
Messages
1,987
Location
Katy, TX
Beautiful work Dan. Did you say in an earlier post that you turn your kitless pens on a HF metal lathe? Thank you.
Tony, I use a 7 x 10 HF mini metal lathe with several modifications. The only things that the metal lathe lets me do that I would likely struggle on my wood lathe are; getting tendons just right for threading, and cutting the recess for the clip accurately. With a collet chuck on the wood lathe everything else would be about the same for acrylics and wood. Metal on the other hand is much easier on the mini metal lathe.

Danny


Sent from my iPhone using Penturners.org mobile app


TonyL

Member
Joined
Mar 9, 2014
Messages
7,862
Location
Alpharetta, GA 30004
Tony, I use a 7 x 10 HF mini metal lathe with several modifications. The only things that the metal lathe lets me do that I would likely struggle on my wood lathe are; getting tendons just right for threading, and cutting the recess for the clip accurately. With a collet chuck on the wood lathe everything else would be about the same for acrylics and wood. Metal on the other hand is much easier on the mini metal lathe.

Danny


Sent from my iPhone using Penturners.org mobile app
Thank you. Do you chase threads on the metal lathe? Really beautiful work!


ajsmalls

Member
Joined
Apr 29, 2020
Messages
8
Location
Chesapeake, VA
I use taps and dies. I actually get better results and cleaner cuts.

Danny


Sent from my iPad using Penturners.org mobile app
I use taps and dies. I actually get better results and cleaner cuts.

Danny


Sent from my iPad using Penturners.org mobile app
really dumb question how did you eliminate the step off from the body to the section of you are using a die to cut the threads? I am trying to eliminate the step off or the shoulder region without making the pen very thin or without using a metal lathe.


More4dan

Member
Joined
Mar 17, 2016
Messages
1,987
Location
Katy, TX
Are asking about the body to the thread transition or the thread to the section?

I turn the body OD to the thread OD dimension to eliminate the body to thread step. I turn the section to be slightly smaller than the dimension of the tap drill size for the cap.

Danny


Sent from my iPhone using Penturners.org mobile app
