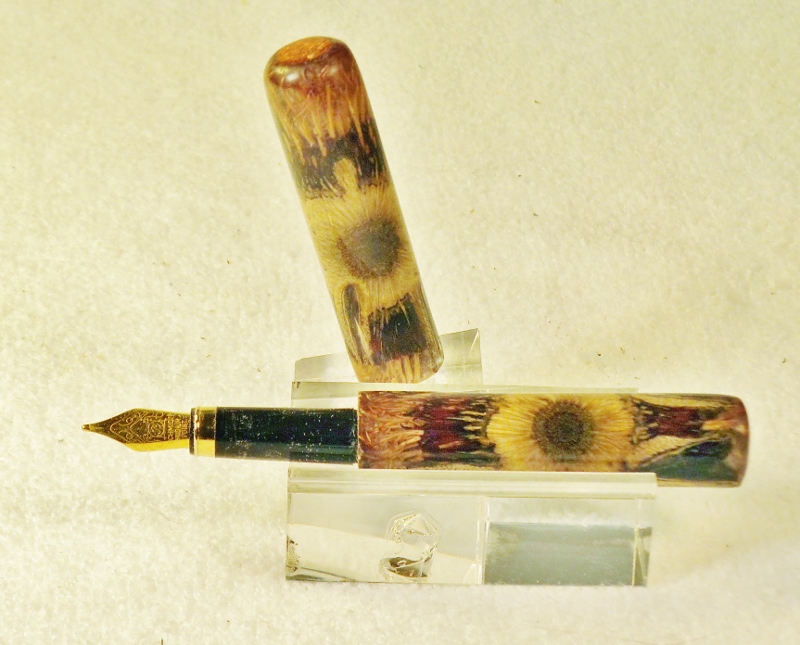

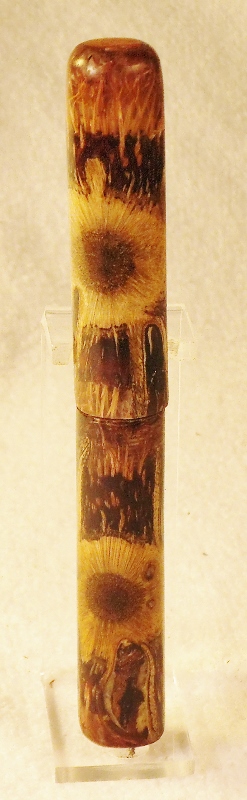

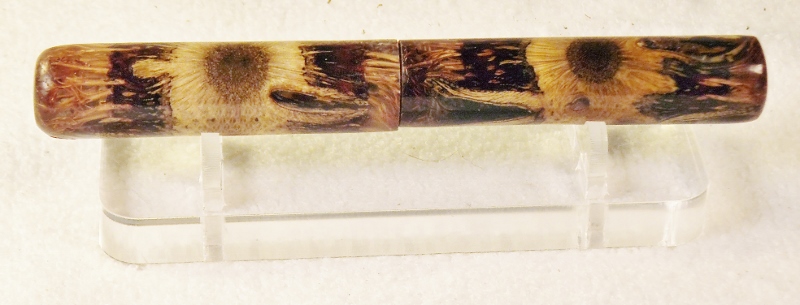

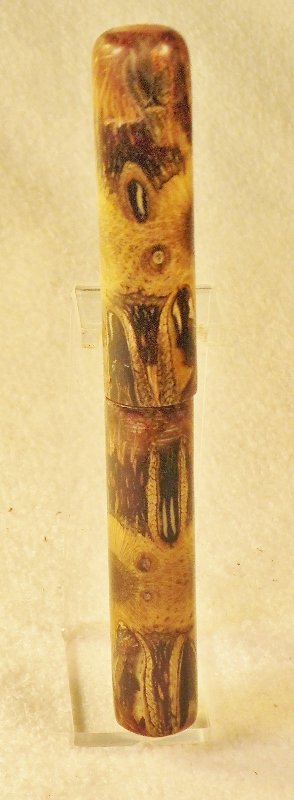

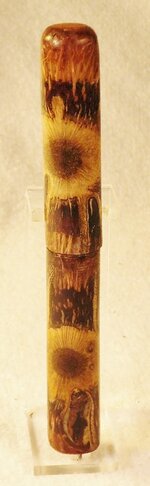

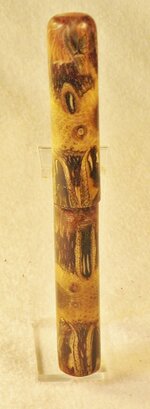

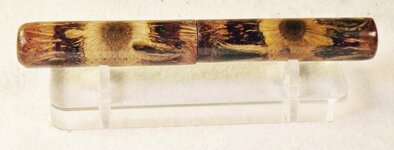

Sorry George !! (robutacion) I still can't find a pen kit worthy of your Hairy Banksia Pod blanks !!!! I did however find a quality pen nib and some ebonite to make a kitless pen for your blank. I'm not 100% satisfied with my contribution to the joint venture, but, I like it. I found that if I cut the blank where the two hairy parts come together in the mid point, that there was enough resin to drill and thread on the outside. I used a 9mm X .75 tap and die for the nib. I used a modified nib protector imbeded into the cap for the snap fit of the barrels. This elimitated the exposed threads on the pen when closed, there are no threads on the outside of the pen. I also counter boared the ends of the barrels and infilled them with metalic copper powder and CA to give the pen a little something without going overboard. I rounded the ends so it didn't look like a fancy turned stick, finished with 8 thick coats of CA to cover any exposed raw material, followed by One-Step Polish. Hope it does justice to your great casting of these blanks!! From Up Over, Jim S


Attachments

  • DSCF0005 (800x645).jpg
    DSCF0005 (800x645).jpg
    318.8 KB · Views: 255
  • DSCF0006 (800x305).jpg
    DSCF0006 (800x305).jpg
    214.3 KB · Views: 177
  • DSCF0008 (294x800).jpg
    DSCF0008 (294x800).jpg
    224.6 KB · Views: 165
  • DSCF0009 (247x800).jpg
    DSCF0009 (247x800).jpg
    206.6 KB · Views: 154
Last edited:
Signed-In Members Don't See This Ad

plantman

Member
Joined
Jan 2, 2012
Messages
3,437
Location
Green Bay, Wi
:confused: George had only seen this pen in one photo in another thread, with no explanation as to how it was made, and was wondering if I realy tried to thread this blank, as the pods themselves are very fragile, and did I use consealed threads from a kit to hold the barrels together ? To answer his questions, there are no kit parts used in this pen. I started with a nib and the blank. I threaded the nib holder and blank to 9mm X .75 quite easily. The two barrels are held together buy a reworked nib protector inserted into the barrel and snaps over the nib end to hold it in place. This is the part of the pen I am not happy about. As the protector only holds the end of the nib, it makes for sideways movement at the joint and if not carefully straightened, makes the pen look out of round in the photos. As an extra note, I tried turning this blank on another lathe using normal turning tools because I wanted closed ends, and destroyed the end of the blank within 5 seconds !! I finished the blank on my mini metal lathe where I turn most of my pens. Hope this makes the process a little clearer to everyone !! Jim S

Last edited:

Curly

Member
Joined
Nov 20, 2010
Messages
4,278
Location
Saskatoon SK., Canada.
I commend you for making a custom pen from a material that must have a lot of density variations within it. With the pen on its side my mind sees a couple eyes looking back at me. Can one have an "acid flashback" without ever having taken any drugs before?


plantman

Member
Joined
Jan 2, 2012
Messages
3,437
Location
Green Bay, Wi
Pete; If your pupils looked like that, you realy got into the GOOD stuff !!

Bob; Thanks ! I thought it might be a little different than the average pod. Jim S


robutacion

Member
Joined
Aug 6, 2009
Messages
6,514
Location
Australia - SA Adelaide Hills
Sorry George !! (robutacion) I still can't find a pen kit worthy of your Hairy Banksia Pod blanks !!!! I did however find a quality pen nib and some ebonite to make a kitless pen for your blank. I'm not 100% satisfied with my contribution to the joint venture, but, I like it. I found that if I cut the blank where the two hairy parts come together in the mid point, that there was enough resin to drill and thread on the outside. I used a 9mm X .75 tap and die for the nib. I used a modified nib protector imbeded into the cap for the snap fit of the barrels. This elimitated the exposed threads on the pen when closed, there are no threads on the outside of the pen. I also counter boared the ends of the barrels and infilled them with metalic copper powder and CA to give the pen a little something without going overboard. I rounded the ends so it didn't look like a fancy turned stick, finished with 8 thick coats of CA to cover any exposed raw material, followed by One-Step Polish. Hope it does justice to your great casting of these blanks!! From Up Over, Jim S

G'day Jim,

Thank for for enlightening me of how you achieve these results, and as I stated on my previous comment, I have a good understanding on what is involved in trying to create a kitless pen out of such blanks.

It makes me wonder of some complains I got from people that never passed the drilling stage, for a normal kit pen and if over that, they destroyed the blanks within 5 seconds of turning...!

Make no mistake, these blanks are not something that a "beginner/little experience pen turner" want to tackle in the beginning, I have made that very clear, multiple times however, with such "warnings" the fear/insecurity to even try them, becomes a reality and that is exactly what I want to avoid.

There are hundreds of blanks that are made with all sorts of material combinations that can bring a fair challenge to any attempting to handle them, so far, I have improved the blanks' construction and performance/workability, considerably however, is only so much I can do with it, I will consider any possible improvements but for now, they are what they are...!

I have to take my hat to anyone that makes a kitless pen out of them, that isn't a easy task, at all, improving one's techniques to achieve it, is something only achieve by persisting with these blanks and find the way to strengthen its weak points, and in this case, that is no doubt, the density variations as Curly very correctly, identifies...!

One of the great advantages of these blanks, is the fact that, it is made of 2 identical pieces of pod cast together, this mean that, "blowing" one barrel to unrepairable status, doesn't affect/jeopardize the completion of the pen as, another half can be cut from another blank and continue on, without being concerned about the "matching" aspect...!

One thing that you folks may have not noticed yet is that, each blank is made with one pod piece slightly longer than the other, the average middle slices from the pod's center, wouldn't fit in the mold so, and because the pod is not totally cylindrical, from the pods center to each end, they tape slightly so, the slices are slightly shorter. there is not much of a difference but, for a 2 barrel pen where each barrel has a different length, I suggest to look at the blank carefully before cutting it and identify and mark which half in the longest, that will help to have the longest blank half in the longest pen kit tube/barrel and show on it, more of the pod material and less of the hairs...!

I like what you did, you are a brave man, keep on it and you will find the solutions to all the problems/less satisfactory results you feel, you had on this pen..!

Congrats..!

Cheers
George


OZturner

Member
Joined
Aug 5, 2013
Messages
6,664
Location
Sydney. NSW. Australia
Congratulations Jim, on your successful attempt of a Kitless Pen from Georges, Hairy Banksia Pod Blank.
I love what you have achieved, with the Closed Ends, and the Alignment.
As you mentioned, (using my words), you discovered quite a Mine Field within the Banksia Blank.
Recognising the difficulties and developing solutions, was inspirational.
Well done, Keep pushing the Envelope.
Brian.


plantman

Member
Joined
Jan 2, 2012
Messages
3,437
Location
Green Bay, Wi
Thanks George !! I should say that the reason I destroyed the end of the first pod blank had nothing to do with your processing of the blank. Some idiot, not naming names, tried turning the blank with miniture turning tools instead of using the big ones where he would have had more control and would not have caught an edge. Turning with the mini metal lathe works quite well on these blanks. It gives me control of the rate of speed crossing the blanks with the cutter, the depth of cut within 10,000ths + or - a few, perfectly even and level cuts, and no catches when you run into harder or softer materials in the blank. I don't see why people would have trouble dilling these blanks !! I drill all my special blanks on a cheap Harbor Freight mid sized lathe that I bought for that purpose. I have a Barracuda "C" series chuck with "C" series pen blank drilling jaws added. A centering drill is used in my tailstock chuck to start my hole, and I move right up to the correct size drill bit. I lock my tailstock and chuck after centering the drill bit in my pilot hole, and use the hand advance to drill an inch or so into my blank, than I release the tailstock lock and slowly push the bit in the desired length clearing out the chips by backing out the bit every 1/2 inch or so. Solid holds for the blank and tailstock plus a sharp drill bit should make this an easy task. I would not try to drill this blank on my Shop Smith with the well clamped down centering vice. There is just to much play and vibration in this setup, and if you are not careful, you will blow out the end as you would with most acrylics. I had several other setbacks (I call them learning curves) while making this pen, but they were all my fault and were able to be fixed. This pen is the original blank I started with, with no loss of length and finished out at 9/16ths. Thanks again for the fantastic blanks George !! I think the hairs are some of the neatest features and wouldn't want to eliminate them. Looks like something from outer space. From up Over. Jim S

Last edited:
Joined
Apr 25, 2011
Messages
922
Location
Albion, MI, 49224
I commend you for making a custom pen from a material that must have a lot of density variations within it. With the pen on its side my mind sees a couple eyes looking back at me. Can one have an "acid flashback" without ever having taken any drugs before?

Only if you've watched Pink Floyd the Wall when you had a high temp associated with the flu.

I now always get a flu shot every year.


plantman

Member
Joined
Jan 2, 2012
Messages
3,437
Location
Green Bay, Wi
Congratulations Jim, on your successful attempt of a Kitless Pen from Georges, Hairy Banksia Pod Blank.
I love what you have achieved, with the Closed Ends, and the Alignment.
As you mentioned, (using my words), you discovered quite a Mine Field within the Banksia Blank.
Recognising the difficulties and developing solutions, was inspirational.
Well done, Keep pushing the Envelope.
Brian.

Thanks Brian !! Slow and easy is my motto. Think about what you want to do, decide if and how the task must be done, than do it to the best of your ability. An old craftsman once gave me this advice long ago when I was making a matching set of High Boys for the house. "Never look at a project as a whole, always develop it in small pieces". Do the case, drawers, legs, and carvings, all as seperate pieces. When you have all the pieces made, you put it together and you have the completed project. Concentrate on one aspect of construction at a time, complete that task, and move onto the next. Works the same way when putting a custom pen together. Pick the hardest task first, in this case it was can I thread the blank. Once this was complete, the rest fell into place. Jim S
