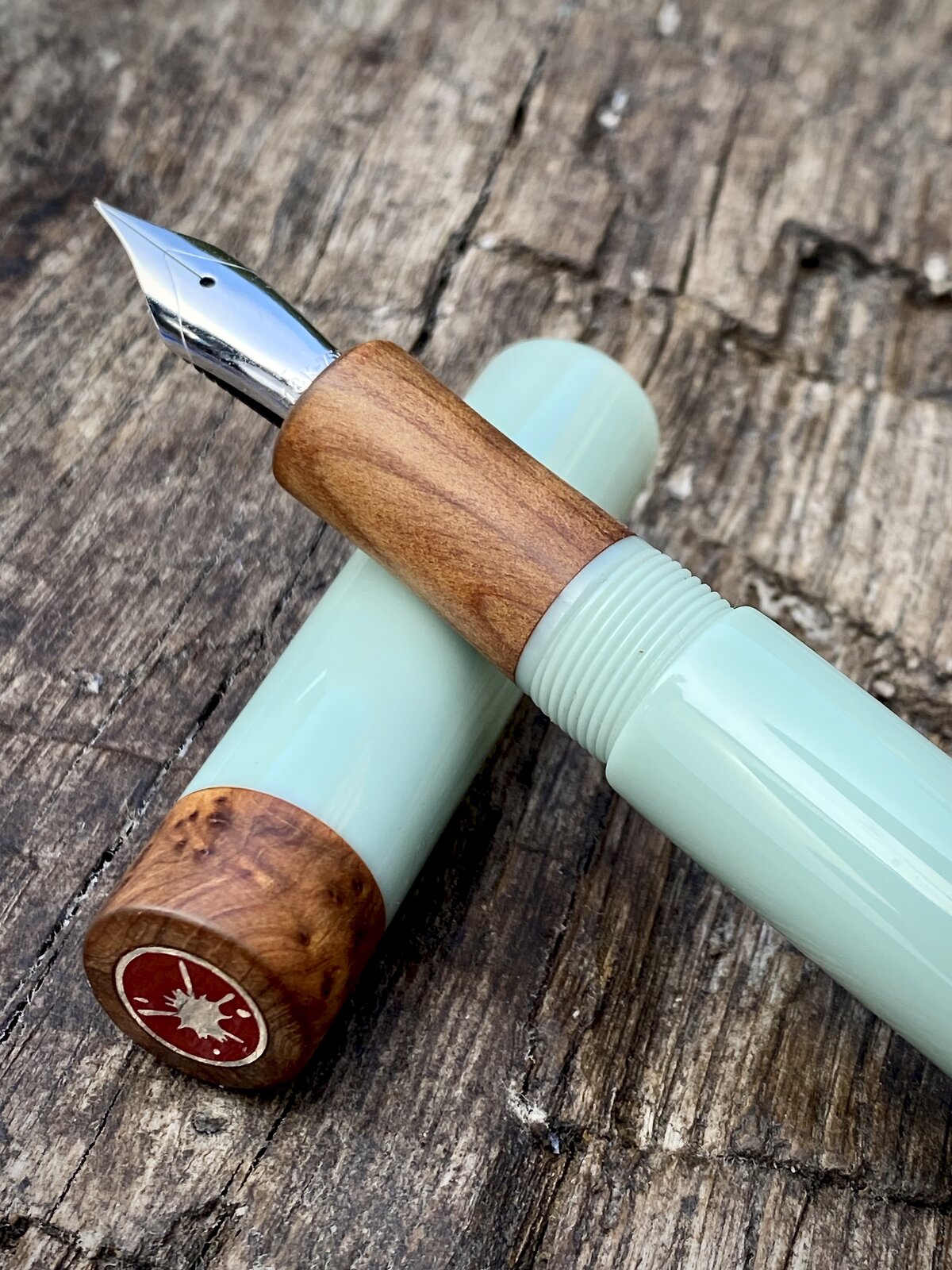

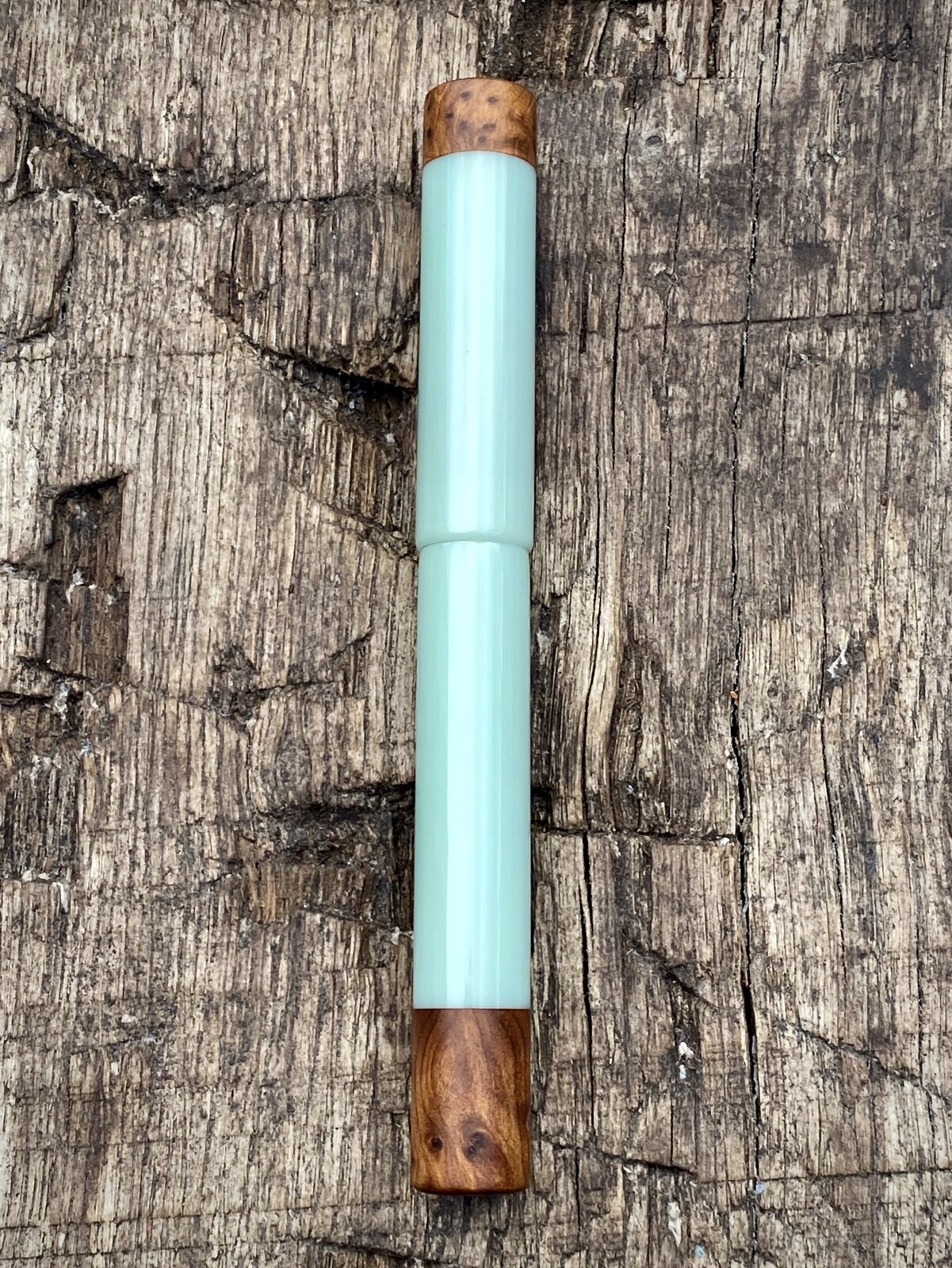

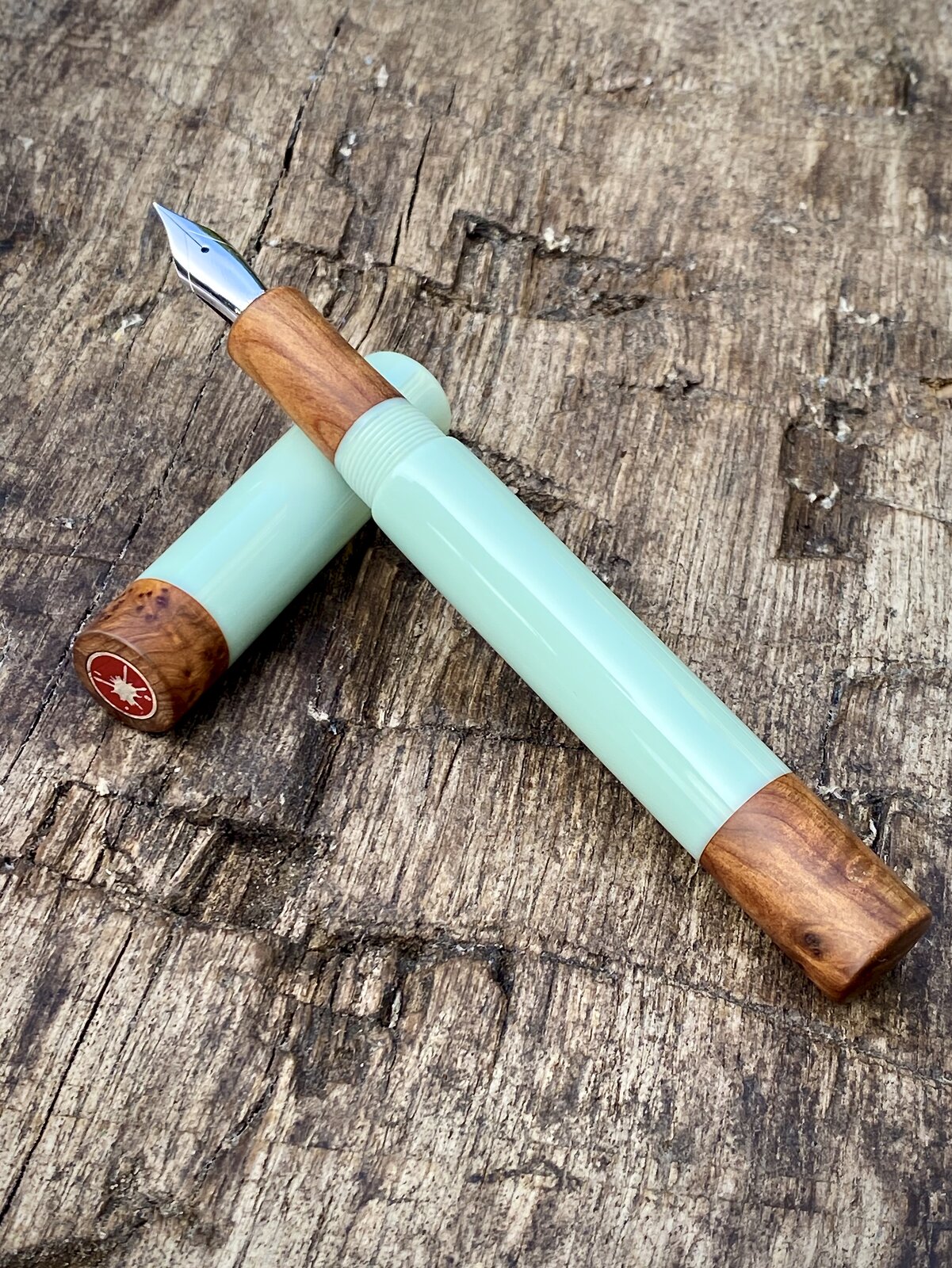

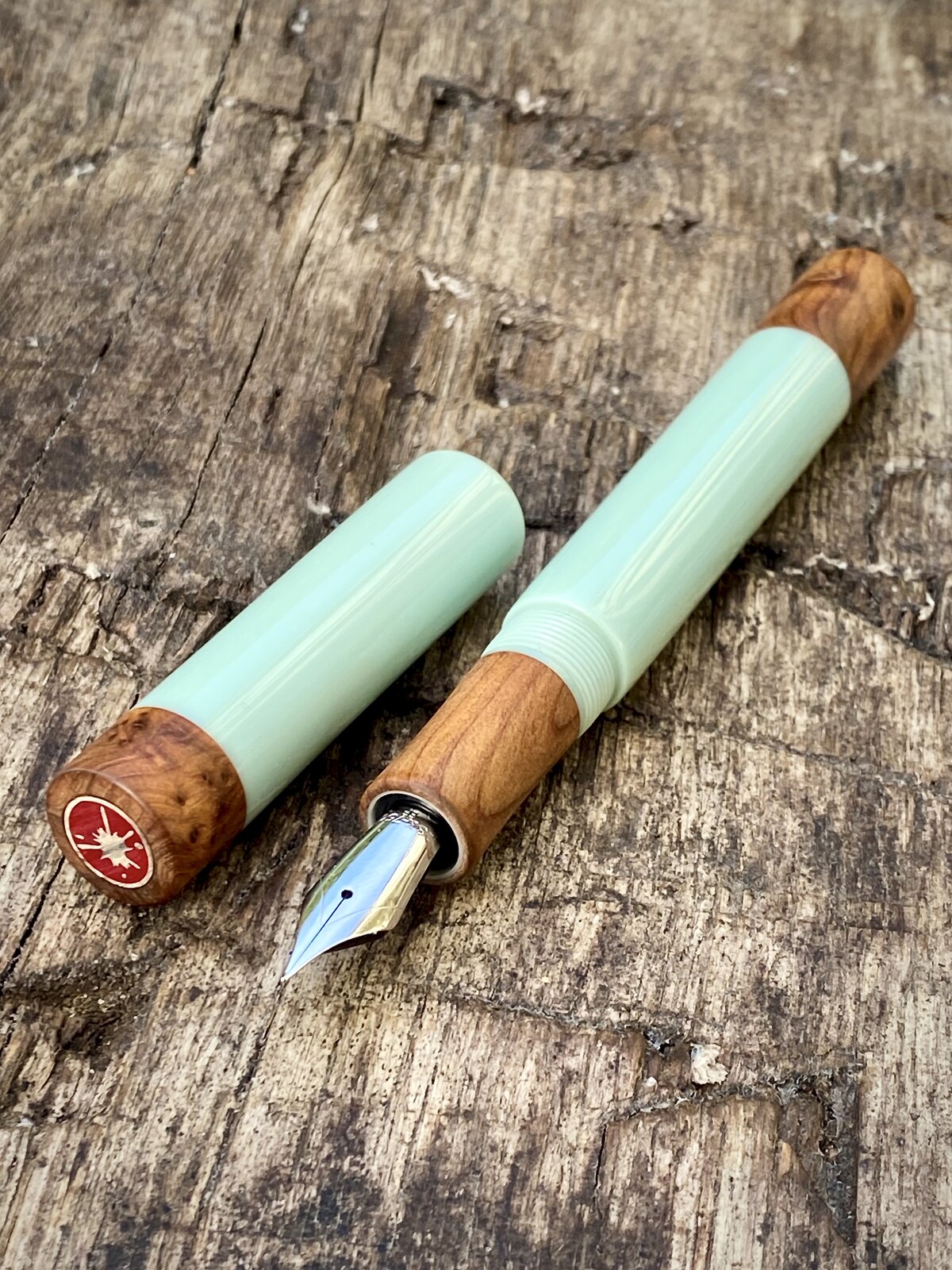

I was after a particular retro vibe with this pen. It is made from Italian acrylic and thuya burl.

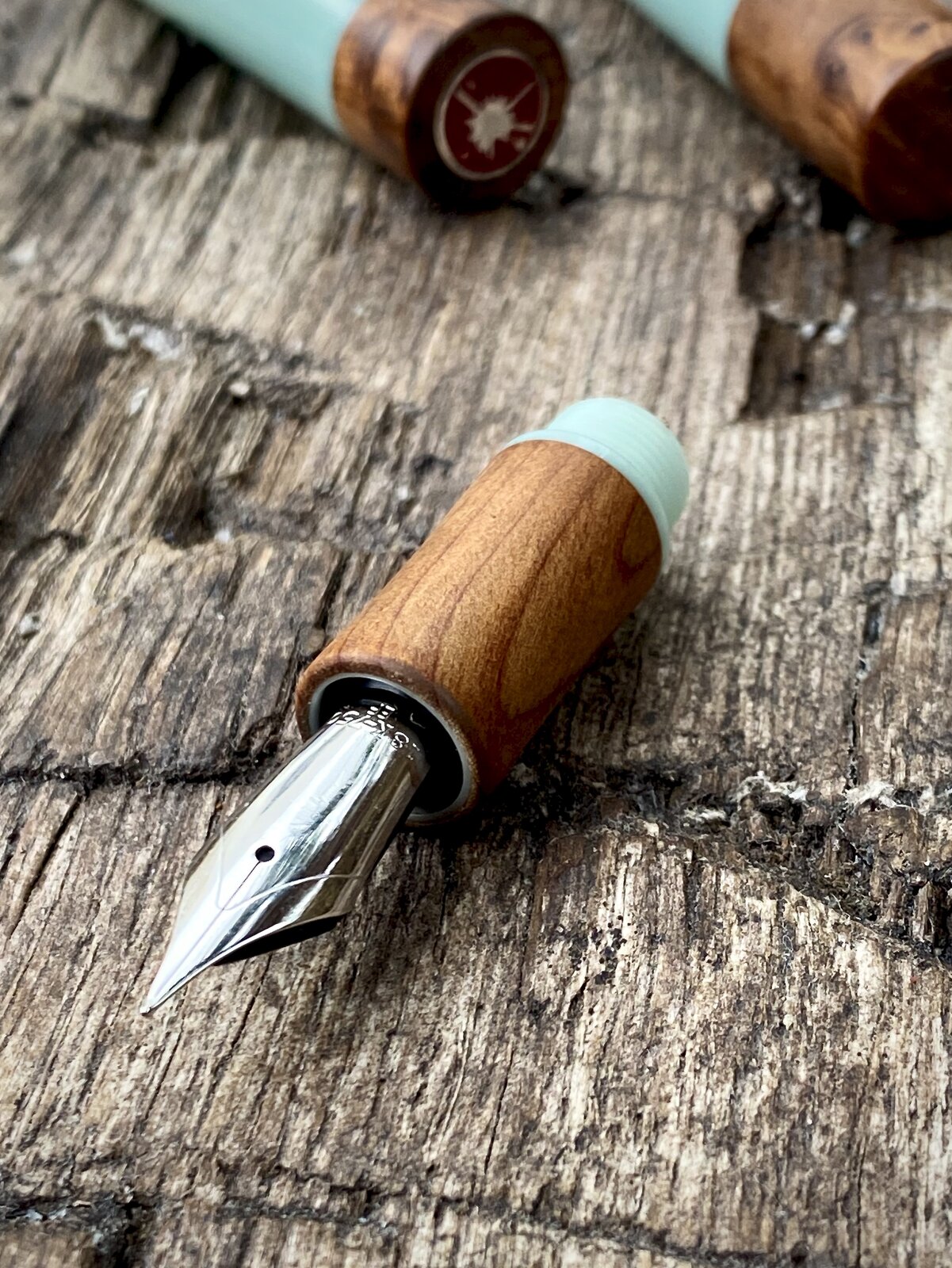

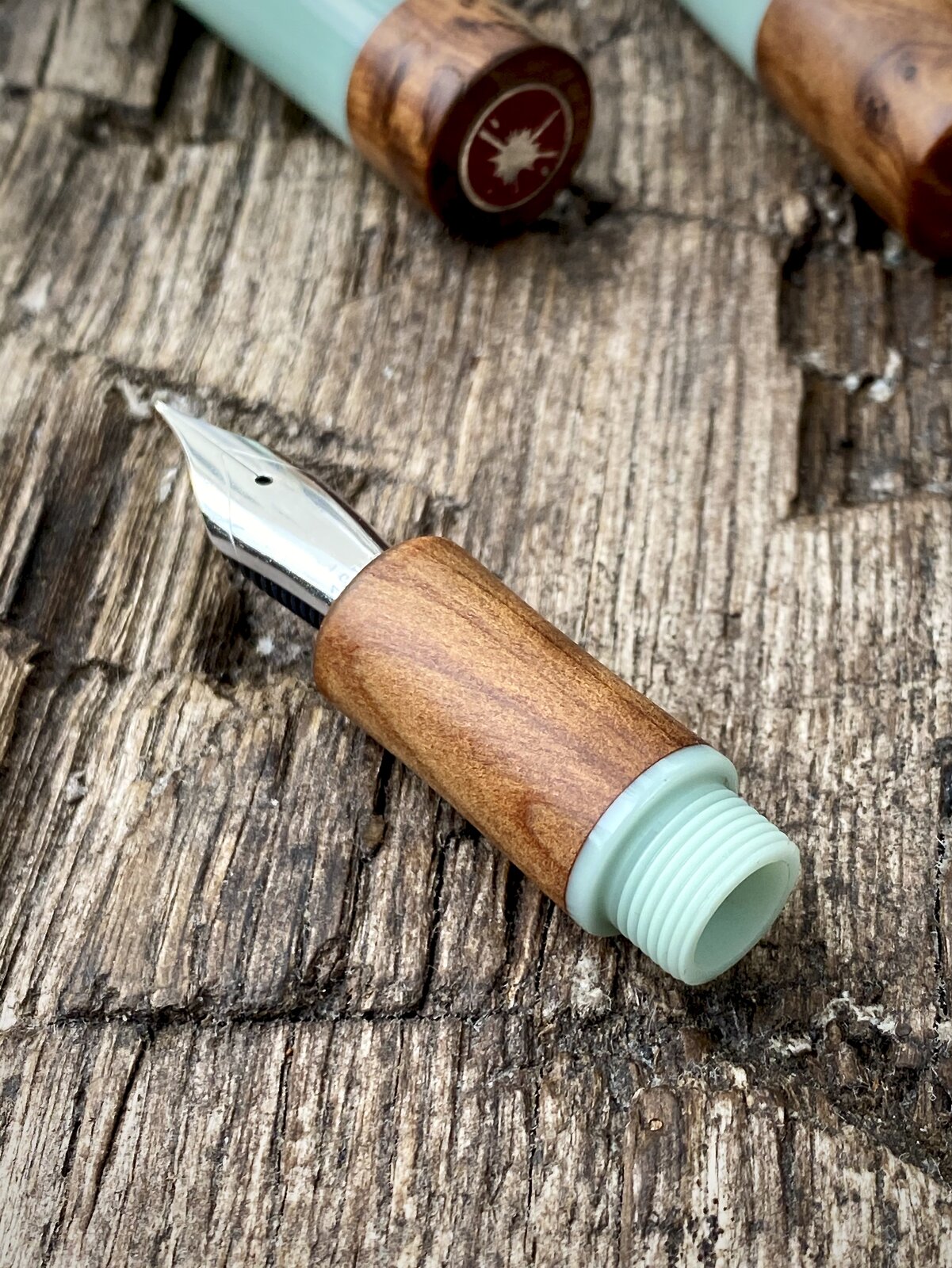

Nothing too complicated, other than the section is made from acrylic with a wooden sleeve. The main consideration being wall thicknesses of the wood (it’s a no6 Jowo nib and 13mm cap threads). The wood is stabilised so it does help with the integrity of the piece a little too.

Getting the silver/red logo coin to fit snugly also takes a little bit of time to get right. The trick here is to drill an undersized hole and bore out the remainder to sneak up in the correct diameter.

Length closed: 140mm
Open: 134mm (cap doesn’t post)
Nib: Jowo 6
Cap threads: 13mm
Barrel diameter: 14.5mm

Cheers
Ash

973087D9-DC78-43A4-81E4-EE86152346EC.jpeg651F3D08-1580-4F48-A0CE-A4BA40A835F5.jpegFB9CBE32-7984-4CBE-89BD-C693F3BE73E0.jpeg806BBDA5-7393-4563-A521-00CB4466121C.jpeg20566E8D-2841-4DBF-9544-4F3E6FEFEE2F.jpeg9795150C-EA6A-47BE-B8E0-85F1E34B69B8.jpeg

Signed-In Members Don't See This Ad

PatrickR

Member
Joined
Apr 8, 2017
Messages
989
Location
Rural America
Looks really, really good. I’m partial to combinations like this.
Did you make the cap decoration?


Sent from my iPad using Tapatalk

Last edited:

Tinyjames

Member
Joined
Jan 14, 2021
Messages
22
Location
UK
Ash fantastic pen I'm in amazement of your talent. I'm just making a Kirrnite Turquoise fountain pen but I've just chipped the cap thread and now my blank is to short and Last week I made a cap to thin and it snapped at the same place so I'm going to combine the too materials so to save some of my time and four blanks but it will look a bit like this one.

what I'm trying to say is it ok to copy your colour combination (it will be very close to yours only my wood is lighter)

😁😁


Kcimdrib

Member
Joined
Nov 1, 2020
Messages
887
Location
UK
Ash fantastic pen I'm in amazement of your talent. I'm just making a Kirrnite Turquoise fountain pen but I've just chipped the cap thread and now my blank is to short and Last week I made a cap to thin and it snapped at the same place so I'm going to combine the too materials so to save some of my time and four blanks but it will look a bit like this one.

what I'm trying to say is it ok to copy your colour combination (it will be very close to yours only my wood is lighter)

😁😁


Tinyjames

Member
Joined
Jan 14, 2021
Messages
22
Location
UK
I don't understand your post @Kcimdrib. I'm new to posting on forums and don't understand what it means when someone just posts a quote does it mean you disagree with my OP ??

I have see this done many time on a post or two


magpens

Member
Joined
Feb 2, 2011
Messages
15,286
Location
Coquitlam, BC, Canada
@Tinyjames
When I see this happen, I just assume it is a mistake. . Or alternatively, it could mean they agree with you and hit "Reply" instead of "Like".
I have seen this happen somewhat often recently ... mainly on the part of people who, I think, are new members getting used to the forum.
I don't understand your post @Kcimdrib. I'm new to posting on forums and don't understand what it means when someone just posts a quote does it mean you disagree with my OP ??

I have see this done many time on a post or two


Kcimdrib

Member
Joined
Nov 1, 2020
Messages
887
Location
UK
I assume you can reply if you want to make a comment, but if you just like something but don't want to type a reply just give it thumbs up with like.
This maybe a wrong assumption because I am a relatively new member.
Maybe made a mistake if so I apologize.
I have looked and yes I think I put the like in the wrong place I was trying to like the pens. But put it after your comments.
Simple mistake made by a simple guy.

Last edited:

Valleyboy

Member
Joined
Jul 2, 2019
Messages
93
Location
Wales
Looks really, really good. I’m partial to combinations like this.
Did you make the cap decoration?


Sent from my iPad using Tapatalk
Thank you.
The cap decoration is cast in sterling silver and filled with resin, although I sometimes leave it just silver.
Cheers
Asb
