Hi all,

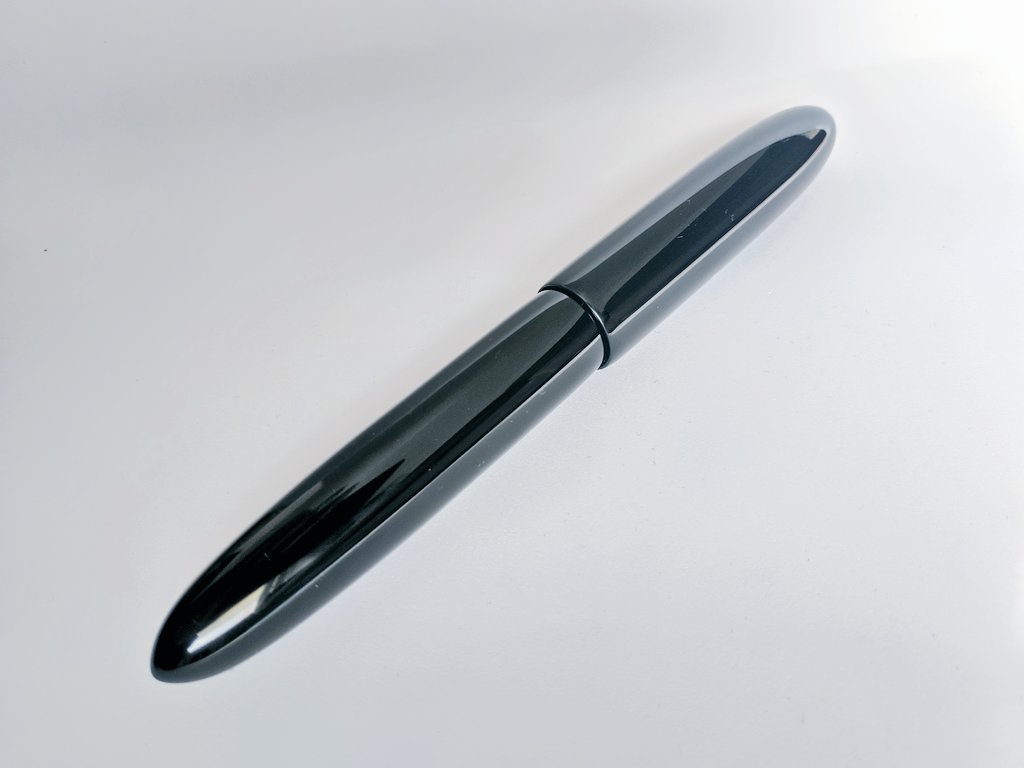

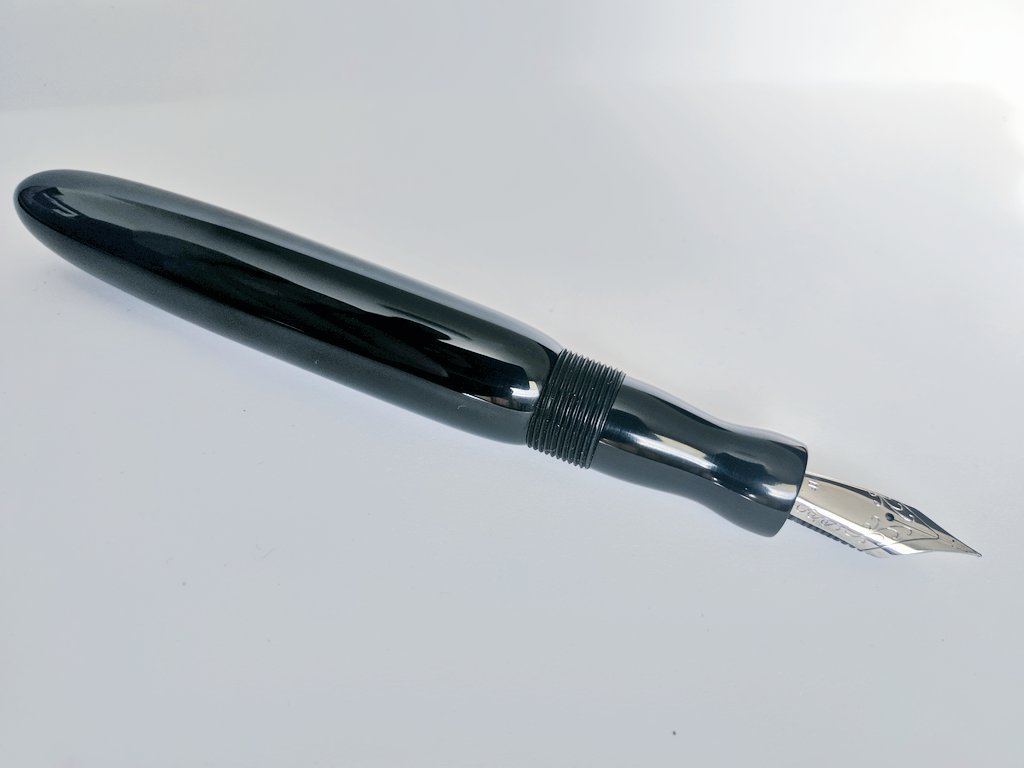

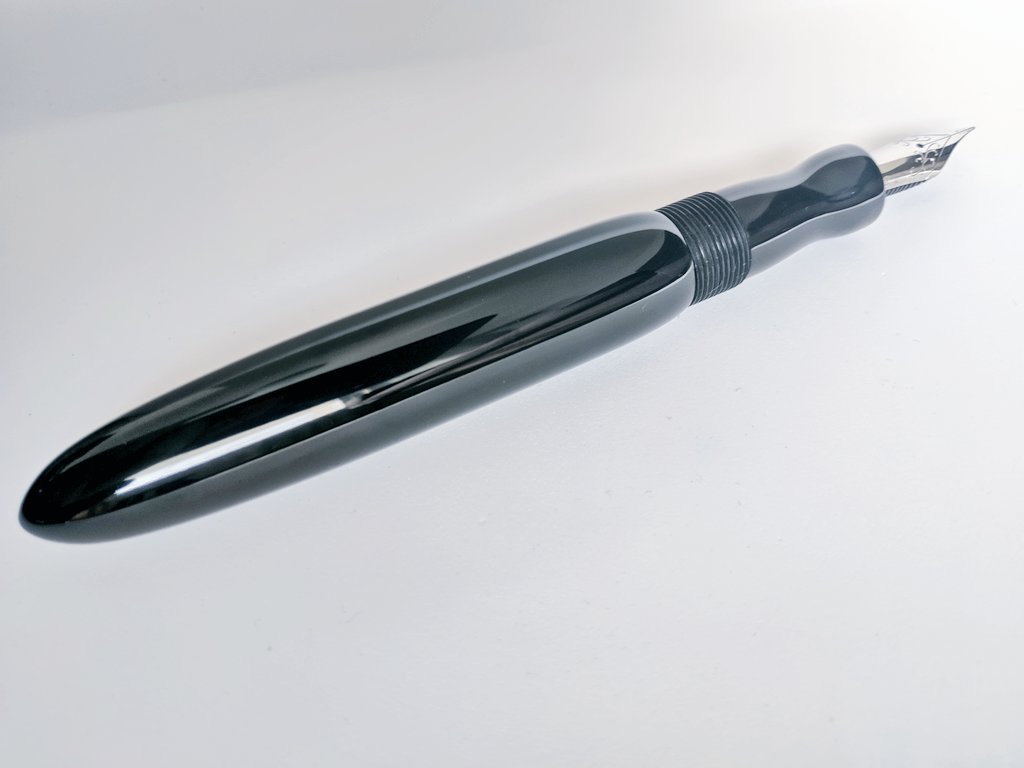

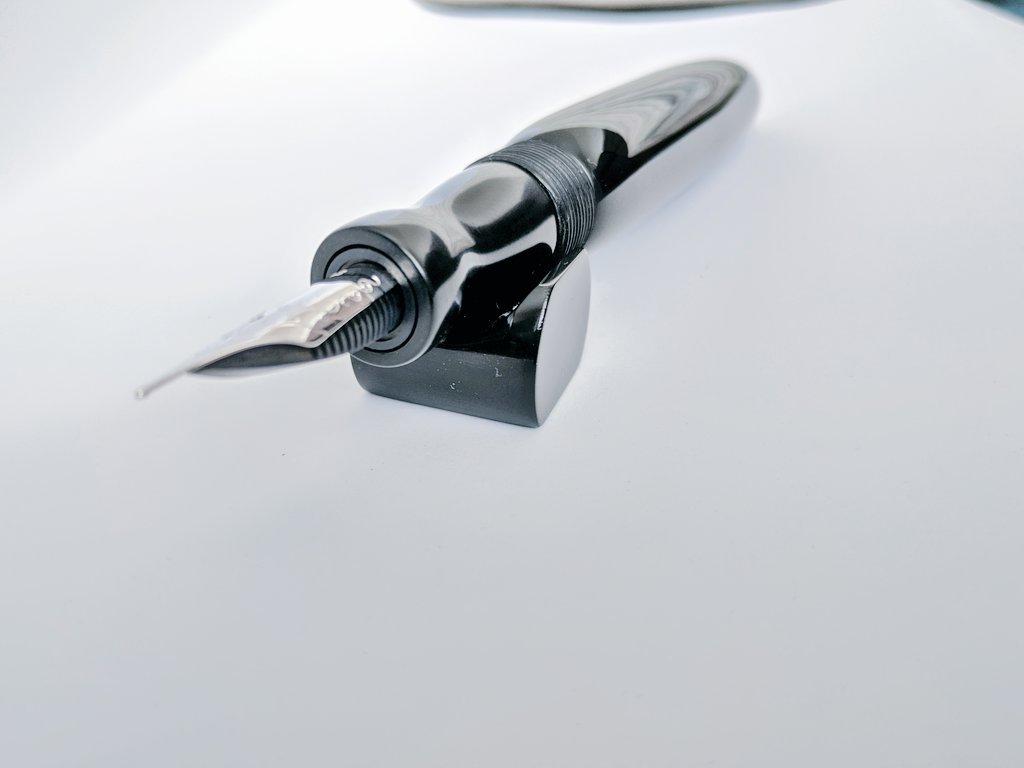

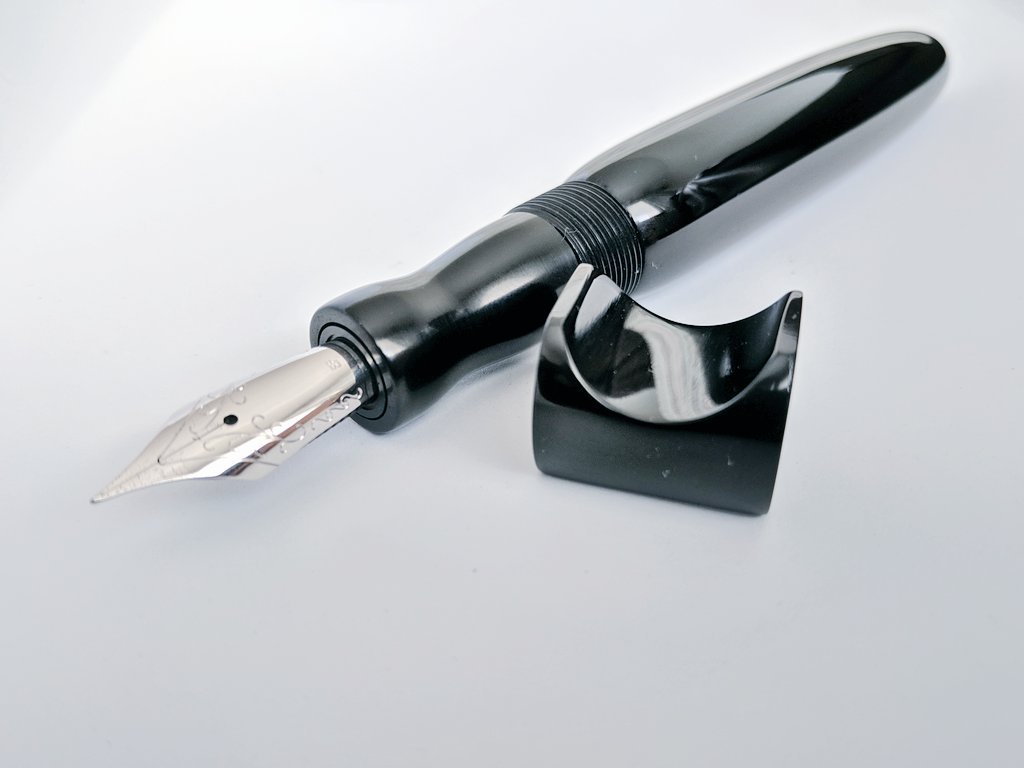

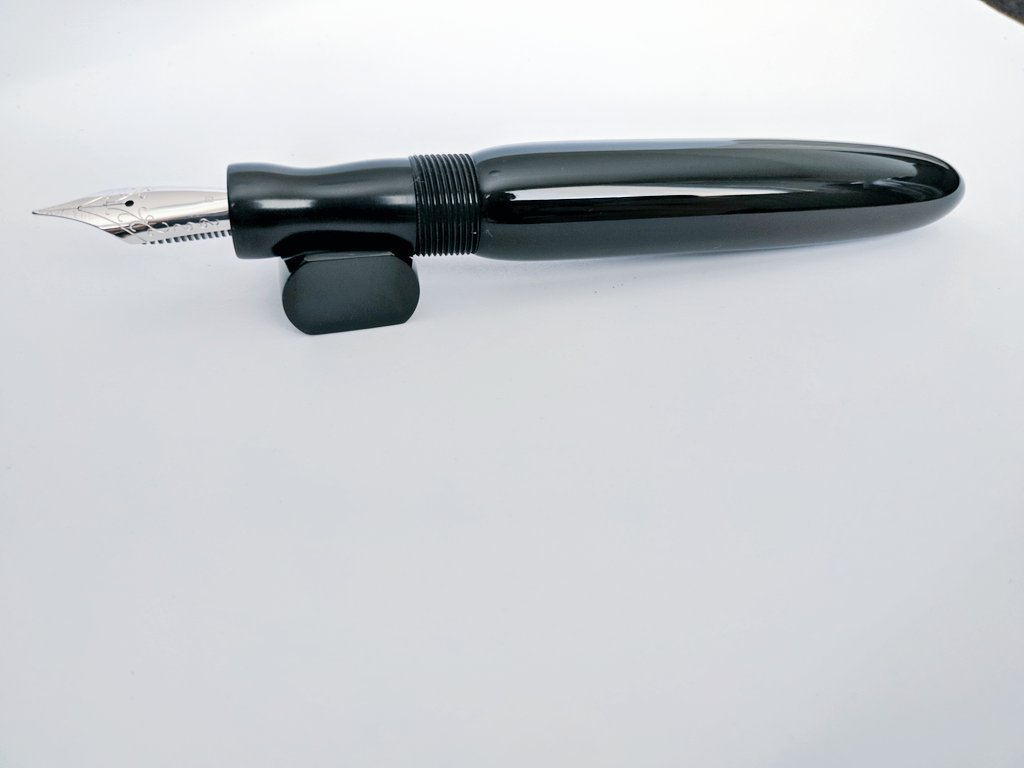

I finally made the golden sample of my ebonite pen. This one has a triple start screw. It takes 3 turns to uncap the pen, I can have 2 but it's more nice visually, and pleasant to touch.
Waiting for the box and leather pen sleeve to make it available.
Regards


Sent from my Redmi Note 5 Pro using Tapatalk

Signed-In Members Don't See This Ad

OZturner

Member
Joined
Aug 5, 2013
Messages
6,638
Location
Sydney. NSW. Australia
Beautiful Pen Teodor,
Excellent Profile and Proportions, Superb Section.
Congratulations on the Three Start Thread.
Excellent Ebonite Body, Nicely Machined.
Great Work,
Brian.


Dalecamino

Member
Joined
Jan 2, 2008
Messages
12,824
Location
Indianapolis, In.
Your pen and holder are VERY nice. The shape is pleasing, and the finish is beyond my ability so far with ebonite. Would you care to share your polishing process? Thanks for sharing the photos.


Teodor

Member
Joined
Feb 27, 2019
Messages
64
Location
Brno Czech Republic
Your pen and holder are VERY nice. The shape is pleasing, and the finish is beyond my ability so far with ebonite. Would you care to share your polishing process? Thanks for sharing the photos.
The sanding and polishing it's not hard but it takes ages and a lot of patience.
You need to sand first starting with P220 and increase 220-400-600-800-1000-1500-2200-3000-5000 you can go up to 12000
The secret is to apply gently force and starting P800 both directions circular and lengthways, till you don't see any line.
In the end you will need a polishing wheel, I start with white paste and finish with orange paste. Don't clean the pen with a cloth after polishing, let it cool down for 10-15 min and gentle wash with soap and dry gently, I use paper.
I hope it helps



Sent from my Redmi Note 5 Pro using Tapatalk


skiprat

Member
Joined
Oct 19, 2006
Messages
7,461
Location
In a Skip in Wales
Very nice pen Teodor. I particularly like your crisp clean threads. :good::good::good:
I have been to Brno a few times. We have one of our factories there.


Dalecamino

Member
Joined
Jan 2, 2008
Messages
12,824
Location
Indianapolis, In.
Your pen and holder are VERY nice. The shape is pleasing, and the finish is beyond my ability so far with ebonite. Would you care to share your polishing process? Thanks for sharing the photos.
The sanding and polishing it's not hard but it takes ages and a lot of patience.
You need to sand first starting with P220 and increase 220-400-600-800-1000-1500-2200-3000-5000 you can go up to 12000
The secret is to apply gently force and starting P800 both directions circular and lengthways, till you don't see any line.
In the end you will need a polishing wheel, I start with white paste and finish with orange paste. Don't clean the pen with a cloth after polishing, let it cool down for 10-15 min and gentle wash with soap and dry gently, I use paper.
I hope it helps


Sent from my Redmi Note 5 Pro using Tapatalk
Yes this helps!! Thank you very much. I've not been using force. I will try your method, and expect to see improvement.
