First Attempt Celtic Knot

Signed-In Members Don't See This Ad
See more from Kcimdrib

Kcimdrib

Member
Joined
Nov 1, 2020
Messages
890
Location
UK
I have been inspired to try the Celtic Knot having recently seen some great Pens with this design. There is quite a lot wrong with this attempt but it was cut free hand on my Bandsaw with no jigs or fixtures so the accuracy leaves a bit to be desired.
I think it's acceptable as most of my pens are sold for charity.
Your comments on my attempt would be appreciated I will make more and try to lmprove but don't want to make things to complicated.


Attachments

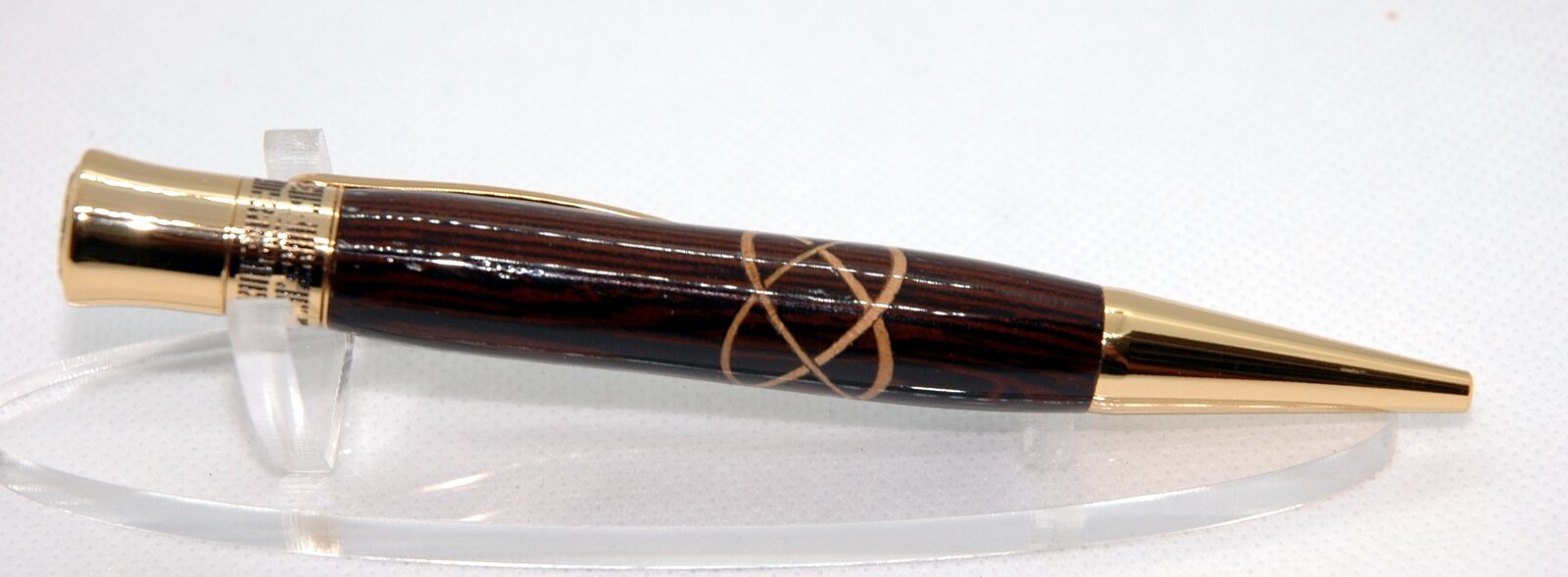

  • Pen3.jpg
    96 KB · Views: 72

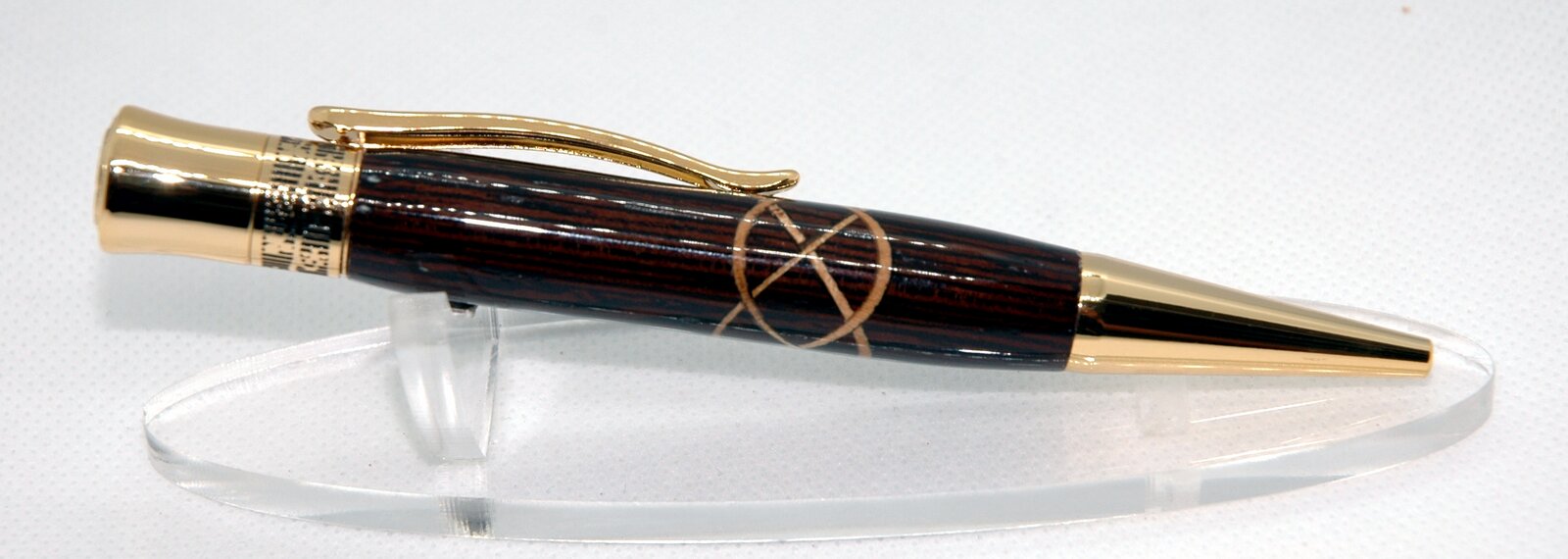

  • Pen2.jpg
    108.5 KB · Views: 71

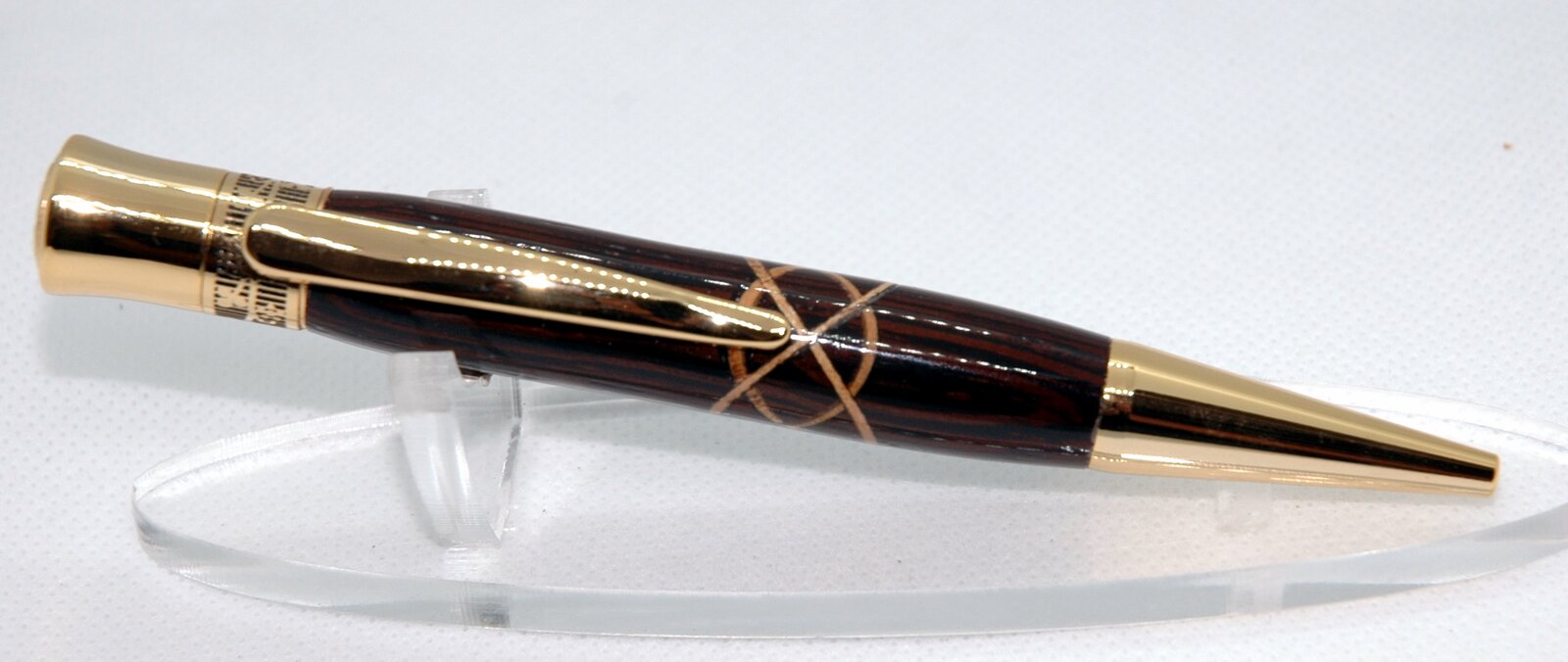

  • pen1.jpg
    110.6 KB · Views: 72
Signed-In Members Don't See This Ad
Joined
Jul 15, 2021
Messages
4
Location
Georgina
Turned out nice especially for a first attempt! I really like how the clip aligns with the cross section of the knot. I've only made a handful of them. One design element that I like is to layer in some aluminum sheeting on either side of the knot to define the edge and give it some more depth. Anyway, well done and happy turning!


Dale Parrott

Member
Joined
Feb 22, 2012
Messages
239
Location
Goshen, Indiana
For a first attempt and freehand, it's very good!
I've made a bunch of these on the bandsaw and would recomend 2 things. One is make a sled. Even a simple sled would be well worth your time. The second thing is probably more of a personal preference. I much prefer a 60 degree angle rather that the 45 that a lot of guys use. It makes the knot a longer and fills up the blank more.
Just my 2 cents worth.


KenB259

Member
Joined
Dec 24, 2017
Messages
2,172
Location
Michigan
Nice job and especially so, since you did it freehand. I agree with Dale on the 60 degree angle, for some reason I have settled on 53 degrees for mine, but I like them elongated more than the standard 45 degree angle you see a lot.


howsitwork

Member
Joined
Jul 9, 2016
Messages
1,682
Location
Thirsk
that’s a really nice bit of work. I had. number of failures of glue ups before I got it nearly right. I also found I needed to measure and use one pair of edges to measure from , check and define the “true centre” to allow me to drill it accurately so the know was even all sides.

I know what I mean but that may not be easy to understand from my description ( sorry )


Kcimdrib

Member
Joined
Nov 1, 2020
Messages
890
Location
UK
Well thank you for your replies and tips. I will change the angle and see what I get.
that’s a really nice bit of work. I had. number of failures of glue ups before I got it nearly right. I also found I needed to measure and use one pair of edges to measure from , check and define the “true centre” to allow me to drill it accurately so the know was even all sides.

I know what I mean but that may not be easy to understand from my description ( sorry )
Sounds like you a bit knotted up. But thanks for the praise.


KenB259

Member
Joined
Dec 24, 2017
Messages
2,172
Location
Michigan
that’s a really nice bit of work. I had. number of failures of glue ups before I got it nearly right. I also found I needed to measure and use one pair of edges to measure from , check and define the “true centre” to allow me to drill it accurately so the know was even all sides.

I know what I mean but that may not be easy to understand from my description ( sorry )
That's why I always use a square blank for these. Do that and most of your issues with Celtic knots disappear.


howsitwork

Member
Joined
Jul 9, 2016
Messages
1,682
Location
Thirsk
That's why I always use a square blank for these. Do that and most of your issues with Celtic knots disappear.
It starts out square start Ken but by theme you’ve made all the cuts and glued up etc it can “ migrate a bit”


alanemorrison

Member
Joined
Jan 15, 2019
Messages
1,767
Location
N Ireland
Mike, that's a very decent looking knot, especially given that it's your first.
I would'nt have liked to show my first attempt.

Alan


Kcimdrib

Member
Joined
Nov 1, 2020
Messages
890
Location
UK
Mike, that's a very decent looking knot, especially given that it's your first.
I would'nt have liked to show my first attempt.

Alan
Thanks Alan beginners luck maybe. I can see real potential and having read some of the comments about changing angles I will keep going.


Kcimdrib

Member
Joined
Nov 1, 2020
Messages
890
Location
UK
I would just like to thank all of you for your comments its what makes the IAP a wonderful community.
I will carry on tying myself up in Knots thanks again.
