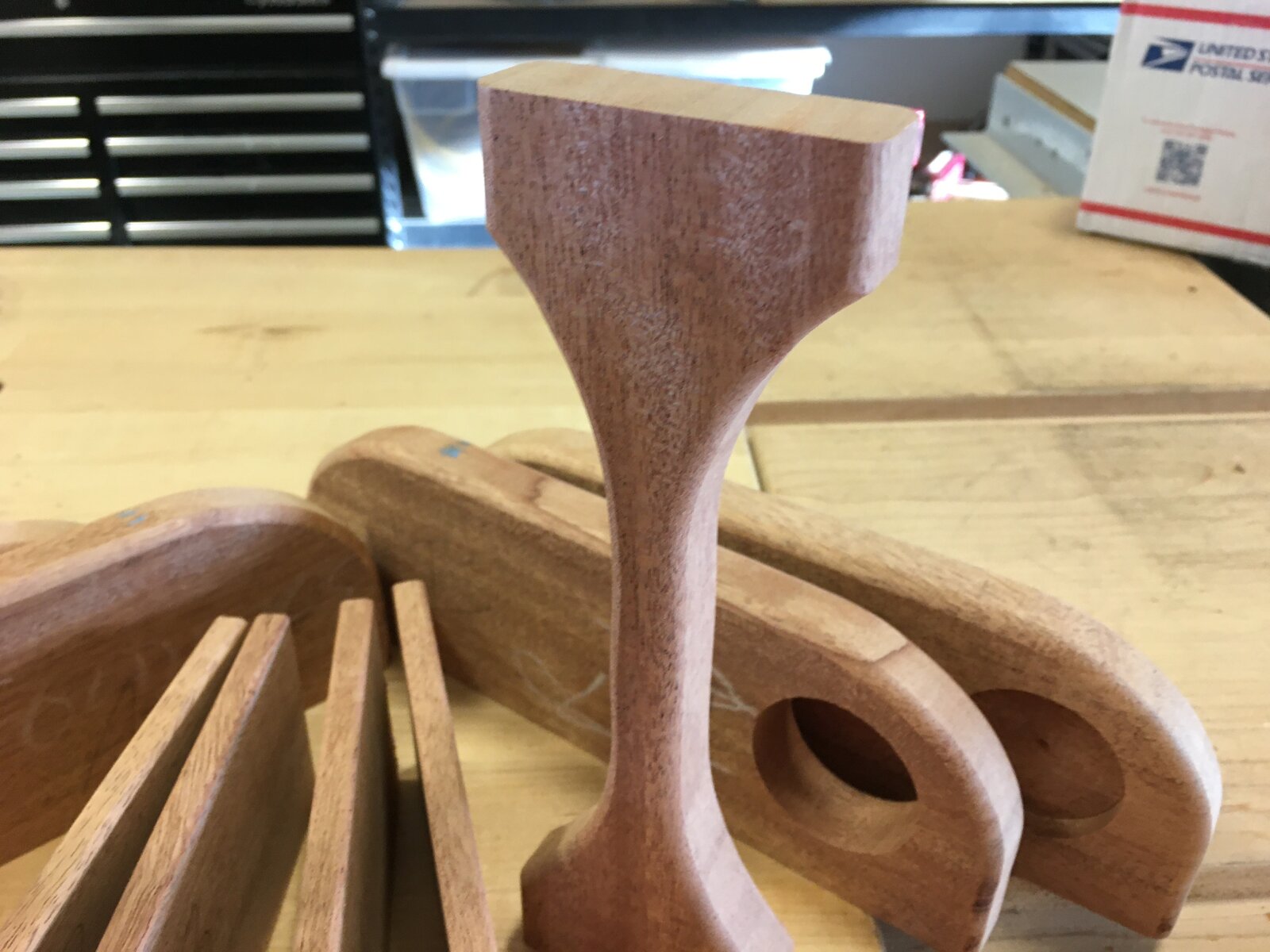

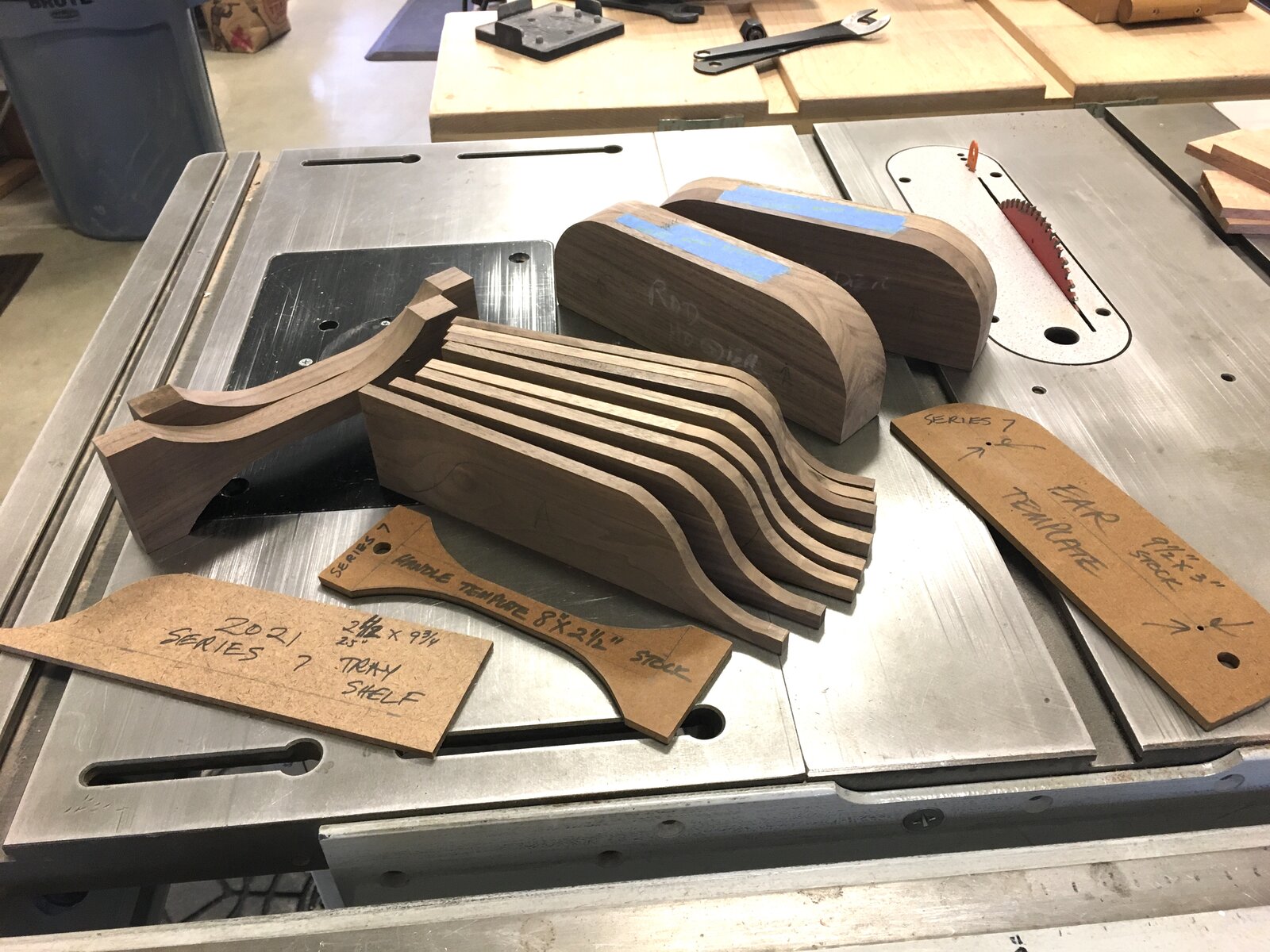

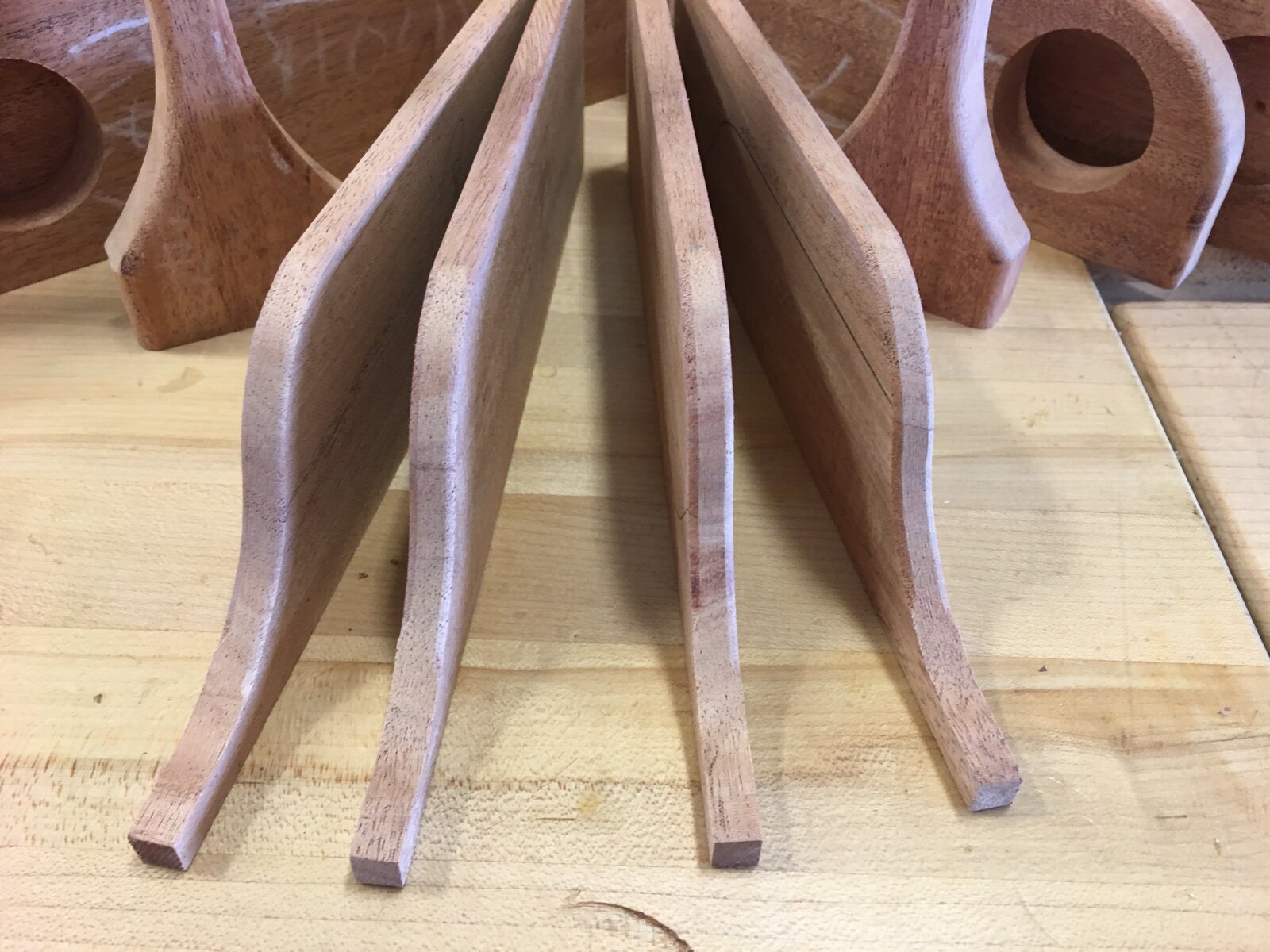

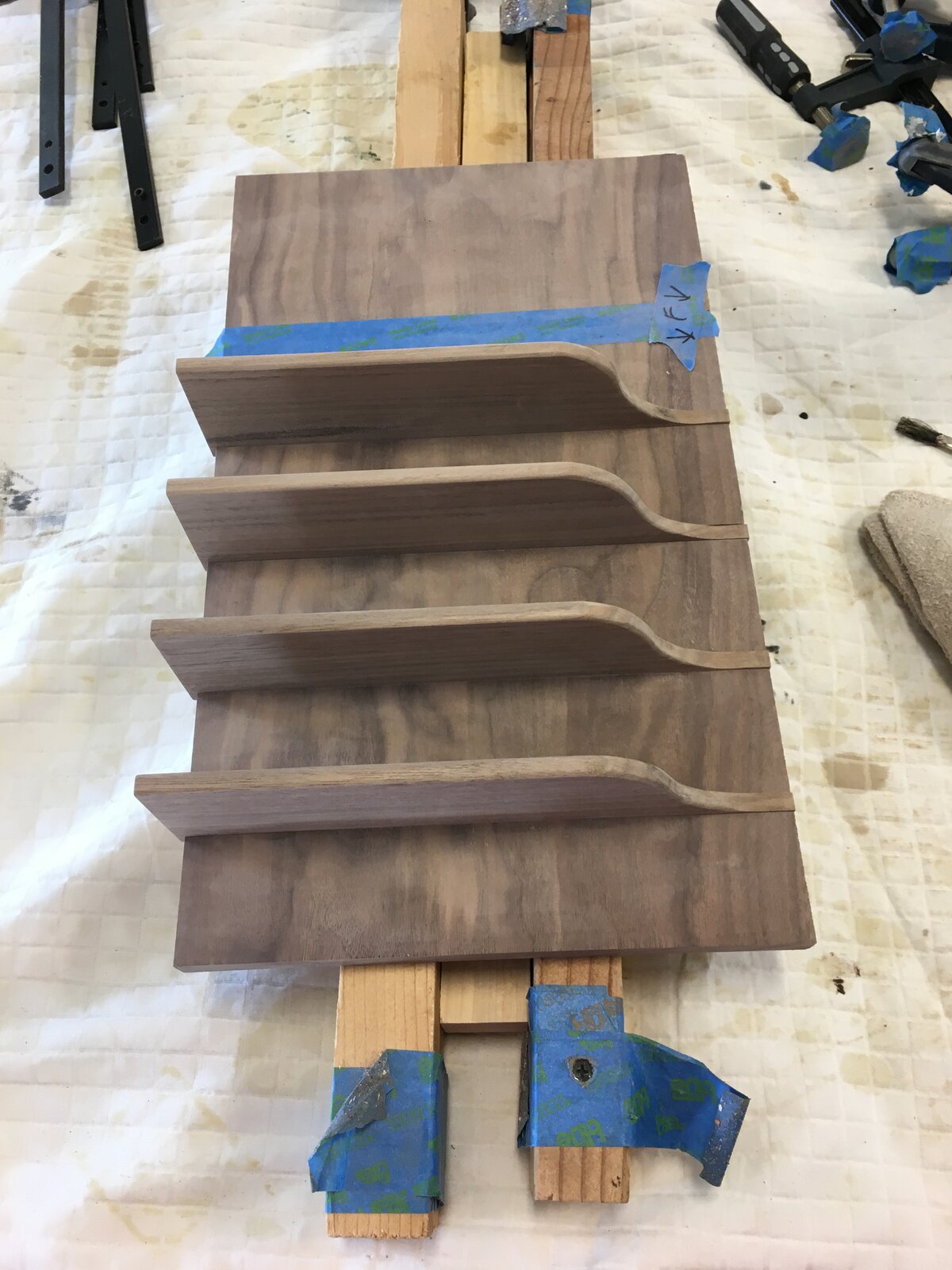

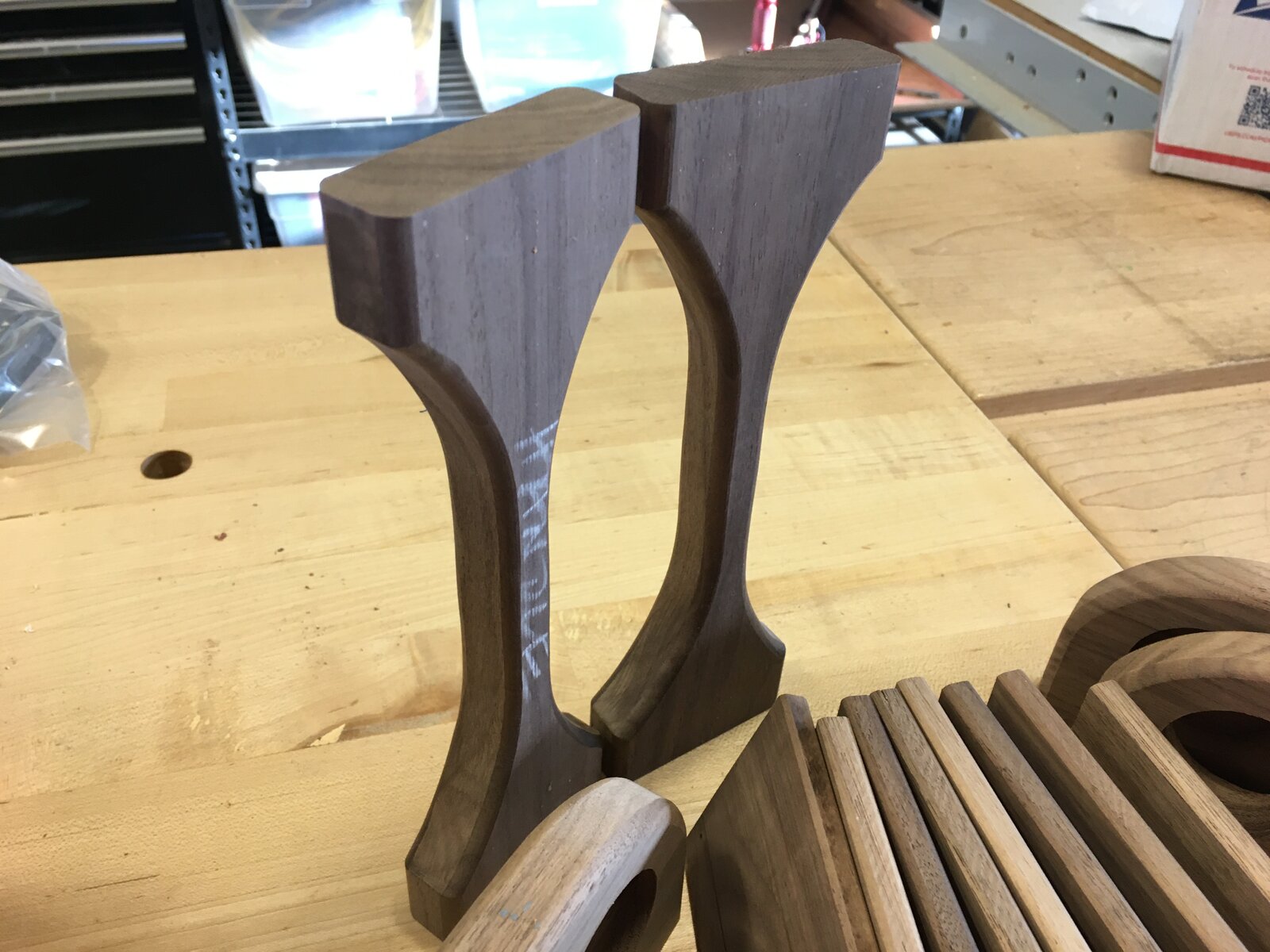

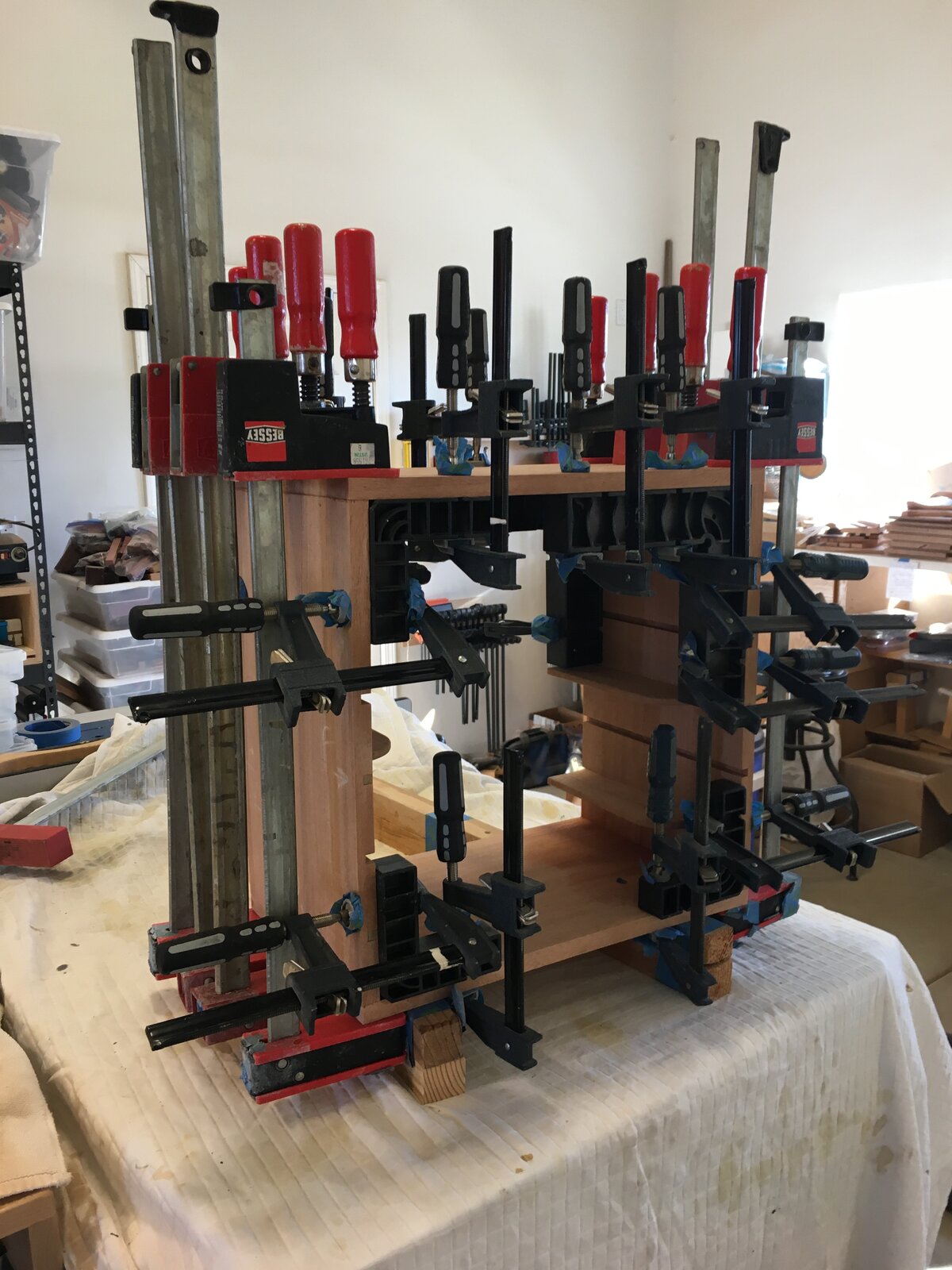

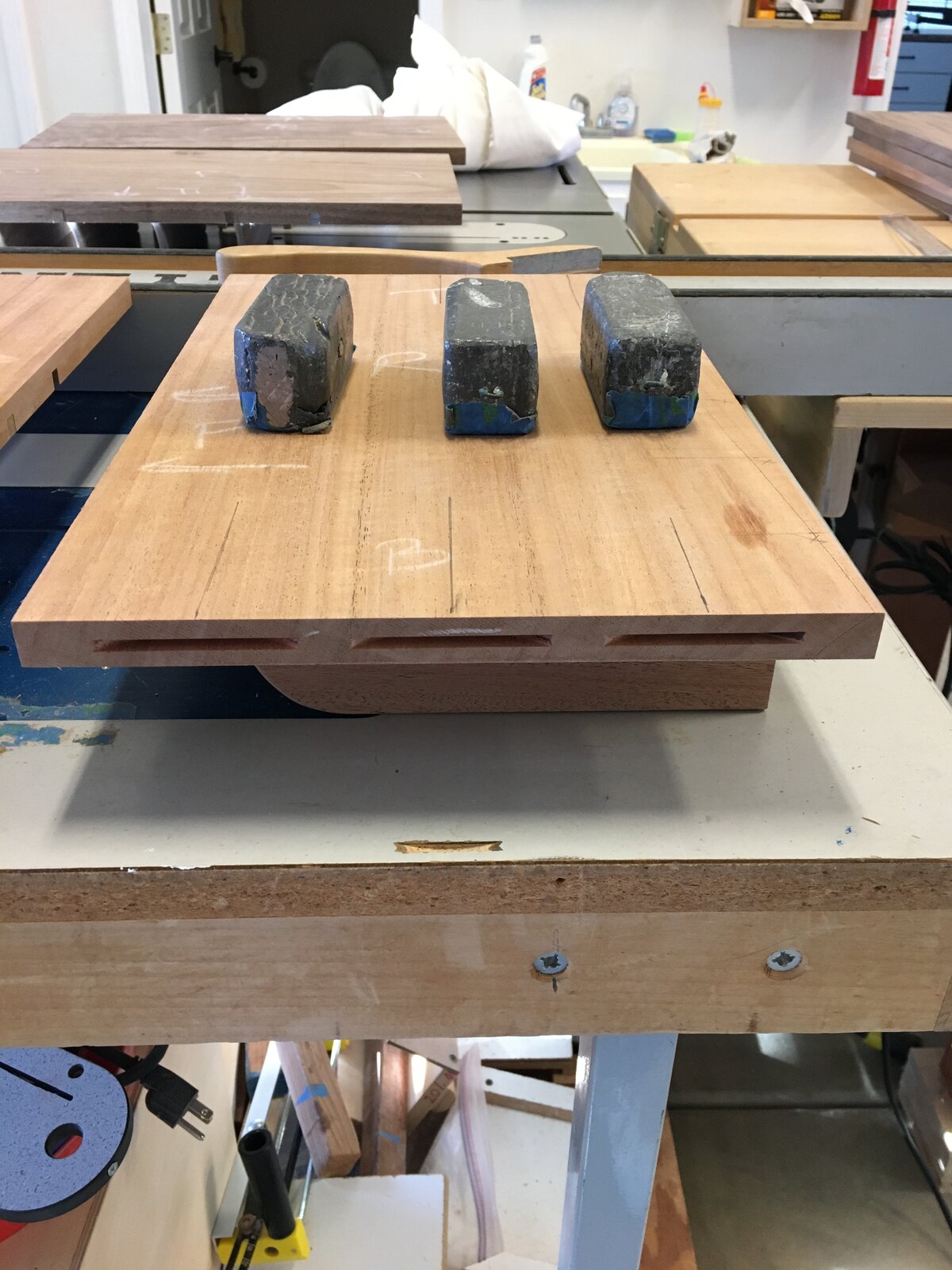

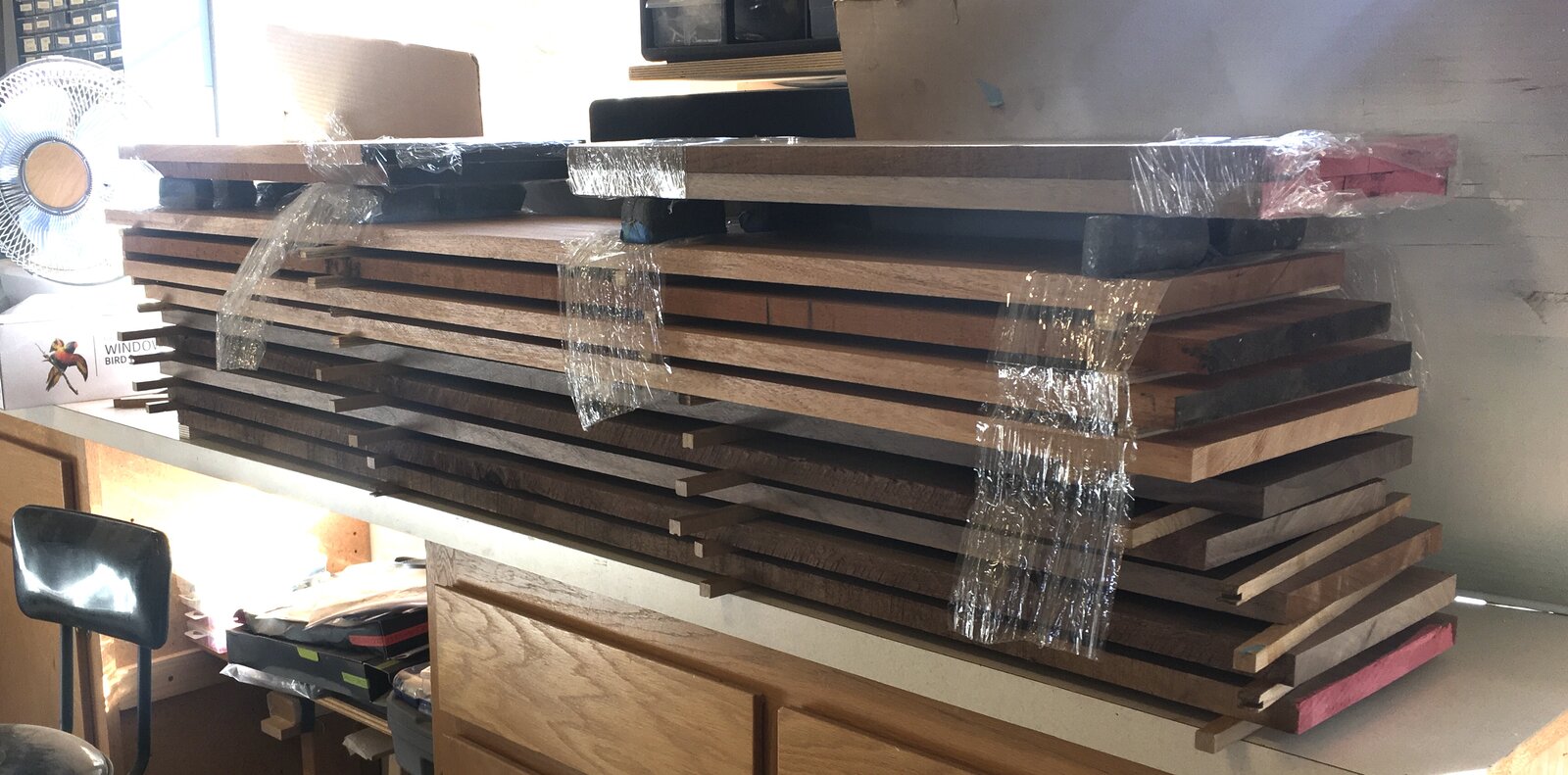

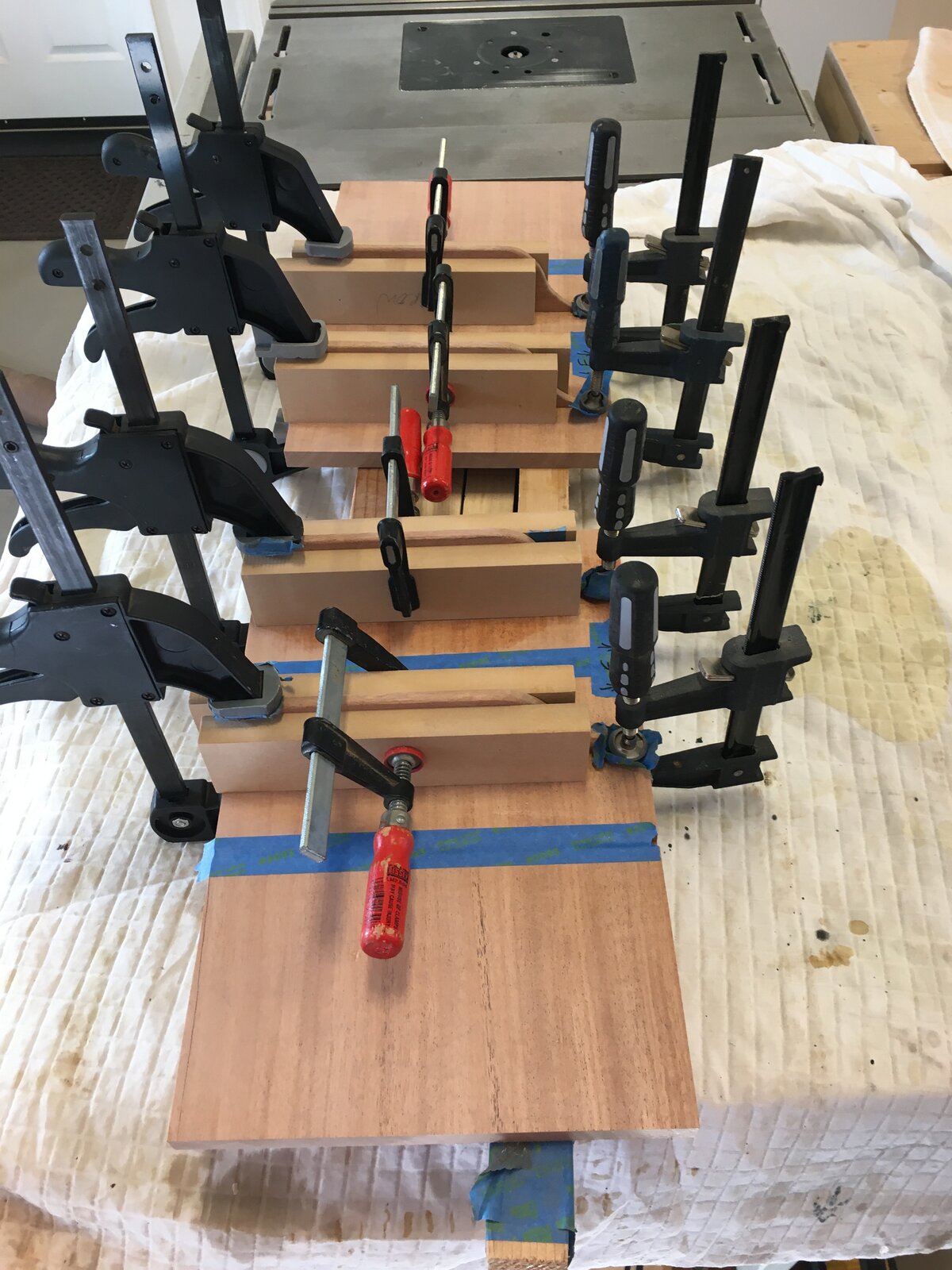

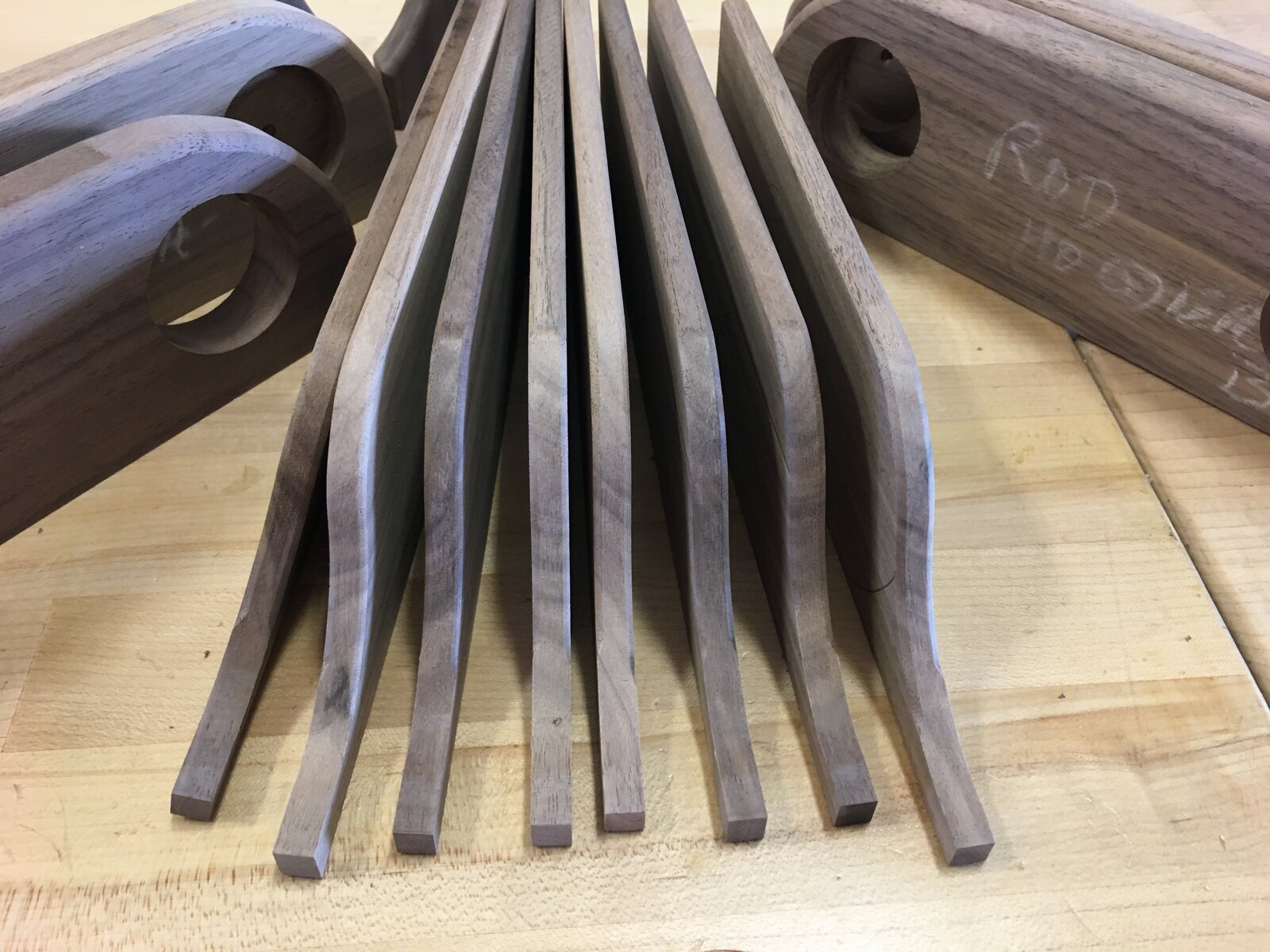

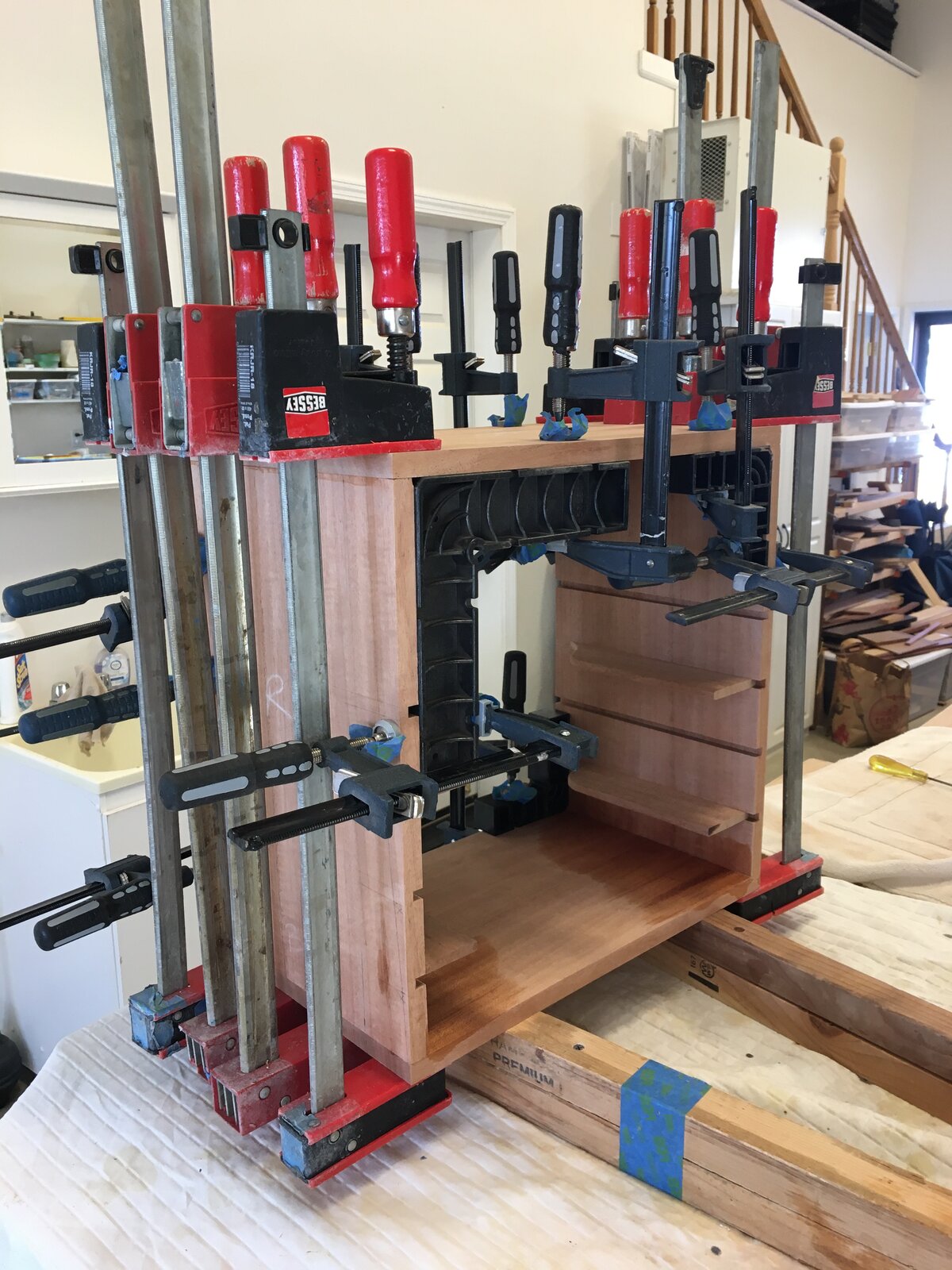

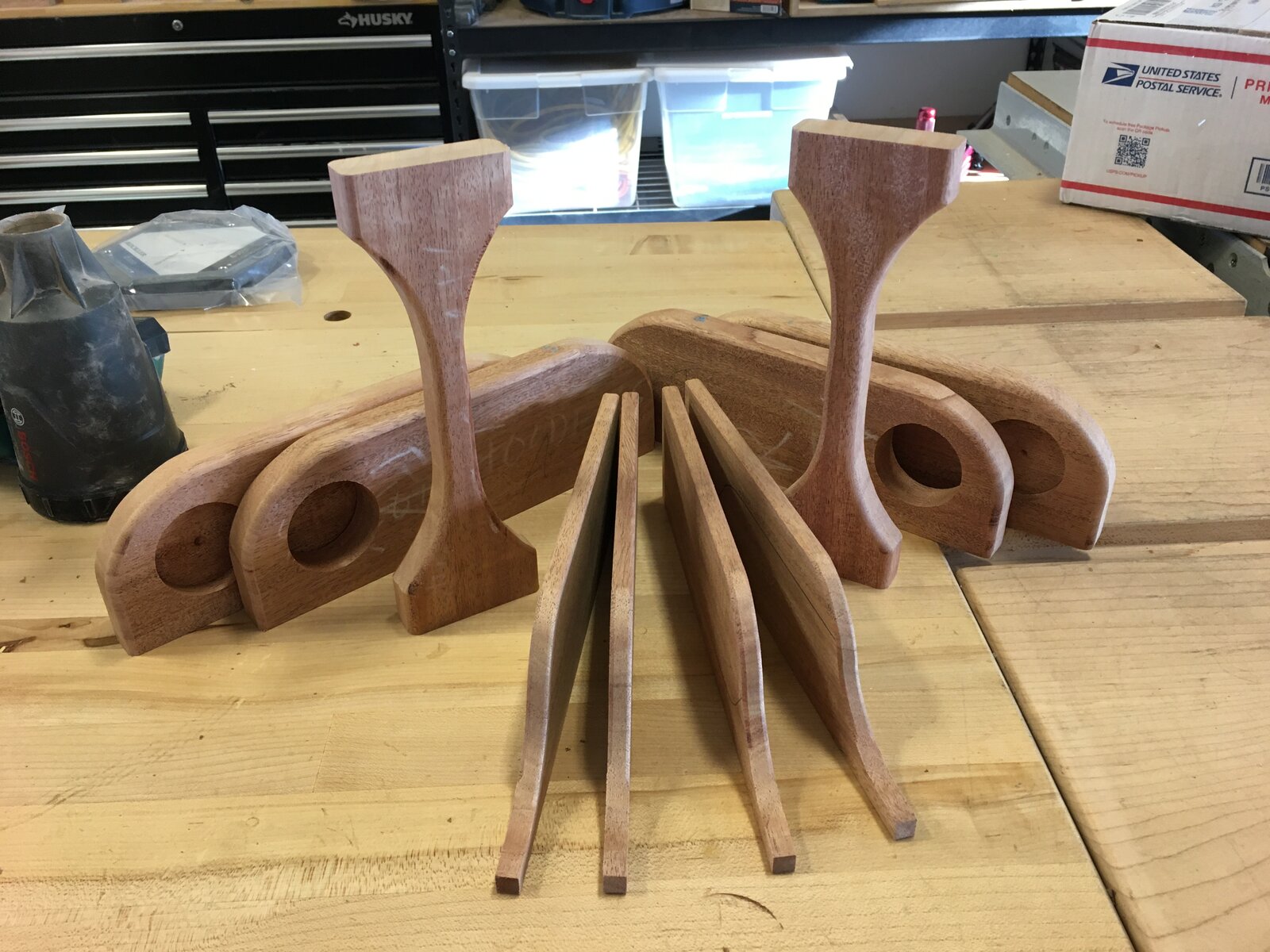

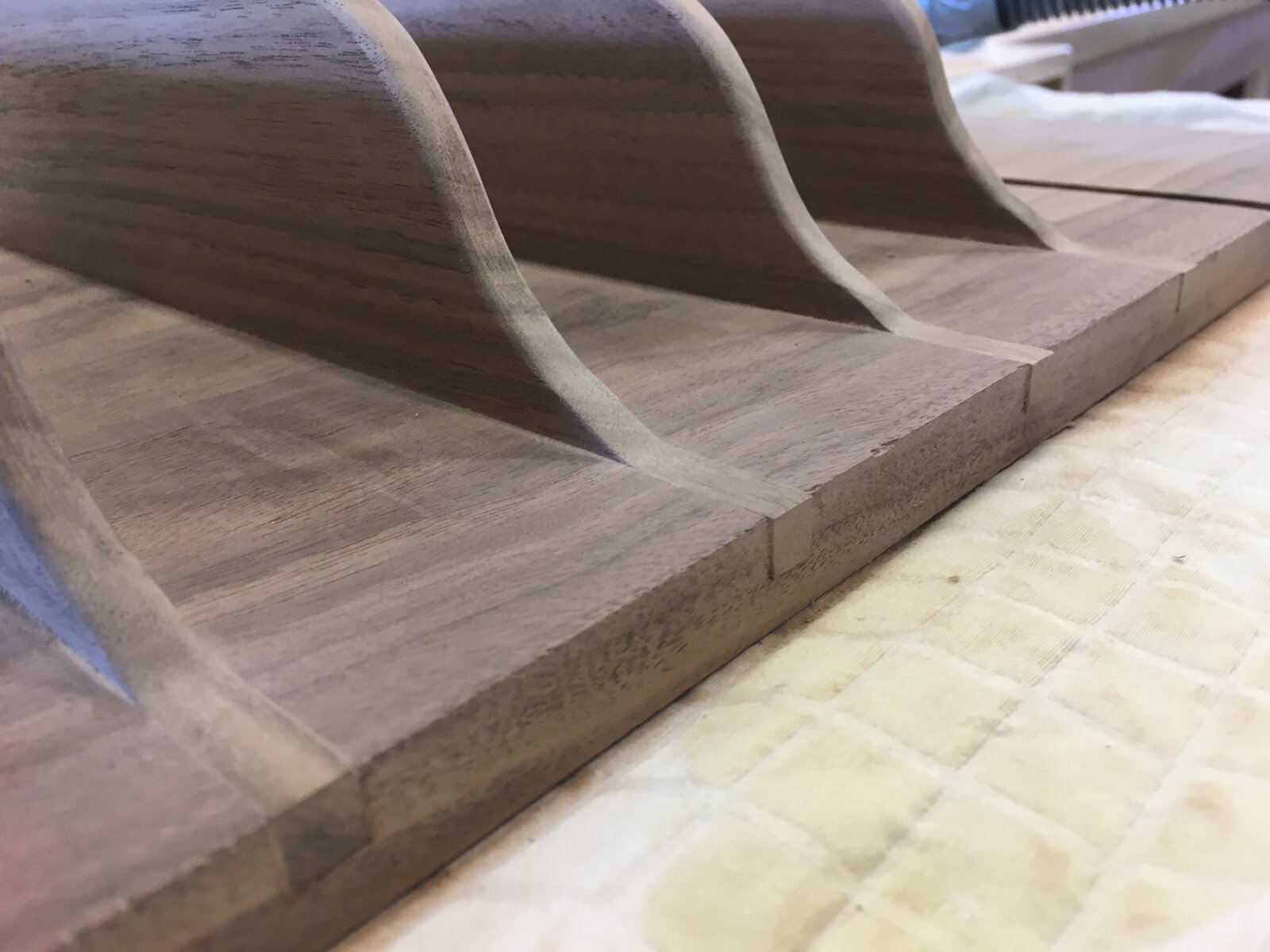

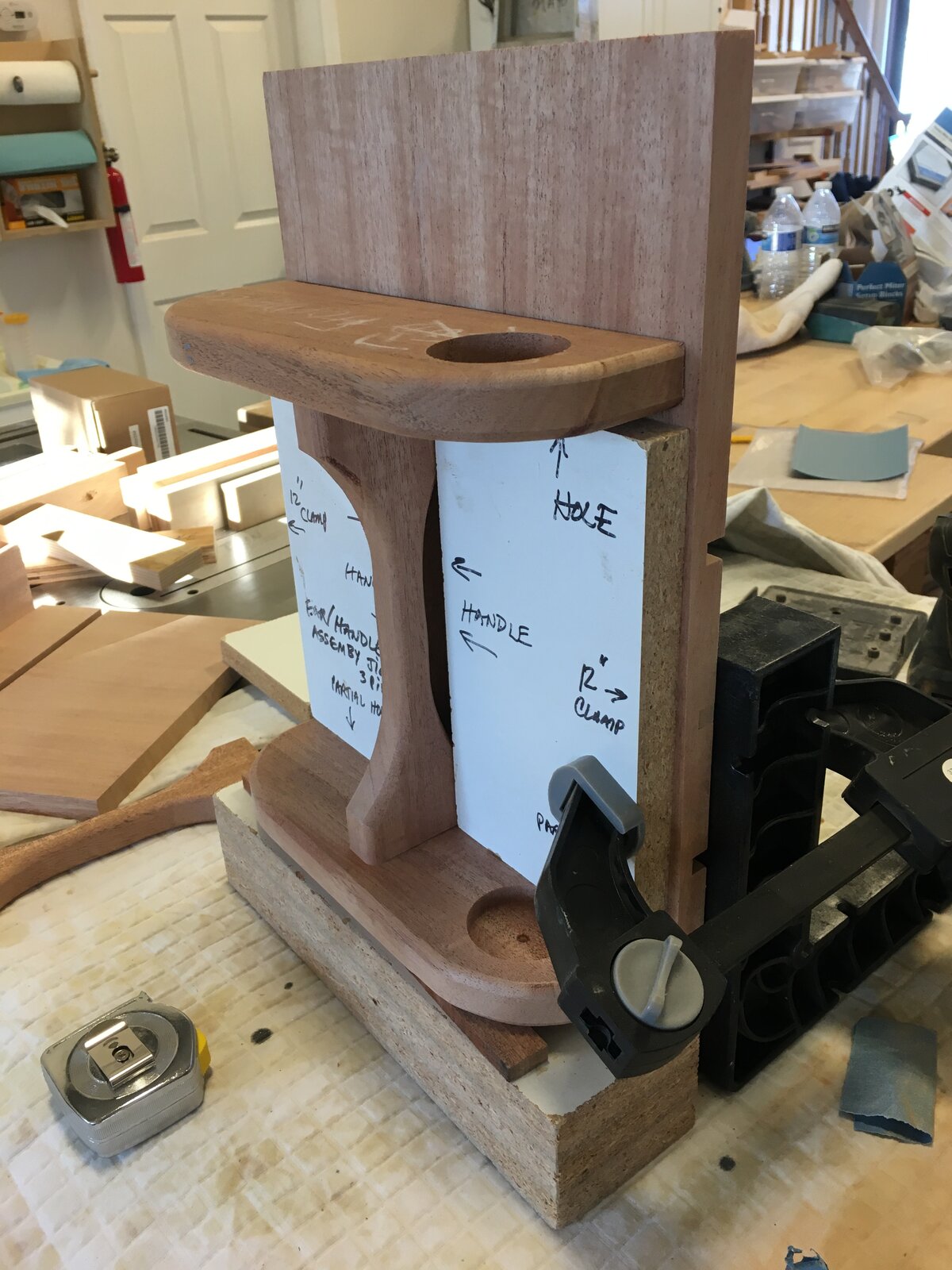

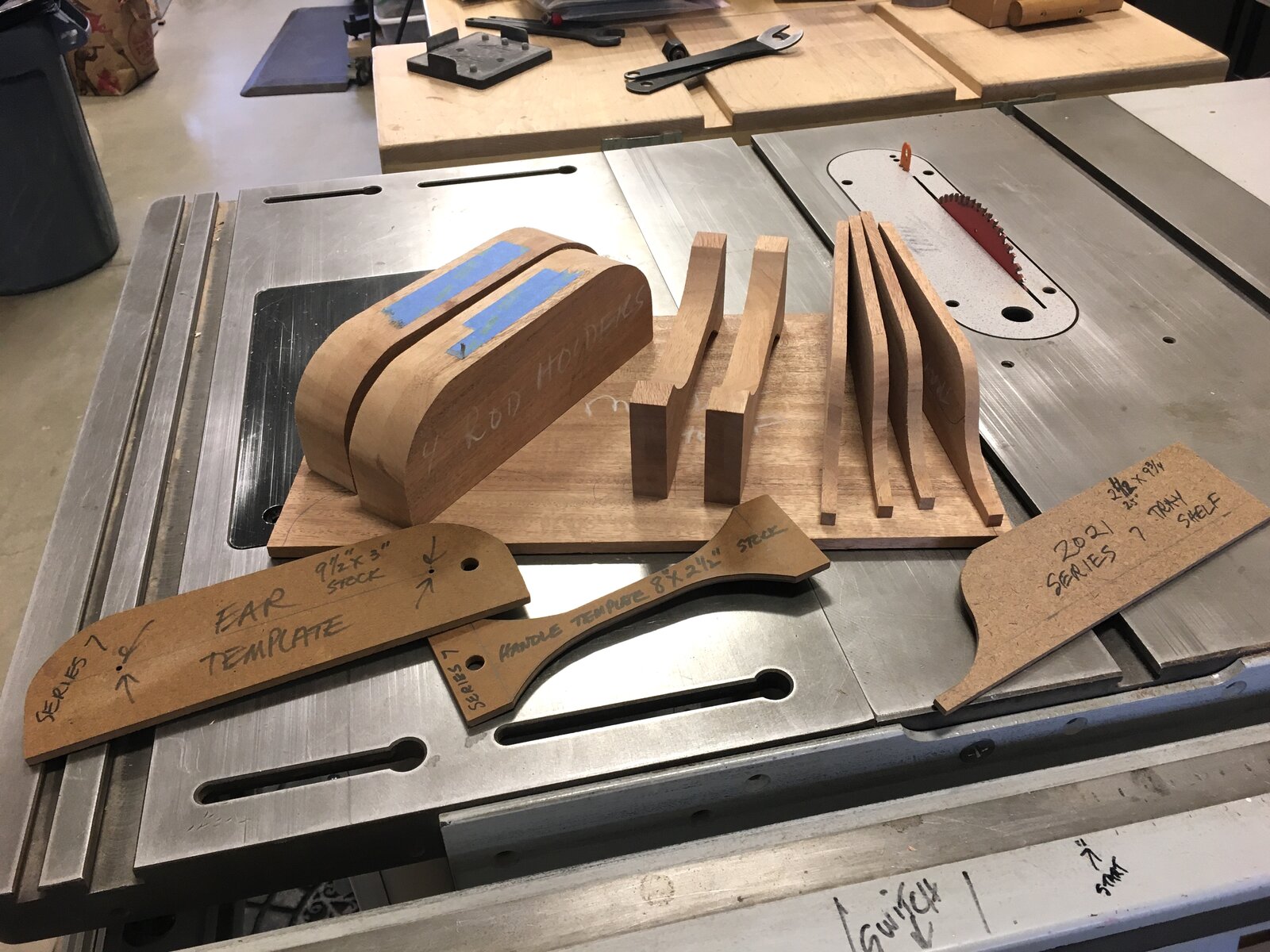

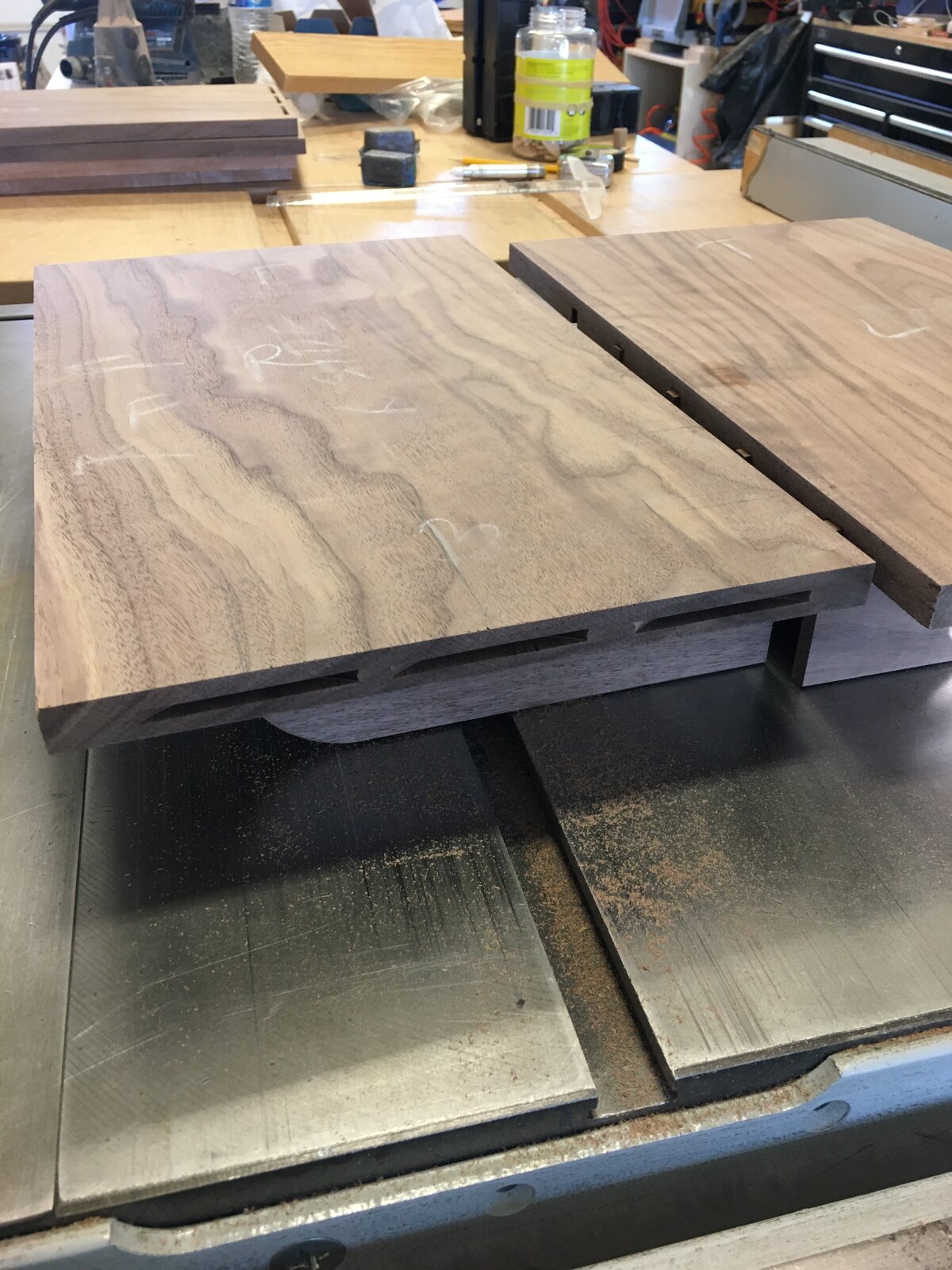

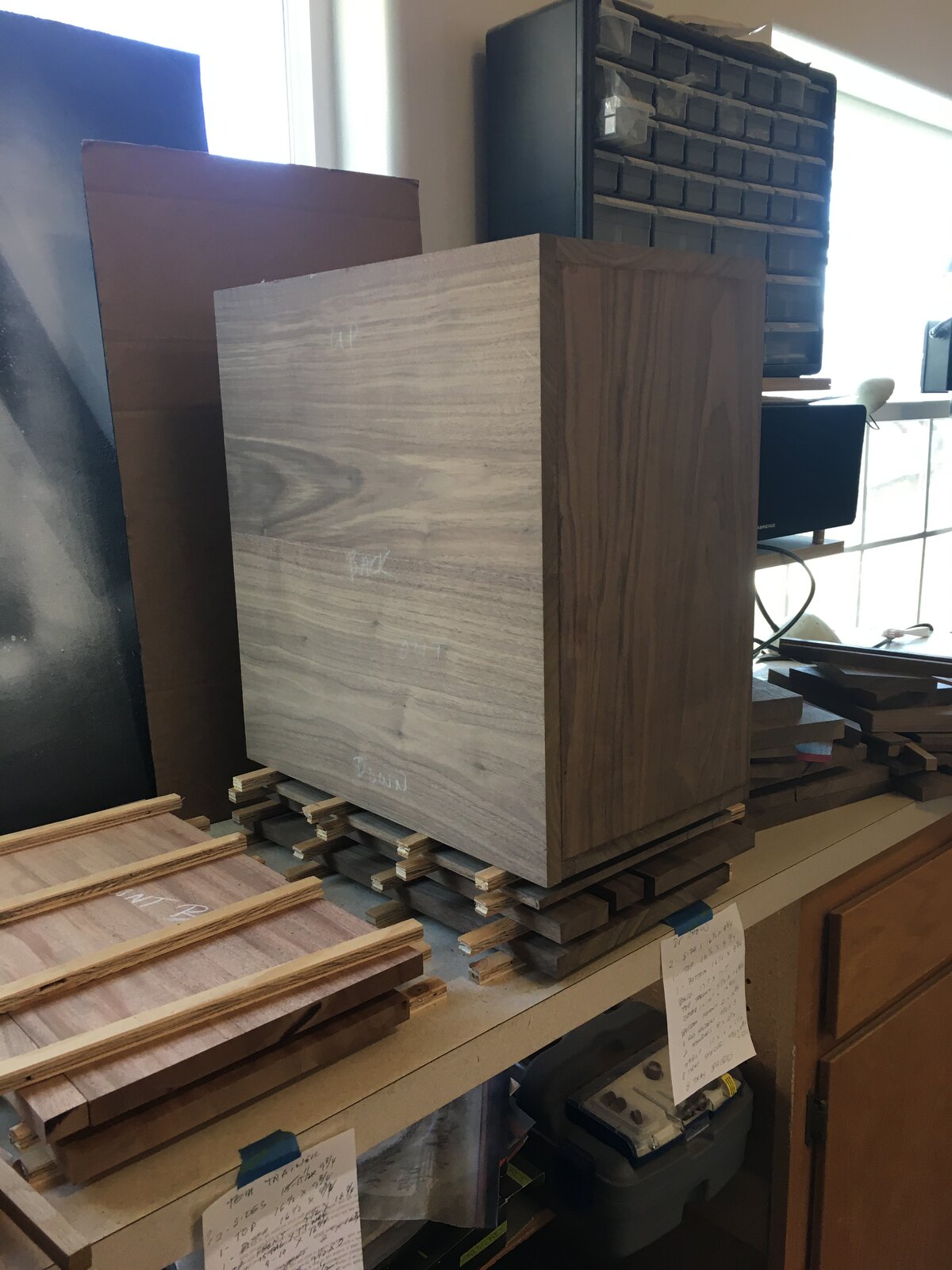

It is time to change hats and make two long range fishing tackle boxes, one African mahogany and the other American black walnut. The former goes only to the San Fernando valley while the later travels across the country to South Carolina.

Snow is forecast for next week so I’m getting as much done before the temps drop.


Attachments

  • F7791171-99A5-4E35-A82D-ACDF97A60977.jpeg
    231.3 KB · Views: 91
  • 38E4D295-6606-4CE9-BAB5-7C15CF92C007.jpeg
    351.8 KB · Views: 96
  • FC480E72-CAC6-4DE9-8813-67C87992C245.jpeg
    340.9 KB · Views: 97
  • 459BE3DD-72BC-4E1B-A0B6-2B78C04F7CE9.jpeg
    286.8 KB · Views: 88
  • CB475D24-17FD-4C54-AC15-28B3933B7F0F.jpeg
    236.8 KB · Views: 82
  • 4DBCD525-32AF-42DD-8999-A1752422A485.jpeg
    308.2 KB · Views: 87
  • 30DBF19C-AA60-4435-A732-1E30D20AD908.jpeg
    205.4 KB · Views: 78
  • C9E4EEC8-7420-4651-87B6-487601340163.jpeg
    292.1 KB · Views: 79
  • E85F2E2D-1EB7-4194-86A7-466C5F5157A0.jpeg
    306.1 KB · Views: 81
  • AA1F41E2-C402-4635-8B9D-CA55EE9B8741.jpeg
    242.5 KB · Views: 83
  • 9E95573D-85A3-4A1D-9D88-E32660EE7D44.jpeg
    292.3 KB · Views: 77
  • B0BEAFB3-47E2-4126-8892-714653595D0E.jpeg
    195.7 KB · Views: 80
  • 558A9A2D-1D84-4D98-B186-7F50B1940215.jpeg
    268.8 KB · Views: 81
  • 03899CF8-B872-4600-9719-B1351FA653B6.jpeg
    269.2 KB · Views: 89
  • 0C839344-9662-4FE3-A2AE-346745939189.jpeg
    321 KB · Views: 81
  • A004C7E0-651F-4492-90CE-F7E68F527FFE.jpeg
    261.5 KB · Views: 92
  • DFA83F38-89BA-42EC-9A98-FEFD2B12EA09.jpeg
    256.7 KB · Views: 88
  • 5267CB35-2DA8-4AE7-8D57-63CD8F433A9C.jpeg
    323 KB · Views: 93
Signed-In Members Don't See This Ad

mmayo

Member
Joined
Jan 12, 2013
Messages
2,037
Location
Tehachapi, CA

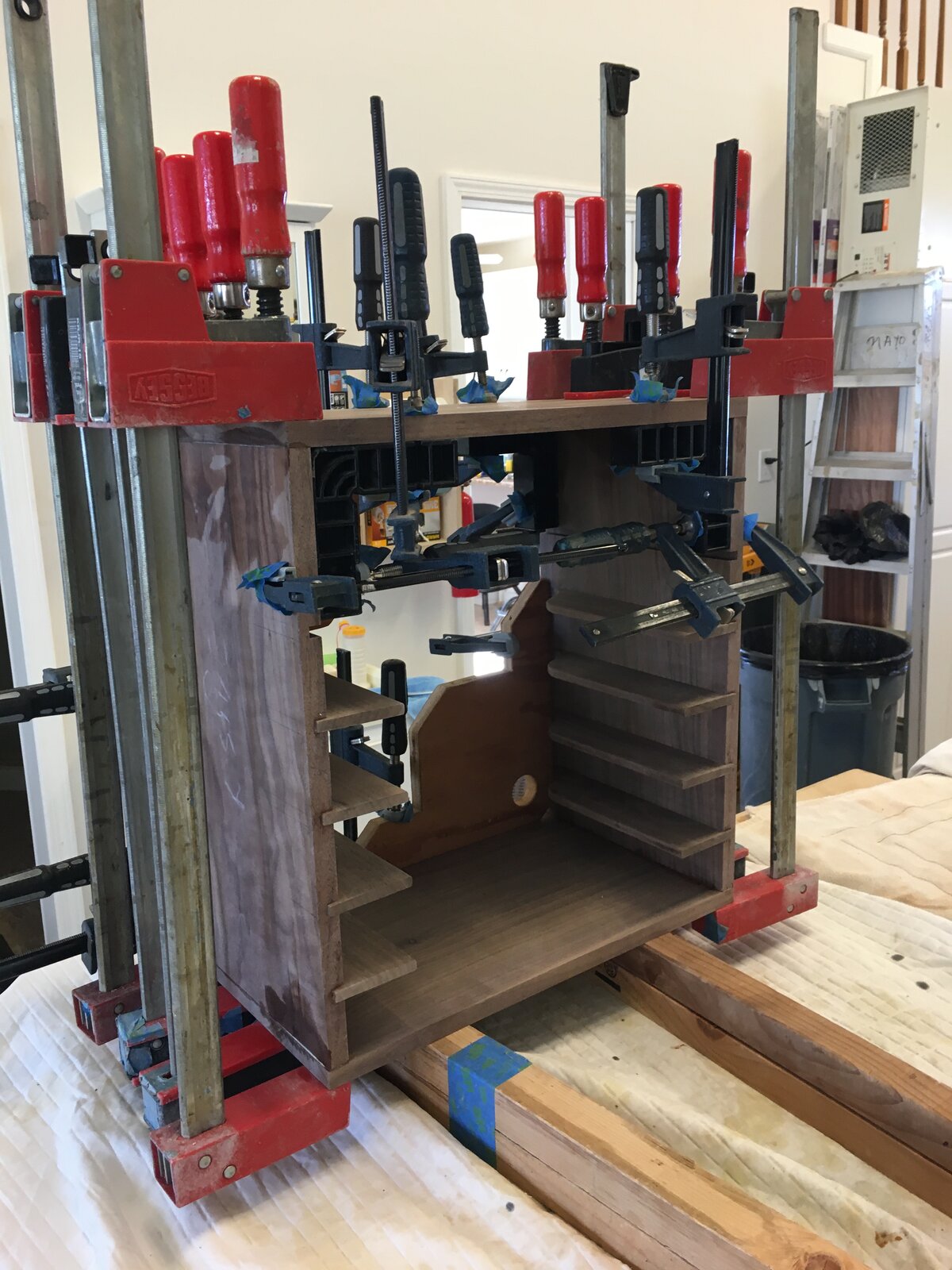

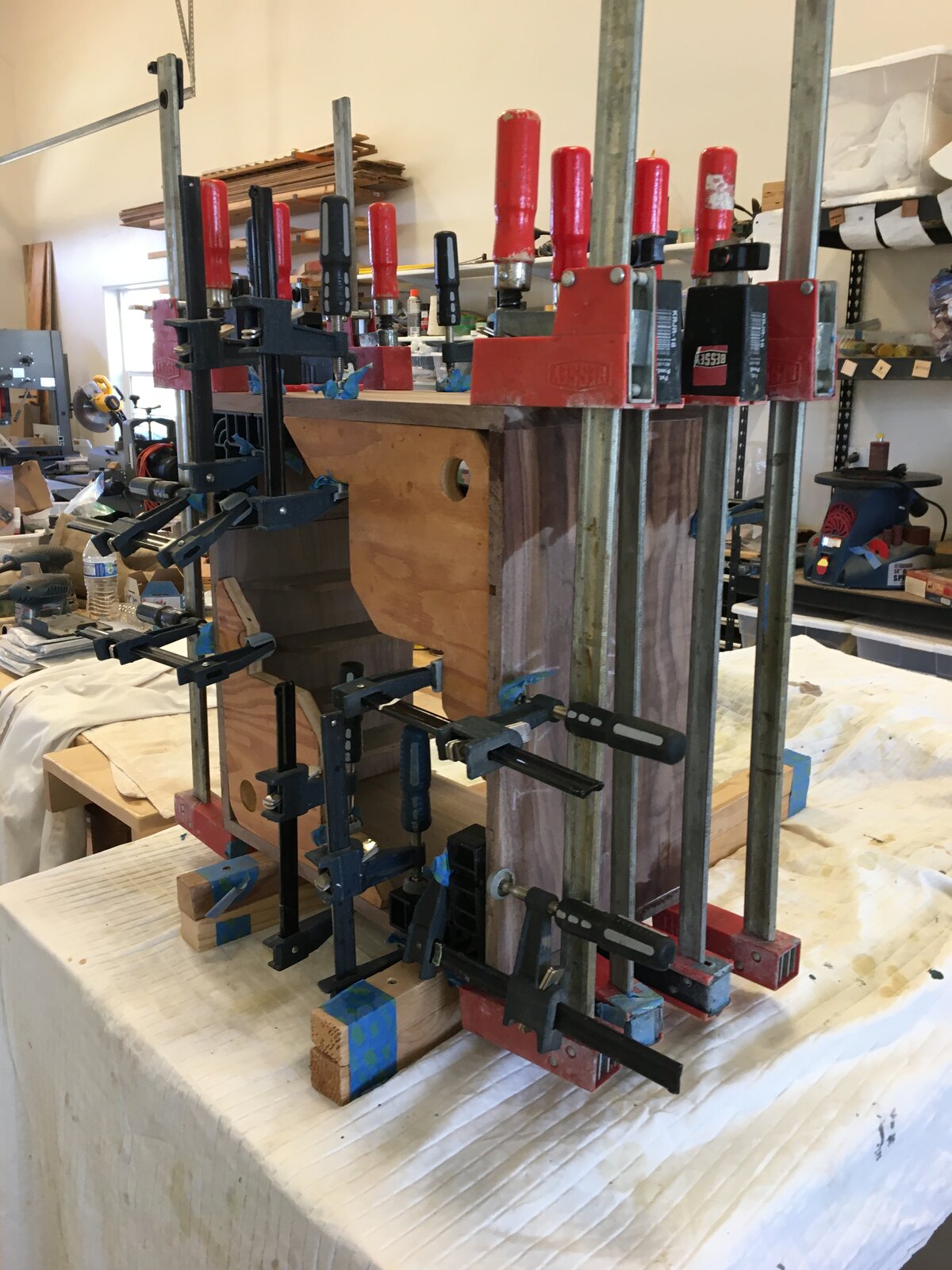

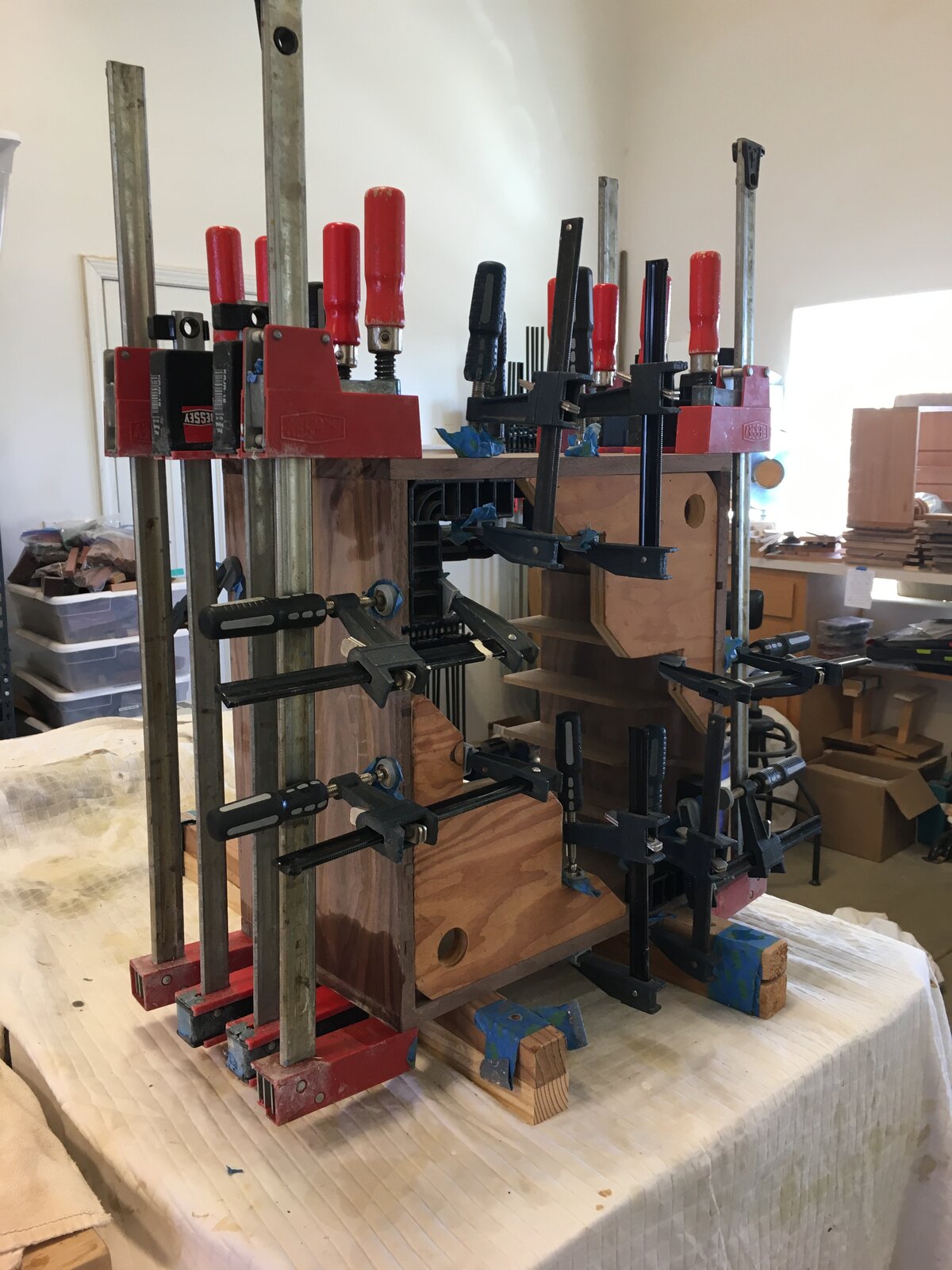

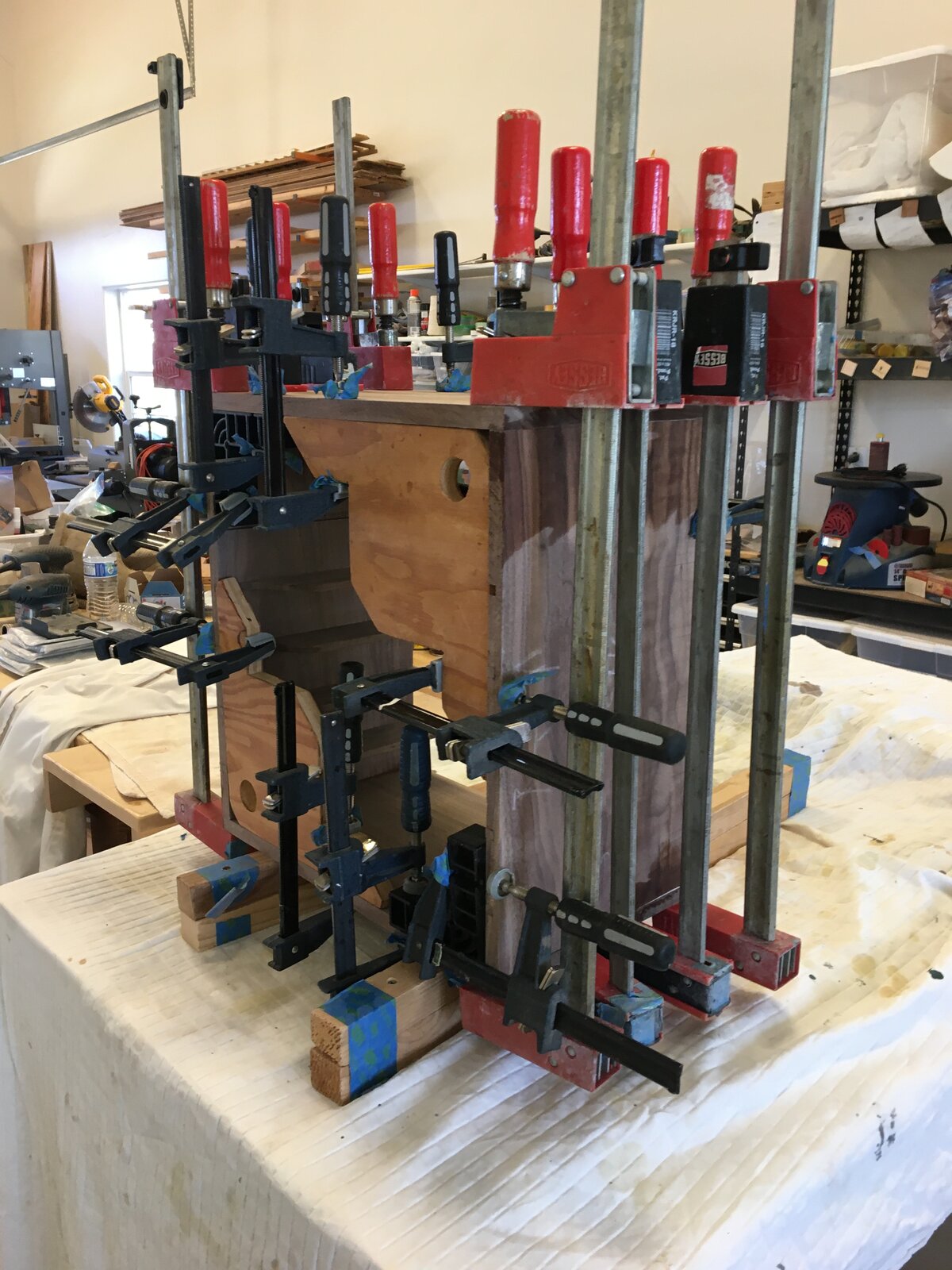

Here is the walnut box after four-sided case glue up. It probably takes a village too, but boxes like this use all your clamps often.


Attachments

  • E62911AD-3077-4802-93EE-DF525FC652CB.jpeg
    265.9 KB · Views: 62
  • 94E44078-3E8F-4DDE-B111-E346056AD68A.jpeg
    296 KB · Views: 66
  • 8C609D41-8043-49B3-B82E-371B763DE744.jpeg
    287.3 KB · Views: 64

mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
11,192
Location
Medina, Ohio
Thanks for the photos Mark. As beautiful as the finished boxes are, seeing the process gives a better appreciation for your skills. Very nice.


mmayo

Member
Joined
Jan 12, 2013
Messages
2,037
Location
Tehachapi, CA

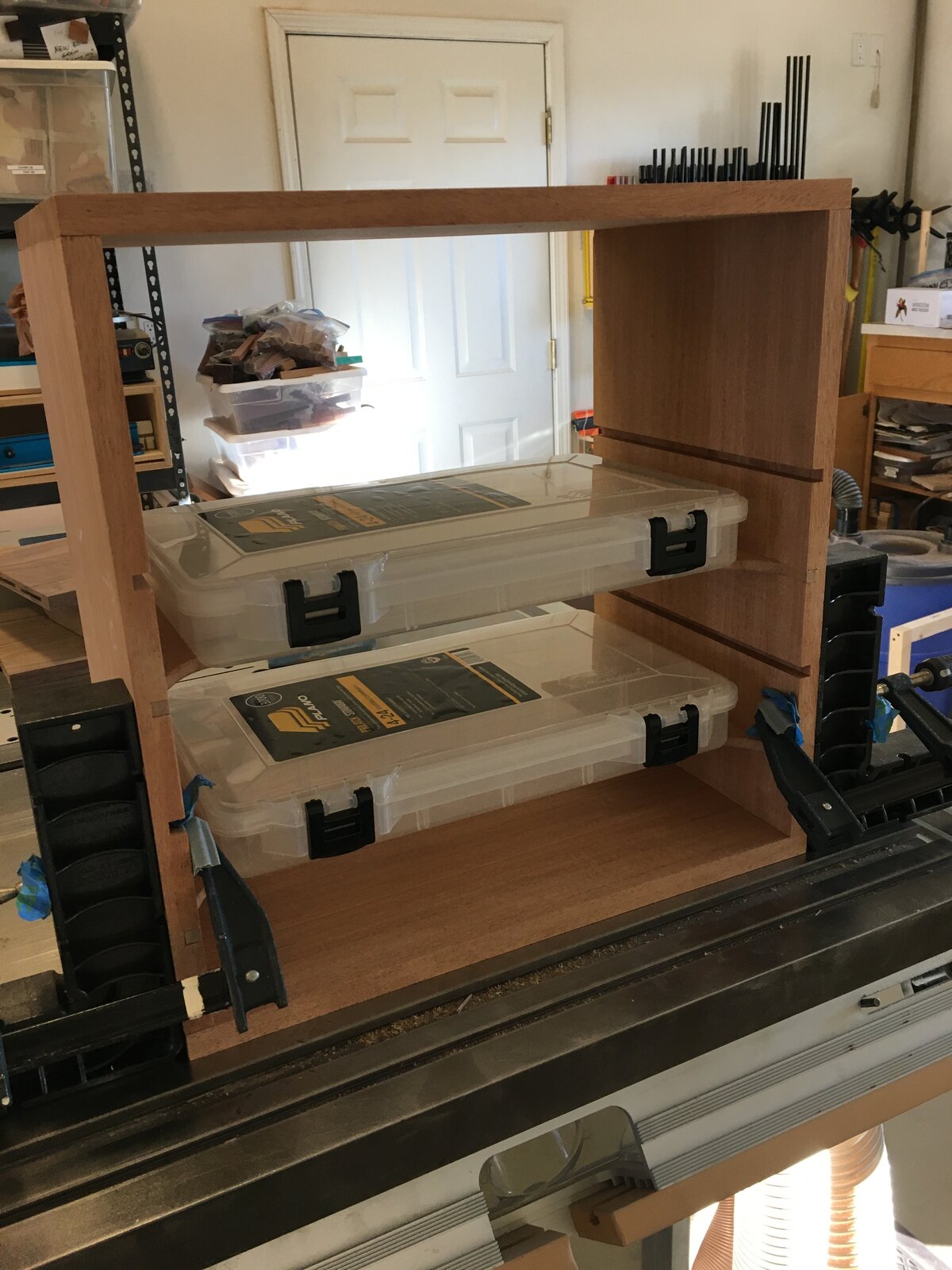

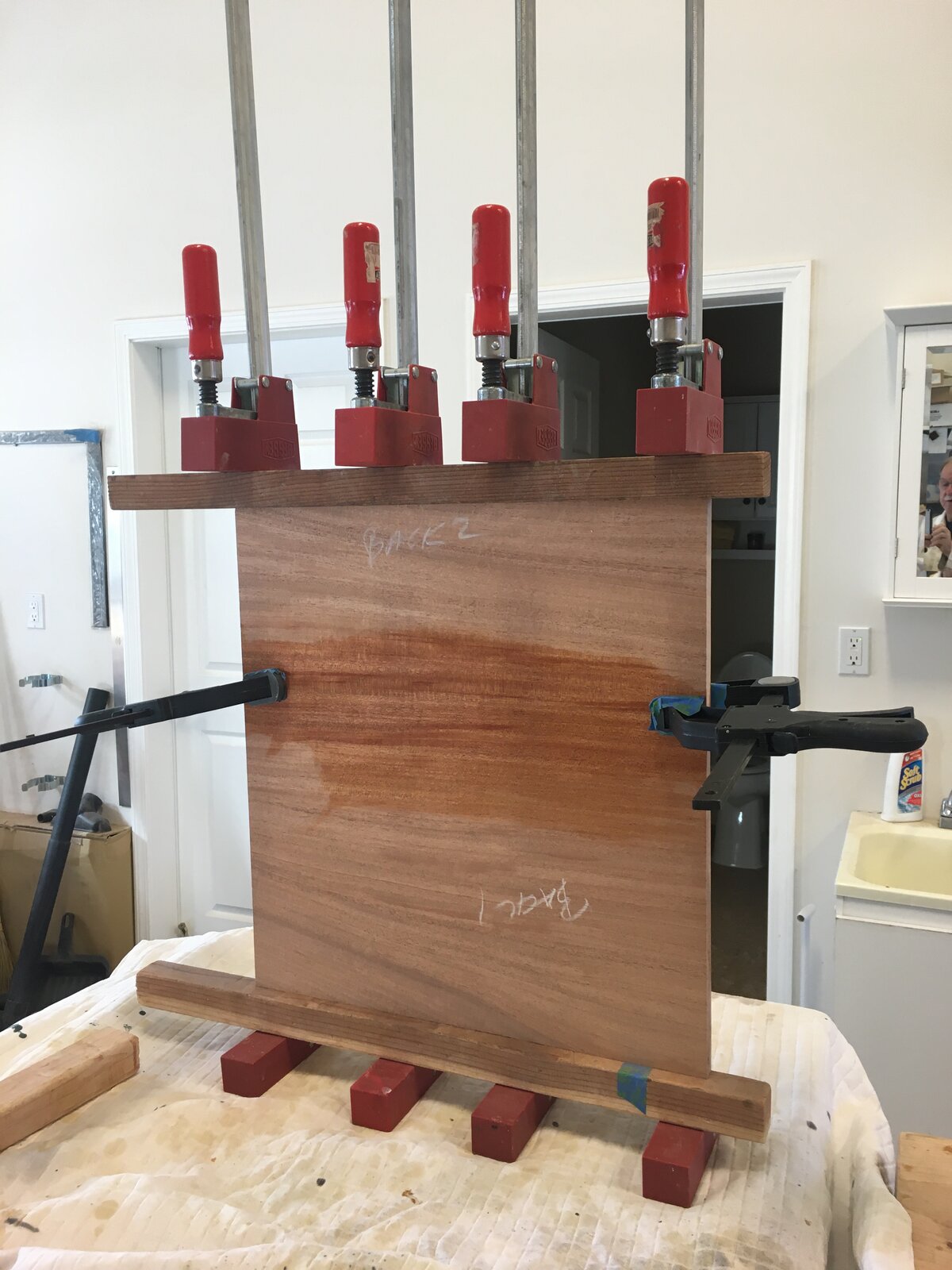

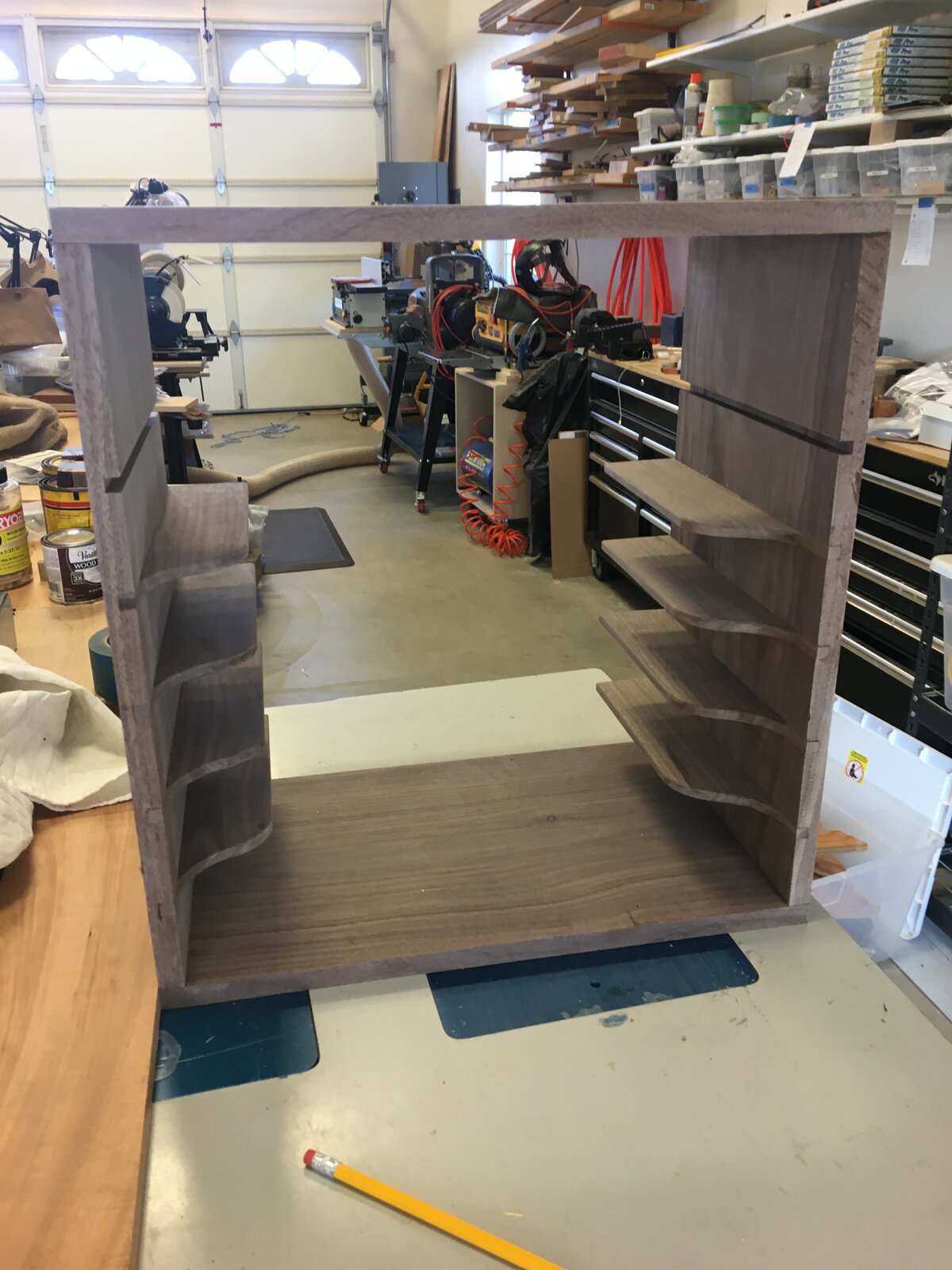

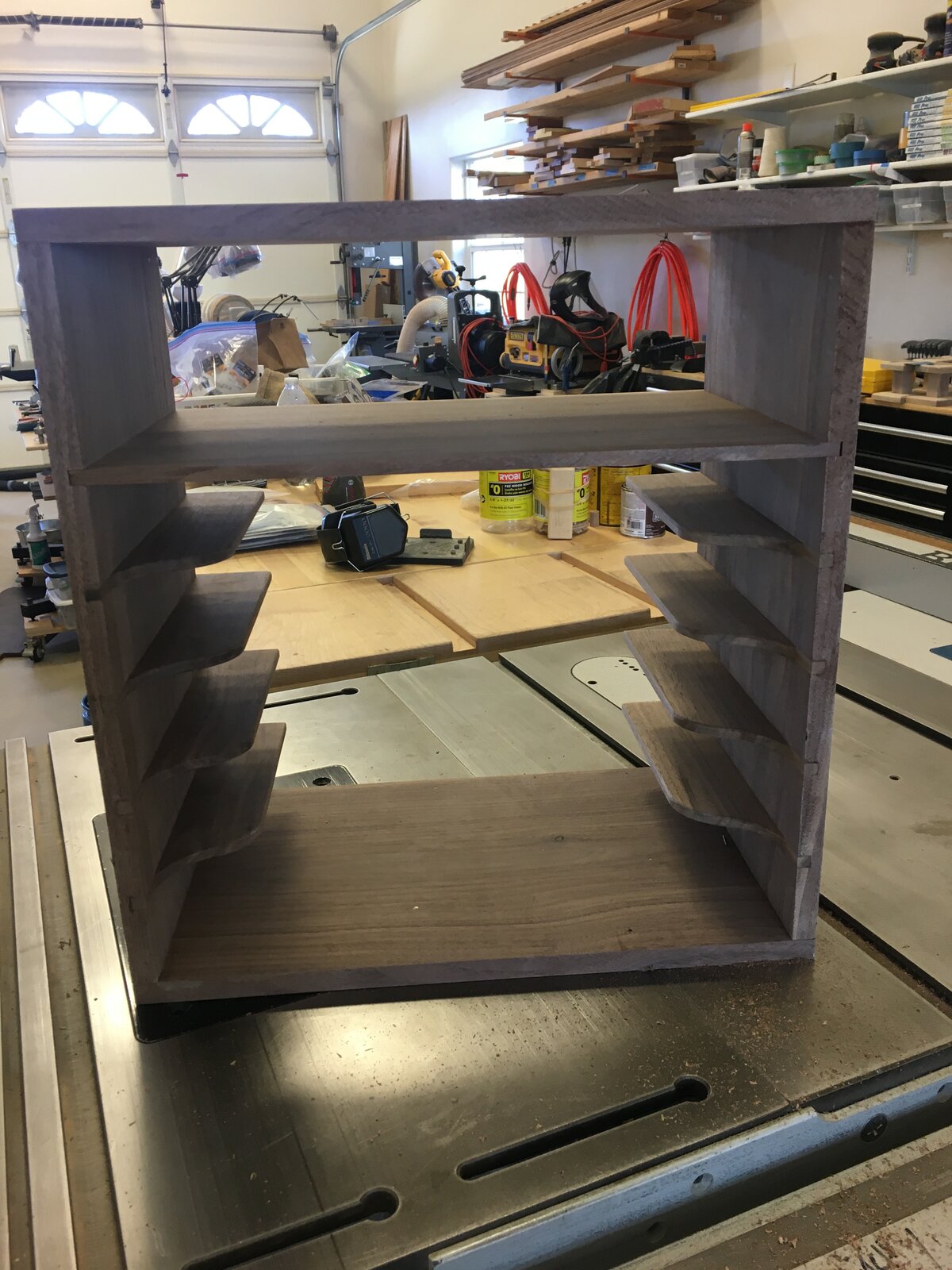

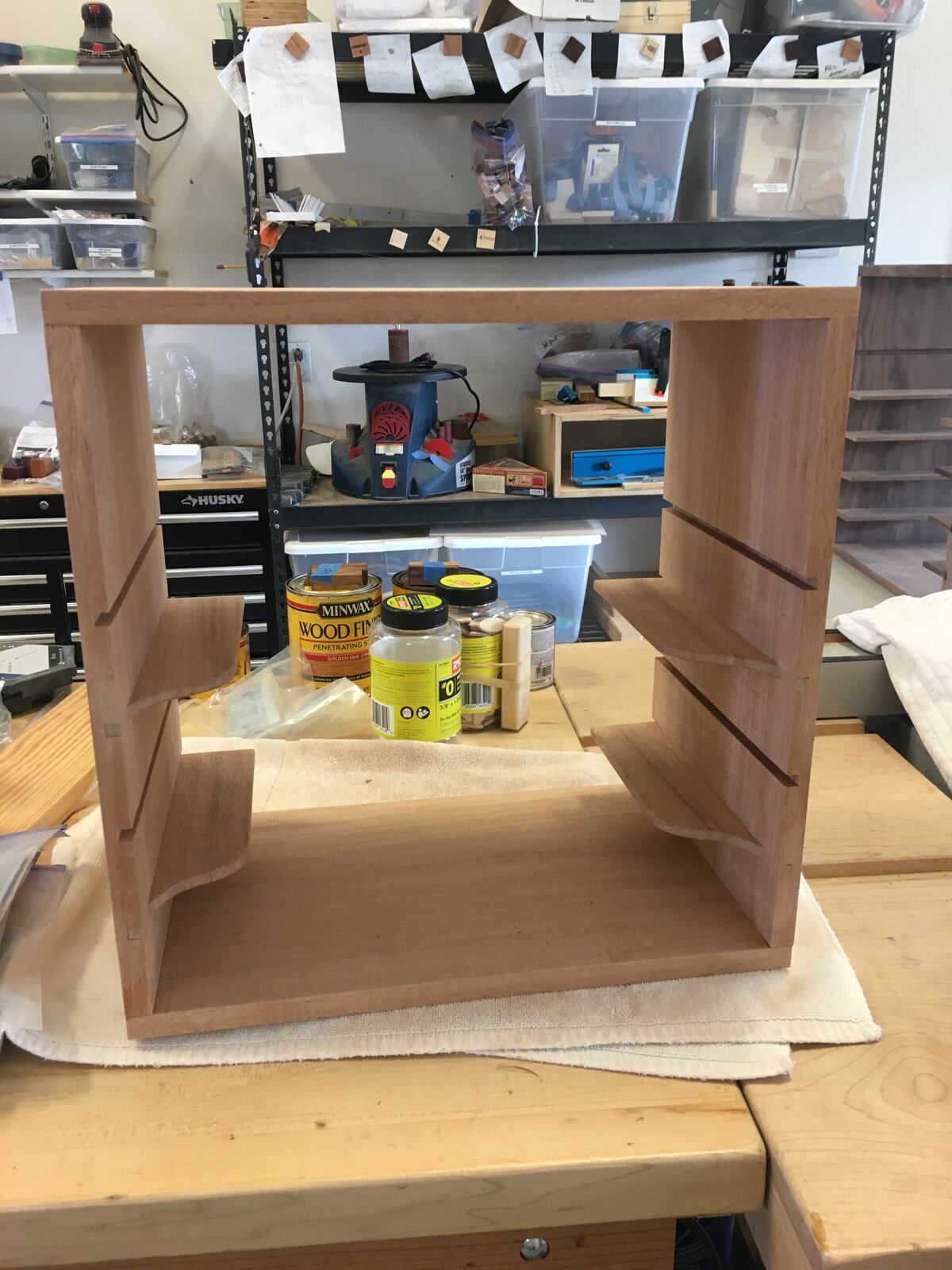

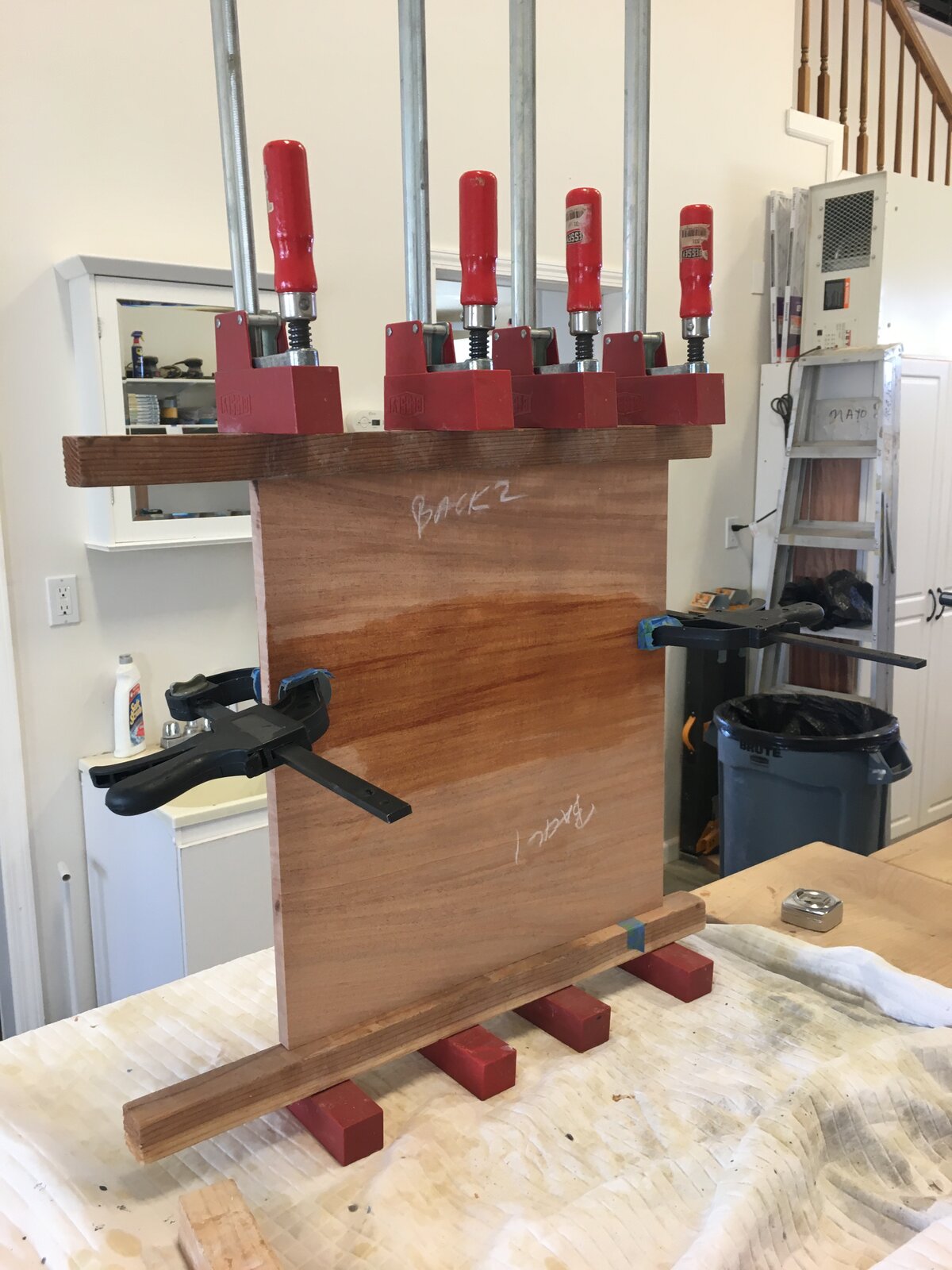

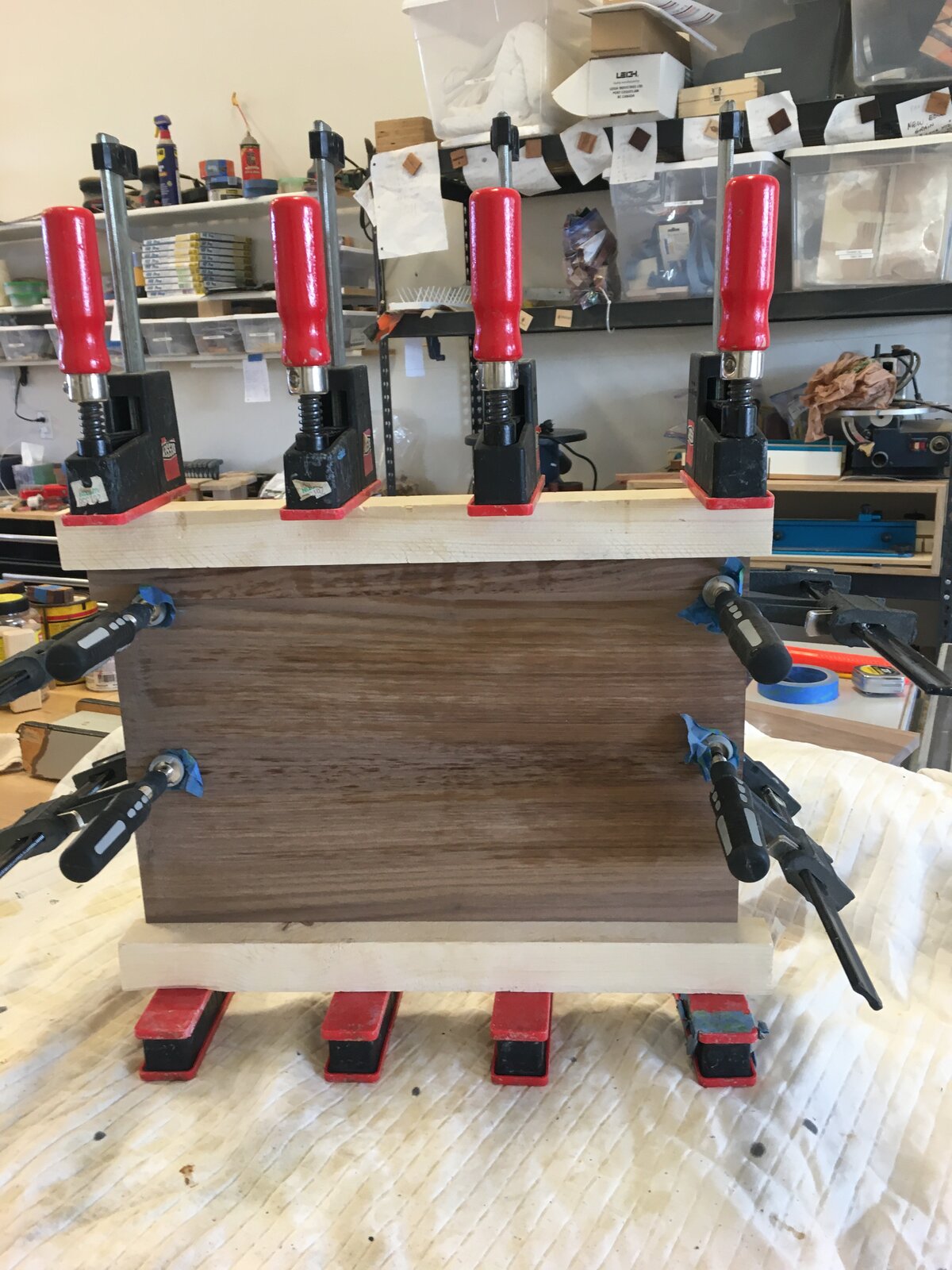

They are both progressing again after 30 hours of power outage. Here are the cases with tray shelves without clamps. Large 16.5”x16.5” panels are needed for the backs of each box. Trees are not always accommodating so glue ups are needed. The top region of the box has a full size shelf that needed a glue up. The mahogany box is customized with a second full size shelf in the middle and only room for three plastic trays. Not shown are the backs after many light passes through the drum sander which made them smooth and uniform.

Tomorrow the back or possibly both backs will get installed with 12 biscuits.


Attachments

  • C67961C5-4FDF-472A-A4CD-8EF9FBF98E22.jpeg
    276.9 KB · Views: 53
  • 684E6F94-6642-47B2-9AB8-B6276E37A6D1.jpeg
    242 KB · Views: 44
  • E412620E-5F14-4518-8C83-2AE8FDDF9115.jpeg
    255.2 KB · Views: 43
  • AC7DFE05-738E-4905-B6BF-05A1FB171180.jpeg
    240.2 KB · Views: 43
  • 7489DFEA-A959-4199-AFA2-406E6F0FEAAE.jpeg
    223.4 KB · Views: 42
  • D0AE9A48-B38F-4E03-B558-2050CE893F78.jpeg
    295.1 KB · Views: 45
  • 6D9A99A5-C525-41DB-B574-4F5BEC6AAF50.jpeg
    292.4 KB · Views: 53
Last edited:

mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
11,192
Location
Medina, Ohio
Very nice Mark. I'd love to see pictures of your shop. My wife and I need to downsize in the next 2-4 years and I can easily play in a much smaller footprint. Just getting ideas - small projects. A single garage size would probably be ample.


mmayo

Member
Joined
Jan 12, 2013
Messages
2,037
Location
Tehachapi, CA
Very nice Mark. I'd love to see pictures of your shop. My wife and I need to downsize in the next 2-4 years and I can easily play in a much smaller footprint. Just getting ideas - small projects. A single garage size would probably be ample.
I’ll post shop photos in the shop section of IAP.

Last edited:

mmayo

Member
Joined
Jan 12, 2013
Messages
2,037
Location
Tehachapi, CA

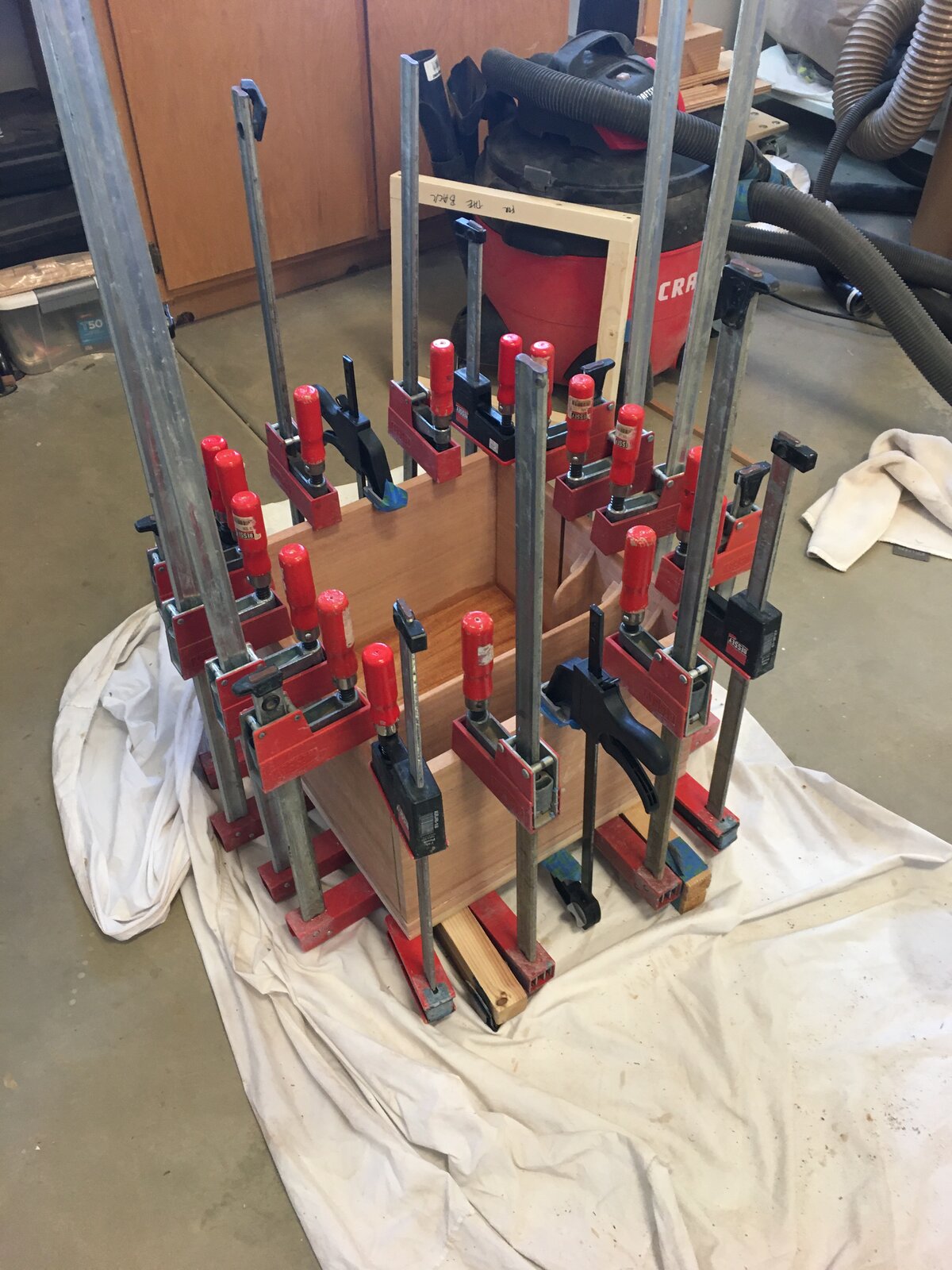

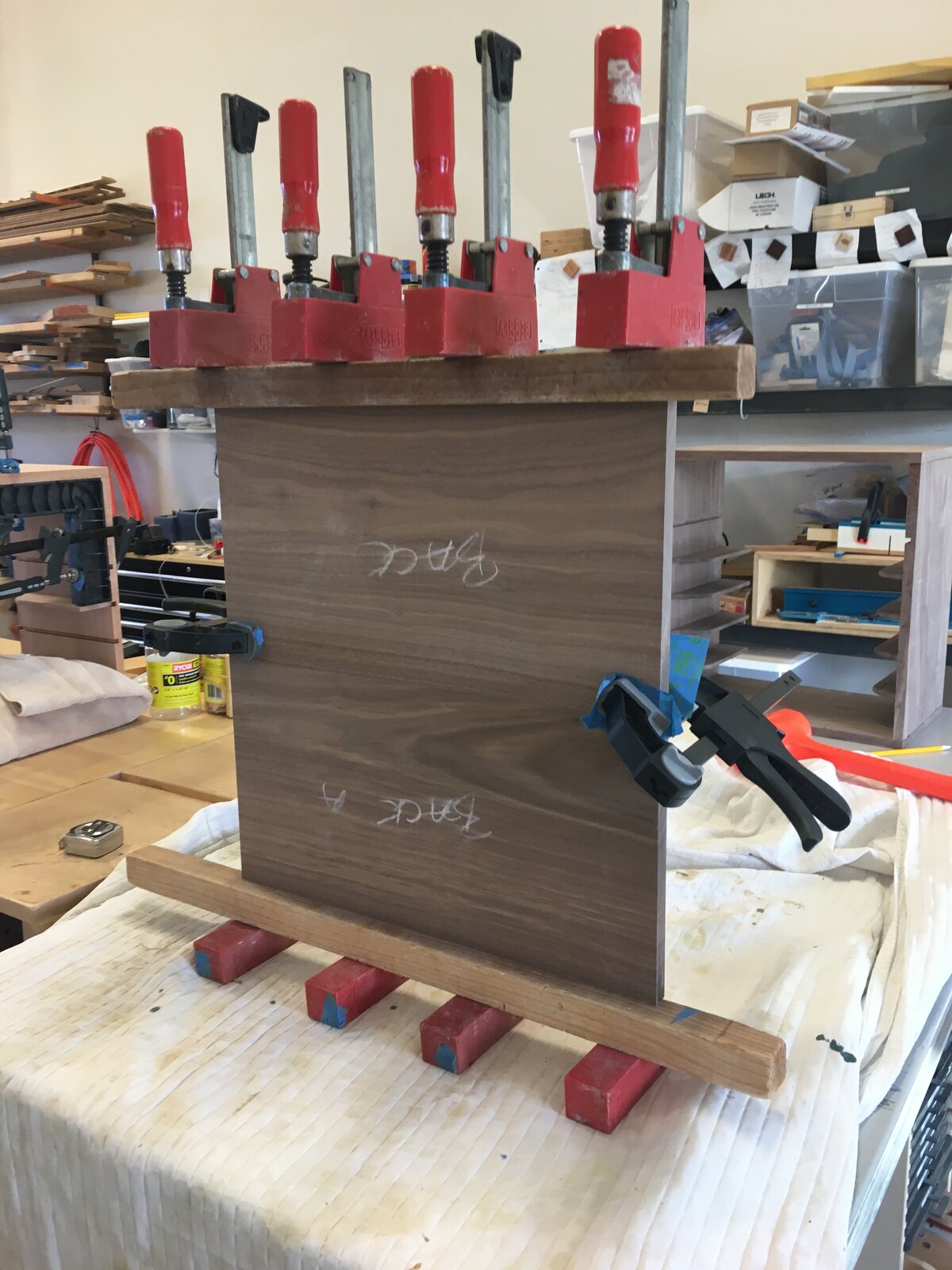

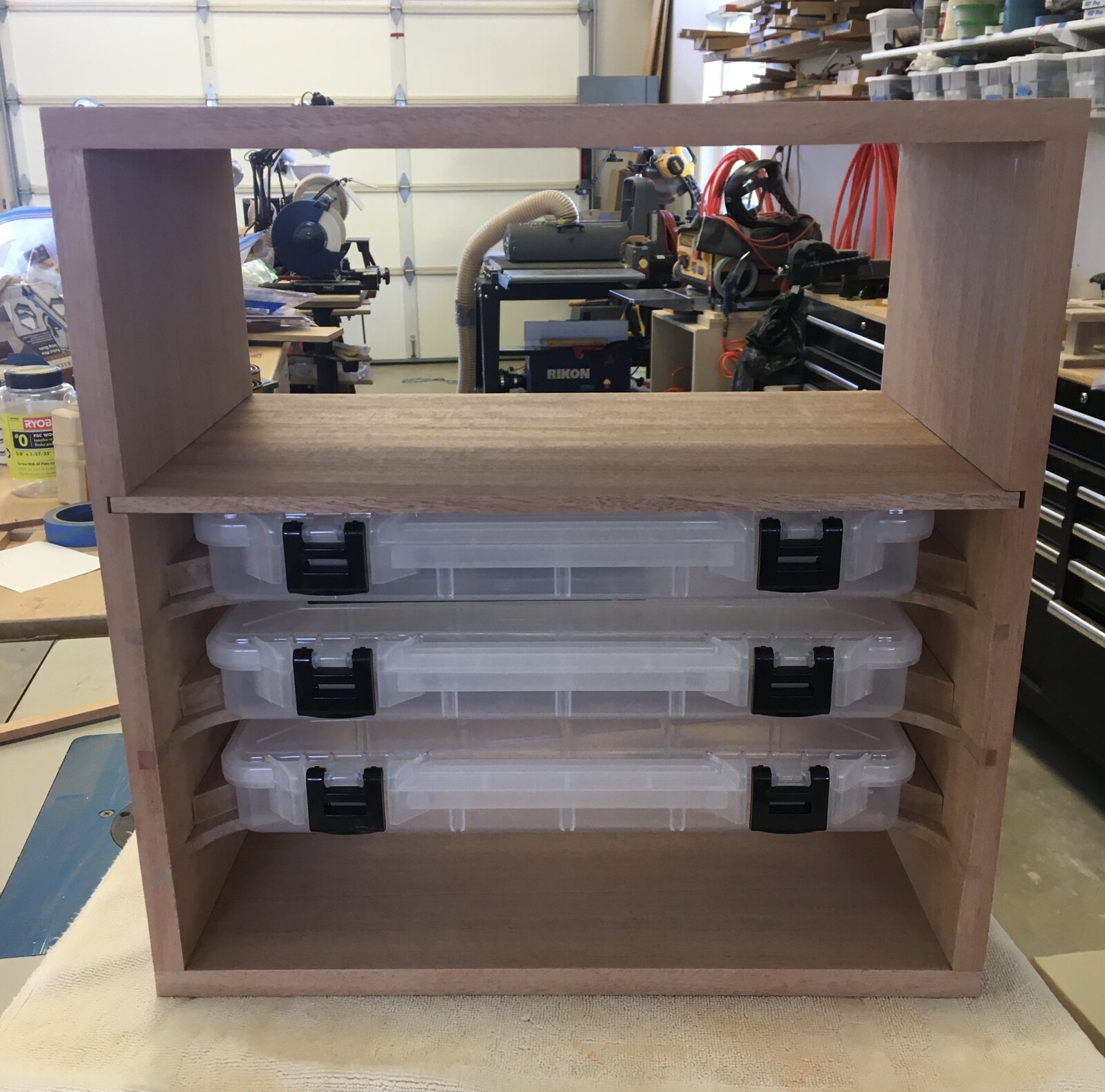

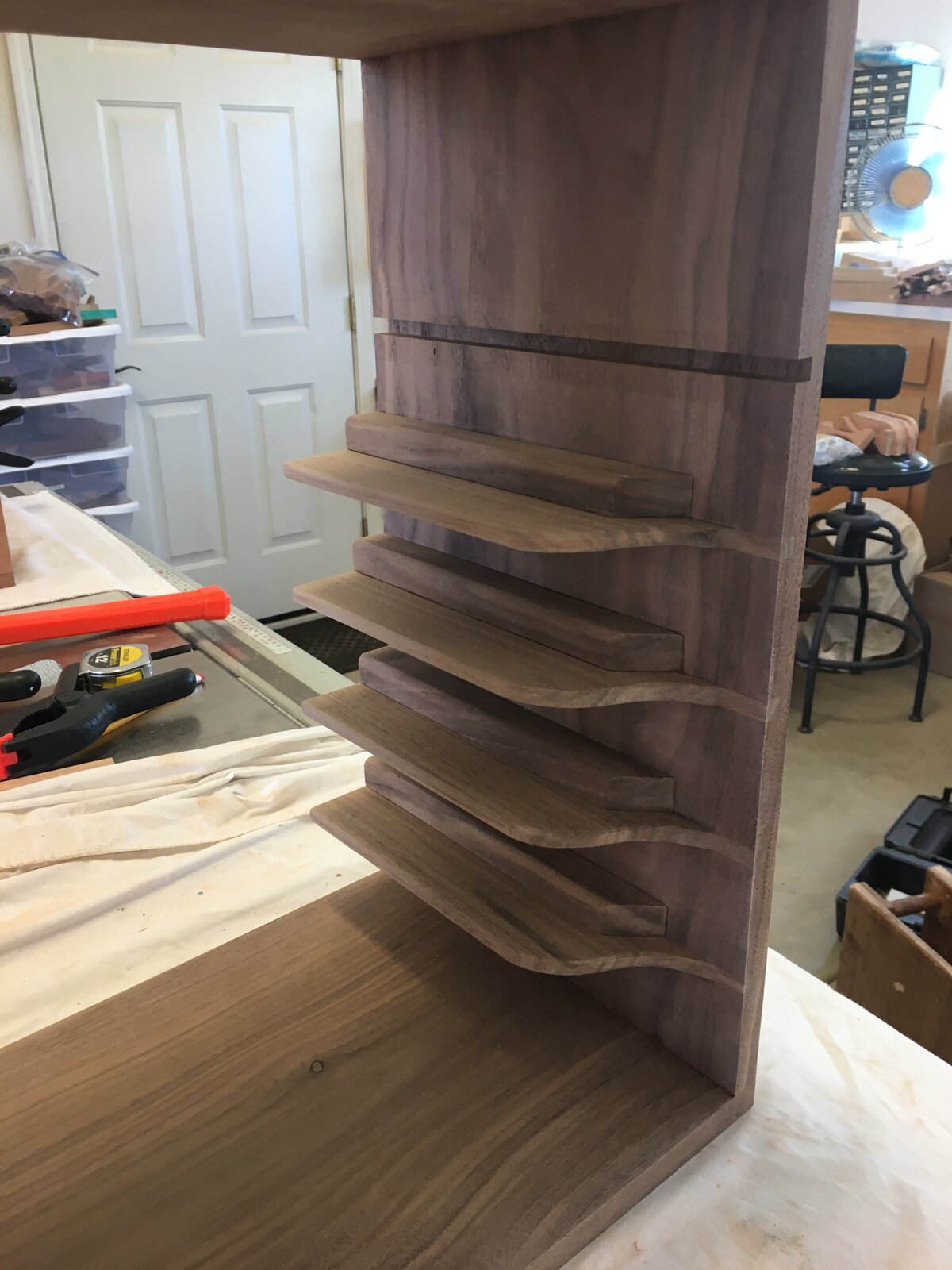

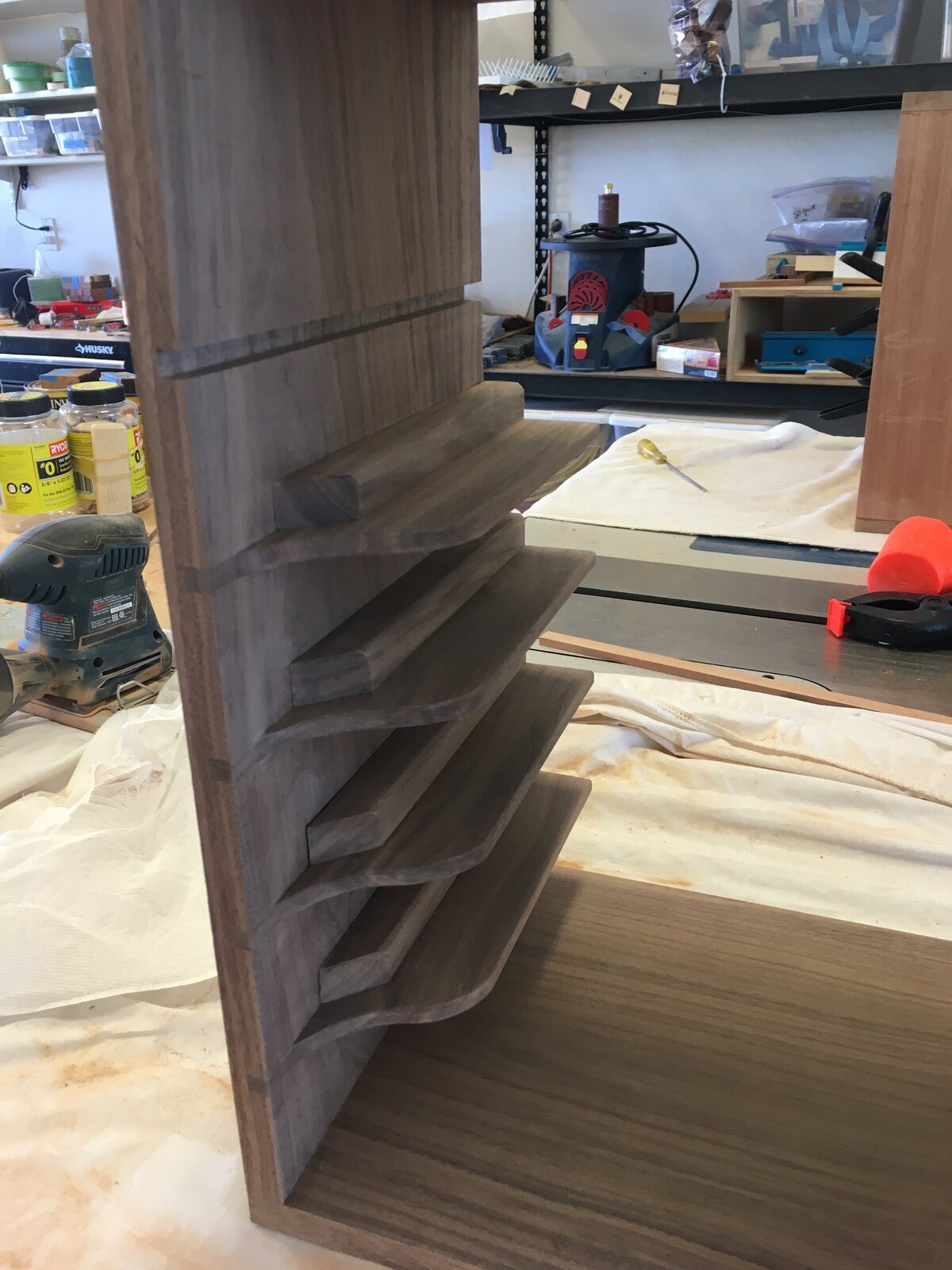

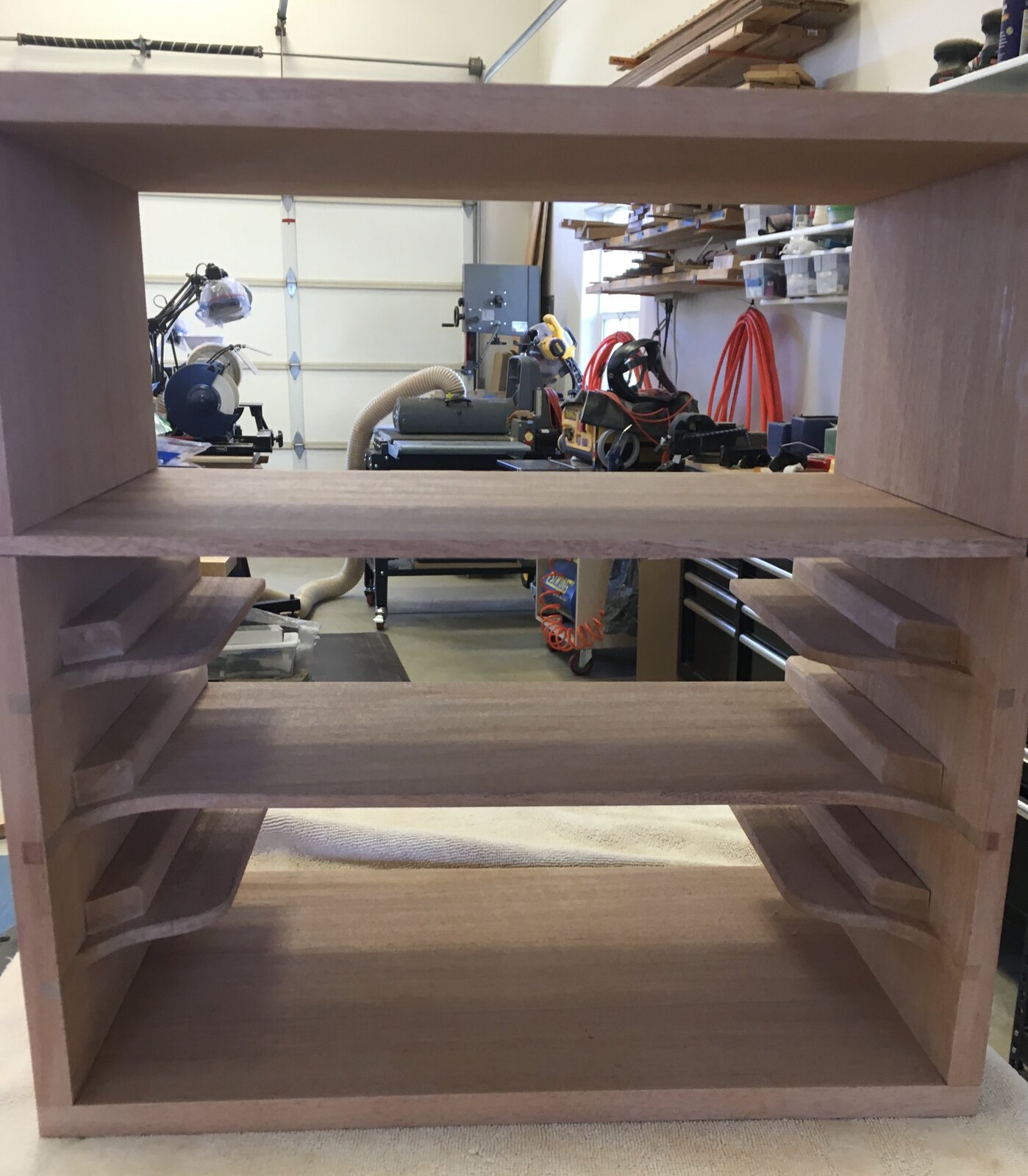

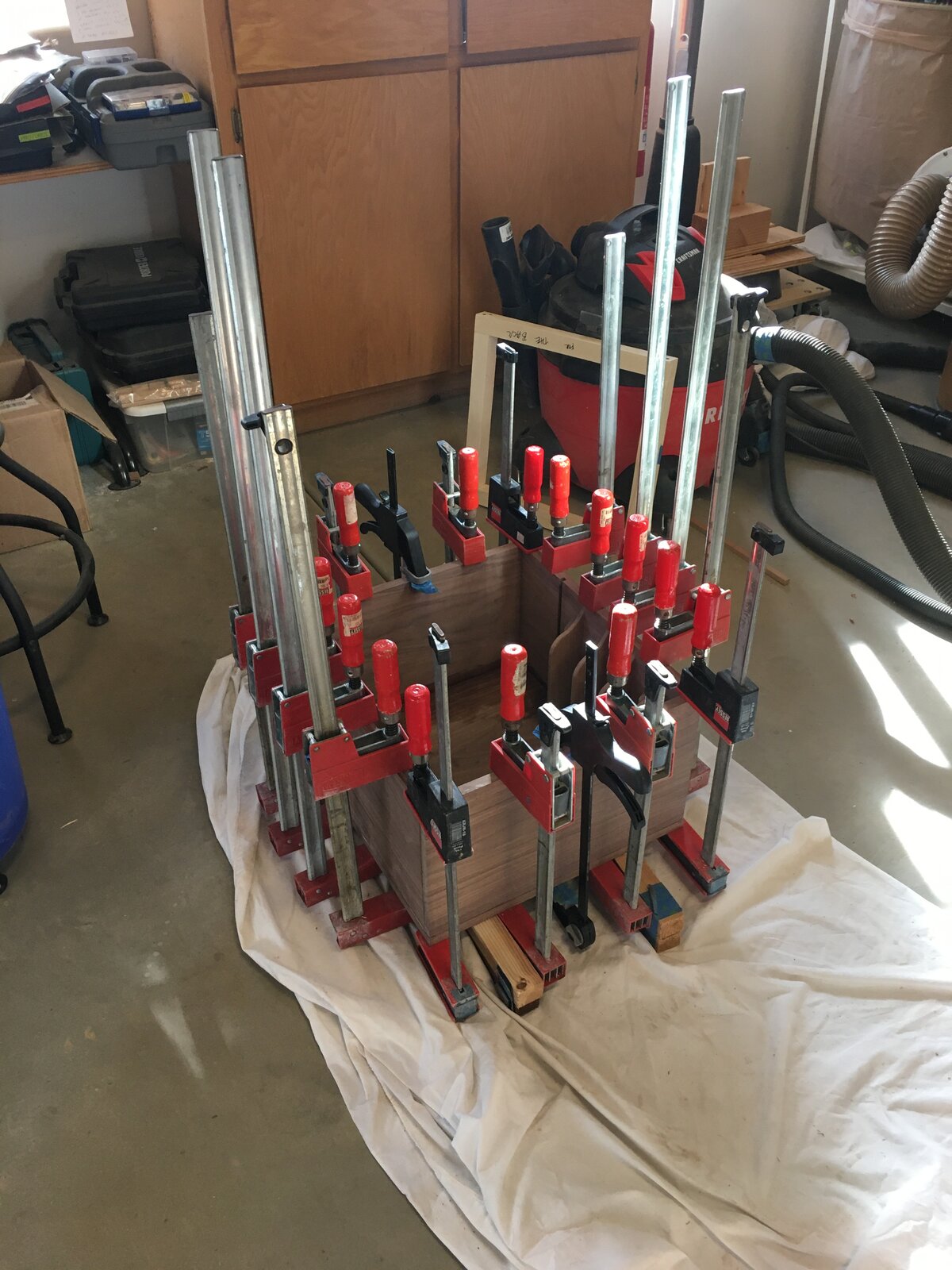

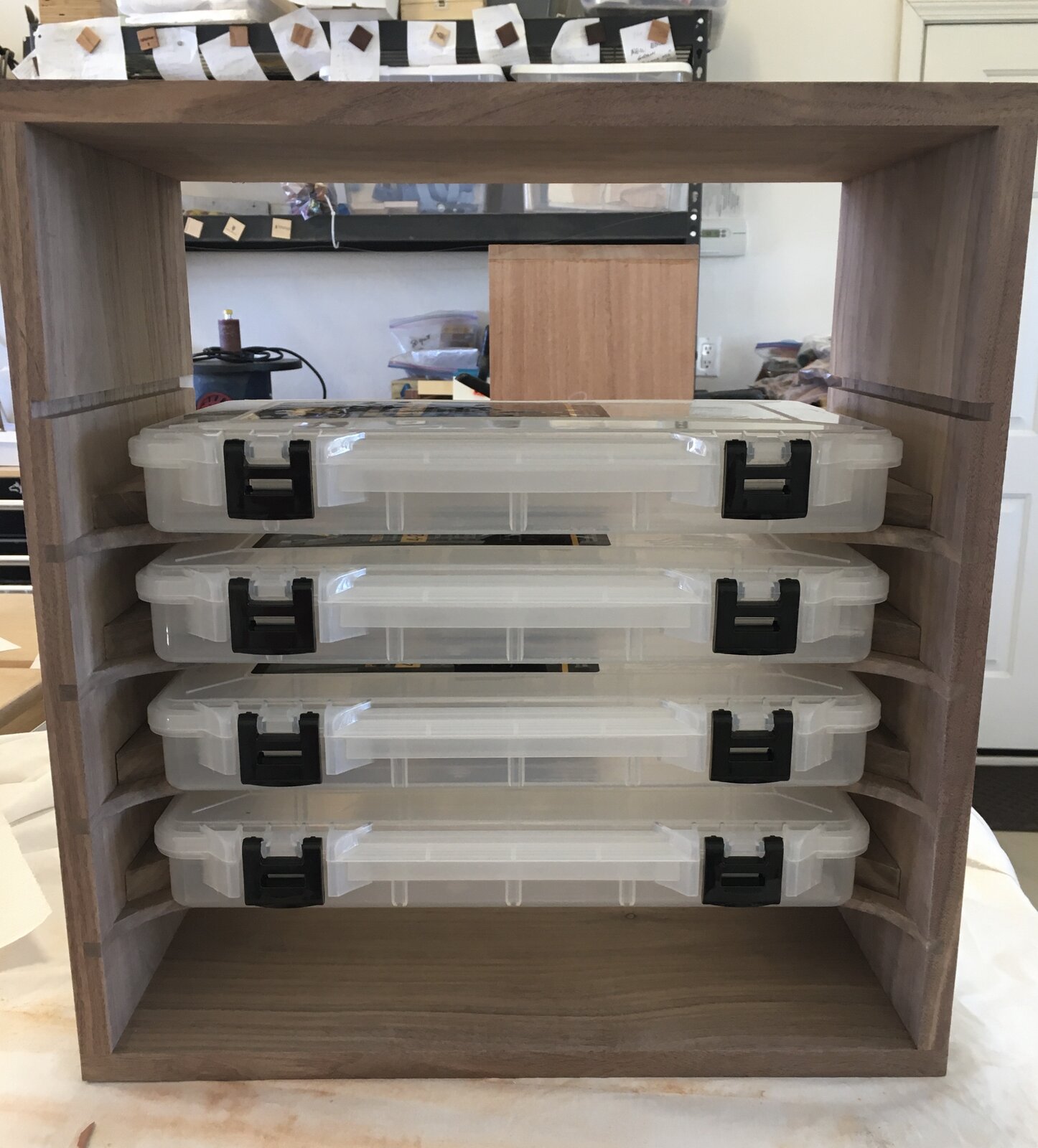

Before it snows I hustled to get the backs on after attaching the trays spacers. Needless to say it requires many good clamps to get it tightened a made a void free attachment.

🎶 Let it snow, let it snow, let it snow 🎶


Attachments

  • 3C49846C-C79F-489F-9805-7018B8A885E1.jpeg
    292.4 KB · Views: 43
  • AA783B98-D681-4B9E-92B1-7293BCC1C741.jpeg
    238.7 KB · Views: 41
  • 4DCEB586-1174-4E31-9C92-EFC04909112E.jpeg
    216.9 KB · Views: 41
  • 86594075-101D-4E30-9457-3868D86B2F6F.jpeg
    257 KB · Views: 44
  • 70EB0B2F-2643-4372-94E1-83A8118C6580.jpeg
    248.9 KB · Views: 46
  • D1018BB6-82F8-46E4-9BFB-689070CDFF0A.jpeg
    280.1 KB · Views: 43
  • C5FBF074-422D-48DF-AD69-D6B6A643C3D7.jpeg
    293.5 KB · Views: 44
  • 3DC17EC8-D11B-44C3-BBA7-D0D6D7C0590E.jpeg
    229.9 KB · Views: 45
  • DE9F517F-99E2-48C1-8DF6-E564CF63D315.jpeg
    320.6 KB · Views: 52

howsitwork

Member
Joined
Jul 9, 2016
Messages
1,624
Location
Thirsk
OOOOH Im getting clamp envy !!

I kept telling my wife “You can never have too many clamps “and here’s photographic proof !!!

Nice work Mark.


mmayo

Member
Joined
Jan 12, 2013
Messages
2,037
Location
Tehachapi, CA

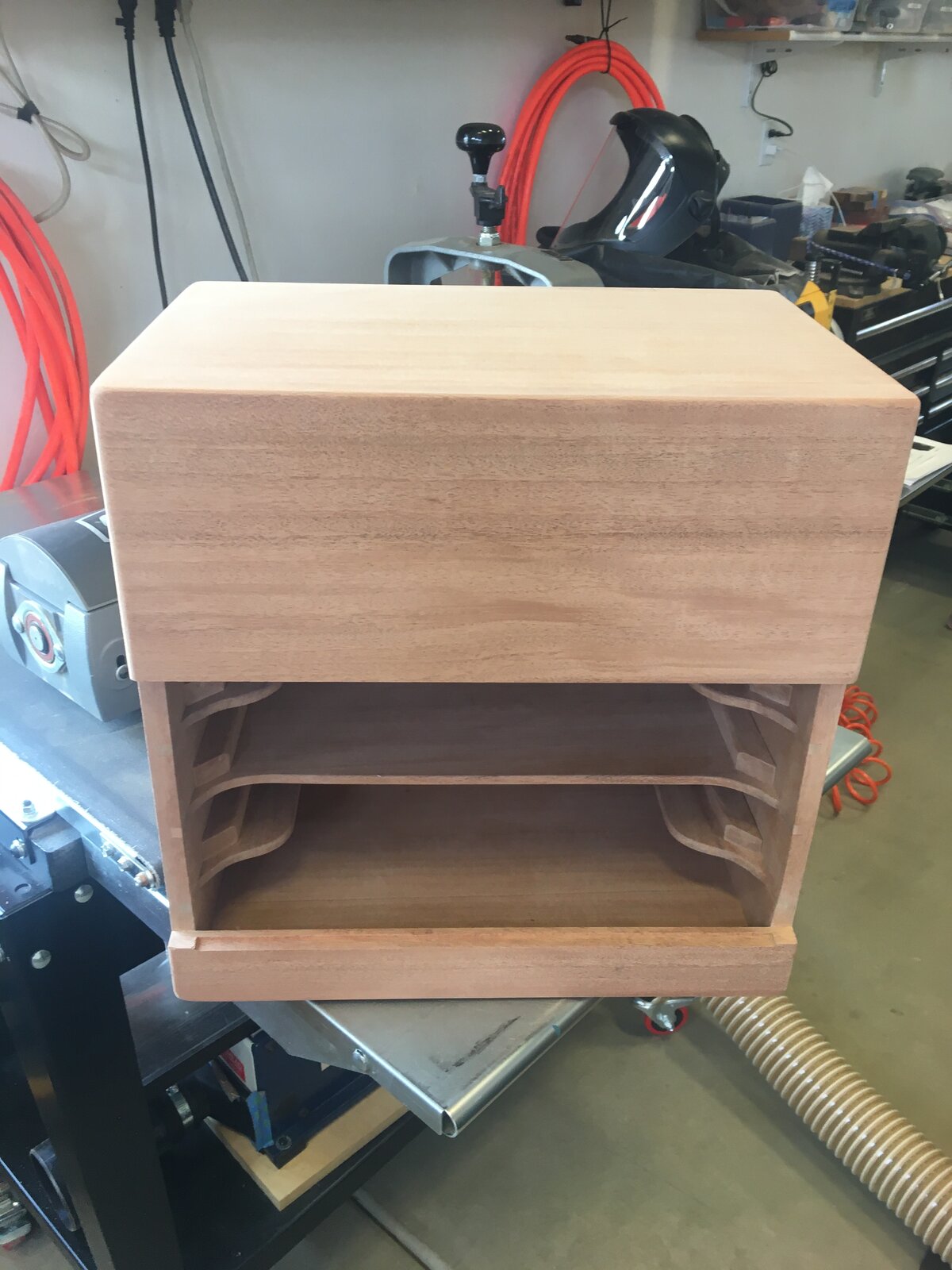

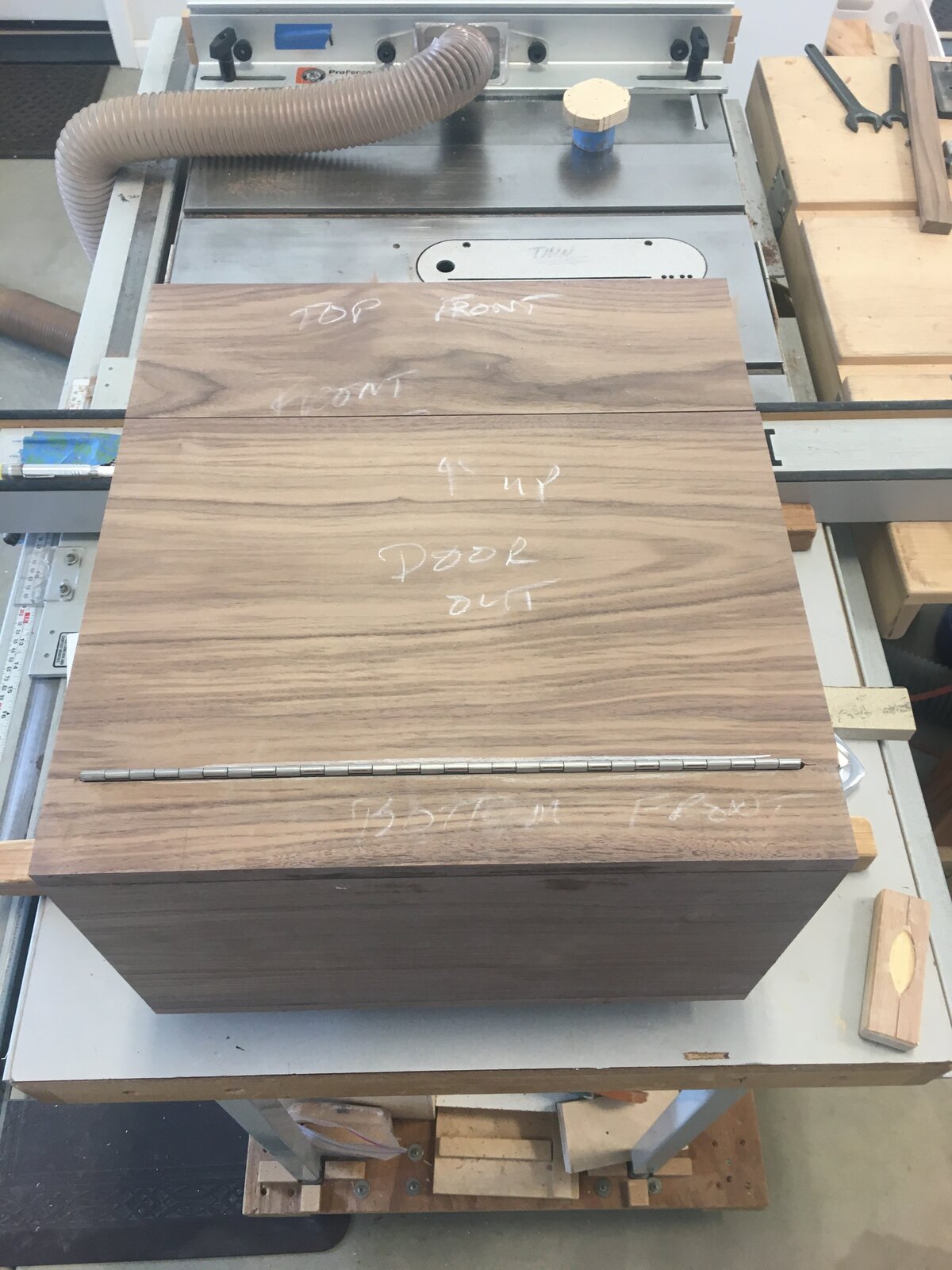

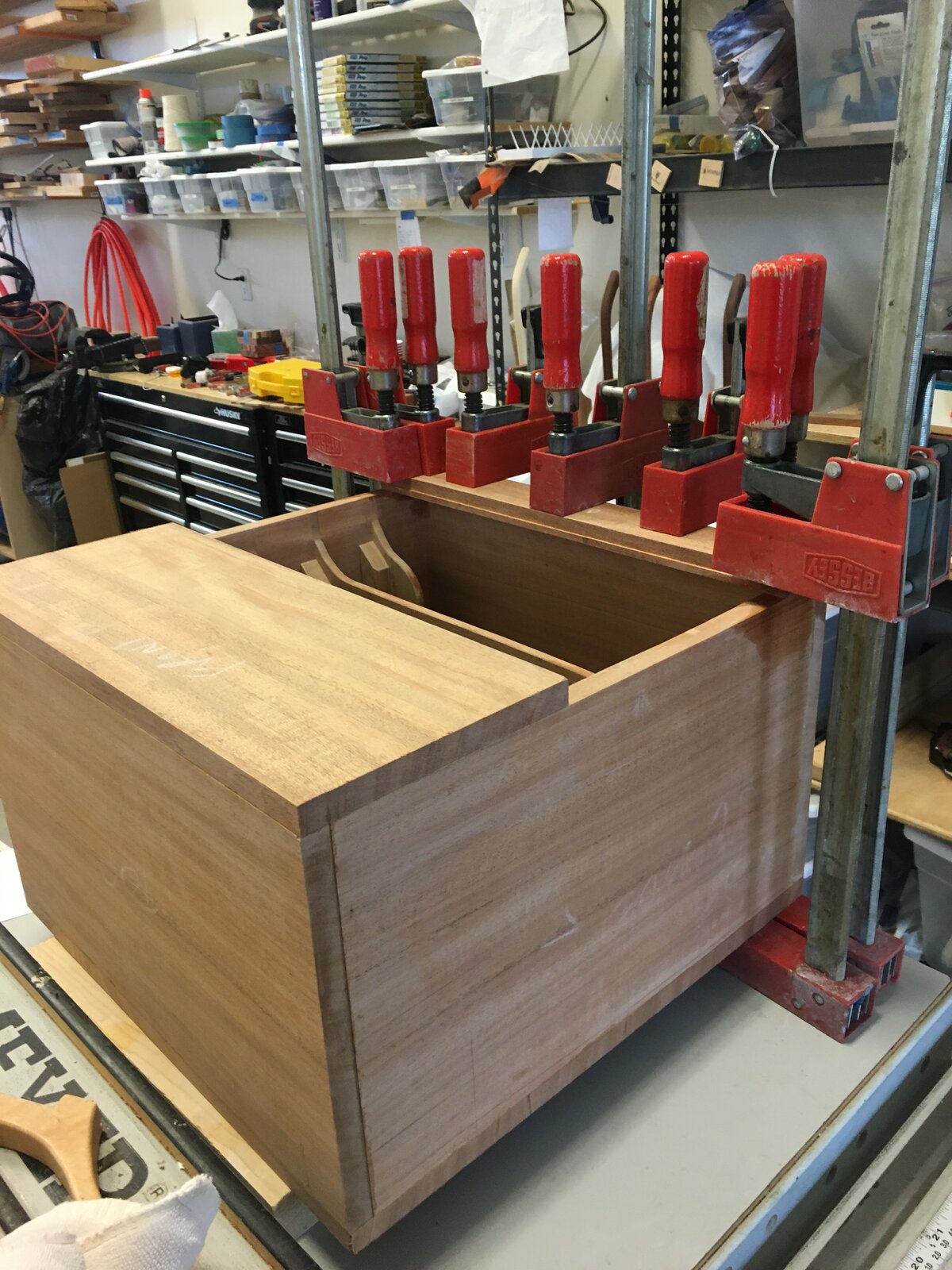

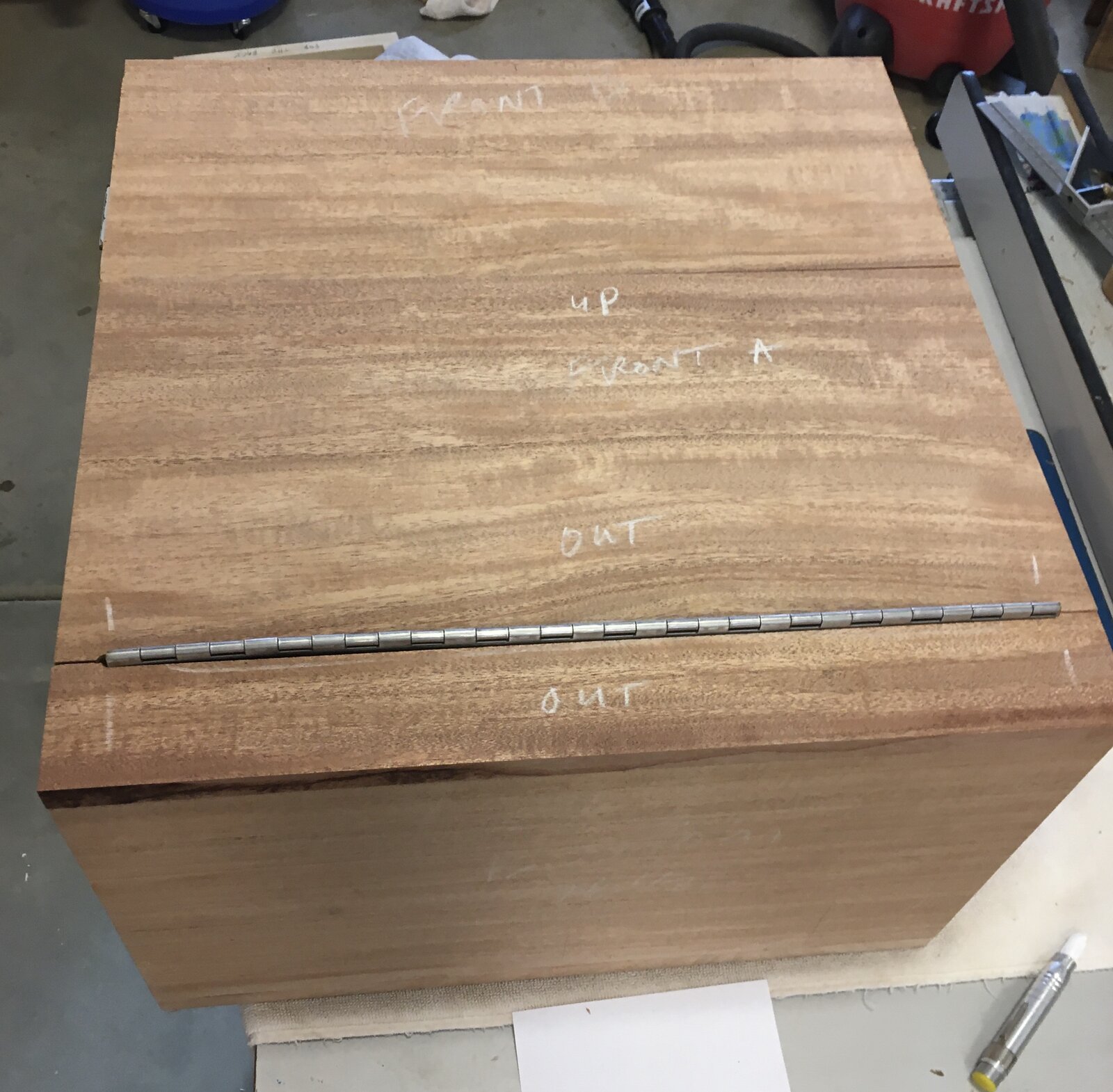

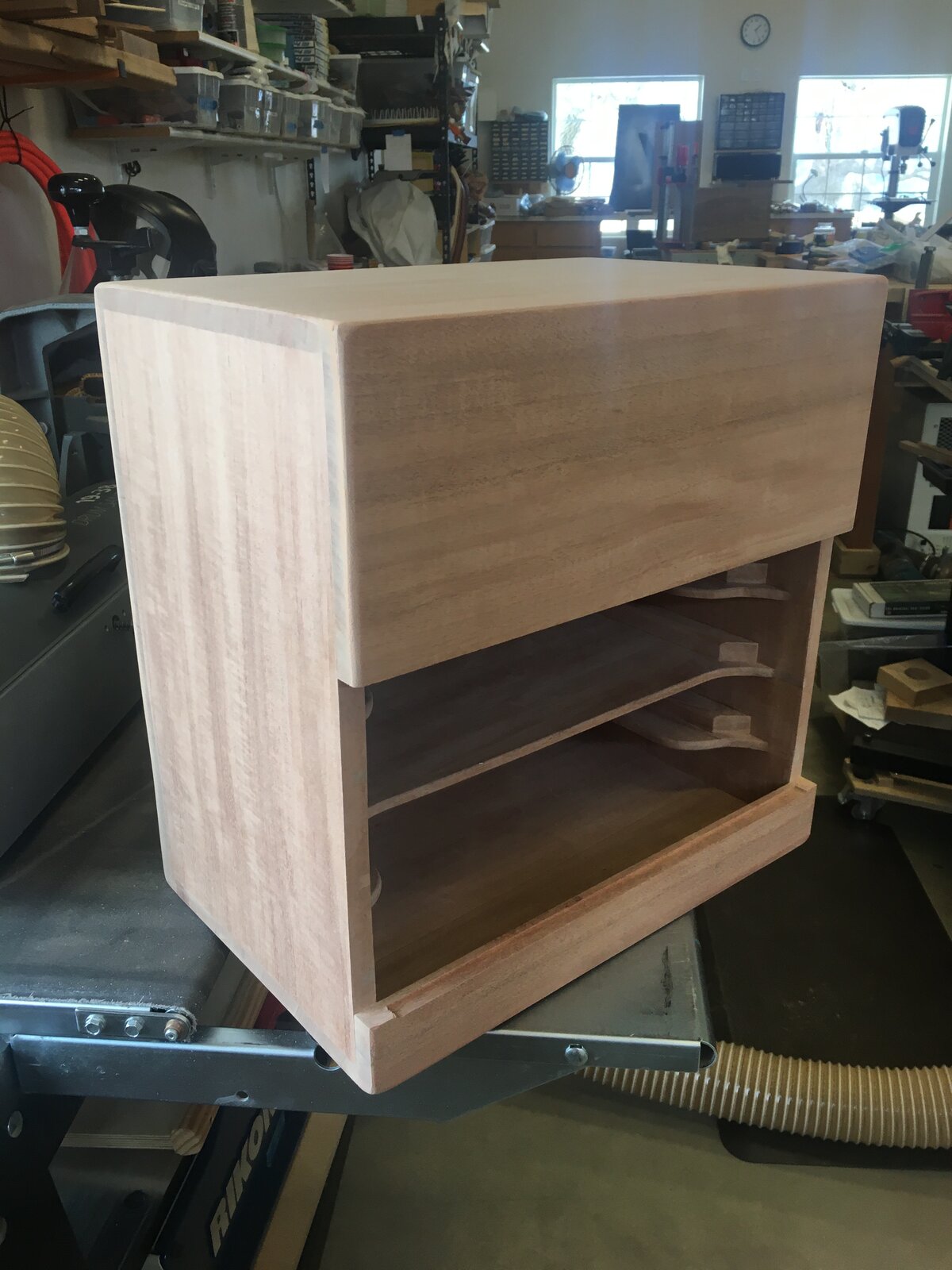

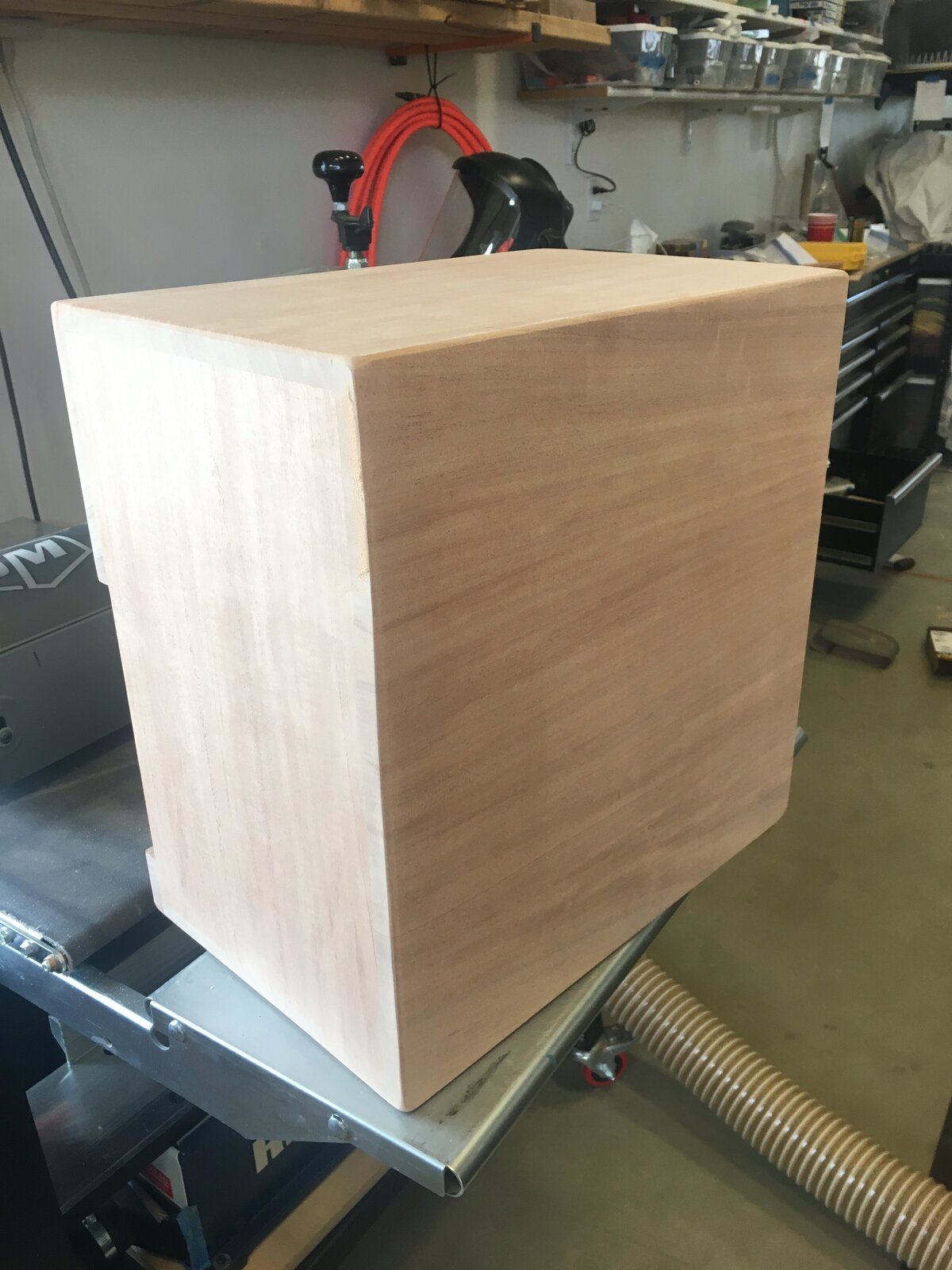

So after the blizzard snow storm and loss of internet and TV for a couple of days I’m back at it. The front needs to be carefully attached in stages with the hinge mortises routed before the bottom front gets glued in place. I feel better about my skills after a flush up the joints with 180 grit in the belt sander. The joints show little need for putty thank goodness. Even a hair width gap gets puttied anyway. Soon the whole box runs through the bandsaw to cut the top. That is a pucker event!


Attachments

  • 25AEBAF4-D78F-4245-98F9-4EF070D5690F.jpeg
    327.9 KB · Views: 32
  • 7E58A0A0-B696-4CDF-A5BE-11CD96F77BA1.jpeg
    315.9 KB · Views: 30
  • B54FB310-48C3-4C39-B8C4-28A6F38B90B3.jpeg
    257.2 KB · Views: 30
  • 513B0AD9-3A33-41BE-BDF5-159AB76B767B.jpeg
    217.7 KB · Views: 29
  • 59ADDDB6-D67E-4849-9498-73A58E1F5E43.jpeg
    218.4 KB · Views: 28
  • 1C41F3A9-8721-4654-9473-D0886B1F4041.jpeg
    204.5 KB · Views: 30

mmayo

Member
Joined
Jan 12, 2013
Messages
2,037
Location
Tehachapi, CA

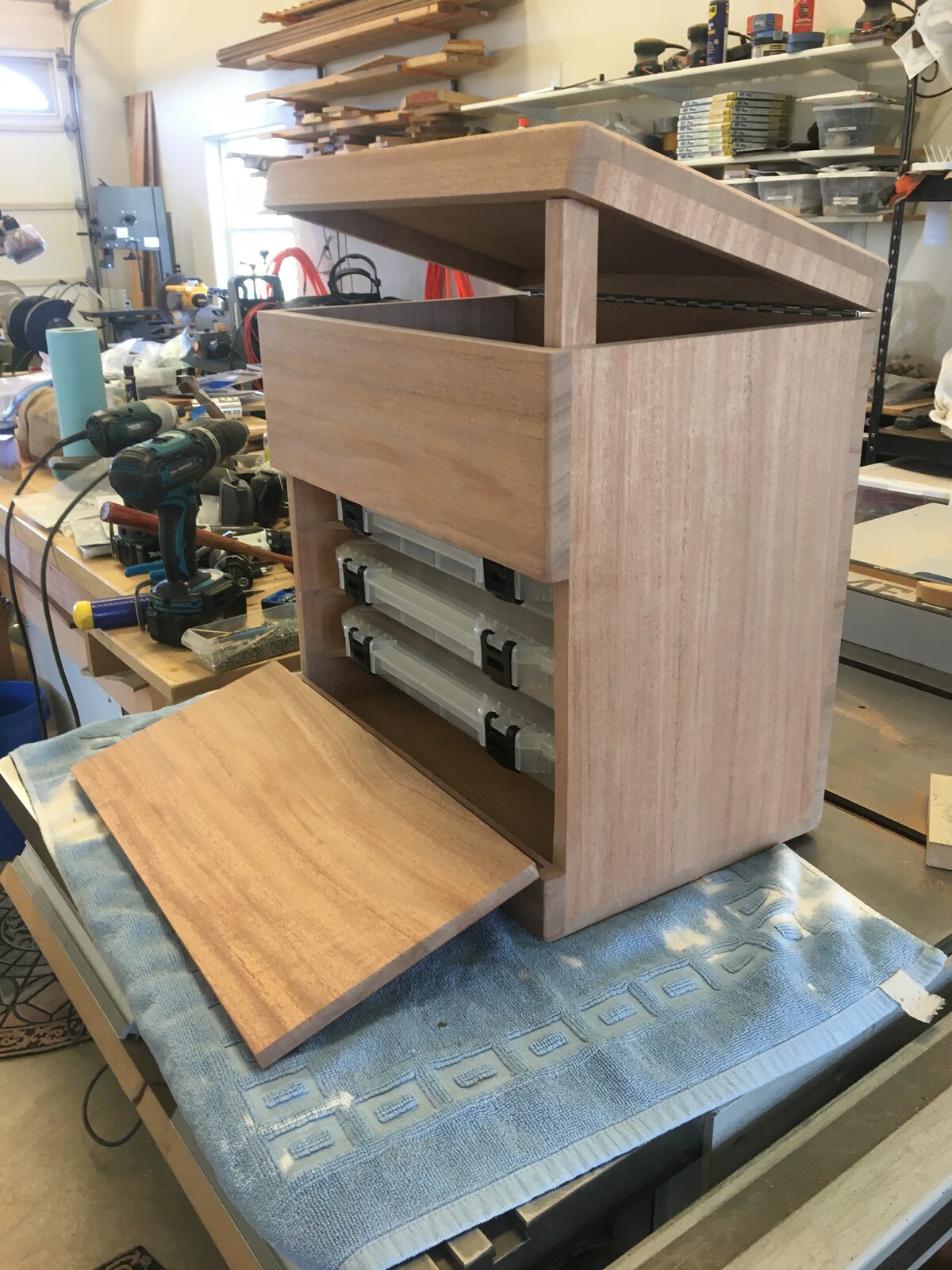

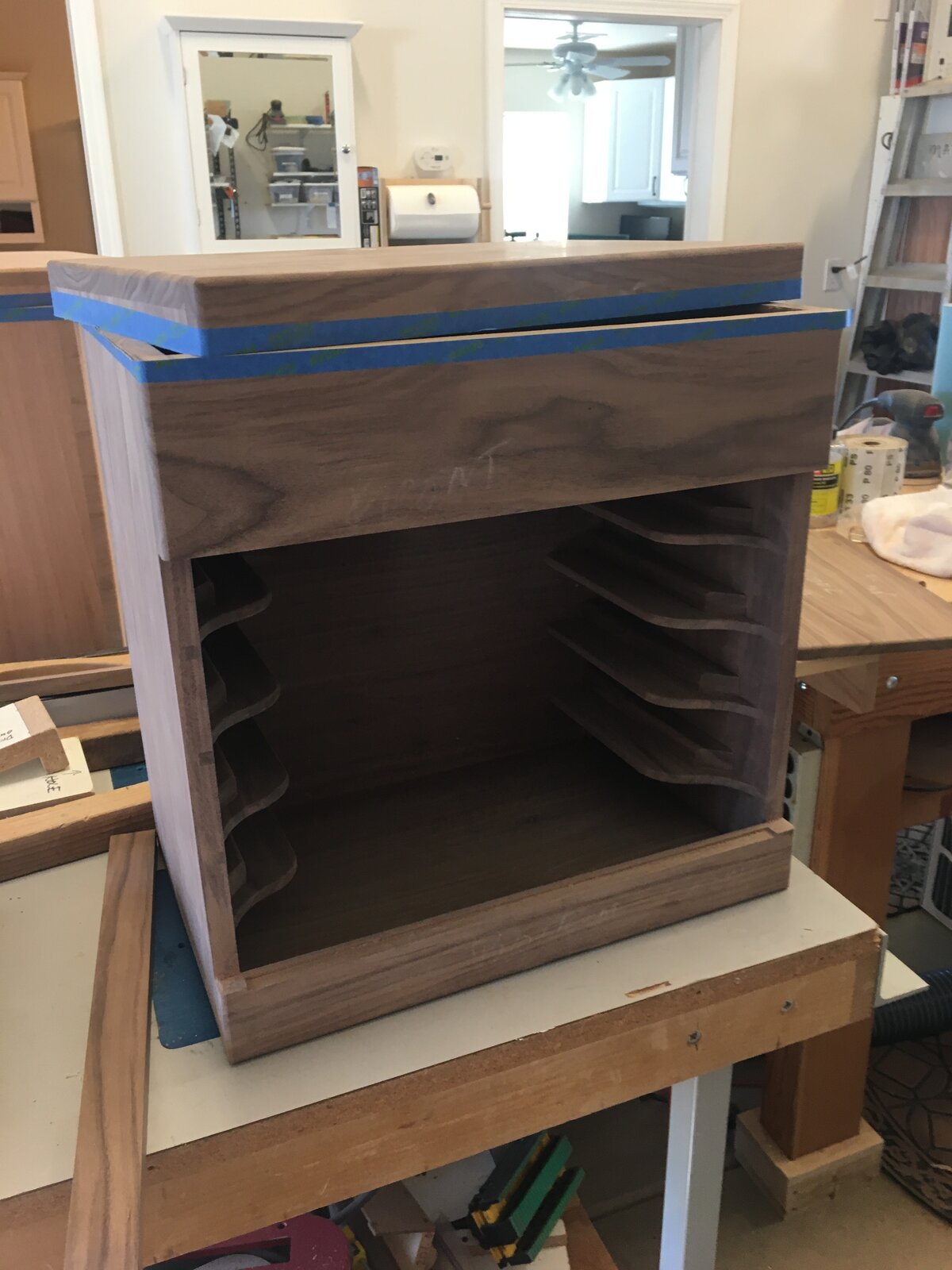

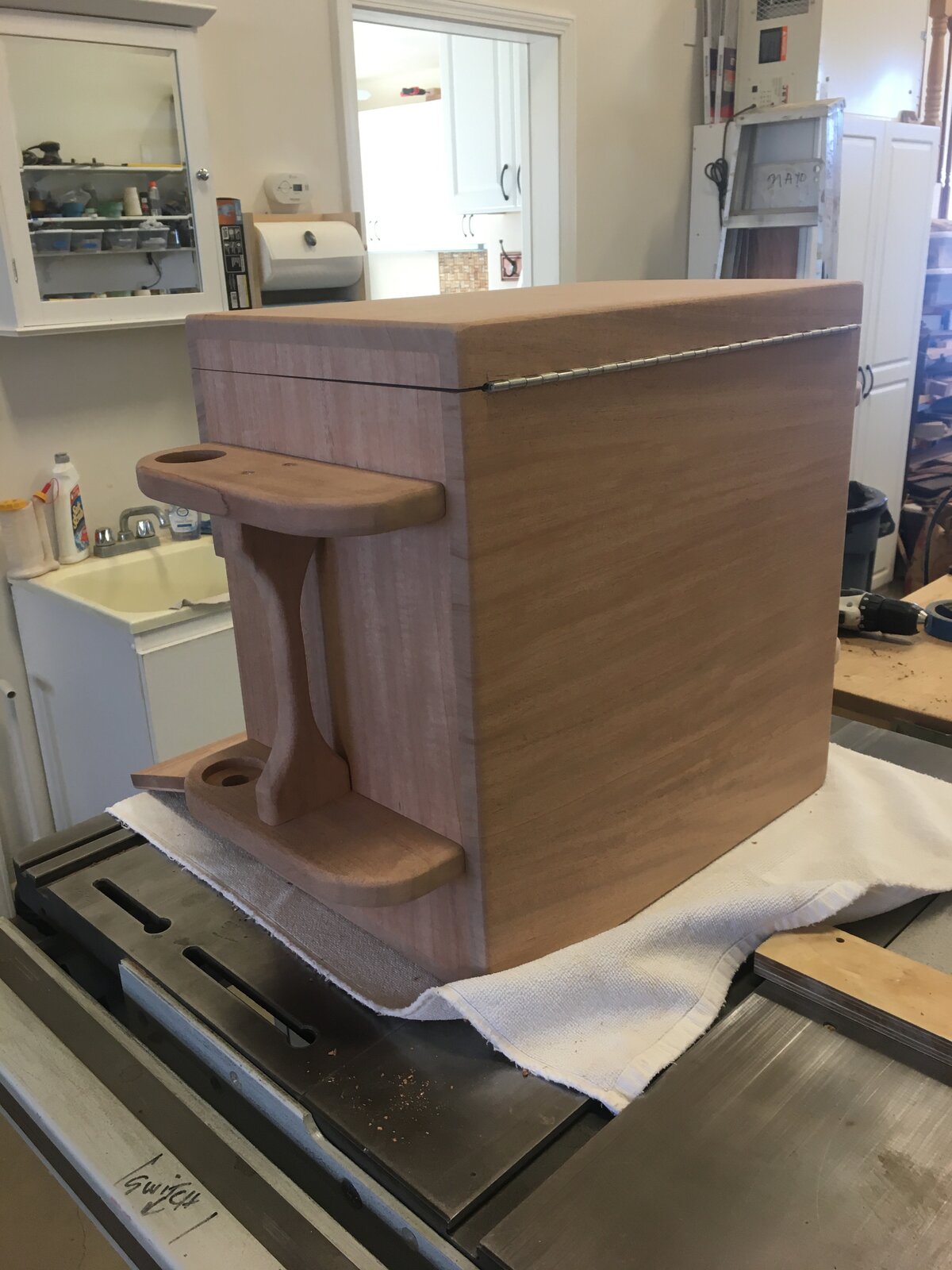

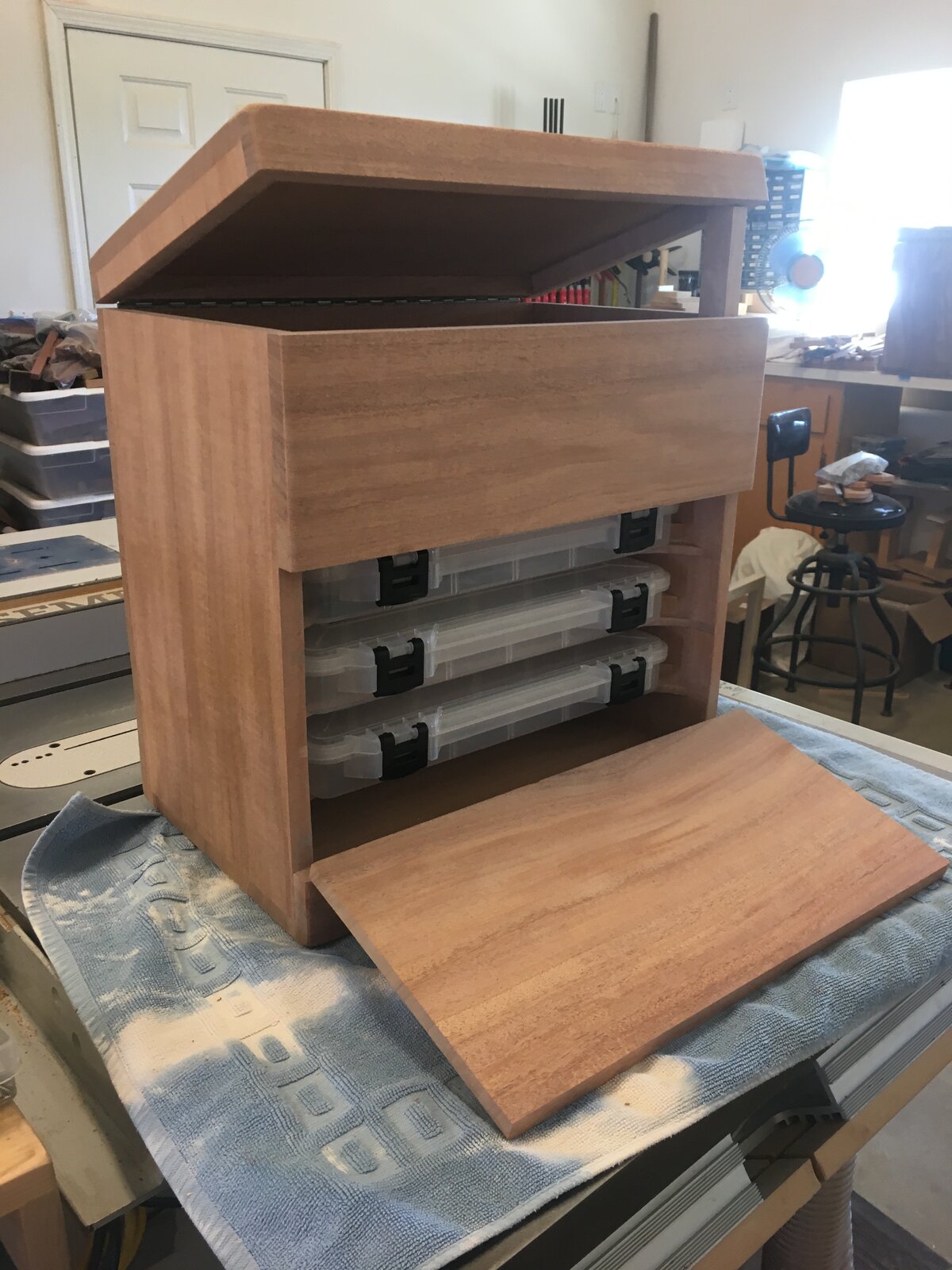

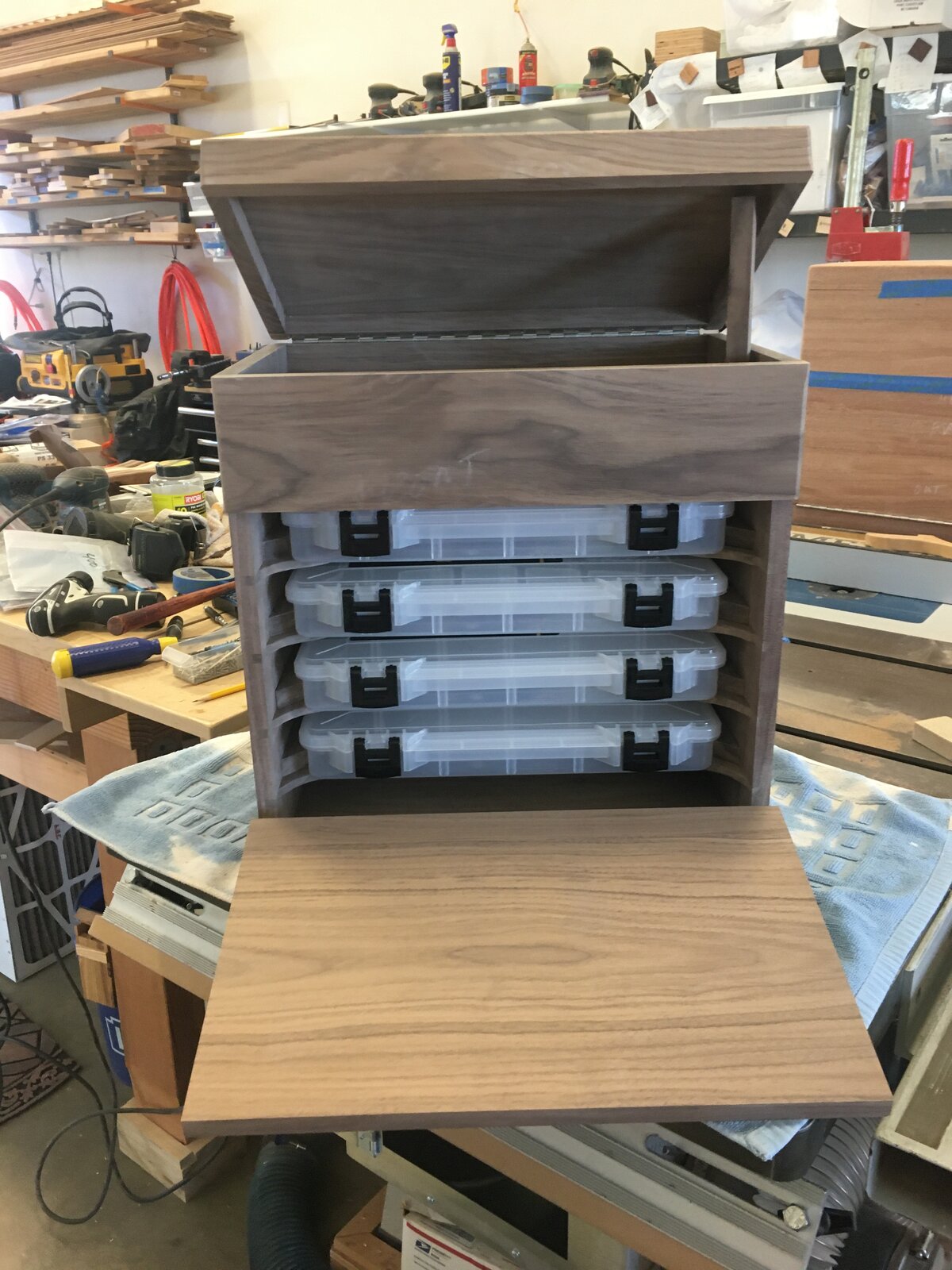

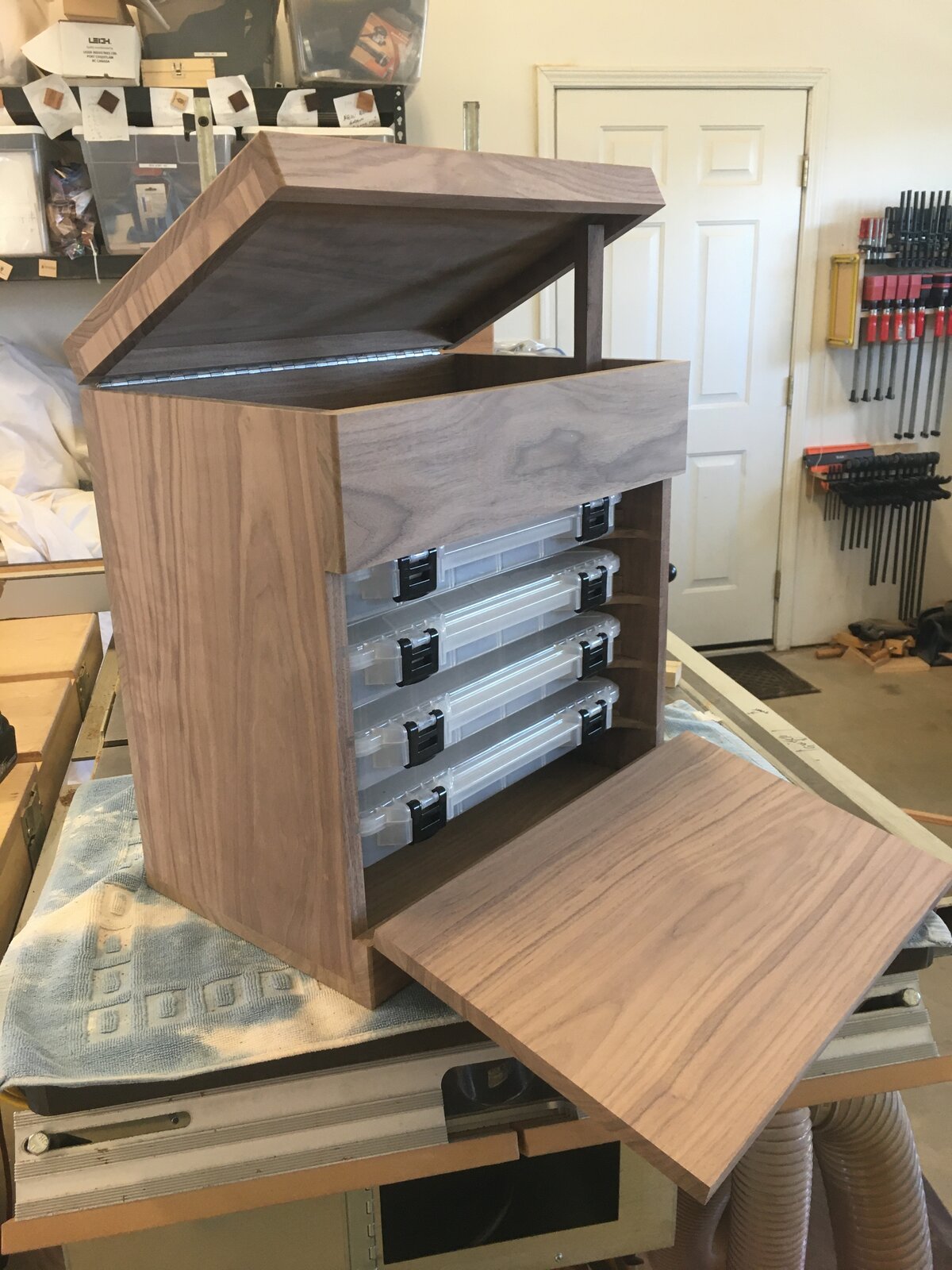

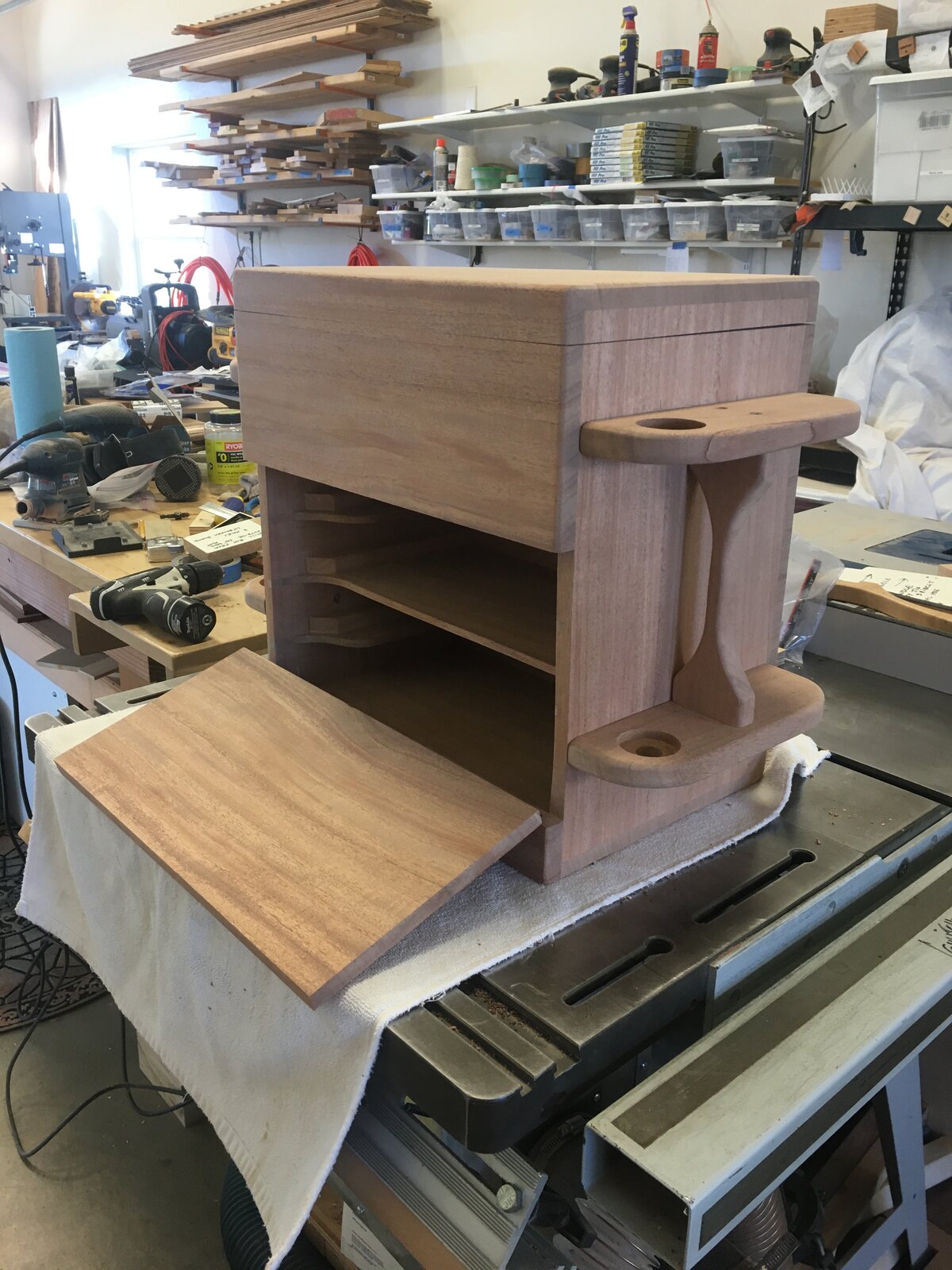

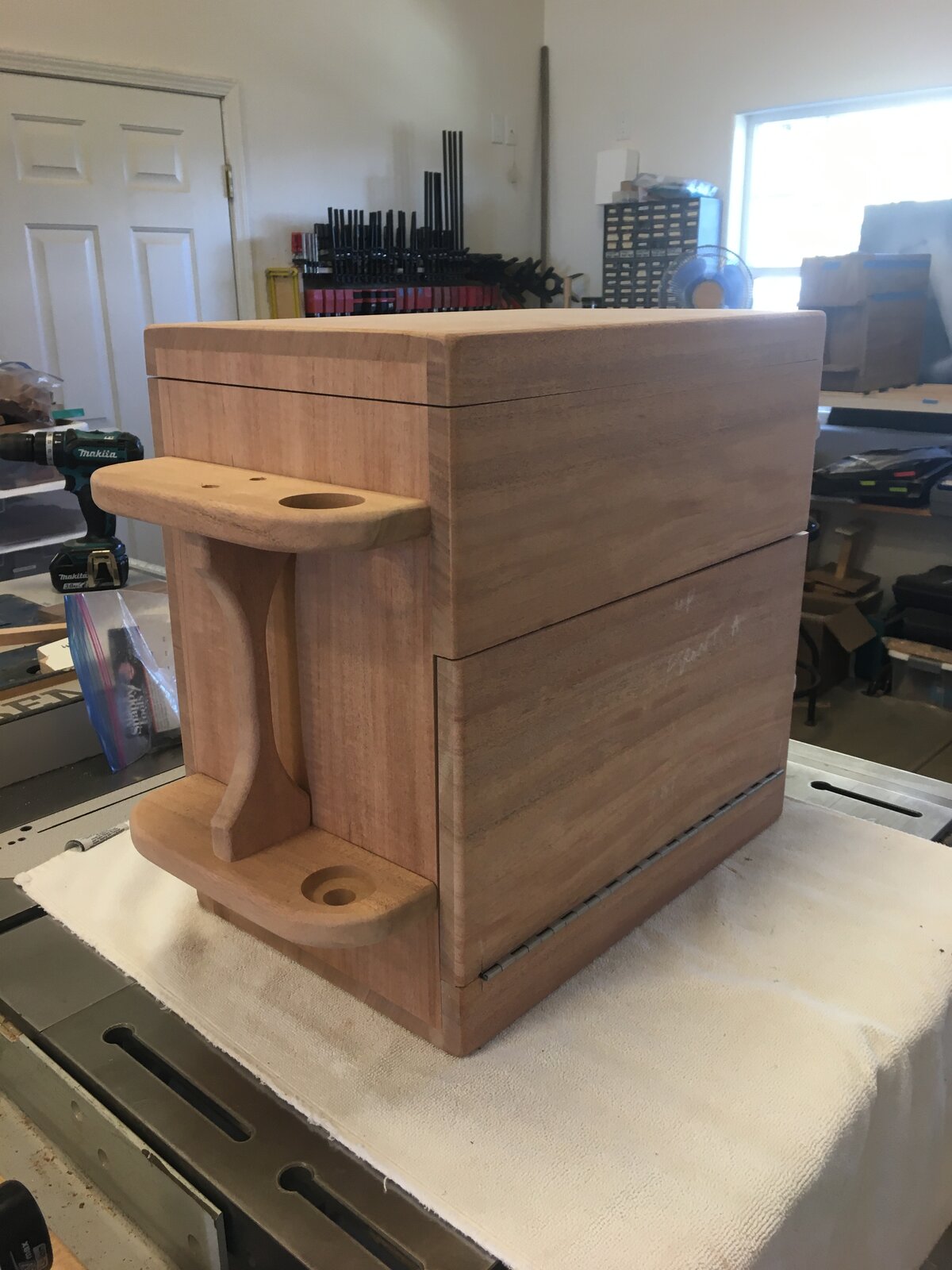

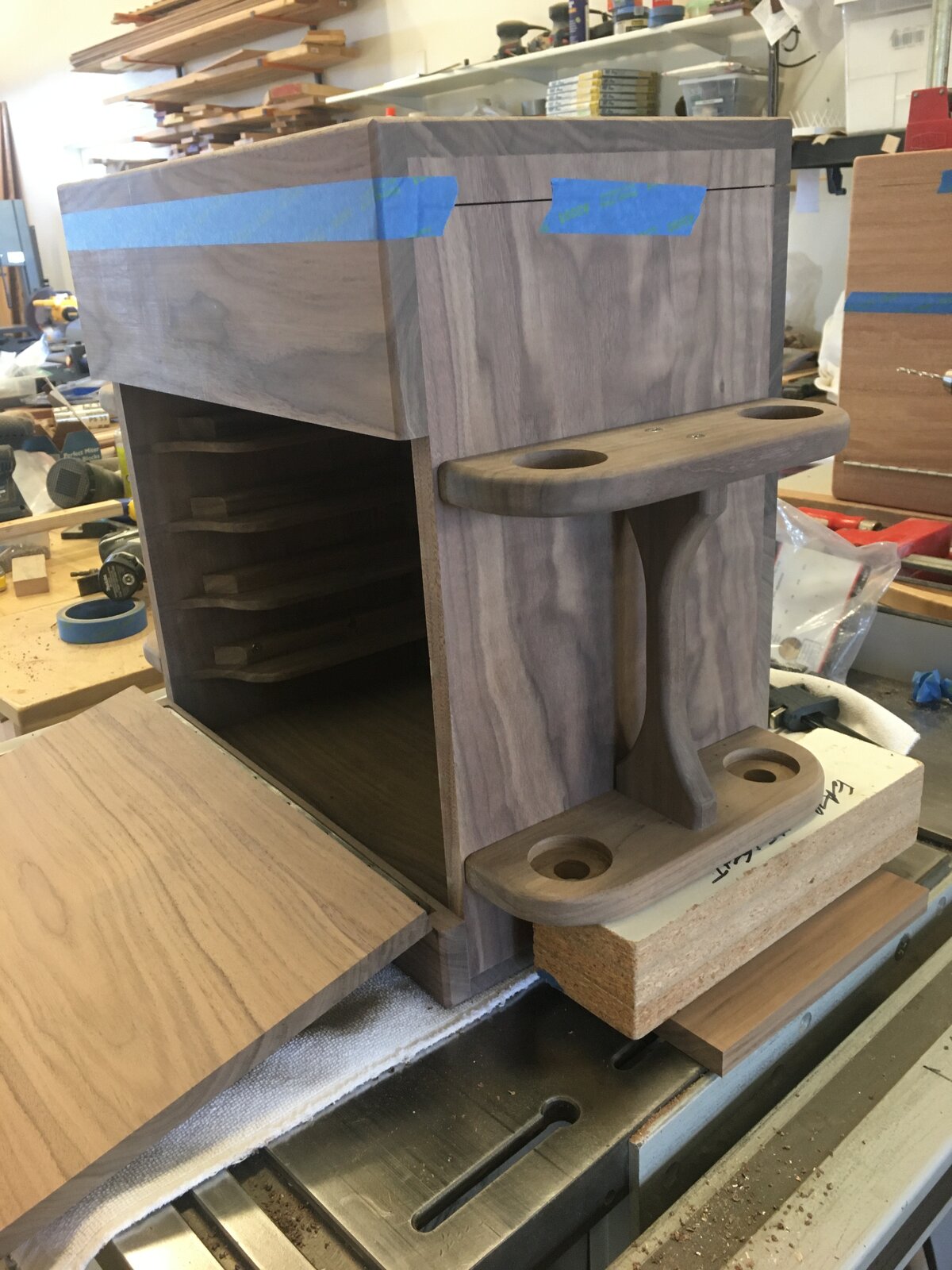

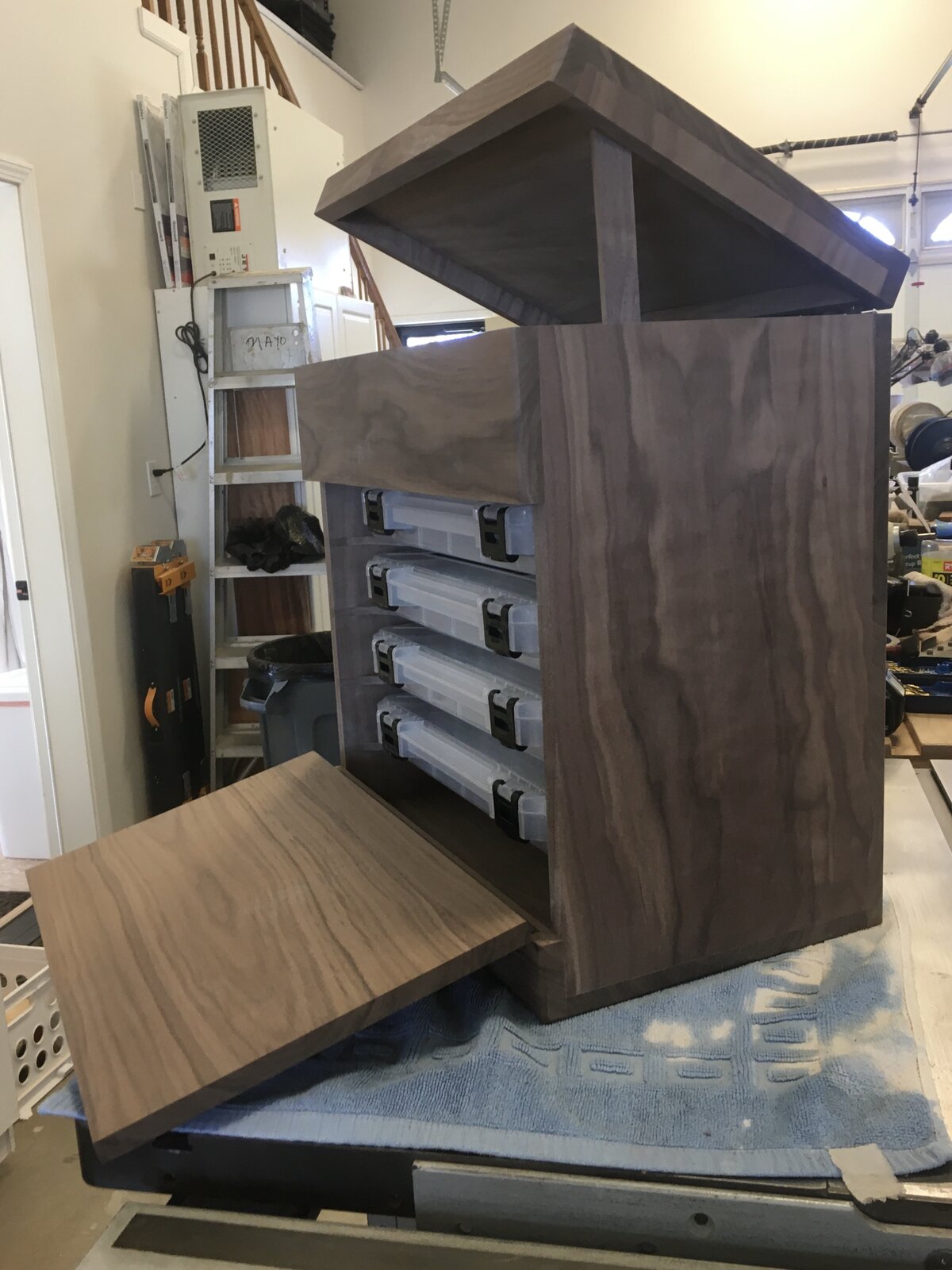

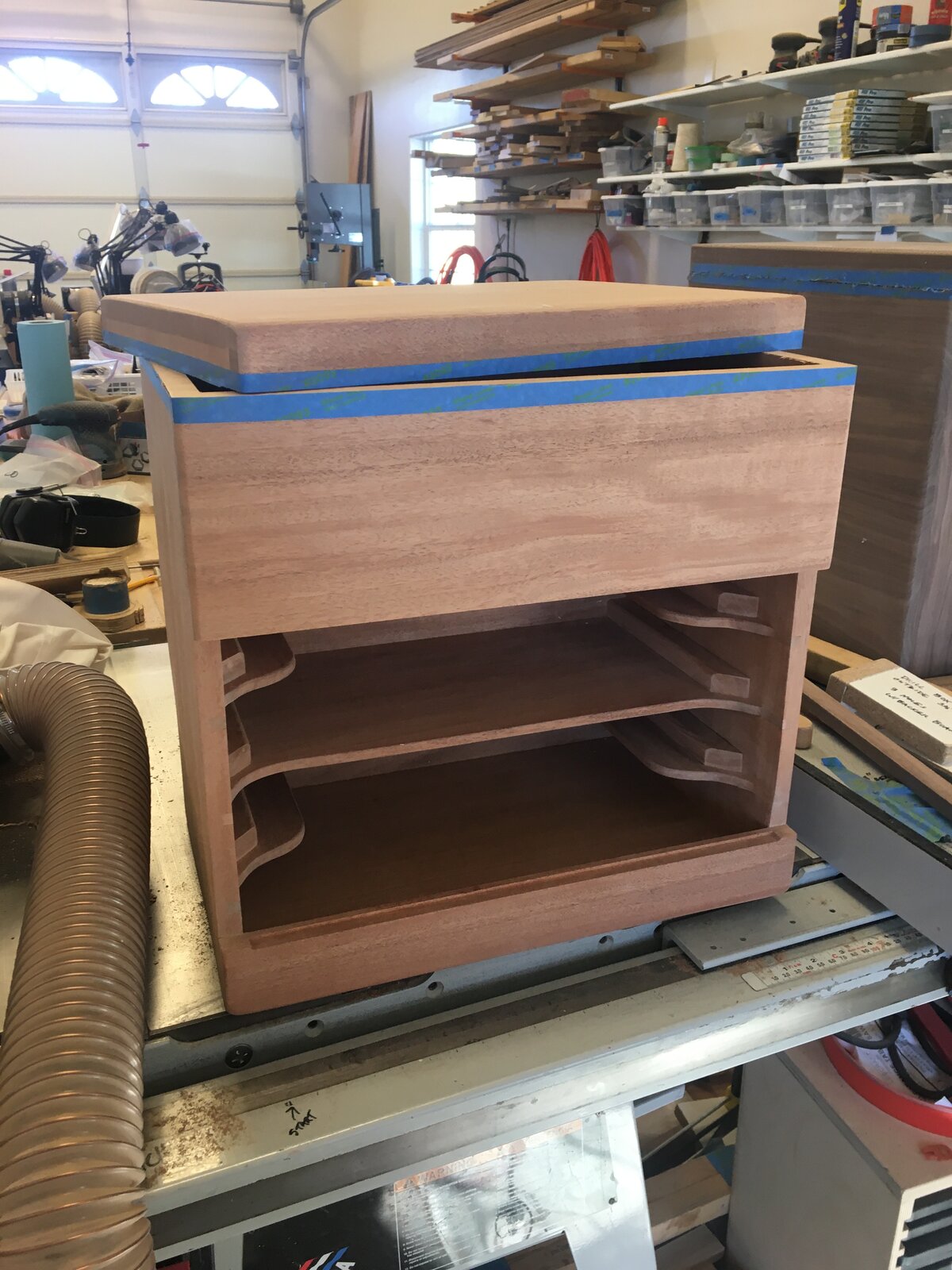

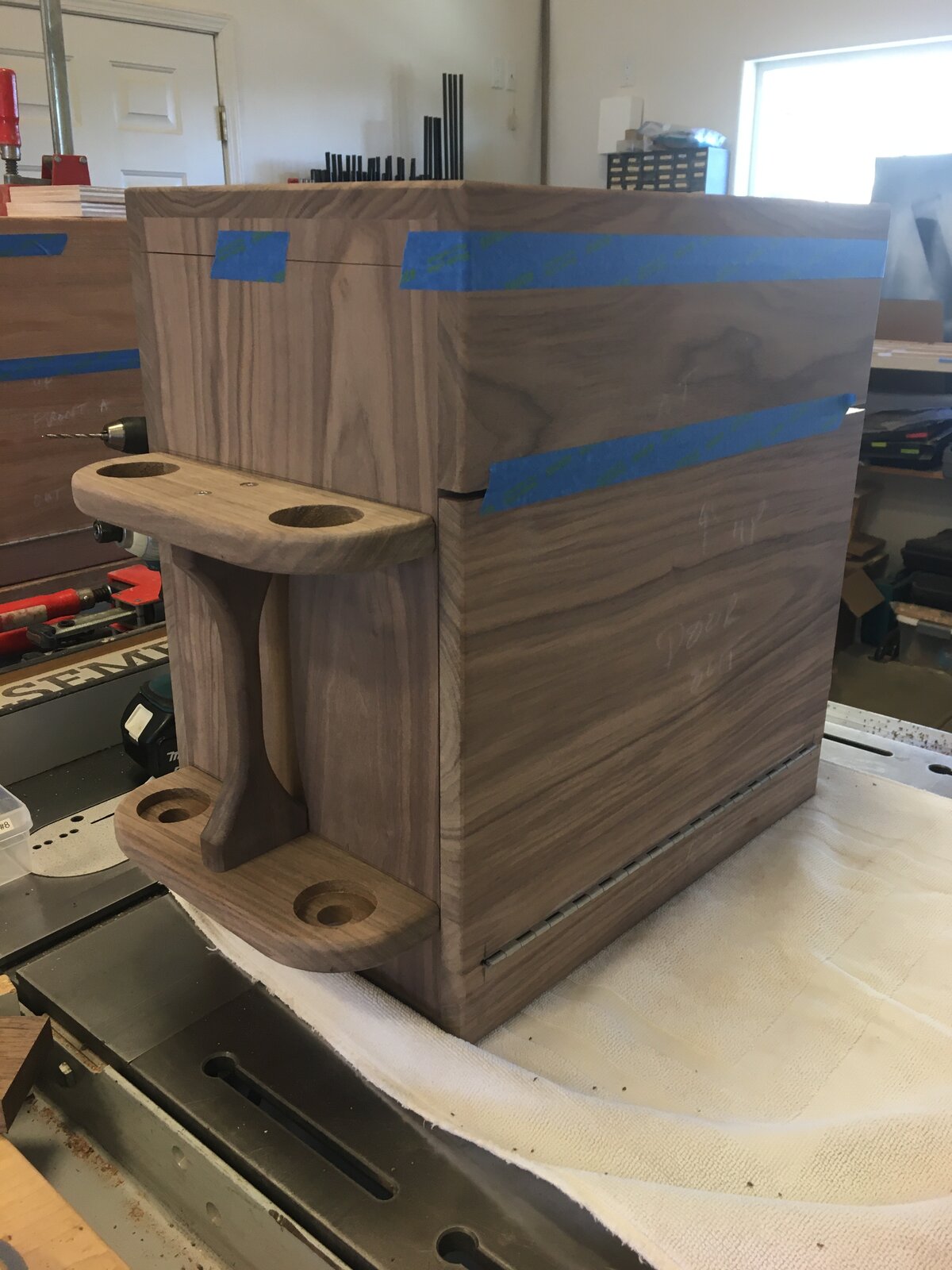

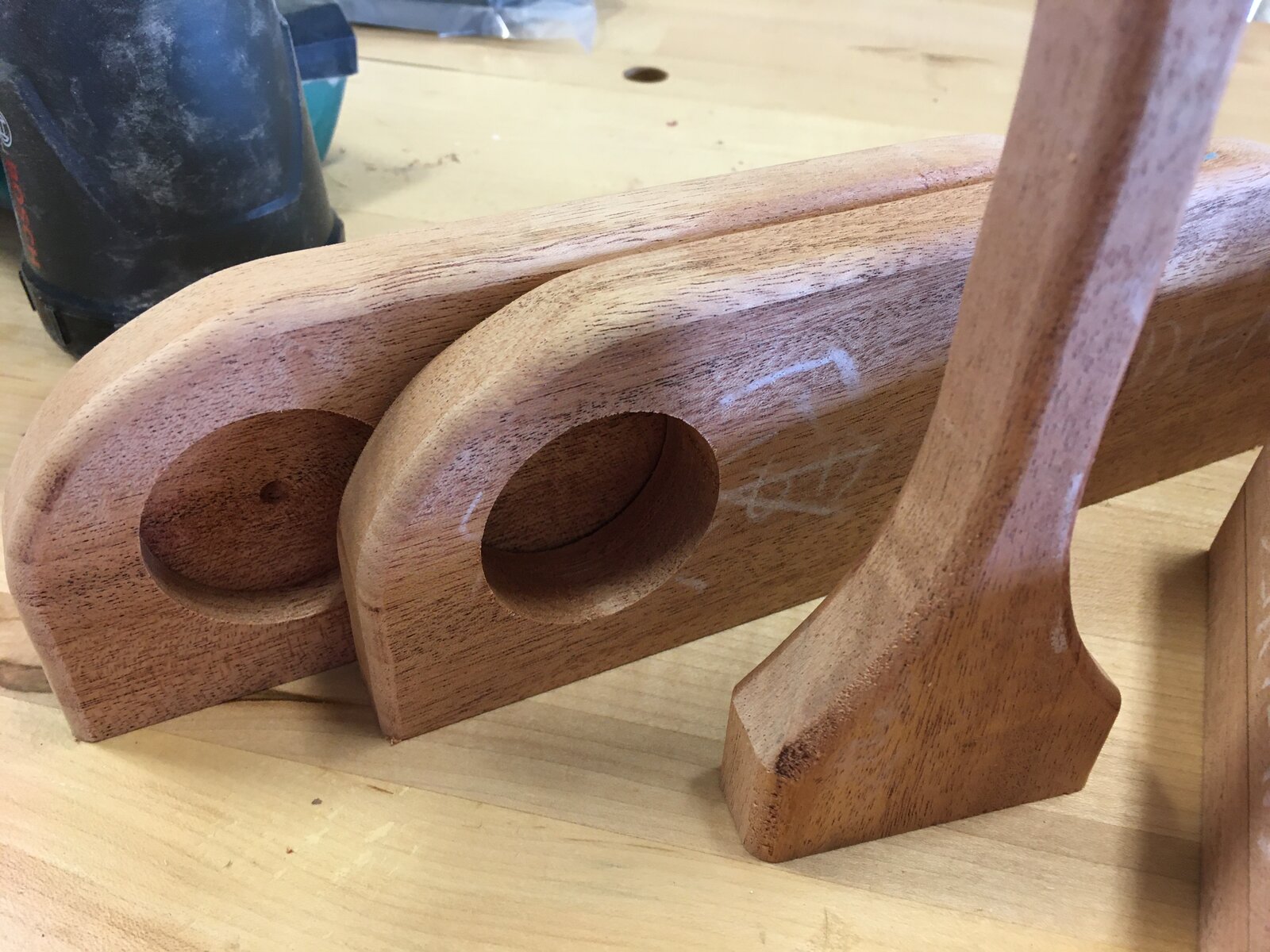

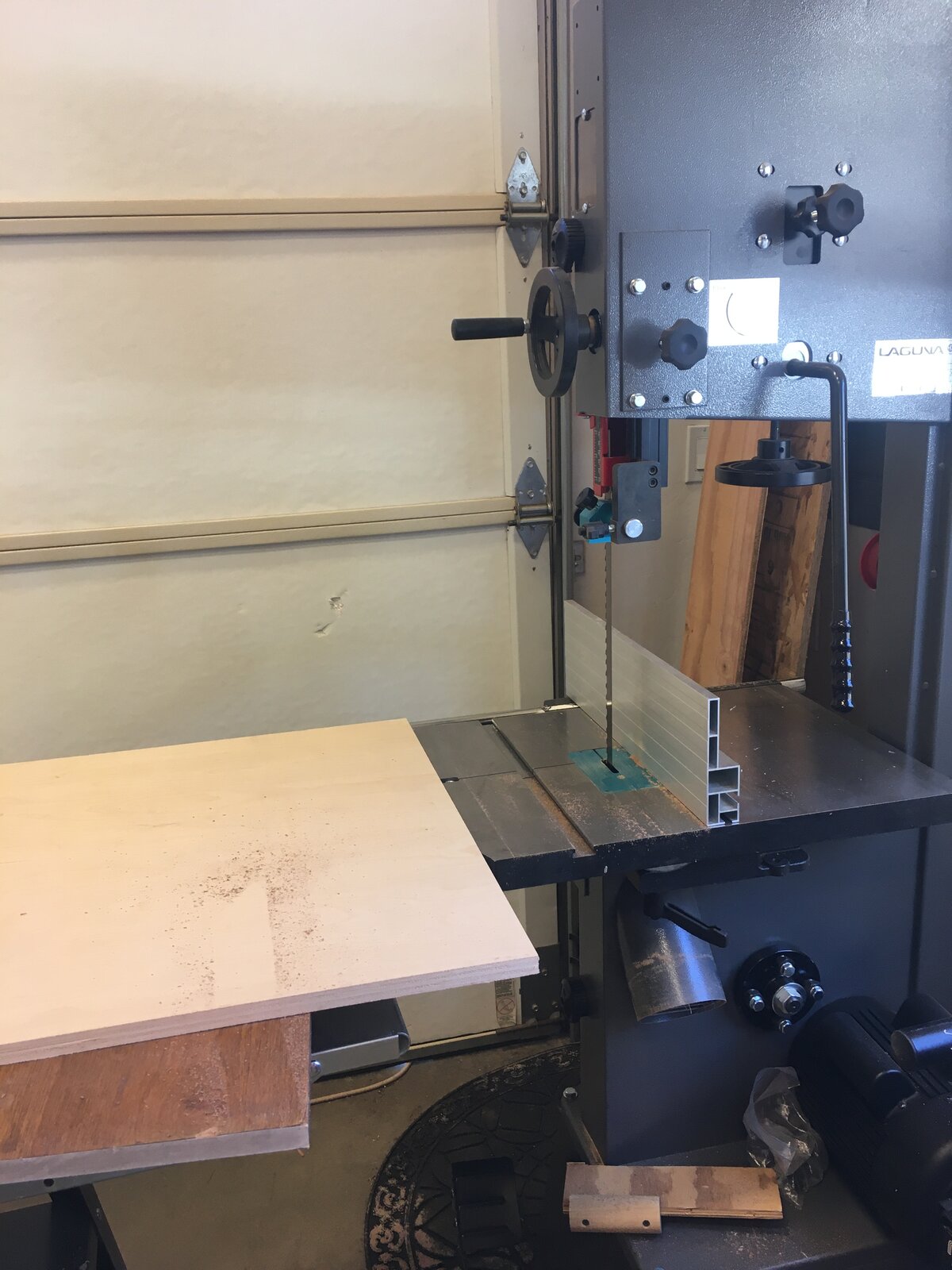

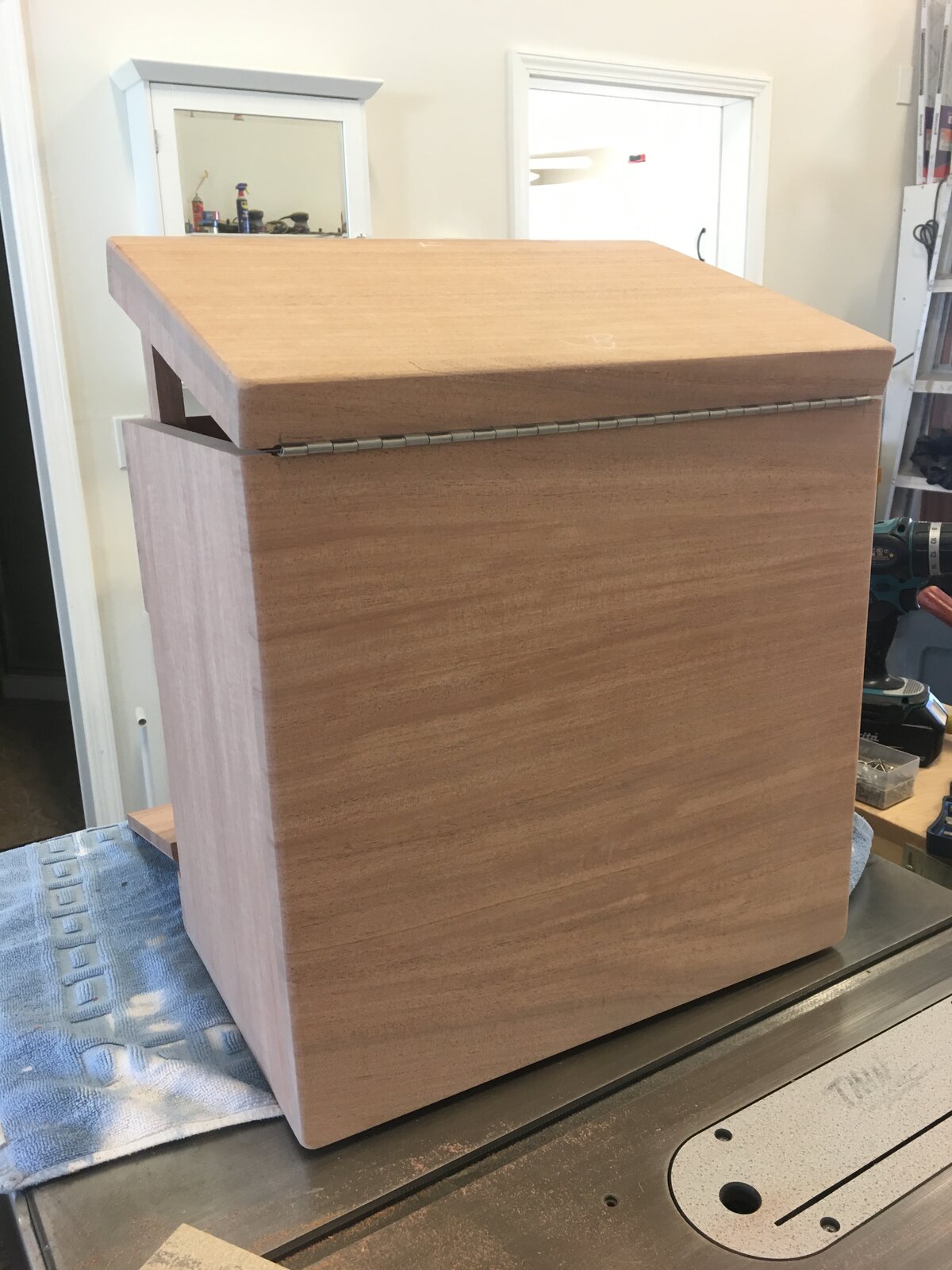

They look like fishing tackle boxes now since I no longer have additional wood parts. Cutting the tops on the bandsaw is a pucker moment but all went well. Routing the hinge mortises is always exciting, but it too worked out ok. The rocket launchers that will hold rod/reel combos are just screwed in for today and will be glued, screwed and clamped in place tomorrow.

Soon the dread of sanding two boxes will be my job. The joy comes when the finish goes on.


Attachments

  • E94D3620-B7FF-4ECF-9B00-EA89D06FF128.jpeg
    287.6 KB · Views: 33
  • 48A929A4-869E-43FF-9472-8929323C6E96.jpeg
    190.6 KB · Views: 29
  • 4B04EBD4-751D-45B5-AE92-FA4337018EBB.jpeg
    216.6 KB · Views: 31
  • F96117FD-126E-413C-9DEA-356B2B12519E.jpeg
    266.2 KB · Views: 27
  • 24371449-15B0-4A11-927D-C592605E010F.jpeg
    337.8 KB · Views: 29
  • F224DD47-78B7-4A9C-BEF2-B11841727E35.jpeg
    252.4 KB · Views: 28
  • F2E4FF43-22B3-42FC-9B34-E2684DE9F63B.jpeg
    278.9 KB · Views: 30
  • 30558C51-A9C8-4F93-A21A-0979FFB05317.jpeg
    295.3 KB · Views: 31
  • 3514AB34-4F70-4C4A-BE54-5D98CEC5FF83.jpeg
    225.7 KB · Views: 33
  • 0D6568B6-A55F-4F7D-BB32-D25984DAFAD7.jpeg
    225.9 KB · Views: 32
  • D2DE7E0A-0DC7-4DFC-ABBE-C873EC1168C1.jpeg
    275.6 KB · Views: 29
  • 0C1CD994-CC41-4F30-8570-869A118E867C.jpeg
    219.7 KB · Views: 29
  • 1B70C1DD-1869-466C-9ABB-E906D8E25826.jpeg
    312.4 KB · Views: 32
  • EBE01E6C-1EBE-4039-B1E6-607364B86599.jpeg
    223.4 KB · Views: 34

mmayo

Member
Joined
Jan 12, 2013
Messages
2,037
Location
Tehachapi, CA

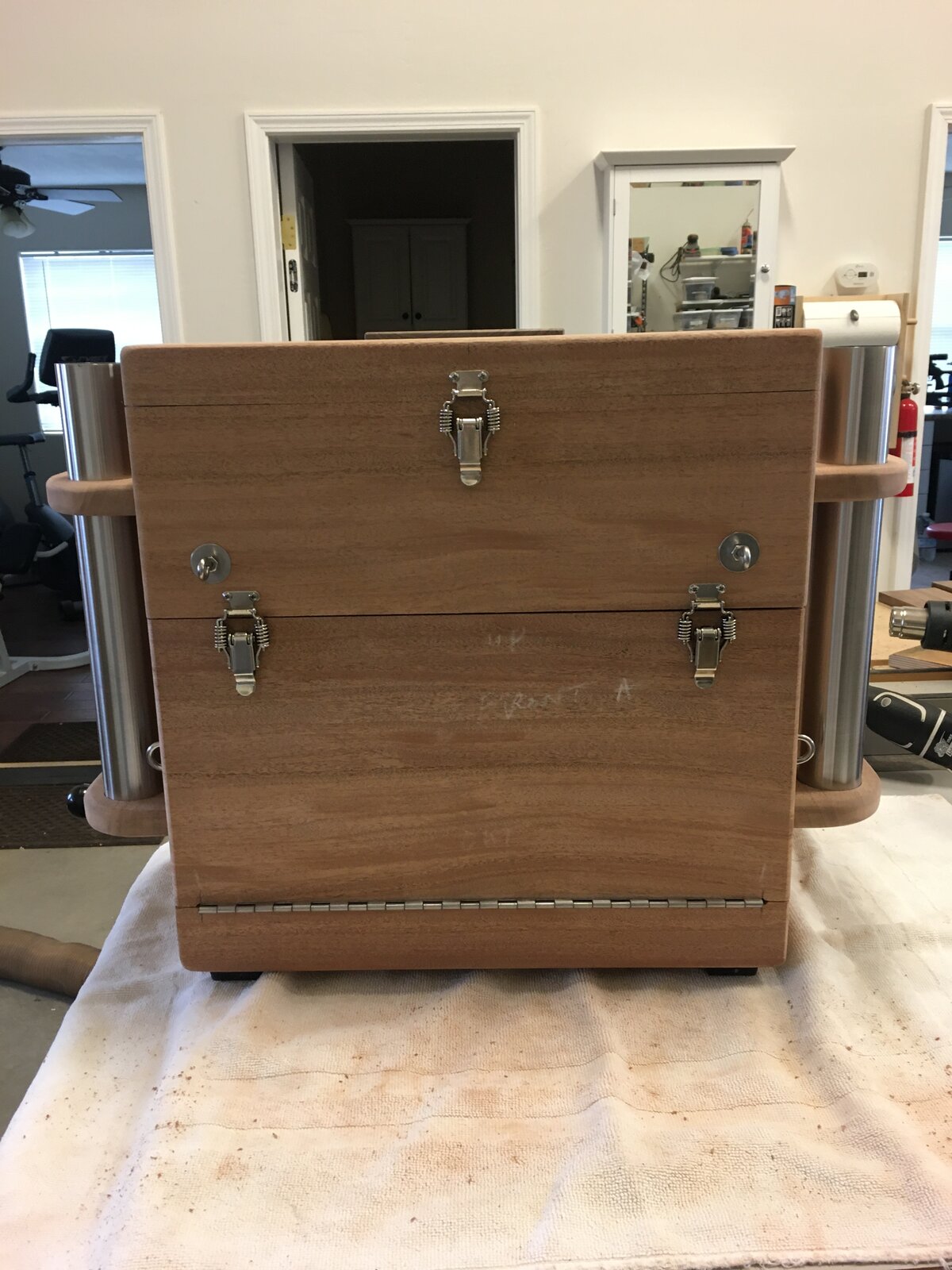

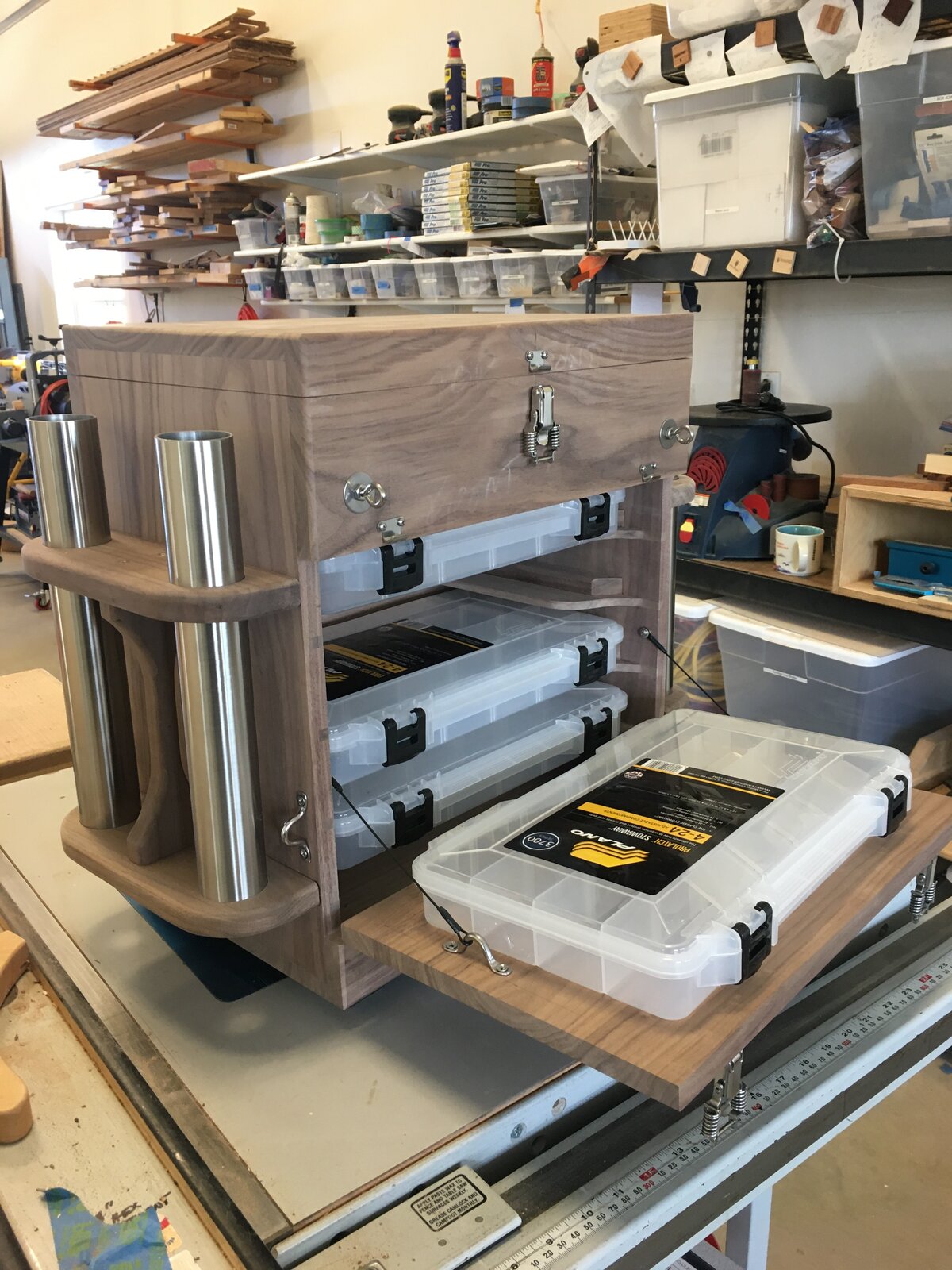

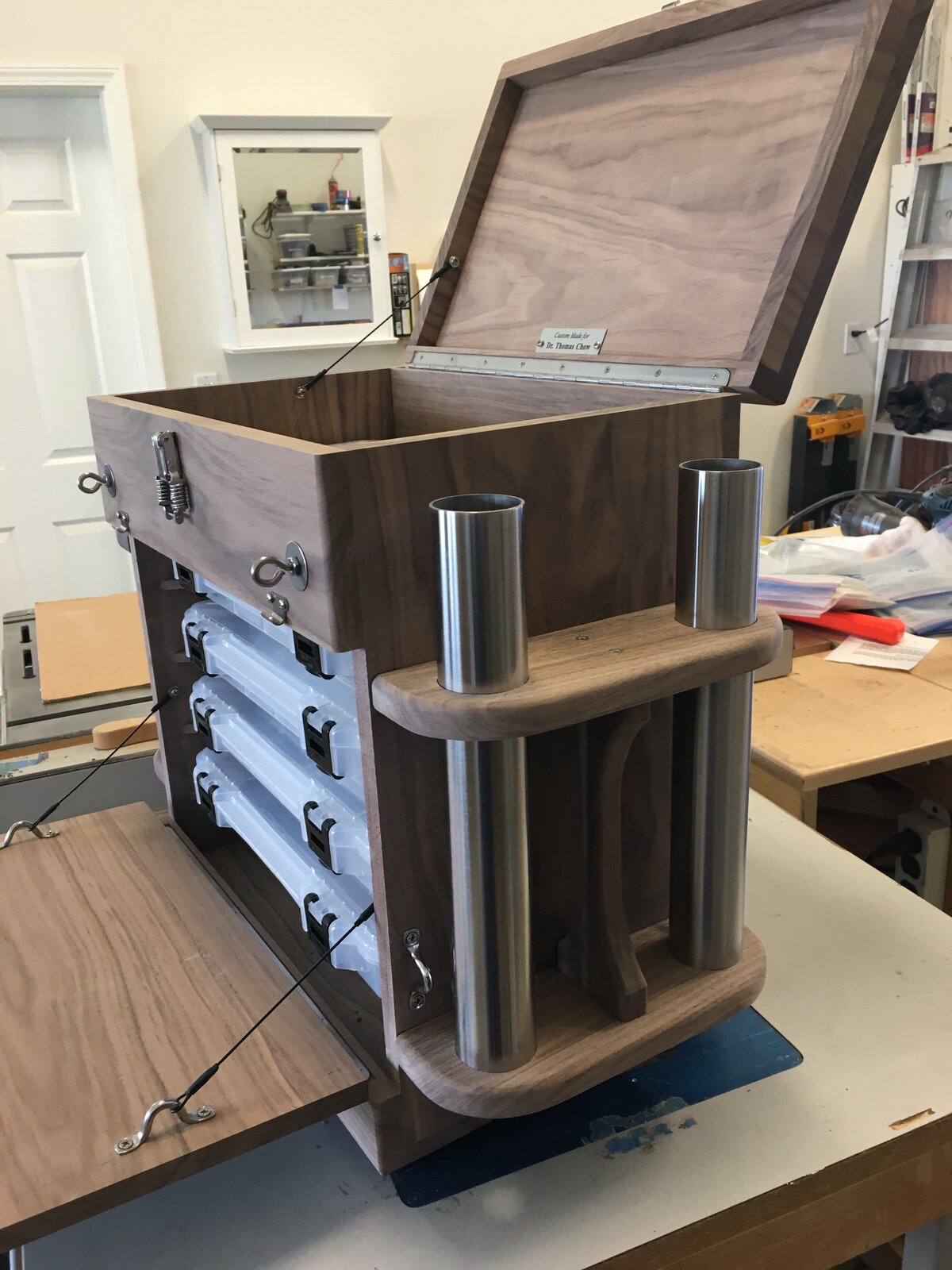

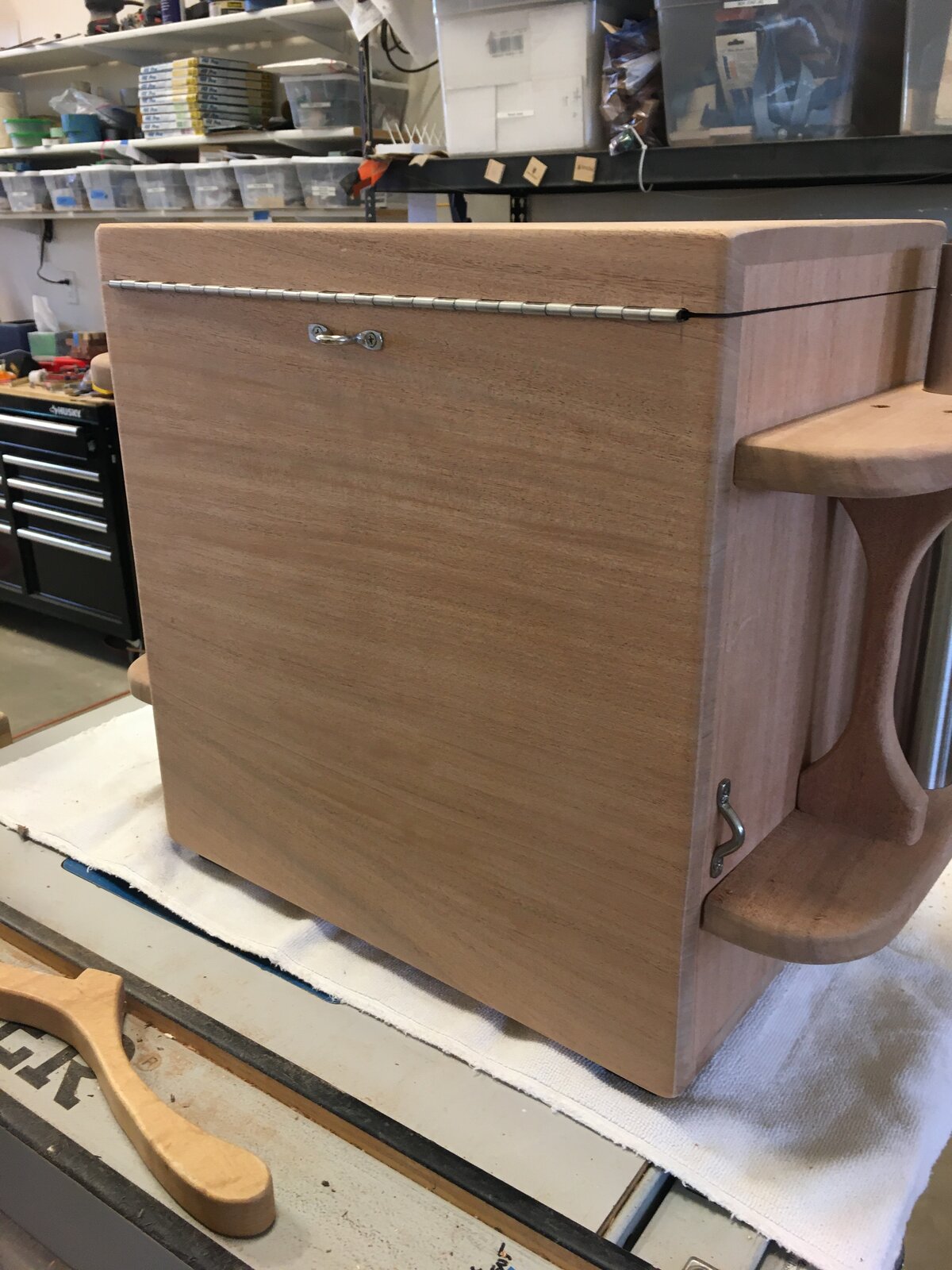

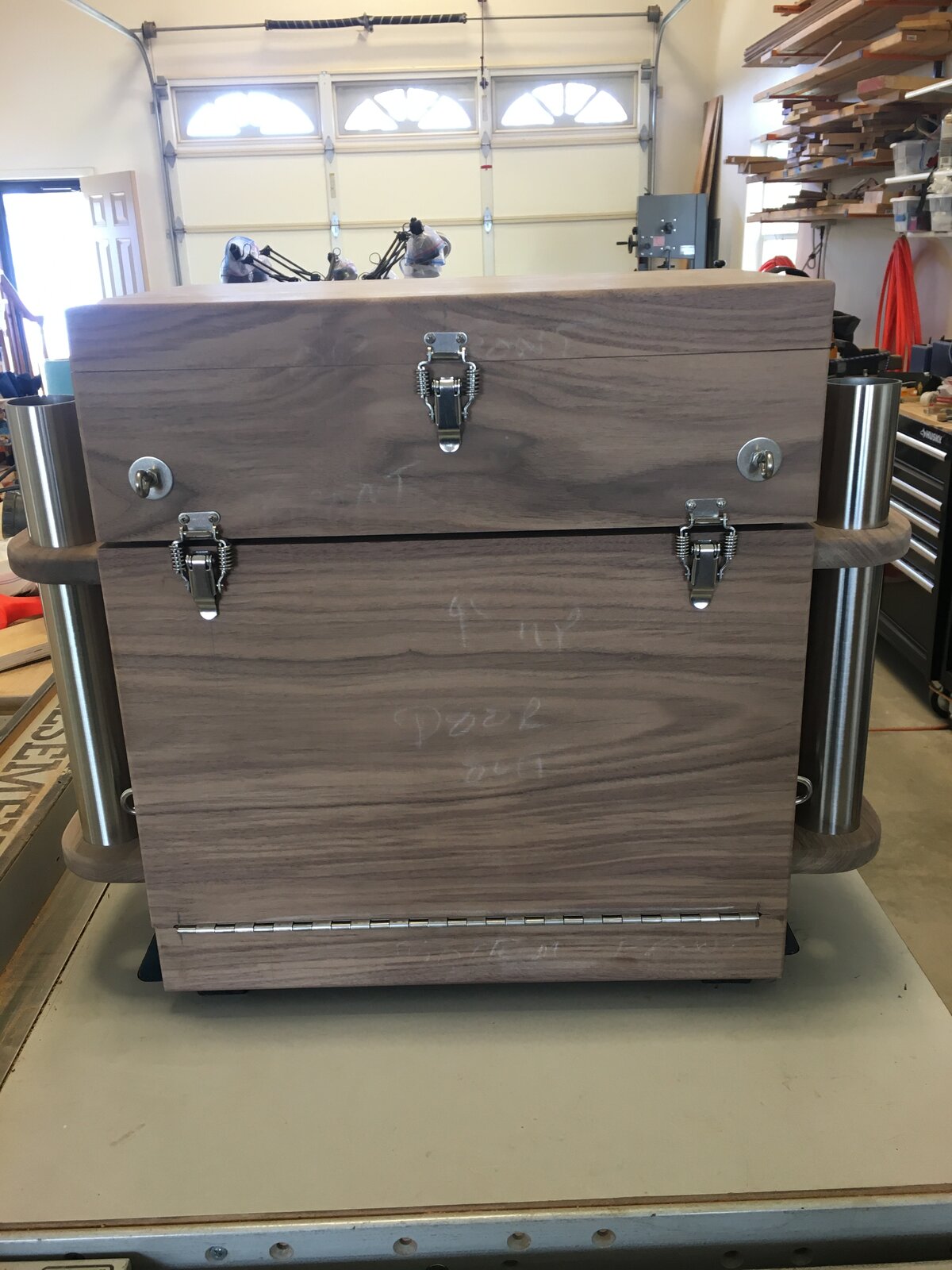

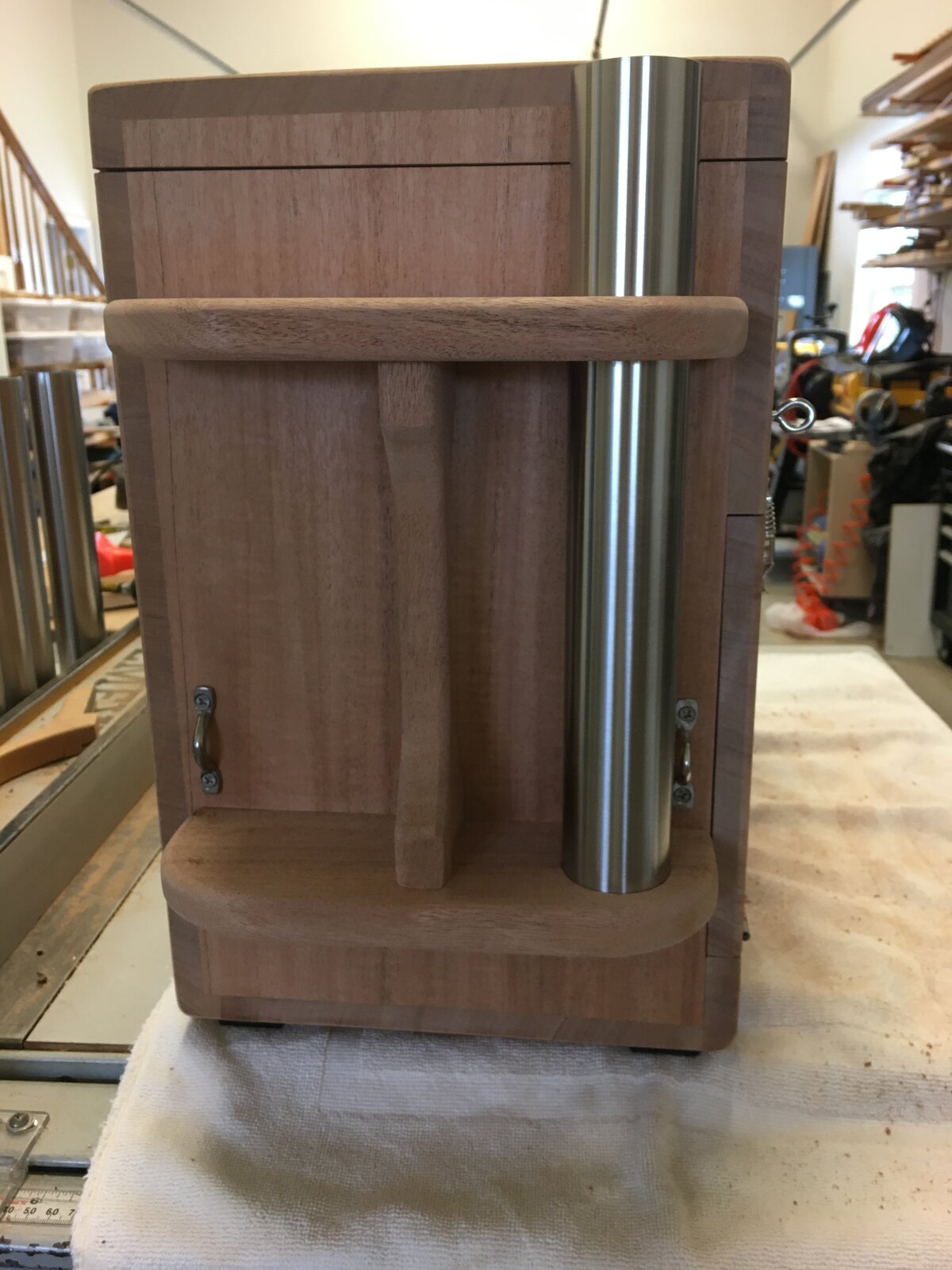

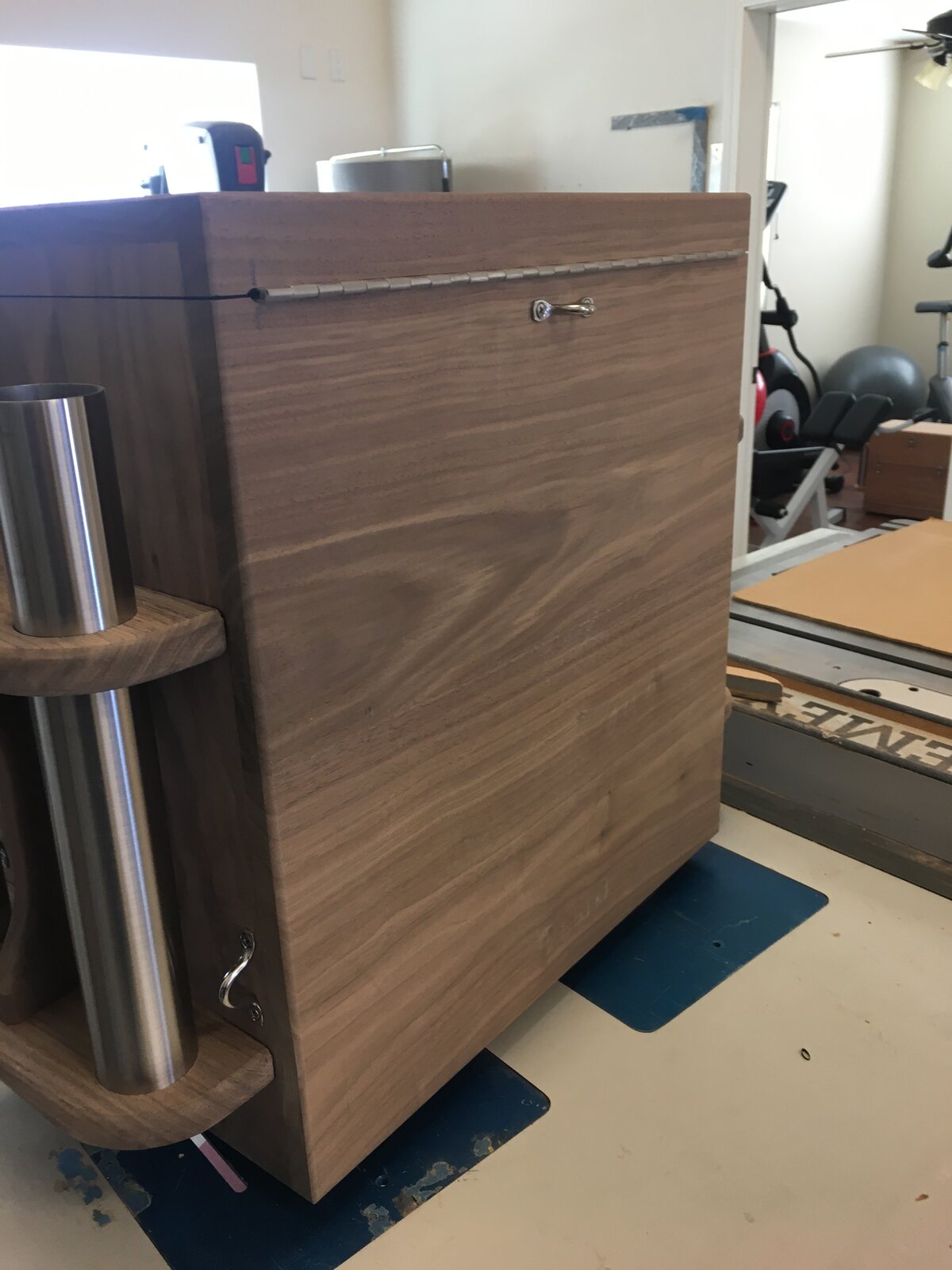

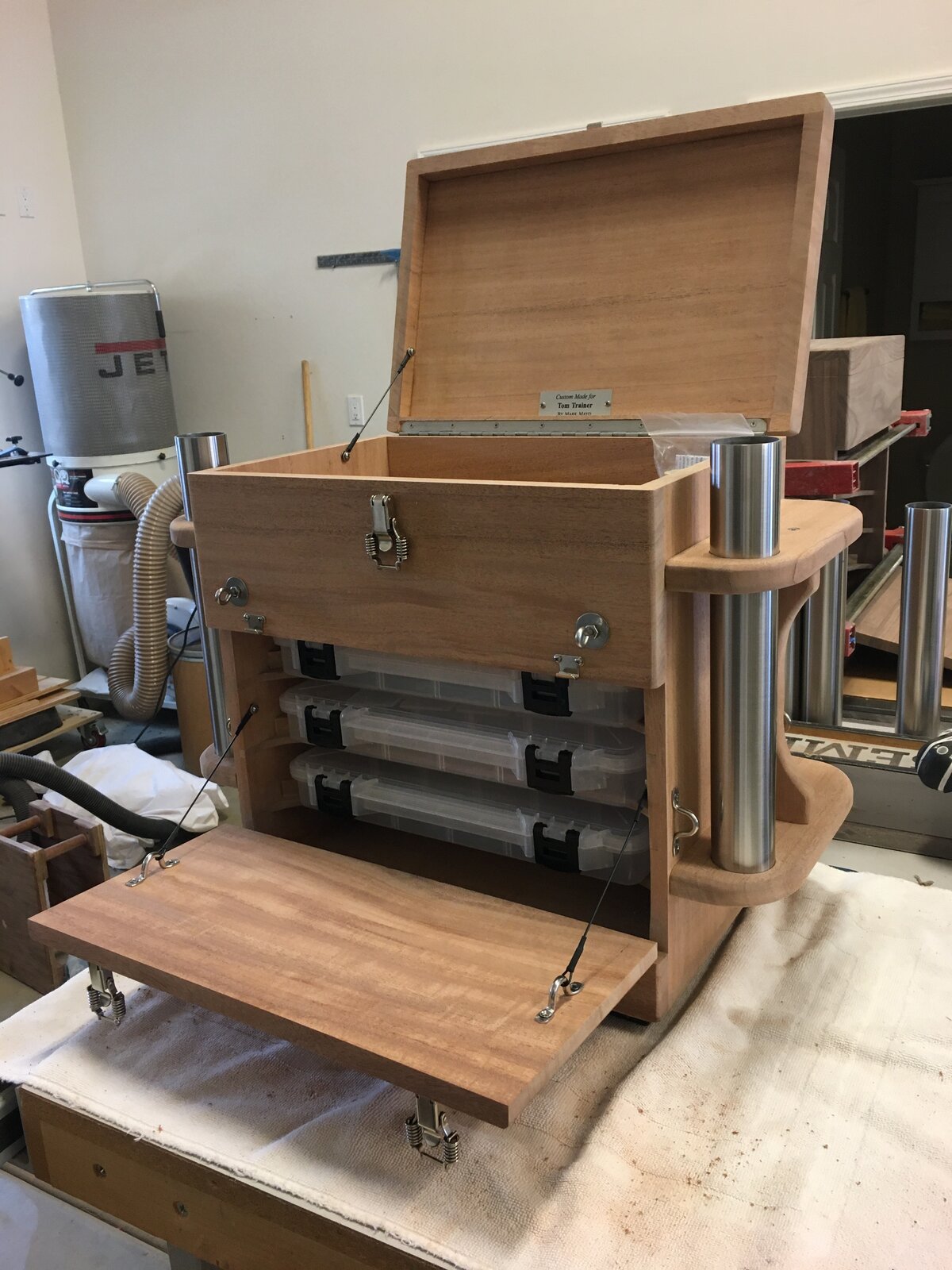

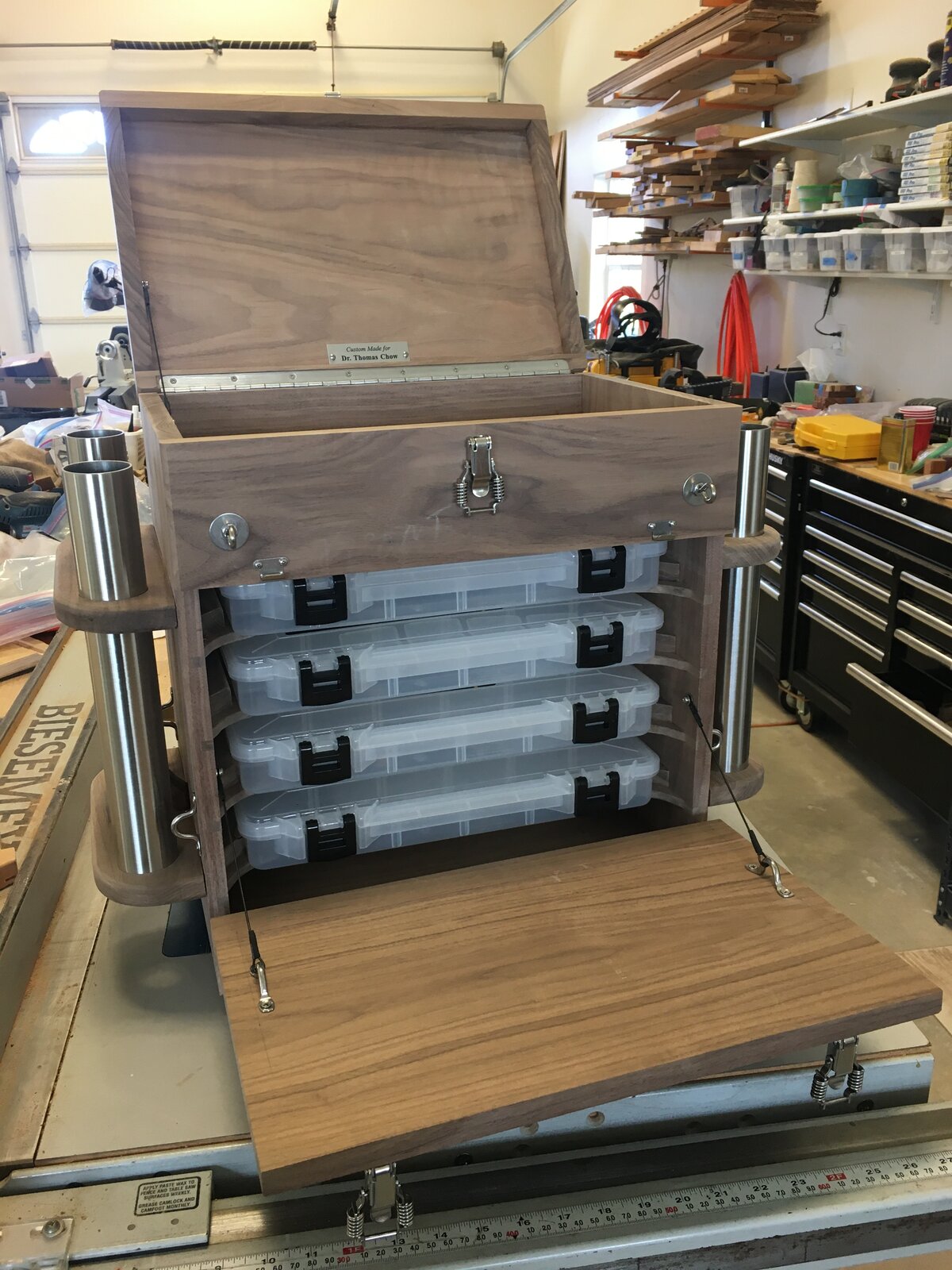

The boxes are finished and have all hardware installed. They in fact are not done until I sand and finish them.


Attachments

  • 19959AEF-2A24-49EC-8926-D90DF1BD4015.jpeg
    219.3 KB · Views: 30
  • DE443558-BA28-40EC-9366-F02C8D5601F9.jpeg
    281.4 KB · Views: 29
  • 4655AC2B-082A-4873-A43D-5FE1B8CD0B1C.jpeg
    259 KB · Views: 28
  • C48C4792-5DA4-4D41-9DFE-D19B29F48341.jpeg
    274.2 KB · Views: 27
  • B46361E3-5851-48A0-9153-30CE6FB8FE5A.jpeg
    246.6 KB · Views: 32
  • 82394878-705D-4927-BFB5-19D1BD50C5C0.jpeg
    316.1 KB · Views: 28
  • 831E217C-5637-486C-AB9C-00FC3AB846B8.jpeg
    239.5 KB · Views: 29
  • 752309D2-32A9-4608-B0DD-9C7E48579CC3.jpeg
    172.2 KB · Views: 31
  • 6E497947-7EFA-44EE-81DB-3BD7850C7A09.jpeg
    332.4 KB · Views: 33
