DIY Sharpening system

Signed-In Members Don't See This Ad

Marmotjr

Member
Joined
Jun 16, 2016
Messages
245
Location
Rome, Ohio
So after murdering my tools for the last six months, I finally built a sharpening system based on the Wolverine system.

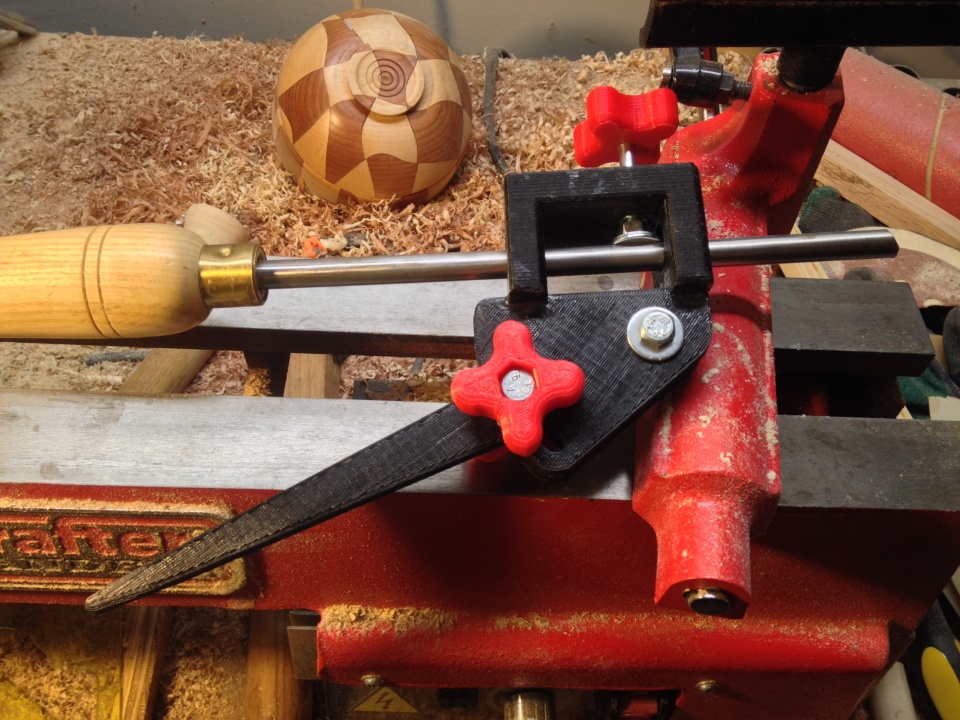

I do have my own 3d printer, so that played big part in it, but there's nothing you couldn't make out of wood. In fact, I based the Verigrind design on a youtube video of a guy making his own from plywood. My verigrind posting on thingiverse includes a link to the video. VeryGrind by marmotjr - Thingiverse

Including the 8" grinder from amazon (https://www.amazon.com/gp/product/B015U2STNM/), I used a 24" piece of 3/4x3/4" stock as the arm, a piece of "scrap" 3/4" shelving that was converted in the base, some 1/4-20 nuts and bolts. All said, it's cost me around $125 (grinder included) to get a working sharpening system up and running. The grinder comes with both a course and fine grit wheel. That's about a third of the cost of a after market system.


It's so nice to finally have consistent edges on my tools. Although, my small spindle gouge was so ground up, the flute was now too shallow to make an edge :(. Time for a new gouge.


So, if you want to build your own:

If you have access to a 3d printer, You can print off the parts and assemble them as I describe on thingiverse. Or you can use a service like shapeways to print the pieces and mail them too you.

Or, as most of us have at least minimal access to a woodshop, make the jig as described in the video out of plywood. I included a pdf of the design I based this on.

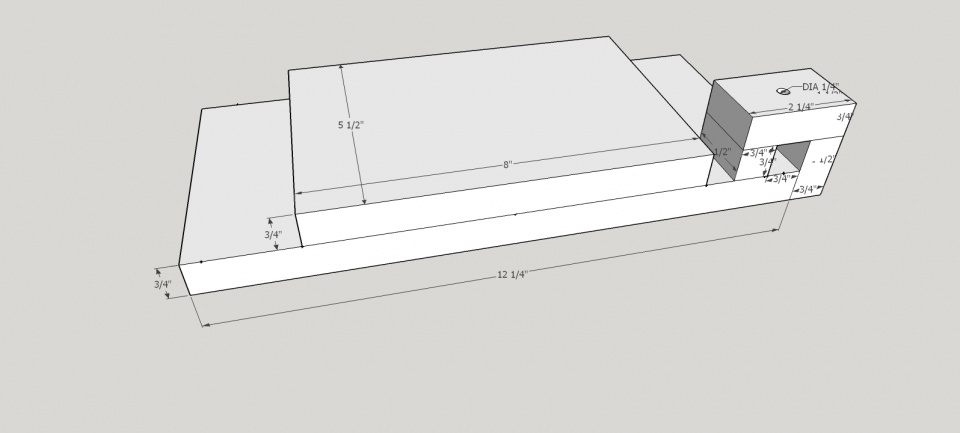

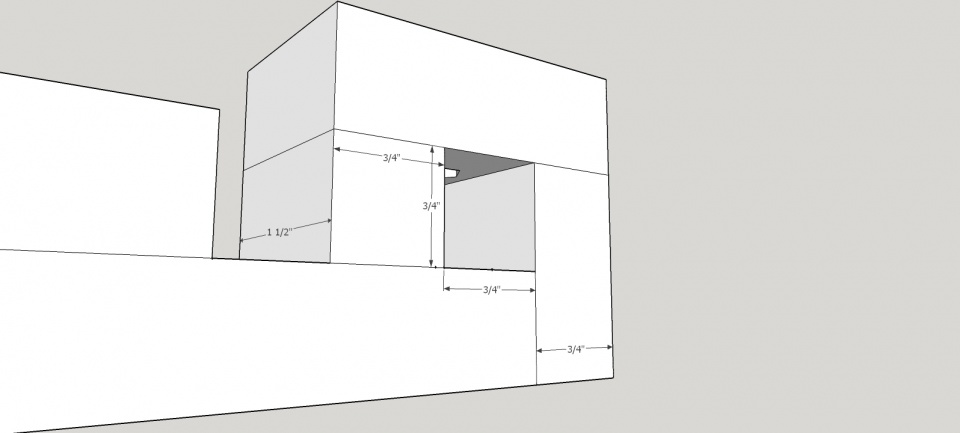

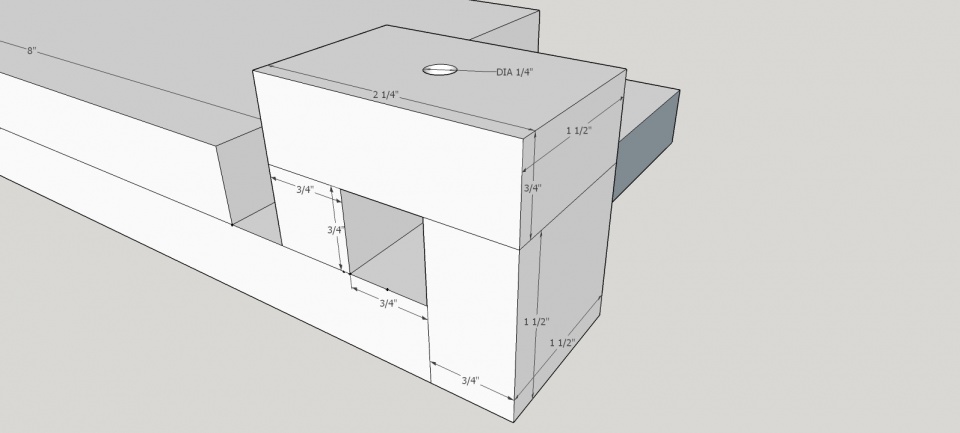

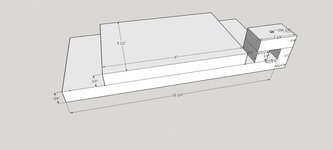

For the base, follow the drawings I included to cut out the base from 3/4" ply. There needs to be a hold down on each corner, 4 total. The drawing only shows one. The under side of the top piece has a place for a 7/16"-20 nut to be held in with CA. Glue and screw each of the small parts together, and then glue and screw the entire assembly onto the base.

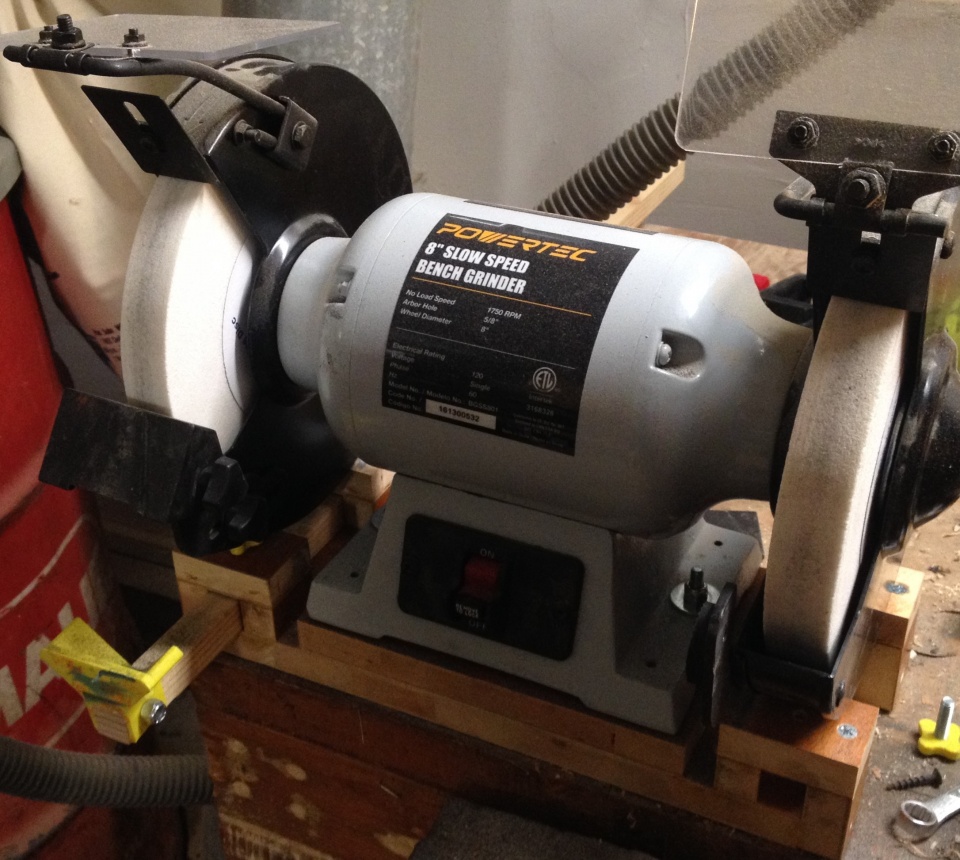

Make a small (thin) knob for the 1" bolt that feeds down through, as the guard on the grinder does not leave a lot of clearance. Bolt the grinder to the base so each wheel is centered on the slots.

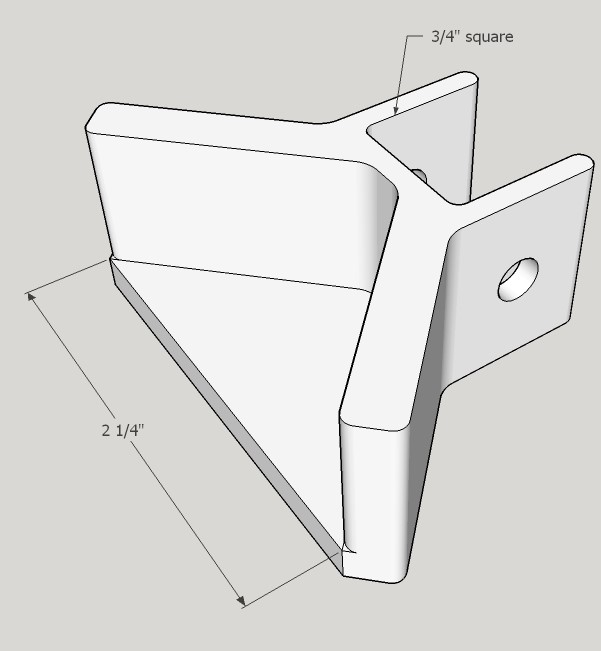

Cut a length of 3/4x3/4 stock to the length you need. Create an end cap that fits over or around the end of the stock. This cap will nest the arm of the verigrind in it. It should also be able to hold a tool handle. I Included a drawing of the endcap I made, but it is 3d printed, but you can get the idea from it and make something similar out of scrap wood.

I'm working on the adjustable table that slides into the slots. The ones that come on the grinder are toothed, and don't like to line up to the bevels I want.


Attachments

  • IMG_4324.jpg
    281 KB · Views: 666
  • grinder base1.jpg
    grinder base1.jpg
    54.4 KB · Views: 504
  • grinder base2.jpg
    grinder base2.jpg
    42.2 KB · Views: 459
  • grinder base3.jpg
    grinder base3.jpg
    50.1 KB · Views: 540
  • Sharpening jig plans for woodturning tools.pdf
    286.8 KB · Views: 574
  • IMG_4326.jpg
    253.3 KB · Views: 601
  • endcap.jpg
    59.3 KB · Views: 472
Signed-In Members Don't See This Ad

wyone

Member
Joined
Jul 16, 2014
Messages
1,764
Location
15314 Grasslands, Parker, CO 80134
thank you SOOO MUCH! My Nephew has a 3D printing company and I shared the information you provided on Monday and my brand new jig arrived yesterday! I think it is awesome! The only thing I might have done different is make the hole a bit larger as my favorite tool won't quite fit in it. But it will as soon as I get done with my dremel tool! :) :)

Thanks again!


Marmotjr

Member
Joined
Jun 16, 2016
Messages
245
Location
Rome, Ohio
You're very welcome!

But I would be careful with the dremel, most 3d prints are not solid, and the interior is a honeycomb structure. The strength of 3d prints come from the walls of the material, not the interior. If you round out the inside too much, you'll weaken it. If you need, I can post one with a larger opening and he could reprint it.


Skie_M

Member
Joined
Aug 7, 2015
Messages
2,737
Location
Lawton, Ok
Or better yet, marmotjr ... cut into the honeycomb structure INTENTIONALLY and fill it with epoxy or superglue... :)


Happen to have a copy of these plans in sketchup?


Marmotjr

Member
Joined
Jun 16, 2016
Messages
245
Location
Rome, Ohio
Sure do, I do 99% of my design work in SU.


And you'd be better off printing it with 0% infill (hollow), then making a mold from the original, and then casting it in resin. The honey comb structure is so porous that you'd end up casting the entire thing before it stopped flowing. Or you could just print it as solid plastic, but that's usually unnecessary and a total waste of material.


Attachments

  • VariGrind.zip
    78.2 KB · Views: 405
Last edited:

Skie_M

Member
Joined
Aug 7, 2015
Messages
2,737
Location
Lawton, Ok
Awesome .... now I just have to learn how to use this sketchup thingy .... doesn't work like ketchup at all!

Also, I see no problems with making the jig solid .... you should want it to be pretty solid to avoid having it fall apart from use and abuse, right? Just print it hollow or honeycomb and fill it with polyresin! :)

In any case, I'll probably be making this jig up in some kind of wood, as I don't have a 3D printer. :)


wyone

Member
Joined
Jul 16, 2014
Messages
1,764
Location
15314 Grasslands, Parker, CO 80134
I am not sure if he printed it honeycomb or solid. I need to ask him. But I am thinking it is solid as it feels heavy enough to be solid. I have some ideas I want him to try modifying, such as a larger hole. He is pretty good, although self taught with the software and equipment. I will let you know how it works out.. thanks again


Marmotjr

Member
Joined
Jun 16, 2016
Messages
245
Location
Rome, Ohio
You could probably safely take 1/32"-3/64" off the ID of the hole before getting structural problems.
