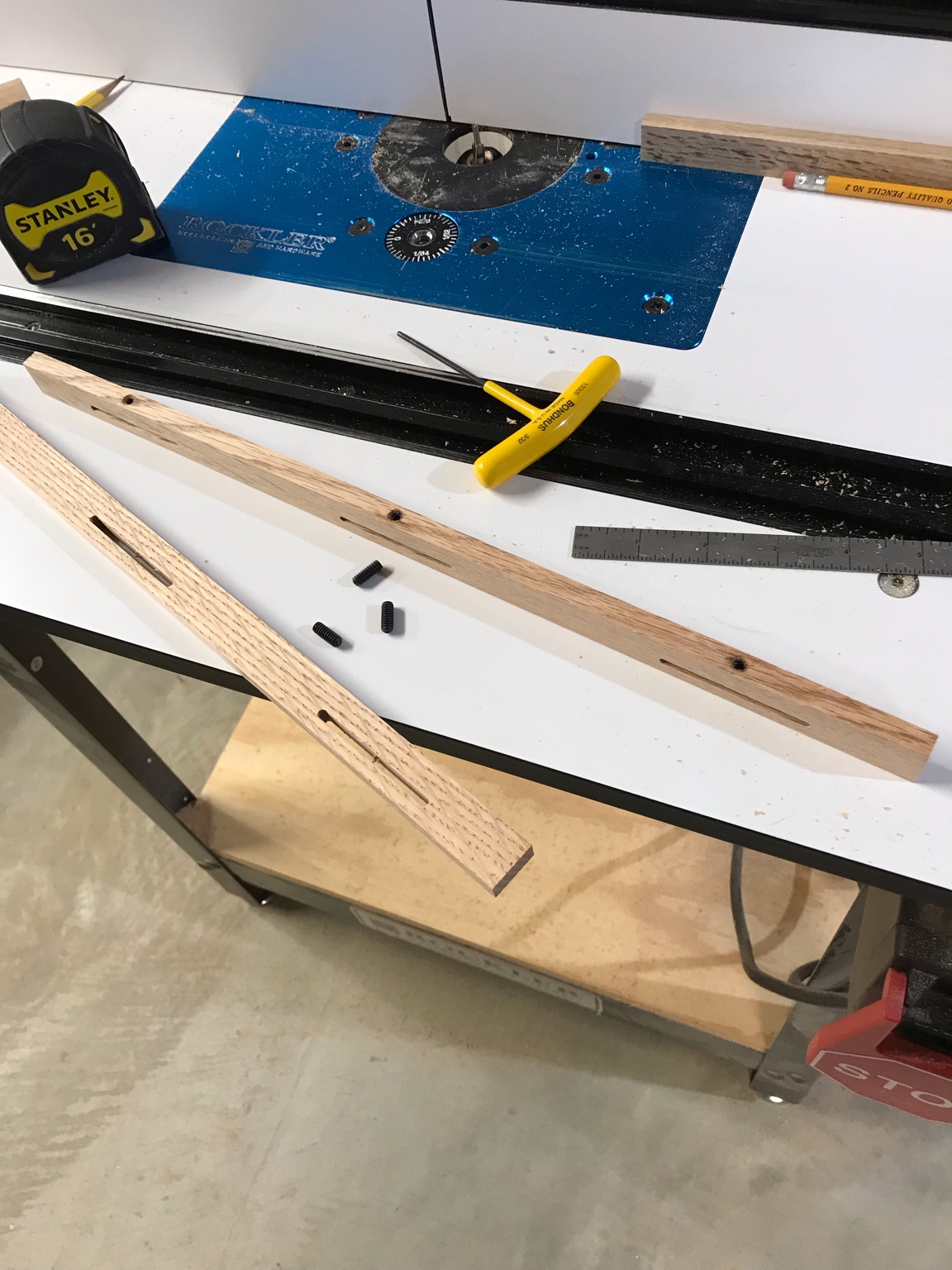

Long story short, I need to remake my segmenting sled. Thought about just buying a couple of aluminum miter bars,but two are around forty bucks. Seen a variation of these online and thought , those look easy enough. Just finished them and I have to say they will work great. I made sure they were just a tad sloppy, so they will always be adjustable. Run them down my miter slots and they adjusted perfectly, absolutely no slop. Now off to the rest of the sled. IMG_1194.JPG
