Hello,

I haven't done much penturning for the last couple months, and zero kitless/custom stuff for some reason. Well, a very good customer who wants custom almost exclusively asked me for these.

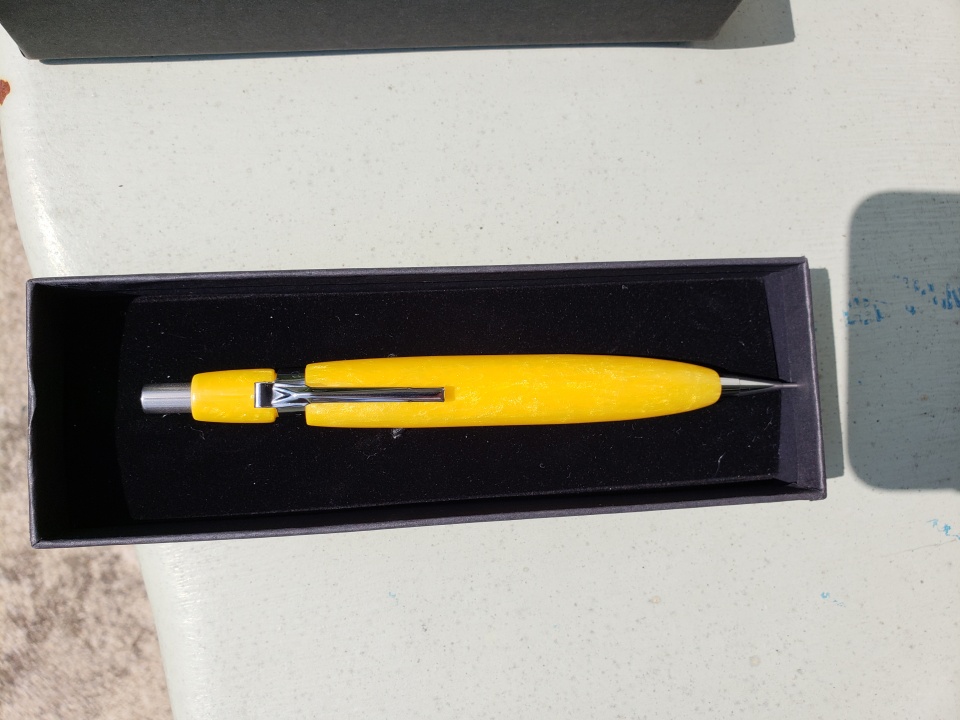

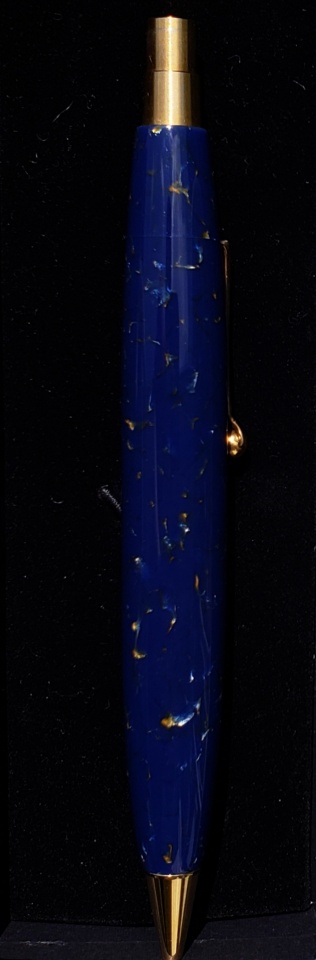

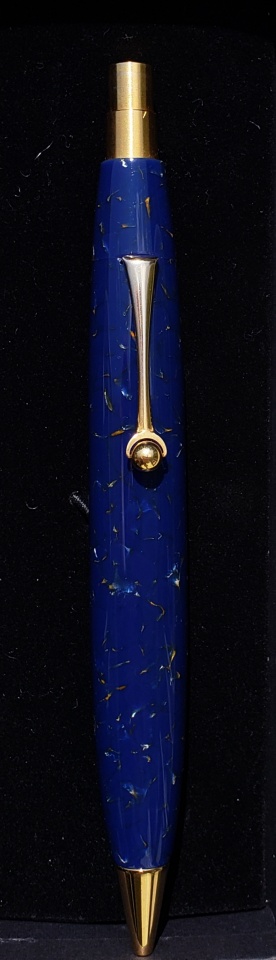

The blue clicker is from Conway Stewart Lapis and the yellow is from James @the_pensmiths, aka Racer on here. The clicker uses the schmidt click and a nose cone from Richard Greenwald. The yellow is a Pentel mechanism.


Attachments

  • 20180822_161407.jpg
    73.5 KB · Views: 238
  • 20180822_161447.jpg
    62.3 KB · Views: 221
  • IMG_20180822_162216_711.jpg
    154.7 KB · Views: 224
  • 20180822_133934.jpg
    123.4 KB · Views: 229
  • 20180822_134535.jpg
    175.8 KB · Views: 260
Last edited:
Signed-In Members Don't See This Ad

magpens

Member
Joined
Feb 2, 2011
Messages
15,856
Location
Canada
What happened to the yellow one ? Pic just disappeared as I was clicking on it to enlarge it.

Edit: Oh - there it's back again !!

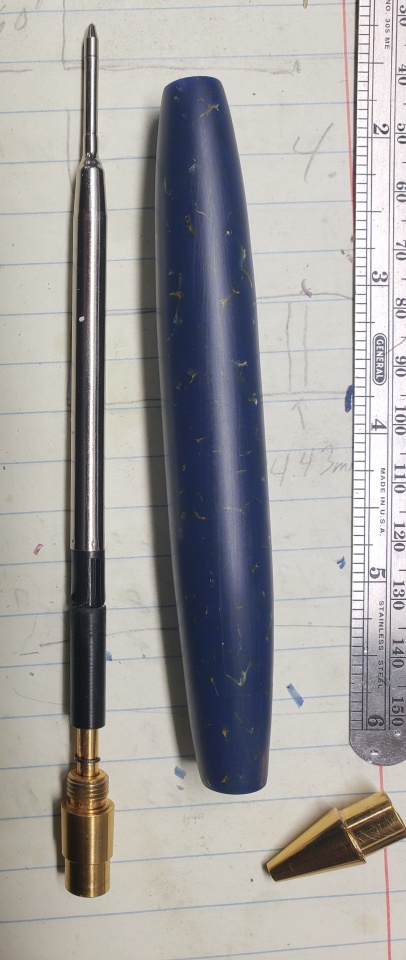

Regarding pic #4 (the last blue) ... obviously still needs to be polished ... but does it also need to be cut to accept the clip insertion ?

Nice work, Lewis !!! ... I love the Lapis especially !!! Seems to me there is one entered in one of the S. E. contests just winding up.

Last edited:

stuckinohio

Member
Joined
May 3, 2015
Messages
1,687
Location
Columbus Ohio
What happened to the yellow one ? Pic just disappeared as I was clicking on it to enlarge it.

Edit: Oh - there it's back again !!

Regarding pic #4 (the last blue) ... obviously still needs to be polished ... but does it also need to be cut to accept the clip insertion ?

Nice work, Lewis !!! ... I love the Lapis especially !!! Seems to me there is one entered in one of the S. E. contests just winding up.

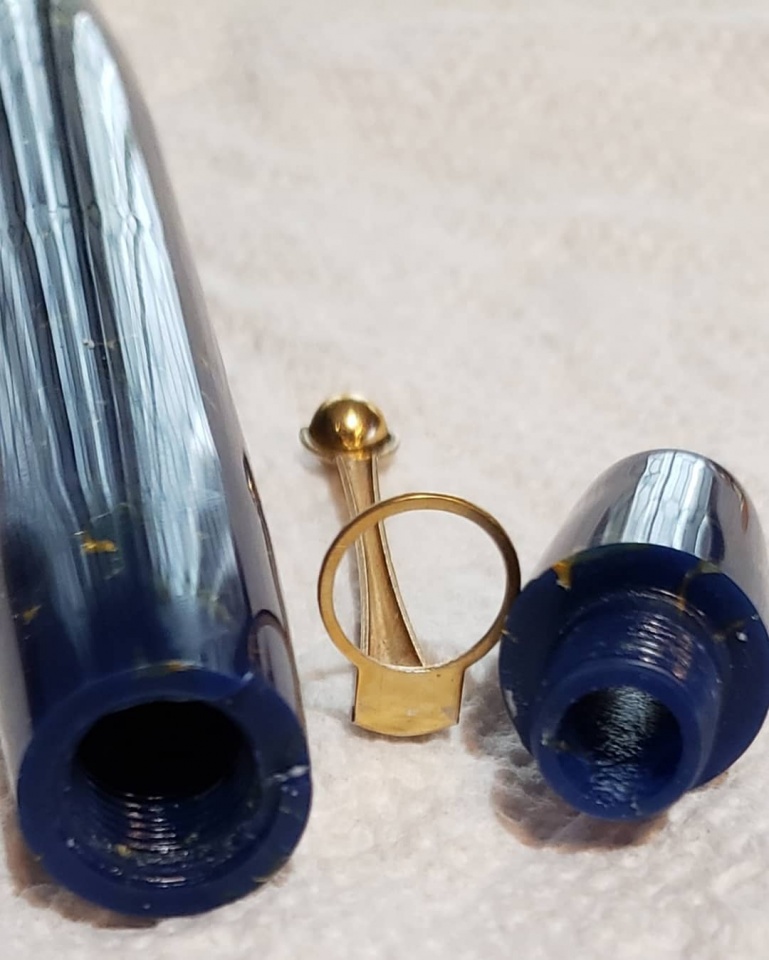

In that pic, the piece is already cut, threaded and relieved to accept the clip, but after sanding it is very hard to see and feel the seam. If done correctly...


stuckinohio

Member
Joined
May 3, 2015
Messages
1,687
Location
Columbus Ohio

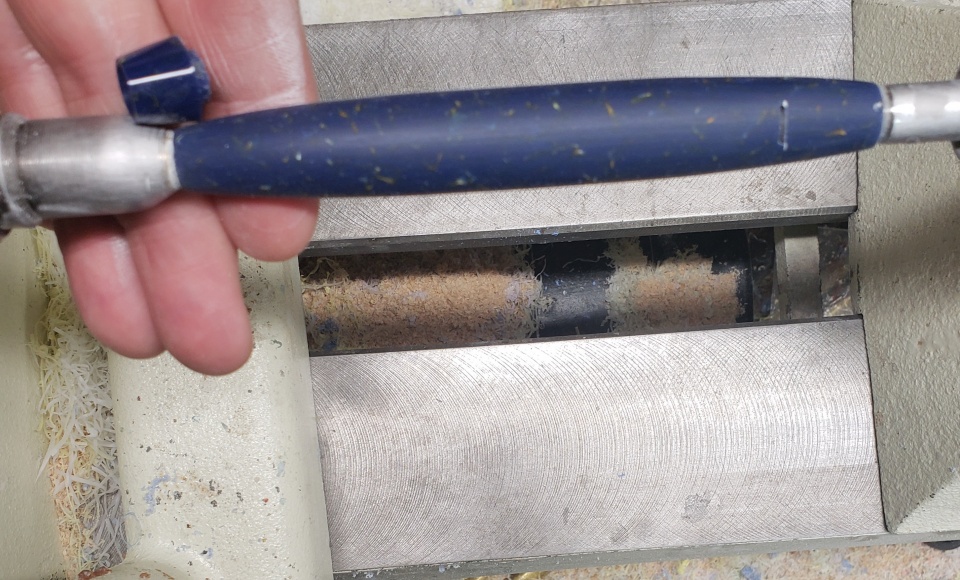

Here it is on the wood lathe today, right before that pic was taken, and after I cut the nose of it off. It was too long so i shortened it today.

You can see the small groove that allows the clip to pass through but it's difficult to see the seam.


Attachments

  • 20180822_113643.jpg
    235.2 KB · Views: 196
Last edited:

mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
12,111
Location
Medina, Ohio
Excellent work on both Lewis. The Lapis is very pretty.

I will stick to little twigs, but I do admire you kitless guys! Very nice.
