Blue/gray kitless

Signed-In Members Don't See This Ad
See more from jalbert

jalbert

Member
Joined
May 17, 2015
Messages
762
Location
Louisville, KY

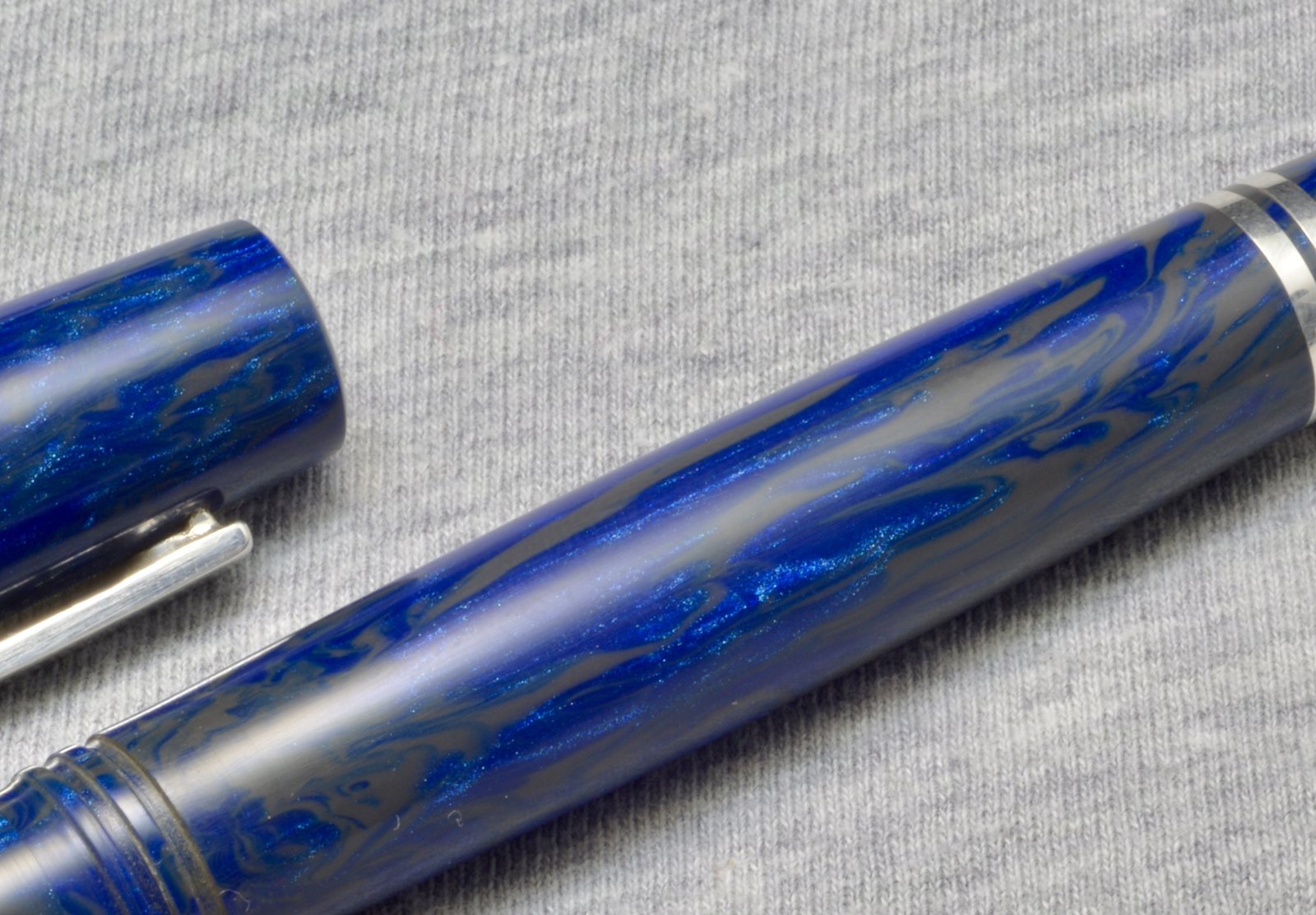

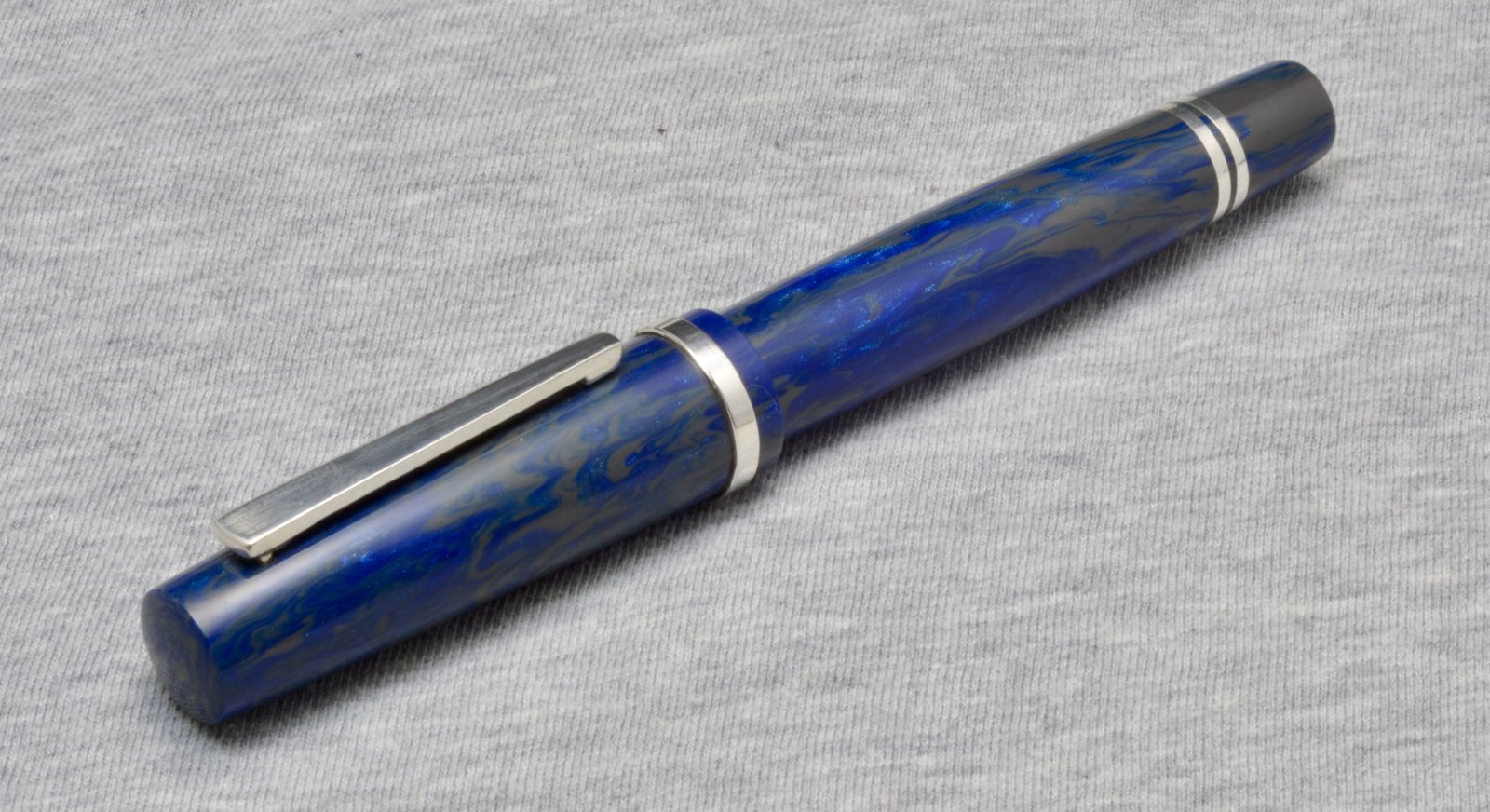

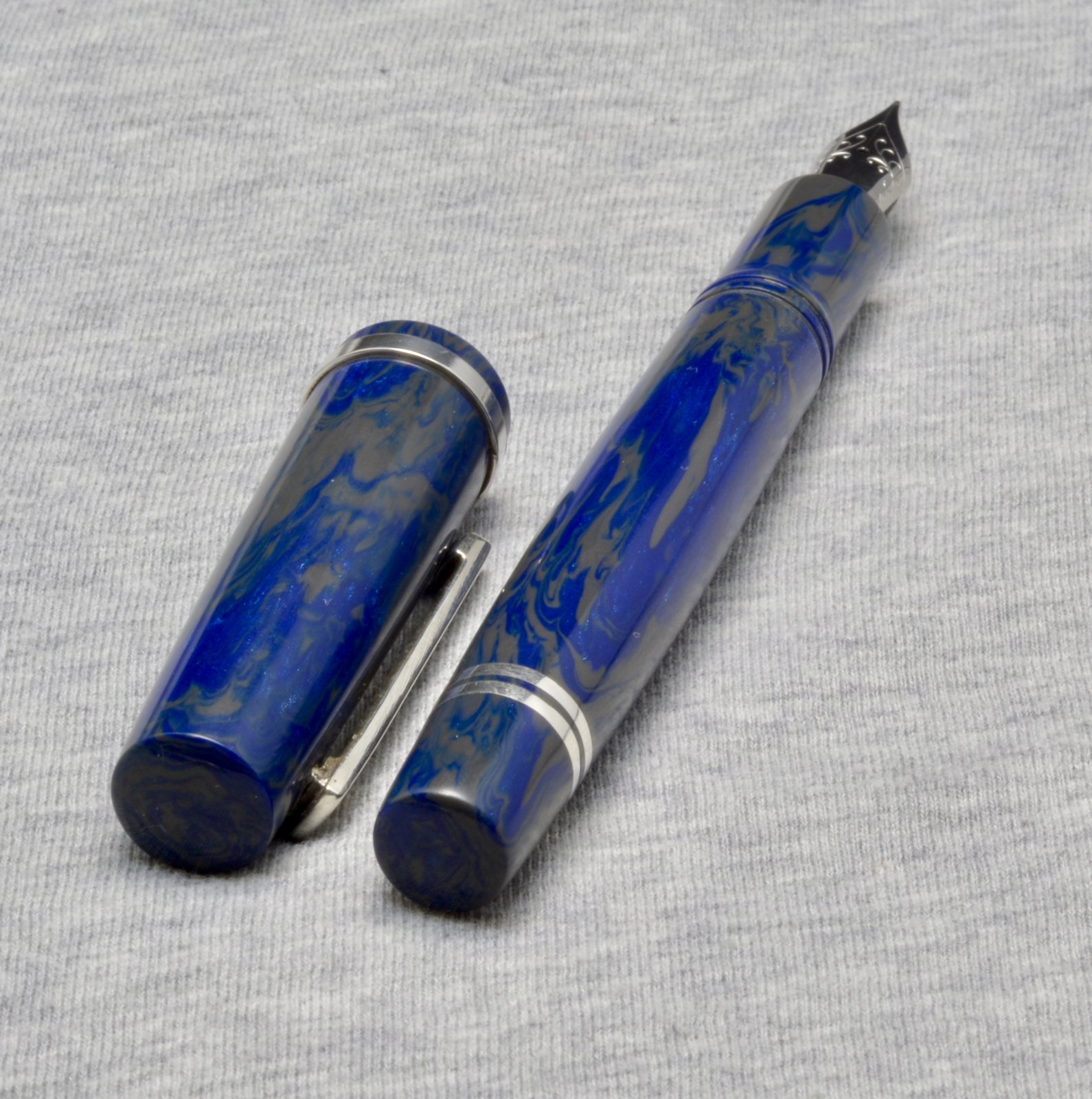

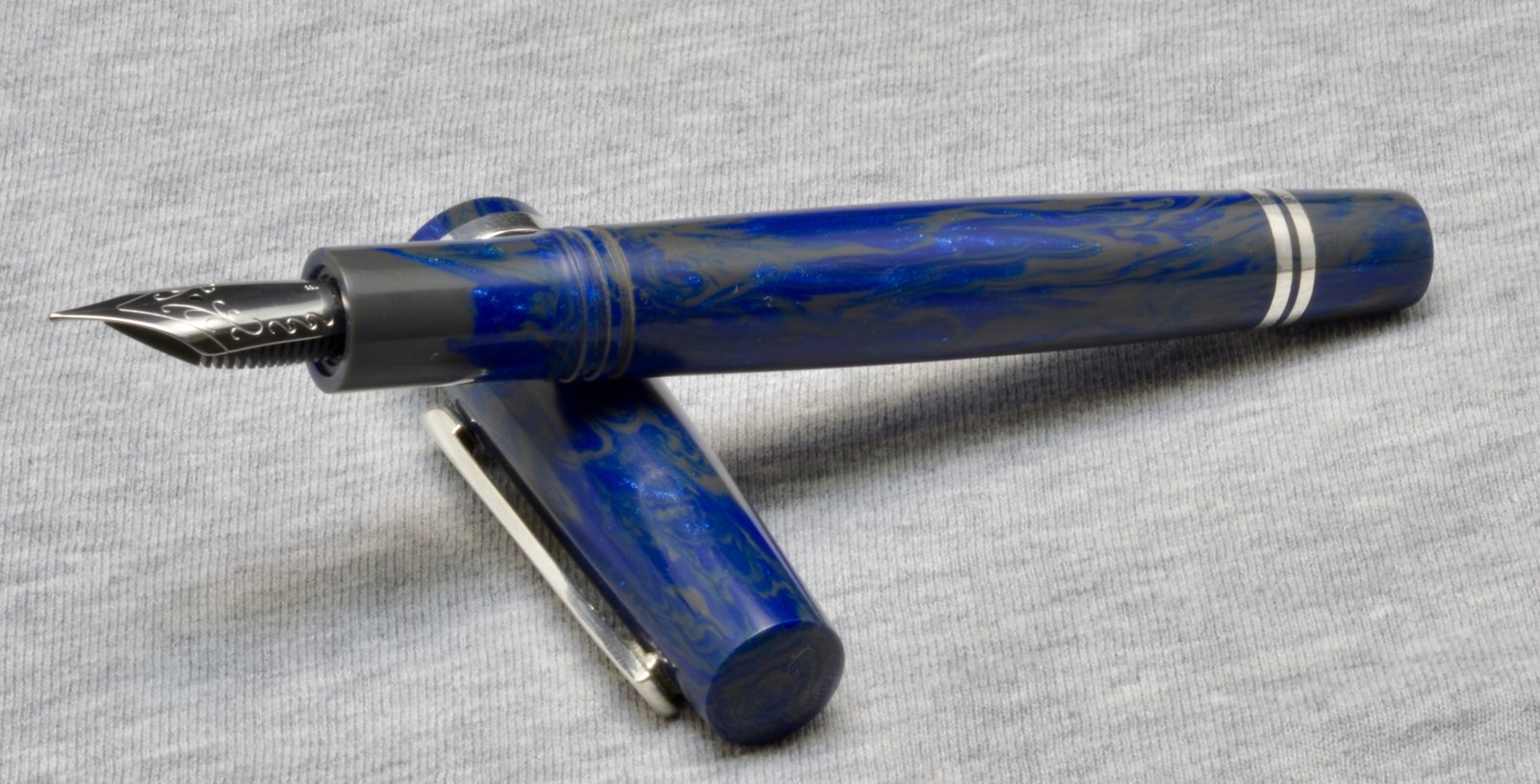

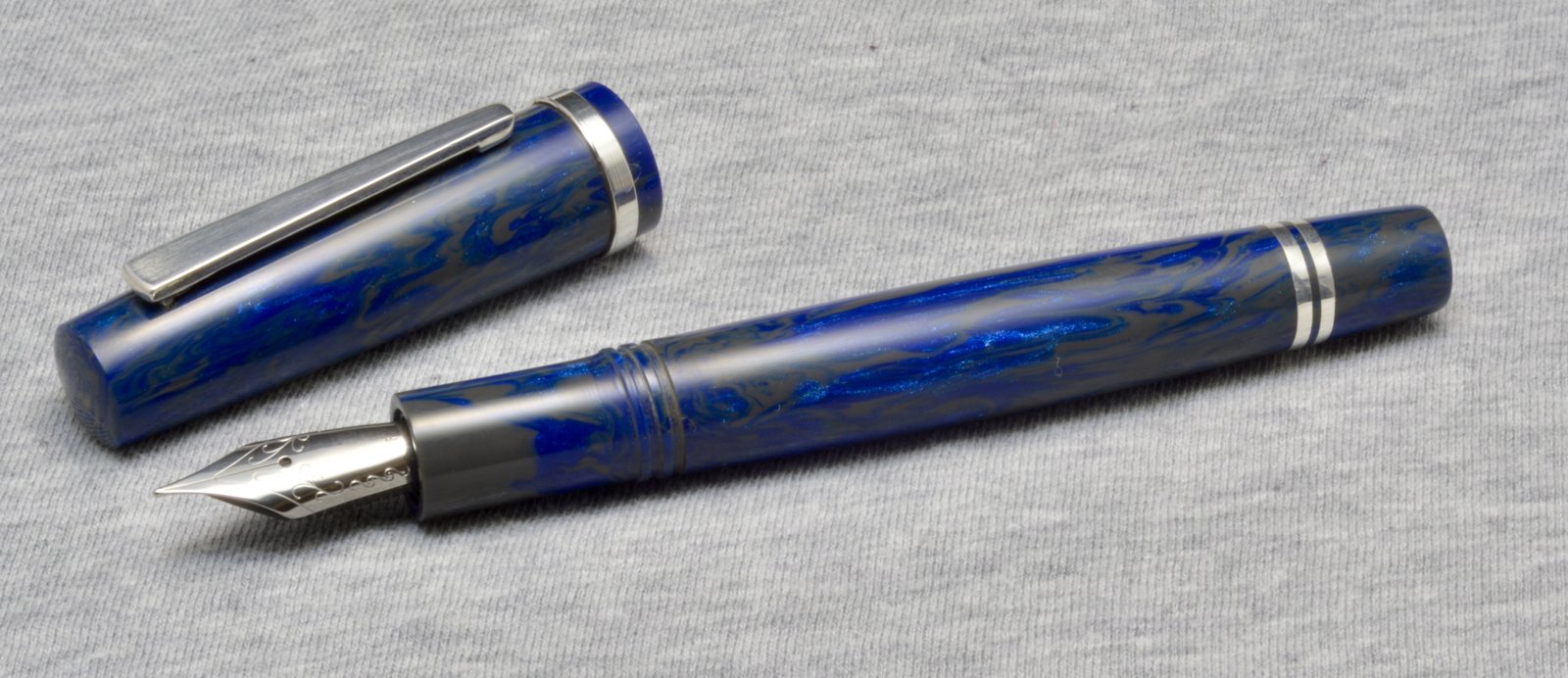

Here is a pen I finished this weekend. I made it from blue/gray alumilite I poured a few weeks ago, and was playing around with some new ideas. I made the clip and bands from argentium sheet. The nib is a jowo #6 , and the pen is converter fed. It’s a mid sized pen, with 1/2” cap threads, and approximately 5.25” long, and postable. The clip is made in two pieces, which is something I’d wanted to try for a while.

Signed-In Members Don't See This Ad

magpens

Member
Joined
Feb 2, 2011
Messages
14,992
Location
Coquitlam, BC, Canada
VERY beautiful work, John !!

I'd like to know how the clip is attached, please .... I don't see the usual "barrel break". . Looks like the clip might have a tab going through the side.


skiprat

Member
Joined
Oct 19, 2006
Messages
7,805
Location
In a Skip in Wales
Mal, my guess is a tab with a hole in it and a small screw through it into the end of the cap. There seems to be enough meat for some threads..

Of course...yet another really cool pen John... 👍


CjG78

Member
Joined
Feb 2, 2020
Messages
489
Location
Australia
Here is a pen I finished this weekend. I made it from blue/gray alumilite I poured a few weeks ago, and was playing around with some new ideas. I made the clip and bands from argentium sheet. The nib is a jowo #6 , and the pen is converter fed. It’s a mid sized pen, with 1/2” cap threads, and approximately 5.25” long, and postable. The clip is made in two pieces, which is something I’d wanted to try for a while. View attachment 236839View attachment 236840View attachment 236841View attachment 236842View attachment 236843
Unbelievable mate


jalbert

Member
Joined
May 17, 2015
Messages
762
Location
Louisville, KY
John, what thickness of material do you use for your clips? Is the material sold as soft or hard?
I use 14gauge. I’m not sure what the hardness was on it. It ends up getting torched and soldered, so the temper is destroyed on it anyway during the fabrication process.
