Another Cigarillo success!

Signed-In Members Don't See This Ad
See more from qquake

qquake

Member
Joined
Feb 8, 2004
Messages
4,996
Location
Northern California

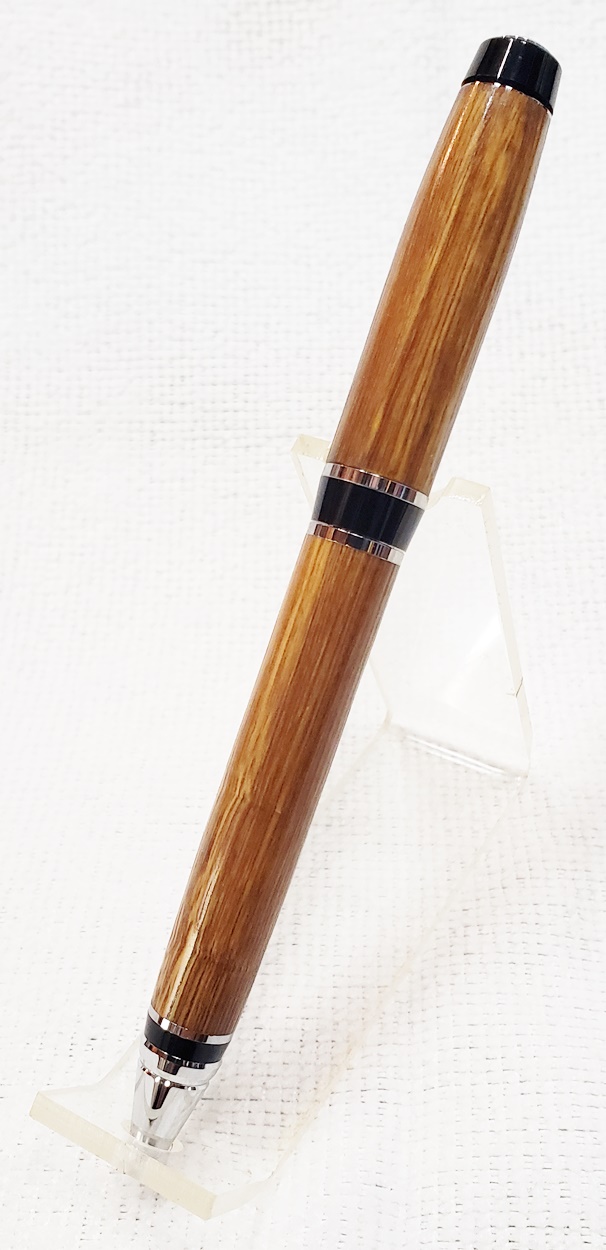

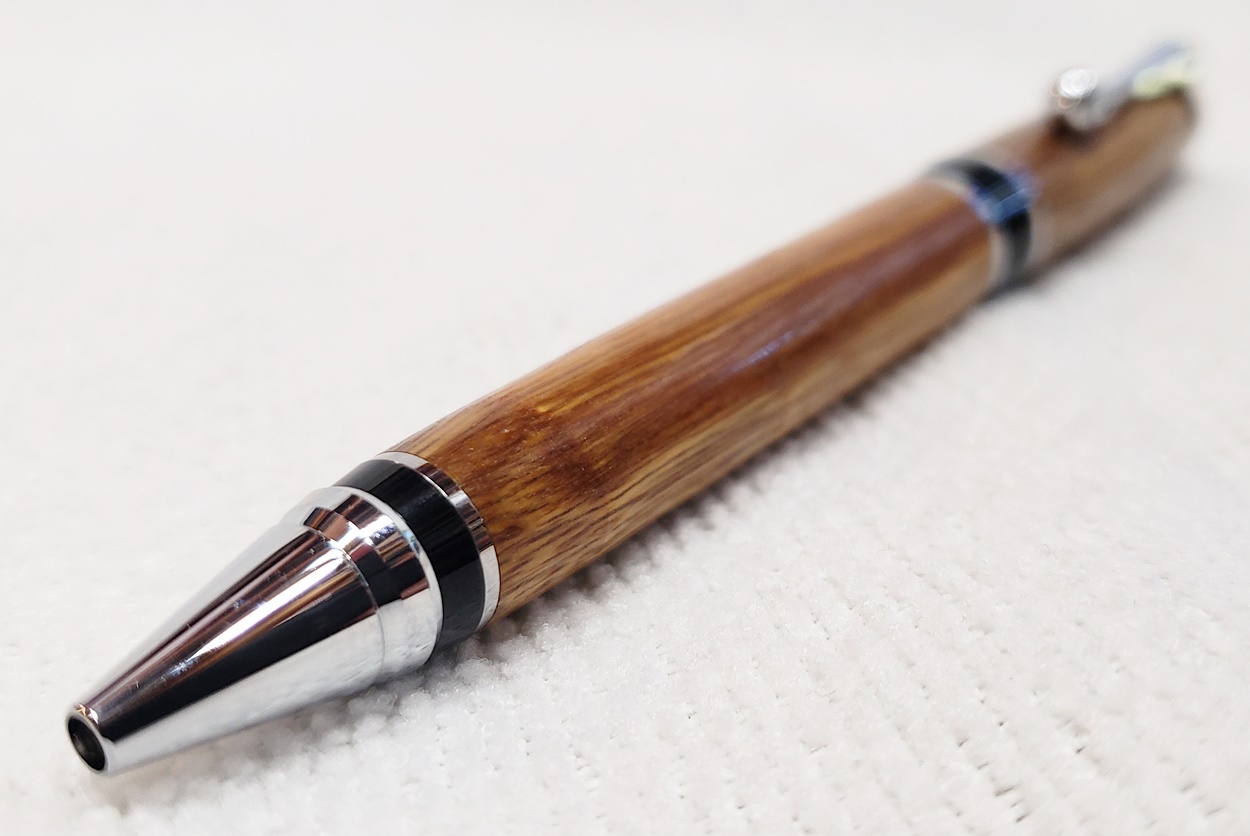

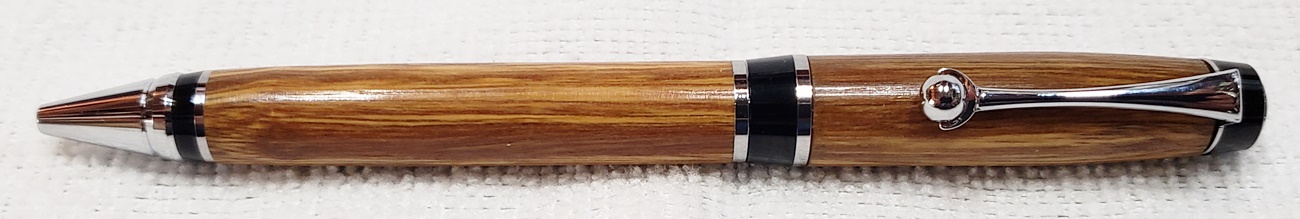

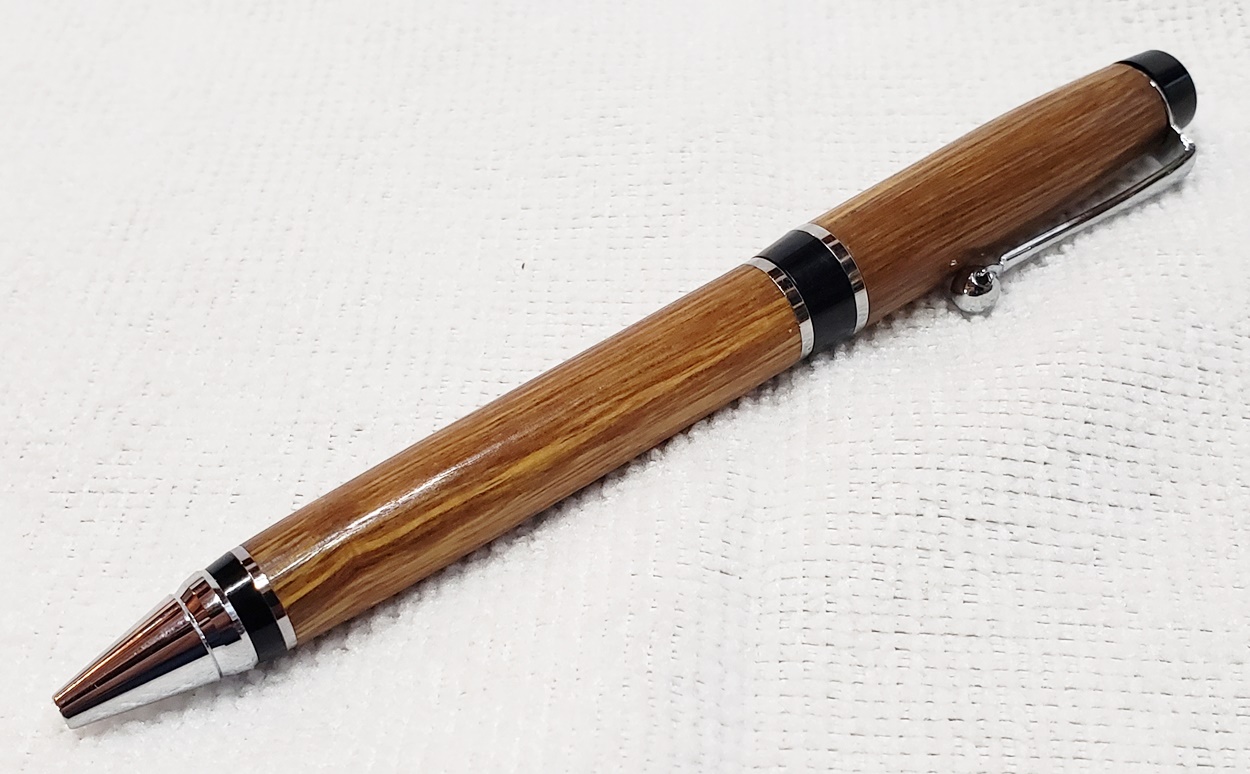

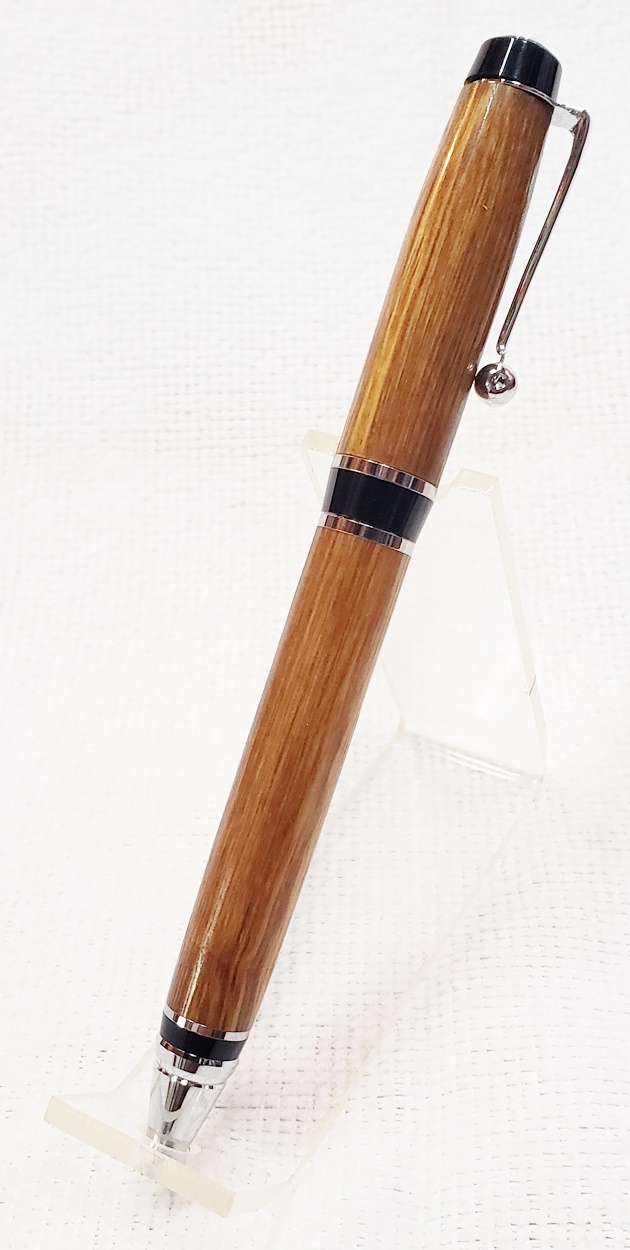

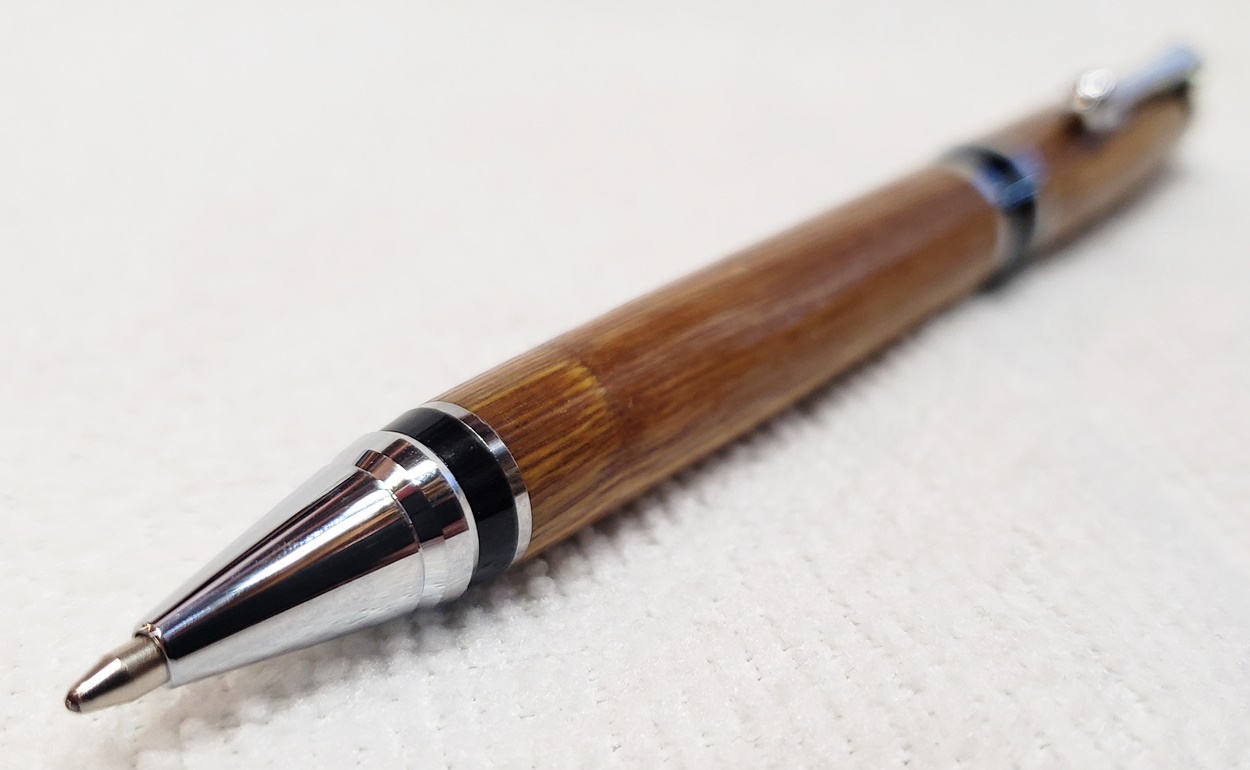

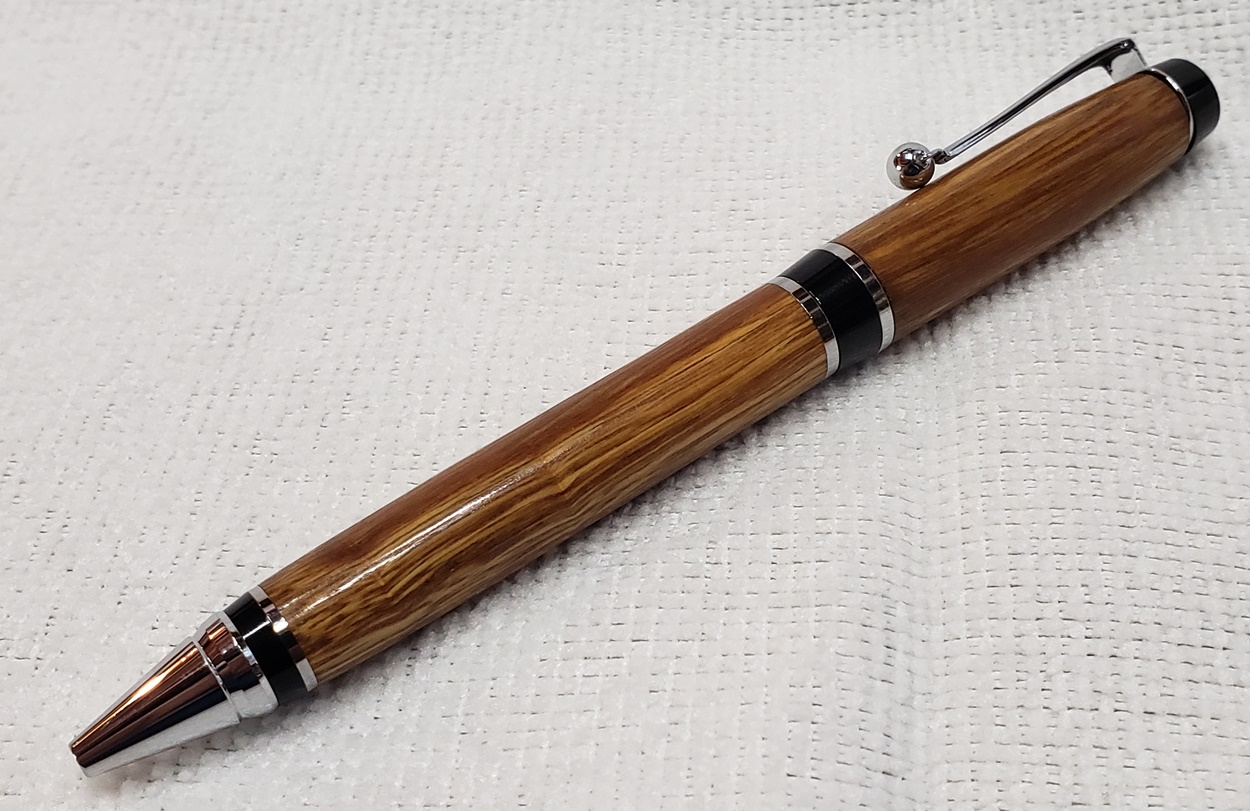

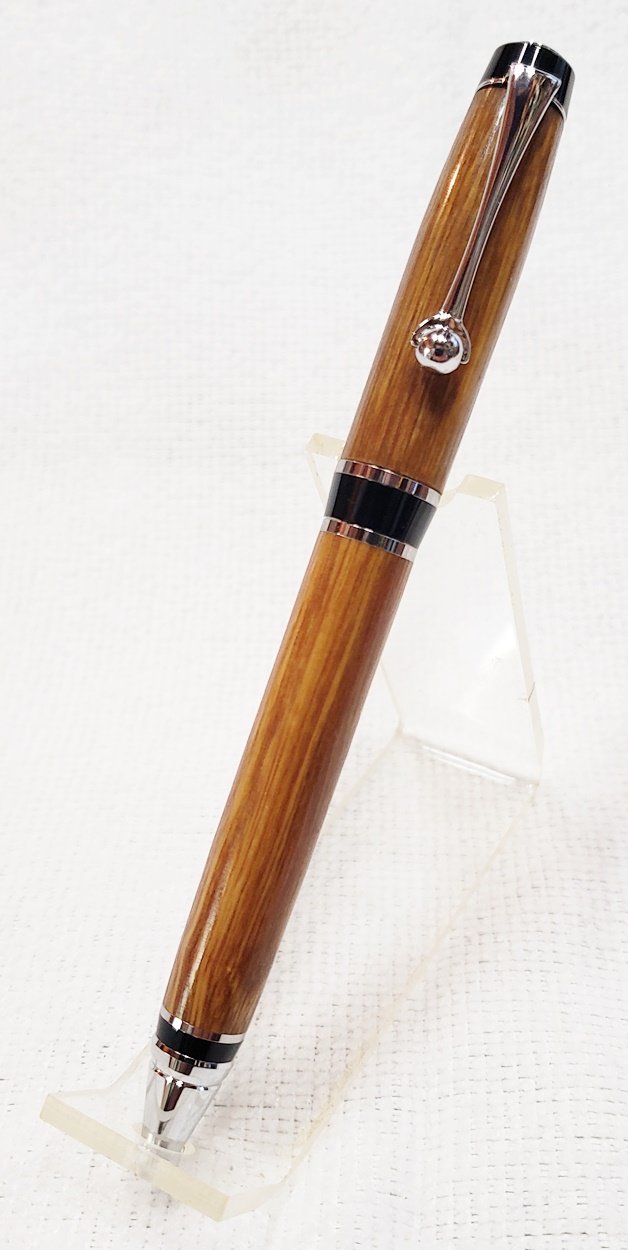

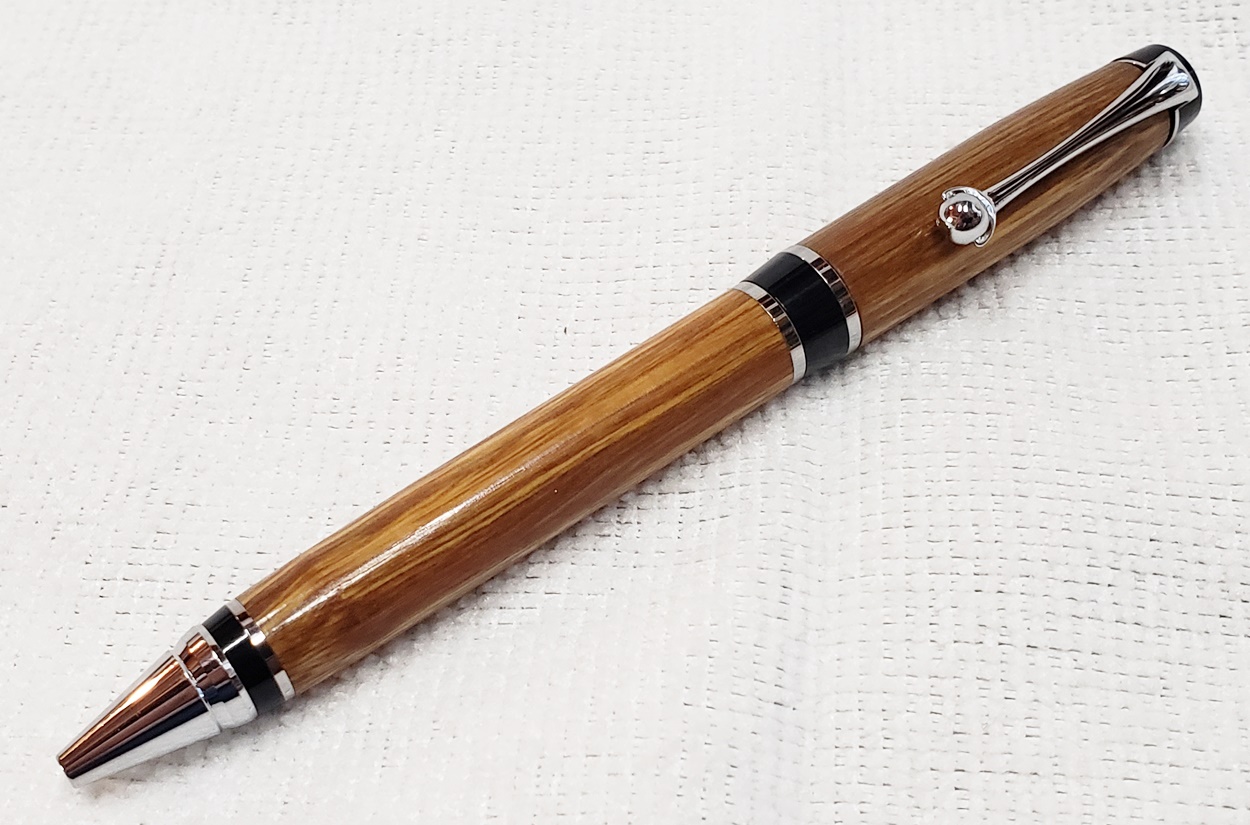

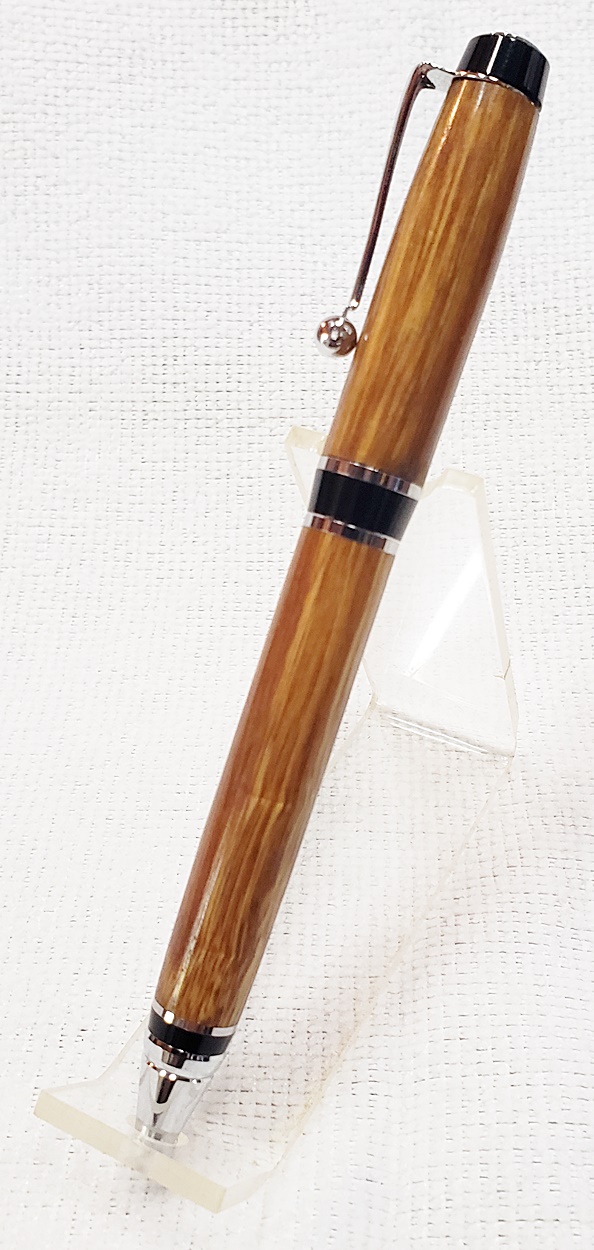

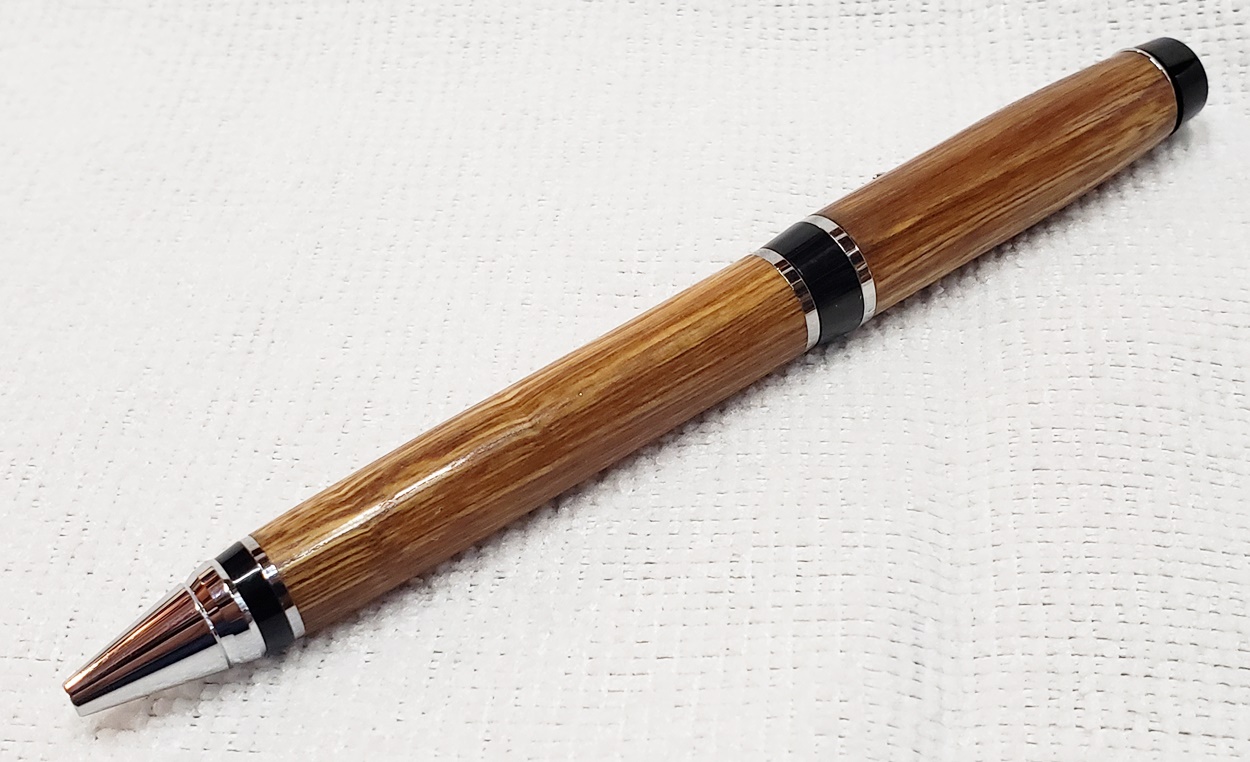

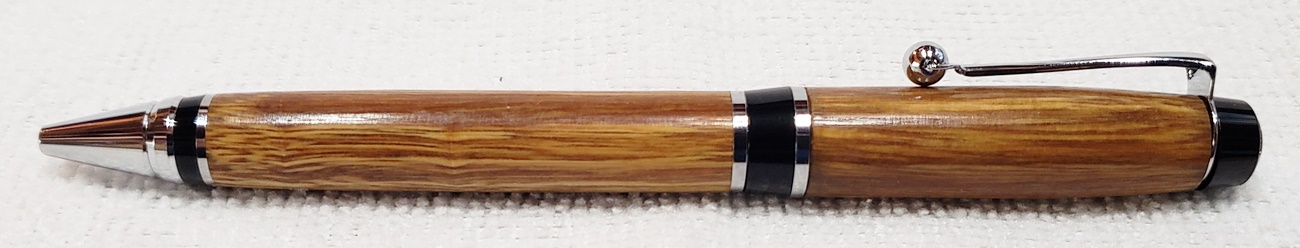

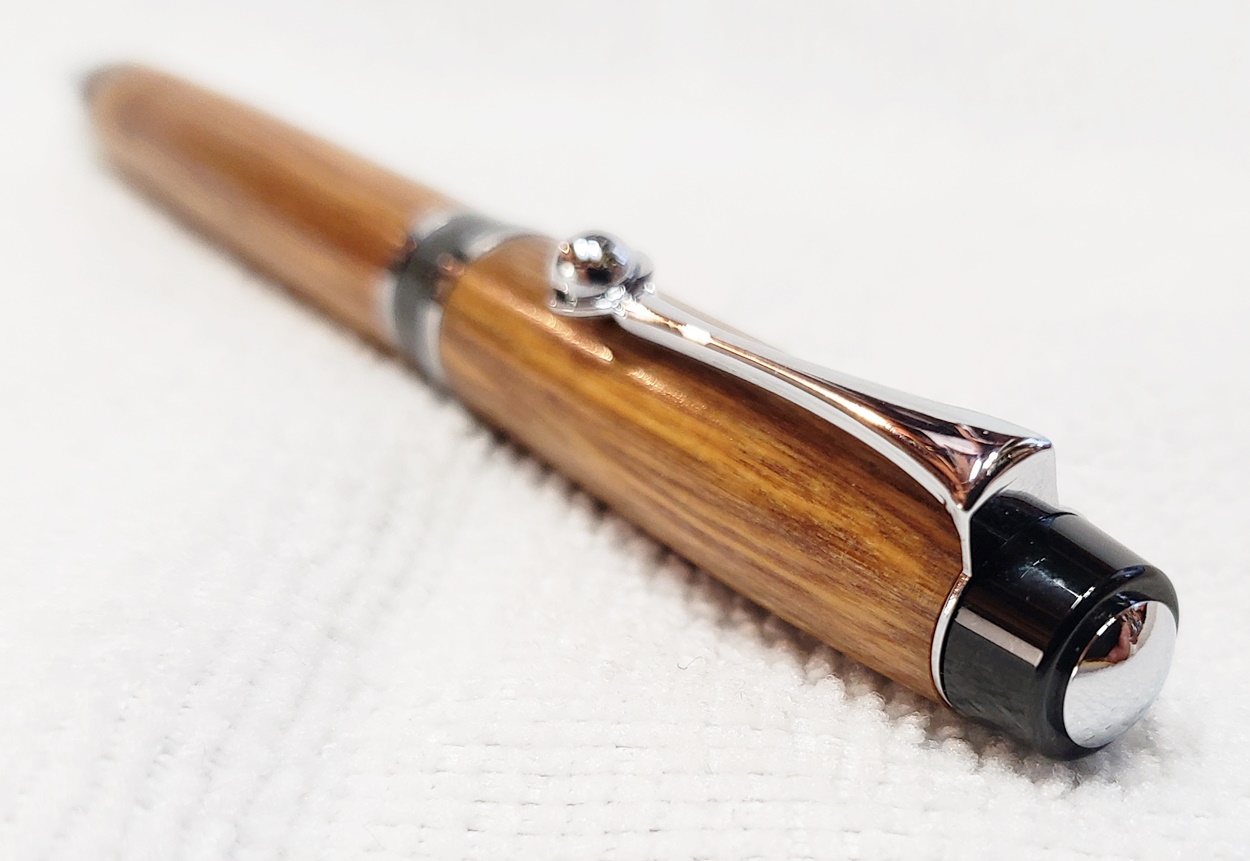

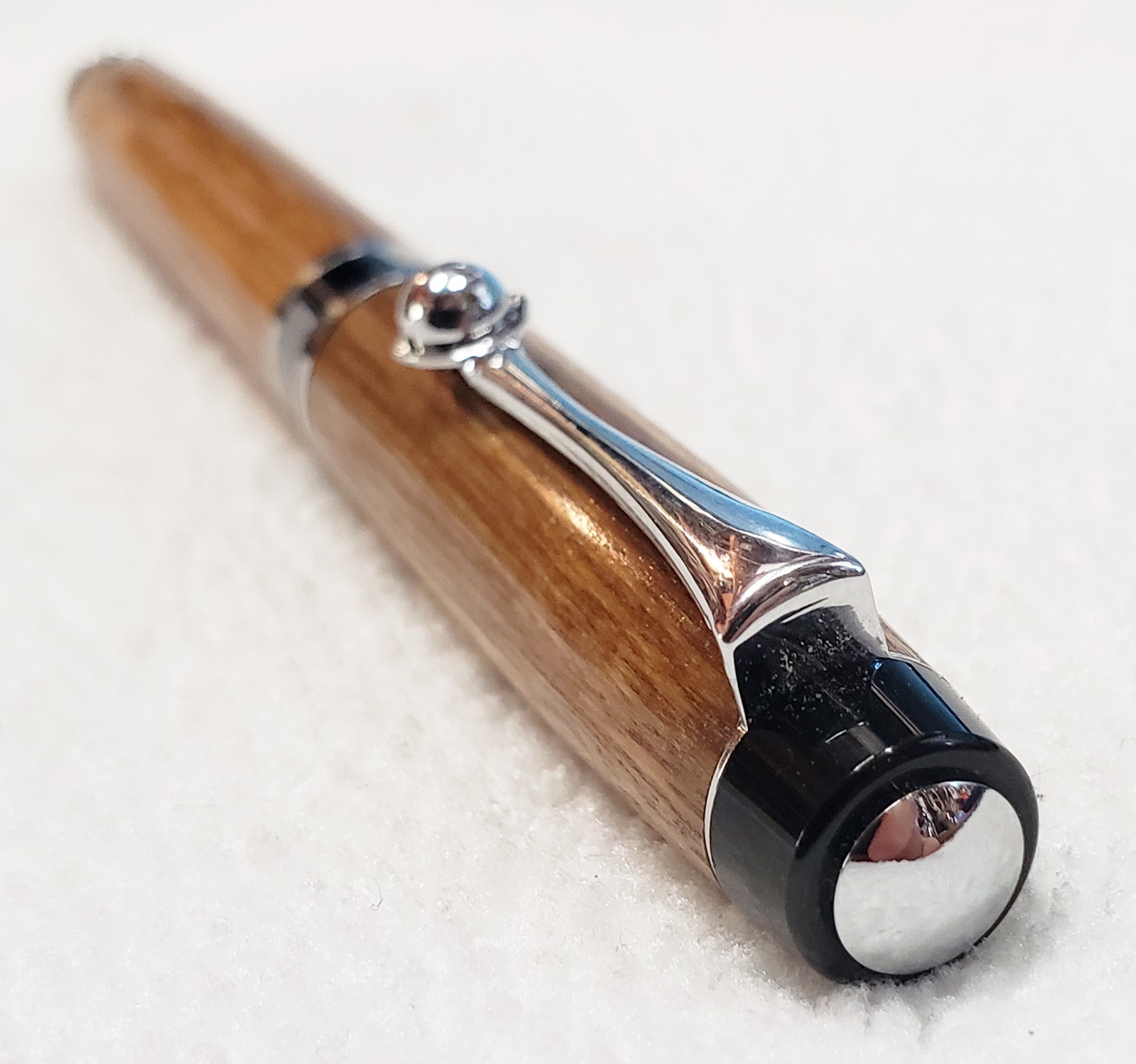

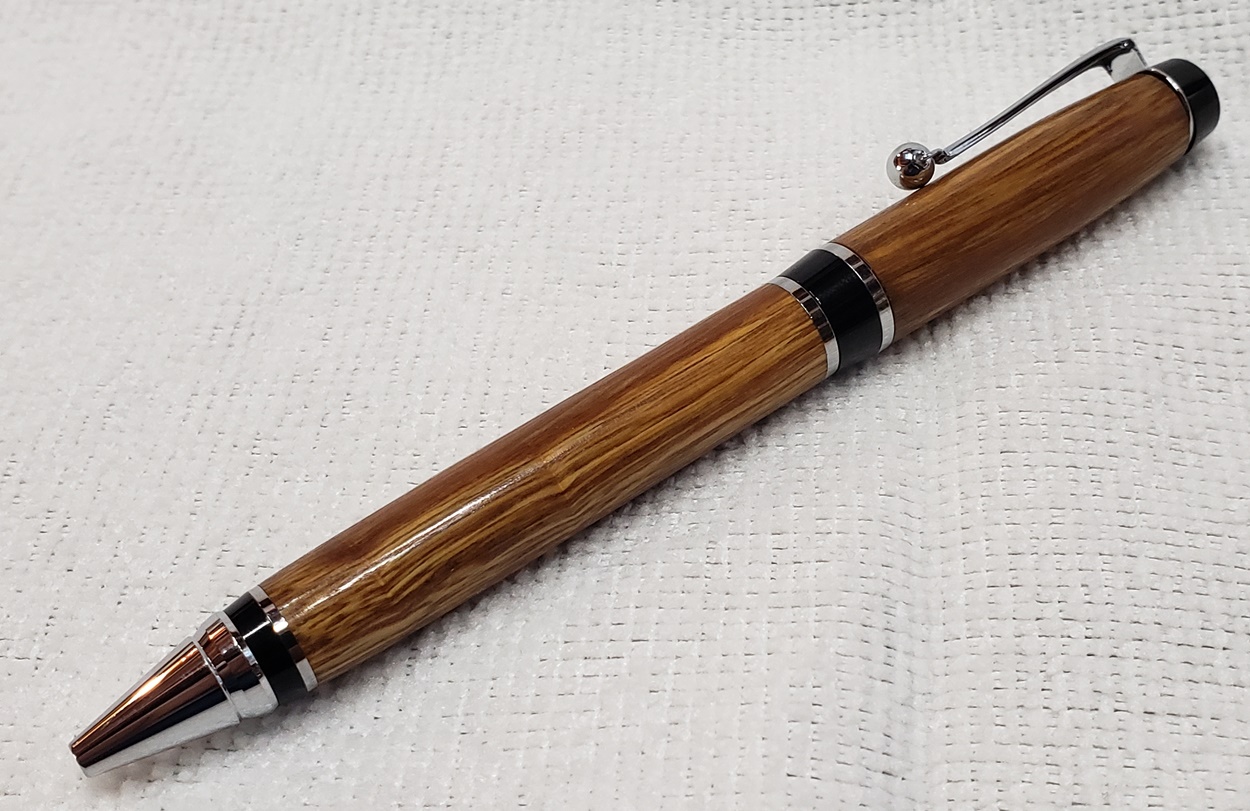

Well, mostly. This is a Woodcraft Cigarillo pen in chrome. The wood is lignum vitae, and the finish is Pens Plus. The twist mechanism works fine, I think I've got that issue resolved. But there were a couple of other minor issues that were both totally my fault. But I'm happy with the result.


Attachments

  • 120.jpg
    294.4 KB · Views: 92
  • 121.jpg
    327.4 KB · Views: 107
  • 122.jpg
    264.9 KB · Views: 88
  • 123.jpg
    251.7 KB · Views: 86
  • 125.jpg
    182.1 KB · Views: 91
  • 126.jpg
    163.2 KB · Views: 90
  • 127.jpg
    144.9 KB · Views: 81
  • 128.jpg
    103.3 KB · Views: 80
  • 129.jpg
    103.5 KB · Views: 92
  • 135.jpg
    153.4 KB · Views: 82
  • 136.jpg
    242.5 KB · Views: 80
  • 137.jpg
    160.3 KB · Views: 91
  • 138.jpg
    157.9 KB · Views: 94

qquake

Member
Joined
Feb 8, 2004
Messages
4,996
Location
Northern California

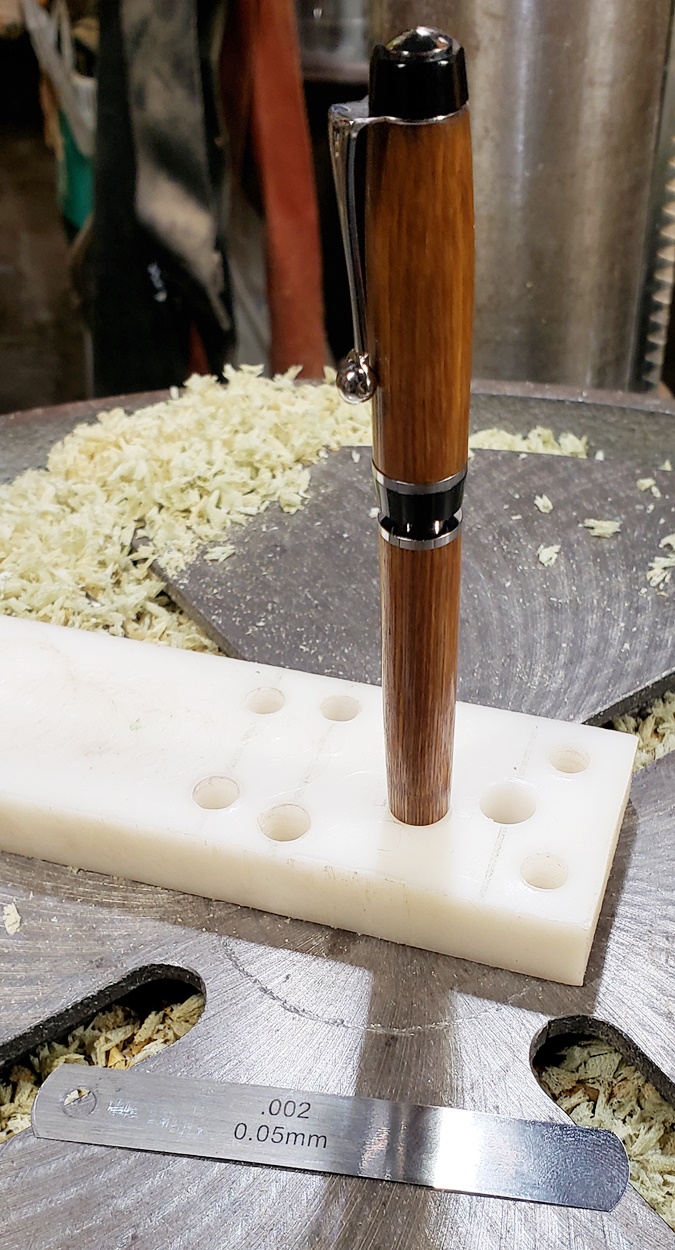

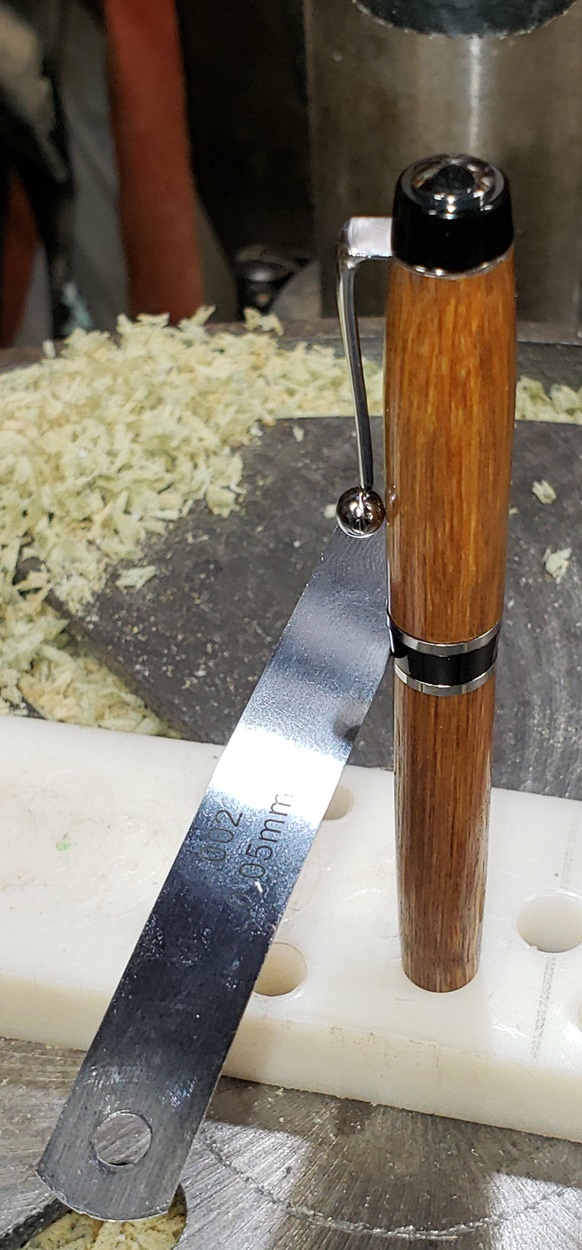

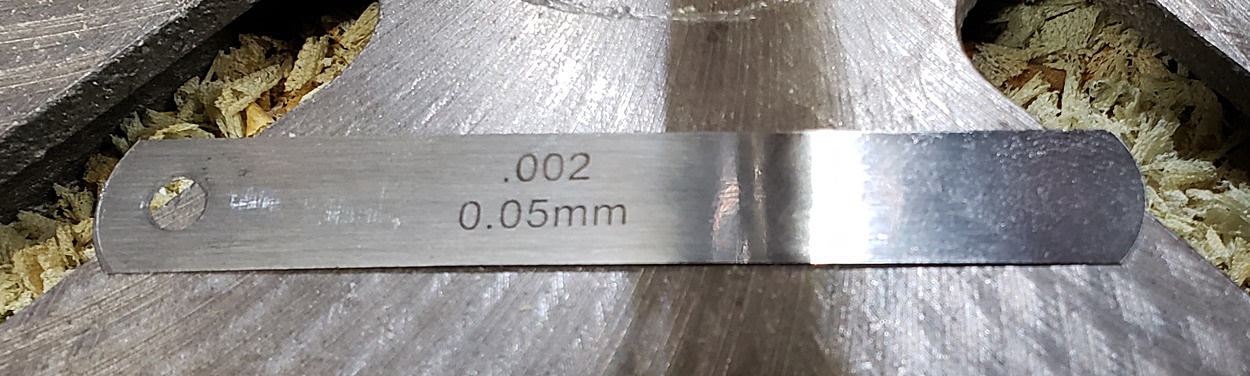

To get a consistent gap between the center band and twist adapter, I used a 0.002" (two thousandth) feeler gauge. Seemed to work well.


Attachments

  • 115.jpg
    326.8 KB · Views: 95
  • 116.jpg
    214.8 KB · Views: 90
  • 117.jpg
    245.7 KB · Views: 85

qquake

Member
Joined
Feb 8, 2004
Messages
4,996
Location
Northern California

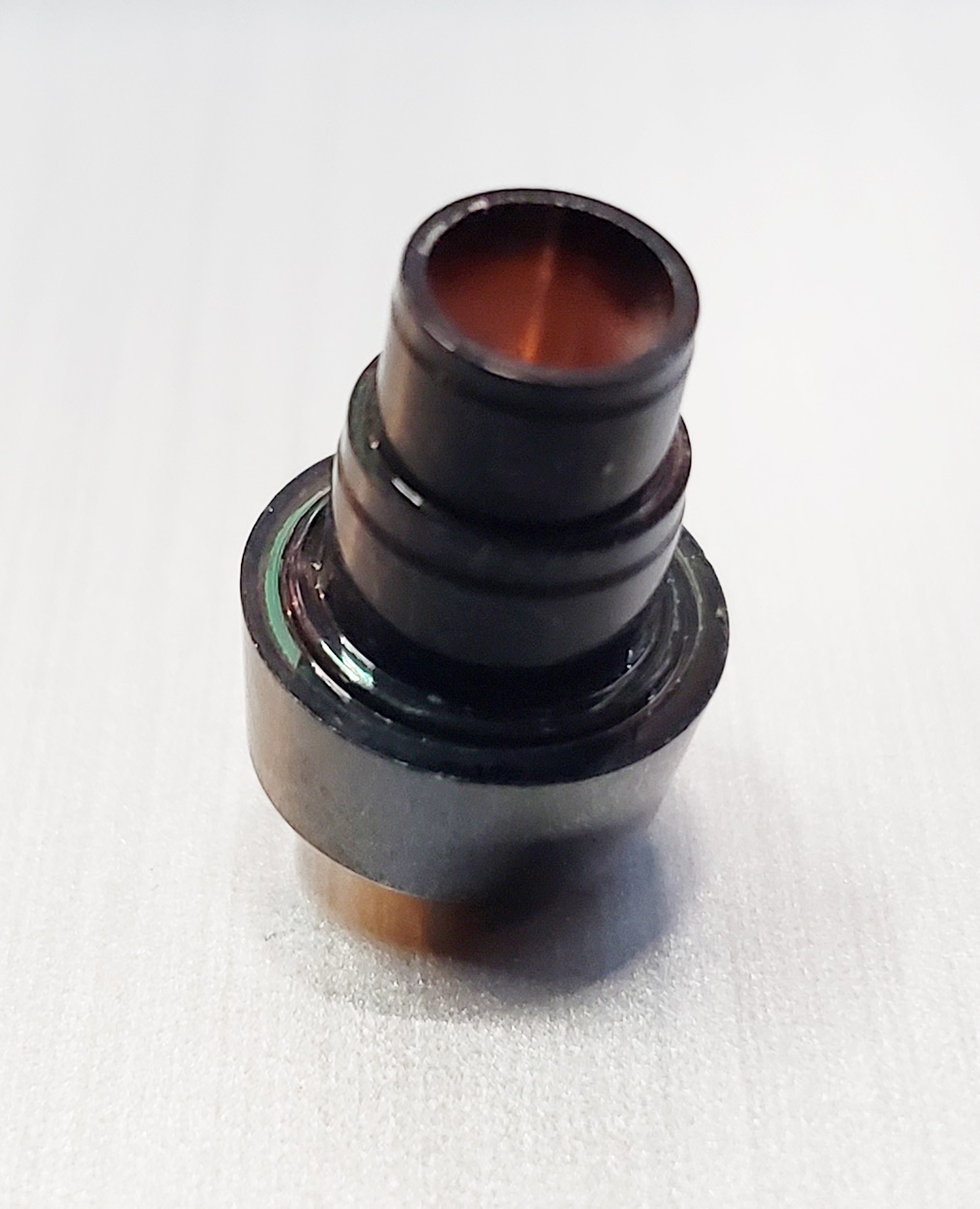

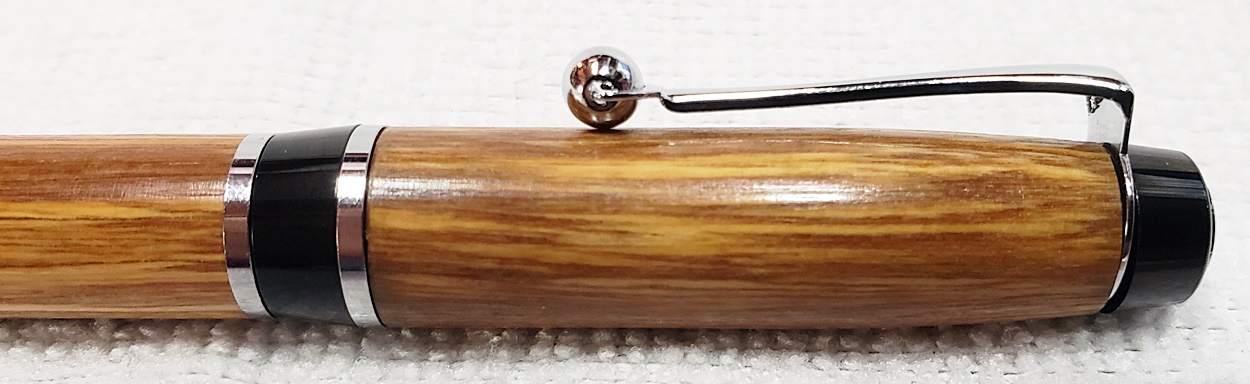

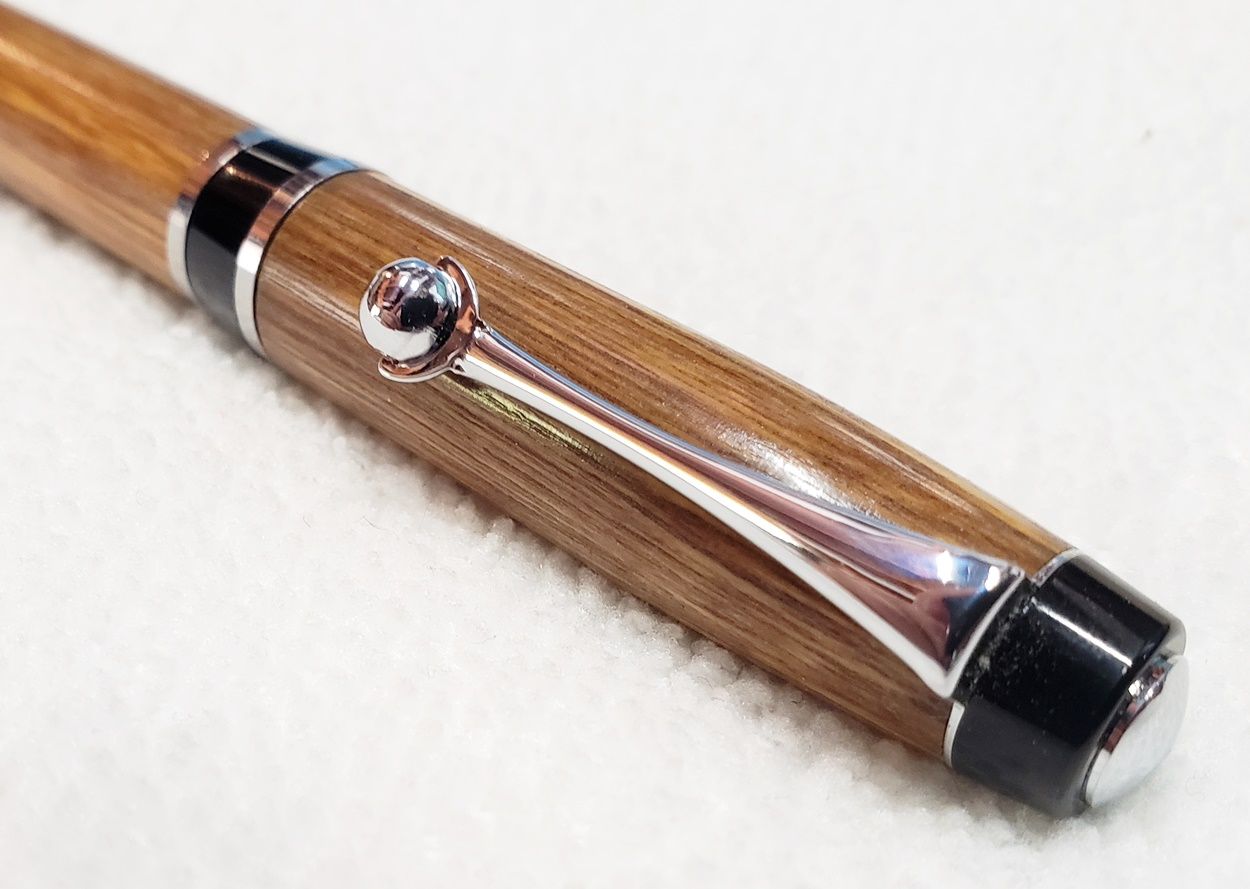

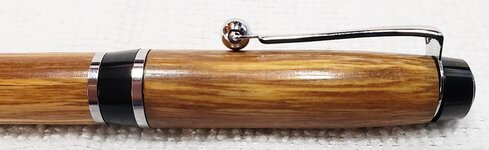

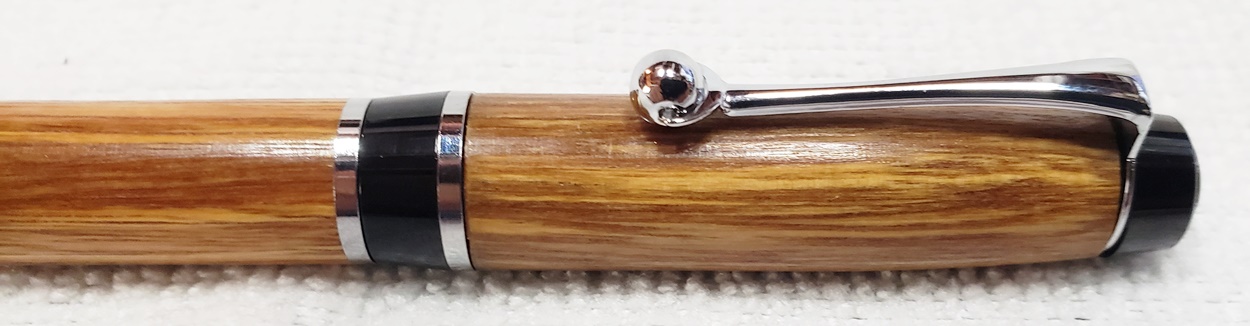

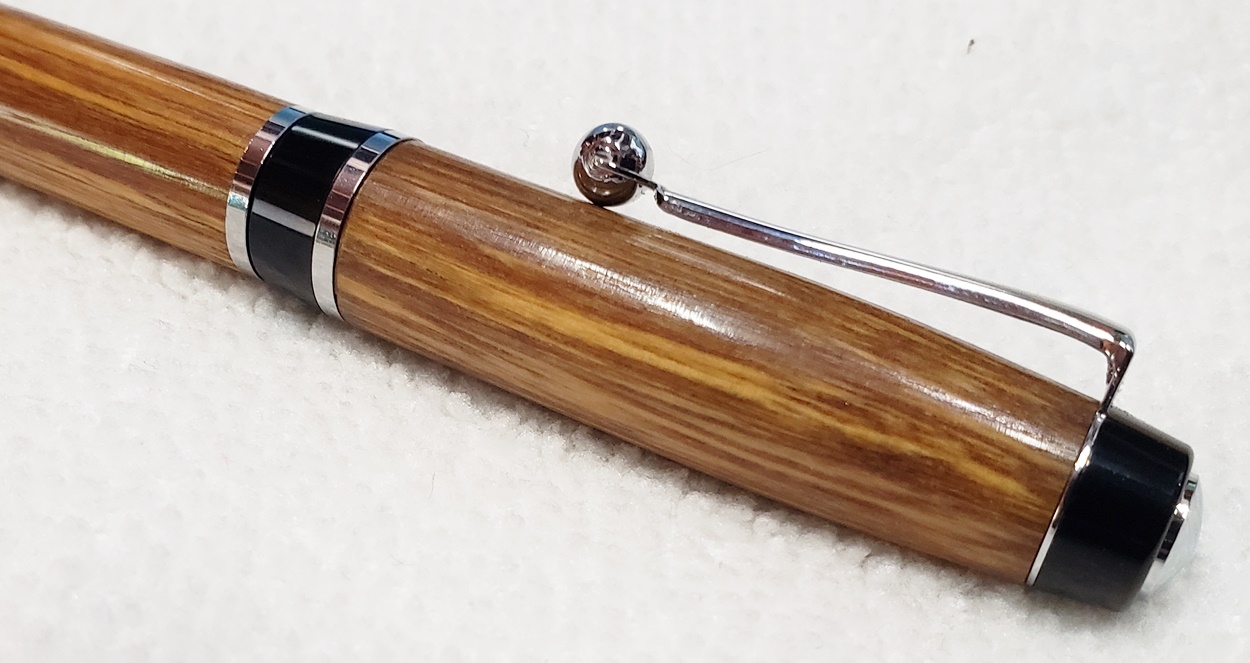

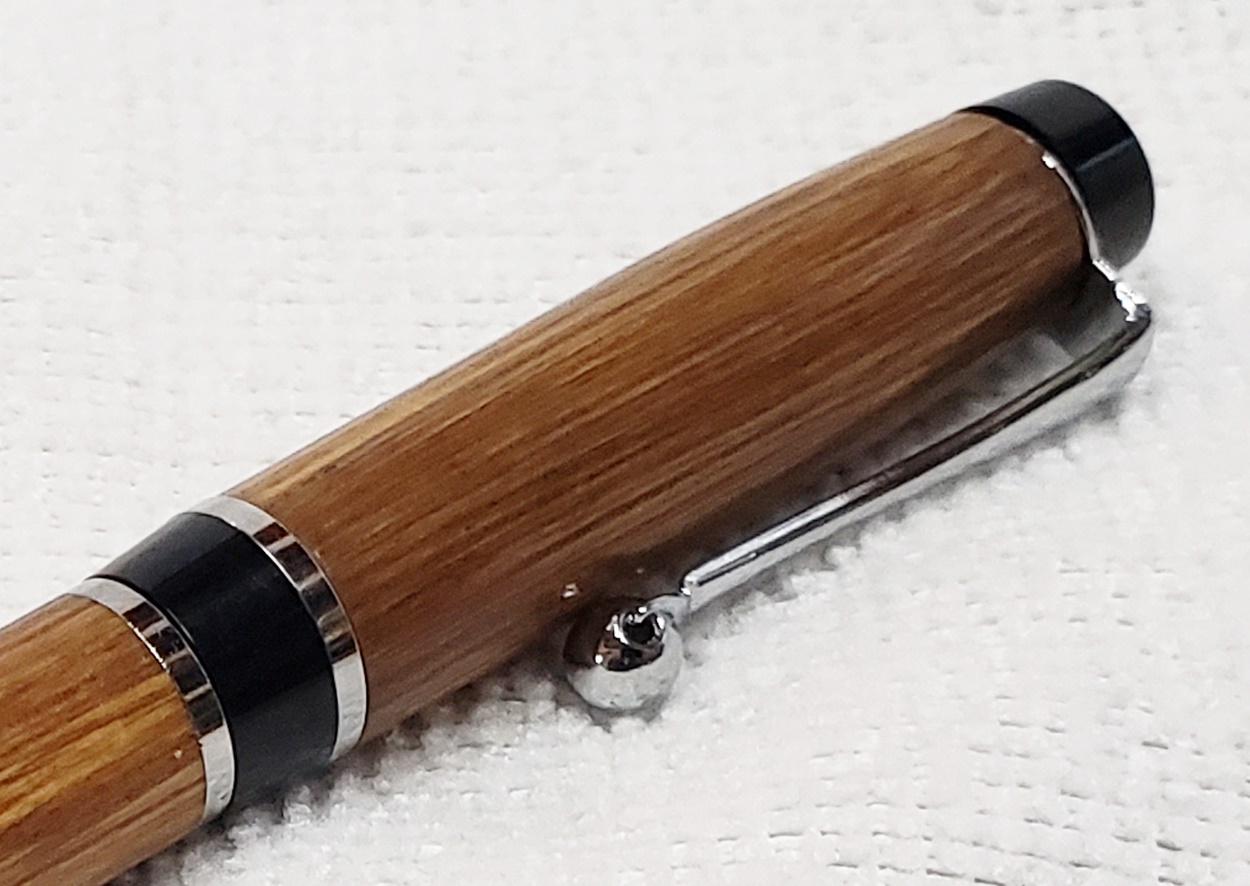

Here are the issues. One, there is a shoulder on the finial that the clip fits on. I missed it the first time. The second is I sanded the upper body at the tenon a little too much. But it's not bad.


Attachments

  • 134b_clip.jpg
    220.9 KB · Views: 76
  • 124_clip.jpg
    242.7 KB · Views: 78
  • 130_clip.jpg
    157.5 KB · Views: 75
  • 131_clip.jpg
    118.4 KB · Views: 84
  • 132_clip.jpg
    260.5 KB · Views: 80
  • 133_clip.jpg
    221.4 KB · Views: 83
  • 134_clip.jpg
    205 KB · Views: 90
