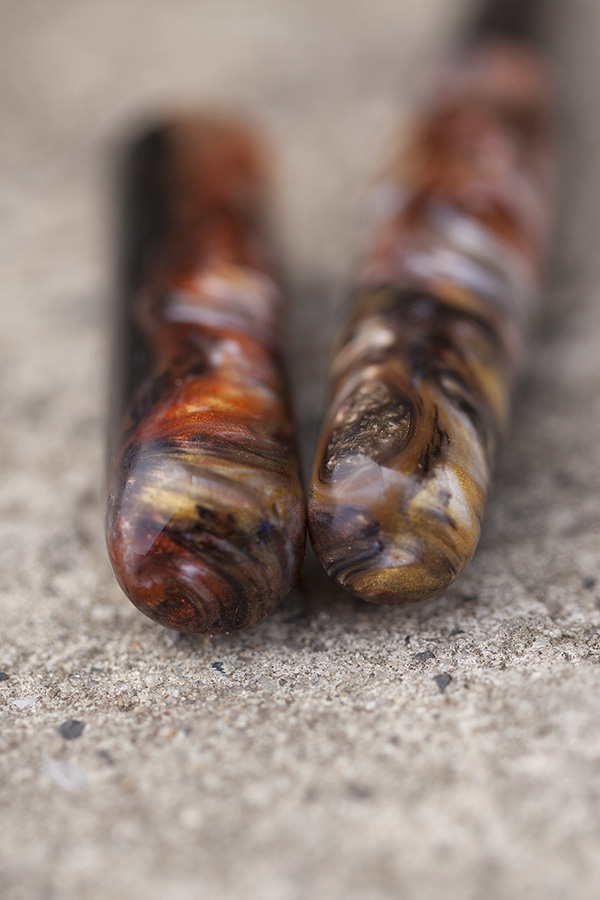

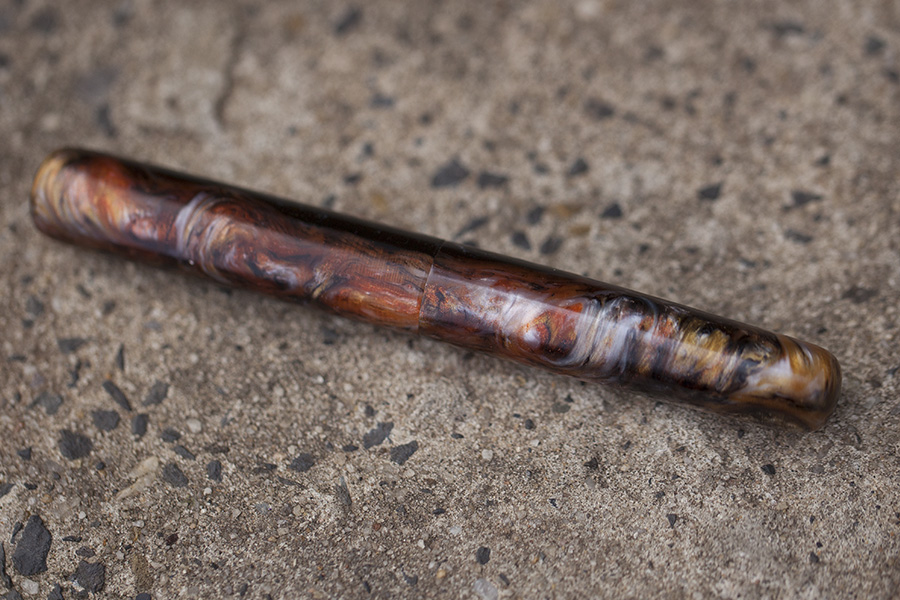

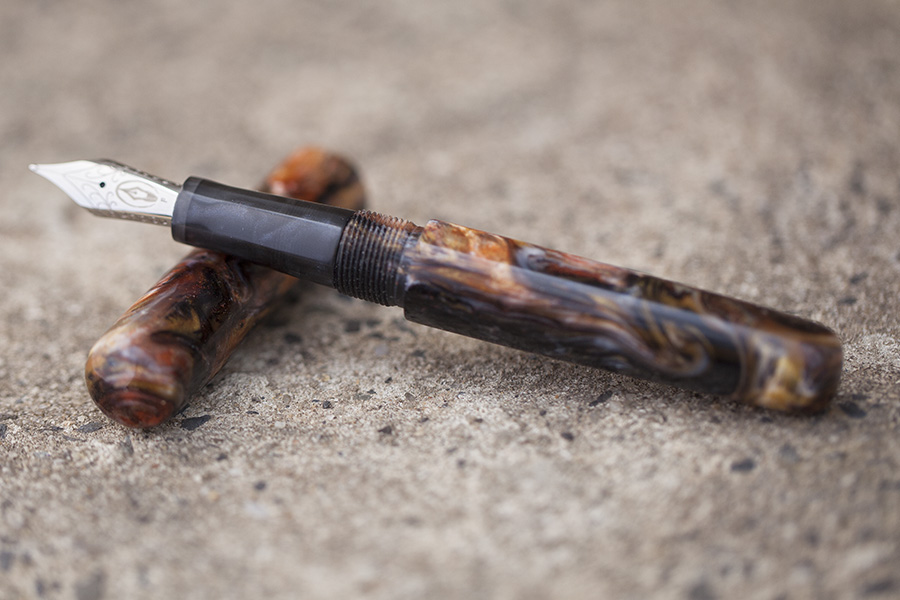

Trying to make some progress in the kitless world, not fully satisfied with the result but I thought I would share anyway :)
I poured the blank with Liquid Diamonds resin, colored with mica powders a couple of weekends ago. The blanks almost came out as I envisioned from the outside but not quite once turned, some changes have already been implemented for the next series of blanks :) I used a "black" blank for the section that doesn't match the opacity of the black in the rest of the blank, another detail to fix for the next iteration.
Should I have made the section with the same blank as the body? Thoughts? I'm thinking a black nib would look better than a polished metal, I don't have one to try (yet). Nib is Jowo #6.
Threads are M13x0.8triple for the body/cap, M10x1 for the section to the body.
C&C welcome.


Attachments

Signed-In Members Don't See This Ad

OZturner

Member
Joined
Aug 5, 2013
Messages
6,664
Location
Sydney. NSW. Australia
Outstanding Kitless Pen Fred.
Excellent Profile and Proportions.
I think the Black Section, is the ideal colour for this Pen, as there is a lot going on with the Colours of the body.
I also Like the Silver Nib, though I wouldn't mind a Gold One, which would play to the Autumnal Orange, and Red tones in the Body.
Superb Turning, I love the straight blend of the Cap to the Body, and their almost hidden Junction.
As you used a 13 mm Triple Start Thread for the Cap to the Body, what is the Finished O/D and Length of the Pen?
Love your Pen, and Craftsmanship.
Well Done,
Brian.


Fred Bruche

Member
Joined
Feb 11, 2018
Messages
179
Location
Philadelphia 19146
Thank you all for sharing your thoughts.
Tim, I like the idea of a copper-colored section. I don't have such blank now but and I'll make one and give it a try!
Brian, it doesn't show well in the pictures but the pen is slightly tapered from top to bottom, upper cap diameter 15.5mm, cap/body junction at 15.1mm, 14.3mm at the body end, for a total length of about 12.5cm. I don't believe I could have made it significantly shorter, both the nib and the ink converter are very close to the inside ends.
