Alternatives to Easy Wood negative rake cutters

Signed-In Members Don't See This Ad

ndep

Member
Joined
Jan 23, 2021
Messages
46
Location
USA
I have to replace some Easy Wood carbide cutters.

Question: are there less expensive options to the Easy Wood branded carbide cutters that perform just as well?

Signed-In Members Don't See This Ad

mg_dreyer

Member
Joined
Dec 1, 2006
Messages
767
Location
Aurora, Ill, USA.
Cheap is rarely ever better. How did you like the cutters on the Easy Wood tools when they were new? If you did spend the $20 and get the same cutter. They go 20 - 40 hours per “side”. For me I use the original cutters. Much better. Just saying …


jrista

Member
Joined
Aug 12, 2021
Messages
1,182
Location
Colorado
You specifically stated the negative rake cutters... I have found some other flat cutters, but I don't know that I've ever come across negative rake cutters that work in an EWT tool.

They should last a while. For the round cutters, when I first put a new one in, I take a black sharpie and mark the left "corner" where the depression at the end of the bar starts and the carbide tip sits, and draw a line on the cutter right there. I then rotate little by little from there, until that black line is about 1 rotation away from where it started. I guess I rotate only a few degrees each time, as I tend to use the tools (with pens anyway) in such a manner that only one part of the tip is ever in contact with the blank. So they should last a while. At $20 a tip, its not a bad deal IMO.


penicillin

Member
Joined
Feb 27, 2019
Messages
927
Easy Wood Tools has a patent on the negative rake cutters. You won't find anyone else making them legally.


egnald

Member
Joined
Jun 9, 2017
Messages
1,544
Location
Columbus, Nebraska, USA
Nick,

I use the Easy Wood Tools, Mid-Size chisels but in addition to their branded cutters, I have used cutters from Ron Campbell at AZ Carbide.

AZ Carbide is located in Michigan and is owned by Ron who is an award winning wood turner. In my personal experience, the AZ Carbide cutters provide comparable results with those from EZ Wood Tools at a significantly lower cost. For example, the square cutters with 2-inch radius edges were only $6.80 each the last time I bought them in a 10-pack compared with the Easy Wood Tools Ci1-R2 cutters at $18.99 from our local WoodCraft store. The AZ Carbide website has a cross reference chart between various brands of tools and AZ Carbide cutters.

Regarding the subject of negative rake cutters and comments already posted from others, the Easy Wood Tools NR (Negative Rake) carbide cutters are patented and trademarked by Easy Wood Tools, so it is unlikely that you will find carbide cutters with the negative rake angle ground into them from anyone other than Easy Wood Tools.

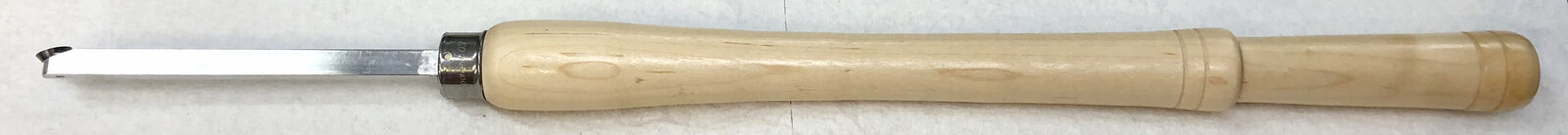

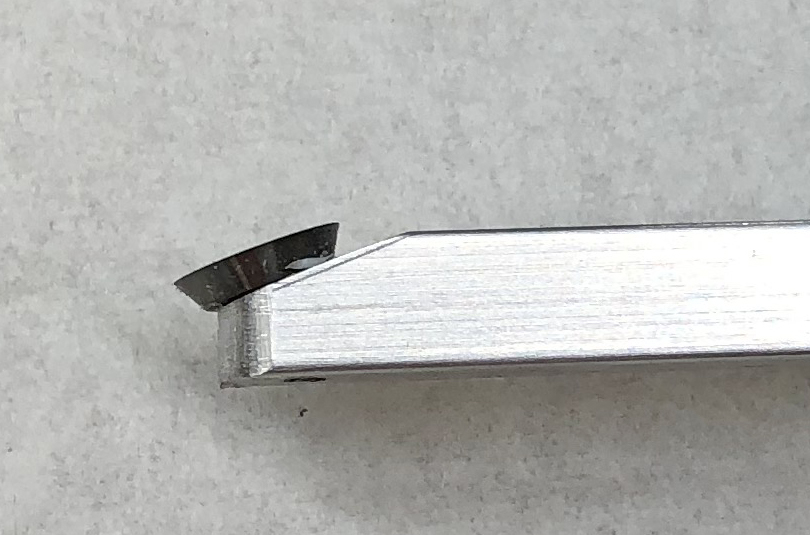

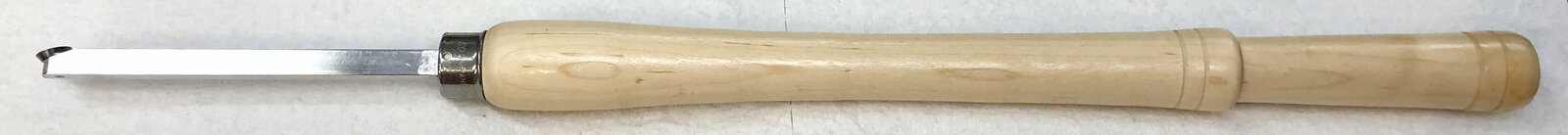

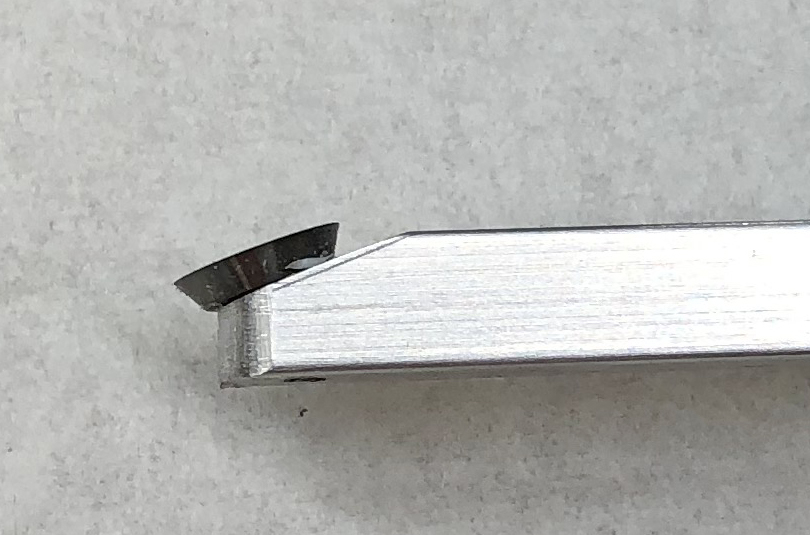

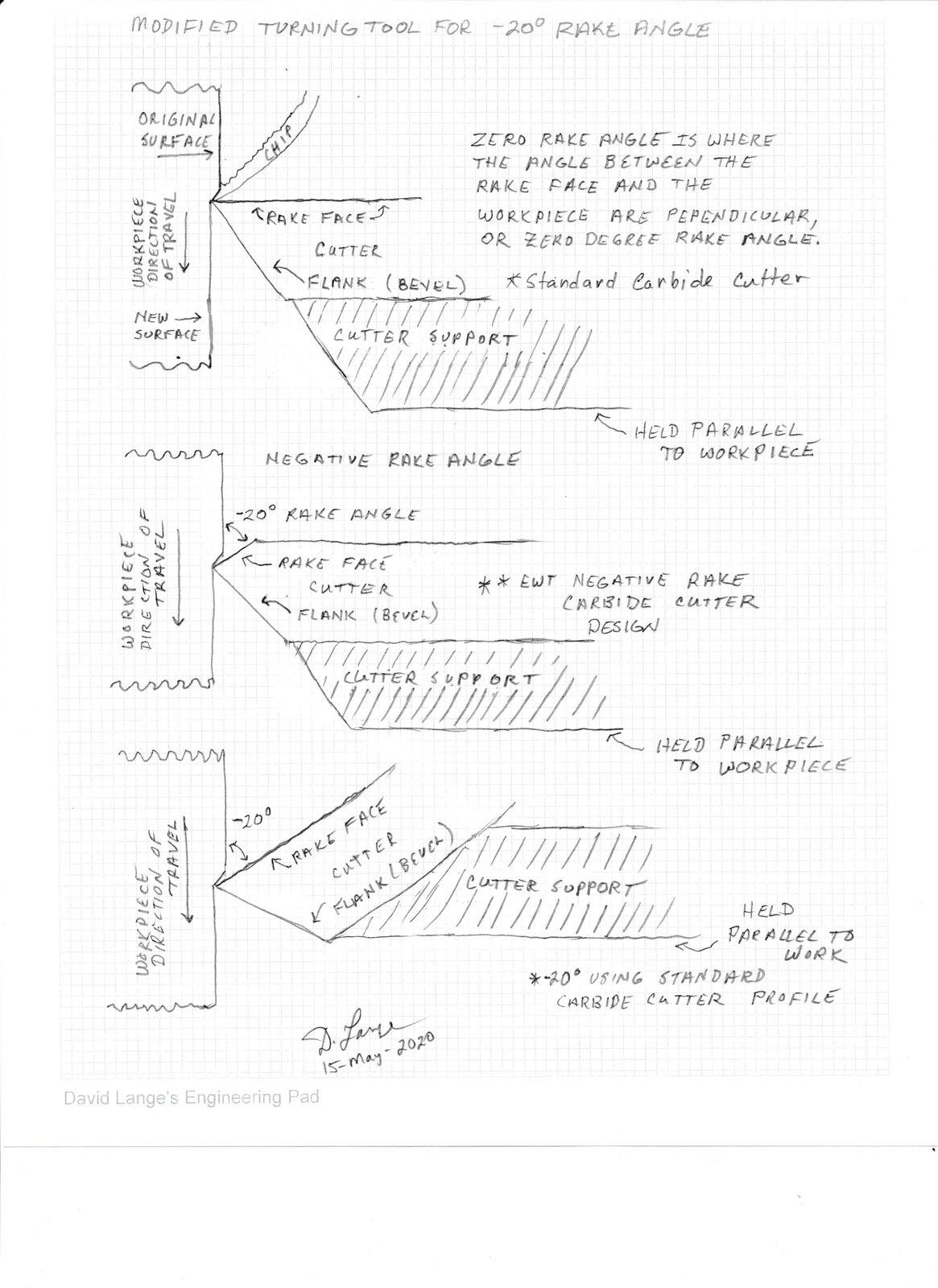

That being said, there are still alternatives. Standard carbide cutters have a neutral or zero rake. Rake is the angle of the tool or cutter relative to its cutting surface. A negative rake is when the face of the cutter slopes away from the cutting edge. The geometry and cutting forces with a negative rake angle makes less aggressive cuts which helps eliminate chatter and chipping of brittle materials. About a year and a half ago I made some tools where the mounting surface for the cutters was ground so that the cutter presented with a negative rake when the tool itself was still held level. So far, for me anyway, they have been working just as well as the Easy Wood Tools NR cutters. I attached a few pictures of one of the tools that I made along with the notes I made when I was doing the related research. (The notes show a standard "flat" cutter and how it presents to the work along with how an Easy Wood Tools NR cutter presents and how my tool with a standard carbide cutter presents.

Regards,
Dave


Attachments

  • IMG_0831 Cropped.jpg
    IMG_0831 Cropped.jpg
    35.4 KB · Views: 76
  • IMG_0834 Cropped.jpg
    IMG_0834 Cropped.jpg
    231.6 KB · Views: 72
  • NR Notes (Scan) 001.jpg
    NR Notes (Scan) 001.jpg
    249.8 KB · Views: 78

RobS

Member
Joined
Jun 20, 2016
Messages
1,008
Location
Carlsbad, CA
That's good to see, and surprising. Their prices on the 11mm - 12mm (Easy Wood Tools sizes) are really good too! I may have to buy some when I get my allowance. - Dave
They work great. I posted a review when they came out. I used them on polyester resin perfectly.


Joebobber

Member
Joined
Sep 24, 2018
Messages
942
Location
Erie, North Dakota
The easiest option for the negative rake cutter is to use a normal cutter and flip the tool upside down thereby creating a negative rake. You want to cut above center. Or put on 1 of your regular old dull blades. They work too and both options are free.

As for other cutters that you can't sharpen, I just buy a pack off ali express or Ebay. But you need to measure the size your blades are and the hole size.
