10 Minutes To Better Pen Making - Painting Acrylic Before Turning

Signed-In Members Don't See This Ad

mg_dreyer

Member
Joined
Dec 1, 2006
Messages
595
Location
Aurora, Ill, USA.
Albeit we probably all know by know that acrylic pen blanks need to be painted before turning - I did this video for some of team still new to pen making. In this video I go over how I paint the blanks, the reason I paint the hole and not the tube, shapes, and dramatic effect I can get mixing colors. Just wanted to step back and give my thoughts on acrylic blank prep.

10 Minutes To Better Pen Making - Painting Acrylic Blanks

Let me know what you think.

Signed-In Members Don't See This Ad

Brandy

Member
Joined
Sep 3, 2019
Messages
37
Location
Aurora, CO
That's really interesting! I tend to have trouble with the paint being removed when I insert the tube. How do you prevent that? I have heard you should drill the hole a little larger but have not had luck with that.


TonyL

Member
Joined
Mar 9, 2014
Messages
7,983
Location
Alpharetta, GA 30004
I am sure Mark will answer.
However, I spray krylon/Rustoleum inside the barrel and outside of tubes. I allow the paint to dry for a full 24 hours. I use epoxy (it acts as a lubricant to some degree). I have probably had that issue 1 of 100 times - and believe me, I have no special skills. I do then allow the epoxy to fully CURE per the instructions. Happy turning!


Warren White

Member
Joined
Aug 27, 2014
Messages
447
Location
Livermore, CA
Hi Mark,
Very good video, but I would like to have seen how you paint two different colors in the blank. Painting the blank one color (which I do) is pretty straightforward; painting two colors, not so much.


mg_dreyer

Member
Joined
Dec 1, 2006
Messages
595
Location
Aurora, Ill, USA.
I am sure Mark will answer.
However, I spray krylon/Rustoleum inside the barrel and outside of tubes. I allow the paint to dry for a full 24 hours. I use epoxy (it acts as a lubricant to some degree). I have probably had that issue 1 of 100 times - and believe me, I have no special skills. I do then allow the epoxy to fully CURE per the instructions. Happy turning!
Tony as you know I always look forward to the different ways people do things - and appreciate people joining in. The goal of my videos is to think about all the aspects of pen making and sharing is great.

I never used spray but I will look into it.

PS and if you keep this as a secret, I actually don't paint the holes anymore - my wife does all the prep work. She paints the holes and does all my gluing.


mg_dreyer

Member
Joined
Dec 1, 2006
Messages
595
Location
Aurora, Ill, USA.
Hi Mark,
Very good video, but I would like to have seen how you paint two different colors in the blank. Painting the blank one color (which I do) is pretty straightforward; painting two colors, not so much.

Sorry I did not explain this well. I will use a Qtip and from one end (generally the middles) paint the white and go about half way up the blank (maybe a little farther). Let that dry over night. Then from the other side I use black paint and go the white and over lap. I try not to be perfect because I don't want a line - more a vignette. Hope this help.

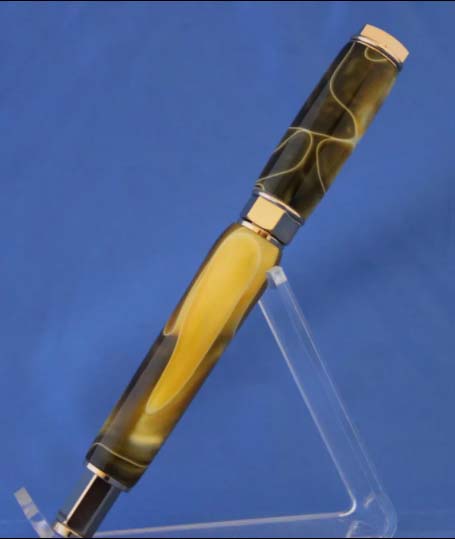

Here is a better shot of the pen from the video (sorry about the image quality - screen snapshot). Black on the outside end white in the middle. The blank is a generic yellow blank.

Multi color.jpg


Here is a shot from the video of the original blank ...

Multi Pens.jpg


howsitwork

Member
Joined
Jul 9, 2016
Messages
955
Location
Thirsk
Great video and heavens what a difference he depending upon tube colouring. Never considered using tube colour to add or determine the overall look before.

Many thanks 🙏


lorbay

Member
Joined
Jul 2, 2009
Messages
3,262
Location
BC. Canada
That's really interesting! I tend to have trouble with the paint being removed when I insert the tube. How do you prevent that? I have heard you should drill the hole a little larger but have not had luck with that.
That leads me to believe that the paint is not sticking to the tube properly. Are you sanding your tubes before painting?? I run a small file up the blank before inserting the tube. The next thing to do is paint the inside of the blank.
Lin


mg_dreyer

Member
Joined
Dec 1, 2006
Messages
595
Location
Aurora, Ill, USA.
That's really interesting! I tend to have trouble with the paint being removed when I insert the tube. How do you prevent that? I have heard you should drill the hole a little larger but have not had luck with that.
I really don't have that issue on the larger diameter kits (10mm / 10.5 mm / 12.5 mm). On 7mm I always drill at 9/32" which when painted leaves a hair room to glue. I use 5 minute epoxy to fill the gap. Never had an issue. I have another video on gluing out there.


greenacres2

Member
Joined
May 2, 2017
Messages
1,270
Location
Northwest IN
Great video and heavens what a difference he depending upon tube colouring. Never considered using tube colour to add or determine the overall look before.

Many thanks 🙏
JT The Clockman has a great example from a BASH or Extravaganza entry a year or two ago. If i recall correctly, it was light blue paint for a copper-colored blank--but that may be faulty memory on my part. Hopefully, he will reply with an updated link to that pen--it was beautiful.
earl


PoppyTee

Member
Joined
Dec 22, 2019
Messages
73
Location
Alabama
great video - I have always painted tubes but this one is an eye opener. I will definitely be doing this from now own. It's amazing the difference with the same blank. Keep making videos and helping us new guys along the way. Happy Thanksgiving!!!
