glennmcculloughwoodart
Member
I am turning a zen blank with no hardware and no bushings on hand. Need the finished diameter (or bushing diameter), please!
Zen bushing diameter needed
- Thread starter glennmcculloughwoodart
- Start date
Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad

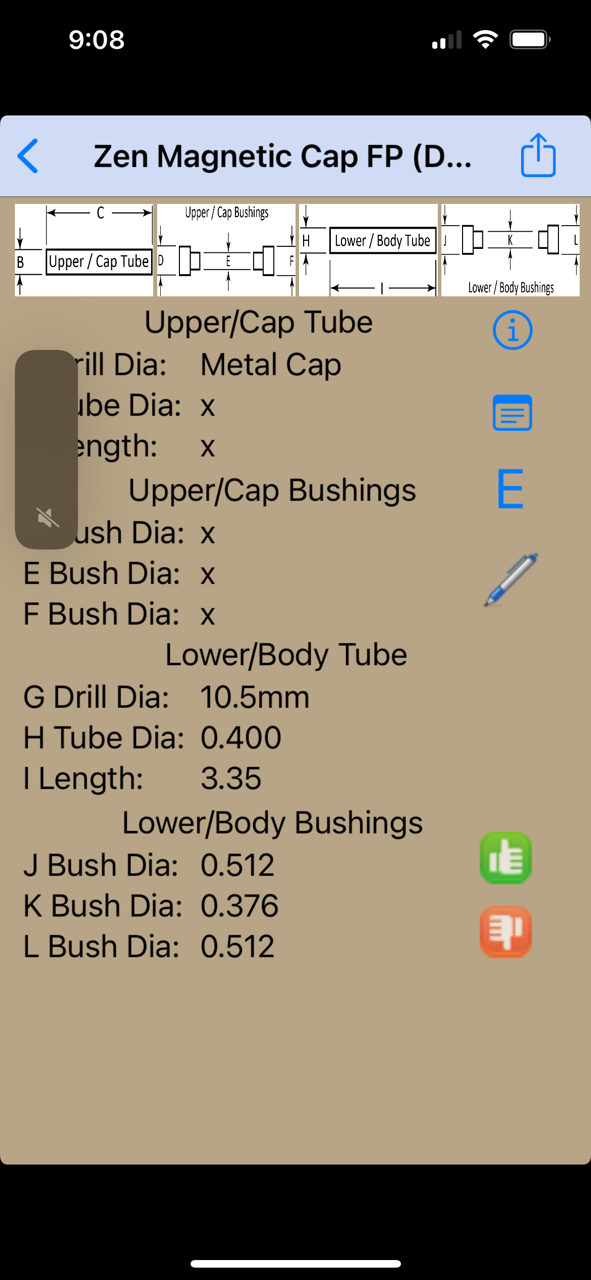

You should download the IAP Bushing and Tubes app that has all of this information. I just pulled this off there for you, but there are several models to choose from, and I am not 100% sure which Zen you are making. This is the standard Dayacom magnetic cap from Exotic Blanks entry.
Glenn McCullough
Member
thank you
Last edited:
jttheclockman
Member
The bushings are not what is important, it is the measurements of the components that you need to go by.
Glenn McCullough
Member
thank you, would you have that?
jttheclockman
Member

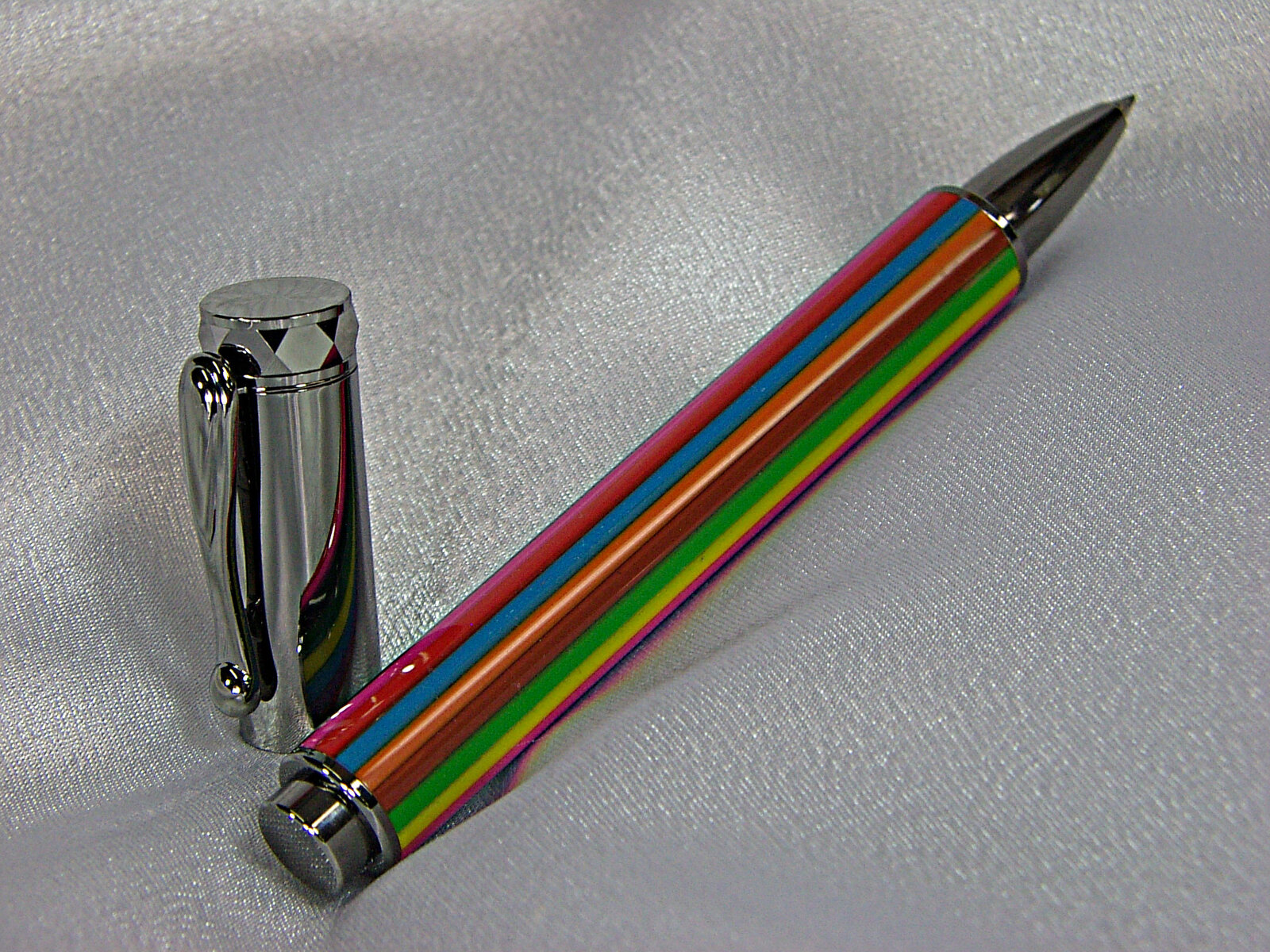

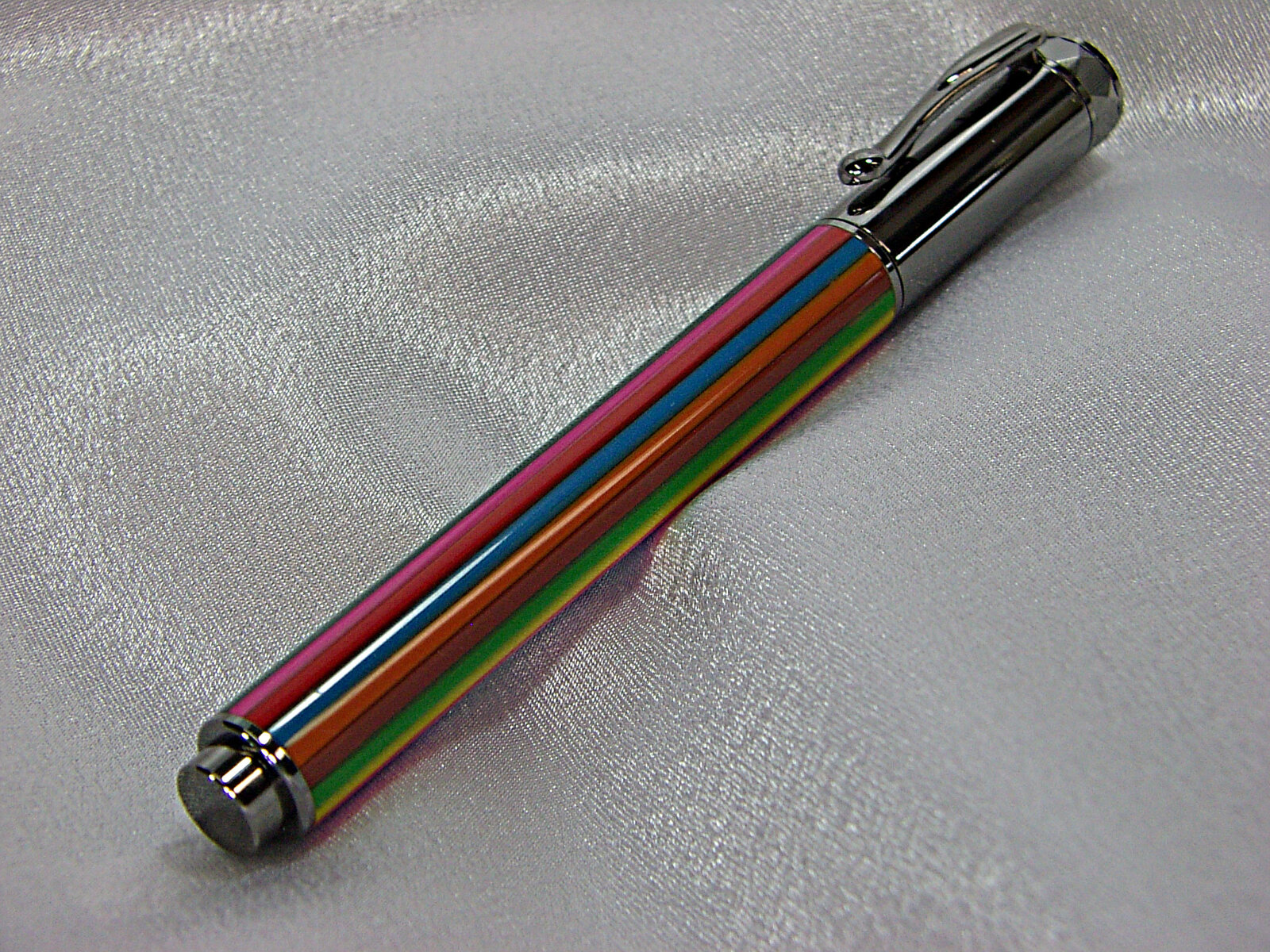

OK you made me go look. As mentioned various Zen kits but this is the one from Exotic Blanks and is a Ti- Gold rollerball #050-4439. Both ends the same measure 13.04mm. Bushings measure the same at 12.95mm. here is an example of a Zen.
glennmcculloughwoodart
Member
Thank you!
philipff
Member
Why bother with bushings? Get a digital calipers and measure the diameter of the blank connection points and go for it!! I have thrown away all those confusing bushings. Works for me for years! P
