Workbench question

Signed-In Members Don't See This Ad

EricRN

Member
Joined
May 16, 2019
Messages
760

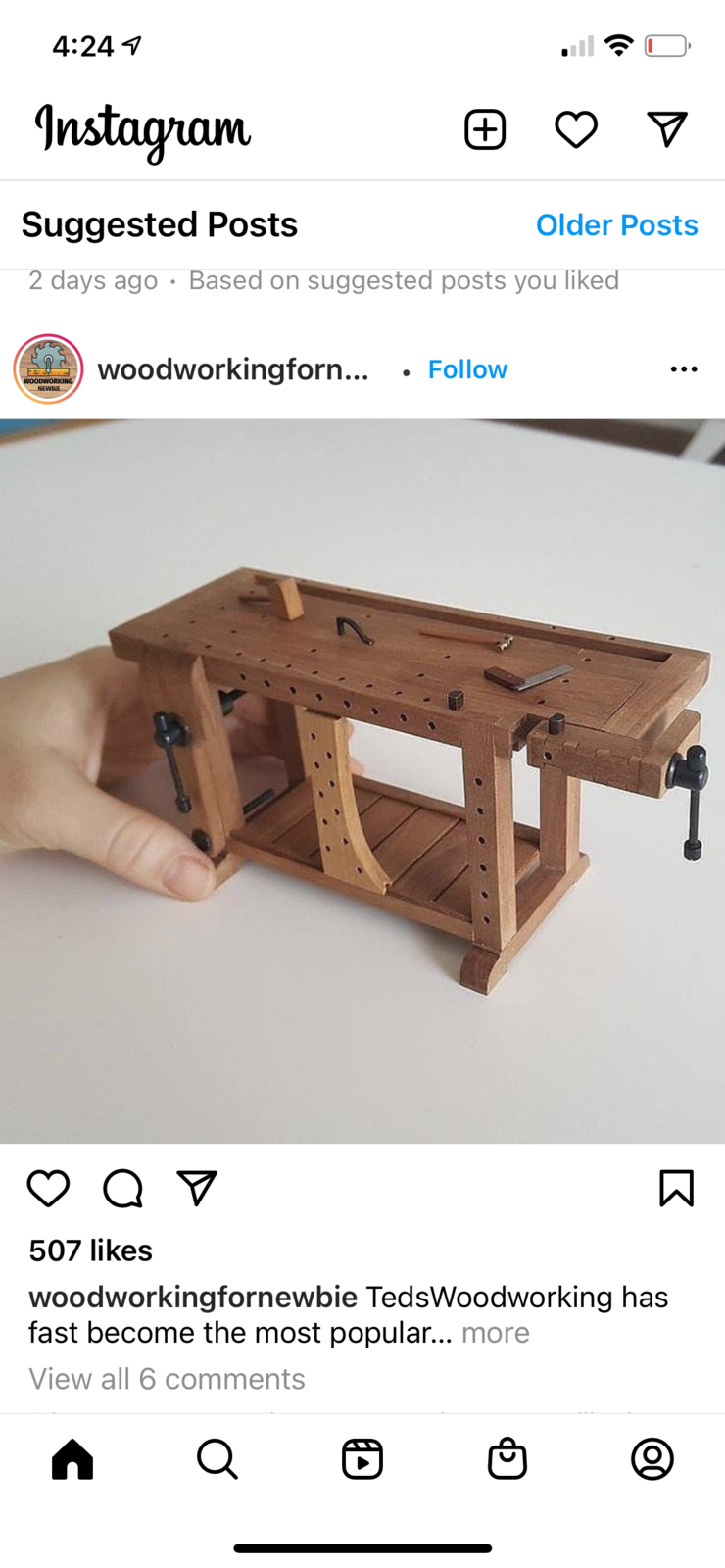

Hi, What's the purpose of the L-shaped end vise on workbenches (like in the picture) as opposed to one that is just a straight vise that runs the length of the end?

(Yeah, I know the picture is just a small model for a dollhouse or something. But I've seen it on real ones too.)


Attachments

  • DC7C1F72-F7F8-4DEB-B72E-DA8AF95DB1E3.png
    623.2 KB · Views: 166
Signed-In Members Don't See This Ad

SteveG

Member
Joined
Dec 21, 2009
Messages
2,985
Location
Eugene, Oregon 97404
One use that comes to mind: the actual vise will have a few holes along that leg, allowing one to place bench dogs in any of the holes, thus being able to clamp boards or work, without having to open the vise real wide. Also does allow items to be tightly held without the use of dogs.


jttheclockman

Member
Joined
Feb 22, 2005
Messages
19,083
Location
NJ, USA.
Steve is right. See the hole in the leg on the vise and see the holes in the bench. You now can clamp long pieces alongside the bench if thay are heavy. just more clamping options.


EricRN

Member
Joined
May 16, 2019
Messages
760
I see. That makes sense. Does the L shape offer any functionality over putting bench dog holes in a vise that sits straight along the end of the bench?


jttheclockman

Member
Joined
Feb 22, 2005
Messages
19,083
Location
NJ, USA.
I see. That makes sense. Does the L shape offer any functionality over putting bench dog holes in a vise that sits straight along the end of the bench?
The top portion is where you clamp woods that need to be planed with hand planes or even power tools. It is close to your body so no reaching over bench. Those are all clamping options built into it. I am sure you could even come up with new ideas as you work on it. I used a "T" track on mine instead of bench dogs and holes.


Curly

Member
Joined
Nov 20, 2010
Messages
4,828
Location
Saskatoon SK., Canada.
I see. That makes sense. Does the L shape offer any functionality over putting bench dog holes in a vise that sits straight along the end of the bench?
It is less prone to racking because the clamping forces are closer to the screw and the surface is longer. With a full width vice the screw is in the middle a foot or more away and the bars are further away with their bearing surfaces being shorter.
