Wooden kitless integral

Signed-In Members Don't See This Ad
Signed-In Members Don't See This Ad

leehljp

Member Liaison
Joined
Feb 6, 2005
Messages
6,797
Location
Tunica, MS,

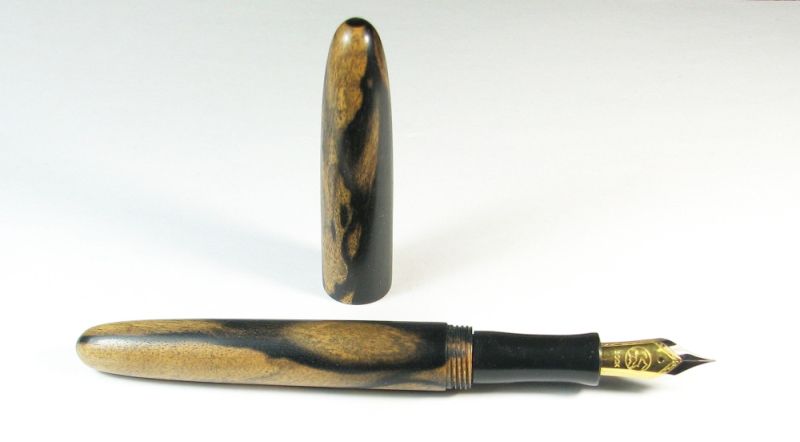

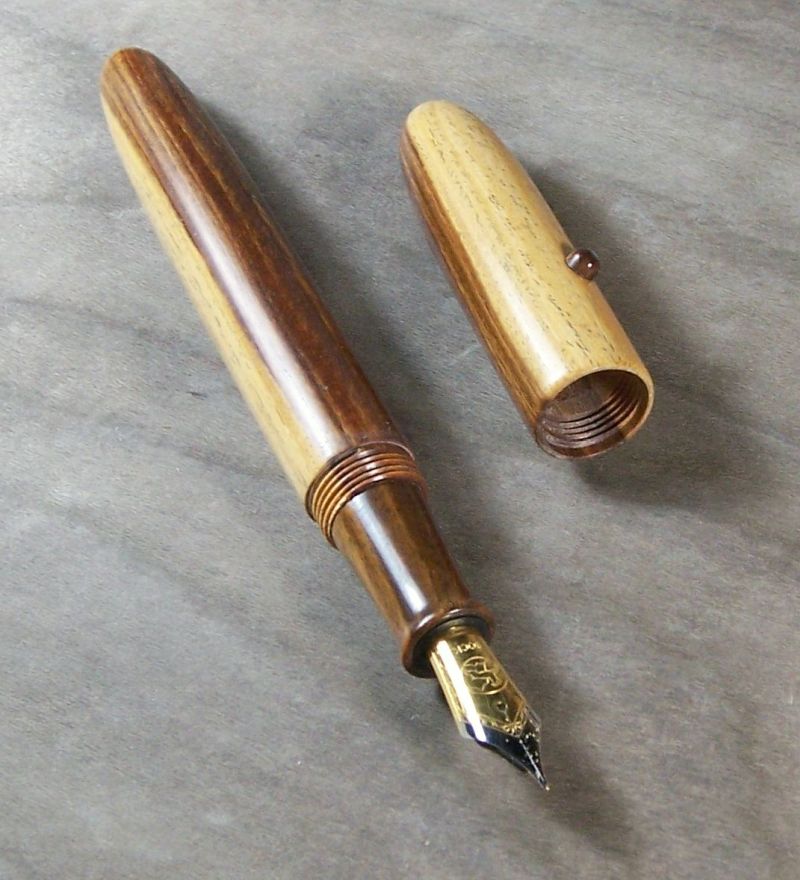

THAT is making wood look like it was meant to be. You certainly know how to find the pen in the wood!

BEAUTIFUL!


Pierre---

Member
Joined
Jun 10, 2012
Messages
154
Location
France
Thanks for the kind words.

No finish, Brotherdale. The woods are hard enough to get a high sheen just by polishing. I sometimes do a CA finish on kingwood, but I rather feel the bare wood under the skin...


magpens

Member
Joined
Feb 2, 2011
Messages
10,243
Location
Coquitlam, BC, Canada
Fantastic pens !! . Thanks for showing ... VERY well done !!!

What threads did you use ... cap to body and section to body ... ?

Last edited:

Fred Bruche

Member
Joined
Feb 11, 2018
Messages
180
Location
Philadelphia 19146
Awesomeness, thank you for sharing Pierre!
I have some of these wood, I have some of the taps and dies, I guess I'm going to give it another try one of these days. So far I've gotten pretty dismal results in my attempts at threading wood but you show that it can be done! Any wood species you tried and didn't work? Any attempt with boxwood (buis)?


Pierre---

Member
Joined
Jun 10, 2012
Messages
154
Location
France
Boxwood is great for threading. Light woods are the worst, but impregnating with CA or linseed oil may help.

If you want to thread wood, you may use taps, but you have to forget using dies, take a 10 000 rpm cutting tool instead!

Last edited:

darrin1200

Member
Joined
Mar 17, 2010
Messages
798
Location
Lyn, Ontario, Canada
Boxwood is great for threading. Light woods are the worst, but impregnating with CA or linseed oil may help.

If you want to thread wood, you may use taps, but you have to forget using dies, take a 10 000 rpm cutting tool instead!
Beautiful pens Pierre. I have a piece of Lignum that I would like to try this with, but I too have struggled with cutting threads in wood.

I am not sure I understand what you mean for cutting exterior threads. What type of 10,000 rpm tool you are referring to. Are you referring to a Dremel type tool? I would love to see a picture.

Thanks


Pierre---

Member
Joined
Jun 10, 2012
Messages
154
Location
France

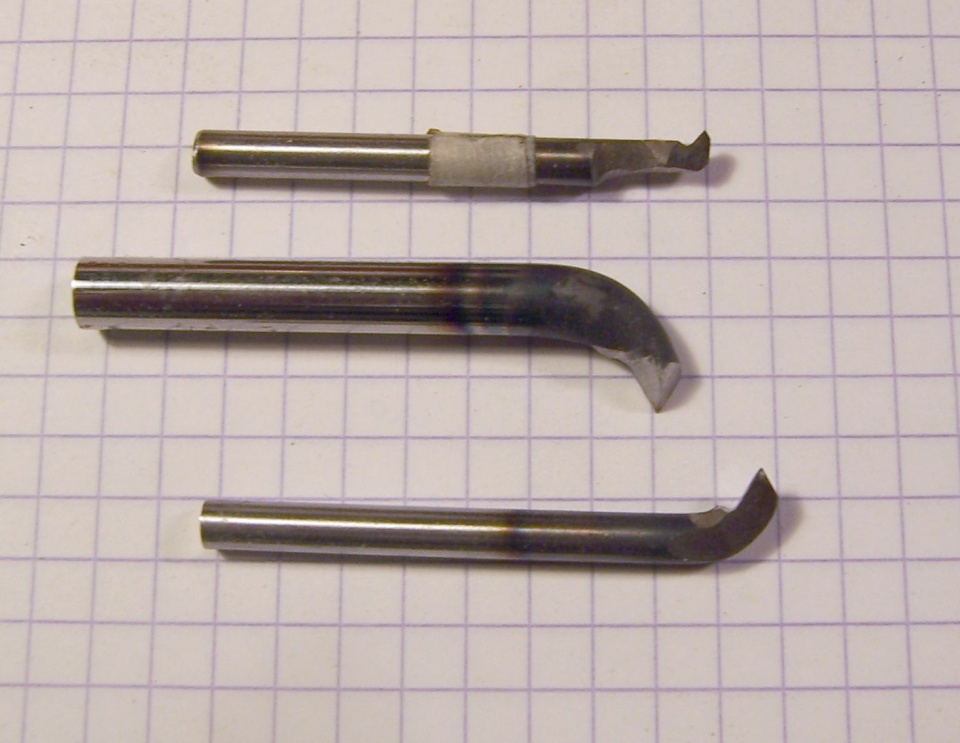

Darrin, I use a stronger machine than a Dremel, but it is the same. In front is the threading machine, home made on the same idea as Hope's threading jig. Here are the tools I use, made from a HSS bar. Hope it helps.


Attachments
