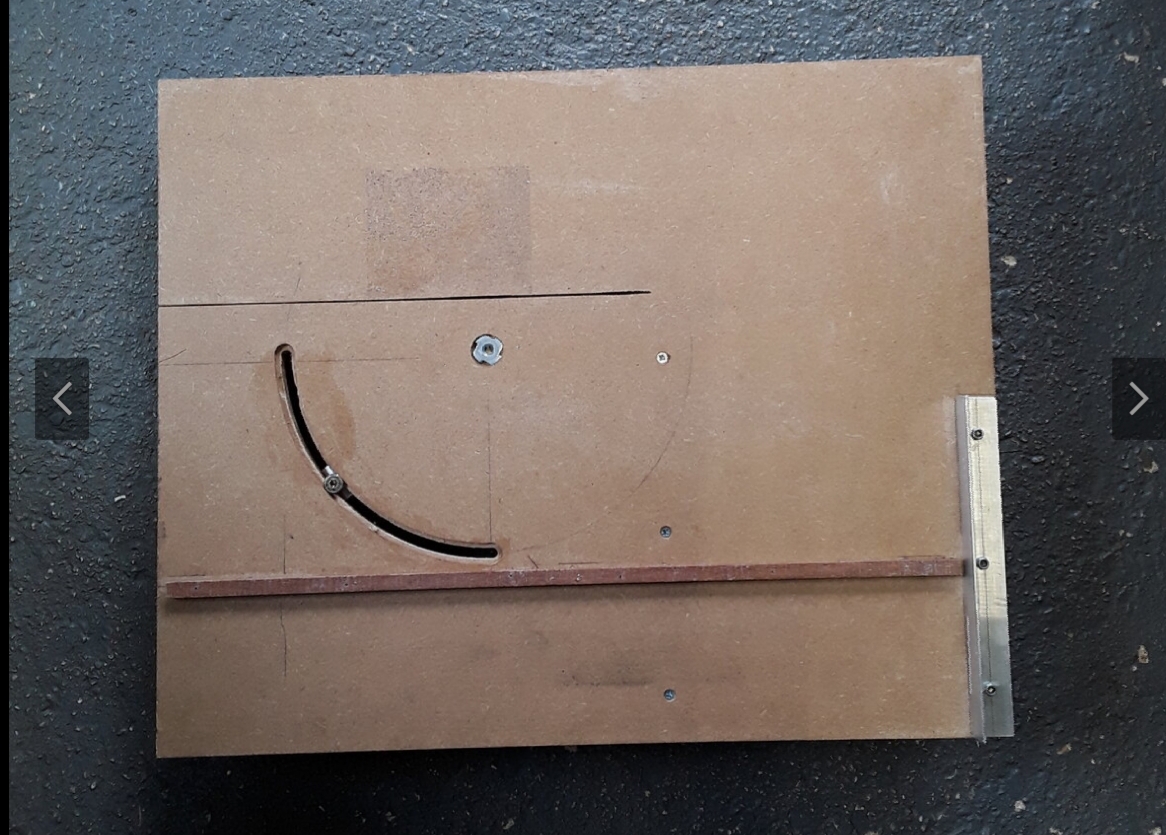

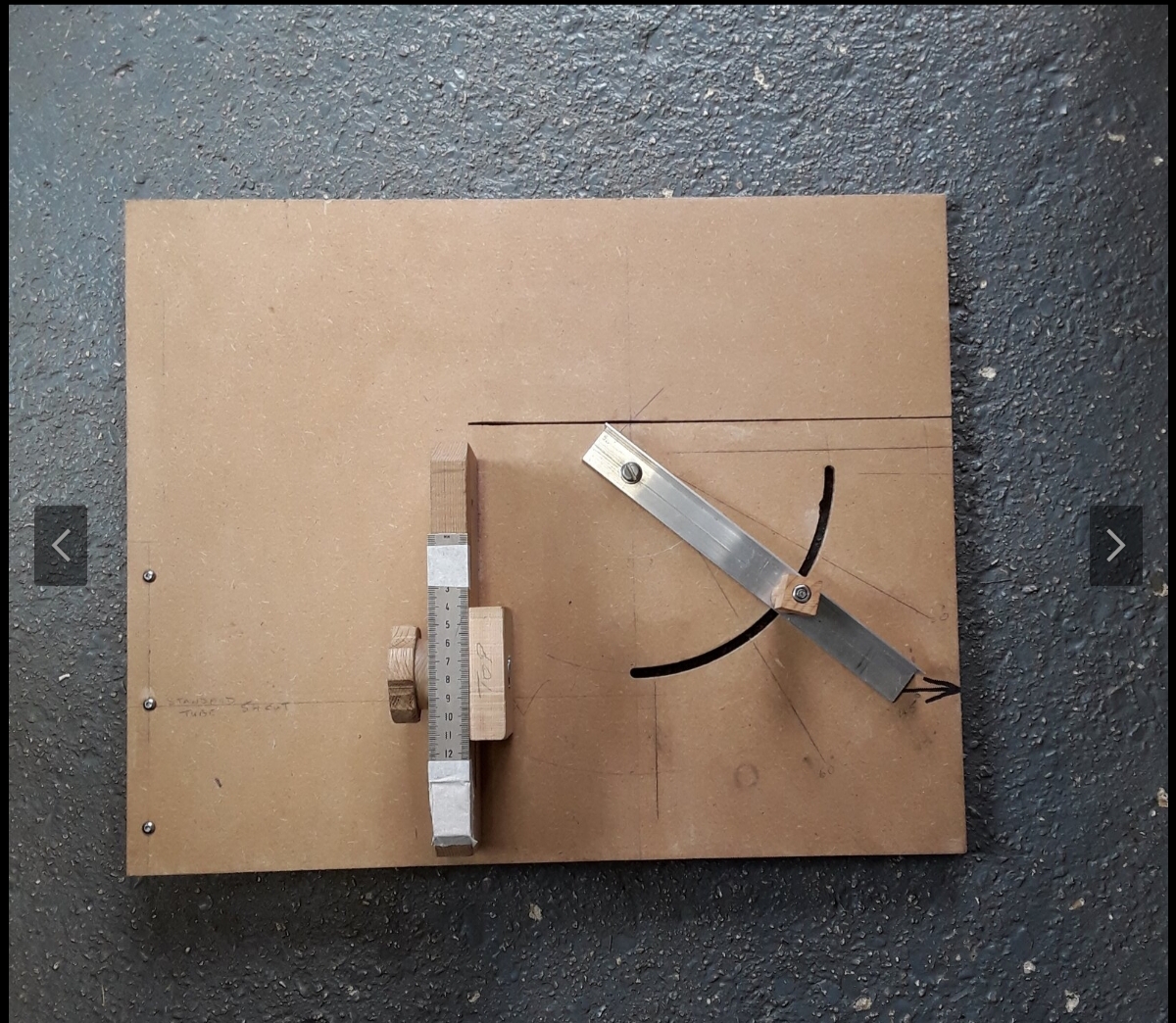

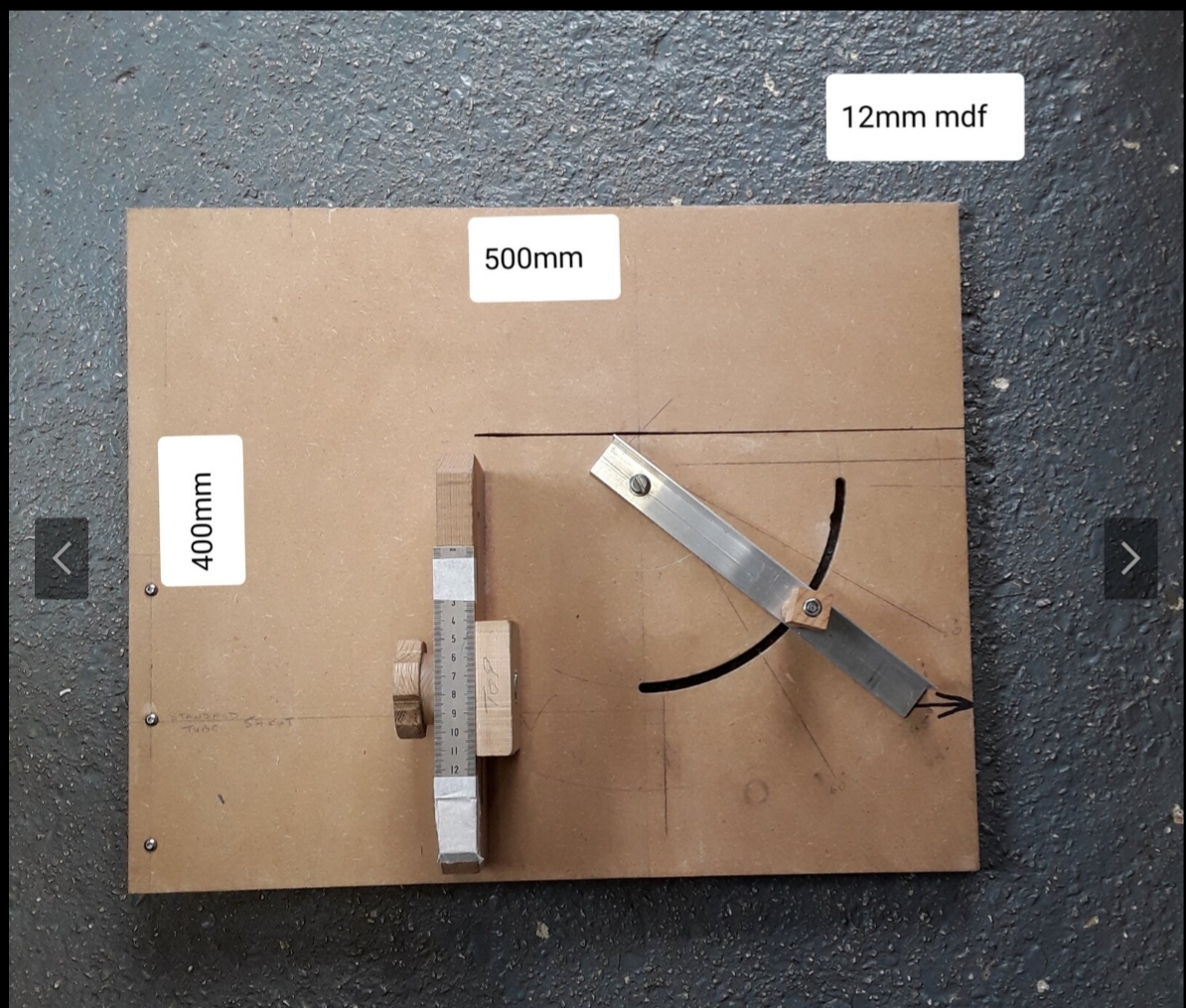

Version 2 of my Bandsaw Celtic Knot Jig

[Richard92]

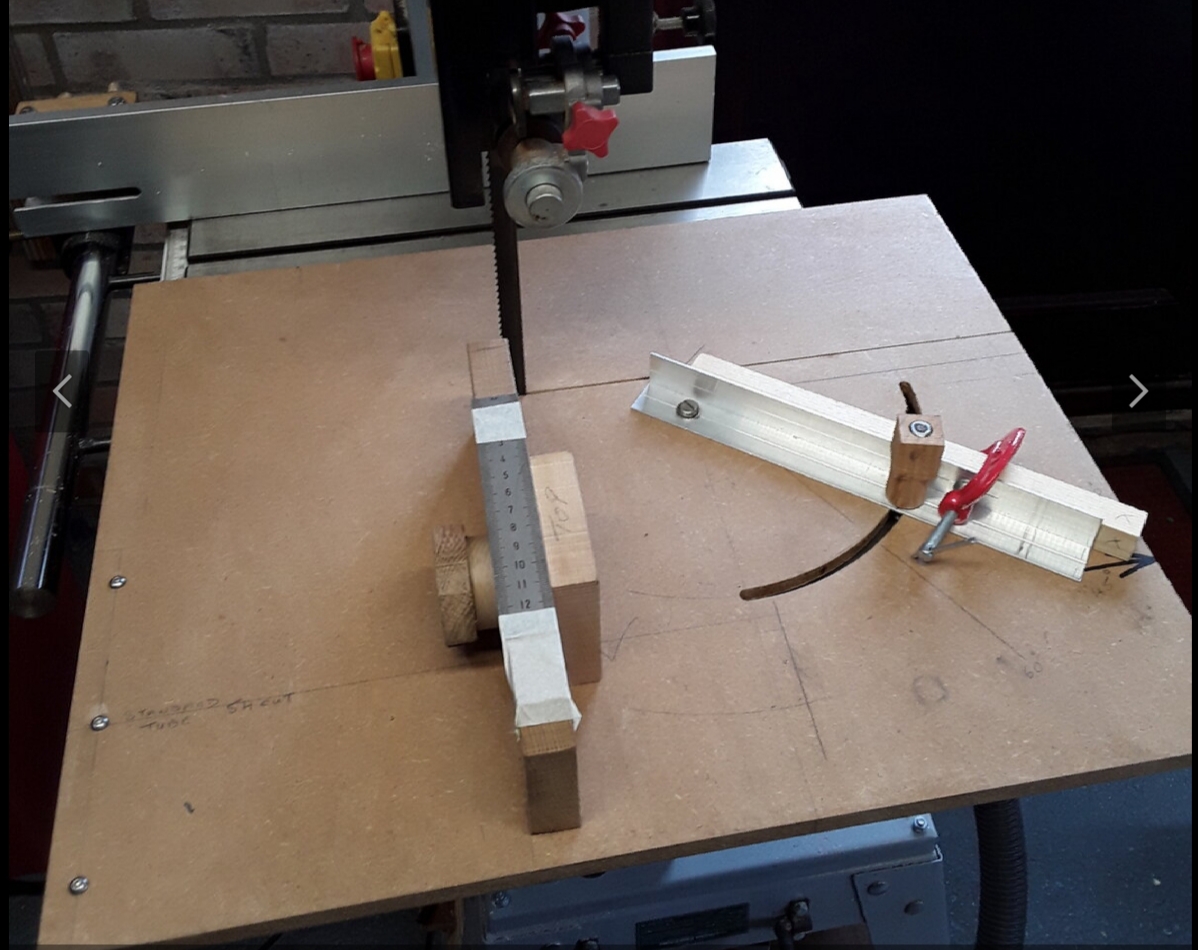

I made this after struggling to get a good Celtic on a bandsaw. Works for scollops and end cuts for pen blanks nothing else.
The pencil on shows us yours was the first one I made on it.



[Lucky2]

Richard, that's a great idea, with it, you should be able to get as many identical accurately cut pieces as you want. Bravo!

Len



[randyrls]

Richard; That is nice. It is almost required to have some kind of clamping jig to hold the tiny pieces you need to cut.



[Richard92]

Richard; That is nice. It is almost required to have some kind of clamping jig to hold the tiny pieces you need to cut.

Richard; That is nice. It is almost required to have some kind of clamping jig to hold the tiny pieces you need to cut.

I use small clamps not shown. Sometimes I use nothing
