Turning blanks across the grain???

Signed-In Members Don't See This Ad
Status
Not open for further replies.

Hugob

Member
Joined
Jan 17, 2005
Messages
44
Location
Pretoria, Gauteng, South Africa.
What is the pro's and con's of turning wooden blanks across the grain,
with other words when you cut the blanks you don't cut with the lenght of the grain, but across??????????

TXS guys.............

Signed-In Members Don't See This Ad

wpenm

Member
Joined
Aug 9, 2004
Messages
399
Location
Kearney, Missouri, USA.
On the pro side, it makes a very nice looking pen. I angle cut alot of my blanks. On the con side, it is a little harder to turn. It takes sharp tools but worth the extra work.


Gary

Member
Joined
Sep 10, 2004
Messages
1,371
Location
Texas, USA.
The crosscut blank will be more prone to break and/or warp. Plus, it is just plain ugly...IMHO.


Tom McMillan

Member
Joined
Jan 1, 2004
Messages
1,598
Location
Washougal, WA, USA.
I've only made a couple of pens using cross cut grain---they were from staves of an old oak wine barrel. The problem I had was they both came out somewhat oval shaped instead of round. Actually, I think these two pens looked kind of neat---kind of leathery looking.


bud duffy

Member
Joined
Feb 21, 2004
Messages
66
Location
Oreana, Idaho, USA.

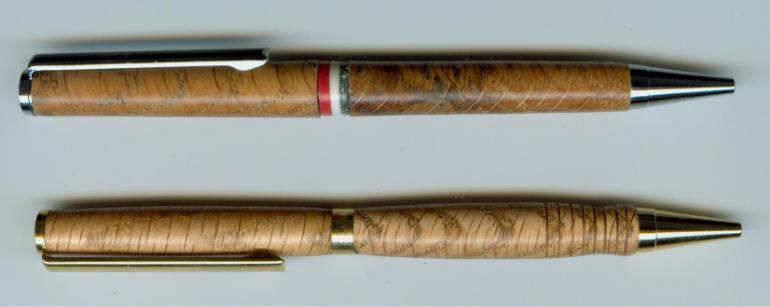

Hugo here is a couple of oak pens i made with a bias cut i am not sure of the exact angle cause i cut these ones freehand on the bandsaw i think it is somewhere in the neighborhood of 45 deg. tho. hope this helps. Bud


G

Guest

Guest
AS you have found out,the difference can be likened to the difference between a regular table top and a butcher block table.
I love the look.
Because you get "end grain" twice in a revolution of the pen you get the chatoylence of the grain.
Once finished and polished it's gorgeous.

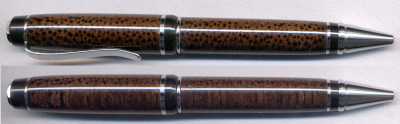

I have two rollerballs and a coconut palm in my album here(I hope):
http://www.penturners.org/forum/photo_album_view.asp?cname=Main+Album&mid=402&cid=423&page=2
The roller balls were turned out of Bocote whis is a beautiful wood to begin with.
As you gan see the grain on the rollerballs looks tike a tiger "eye"


goldentouch

Member
Joined
Nov 10, 2004
Messages
64
Location
Wills Point, Texas, USA.
The trick is make sure you tools are super sharpe. The cut to support the wood as much as possible. I go from the ends toward the middle instead of cutting all the way across. This way the grain is always supported. I seem to have more comments on my diagnal cut usually about 45 degrees or less I like 33 but that is my preference. The main thing is do what you like and don't be afraid to try something different. I just glued all the short pieces of BOW I had around the shop in a endgrain pattern. I haven't finished a pen just turned it round and it is interesting.
