Triton FP nib question

Signed-In Members Don't See This Ad

Jehster1

Member
Joined
Nov 11, 2019
Messages
70
Location
Washington DC
I ordered the Triton FP from EB last week and my friend wanted a fine point so I added that to the order (Heritance #5 Fine). This being my first time swapping an FP nib out, I looked up how to do it on youtube. Looked fairly straight forward: pull out feed section, replace metal nib piece, line it back up and slide it back in. My issue is when I slide it back in place, the metal nib part just falls out as there does not seem to be any friction fit holding it in place. To make sure I was doing it correctly, I put the medium back on and it fit as intended. Tried the fine nib again and it slid out again. Am I missing something? The Heritance #5 is on the Triton page as an orderable upgrade for the pen so I assume it's supposed to fit fine. Any help would be appreciated. Thanks!

Signed-In Members Don't See This Ad

Mr Vic

Member
Joined
Aug 11, 2008
Messages
1,865
Location
Falcon, CO
Look into the feed housing and se if there's a flat side . Could be a fluke that you didn't line up one time and did the other.
Try just inserting the feed several times and rotate the housing as you try. Does it insert farther in different spots.
Holler at me and we can pm or Zoom if you need.

Think I have a Triton and a heritance #5. . . Will try to dig out in morning.

Last edited:

Jehster1

Member
Joined
Nov 11, 2019
Messages
70
Location
Washington DC
Hi Mr Vic,

Thanks for the response. I did try it various ways and still had the same results. Here are pics of the 2 nibs, the Heritance on the left, and the stock on the right. I do notice a slight size/width variation so maybe EB sent me the wrong one? Or I just don't know what I'm doing which is entirely possible as well. :)



Mr Vic

Member
Joined
Aug 11, 2008
Messages
1,865
Location
Falcon, CO

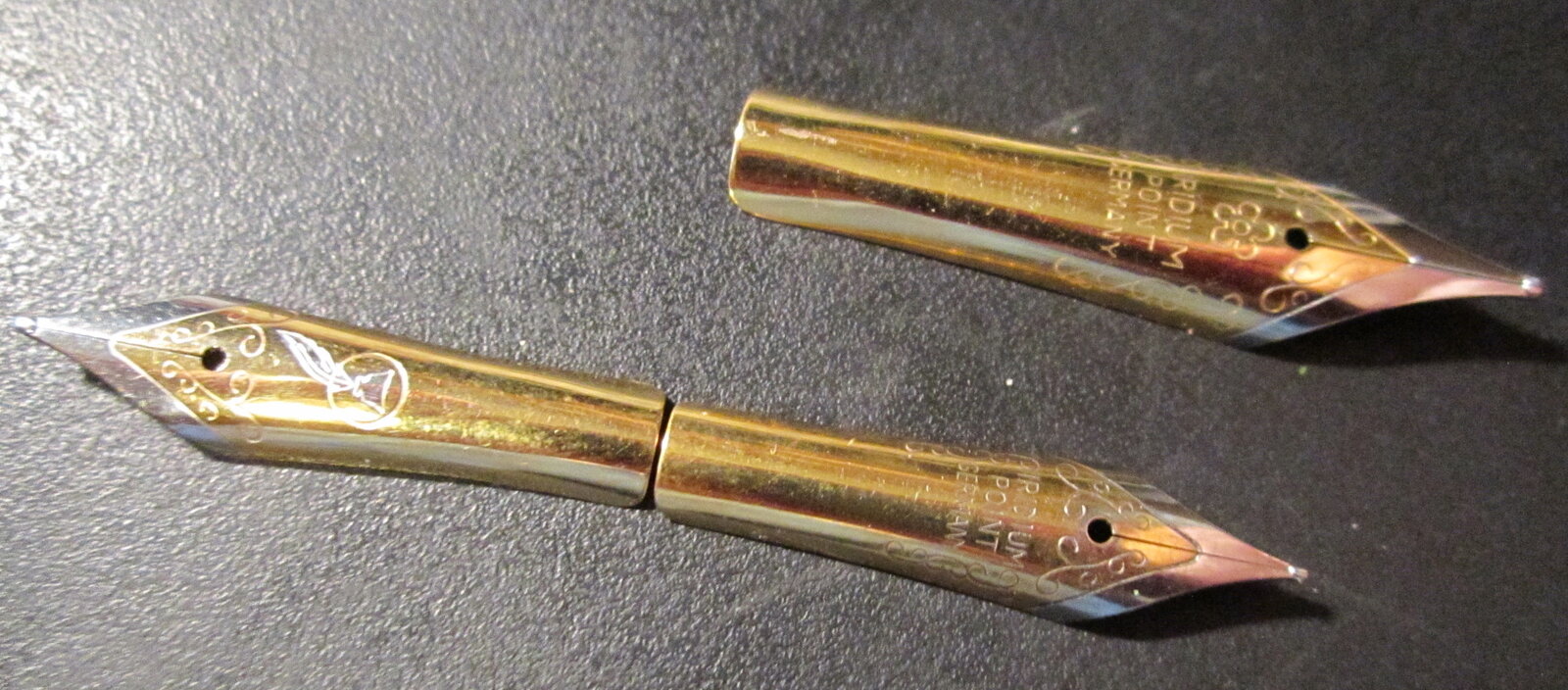

Charlie, dug out a Triton and scrounged up a Heritance #5 nib. Like yours there is a very slight size/curve. It fits just fine the upper right is a #6.

Can you take a picture of how it looks inserted.. need to see how far it's in in relation to the feed. Might just need a bit more muscle.




Jehster1

Member
Joined
Nov 11, 2019
Messages
70
Location
Washington DC
Here is it inserted:
On a side note, I pulled out both pieces and measured them. I mic'd the Stock non-point end width at 5.52mm and I mic'd the Heritance non-point end width at 5.12mm.

When put on the feed and fully inserted, both have about 8 ribs of the feed showing yet I can still just pull out/push in the Heritance nib with no resistance and it falls out when stood upright.

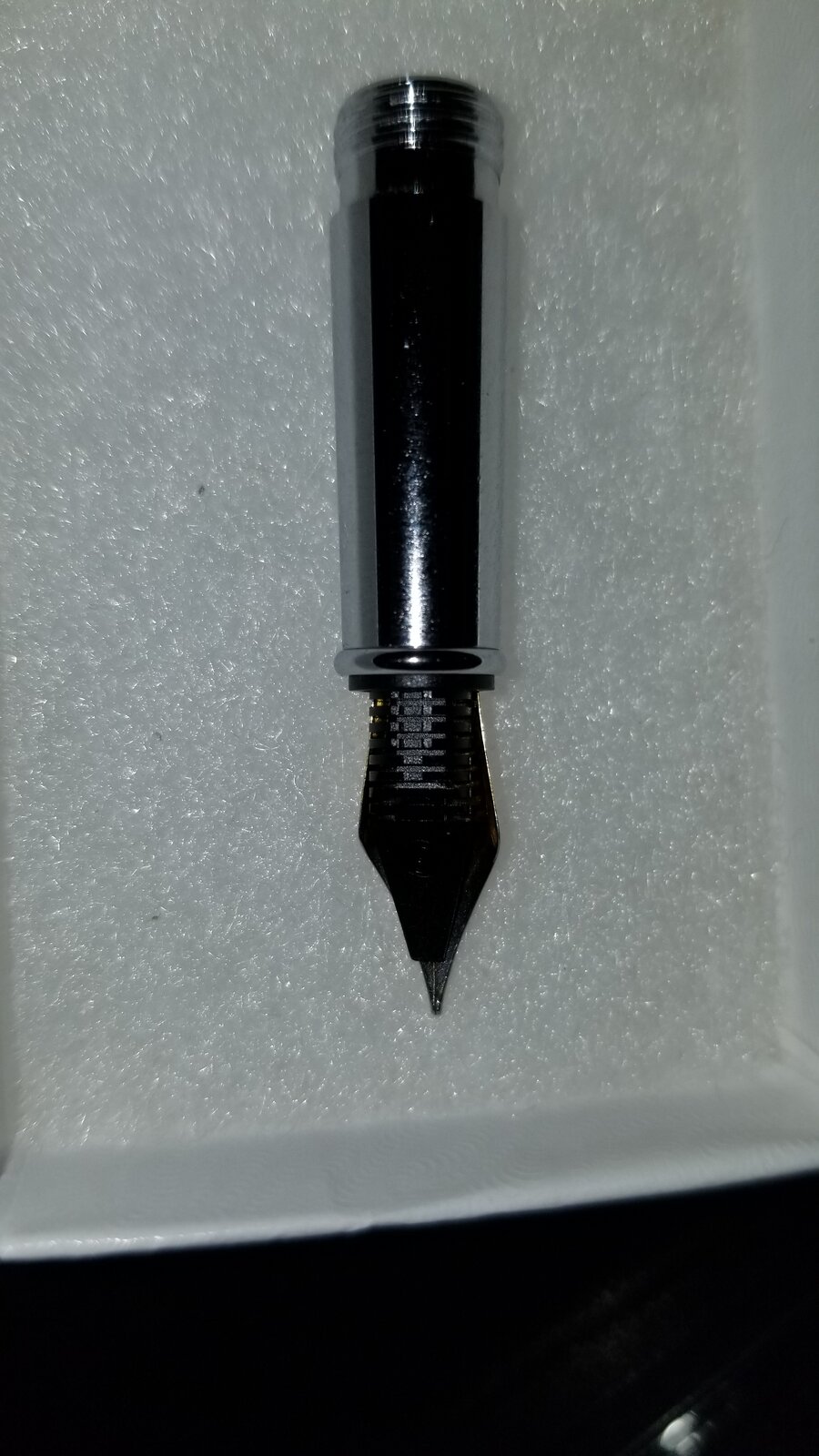

Stock:

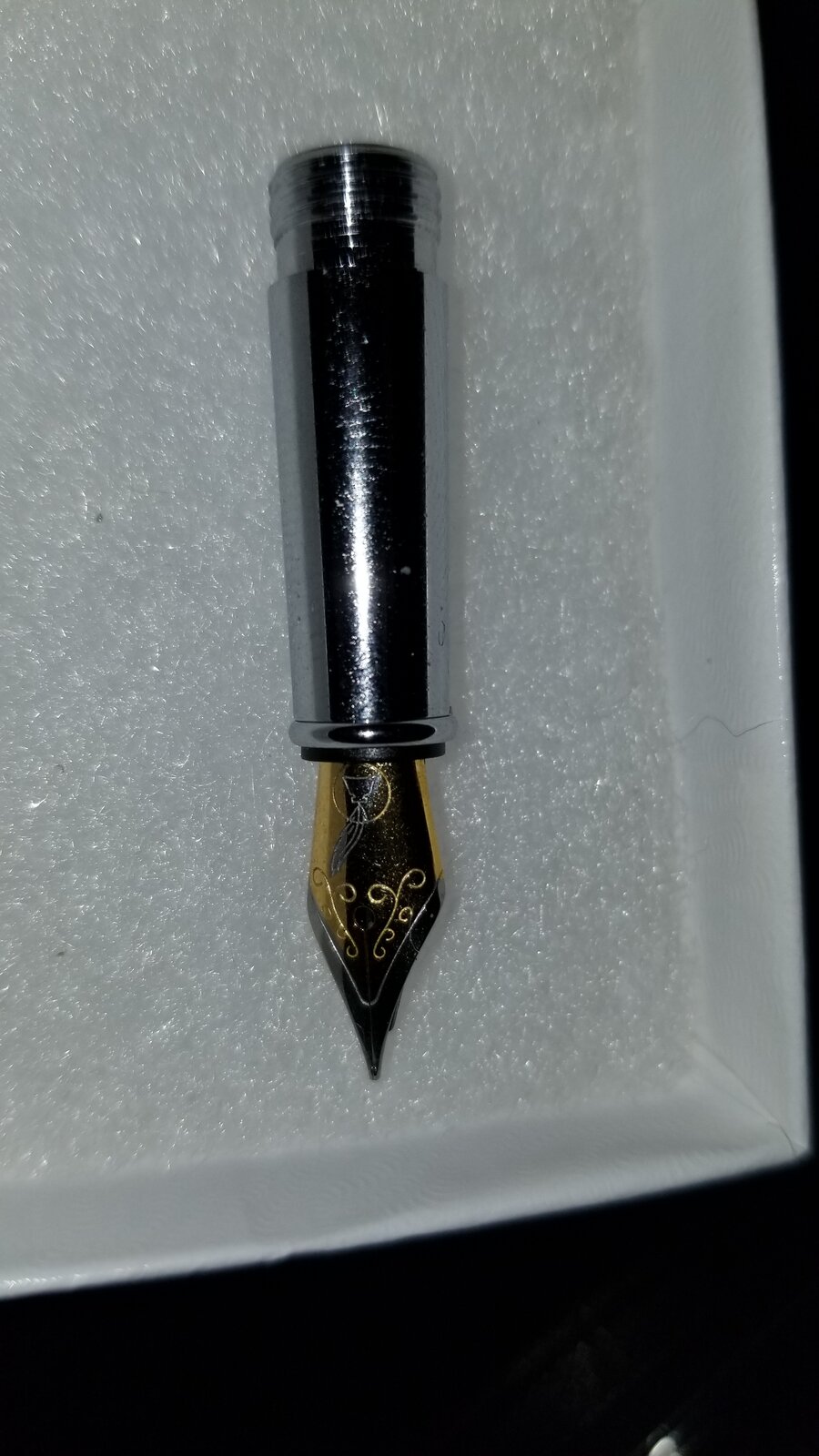

Heritance #5:


Jehster1

Member
Joined
Nov 11, 2019
Messages
70
Location
Washington DC
Did some digging, apparently it's a Berea problem since at least early 2019.



Mr Vic

Member
Joined
Aug 11, 2008
Messages
1,865
Location
Falcon, CO
Do you have another section you can try it in. I've tried 3 Heritance nibs and they work fine. BUT I tried them in an Atrax, pen I have, and all 3 do what you describe. Swapped the feeds and still slip right out. Tried a Jr Gent and really tight. Think it's more a fitment issue with the feed housing.

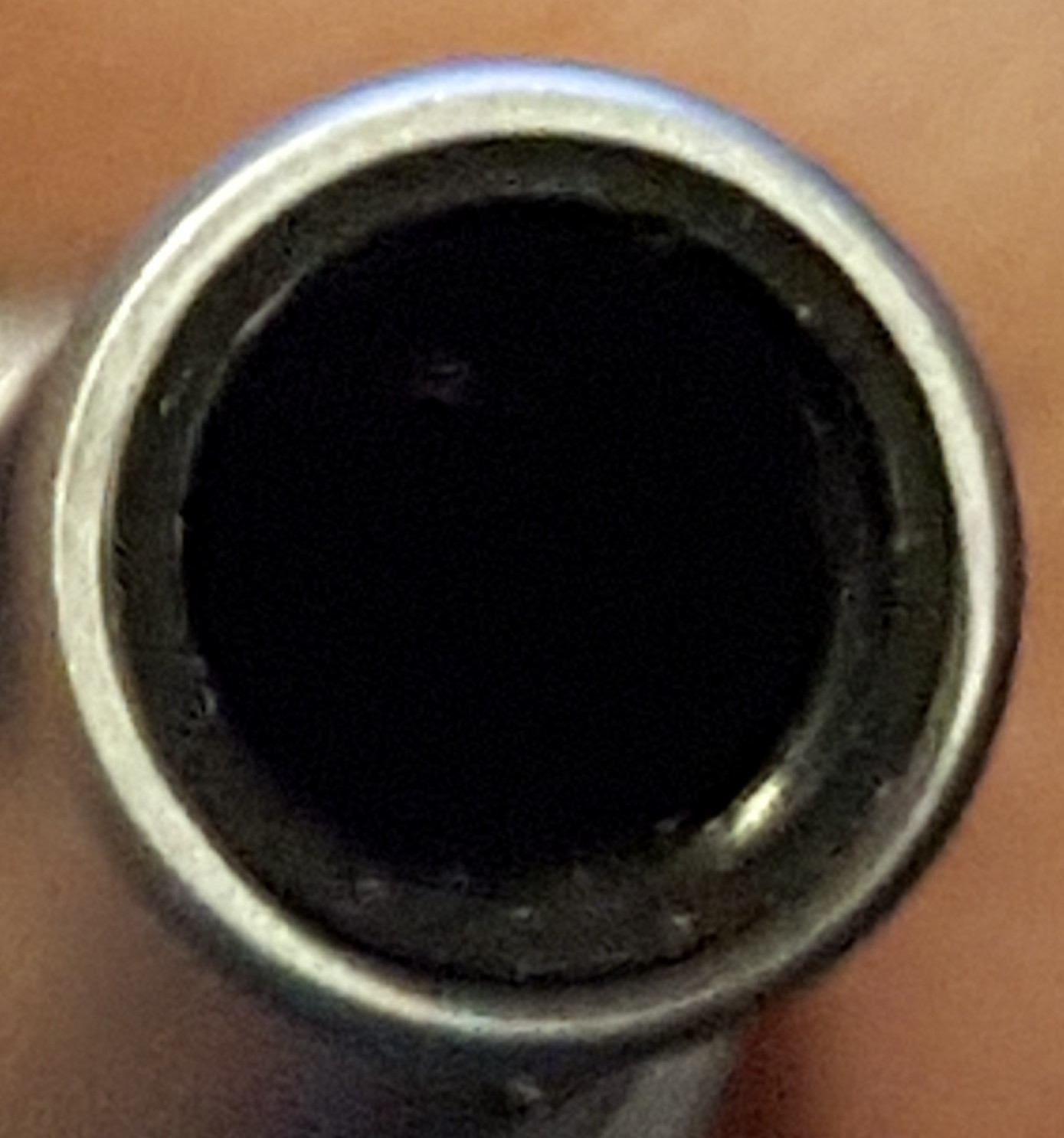

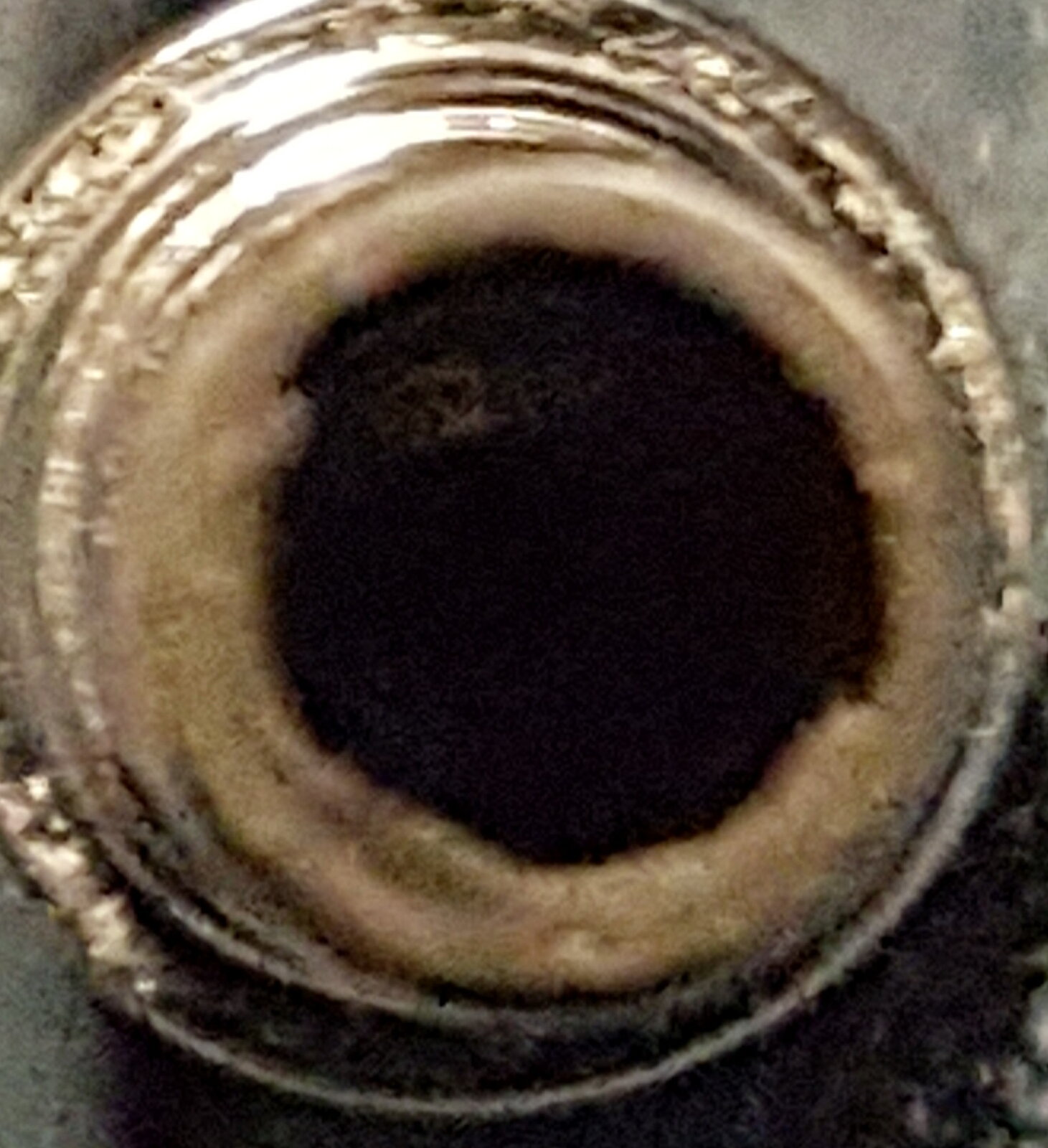

Pull out the feed and look at the opening. The left one is the Atrax, note the half circle that's larger. Too much room. The one form the Triton on the right is just round. They all are technically a #5 but there is no actual international standard. If you have other kits check them out. If you find one that's round you can most likely unscrew it and swap.



ScottZaiss

Member
Joined
Jun 4, 2019
Messages
9
Location
Saint Charles, MO
Based on the measurements you posted, you might need a #5.5 nib.


Sent from my iPad using Penturners.org mobile app


ed4copies

Local Chapter Manager
Joined
Mar 25, 2005
Messages
24,523
Location
Racine, WI, USA.
I am not sure what has happened with the kit fountain pens.

When we had the Heritance nib made, it was designed to fit the Junior Gent II. When the nibs were delivered, we were pleasantly surprised to see it fit the Berea pens as well--a proper fit.

In the past couple years, several people have reported the nib "falling out". Obviously, the nib and feed in the pens have been changed--yet it does fit in some Tritons and Atrax. So, apparently they are not all consistent.

Although we still have thousands of the nibs, we will probably remove them from the "upgrade" status, so people don't buy them, then get disappointed in the fit. Based on the number of nibs we sell vs the number of comments that they don't fit, I would say the nib still fits many, if not most of the kit feeds. But who knows what the manufacturers will do in the future??

Sorry for the confusion!!
Ed & Dawn
