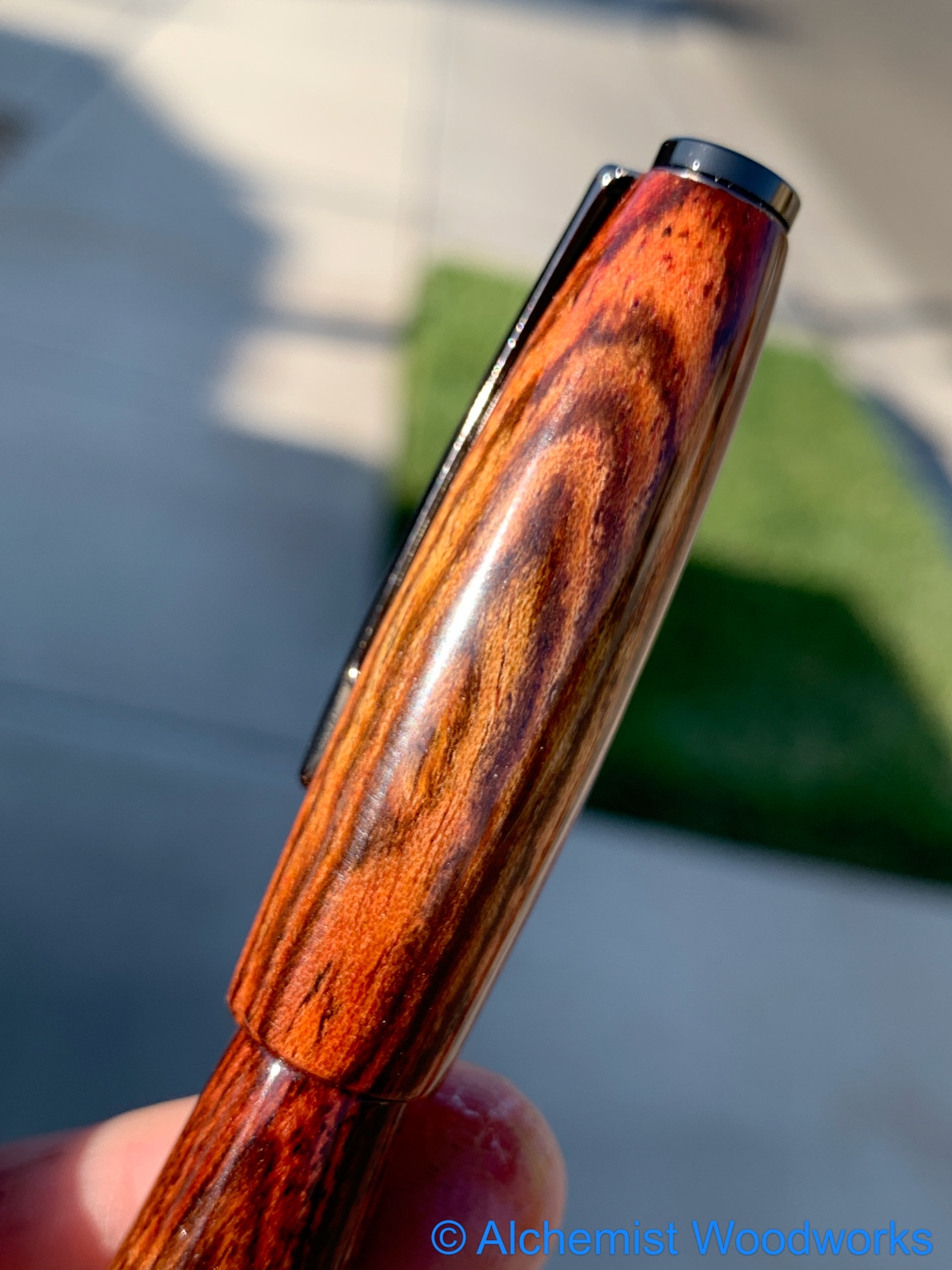

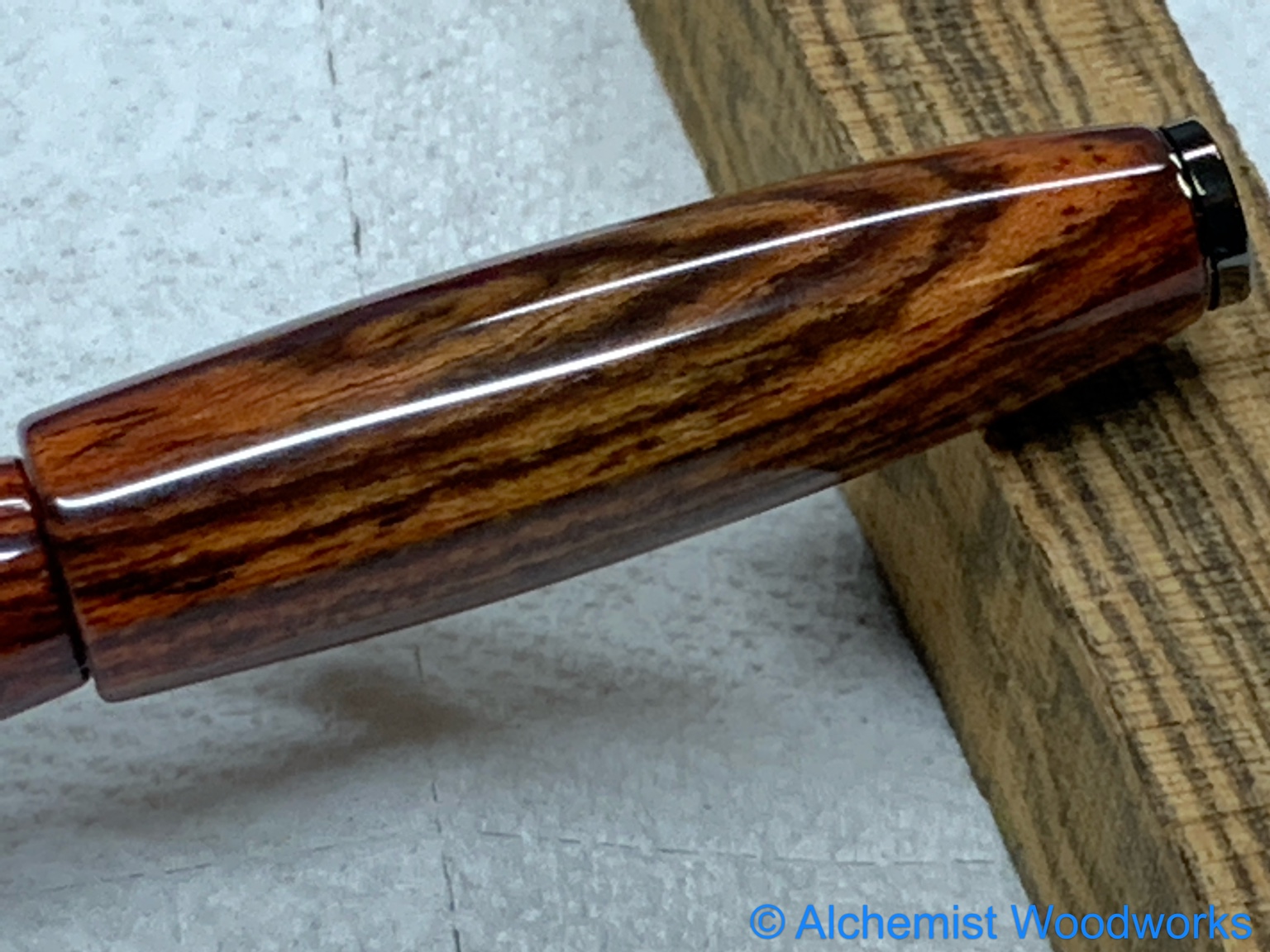

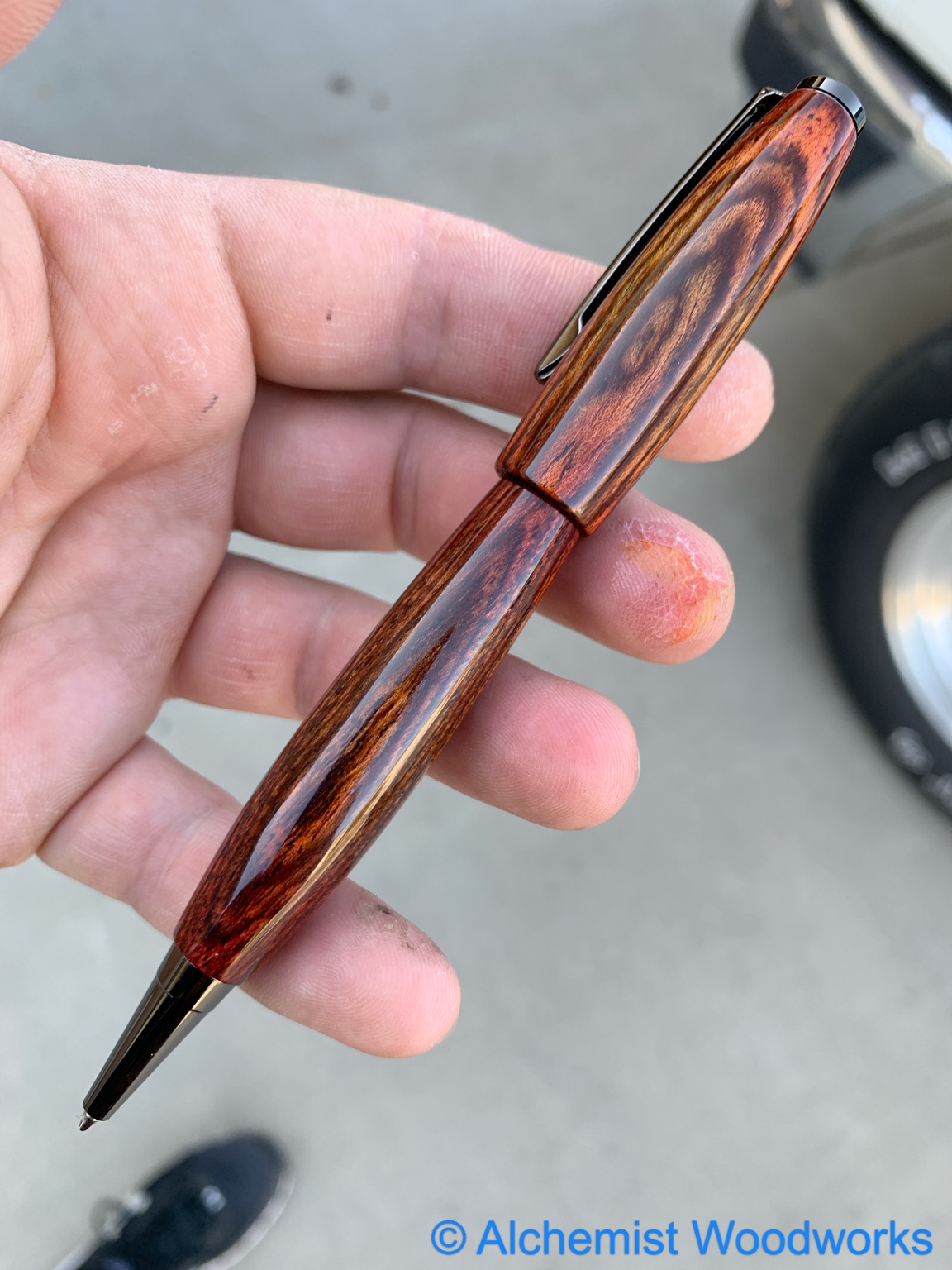

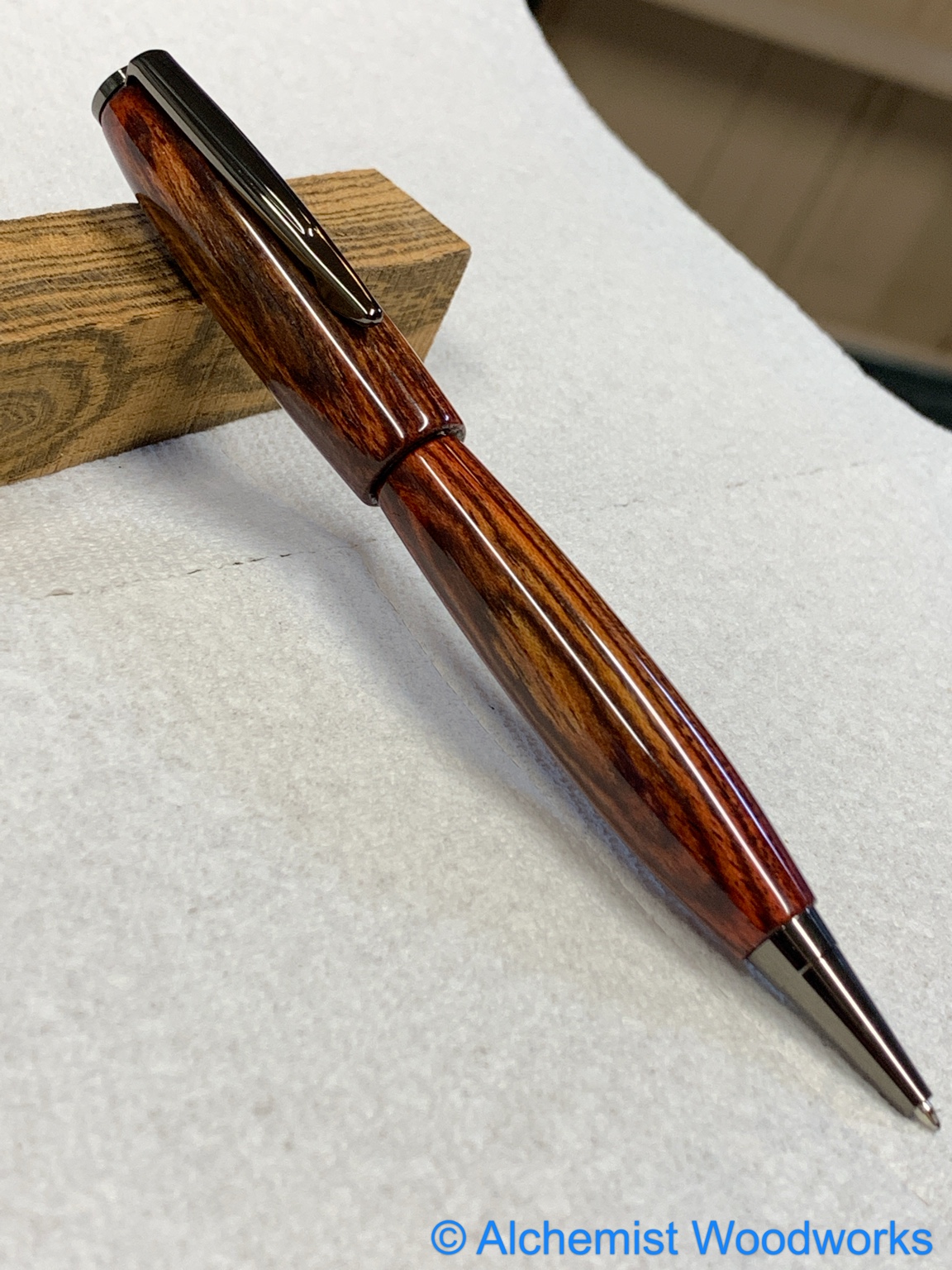

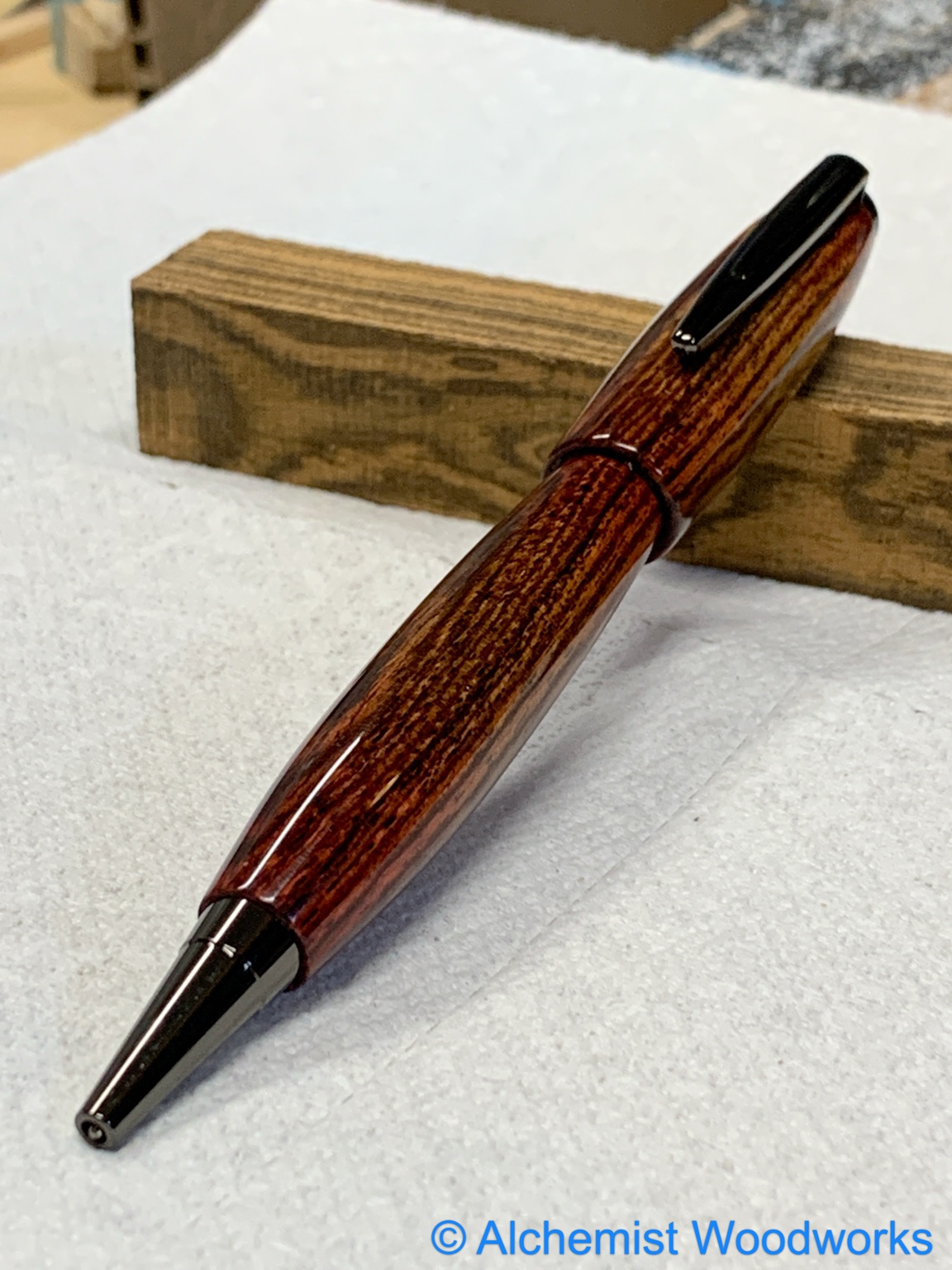

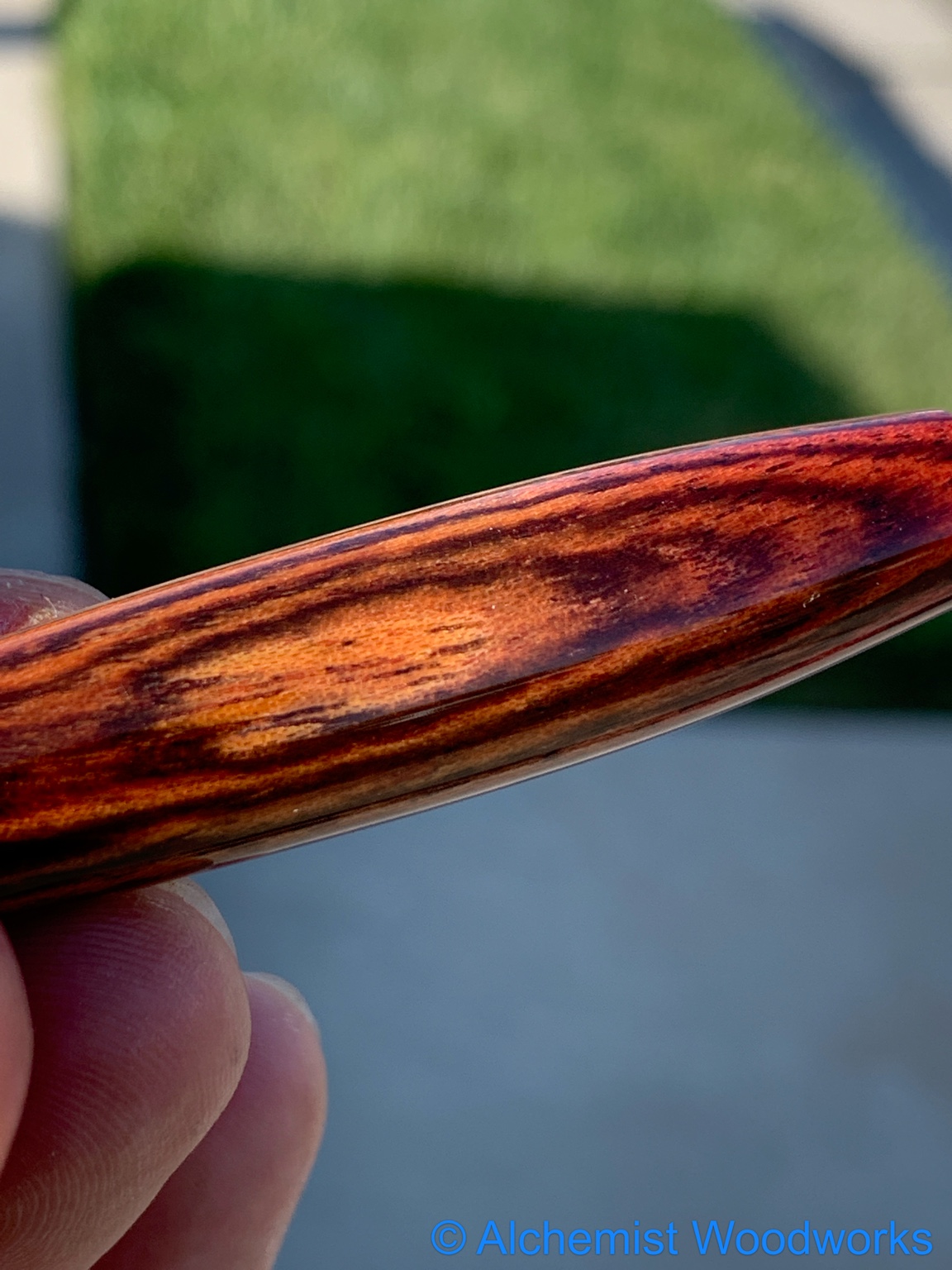

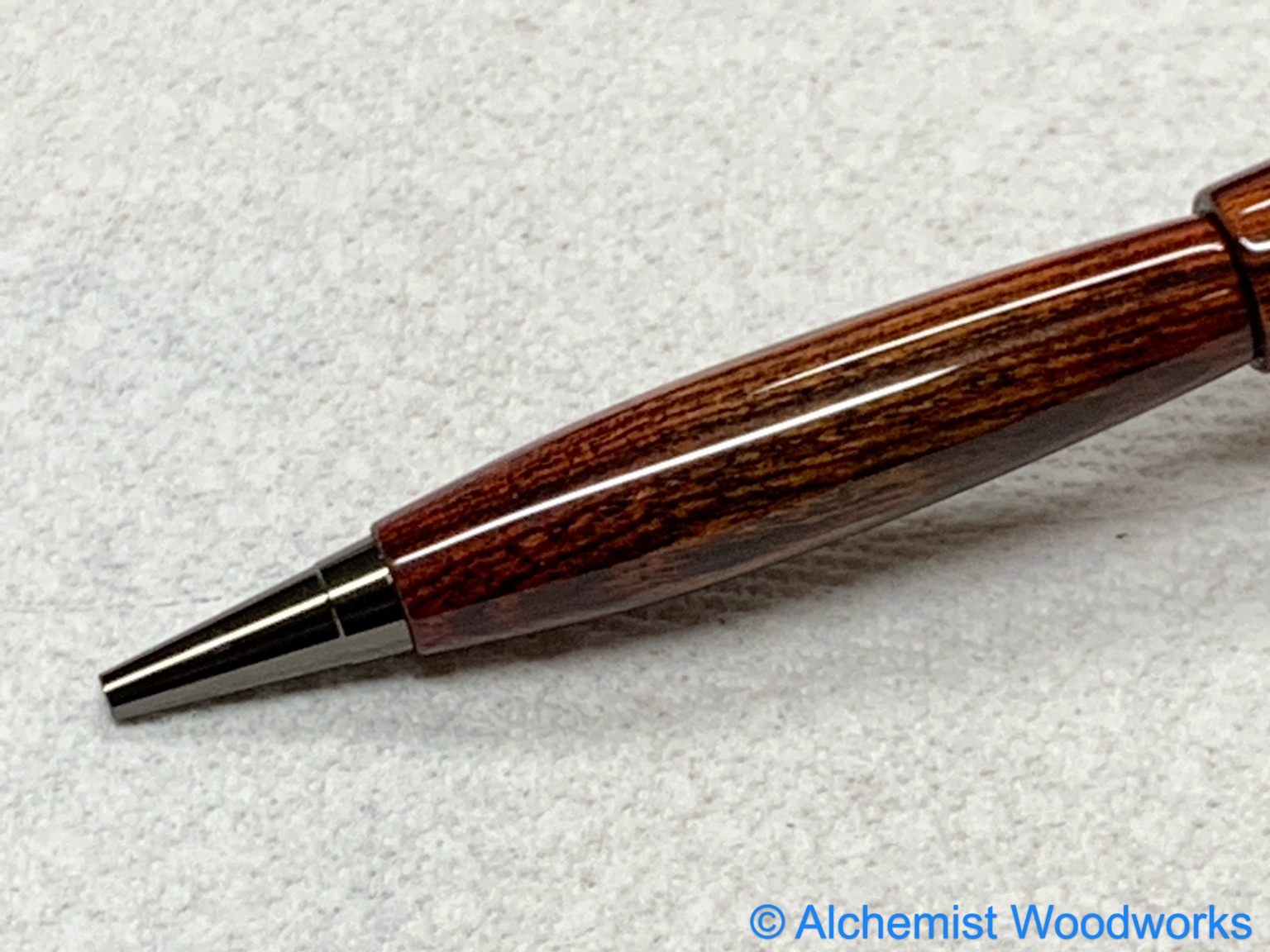

I was reading a thread the other day about dyes and bleach and wood grains and such. I posted I wanted to try Bocote. So, I did.

Method:

Bleached a whole blank for four hours. Let dry.

Three days later get it on the lathe, turn to shape, sand 400-12k grits.

Application of dyes were Fiebing’s leather dyes
USMC black (a flat black really), followed by sanding, then yellow, and red. Then using a method as learned from pipe dyeing... use rubbing alcohol (91%) to blend in. Then final sanding with a CA finish.

I really enjoyed making this pen! I feel it finished wonderfully. Of course, I’m biased.




Sent from my iPhone using Penturners.org mobile app

Signed-In Members Don't See This Ad

magpens

Member
Joined
Feb 2, 2011
Messages
13,277
Location
Coquitlam, BC, Canada
WOW !!!

Looks just like Bocote !!!! . LOL !! . ( And I love the look of Bocote !! )

I love the way you have featured the transitions between materials, both at the center and the ends !!!

Thanks for providing all the details of your process !! . Very well done !!!


Alchemist

Member
Joined
Aug 13, 2020
Messages
287
Location
Central Valley, California
I would like to see that pen beside a bocote one that didnt have the colour bleached out and then colour re-applied........just for a comparison.

I suspect that the color would be nearly the same... I should have turned the pen to near finish, then bleached it. It would have been more striking, I think. The blank bleached out about 1/4 through.


Sent from my iPhone using Penturners.org mobile app


eteska

Member
Joined
Oct 29, 2019
Messages
66
Location
Wisconsin
I find this really interesting as one of things I love about pen turning is there are so many options. I have yet to make exact pen/blank combo twice.

Curious. Did you just use regular household bleach? Did you dilute with water? Can I assume the bleaching took place before you glued the tube in?


Sent from my iPhone using Penturners.org mobile app


Alchemist

Member
Joined
Aug 13, 2020
Messages
287
Location
Central Valley, California
I find this really interesting as one of things I love about pen turning is there are so many options. I have yet to make exact pen/blank combo twice.

Curious. Did you just use regular household bleach? Did you dilute with water? Can I assume the bleaching took place before you glued the tube in?


Sent from my iPhone using Penturners.org mobile app
House hold bleach- straight. I wanted to see if the bleach would take the color out. It didn’t penetrate deep enough to make a change after turning, but definitely would have went white if done that way. There is a thread on here with a link to bleaching and dying without a vacuum somewhere. It was all fairly interesting.

I will turn a cocobolo blank on my next day off to see what happens.


Sent from my iPhone using Penturners.org mobile app


PenPal

Member
Joined
Nov 29, 2006
Messages
2,405
Location
Canberra, A.C.T., Australia.
I have some very special Cocobolo I will bleach one day I do like the extra meat on the pen at the tip (to be sure to be sure).You acheived best finishing and thanks for the many pictures.

Peter.
