My first effort with this design can be found here. I mentioned that I did not care for some of the visual elements, so here is version 2.0.

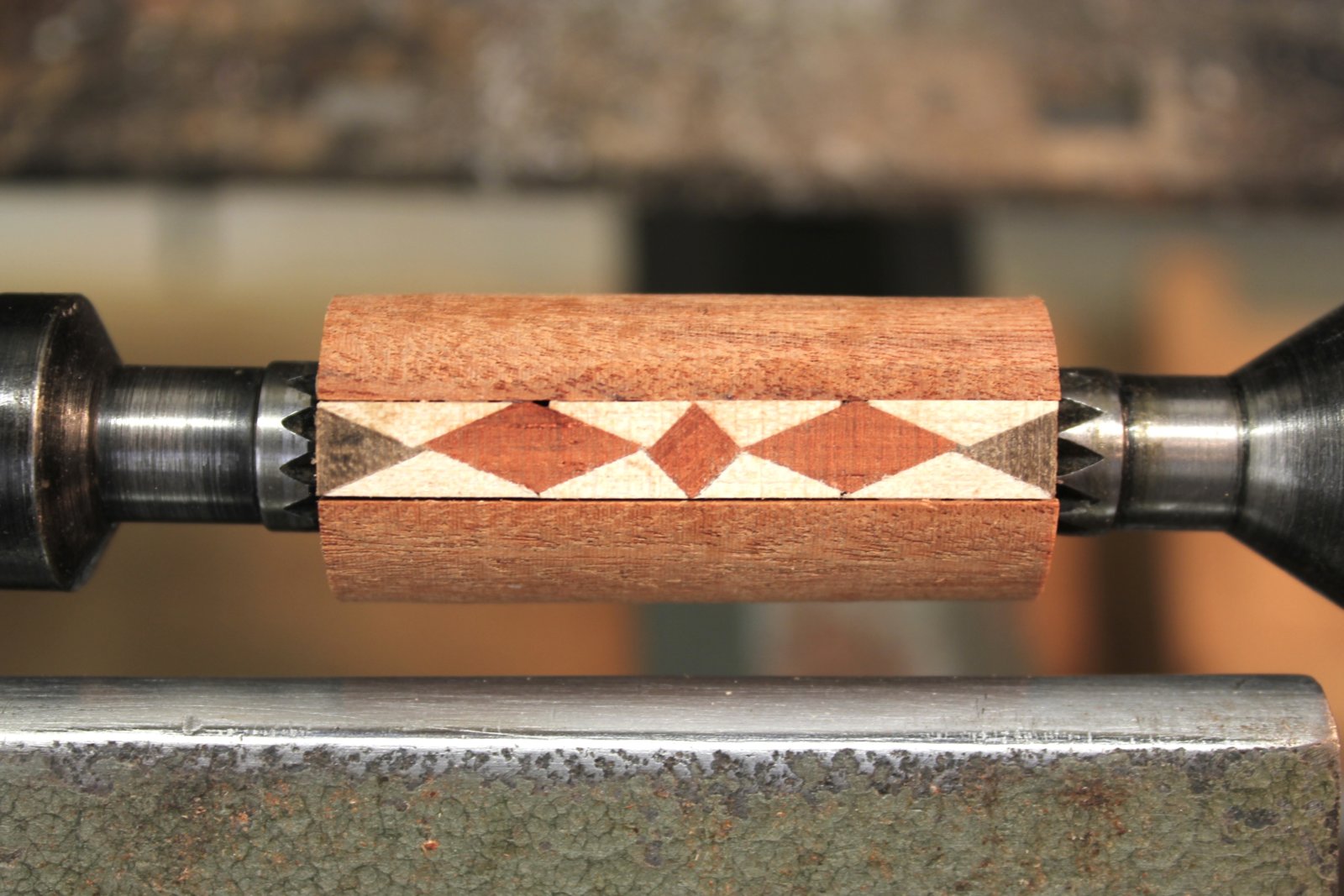

I changed the basic design from a 4-sided pattern, to a 3-sided one, which increased the size of the wood in between the segmentation. This meant I could not do the 4-corner assembly, but needed a slotted blank (cutting staves eludes me).

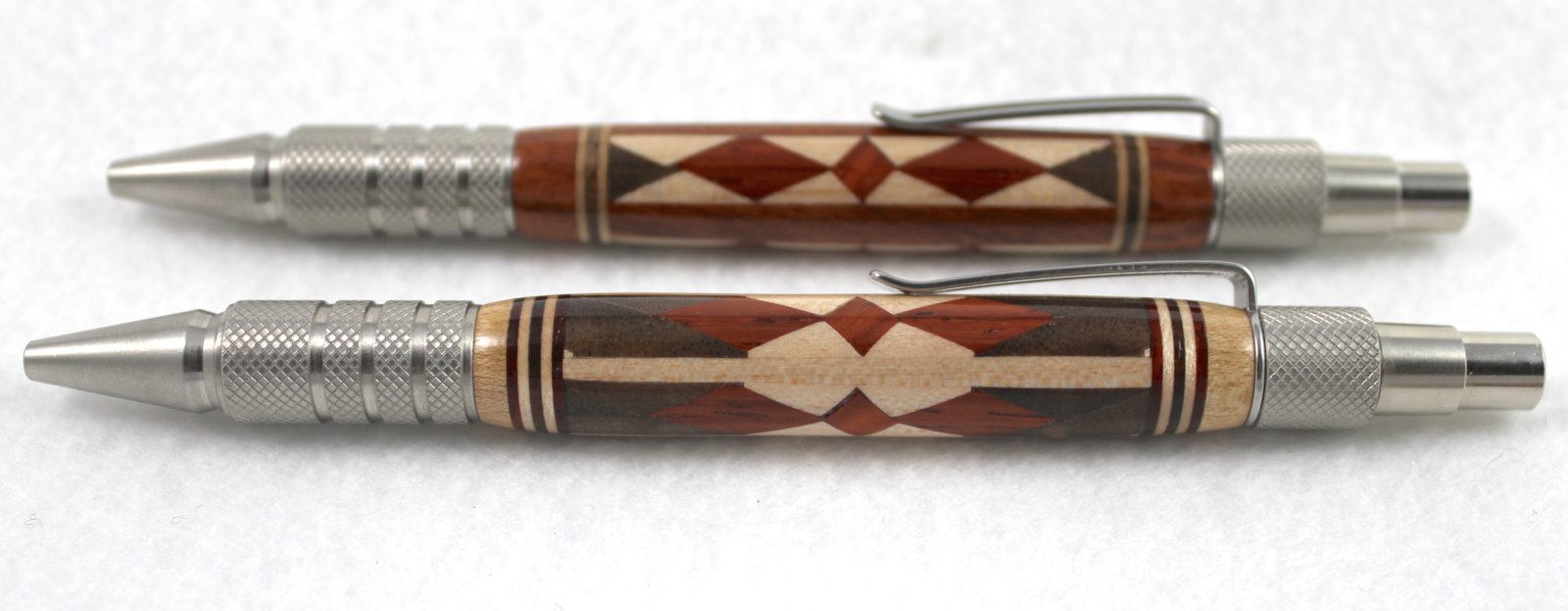

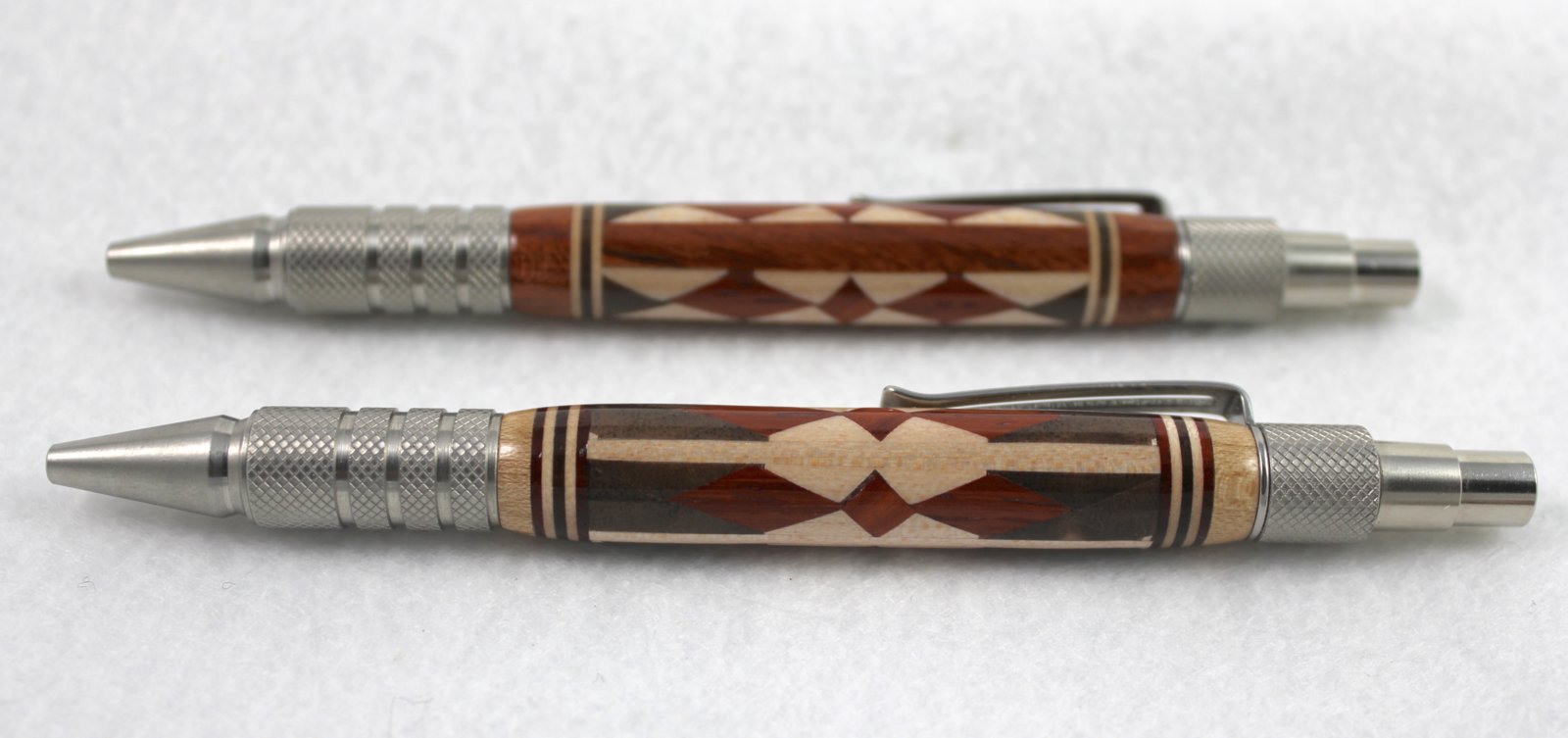

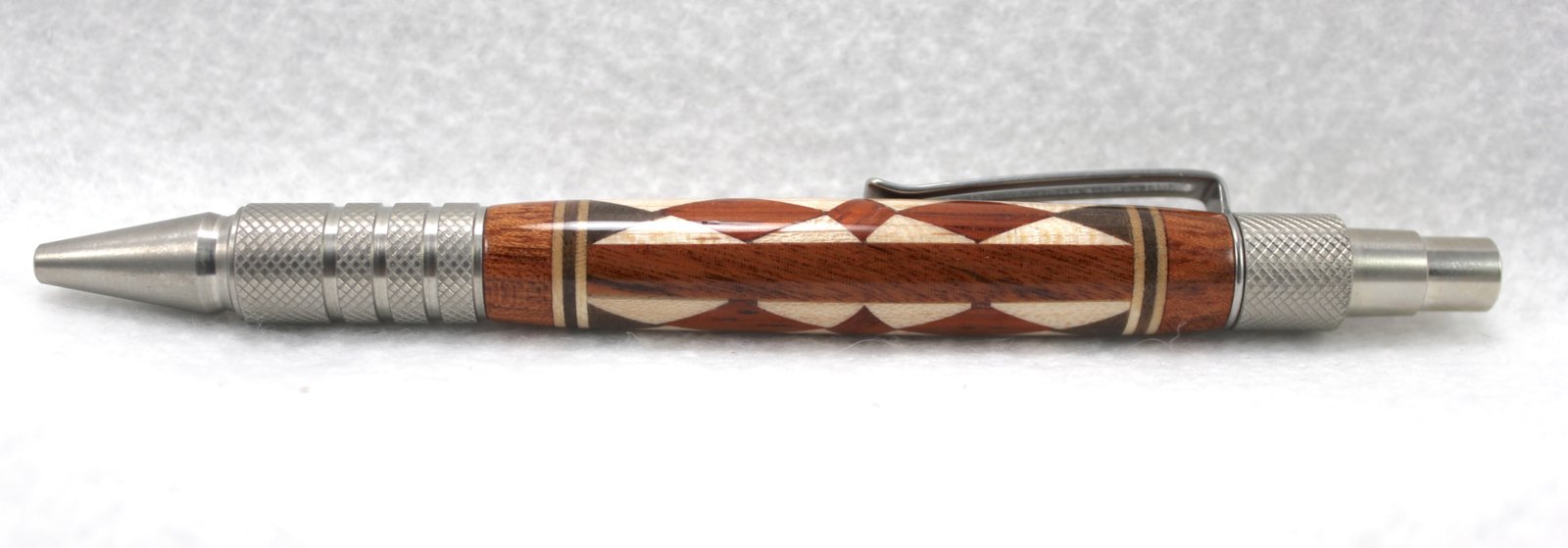

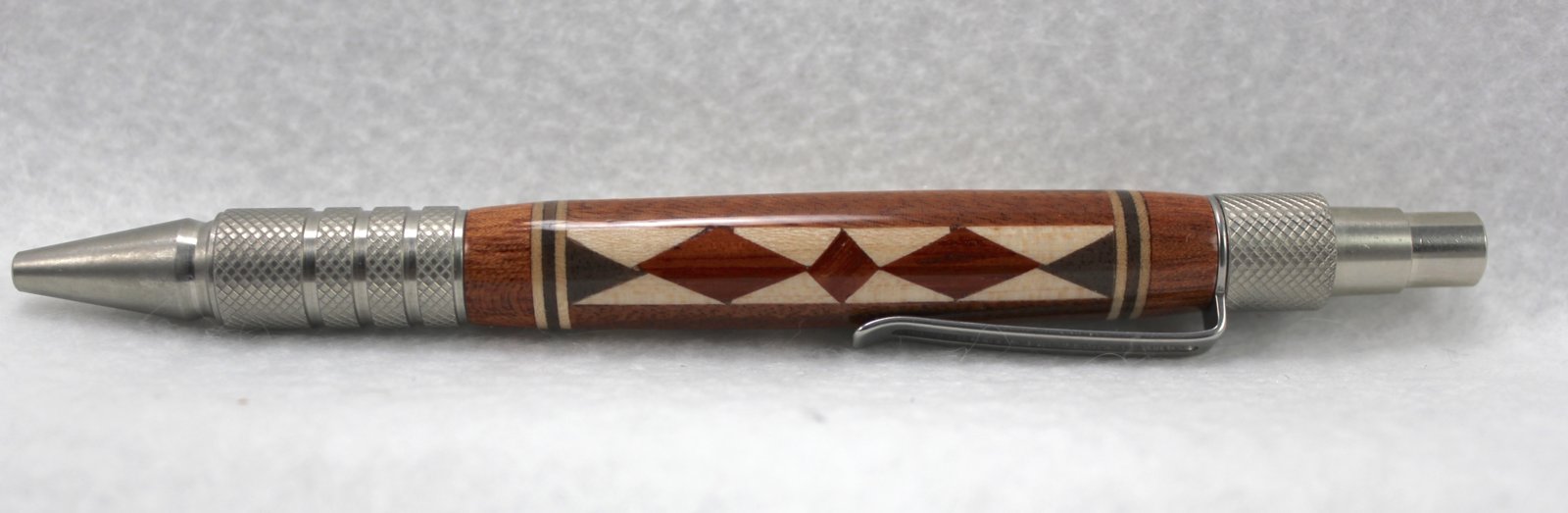

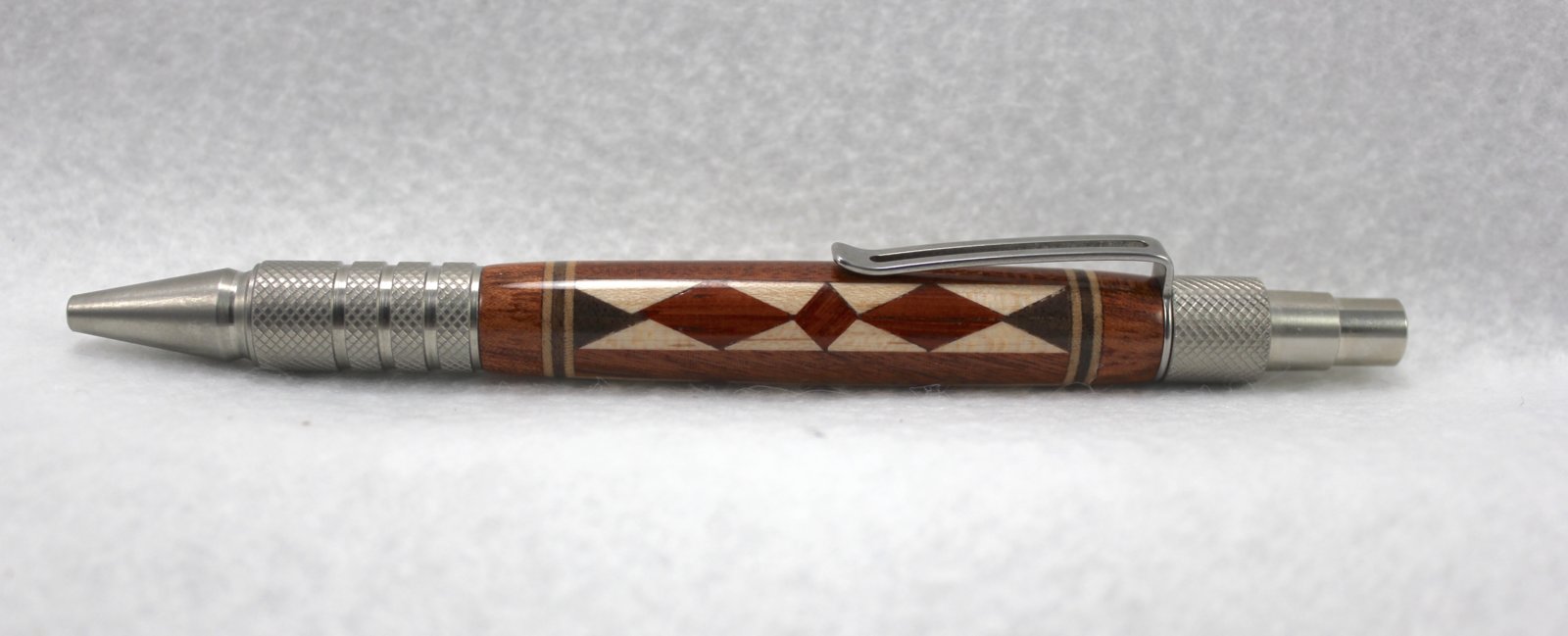

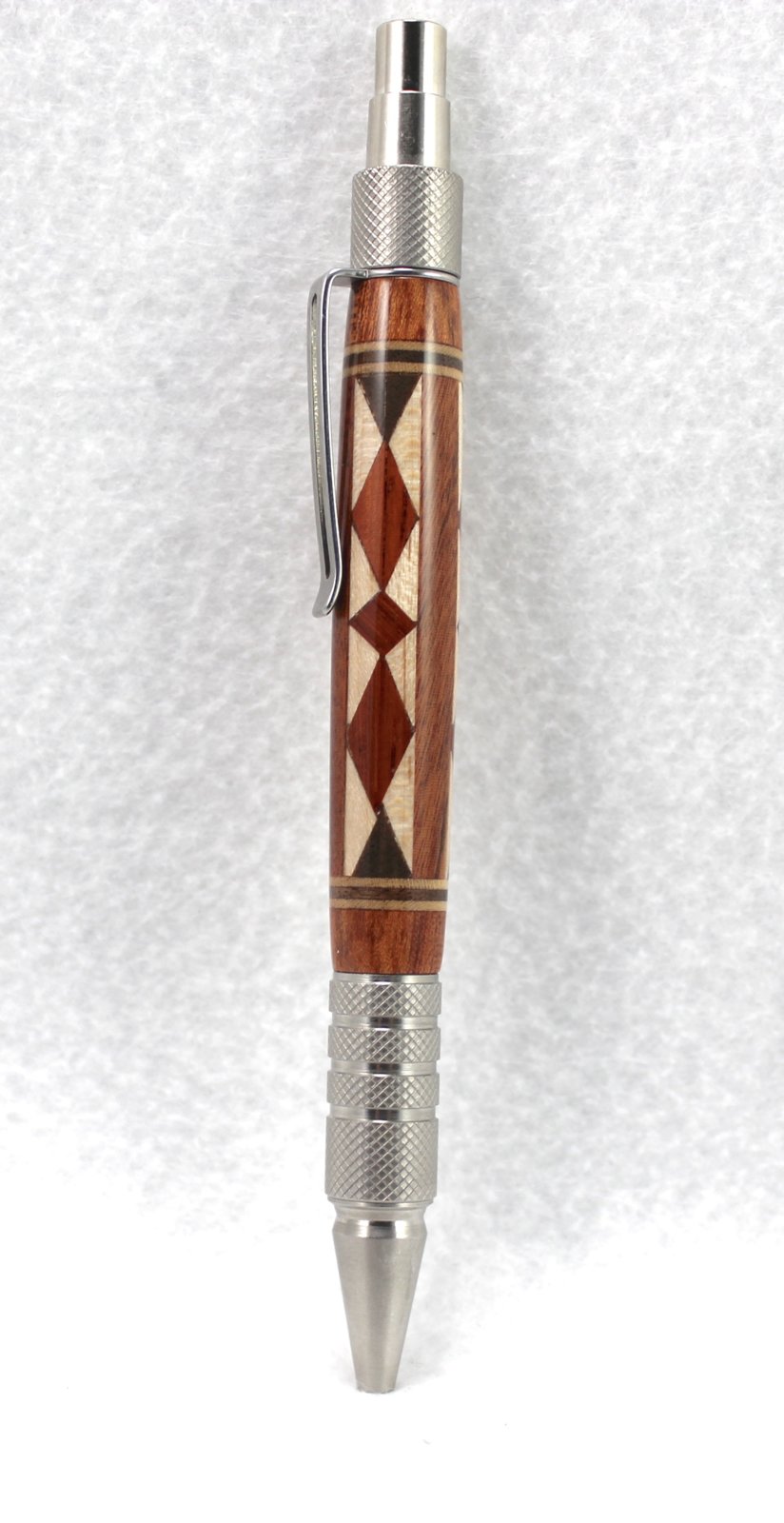

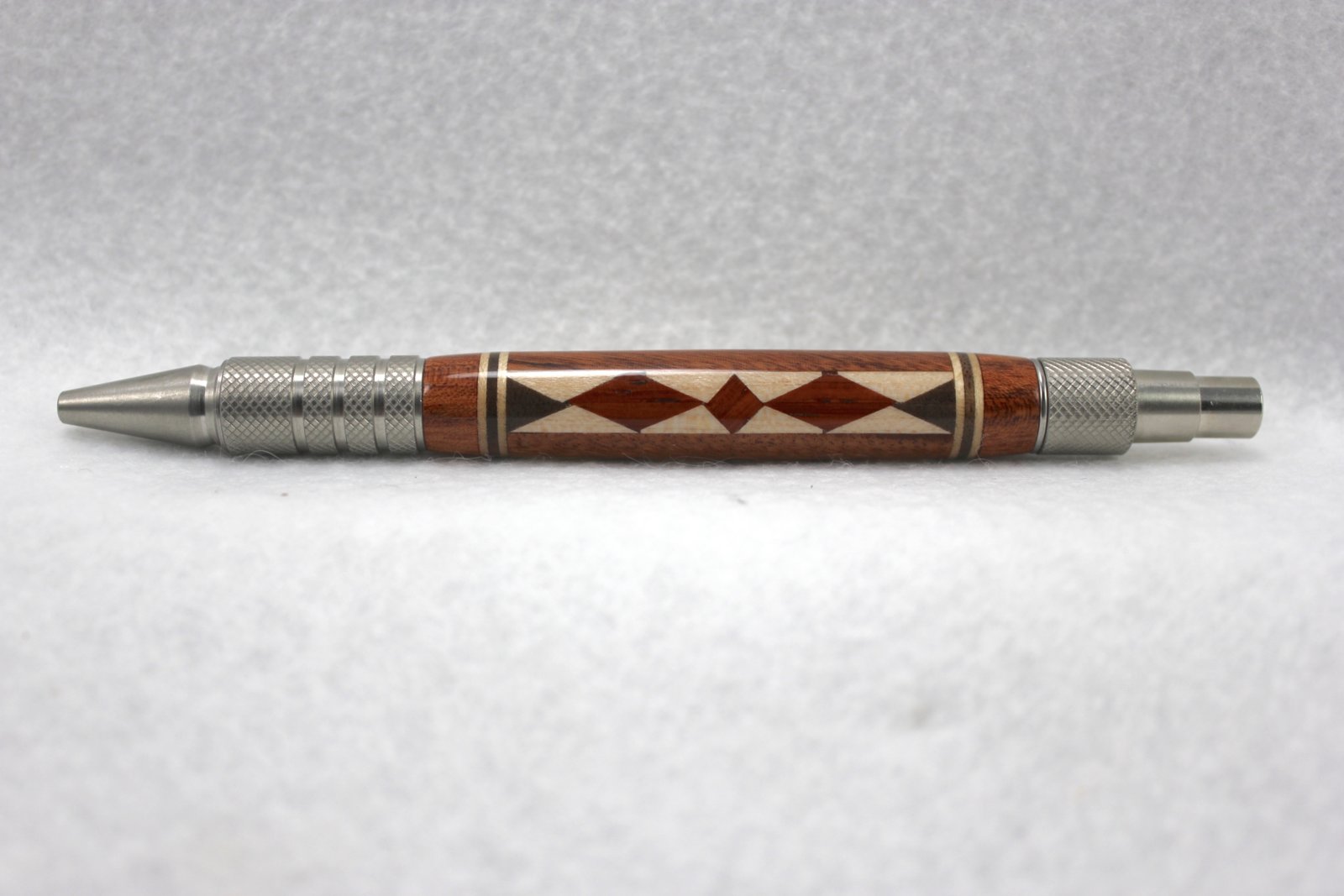

More importantly, I changed the pattern of colors to one that, IMO is more visually appealing. I swapped out the Maple starting blank for a matching red (Cabreuva ?). Pictures of the two pens show the changes better.

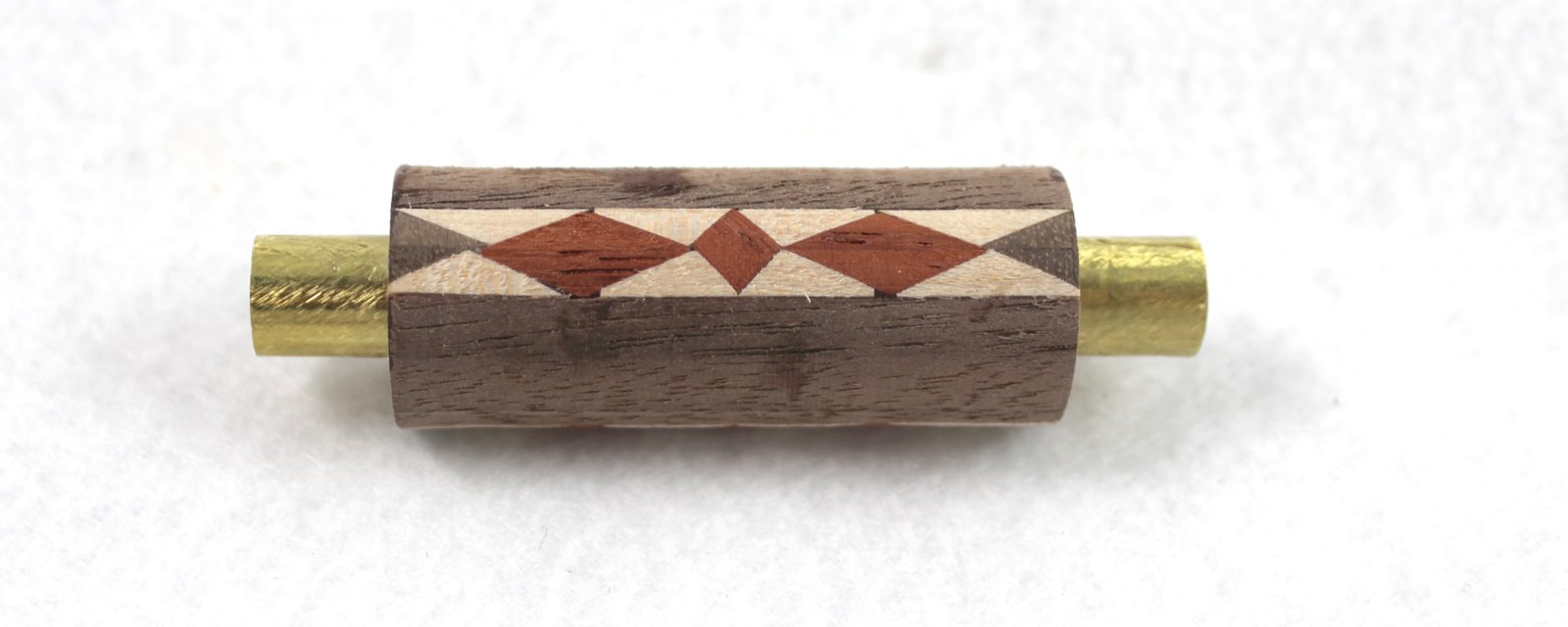

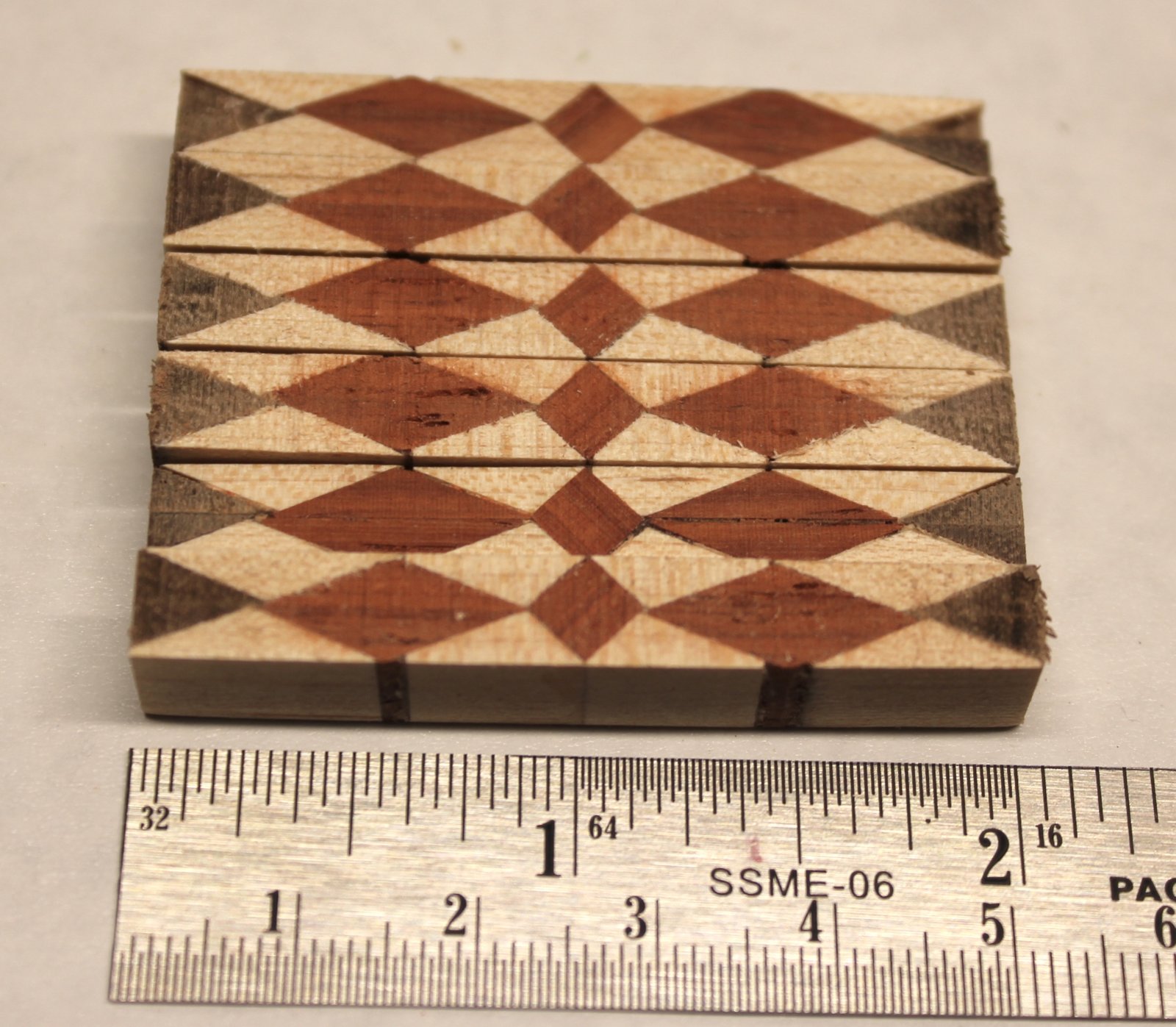

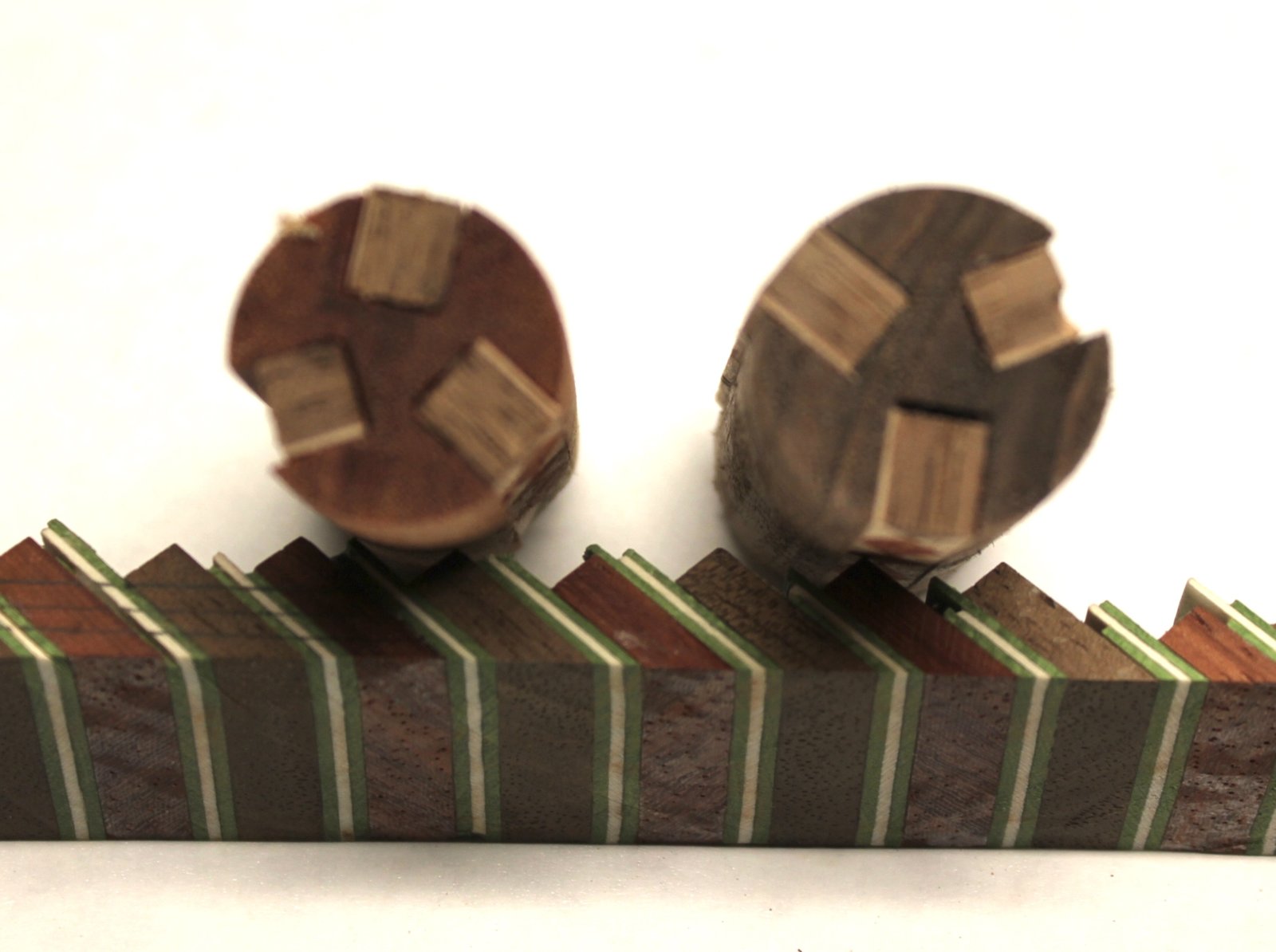

The last picture is another blank mid-assembly where I used Walnut for the starting blank.

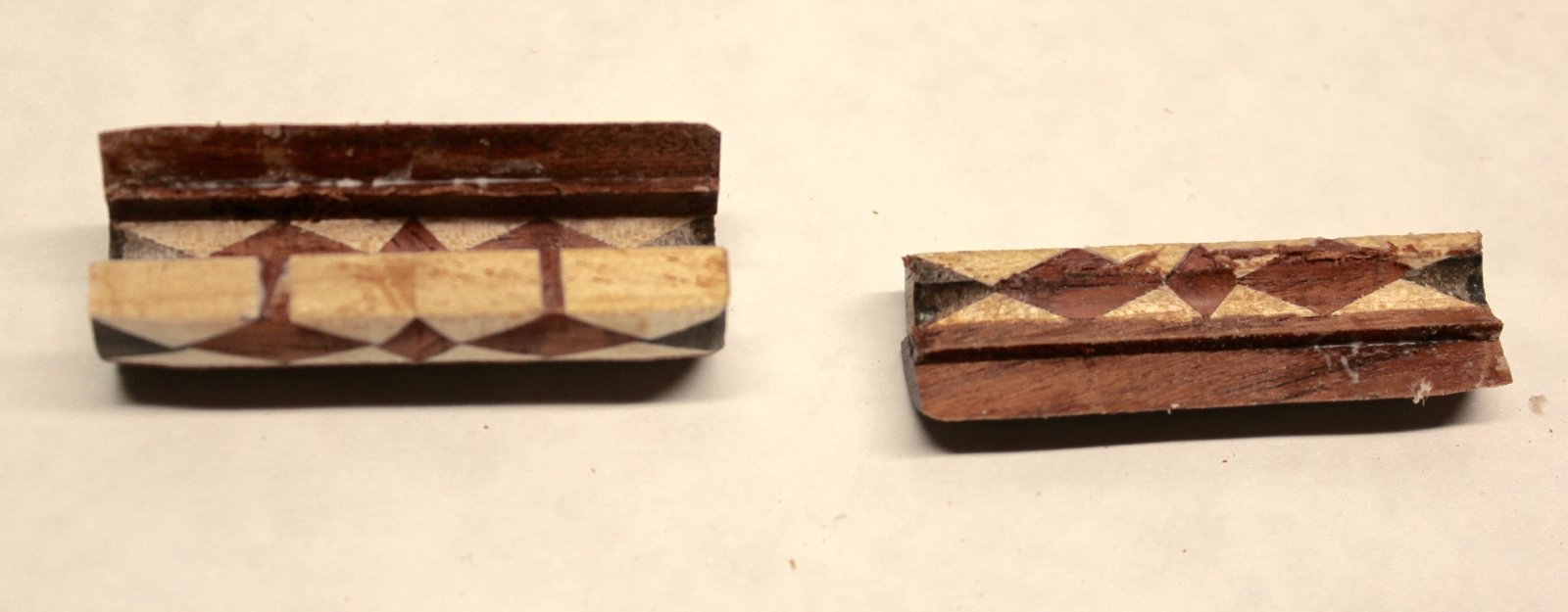

As with version 1.0, the multi-angled segments were the fussy buggers. In this pen they are a bit more apparent.

Turned, sanding sealer applied, sanded, finished with Glu Boost. I'll finish the last blank, then onto a totally new design.

Comments, critique and typical beatings are welcomed.


Attachments

  • IMG_1365.jpg
    91 KB · Views: 229
  • IMG_1366.jpg
    125.3 KB · Views: 221
  • IMG_1367.jpg
    84.9 KB · Views: 225
  • IMG_1364.jpg
    139 KB · Views: 213
  • IMG_1368.jpg
    84.5 KB · Views: 226
  • IMG_1360.jpg
    307.3 KB · Views: 257
  • IMG_1361.jpg
    139.7 KB · Views: 217
  • IMG_1362.jpg
    224.2 KB · Views: 230
  • IMG_1369.jpg
    106.1 KB · Views: 219
  • IMG_1370.jpg
    118 KB · Views: 236
  • IMG_1372.jpg
    82.2 KB · Views: 218
  • IMG_1363.jpg
    90.9 KB · Views: 222
Signed-In Members Don't See This Ad

jttheclockman

Member
Joined
Feb 22, 2005
Messages
19,084
Location
NJ, USA.
I hope I am not speaking out of line here and if I am am I will avoid next time. But I think you have shown in the past that you are open for discussion. In my opinion I think you are trying too hard here to incorporate a different design element into the pattern with the square and it is throwing the whole concept off as well as they eye. I say this because it has grain running in a different direction and being dead center the eye goes right to it. At least mine does and it throws the pattern off. Now if you used a grainless material such as acrylic or aluminum it may lessen this. In fact if you gone away from wood and used all solid surface material may help.

If it were me I would stick with the diamond aspect and make either the two outside diamonds a tad smaller and the inside larger than those 2 or vice-versa. Or make all squares. Something just does not look right to my eye. Nice segmenting because none of that is easy. This is just one person's opinion though.


mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
12,720
Location
Medina, Ohio
I hope I am not speaking out of line here and if I am am I will avoid next time. But I think you have shown in the past that you are open for discussion. In my opinion I think you are trying too hard here to incorporate a different design element into the pattern with the square and it is throwing the whole concept off as well as they eye. I say this because it has grain running in a different direction and being dead center the eye goes right to it. At least mine does and it throws the pattern off. Now if you used a grainless material such as acrylic or aluminum it may lessen this. In fact if you gone away from wood and used all solid surface material may help.

If it were me I would stick with the diamond aspect and make either the two outside diamonds a tad smaller and the inside larger than those 2 or vice-versa. Or make all squares. Something just does not look right to my eye. Nice segmenting because none of that is easy. This is just one person's opinion though.


LOL! Oops, you are entirely correct - I had not noticed that before. It would have been easy to flip the square for consistent alignment.

And yes, I did try hard to incorporate the square - it was simply a personal challenge, and to keep me out of trouble for a few weeks.

I admire those that work with metal, acrylics and other materials more than I do. I'll stick with wood, this is all just for fun and I'm enjoying it.

And yes, I'm certainly open to suggestions and discussion. The entire reason I post so many pictures is for others to take what they can, use some, modify others and make improvements. All is well.


MRDucks2

Member
Joined
Jul 17, 2017
Messages
3,215
Location
Bristow, IN
You are aware that I didn't care for V1 and I personally find V2 much more appalling to the eye. The broad stop of lighter wood through the lighter polygons in first one just threw me for a loop. This one is more comfortable for me.


Sent from my iPhone using Penturners.org mobile app


mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
12,720
Location
Medina, Ohio
You are aware that I didn't care for V1 and I personally find V2 much more appalling to the eye. The broad stop of lighter wood through the lighter polygons in first one just threw me for a loop. This one is more comfortable for me.


Sent from my iPhone using Penturners.org mobile app

Yes, I agree and that was my attempt for v 2.0. But as we see from the discussion, others still like v 1.0. I think the last one in the series (Walnut) will also be to my liking. Then onto a different design.

But, I appreciate the discussion; gives others some thoughts for their work.


Angela S

Member
Joined
Jun 26, 2019
Messages
182
Location
Seattle
I also, like version 2 better. I feel like the polygons a better emphasized. I have a few questions.

1. How do you cut the three groves?

2. Are your thin stripes veneers?

3. If so, does the grain of the veneer run parallel or perpendicular to the pen?


mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
12,720
Location
Medina, Ohio
I also, like version 2 better. I feel like the polygons a better emphasized. I have a few questions.

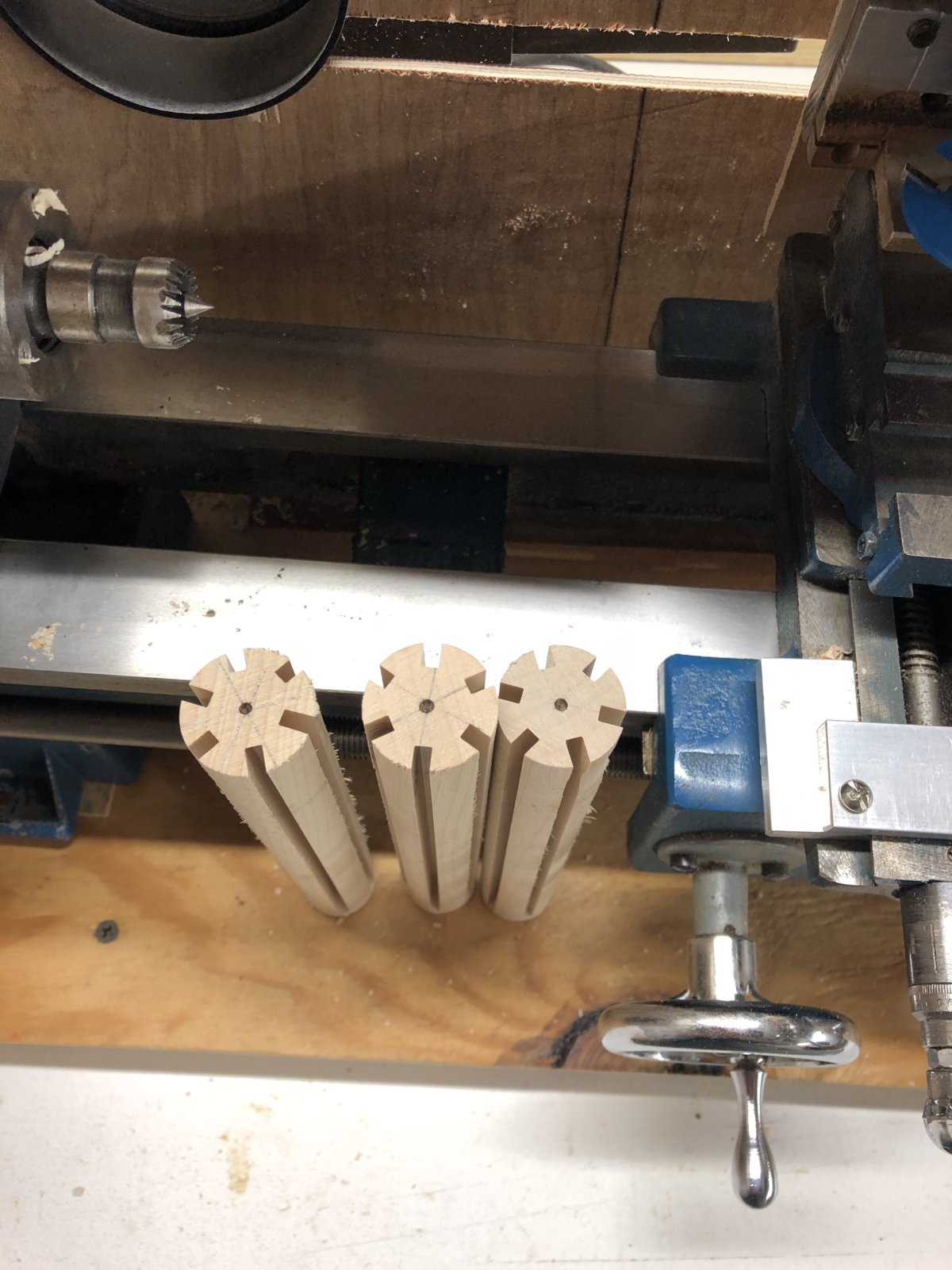

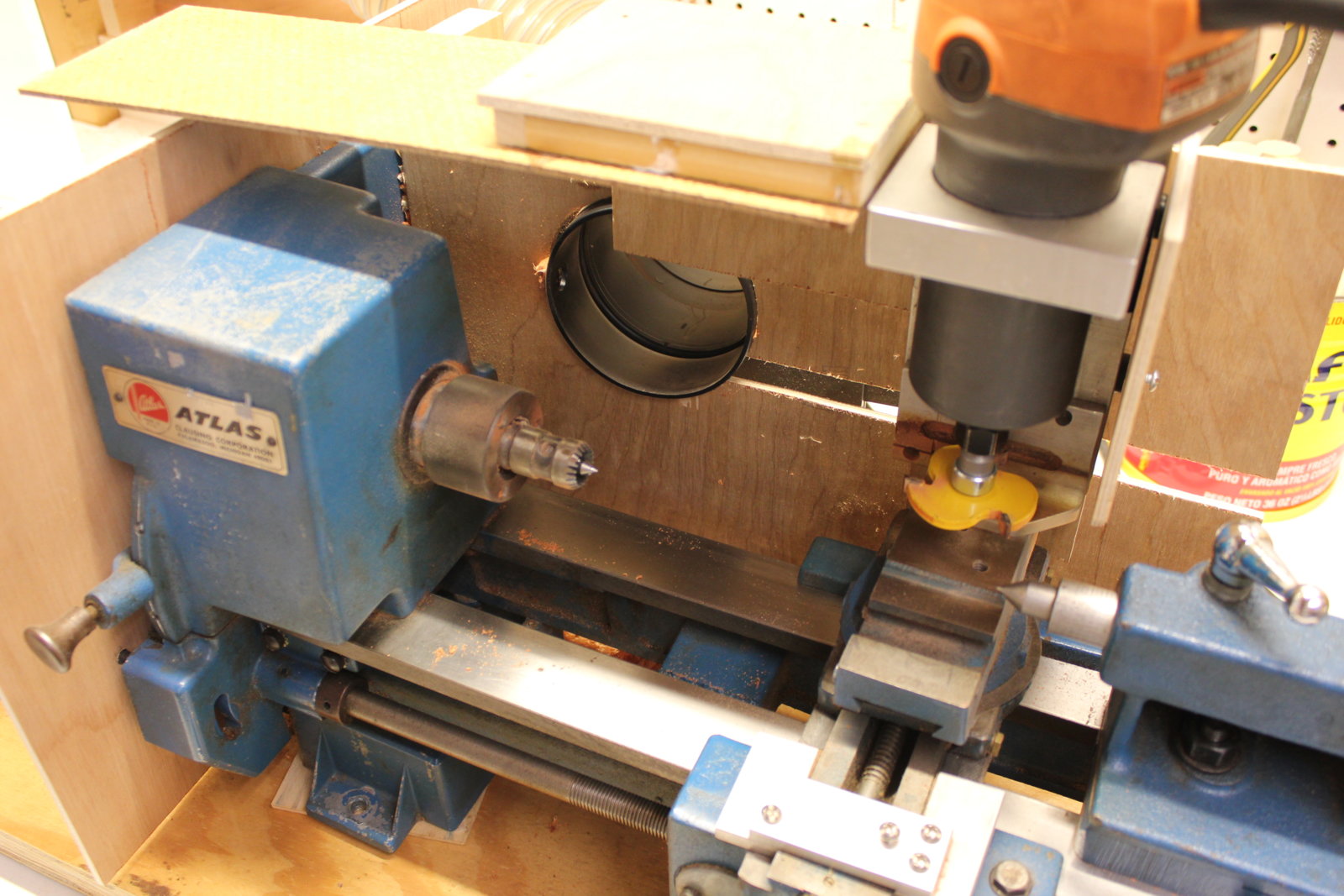

1. How do you cut the three groves? "Frankie" does all the work! (My frankenstein setup). Pictures below. A 1950's metal lathe skeleton that's only purpose if life is to hold a spindle (long 7-9" pen blank) and a lathe-mounted router cuts very accurate slots of varying thicknesses with a monster indexing plate.
