Transparent acrylic form study

Signed-In Members Don't See This Ad

jalbert

Member
Joined
May 17, 2015
Messages
776
Location
Louisville, KY

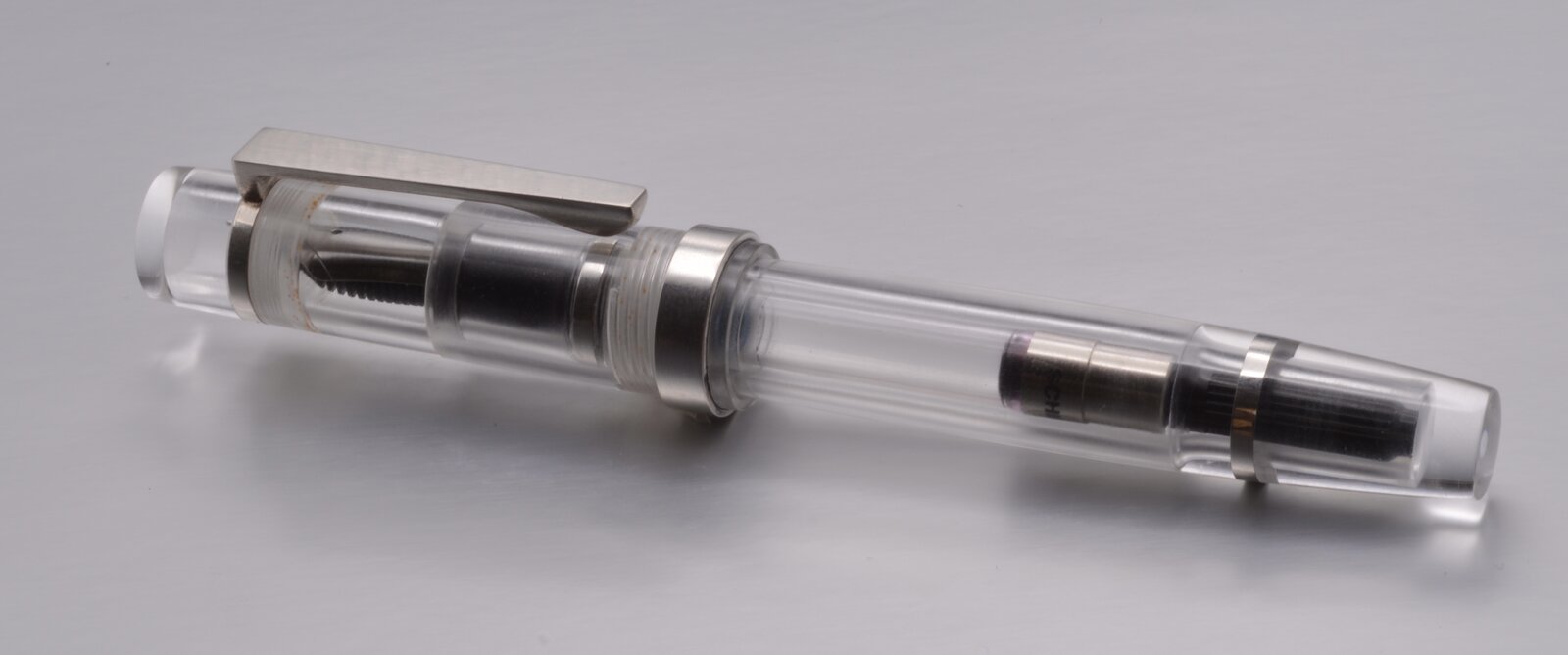

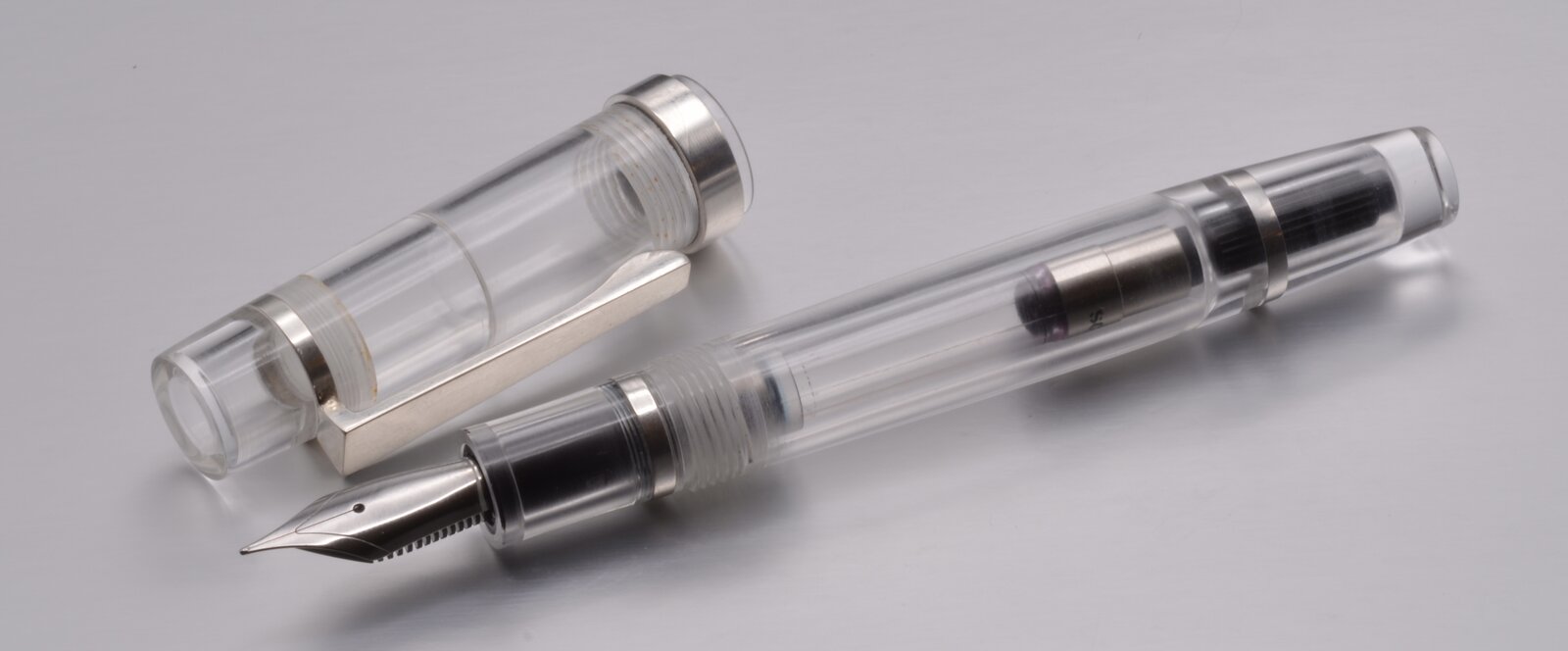

I like to make pared down pens every now and then just to focus on form and design aspects. Here is one I made from transparent acrylic, with silver trim. It’s based on a 13mm diameter cap thread, and is about 5.25” long. It uses a jowo 6 nib. C6A676C8-69B9-4F2E-BE55-E24276B3A7DB.jpeg7B9DA885-B57C-4817-BABB-0EFF37BCC81D.jpeg

Signed-In Members Don't See This Ad

mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
11,209
Location
Medina, Ohio
True artists study and refine their skills with time spent like this. Notwithstanding, A beautiful product! Well done and time well spent.


TDahl

Member
Joined
Dec 11, 2019
Messages
800
Location
Brentwood
Very nice John. Any tips on you achieved such a clear polish on the interior of the barrel and cap?


Psychmike22

Member
Joined
Oct 26, 2013
Messages
77
Location
NY
Fantastic. The interior sanding looks flawless. I like demonstrators but i have never been able to get the drilling and interior sanding right. Would you care to describe your process?


jalbert

Member
Joined
May 17, 2015
Messages
776
Location
Louisville, KY
Fantastic. The interior sanding looks flawless. I like demonstrators but i have never been able to get the drilling and interior sanding right. Would you care to describe your process?
Drill SLOWLY with plenty of lubricant and sharp bits.
sand the interior from 320 to 1000, then through all the Zona papers
Polish using the magic juice compounds.
Then possibly repeat a couple more times, because you’ll undoubtedly find some scratches you missed.
