Tranny removal - no hammering

[MPVic]

I saw Ed from Exotic Blanks show how to remove a tranny - it seemed to take a lot of hammering, and with my luck I would definitely injure myself.
So I came up with this - sorry if someone has already posted a similar method.



[Darios]

Clever.



[wood-of-1kind]

Ingenious and am so glad that you have shared this technique. I've been a member here a long time and have
never seen this method before. Thank you for posting and sharing your idea.



[MPVic]

Ingenious and am so glad that you have shared this technique. I've been a member here a long time and have
never seen this method before. Thank you for posting and sharing your idea.

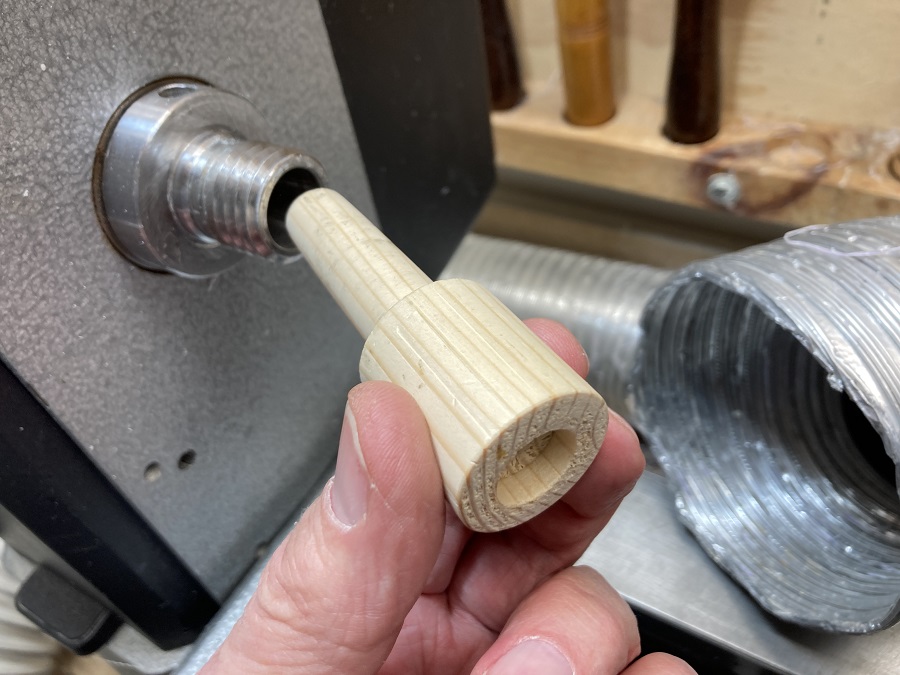

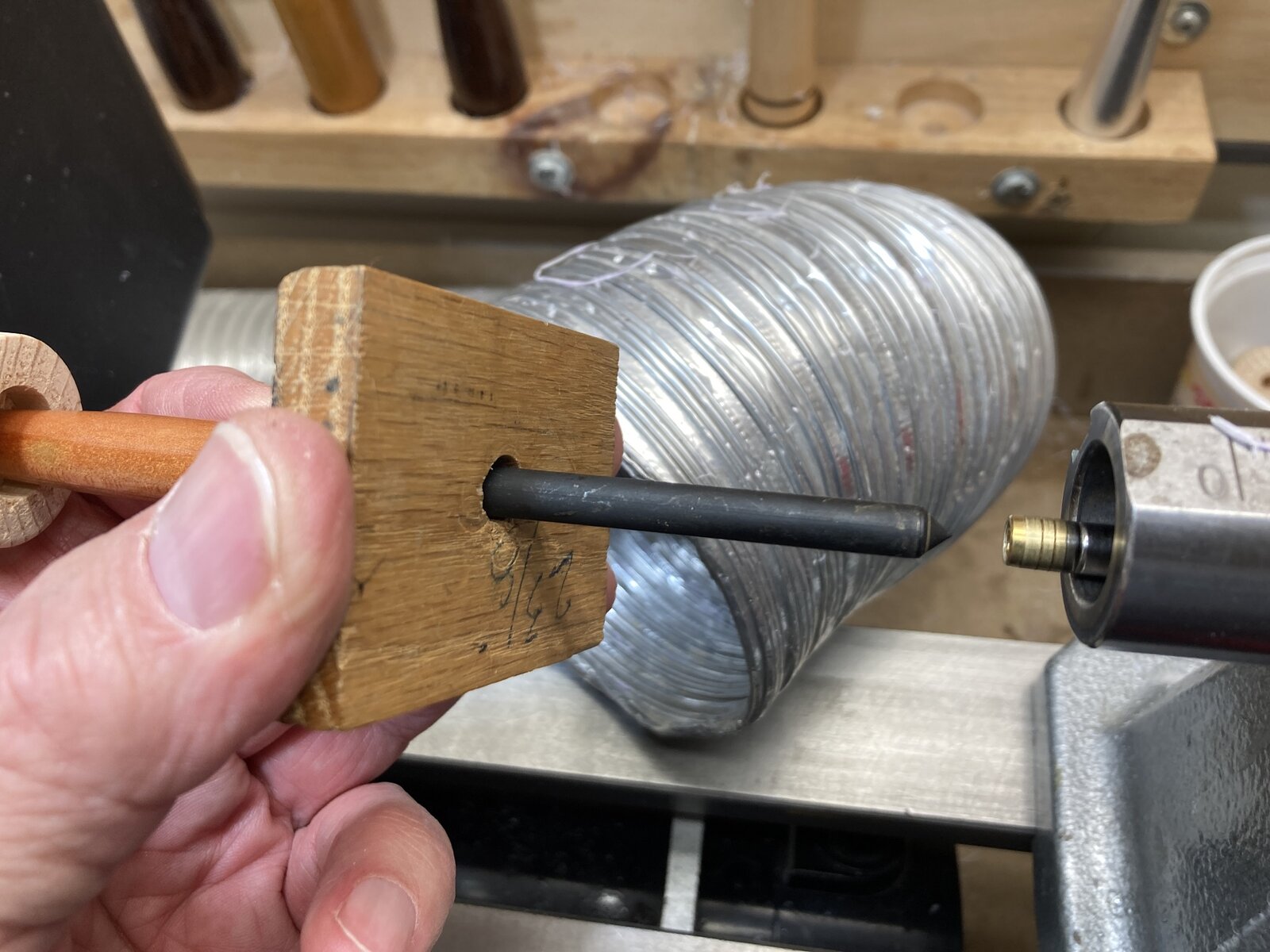

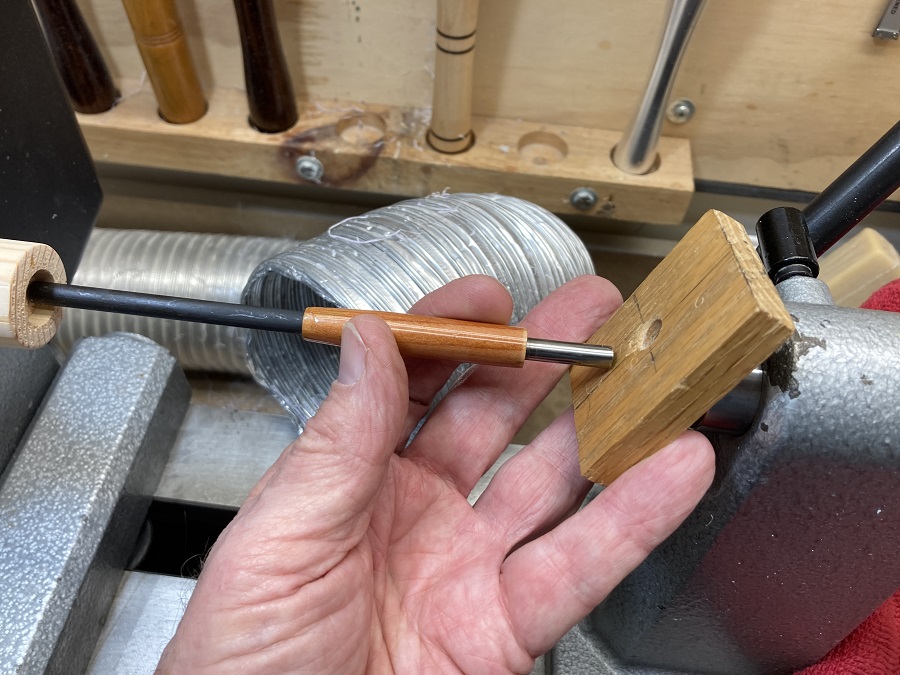

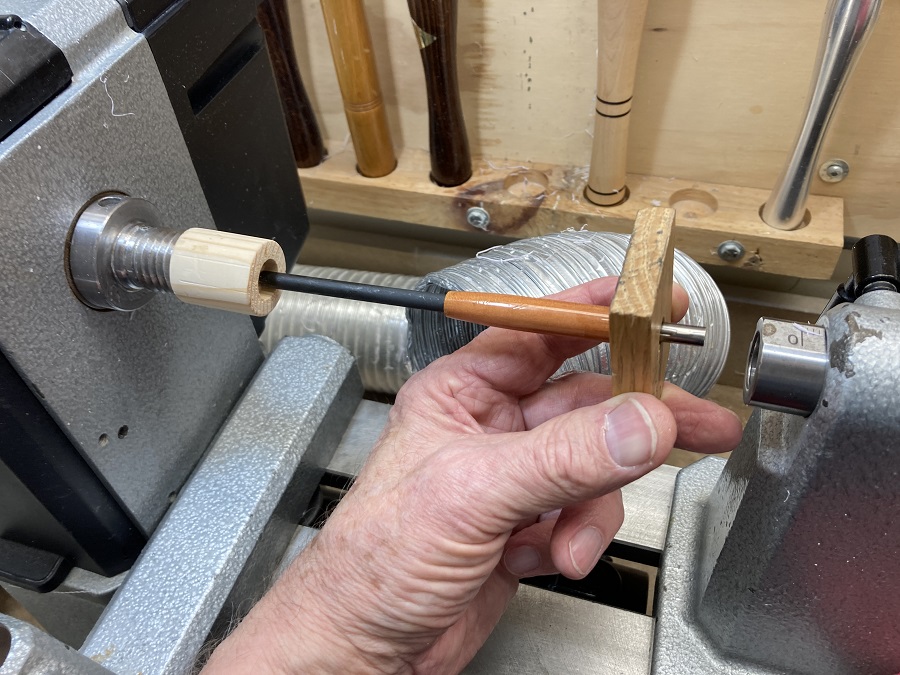

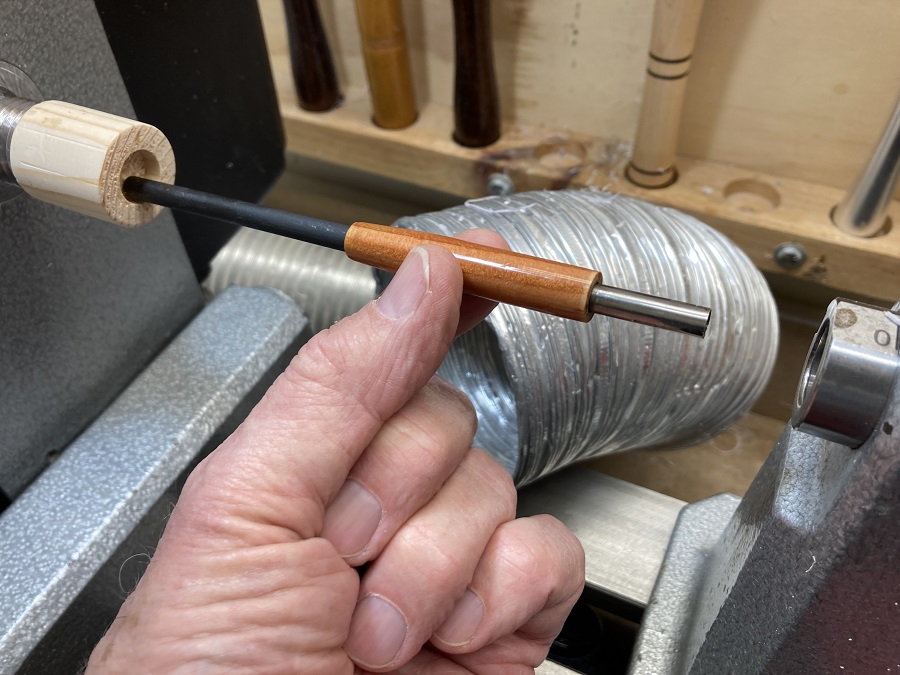

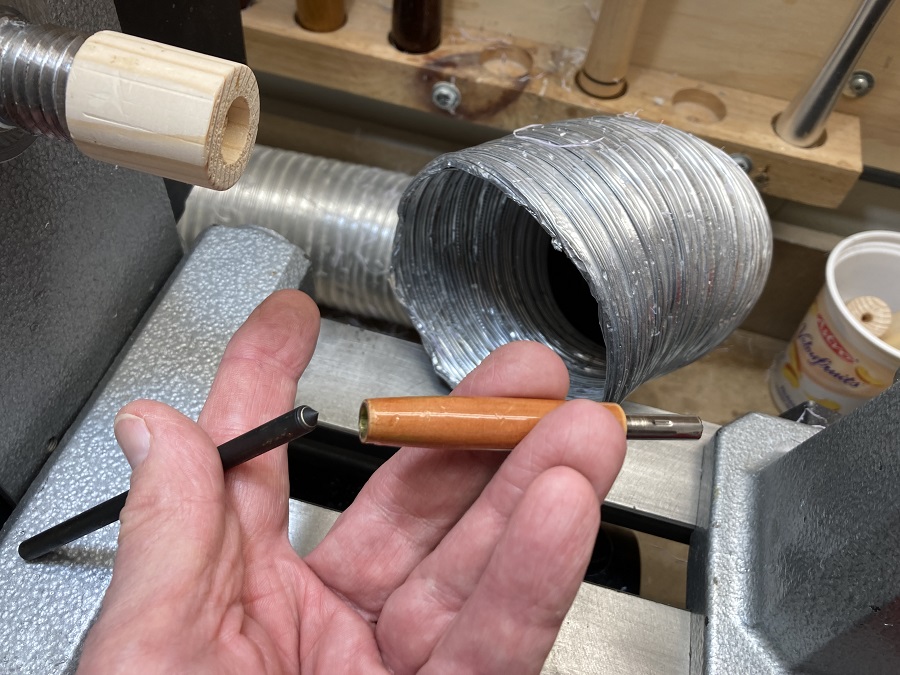

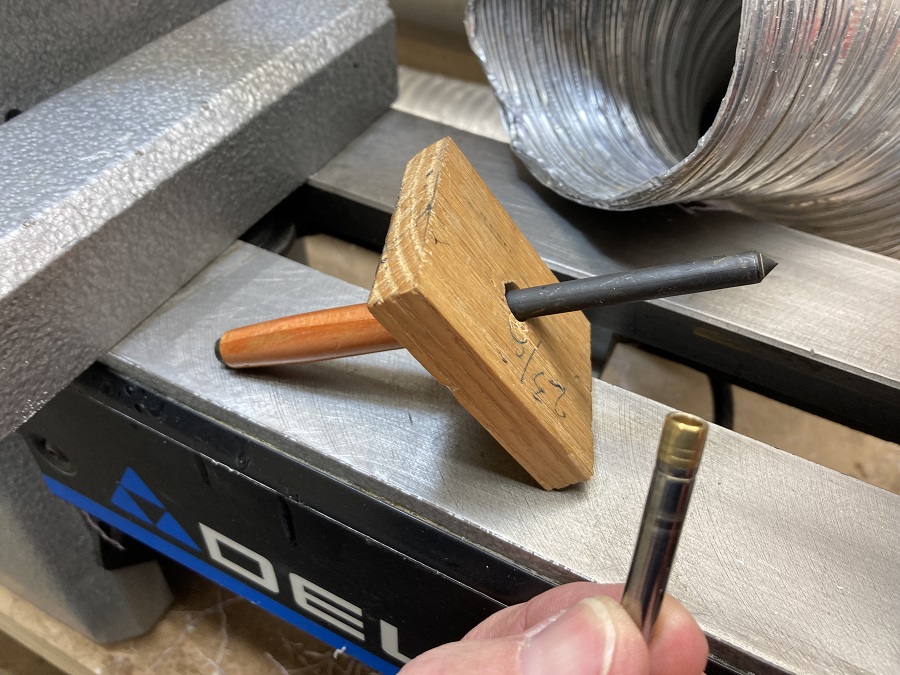

Thank you. The wooden MT2 was meant for a pen-press-on-the-lathe but then I thought that could be the stationary hammer against the transfer punch.



[Monty]

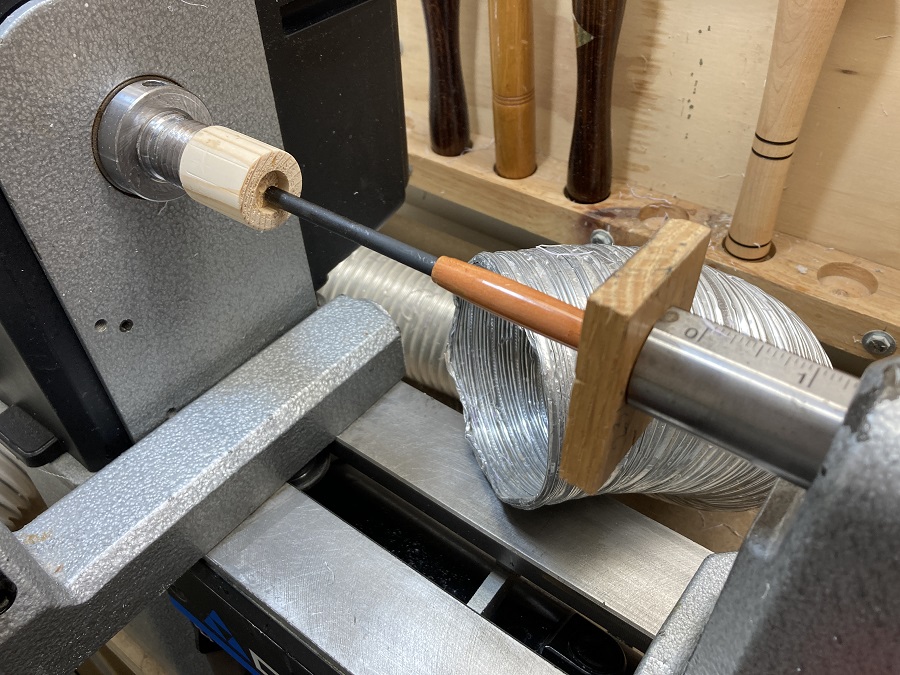

I do something similar, but I put the transfer punch in my drill press and press down through the tube to push the transmission out.



[Wmcullen]

That's a very useful trick. Thanks for the demonstration!!



[wouldentu2?]

Good idea, you can use a drill bit sizing card in place of the the wood to get a closer fit.



[Woodchipper]

Interesting. My father said there was a saying in the USAF, "Don't force it. Use a bigger hammer."
