three new pens

[jrbeall]

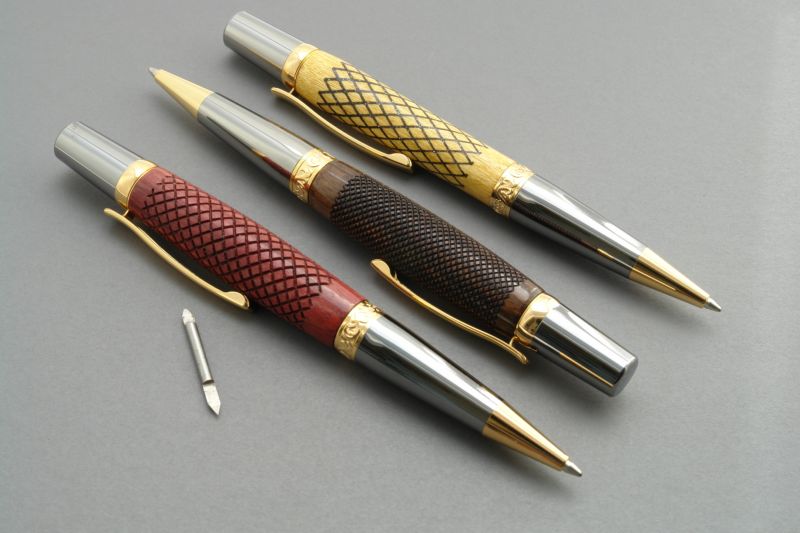

I just finished these three pens using the Pen Wizard. They were all done with the small engraving bit shown but any pointed bit will work. The darker, Macasar ebony used 24 passes, left and right. The other two used 12 passes left and right. They probably took about 15 min each. The gear box was set up for 12-60 and 22-50. The lemonwood pen is filled with epoxy and ebony dust with just a little silver glitter thrown in. They all have one coat of Danish oil and then buffed.



[Bob Hewson]

Nice job JR.

You keep coming up with new ways to accomplish refinements that the wider cutters can't do.

Keep them coming...

Bob



[markgum]

wow. those are very nice looking pens.



[Jim15]

Great looking pens.



[ed4copies]

Are you selling those bits, JR??

Oh, NICE look!!



[artistwood]

center one reminds me of a rifle stock. they are all very nicely done..........bear



[cnirenberg]

Great job, I like the center pen.



[mostangrypirate]

totally like the smaller bits. great pens.



[leaycraft]

Great work! Gotta try the 24 pass looks totally cool.
Not to mention great service from JR and the folks at Beall tools.

john



[leehljp]

I am looking forward to making my own bits like you did. Great looking pens!



[jrbeall]

Thanks for all the kudos. I have just found a source for that bit. We will have them next week in solid carbide for $19.00.



[kruger]

hi,

i don't see them on your site!



[stephenwjackson]

veerrry nice!! I especially like the one in the center.



[Borg_B_Borg]

I really like the center pen.

I can't help but point out the irony that the message on the Pen Wizard page on the Beall website states:

"We expect that you will investigate, refine and expand its possibilities and share your findings with the world. "

The Pen Wizard has been available for half a year with many owners, but thus far the only person who has consistently lived up to JR's expectation of investigating, refining, and expanding the PW's possibilities has been JR himself.

Steve



[Marc]

Very nice work, great vision.



[PenTurnerJohn]

I just finished these three pens using the Pen Wizard. They were all done with the small engraving bit shown but any pointed bit will work. The darker, Macasar ebony used 24 passes, left and right. The other two used 12 passes left and right. They probably took about 15 min each. The gear box was set up for 12-60 and 22-50. The lemonwood pen is filled with epoxy and ebony dust with just a little silver glitter thrown in. They all have one coat of Danish oil and then buffed.

JR, another great effort by the inventor/creator himself! Thanks for sharing these ideas with us.

Can you give us a chart showing which gears to change for these pens you've just completed?

Thanks,



[glycerine]

I like the middle one. The pen wizard looks like it would be handy for making wooden razor handles.



[artme]

Very Nice work!!



[ELCAMINO63]

wow , there isnt any words i can come up with to describe them if i did it wouldnt do them justice , great job



[mickeyj2]

Just got my Pen Wizard and am trying to find the indexing wheel chart mentioned in one of the posts. The link in the post (Smithart.us) no longer works. Does anyone know of another site where you can print the chart from?



[Gregf]

http://content.penturners.org/library/tools_and_jigs/index_template_for_pen_wizard.pdf



[johncrane]

Excellent cutter JR!
The detail on the pens is very fine,and looks great. well done.
