This may be accident waiting to happen

[Phillip Kelley]

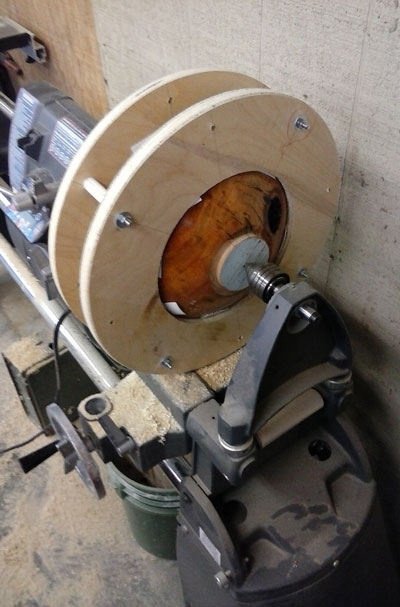

Small lathes are a pain at times! But, I am trying a "do-nut" chuck that I heard about; to face off the bottom of a Cherry bowl... I turned the bowl on a small Jet and am using my ShopSmith (that I got over a year ago) for the 1st time because it's variable speed adjustment! I am turning the 16" "chuck" at 350 RPM...maybe I should have just used a sander..:doctor:



[monophoto]

I suggest turning the bolts around so that they extend toward the headstock and not toward your left hand as you are turning the bottom of the bowl.



[MarkD]

I made one of those and used it many times before I purchased a vacuum chuck, and a few times since. Go slow and definitely turn the bolts around.



[terry q]

Go slow and you will be ok. Just remember you have a pretty big flywheel that produces a lot of inertia. When you remove the tailstock slow the lathe before hitting the stop button or the piece unwind itself. DAMHIKT



[CrimsonKeel]

Along with the turn the bolt around id counter sink them also so nothing is sticking out at all. but pretty cool idea and i hope it works



[KenV]

Please make sure the wood edges are well rounded over and have no splinters. Painting the edges of the wood red or yellow is a good reminder visually.

There are some things that just cannot be mounted any other way including things with holes in them.
