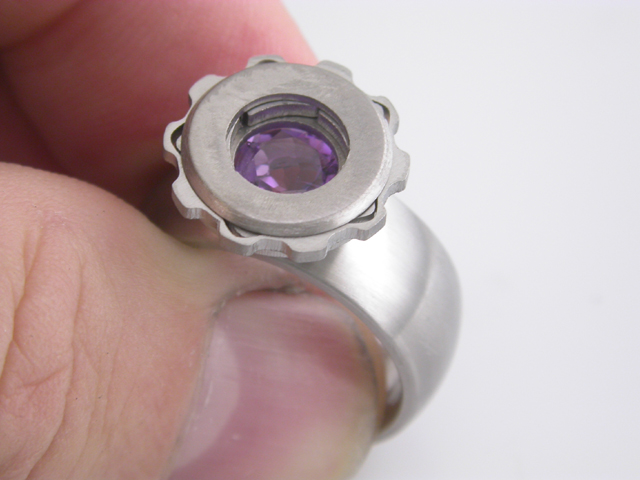

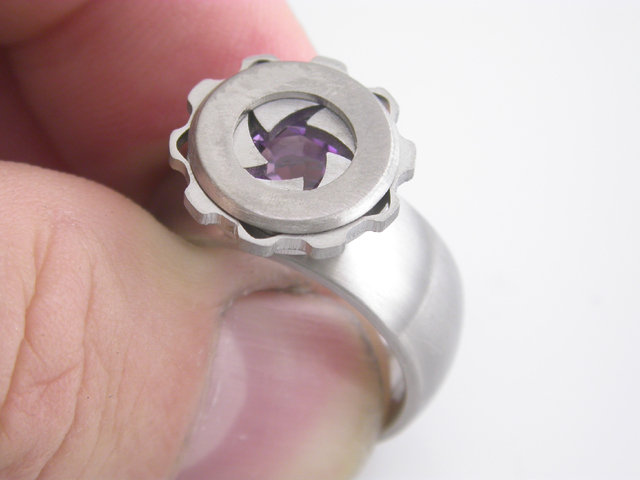

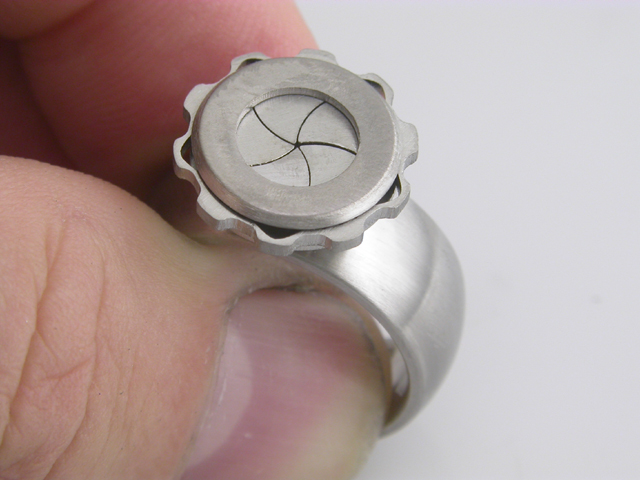

Here's a ring I had on the drawing board for a while. The idea is to have a working iris mechanism hide something in the middle like a picture, message, or a stone. It took several iterations to get the mechanism to work properly, as it would tend to wander off center when the dial is rotated, and the shutter pieces would get out of time. I finally nailed down the mechanism to working properly by moving the gear teeth over by .004" That was the difference between not working well at all and being perfectly dialed in. It may or may not stay in this configuration, but at least the mechanism works now. It's laser cut from titanium sheet, and I even laser cut the holes in the ring that the pins stick into. It may or may not be practical, but it was fun to dial in.



[firewhatfire]

Could see you modify it for a camera lens shape. Make the main body of the ring a camera and make that the lens



[PenPal]

Bruce,

I predict your new ring will get a far reaching exposure especially with Photographers and their families and there are more of them than Penmakers, your ideas are solid gold keep them coming.

Kind regards Peter.



[btboone]

The camera idea is great. I'll think about that.



[BRobbins629]

Yet another great idea on such a small canvas.



[btboone]

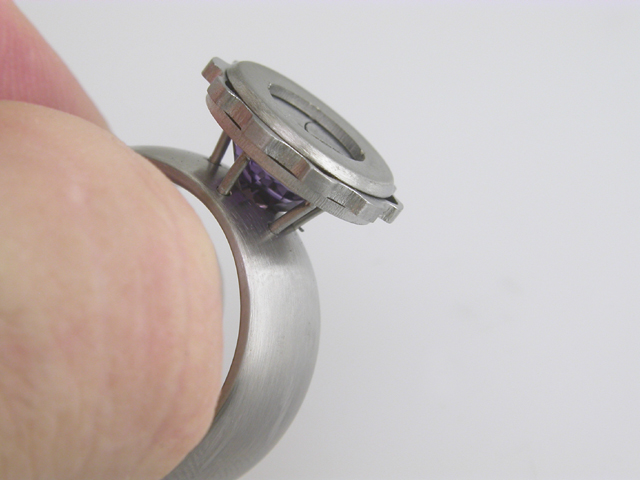

I had to wear a magnifying visor to assemble this one! The little gear pieces are tiny. I had to dial in tolerances, like the axle holes, allowing for laser kerf. When I cut through the ring shank with the 5 small holes for the pins, leftover pieces somewhere around .010" diameter rods came out of those holes. It was pretty neat to be able to dial in the numbers and have them stay consistent.
