The five cut method to true a crosscut sled!

Signed-In Members Don't See This Ad

mmayo

Member
Joined
Jan 12, 2013
Messages
2,442
Location
Tehachapi, CA

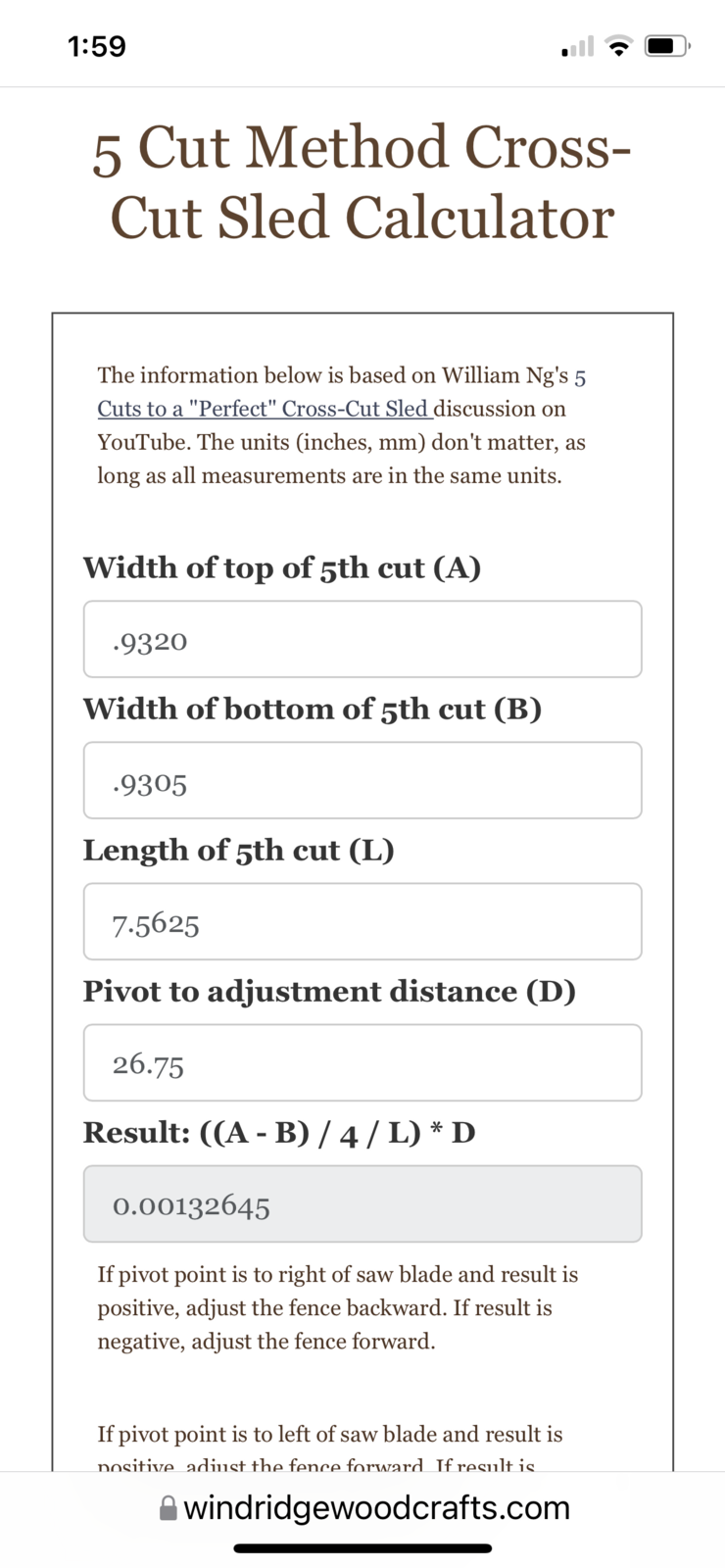

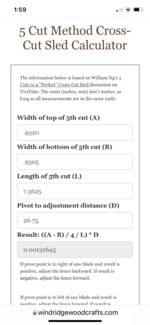

I tried it on my Rockler crosscut sled and after adjustment I stopped at 0.00132645” off. It’s quick and you only waste a scrap piece anyway. We all have calipers and the units don’t matter as long as you stay with one unit.


Attachments

  • D996D5D1-9425-4EB3-8BBF-6BDD026A5990.png
    286.9 KB · Views: 141

rherrell

Member
Joined
Aug 22, 2006
Messages
6,106
Location
Pilot Mountain, NC
That's how I do it too. You should see all the unused screw holes in the bottom of my sleds from trying to get it "perfect". :) I've never used the calculator, I just measure the strip created by the fifth cut, if it's the same at both ends you're good.
