Spalted oak fountain pen

Signed-In Members Don't See This Ad
See more from Fred Bruche

Fred Bruche

Chapter Steering Committee
Joined
Feb 11, 2018
Messages
734
Location
Philadelphia 19146
Fresh from the shop but it almost didn't make it. This prototype includes several new ideas for me, the main one being the epoxy parts were poured in predrilled blanks, left to cure then drilled for the final sizes for the pen interior, leaving a "sleeve" to seal the inside. The main advantage is that I was able to use semi-punky wood that otherwise might not have made it without interior support (despite using a lot of CA).
But since it was a first, things went wrong a few times, ultimately leading to the wabi-sabi look, with the resin peaking through the wood in several places (mostly due to slopy remounting in the chuck). As I was progressing I thought adding black accent bands to some areas would enhance the look (I used black tinted CA) but that also contributed to the wabi-sabi look. Overall it won't be the first and last try, I already have several in the making, but hopefully I will remember what I have learned with this one :)
C&C welcome.

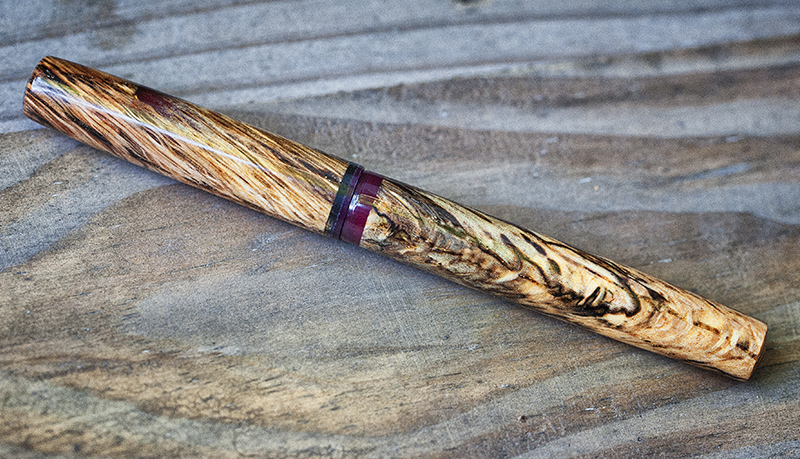

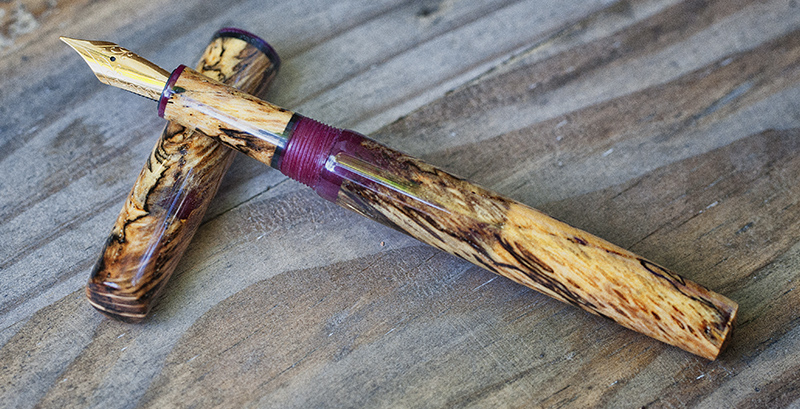

XC3Y7744.jpg XC3Y7750.jpg

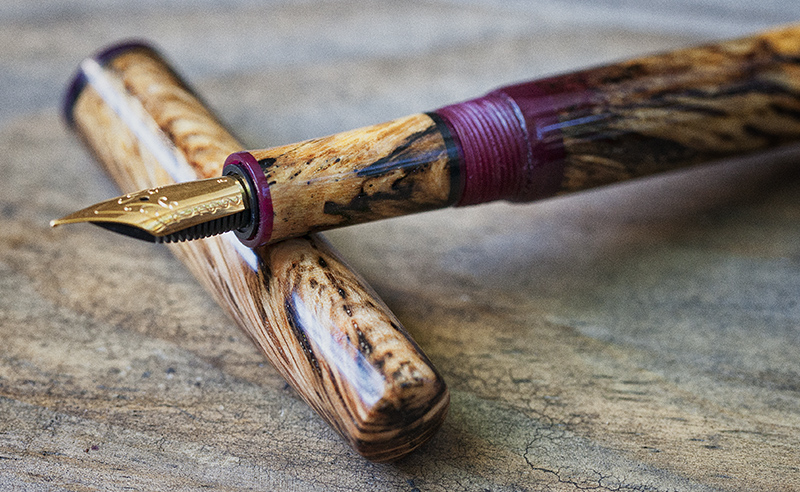

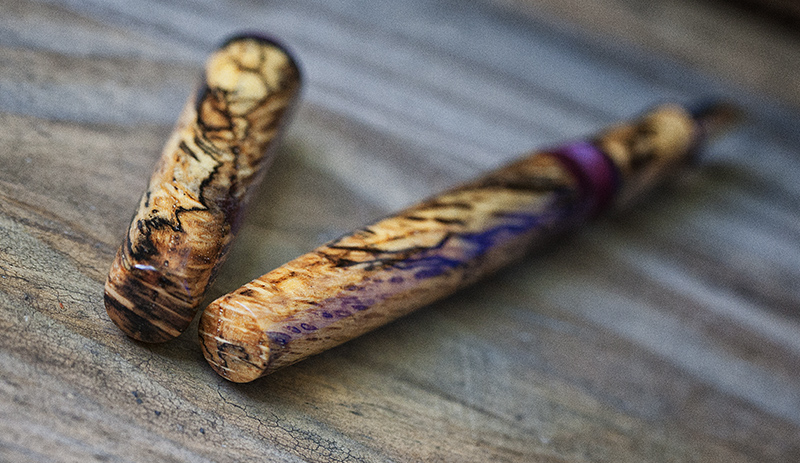

XC3Y7757.jpg XC3Y7758.jpg

Signed-In Members Don't See This Ad

mark james

IAP Collection, Curator
Joined
Sep 6, 2012
Messages
11,192
Location
Medina, Ohio
Really cool techniques. I love the innovation. That blank is also mighty nice - well done to give it a new life. Thanks for sharing.


sorcerertd

Member
Joined
Sep 30, 2019
Messages
833
Location
North Carolina, USA
I love this! As for me, I love wabi-sabi. Our experiences, scars, and imperfections have shaped us all into who we are inside and I love to see that reflected in nature and in our art. Kintsugi also comes to mind here. My plan B "fixes" are often my favorite features of the finished product.


CjG78

Member
Joined
Feb 2, 2020
Messages
555
Location
Australia
It turned out awesome! Wabi sabi is in!! All of my pens have some little thing that isn't perfect. I like the timber section!
There's a fine line making them like this, they are often not very concentric but work themselves out once sleeved and mounted on the mandrel.
Love it mate, great job


Fred Bruche

Chapter Steering Committee
Joined
Feb 11, 2018
Messages
734
Location
Philadelphia 19146
It turned out awesome! Wabi sabi is in!! All of my pens have some little thing that isn't perfect. I like the timber section!
There's a fine line making them like this, they are often not very concentric but work themselves out once sleeved and mounted on the mandrel.
Love it mate, great job

Thanks mate!
I don't struggle too much with this type of section, I start from the back with the piece in a 4-jaw chuck, M10x1 threaded tenon to fit the body, about 1 cm drill, minimal shaping, close to final size at that junction. Then reverse mount via the tenon and further drilling and shaping. Where I struggle the most is the internal threads, mostly for that I typically have a backup piece to make another section in case the first one fails. The ready-made section sleeves that Beaufort Ink started selling a few months back are more tempting every time I make a section!
